Prominence Home MaCenna 51663 User manual

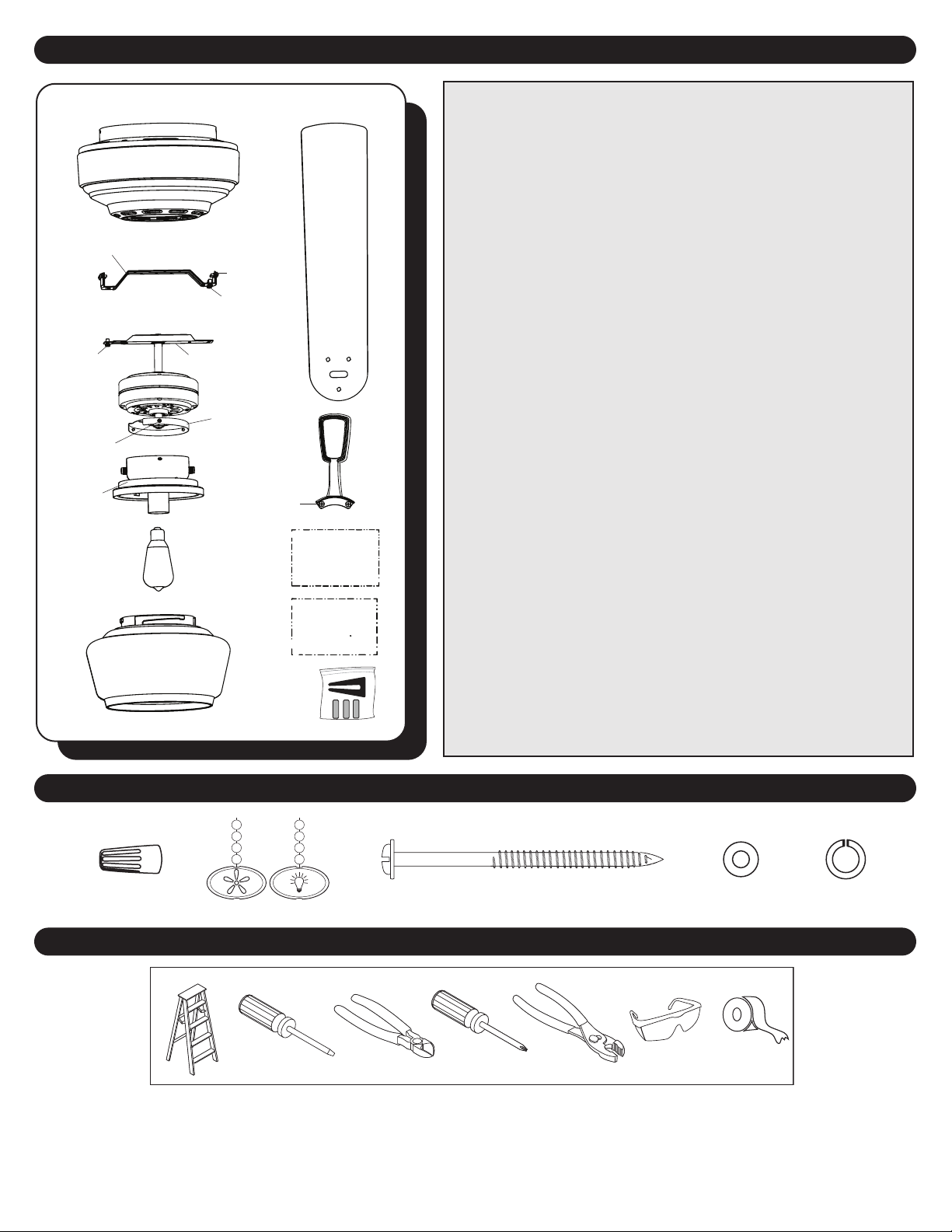

PACKAGE CONTENTS
2
HARDWARE CONTENTS
1. Motor Housing
2. Upper Mounting Bracket
3. Motor Housing Screw (x4)
4. Upper Bracket Screw (x2)
5. Lower Bracket Screw
6. Lower Mounting Bracket
7. Motor
8. Fitter Plate
9. Fitter Plate Screw (x3)
10. Light Kit
11. E26-base LED Bulb
12. Glass Bowl
13. Blade (x5)
14. Blade Arm (x5)
15. Motor Screw (x10)
16. Hardware Kit
17. Owner’s Manual
18. Blade Balancing Kit
AA. Wire Connector (x3)
DD. Pull Chain Extension (x2)
JJ. Secondary Support Screw
KK. Support Washer
MM. Secondary Spring
Washer
Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
TOOLS REQUIRED (not included)
Tools required for assembly: Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, Wire Cutters
and Wire Strippers
Helpful Tools: AC Tester Light, Tape Measure, and Wiring Handbook
Hardware Kit
Owner’s
Manual
13
12
11
10 15
1
2
3
4
56
7
9
8
14
16
17
JJ KKDD MMAA
18

3
A.16.61 in. B. 8.79 in. C. 8.89 in.
When selecting a location for installation, ensure the blades will be at least 30 inches from any wall or obstruction
and at least 7 feet above the oor.

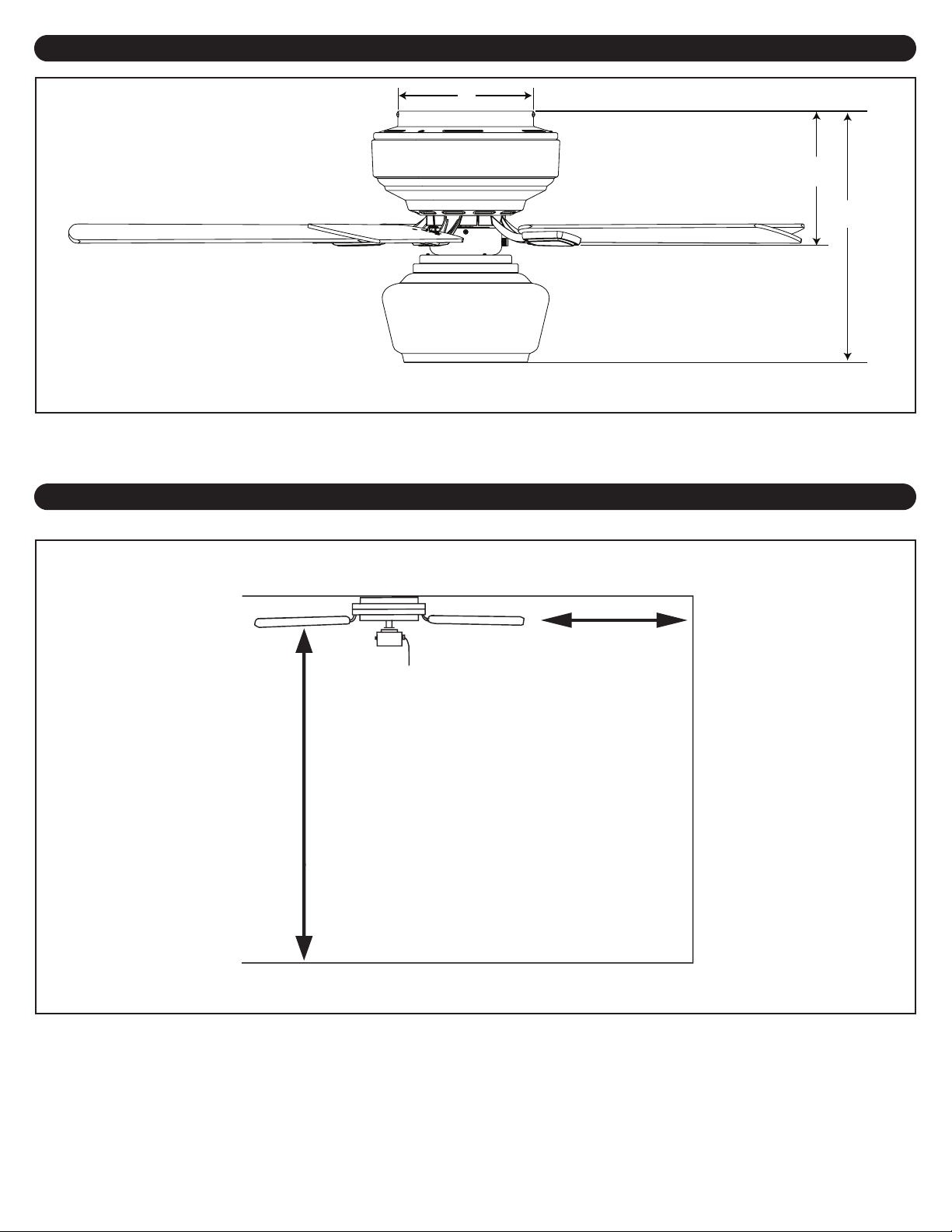

DIMENSION REFERENCE
LOCATION FOR INSTALLATION
B
A
C
7 ft. Min
30 in. Min
Wall
Ceiling
Floor

444
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the
blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are not meant
to cover all possible conditions and situations that may occur. It must be understood that common sense, caution
and care are factors which can not be built into this product. These factors must be supplied by the person(s)
installing, caring for and operating the fan.
The fan weight is Net Weight: 18.01 lbs (8,17 kg). Be sure the outlet box (not included) is securely attached to the
building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious injury.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device (if applicable).
CAN ICES-005 (B) / NMB-005 (B)
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
HKC-US
3350 Player’s Club Parkway, #225
Memphis, TN 38125
1-877-706-3267
SAFETY INSTRUCTIONS
CAUTION:

5
WARNING:
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not
sucient to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the
oor and at least 18 inches (0.5 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for
fan support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the National Electrical Code, ANSI/NFPA 70-1999 and
local codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a
qualied licensed electrician.
Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To
reduce the risk of re or electric shock, do NOT use a full-range dimmer switch to control the fan speed.
SAFETY INSTRUCTIONS

6
ASSEMBLY INSTRUCTIONS
3
2
1
3. Install the upper mounting bracket to the outlet box
(not included) using the screws and washers provided
with the outlet box.
WARNING: To reduce the risk of re, electric shock,
or personal injury, mount to the outlet box marked
“acceptable for fan support”.
2. Note: Remove the wire restraint from the wires on top
of the lower bracket.
Remove the preassembled lower bracket screw from the
lower mounting bracket and the upper bracket screws
from the upper mounting bracket.
4. Place the tab of the lower mounting bracket into the
large slot in the the mounting bracket.
4
Upper
Bracket
Screw
Lower
Mounting
Bracket
Lower
Mounting
Bracket
Lower
Bracket
Screw
Outlet Box
Upper
Mounting
Bracket
Upper
Mounting
Bracket
Upper Mounting Bracket
Tab
Large Slot
1. Turn OFF the electrical power at the main fuse or circuit
breaker.
DANGER: Failure to disconnect the power supply prior to
installation may result in serious injury or death.

7
ASSEMBLY INSTRUCTIONS
Secondary
Support
Screw
Open Loop Support
Washer
Secondary
Spring
Washer
Secondary
Support Screw
Braided Cable
Outlet
Box
Brace
8
7
6
7. Install secondary support screw, secondary spring
washer, and support washer partly into the side of the
brace installed in the ceiling. Then lift the braided cable up
and over the ceiling brace and place the open loop of the
braided cable around the secondary support screw.
Note: The ceiling support brace may not be accessible
from below. If not, it must be accessed from above.
Important: The braided cable must make a complete
circle around the support brace to secure the fan.
8. Tighten the secondary support screw securing the
braided cable.
SECONDARY HANGING SYSTEM
For installation in the United States: Building codes
in the U.S.A. do not require installation of a Secondary
Hanging System. If desired, the braided cable can be cut
and removed using wire cutters (sold separately). Skip to
Step 9.
For installation in Canada: In compliance with building
codes in Canada, installation of the Secondary Hanging
System is required.
6. Feed the loop of the braided cable, preassembled to the
motor assembly, up through the outlet box mounted in
the ceiling.
5. Reinstall the previously removed lower bracket screw
and upper bracket screws to secure the lower mounting
bracket to the upper mounting bracket.
Upper
Bracket
Screw
Lower
Bracket
Screw
Lower
Mounting
Bracket
Upper Mounting Bracket
5

8
ASSEMBLY INSTRUCTIONS
Black (live)
White (neutral)
Bare/Green (ground)
Black Blue White
Green
10. Temporarily lift the motor housing to the upper
mounting bracket to determine which two motor
housing screws in the sides of the upper mounting
bracket align with the slotted holes in the top edge
of the motor housing. Partially loosen the two motor
housing screws that align with the slotted holes. Remove
the other two motor housing screws from opposite sides
of the upper mounting bracket. Slide the motor housing
over the motor, aligning the slotted holes in the motor
housing with the loosened motor housing screws in the
upper mounting bracket. Twist the motor housing to
lock. Then re-insert the two previously removed motor
housing screws and securely tighten all screws.
11. Align each twist lock connector in the direction of its
corresponding hole in the blade. Place the blade over the
twist lock connectors. Rotate each twist lock connector so
that it is perpendicular to the hole in the blade. Repeat for
the remaining blades.
9
9. Use wire connectors to connect the fan wires to the
power supply wires according to the wiring diagram
and the following instructions:
• Connect the green wire from the lower bracket to the
bare/green (ground) supply wire.
• Connect the white wire from the fan to the white
(neutral) supply wire.
• Connect the black and blue wires from the fan to the
black (hot) supply wire.
Note: If there is a second hot/power wire coming from
the outlet box, connect it to the Blue (light power) fan
wire for separate light and fan control.
Important: After the connections have been made, the
wires should be turned upward and pushed carefully
up into the outlet box. Place the black and white wire
connections on opposite sides of the outlet box.
Wire Connector
12. Align the two motor screws in the blade arm with
two motor screw holes in the underside of the motor
assembly. Secure the blade arm to motor assembly using
two motor screws. Completely secure each blade arm to
the motor assembly before moving to next.
Note: The notch in the tter plate allows a Phillips
screwdriver (not included) access to motor screws.
Twist Lock
Connector
Blade
Blade Arm
Motor
Housing
Screw
Upper Mounting Bracket
Slotted
Hole
Motor
Housing
Motor Screw
Notch
Blade Arm
Warning: Do NOT use a
full-range dimmer switch to
control the fan speed.
12
11
10

9
13
14
15
16
ASSEMBLY INSTRUCTIONS
14. Attach the glass bowl to the light kit by twisting the
glass bowl rmly in a clockwise direction until it is secure.
CAUTION: Avoid cross-threading the glass during
installation. Improper installation could cause the glass
bowl to be dicult to remove or fall, which could cause
serious injury.
13. Remove the three tter plate screws preassembled to
the tter plate. Then, connect the 9-pin connector from
fan to the 9-pin connector from the light kit. Secure the
light kit with the tter plate screws.
Note: Align the notch in the tter plate with the reverse
switch on the light kit.
Restore the power at the main fuse or circuit breaker and
wall switch.
Assembly is complete.
16. Attach pull chain extensions to the pull chains.
Note: When facing the reverse switch, the fan pull chain is
on the right and the light pull chain is on the left.
15. Install the E26-base LED bulb into the socket of the
light kit.
Important: Make sure you allow the bulb and light kit to
cool before you replace the bulb.
Bulb
Fan Pull
Chain
Light Pull
Chain
Glass Bowl
Glass Bowl
Light Kit
Light Kit
9-pin
Connector
Fitter Plate Fitter Plate
Screw
Reverse
Switch

10

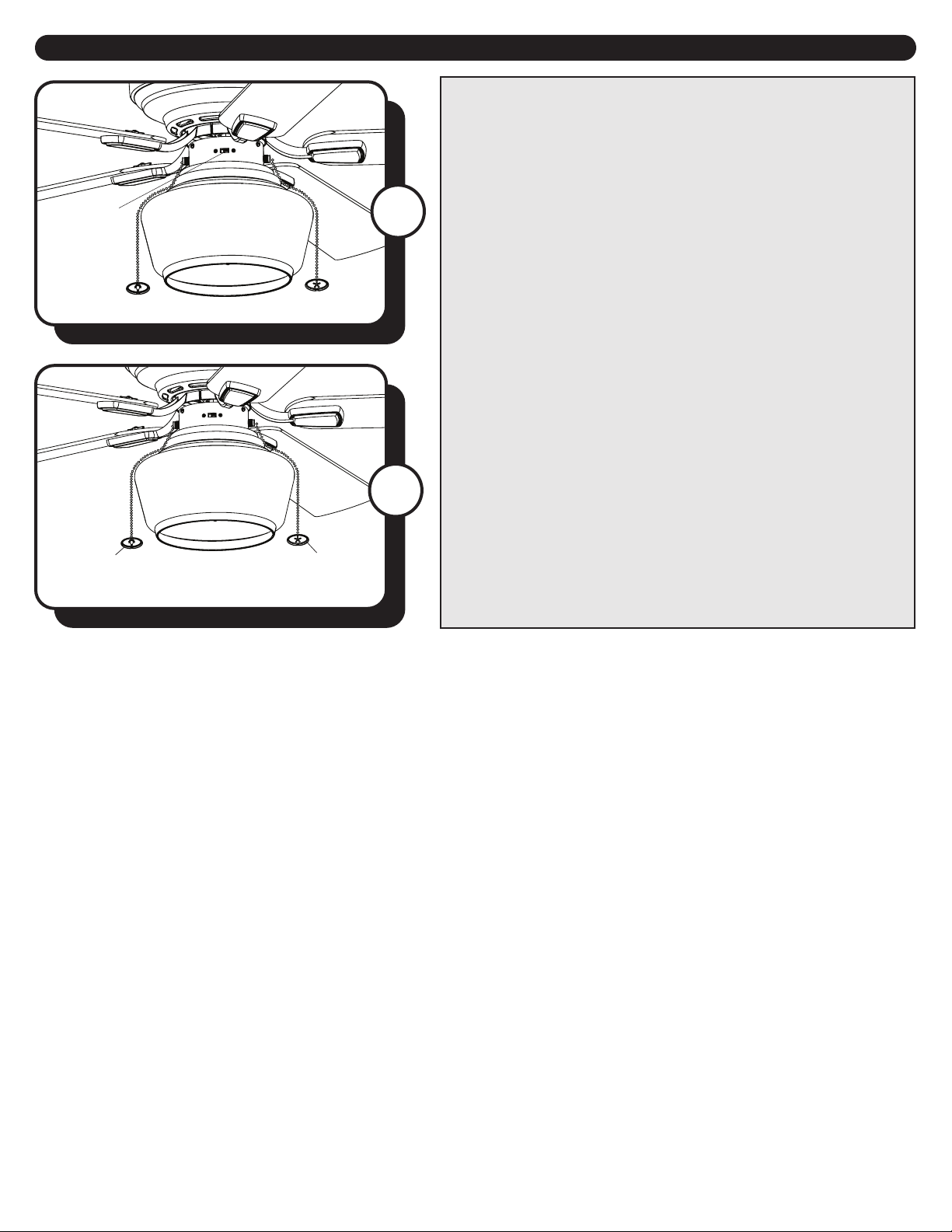

OPERATING INSTRUCTIONS
1
2. The fan pull chain has four positions to control fan
speed. One pull is HIGH, two is MEDIUM, three is LOW
and four turns the fan OFF. The light pull chain has two
positions -- OFF and ON.
2
1. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your thermostat
setting in winter without feeling a dierence in your
comfort.
In warmer weather, push the reverse switch to the left
for downward airow creating a wind chill eect.
In cooler weather, push the reverse switch to the right
for upward airow that can help move stagnant, hot air
o the ceiling area.
Important: Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate.
Reverse
Switch
Fan Pull
Chain
Light Pull
Chain

11
PROBLEM SUGGESTED REMEDY
TROUBLESHOOTING
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-706-3267, 8 a.m. - 5 p.m. Central, Monday - Friday.
WARNING: To reduce the risk of re, electrical shock or personal injury, shut o the power supply to fan before
you begin any maintenance tasks.
1. Fan does not start: 1. Make sure that the wall switch is turned ON.
2. Check main and branch circuit fuses or circuit breakers.
3. Check all wire connections from household supply wires to the fan.
4. Make sure forward/reverse switch pushed completely left or right. Fan will not operate
when switch is in the middle.
1. Make sure all screws in motor housing are snug, but not overtightened.
2. Make sure the screws that attach the blade arms to the motor are tight.
3. Some fan motors are sensitive to signals from Solid State variable speed controls. DO NOT
USE a Solid State variable speed control.
4. Ensure fan does not wobble excessively (see Fan wobbles solutions below).
1. Ensure the mounting bracket is tightened securely to outlet box and outlet box is
mounted rmly to ceiling joist.
2. Ensure all blades are screwed rmly into blade arms.
3. Ensure all blade arms are tightened securely to motor.
4. Switch one blade with a blade from the opposite side. Or balance the fan using the blade
balancing kit.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
1. Ensure the blue wire from fan is connected to hot power supply wire.
2. Check for faulty light bulbs.
3. Ensure total wattage of bulbs does not exceed 180 watts (for incandescent bulbs only).
2. Fan is noisy:
3. Fan wobbles:
4. Light does not work:

LIMITED LIFETIME WARRANTY
Model Name: 52” Ceiling Fan
Model No: 51663 - Matte Black
51664 - Brushed Nickel
51665 - White
12
Set forth below, the manufacturer, Hong Kong China Electric appliance Company (HKC) warrants the fan
motor for this ceiling fan to be free from defects in workmanship and material for the life of the product.
Also, subject to the limitations below, HKC warrants all ceiling fan parts (“ceiling fan parts” excludes the
motor and parts made in whole or in part with glass) to be free from defects in workmanship and material
for a period of one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product through a
store or contractor. Ceiling fan part defects must be reported within the rst year from the date of purchase.
Parts made in whole or in part with glass and the nishes of metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. HKC assumes no responsibility whatsoever for fan installation. Any service performed by a non-
licensed electrician will render the warranty invalid.
HKC’s sole responsibility shall be to repair or replace the motor, parts, or product within the terms stated
above. HKC shall not be liable for any loss or damage of any kind, including any incidental or consequential
damages resulting directly or indirectly, from any breach of warranty, express or implied, or any other
failure of this product. Some states do not allow the exclusion or limitation of incidental or consequential
damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, HKC agrees to replace the defective part
without charge, or at its option, to replace the ceiling fan with a comparable or superior model.
HKC’s warranties are limited to the written warranties set out in this HKC ceiling fan limited lifetime
warranty. All other express and implied warranties, including, without limitation, the implied warranty of
tness for a particular purpose and the implied warranty of merchantability are disclaimed. Some states do
not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
To obtain Service, please contact the Service Department:
1-877-706-3267, 8 a.m. - 5 p.m. Central, Monday - Friday.
