Prominence Home Emporia 51021 User manual

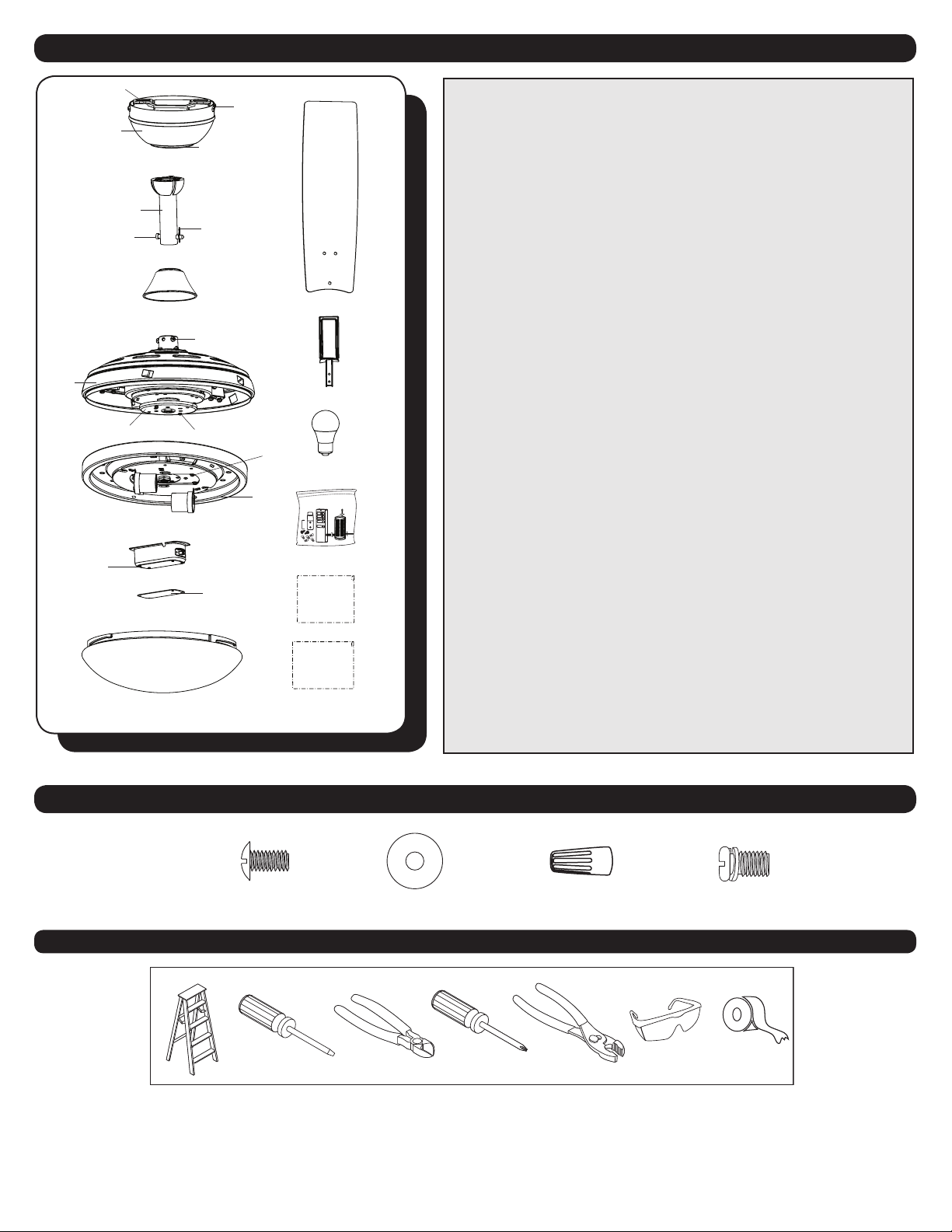

PACKAGE CONTENTS
2
HARDWARE CONTENTS
25 26 27 28
1. Mounting Bracket
2. Mounting Bracket
Screw (x4)
3. Canopy
4. Canopy Cover
5. Downrod
6. Downrod Pin
7. Downrod Clip
8. Yoke Cover
9. Blade Arm (x5)
10. Set Screw (x2)
11. Motor Assembly
12. Fitter Plate
13. Fitter Plate Screw (x4)
14. Light Kit
15. Switch Housing
16. Switch Housing Screw
(x4)
17. Switch Housing Cover
18. Switch Housing Cover
Screw (x4)
19. Glass Bowl
20. Blade (x5)
21. E26-base LED Bulb (x2)
22. Remote Pack
23. Hardware Kit
24. Owner’s Manual
25. Blade Screw (x15)
26. Blade Washer (x15)
27. Wire Connector (x6)
28. Motor Screw (x10)
Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
Hardware
Kit
Owner’s
Manual
TOOL REQUIRED (not included)
Tool required for assembly: Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, Wire Cutters
and Wire Strippers
Helpful Tools: AC Tester Light, Tape Measure, and Wiring Handbook
1
4
3
2
5
7
6
8
10
11
12 13
14
15
17
16
18
19
20
9
21
22
24
23

MOUNTING OPTIONS
3
Two Mounting Options
Downrod MountAngled Ceiling Mount (Up to 10 degrees)
A. 12.75 in. B. 8.53 in. C. 5.13 in.
DIMENSION REFERENCE
C
A
B
Choose one of the following mounting options:
Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer downrod
(not included).
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is not
steeper than 10°.

4
WARNING:
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not
sucient to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the
oor and at least 18 inches (0.5 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for
fan support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the national electrical code, ansi/nfpa 70-1999 and local
codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a
qualied licensed electrician.
Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To
reduce the risk of re or electric shock, do NOT use a full-range dimmer switch to control the fan speed.
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing
the blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are not
meant to cover all possible conditions and situations that may occur. It must be understood that common
sense, caution and care are factors which can not be built into this product. These factors must be supplied
by the person(s) installing, caring for and operating the fan.
The fan weight is Net Weight: 20.04 lbs. Be sure the outlet box (not included) is securely attached to the
building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious injury.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into and outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
HKC-US
3350 Player’s Club Parkway, #225
Memphis, TN 38125
1-800-643-0067
SAFETY INSTRUCTIONS
CAUTION:

5
ASSEMBLY INSTRUCTIONS
2
1

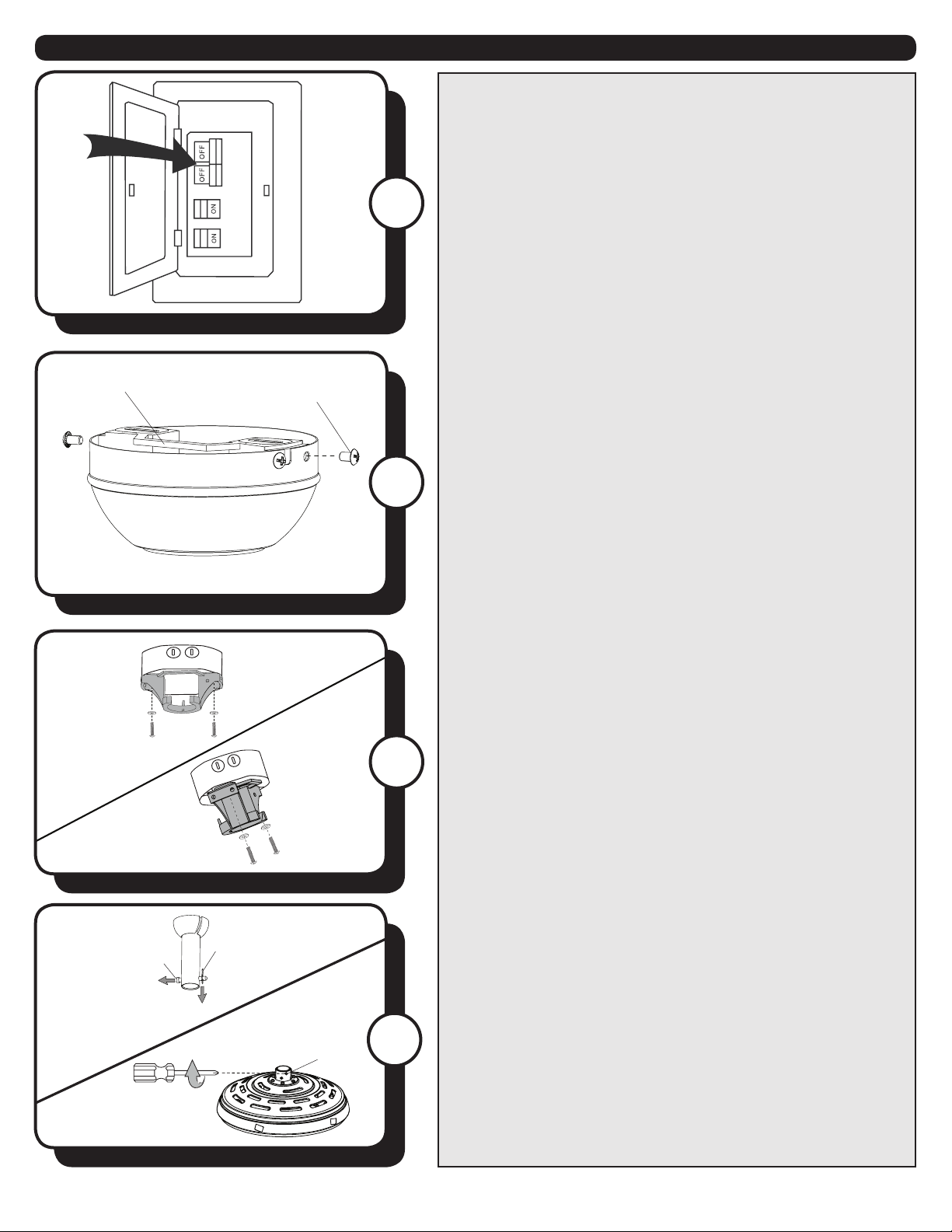

1. Turn OFF the electrical power at the main fuse or circuit
breaker.
2. Loosen all mounting brackets screws. Remove the
two mounting bracket screws from the round holes
of canopy. Set aside for later use. Detach mounting
bracket from canopy.
Note: Do NOT remove the mounting bracket screws in
the slotted holes.
4
3. Attach mounting bracket to outlet box (not included)
using screws and washers provided with the outlet box.
CAUTION: It is very important you use the proper
hardware when installing the mounting bracket as this will
support the fan.
Downrod
Mount
Angle
Mount
Canopy
Mounting
Bracket Screw
Mounting
Bracket
3
Downrod Clip
Set Screw
Downrod Pin
4. Remove the downrod pin and downrod clip from the
downrod. Then, loosen but don’t remove the two set
screws in the yoke of the motor assembly.

6
8 in.
ASSEMBLY INSTRUCTIONS
8
7
5
6
5. Remove the downrod pin and downrod clip from the
downrod. Then, loosen but don’t remove the two set
screws in the yoke of the motor assembly.
6. Insert the downrod into the yoke of the motor
housing and reinstall the downrod pin and downrod clip.
Then retighten the two set screws.
7. Depending on the length of downrod you use, you
may want to trim the lead wires back to simplify the
wiring process. If you decide to cut back the lead wires,
pull the lead wires all the way through the top of the
downrod. Measure 8 inches of lead wire, then cut the
excess wire o with wire cutters (not included).
Downrod
Downrod
Canopy
Downrod Pin
Downrod Clip
Set Screw
Yoke
Yoke Cover
8. If you decided to cut back the lead wire in Step 8,
strip 1/2 in. of insulation from the end of each wire.
Twist the stripped ends of each strand of wire within the
insulation with pliers (not included).
Note: If you did not cut back the lead wires in Step 7, you
may proceed to Step 9.

7
ASSEMBLY INSTRUCTIONS

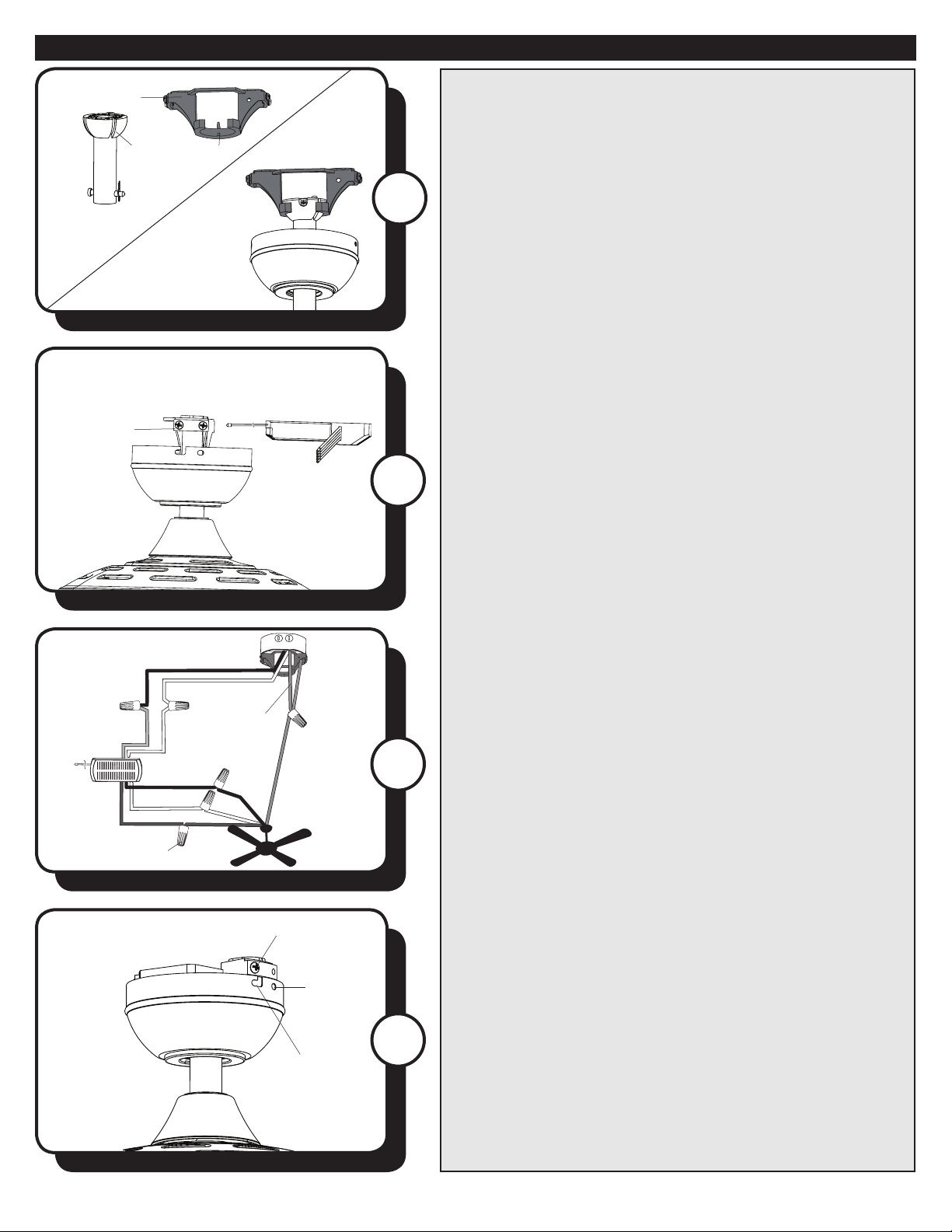

9. Install the ball end of the downrod into the opening
of the mounting bracket. Rotate the fan in the mounting
bracket until a slot in the ball end of the downrod engages
the tab in the mounting bracket.
DANGER: The fan and/or downrod should not rotate
in the mounting bracket if installed correctly. Failure to
align the slot with the tab may result in fan falling causing
serious injury or death.
10. Insert the receiver from remote pack into the mounting
bracket with the at side of the receiver facing the ceiling.
12. Align the canopy over the loose mounting bracket
screws preassembled on mounting bracket. Place the
J-slots of the canopy onto the mounting bracket screws
and rotate the canopy clockwise.
11. Use wire connectors to connect the fan, receiver and
supply wires from outlet box according to the wiring
diagram and the following instructions:
• Connect the Green wires from the fan and the mounting
bracket to the Bare/Green (ground) supply wire.
• Connect the Blue wire with white label from the receiver
to the Blue fan wire.
• Connect the Black wire with white label from the receiver
to the Black fan wire.
• Connect the Red wire with red label from the receiver to the
Black (hot/power) supply wire.
• Connect the White wire with red label from the receiver
to the White (neutral) supply wire.
• Connect the White wire with white label from the
receiver to the White fan wire.
Black (hot/power)
White (neutral)
Bare/Green
(ground)
Red
White
White
White
Black
Blue
Blue
Black
Green
Green
Receiver
9
11
12
10
Tab
Slot
Downrod
Receiver
Mounting
Bracket
Mounting
Bracket
Wire Connector
Mounting Bracket Screw
J-Slot
Round
Hole

8
ASSEMBLY INSTRUCTIONS
16
15
13. Install the two previously removed mounting bracket
screws in the round holes. Securely tighten all mounting
bracket screws.
14. Partially insert three blade screws along with three
blade washers through one blade and into one blade
arm. Tighten each blade screw with a Phillips screwdriver,
starting with the one in the middle. Repeat this step for
the remaining blades and blade arms.
15. Insert blade arm through slots in the side of the
motor assembly. Align the holes of one blade arm
with two motor screw holes in underside of the motor
assembly. Secure with two motor screws. Repeat this
step for the remaining blade arms.
16. Remove two of the four tter plate screws located on
the underside of the motor assembly and loosen the other
two screws. Align the two key slots of the light kit with the
loosened tter plate screws. Rotate the light kit clockwise
until the screw heads engage the key slots. Replace
previously removed tter plate screws, then tighten all
screws.
14
13
Blade Arm
Blade Arm
Motor Screw
Fitter Plate Screw
Light Kit
Fitter Plate
Key Slot
Slot
Blade
Blade Screw
Blade Washer
Mounting Bracket Screw

9
ASSEMBLY INSTRUCTIONS
20
19

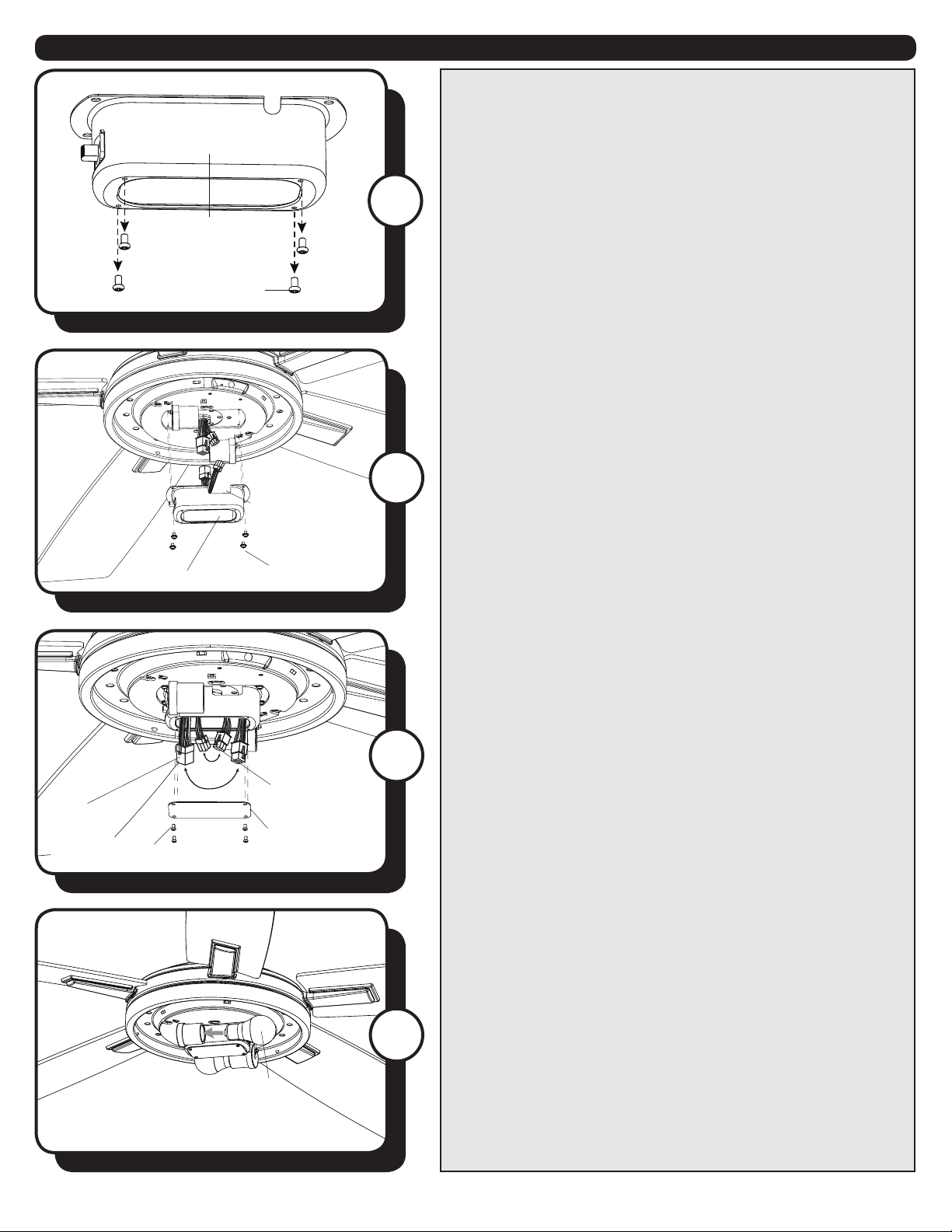

18. Remove the four switch housing screws preassembled
to the light kit. Secure the switch housing to the light kit by
re-installing the switch housing screws.
Note:The switch housing should be oriented so its notch
covers the wiring from the light kit.
19. Connect the two 4-pin connectors and two 9-pin
connectors from the switch housing. Insert the connectors
into the switch housing. Then, install the switch housing
cover to the switch housing using the switch housing
cover screws that were previously removed.
20. Install the two E26-base bulbs (60W max.) into the
sockets of the light kit.
18
Switch Housing
Screw
Switch Housing
4-pin
Connector
Switch Housing
Cover
Bulb
Switch Housing
Cover Screw
9-pin
Connector
Notch
Switch Housing
Cover Screw
Switch Housing
17
17. Remove the four switch housing cover screws
preassembled to the switch housing. Set aside for later.

10
ASSEMBLY INSTRUCTIONS
21. Lift the glass shade into the light kit and twist the glass
shade in a clockwise direction until it is secure.
Important: Hold the glass bowl level during installation
to avoid “cross-threading” the glass bowl during
installation. Doing so may cause the bowl to fall or be
dicult to remove for bulb change.
Glass Bowl
Light Kit
21
Remote
Battery
Battery
Cover
Slot
Mounting
Screw
Battery
Compartment
D/CFL Button
Wall Bracket
23
24
22
22. Remove the battery cover from the back of the
remote transmitter and insert the 12-volt battery. Replace
the battery cover.
D/CFL Switch: Switch should be set to “CFL” to correspond
with the included CFL bulbs. Flip to “D”, to enable the
dimming function if you change to incandescent bulbs.
IMPORTANT: The dimmer function does NOT work with
CFL bulbs.
23. Install wall bracket for remote control (optional) - Use
the two mounting screws to attach the wall bracket to
the wall. Note: A slot on the back of the remote control
allows it to be stored on the wall bracket when not in use.
24. Restore the electrical power at the main fuse or circuit
breaker.

11
OPERATING INSTRUCTIONS
1
1. To locate the reverse switch, remove the glass bowl. The
reverse switch is located on the switch housing. Using a
ceiling fan will allow you to raise your thermostat setting
in summer and lower your thermostat setting in winter
without feeling a dierence in your comfort.
Note: Wait for the fan to stop before moving the reverse
switch.
In warmer weather, push the reverse switch left which
will result in downward airow creating a wind chill eect.
In cooler weather, push the reverse switch right which
will result in upward airow that can help move stagnant,
hot air o the ceiling area.
Reverse
Switch
A
B
C
D
E
2. To operate the fan using remote control, press and
release the following buttons:
A - High fan speed
B - Medium fan speed
C - Low fan speed
D - Turns the fan o. Press and hold this button for 5
seconds to enter Light Delay O mode, which will turn
o light after one minute. The LED on the remote control
will ash four times to conrm mode setting.
E - Turns the light on and o. Press and hold this button
to dim or brighten when using incandescent bulbs.
Remote
LED Indicator
2

12
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-706-3267, 9 a.m.- 5 p.m. Central time.
PROBLEM SUGGESTED REMEDY
1. Fan does not start 1. Check main and branch circuit fuses or circuit breakers.
2. Check power supply wire connections to fan and switch wire connections in
switch housing.
CAUTION: Make sure main power is turned o.
3. Make sure forward/reverse switch pushed completely left or right. Fan will not
operate when switch is in the middle.
4. Make sure that the wall control is turned ON.
1. Make sure all screws in motor housing are snug, but not overtightened.
2. Make sure the screws which attach the blade arm to the motor are tight.
3. Make sure wire connectors in switch housing are not rattling against each other
or against the interior wall of the switch housing.
CAUTION: Make sure main power is turned o before entering switch housing.
4. If using a light kit, be sure the glass shades are nger tight. Check to be sure light
bulb are snug in sockets and not touching glass shade(s).
5. Some fan motors are sensitive to signals from Solid State variable speed controls.
DO NOT USE a Solid State variable speed control.
1. Ensure all blades are screwed rmly into blade arms.
2. Ensure all blade arms are tightened securely to motor.
3. Ensure canopy and mounting bracket are tightened securely to outlet box and
outlet box is mounted rmly to ceiling joist.
4. Switch one blade with a blade from the opposite side. Or balance the fan using a
balancing kit.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side)
blades can redistribute the weight and possibly result in smoother operation.
1. Check for loose or disconnected wires in fan switch housing or light kit.
2. Check for loose or disconnected wires in the canopy- blue wire is power to light.
3. Check for faulty light bulbs.
CAUTION: Make sure main power is turned o before entering switch housing.
1. Press and hold the high and low speed buttons on the remote control at the
same time for 5 seconds. The LED indicator will ash 3 times. When syncing is
complete, the fan will start on the low speed with the light (if applicable) o.
2. Replace the transmitter battery with a new 12-volt battery.
2. Fan is noisy
3. Fan wobbles
4. Light does not work:
TROUBLESHOOTING
5. Remote control does
not work:

LIMITED LIFETIME WARRANTY
To obtain Service, please contact the Service Department:
1-877-706-3267, 9 a.m.- 5 p.m. central time.
Model Name: Emporia Ceiling Fan
Model No: 51021 - Bright White
51022 - Oil Rubbed Bronze
51023 - Brushed Nickel
13
Subject to the limitations set forth below, Hong Kong China Electric Appliance Company (HKC) warrants
the fan motor for this ceiling fan to be free from defects in workmanship and material for the life of the
product. Also, subject to the limitations below, HKC warrants all ceiling fan parts (“ceiling fan parts”
excludes the motor and parts made in whole or in part with glass) to be free from defects in workmanship
and material for a period of one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product
through a store or contractor. Ceiling fan part defects must be reported within the rst year from the date
of purchase. Parts made in whole or in part with glass and the nishes of metal and other surfaces are not
warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. HKC assumes no responsibility whatsoever for fan installation. Any service performed by a non-
licensed electrician will render the warranty invalid.
HKC’s sole responsibility shall be to repair or replace the motor, parts, or product within the terms
stated above. HKC shall not be liable for any loss or damage of any kind, including any incidental or
consequential damages resulting directly or indirectly, from any breach of warranty, express or implied,
or any other failure of this product. Some states do not allow the exclusion or limitation of incidental or
consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, HKC agrees to replace the defective part
without charge, or at its option, to replace the ceiling fan with a comparable or superior model.
HKC’s warranties are limited to the written warranties set out in this HKC ceiling fan limited lifetime
warranty. All other express and implied warranties, including, without limitation, the implied warranty of
tness for a particular purpose and the implied warranty of merchantability are disclaimed. Some states do
not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
To obtain warranty service, please write down your model number and call customer service
at 1-877-706-3267, Monday - Friday 8 am - 5 pm, est. Please have a copy of the receipt as proof of purchase.
