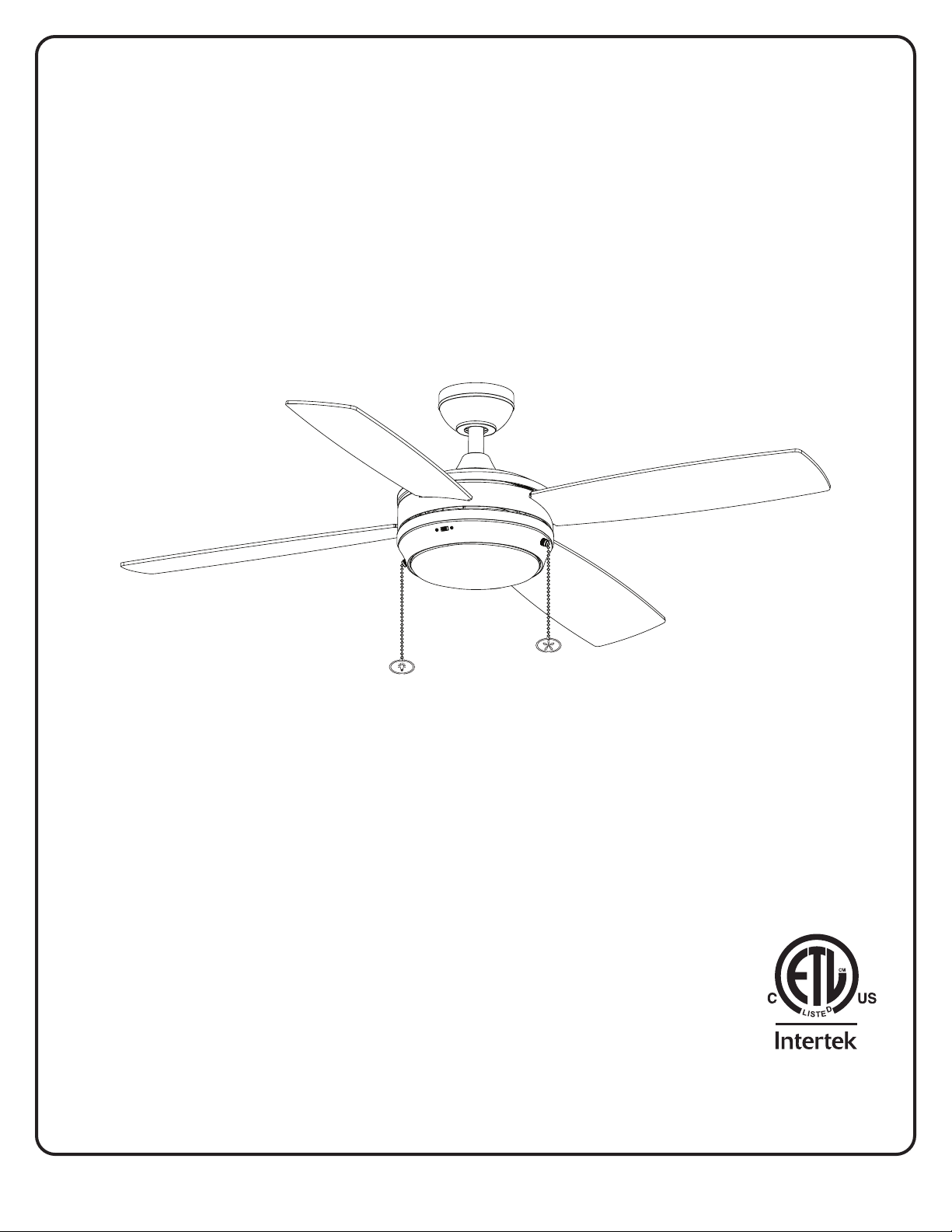

52” CEILING FAN
Owner’s Manual
Model #51634, 51635, 51636
To obtain service, please contact the Service Department:
1-877-706-3267, 8 a.m.-5 p.m. Central, Monday-Friday.

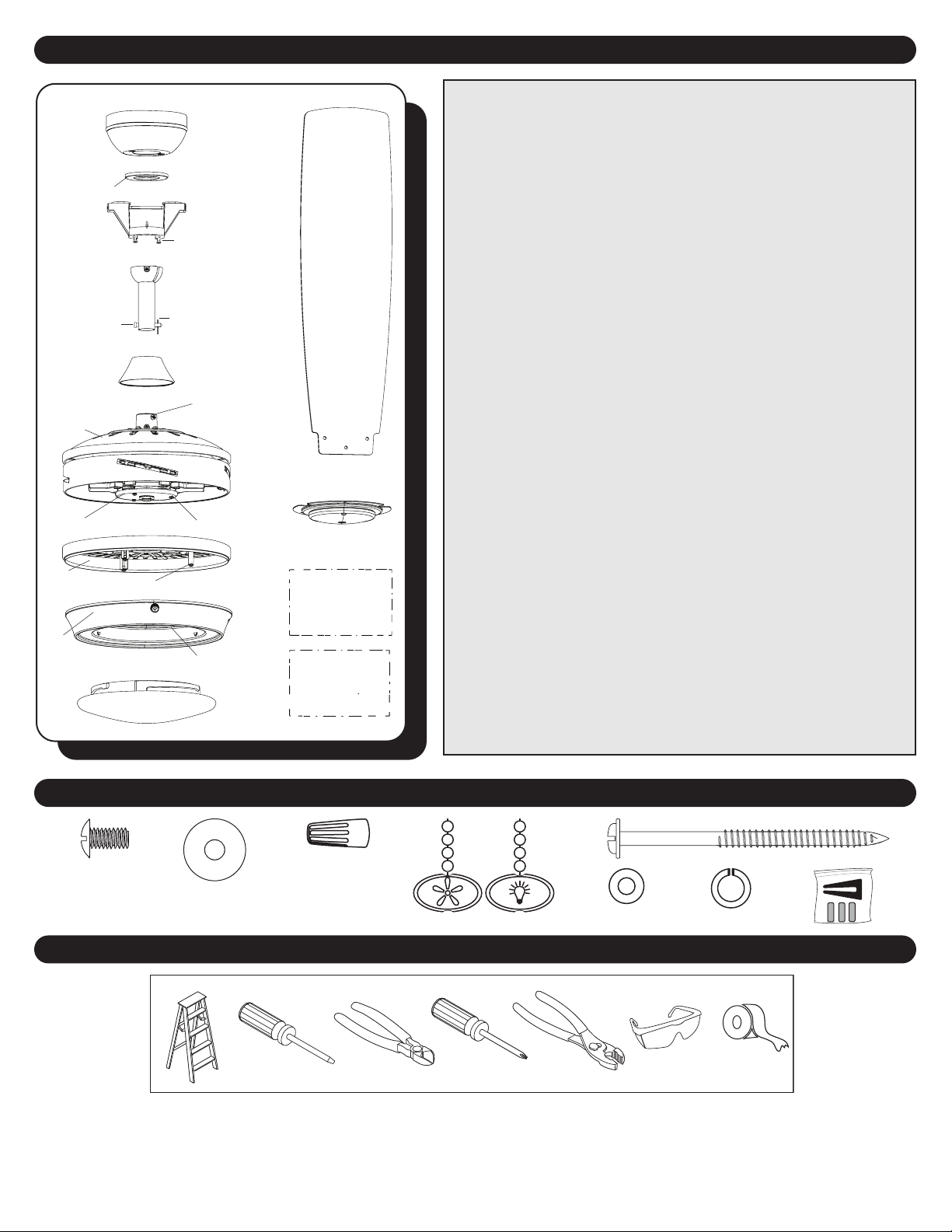

PACKAGE CONTENTS
2
HARDWARE CONTENTS
1. Canopy
2. Canopy Cover
3. Mounting Bracket
4. Canopy Screw (x2)
5. Downrod
6. Downrod Pin
7. Downrod Clip
8. Yoke Cover
9. Set Screw (x2)
10. Motor Assembly
11. Fitter Plate
12. Fitter Plate Screw (x3)
13. Light Kit Screw (x3)
14. LED
15. Light Pan
16. Light Pan Screw (x3)
17. Light Kit
18. Glass Bowl
19. Owner’s Manual
20. Hardware Kit
21. Blade (x4)
22. Blade Screw (x12)
23. Blade Washer (x12)
24. Wire Connector (x3)
25. Pull Chain Extension (x2)
26. Secondary Support Screw
27. Support Washer
28. Secondary Spring Washer
29. Blade Balancing Kit
Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
242322 25 26
27 28 29
TOOLS REQUIRED (not included)
Tools required for assembly: Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, Wire Cutters
and Wire Strippers
Helpful Tools: AC Tester Light, Tape Measure, and Wiring Handbook
Hardware Kit
Owner’s
Manual
1
2
34
5
6
19
20
21
17
7
8
9
10
11 12
13
14
15 16
18

3
A. 13.37 in. B. 9.73 in. C. 10.75 in. D. 5.13 in.
DIMENSION REFERENCE
C
D
B
A
MOUNTING OPTIONS
Downrod MountAngled Ceiling Mount (Up to 16 degrees)
Two Mounting Options
Choose one of the following mounting options:
Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer downrod
(not included).
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is not
steeper than 16°.

44
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the
blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are not meant
to cover all possible conditions and situations that may occur. It must be understood that common sense,
caution and care are factors which can not be built into this product. These factors must be supplied by the
person(s) installing, caring for and operating the fan.
The fan weight is Net Weight: 18.03 lb (8,18 kg). Be sure the outlet box (not included) is securely attached to the
building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious injury.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device (if applicable).
CAN ICES-005 (B) / NMB-005 (B)
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
HKC-US
3350 Player’s Club Parkway, #225
Memphis, TN 38125
1-877-706-3267
SAFETY INSTRUCTIONS
CAUTION:

WARNING:
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not
sucient to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the
oor and at least 18 inches (0.5 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for
fan support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the national electrical code, ansi/nfpa 70-1999 and local
codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a
qualied licensed electrician.
Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To
reduce the risk of re or electric shock, do NOT use a full-range dimmer switch to control the fan speed.
SAFETY INSTRUCTIONS
5

D
Downrod Mount
Angled Mount
Downrod
Clip
Set Screw
Yoke
Downrod
Pin
Downrod
6
ASSEMBLY INSTRUCTIONS
2
1
3
3. Remove the downrod clip and downrod pin from the
downrod. Then loosen but do not remove the two set
screws in the yoke at the top of the motor assembly.
1. Turn OFF the electrical power at the main fuse or circuit
breaker.
DANGER: Failure to disconnect the power supply prior to
installation may result in serious injury or death.
2. Install the mounting bracket to the outlet box (not
included) using the screws and washers provided with the
outlet box.
Warning: To reduce the risk of re electric shock,
or personal injury, mount to the outlet box marked
“acceptable for fan support” and use the mounting screws
and washers provided with the outlet box.
Downrod
Canopy
Canopy Cover
Yoke Cover 4
4. Insert the downrod through the canopy, canopy cover,
and yoke cover. Feed the wires and braided cable coming
from the fan through the downrod.
Braided
Cable

7
Tab
Slot
Downrod
Mounting Bracket
ASSEMBLY INSTRUCTIONS
5
6
5. Slide the downrod into the yoke of the motor
assembly, align the holes, then re-install the downrod
pin and downrod clip. Secure with the two set screws
and slide the yoke cover down until it rests on top of the
motor assembly.
Note: With wiring extending out of the downrod,
measure 8 inches of lead wire and cut the excess wire
with wire cutters (not included). Then strip 1/2” of
insulation from the end of each wire.
WARNING: Do not cut braided cable.
6. Install the ball end of the downrod into the opening of
mounting bracket. Rotate the downrod until the tab in the
mounting bracket is seated in the slot in the downrod ball.
WARNING: The fan and/or downrod should not rotate in
the mounting bracket if installed correctly. Failure to align
the slot in the downrod ball with the tab in the mounting
bracket may result in fan falling causing serious injury or
death.
Downrod Pin
Yoke
Downrod
Downrod Clip
Set Screw

8
ASSEMBLY INSTRUCTIONS
Secondary
Support
Screw
Open Loop Support
Washer Secondary
Spring
Washer

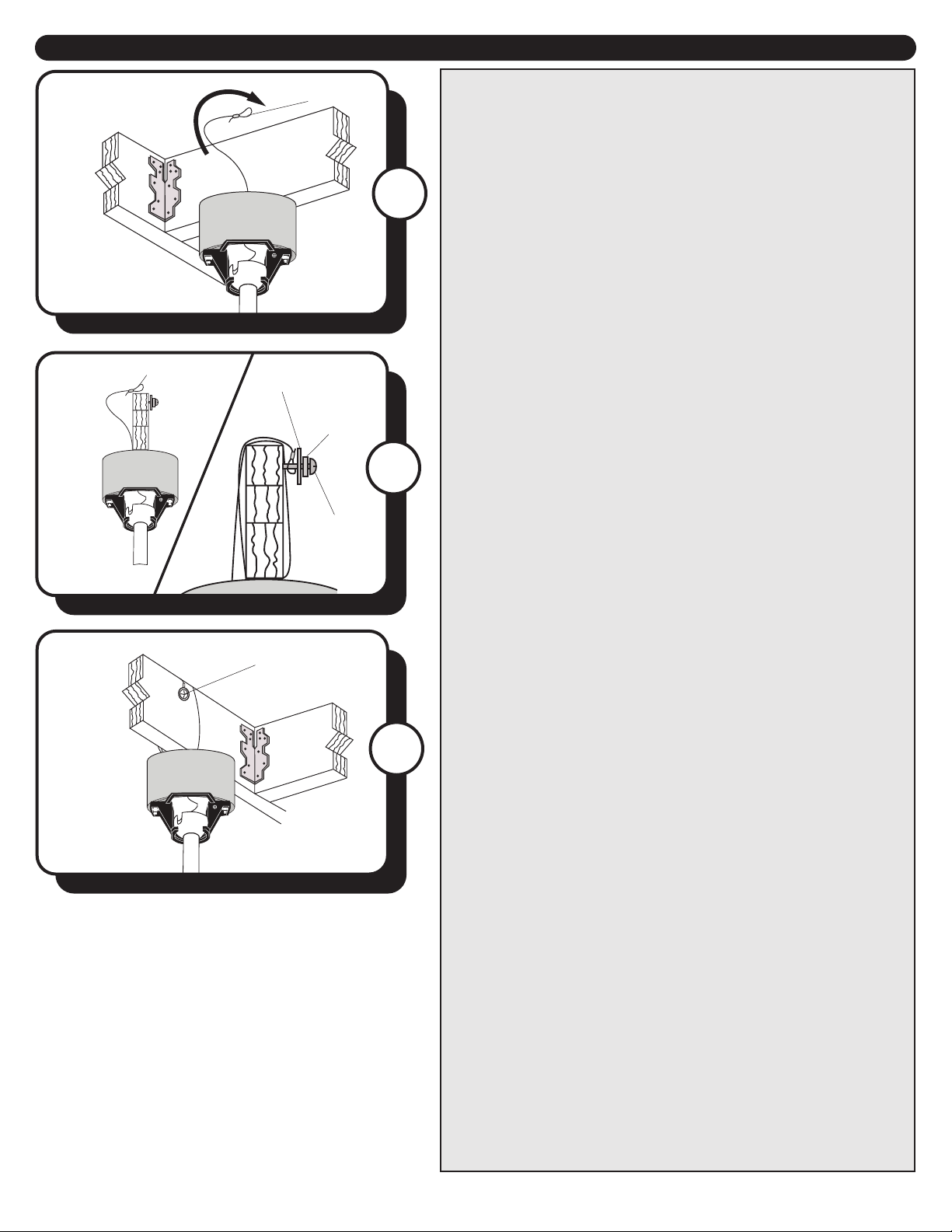

8. Install secondary support screw, secondary spring
washer, and support washer partly into the side of the
brace installed in the ceiling. Then lift the braided cable up
and over the ceiling brace and place the open loop of the
braided cable around the secondary support screw.
Note: The ceiling support brace may not be accessible
from below. If not, it must be accessed from above.
Important: The braided cable must make a complete
circle around the support brace to secure the fan.
9. Tighten the secondary support screw securing the
braided cable.
SECONDARY HANGING SYSTEM
For installation in the United States: Building codes
in the U.S.A. do not require installation of a Secondary
Hanging System. If desired, the braided cable can be cut
and removed using wire cutters (sold separately). Skip to
Step 10.
For installation in Canada: In compliance with building
codes in Canada, installation of the Secondary Hanging
System is required.
7. Feed the loop of the braided cable, preassembled to the
motor assembly, up through the outlet box mounted in the
ceiling.
Secondary
Support Screw
Braided Cable
Outlet Box
Brace
7
8
9

9
Black (hot)
Wire Connector
White (neutral)
Bare/Green (ground)
Black Blue White Green
WARNING: Do NOT use a
full-range dimmer switch
to control the fan speed.
10. Use wire connectors to connect the fan wires to the
power supply wires according to the wiring diagram and
the following instructions:
• Connect the Green wires from the downrod and
mounting bracket to the Bare/Green (ground) supply wire.
• Connect the White wire from the fan to the White
(neutral/common) supply wire.
• Connect the Black and Blue wires from the fan to the
Black (live/hot) supply wire.
Note: If there is a second hot/power wire coming from the
outlet box, connect it to the Blue (light power) fan wire for
separate light and fan control.
Important: After the connections have been made, the
connected wires should be turned upward and pushed
carefully up into the outlet box. Place the Black and White
wire connections on opposite sides of the outlet box.
Canopy
Canopy Screw
Key Slot 11. Remove one of the canopy screws from the bottom
of the mounting bracket. Slide the key slot in the canopy
over the head of the canopy screw preassembled to the
mounting bracket. Twist the canopy clockwise to lock.
Replace the canopy screw in the round hole in the bottom
of the canopy and tighten both screws.
11
10
ASSEMBLY INSTRUCTIONS
Canopy
Canopy Screw
Canopy Cover
Key Slot
12. Slide the key slots in the canopy cover over the heads
of the canopy screws preassembled to the mounting
bracket. Twist the canopy cover clockwise to lock.
12
Blade Screw
Blade Washer
Slot
Blade 13
13 Insert a blade through the slot in the side of the motor
assembly. Align the holes of one blade with three blade
screw holes in underside of the motor assembly. Secure
with the three blade screws and blade washers. Repeat
this step for the remaining blades.

10
ASSEMBLY INSTRUCTIONS
Fitter Plate Screw
Light Pan

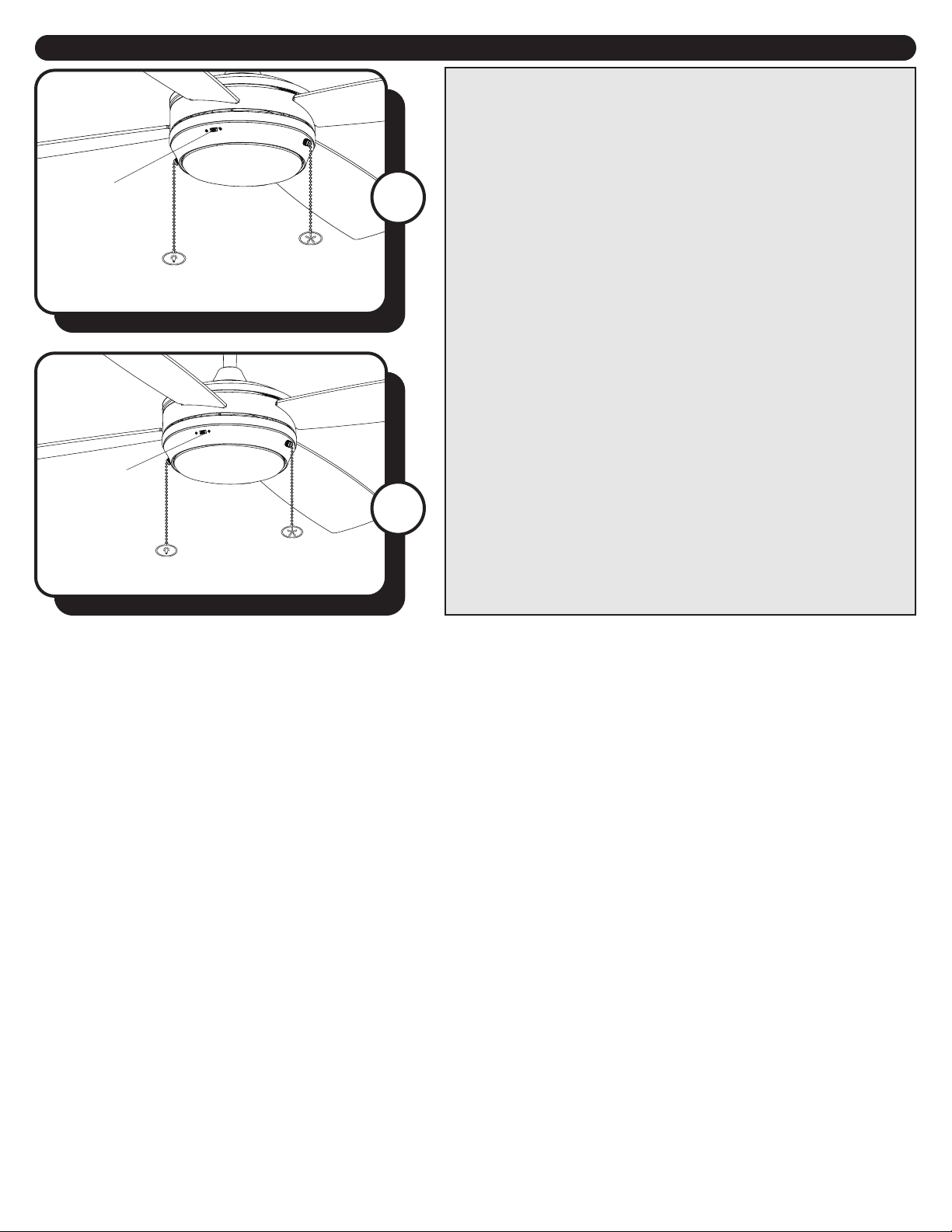

14. Remove one of the three tter plate screws
preassembled to the tter plate and loosen the other two
but do not remove. Feed the 9-pin connector through the
center hole in the light pan. Align the slotted holes in the
light pan with the loosened screws in the tter plate. Turn
light pan clockwise and replace the previously removed
tter plate screw. Tighten all screws.
Fitter Plate
9-pin
Connector
Light Kit
Light Pan Screw
Light Pan
15. Remove one of the three light pan screws from the
light pan and loosen the other two but do not remove.
Connect the 9-pin connectors from the light pan to the
9-pin connectors from the light kit. Lift the two keyhole
slots in the light kit over the two loosened light pan screws
and turn in a clockwise direction. Then, use the previously
removed light pan screw to secure the light kit to the light
pan. Tighten all screws.
14
15
17. Attach the glass bowl to the light kit by twisting the
glass bowl tightly in a clockwise direction until it is secure.
17
Glass Bowl
Light Kit
16. Remove the three light kit screws pre-assembled to the
light kit. Then connect the single-pin connectors from the
light kit to the single-pin connectors from the LED -- blue
to black and white to white. Attach the LED to the light kit
with the light kit screws.
16
Single-pin
Connector
Light Kit Screw
LED

11
ASSEMBLY INSTRUCTIONS
18
19
19. Turn ON the electrical power at the main fuse or circuit
breaker and the wall switch.
Installation is complete.
18. Attach pull chain extensions to the pull chains.
Note: When facing the reverse switch, the light pull chain
is on the left and the fan pull chain is on the right.
Pull Chain Extension

12
OPERATING INSTRUCTIONS
1
2
1. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your thermostat
setting in winter without feeling a dierence in your
comfort.
In warmer weather, push the reverse switch to the left for
downward airow creating a wind chill eect.
In cooler weather, push the reverse switch to the right for
upward airow that can help move stagnant, hot air o
the ceiling area.
Important: Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle position,
the fan will not operate.
2. The fan pull chain has four positions to control the fan
speed. One pull is HIGH, two is MEDIUM, three is LOW, and
four is OFF.
The light pull chain turns the light ON and OFF.
Reverse
Switch
Reverse
Switch
Light Pull Chain
Fan Pull Chain

13
PROBLEM SUGGESTED REMEDY
TROUBLESHOOTING
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-706-3267, 8 a.m.-5 p.m. Central, Monday-Friday.
WARNING: To reduce the risk of re, electrical shock or personal injury, shut o the power supply to fan before
you begin any maintenance tasks.
1. Fan does not start:
2. Fan is noisy:
3. Fan wobbles:
4. Light does not work:
1. Make sure that the wall switch is turned ON.
2. Check main and branch circuit fuses or circuit breakers.
3. Check all wire connections from household supply wires to the fan.
4. Make sure forward/reverse switch pushed completely left or right. Fan will not operate
when switch is in the middle.
1. Make sure all screws in motor assembly are snug, but not overtightened.
2. Make sure the screws that attach the blade arms to the motor are tight.
3. Make sure wire connectors are not rattling against each other or against the interior wall
of the switch housing.
4. Make sure wire connectors are not rattling against each other or against the interior wall
of the canopy.
5. Some fan motors are sensitive to signals from Solid State variable speed controls. DO NOT
USE a Solid State variable speed control.
6. Ensure fan does not wobble excessively (see Fan wobbles solutions below).
1. Ensure the mounting bracket is tightened securely to outlet box and outlet box is
mounted rmly to ceiling joist.
2. Ensure all blades are screwed rmly into blade arms.
3. Ensure all blade arms are tightened securely to motor.
4. Switch one blade with a blade from the opposite side. Or balance the fan using the blade
balancing kit.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
1. Check for loose or disconnected 9-pin and/or single-pin connectors in switch housing or
light kit.
2. Ensure the blue wire from fan is connected to hot power supply wire.

14
LIMITED LIFETIME WARRANTY
Model Name: 52” Ceiling Fan
Model No: 51634 - Pewter
51635 - Matte Black
51636 - White
To obtain service, please contact the Service Department:
1-877-706-3267, 8 a.m.-5 p.m. Central, Monday-Friday.
Set forth below, the manufacturer, Hong Kong China Electric appliance Company (HKC) warrants the fan
motor for this ceiling fan to be free from defects in workmanship and material for the life of the product.
Also, subject to the limitations below, HKC warrants all ceiling fan parts (“ceiling fan parts” excludes the
motor and parts made in whole or in part with glass) to be free from defects in workmanship and material
for a period of one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product through a
store or contractor. Ceiling fan part defects must be reported within the rst year from the date of purchase.
Parts made in whole or in part with glass and the nishes of metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. HKC assumes no responsibility whatsoever for fan installation. Any service performed by a non-
licensed electrician will render the warranty invalid.
HKC’s sole responsibility shall be to repair or replace the motor, parts, or product within the terms stated
above. HKC shall not be liable for any loss or damage of any kind, including any incidental or consequential
damages resulting directly or indirectly, from any breach of warranty, express or implied, or any other
failure of this product. Some states do not allow the exclusion or limitation of incidental or consequential
damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, HKC agrees to replace the defective part
without charge, or at its option, to replace the ceiling fan with a comparable or superior model.
HKC’s warranties are limited to the written warranties set out in this HKC ceiling fan limited lifetime
warranty. All other express and implied warranties, including, without limitation, the implied warranty of
tness for a particular purpose and the implied warranty of merchantability are disclaimed. Some states do
not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
