Prominence Home Enoki 51642 User manual

PACKAGE CONTENTS
2
HARDWARE CONTENTS
1. Canopy
2. Canopy Cover
3. Mounting Bracket
4. Canopy Screw (x2)
5. Downrod
6. Downrod Pin
7. Downrod Clip
8. Yoke Cover
9. Set Screw (x2)
10. Motor Assembly
11. Fitter Plate
12. Fitter Plate Screw (x3)
13. Light Pan
14. Light Pan Screw (x3)
15. Light Kit
16. Glass Bowl
17. Owner’s Manual
18. Hardware Kit
19. Remote Pack
20. Blade (x3)
Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
TOOLS REQUIRED (not included)
Tool required for assembly: Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, Wire Cutters
and Wire Strippers
Helpful Tools: AC Tester Light, Tape Measure, and Wiring Handbook
242322 25
26
27
21
21. Blade Screw (x9)
22. Blade Washer (x9)
23. Wire Connector (x4)
24. Secondary Support Screw
25. Support Washer
26. Secondary Spring Washer
27. Blade Balancing Kit
Hardware Kit
Owner’s
Manual
1
2
34
5
6
19
20
17
7
8
9
10
11 12
13
14
15
16
18

3
A. 16.72 in. B. 12.06 in. C. 7.9 in. D. 5.13 in.
DIMENSION REFERENCE
C
D
B
A
MOUNTING OPTIONS
Downrod MountAngled Ceiling Mount (Up to 10 degrees)
Two Mounting Options
Choose one of the following mounting options:
Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer downrod
(not included).
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is not
steeper than 10°.

4
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
SAFETY INSTRUCTIONS
CAUTION:
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing
the blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are not
meant to cover all possible conditions and situations that may occur. It must be understood that common
sense, caution and care are factors which can not be built into this product. These factors must be supplied
by the person(s) installing, caring for and operating the fan.
The fan weight is Net Weight: 14.04 lb (6,37 kg). Be sure the outlet box (not included) is securely attached
to the building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious
injury.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device (if applicable).
CAN ICES-005 (B) / NMB-005 (B)
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
HKC-US
3350 Player’s Club Parkway, #225
Memphis, TN 38125
1-877-706-3267

WARNING:
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not
sucient to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the
oor and at least 18 inches (0.5 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for
fan support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the national electrical code, ansi/nfpa 70-1999 and local
codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a
qualied licensed electrician.
Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To
reduce the risk of re or electric shock, do NOT use a full-range dimmer switch to control the fan speed.
SAFETY INSTRUCTIONS
5

D
Downrod Mount
Angled Mount
Downrod
Clip
Set Screw
Yoke
Downrod Pin
Downrod
6
ASSEMBLY INSTRUCTIONS
2
1
3
3. Remove the downrod clip and downrod pin from the
downrod. Then, loosen but don’t remove the two set
screws at the top of the yoke.
1. Turn OFF the electrical power at the main fuse or circuit
breaker.
DANGER: Failure to disconnect the power supply prior to
installation may result in serious injury or death.
2. Attach mounting bracket to outlet box (not included)
using screws and washers provided with the outlet box.
WARNING:To reduce the risk of re, electric shock,
or personal injury, mount to the outlet box marked
“acceptable for fan support” and use the mounting screws
and washers provided with the outlet box.
Downrod
Canopy
Canopy Cover
Braided Cable
Yoke Cover
4. Insert the downrod through the canopy, canopy cover,
and yoke cover. Feed the wires and braided cable from the
fan through the downrod.
4

7
Tab
Slot
Downrod
Mounting Bracket
ASSEMBLY INSTRUCTIONS
5
6
5. Insert the downrod into the yoke and reinstall the
downrod pin and downrod clip. Then re-tighten the two
set screws.
Note: With wiring extending out of the downrod,
measure 8 inches of lead wire and cut the excess wire
with wire cutters (not included). Then strip 1/2” of
insulation from the end of each wire.
6. Install the ball end of the downrod into the opening in
the mounting bracket. Rotate the downrod until the tab in
the mounting bracket is seated in the slot in the downrod
ball.
WARNING: The fan and/or downrod should not rotate in
the mounting bracket if installed correctly. Failure to align
the slot in the downrod ball with the tab in the mounting
bracket may result in fan falling causing serious injury or
death.
7. Place the receiver in the mounting bracket with at side
up to prepare for the wiring process.
Note: The receiver will rest directly on top of the downrod.
Note: There is an adhesive sticker on one of the antennas
connected to the receiver. For best results, stick the
antenna to the ceiling.
Downrod Pin
Yoke
Downrod
Downrod Clip
Set Screw
7
Mounting Bracket
Receiver
Braided Cable
Outlet Box
Brace
8
SECONDARY HANGING SYSTEM
For installation in the United States: Building codes
in the U.S.A. do not require installation of a Secondary
Hanging System. If desired, the braided cable can be cut
and removed using wire cutters (sold separately). Skip to
Step 11.
For installation in Canada: In compliance with building
codes in Canada, installation of the Secondary Hanging
System is required.
8. Feed the loop of the braided cable, preassembled to the
motor assembly, up through the outlet box mounted in
the ceiling.

ASSEMBLY INSTRUCTIONS
8
Secondary
Support
Screw
Open Loop Support
Washer Secondary
Spring
Washer
9. Install secondary support screw, secondary spring
washer, and support washer partly into the side of the
brace installed in the ceiling. Then lift the braided cable up
and over the ceiling brace and place the open loop of the
braided cable around the secondary support screw.
Note: The ceiling support brace may not be accessible
from below. If not, it must be accessed from above.
Important: The braided cable must make a complete
circle around the support brace to secure the fan.
9
10. Tighten the secondary support screw securing the
braided cable.
Secondary
Support Screw
10
Black (hot/power)
Push-in Connector
Wire Connector
White (neutral)
Bare/Green
(ground)
White
White
Black
Blue
Blue
Black
Green
Green
Receiver
Black
White
11
11. Use wire connectors and push-in connectors to connect
the receiver and fan wires to the supply wires from outlet
box according to the wiring diagram and the following
instructions:
• Connect the Green wires from the fan and the mounting
bracket to the Bare/Green (ground) supply wire.
• Connect the Blue wire (FOR LIGHT) from the receiver to
the Blue fan wire.
• Connect the Black wire (TO MOTOR L) from the receiver to
the Black fan wire.
• Connect the White wire (TO MOTOR N) from the receiver
to the White fan wire.
• Push the Black (Hot/Power) supply wire into the empty
wire hole in push-in wire connector preassembled to the
Black wire (AC IN L).
• Push the White (neutral) supply wire into the empty wire
hole in push-in wire connector preassembled to the White
wire (AC IN N).
Important: After the connections have been made, the
connected wires should be turned upward and pushed
carefully up into the outlet box. Place the black and white
wire connections on opposite sides of the outlet box.

9
ASSEMBLY INSTRUCTIONS
Canopy
Canopy Screw
Key Slot
12. Remove one of the canopy screws from the bottom
of the mounting bracket. Lift the key slot in the canopy
over the head of the canopy screw preassembled to the
mounting bracket. Twist the canopy clockwise to lock.
Replace the canopy screw in the round hole in the bottom
of the canopy and tighten both screws.
12
Canopy
Canopy Screw
Canopy Cover
Key Slot
13
13. Slide the key slots in the canopy cover over the heads
of the canopy screws preassembled to the mounting
bracket. Twist the canopy cover clockwise to lock.
Blade Screw
Blade Washer
Slot
Blade
10
14. Insert the blade through slot in the side of the motor
assembly. Align the holes of one blade with three blade
screw holes in underside of the motor assembly. Secure
with three blade screws and blade washers. Repeat this
step for the remaining blades.
14
Fitter Plate Screw
Light Pan
15. Loosen two and completely remove the third tter
plate screw. Then, insert the wires from the center of the
tter plate through the hole in the light pan. Align the
light pan over the previously loosened screws, then place
the keyholes of the light pan onto the tter plate screws
and rotate the light pan clockwise. Secure the light pan
with the previously removed tter plate screw. Tighten all
three tter plate screws.
Fitter Plate 15

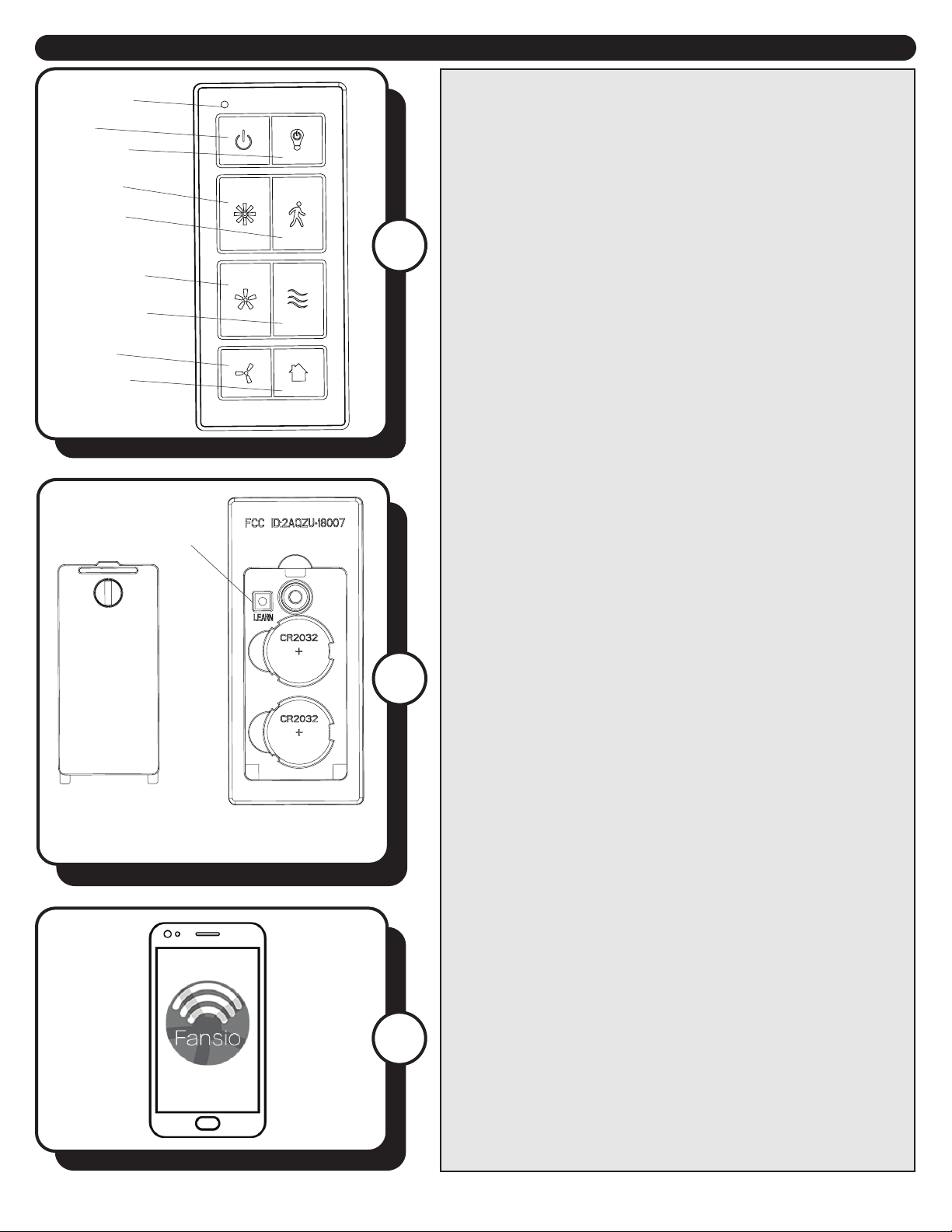

Battery Door
Battery Compartment
Front Back
10
ASSEMBLY INSTRUCTIONS
16. Loosen two and completely remove the third light pan
screw from the light pan. Connect the 9-pin connector
from the fan to the 9-pin connectors from the light kit. Lift
the two keyholes in the light kit over the light pan screws
and turn the light kit clockwise. Then secure the light kit
with the previously removed light pan screw. Tighten all
light pan screws.
9-pin
Connector
Light Kit
Light Pan Screw
Light Pan
16
Glass Bowl
Light Kit
17
17. Attach the glass bowl to the light kit by turning the
glass bowl in a clockwise direction until it is secure.
18
18. Remove the battery door from the back of the remote
using a at-head screwdriver (not included). Insert the two
CR2032 batteries into the remote; ensure the positive pole
of the batteries face up (as pictured) and then replace the
battery door.
Note: Your fan and wall control/remote were synced at the
factory. If the wall control does not operate the fan, see
TROUBLESHOOTING, page 13.

11
ASSEMBLY INSTRUCTIONS
OPERATING INSTRUCTIONS
Mounting
Screw
Wall Bracket
19
20
20. Turn on the electrical power at the main fuse or circuit
breaker and the wall switch.
Installation is complete.
19. If desired, the wall bracket can be installed to the wall
using the two mounting screws. Store the remote in the
wall bracket when not in use.
Reverse
Switch
1. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your thermostat
setting in winter without feeling a dierence in your
comfort.
In warmer weather, push the reverse switch to the left for
downward airow creating a wind chill eect.
In cooler weather, push the reverse switch to the right for
upward airow that can help move stagnant, hot air o
the ceiling area.
Important: Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle position,
the fan will not operate.
1

12
OPERATING INSTRUCTIONS
LED Indicator
High Speed
Medium Speed
Low Speed
Fan O
Light On/O
Light Delay
Variable Breeze
Home Shield
LEARN Button
Battery Compartment
(battery door removed)
3
2
3. LEARN - Syncs remote to receiver (see
TROUBLESHOOTING for instructions).
Note: To access LEARN button, remove battery door from
back of the remote using a at-head screwdriver.
2. To operate the fan using the remote, press and release
the following buttons:
Fan O - Turns the power to fan o.
Light On/O - Turns the light on and o. Press and hold to
dim or brighten lights (for dimmable bulbs only).
High Speed - Turns on fan at high speed.
Light Delay - Light stays on for 60 seconds to allow for
safe exit from room. Tap Light Delay once to activate. Fan
light blinks once to conrm Light Delay is active. Press any
button to cancel.
Medium Speed - Turns on fan at medium speed.
Variable Breeze - Simulates a breeze in nature. Press and
hold button to activate. Press any fan speed button to
cancel.
Low Speed - Turns on fan at low speed.
Home Shield - Simulates occupancy while away from
home. Fan remains o and the light randomly turns on for
a minimum of ve times and a maximum of 20 minutes.
The light remains o for 60 minutes between events.
Press and hold button to activate. Light will blink twice to
conrm Home Sheild is active. Press any button to cancel.
LED indicator should illuminate when any remote button
is pressed. If not, replace the DC3V, CR2032 batteries.
4. To control the fan via WiFi remote, download the
Fansio®app to your smartphone. Load the app and follow
the in-app instructions to sync with the remote. You will
need your personal WiFi network name and password.
Note: The remote receiver is compatible with 2.4 gHz
only and will not work with 5.0 gHz routers.
4

13
PROBLEM SUGGESTED REMEDY
1. To re-sync wall control to the fan - Switch the power to the fan o and back on again.
Within 30 seconds, press and hold the HIGH SPEED and LOW SPEED buttons (or the
“LEARN”button, located in the battery compartment) for 5 seconds. Fan will turn on at
low speed and light o. This conrms the syncing process is successful.
2. Insert new CR2032 batteries in battery compartment of the wall control.
3. If there are several fans in close proximity, turn power o to other fans and re-sync the
remote (see Corrective Action 1 above).
TROUBLESHOOTING
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-706-3267, 8 a.m. - 5 p.m. Central, Monday - Friday.
5. Remote control does
not work:
WARNING: To reduce the risk of re, electrical shock or personal injury, shut o the power supply to fan before
you begin any maintenance tasks.
1. Fan does not start:
2. Fan is noisy:
3. Fan wobbles:
4. Light does not work:
1. Make sure that the wall switch is turned ON.
2. Check main and branch circuit fuses or circuit breakers.
3. Check all wire connections from household supply wires to the fan.
4. Make sure forward/reverse switch pushed completely left or right. Fan will not operate
when switch is in the middle.
1. Make sure all screws in motor assembly are snug, but not overtightened.
2. Make sure the screws that attach the blade arms to the motor are tight.
3. Make sure wire connectors are not rattling against each other or against the interior wall
of the switch housing.
4. Make sure wire connectors are not rattling against each other or against the interior wall
of the canopy.
5. Some fan motors are sensitive to signals from Solid State variable speed controls. DO NOT
USE a Solid State variable speed control.
6. Ensure fan does not wobble excessively (see Fan wobbles solutions below).
1. Ensure the mounting bracket is tightened securely to outlet box and outlet box is
mounted rmly to ceiling joist.
2. Ensure all blades are screwed rmly into blade arms.
3. Ensure all blade arms are tightened securely to motor.
4. Switch one blade with a blade from the opposite side. Or balance the fan using the blade
balancing kit.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
1. Check for loose or disconnected 9-pin and/or single-pin connectors in switch housing or
light kit.
2. Ensure the blue wire from fan is connected to hot power supply wire.

LIMITED LIFETIME WARRANTY
Model Name: 52” Ceiling Fan
Model No: 51642 - Matte Black
51643 - Pewter
51644 - White
51645 - Blue
To obtain service, please contact the Service Department:
1-877-706-3267, 8 a.m. - 5 p.m. Central, Monday - Friday.
Set forth below, the manufacturer, Hong Kong China Electric appliance Company (HKC) warrants the fan
motor for this ceiling fan to be free from defects in workmanship and material for the life of the product.
Also, subject to the limitations below, HKC warrants all ceiling fan parts (“ceiling fan parts” excludes the
motor and parts made in whole or in part with glass) to be free from defects in workmanship and material
for a period of one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product through a
store or contractor. Ceiling fan part defects must be reported within the rst year from the date of purchase.
Parts made in whole or in part with glass and the nishes of metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. HKC assumes no responsibility whatsoever for fan installation. Any service performed by a non-
licensed electrician will render the warranty invalid.
HKC’s sole responsibility shall be to repair or replace the motor, parts, or product within the terms stated
above. HKC shall not be liable for any loss or damage of any kind, including any incidental or consequential
damages resulting directly or indirectly, from any breach of warranty, express or implied, or any other
failure of this product. Some states do not allow the exclusion or limitation of incidental or consequential
damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, HKC agrees to replace the defective part
without charge, or at its option, to replace the ceiling fan with a comparable or superior model.
HKC’s warranties are limited to the written warranties set out in this HKC ceiling fan limited lifetime
warranty. All other express and implied warranties, including, without limitation, the implied warranty of
tness for a particular purpose and the implied warranty of merchantability are disclaimed. Some states do
not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
14
