ProMinent S1Cb User manual

Diaphragm Motor-Driven Metering Pump
Sigma/ 1 Control Type S1Cb
Operating instructions
Original Operating Instructions (2006/42/EC)Part no. 985450 BA SI 046 10/12 EN
Please carefully read these operating instructions before use! · Do not discard!
The operator shall be liable for any damage caused by installation or operating errors!
Technical changes reserved.

985451, 1, en_GB
© 2012
ProMinent Dosiertechnik GmbH
Im Schuhmachergewann 5-11
69123 Heidelberg
Germany
Telephone: [phone]
Fax: [phone]
email: [email protected]
Internet: www.prominent.com
2

Read the following supplementary information in its entirety! Should you
already know this information, you have an even greater need of the Oper‐
ating Instructions.
The following are highlighted separately in the document:
nEnumerated lists
Operation guidelines
ðOutcome of the operation guidelines
- see (reference)
Information
This provides important information relating to the correct
operation of the device or is intended to make your work
easier.
Safety notes
Safety notes are identified by pictograms - see Safety Chapter.
Please state identity code and serial number, which you can find on the
nameplate when you contact us or order spare parts. This enables the
device type and material versions to be clearly identified.
In order to make it easier to read, this document uses the male form in
grammatical structures but with an implied neutral sense. It is aimed
equally at both men and women. We kindly ask female readers for their
understanding in this simplification of the text.
Supplementary information
Fig. 1: Please read!
State the identity code and serial number
General non-discriminatory approach
Supplemental instructions
3

Table of contents
1 Identity code.................................................................................... 6
2 Safety chapter................................................................................. 9
3 Storage, transport and unpacking................................................. 13
4 Overview of equipment and control elements............................... 15
4.1 Key functions......................................................................... 17
4.2 LCD screen identifiers........................................................... 17
5 Functional description.................................................................... 20
5.1 Drive unit............................................................................... 20
5.2 Liquid end.............................................................................. 21
5.3 Integral bleed valve............................................................... 22
5.4 Multi-layer safety diaphragm................................................. 23
5.5 Operating modes................................................................... 24
5.6 Functions............................................................................... 24
5.7 Options.................................................................................. 25
5.8 Function and fault indicator................................................... 26
5.9 LCD screen........................................................................... 26
5.10 LED displays....................................................................... 26
5.11 Hierarchy of operating modes, functions and fault sta‐
tuses.................................................................................... 26
6 Assembly....................................................................................... 28
7 Installation..................................................................................... 31
7.1 Installation, hydraulic............................................................. 31
7.2 Installation, electrical............................................................. 34
7.2.1 Control connectors............................................................. 35
7.2.2 HMI operating unit.............................................................. 41
7.2.3 Pump, power supply........................................................... 42
7.2.4 Other units.......................................................................... 43
8 Set-up............................................................................................ 44
8.1 Basic principles of control adjustment................................... 44
8.2 Checking adjustable values / error messages...................... 44
8.3 Changing to adjustment mode.............................................. 45
8.4 Selecting the operating mode (Menu "Mode")...................... 46
8.5 Operating mode settings (menu "Settings").......................... 46
8.5.1 "Manual" operating mode settings..................................... 47
8.5.2 "Batch" mode settings ....................................................... 47
8.5.3 "Contact" operating mode settings..................................... 48
8.5.4 "Analog" operating mode settings...................................... 51
8.6 Programmable function settings ("Settings" menu ).............. 54
8.6.1 Settings for the “Auxiliary frequency” function (AUX
menu)................................................................................. 54
8.6.2 Settings for the “Calibrate” function (CALIBRATE menu).. 55
8.6.3 Settings for the “Metering” function (DOSING menu)........ 56
8.6.4 Settings for the “Dosing monitor” function (DOSING
MONITOR menu)............................................................... 57
8.6.5 Settings for the “Relay” function (RELAY menu)................ 57
8.6.6 Settings for the “Analog output” function (ANALOG
OUTPUT menu)................................................................. 59
8.6.7 Settings for the “Diaphragm break” function (DIA‐
PHRAGM BREAK menu)................................................... 59
8.6.8 Settings in the "System" menu" (SYSTEM menu)............. 60
8.7 Service (SERVICE menu)..................................................... 60
8.7.1 Clear counters (CLEAR COUNTERS menu)..................... 60
8.7.2 Adjusting the Display (DISPLAY menu)............................. 61
8.7.3 HMI logout.......................................................................... 61
Table of contents
4

8.7.4 Security (SECURITY menu)............................................... 62
8.8 Information about the pump (INFORMATION menu)............ 63
8.9 Set language (LANGUAGE menu)........................................ 63
9 Operation....................................................................................... 64
9.1 Manual.................................................................................. 64
9.2 Remote operation.................................................................. 66
10 Maintenance.................................................................................. 67
11 Repairs.......................................................................................... 69
11.1 Cleaning valves................................................................... 69
11.2 Replacing the metering diaphragm..................................... 71
12 Troubleshooting............................................................................. 75
12.1 Faults without a fault alert................................................... 75
12.2 Fault alerts.......................................................................... 75
12.3 Warning Alerts..................................................................... 76
12.4 All Other Faults................................................................... 77
13 Decommissioning.......................................................................... 78
14 Technical data............................................................................... 80
14.1 Performance data................................................................ 80
14.2 Viscosity.............................................................................. 81
14.3 Shipping weight................................................................... 81
14.4 Wetted materials................................................................. 81
14.5 Ambient conditions.............................................................. 81
14.5.1 Ambient temperatures...................................................... 81
14.5.2 Media temperatures......................................................... 82
14.5.3 Air humidity...................................................................... 82
14.5.4 Enclosure rating and safety requirements........................ 82
14.6 Electrical connection........................................................... 82
14.7 Diaphragm rupture sensor.................................................. 83
14.8 Relay................................................................................... 83
14.9 Sound pressure level.......................................................... 83
15 Motor data sheets.......................................................................... 84
16 Dimension sheets.......................................................................... 85
17 Exploded view drawings................................................................ 87
17.1 Exploded drawings Sigma/ 1............................................... 87
18 Ordering Information...................................................................... 93
19 Diagrams for adjusting the capacity.............................................. 94
20 EC Declaration of Conformity........................................................ 95
21 Operating / adjustment overview................................................... 96
22 Continuous displays...................................................................... 97
23 Index.............................................................................................. 99
Table of contents
5

1 Identity code
S1Cb Sigma 1, Control Type, Version b
Product range
S1Cb
Power end type
H Main power end, diaphragm
Type Performance
bar l/h
12017 10* 20
12035 10* 42
10050 10 50
10022 10 26
10044 10 53
07065 7 65
07042 7 50
04084 4 101
04120 4 120
Material dosing head
PV PVDF
SS Stainless steel
Seal material
T PTFE
Displacement
S Multi-layer safety diaphragm with optical break indicator
A Multi-layer safety diaphragm with rupture signalling by electrical signal
Dosing head version
0 without bleed valve, without valve springs
1 without bleed valve, with valve springs
2 with bleed valve, FPM, without valve springs***
3 with bleed valve, FPM, with valve springs***
8 with bleed valve, EPDM, without valve springs***
9 with bleed valve, EPDM, with valve springs***
Hydraulic connector
0 Standard threaded connector (in line with technical data)
1 Union nut and PVC insert
2 Union nut and PP insert
3 Union nut and PVDF insert
4 Union nut and SS insert
7 Union nut and PVDF tube nozzle
8 Union nut and SS tube nozzle
9 Union nut and SS welding sleeve
Identity code
6

S1Cb Sigma 1, Control Type, Version b
Design
0With ProMinent® Logo
1without ProMinent® logo
F Physiological safety declaration
Electric power supply
U 1 ph, 100-230 V ± 10 %, 50/60 Hz
Cable and plug
A 2 m European
B 2 m Swiss
C 2 m Australian
D 2 m USA
Relay
0 No relay
1 Fault indicating relay (230V - 8A)
3 Fault indicating relay + pacing relay (24V
- 100mA)
8 0/4-20 mA analog output + fault indi‐
cating -/ pacing relay (24V - 100mA)
Control version
0 Manual + external contact with
pulse control
1 Manual + external contact with
pulse control + analog + dosing
profiles
5 as 1 + timer
6as 1 + PROFIBUS®-DP interface
(M12 plug)
7 As 1 + CANopen **
Overload switch-off
0 without overload switch-off
1 with overload switch-off - 4
bar
2 with overload switch-off - 7
bar
3 with overload switch-off - 10
bar
Operating unit (HMI)
S HMI (0.5 m cable)
1 HMI + 2 m cable
2 HMI + 5 m cable
X without HMI
Safety options
0 Dosing monitor,
dynamic, without
access control
Identity code
7

S1Cb Sigma 1, Control Type, Version b
1 Dosing monitor,
dynamic, with
access control
Language
DE German
EN English
ES Spanish
FR French
FPM = fluorine rubber
* for SST = 12 bar
** Pump without HMI control unit
*** Standard with tube nozzle in the bypass Threaded connection on
request.
Identity code
8

2 Safety chapter
The following signal words are used in these operating instructions to
denote different severities of danger:
Signal word Meaning
WARNING Denotes a possibly dangerous sit‐
uation. If this is disregarded, you
are in a life-threatening situation
and this can result in serious inju‐
ries.
CAUTION Denotes a possibly dangerous sit‐
uation. If this is disregarded, it
could result in slight or minor inju‐
ries or material damage.
The following warning signs are used in these operating instructions to
denote different types of danger:
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
nThe pump may only be used to dose liquid metering chemicals.
nOnly SST design pumps may be used with combustible feed chemi‐
cals.
nThe pump may only be started up after it has been correctly installed
and commissioned in accordance with the technical data and specifi‐
cations contained in the operating instructions.
nThe general limitations with regard to viscosity limits, chemical resist‐
ance and density must be observed - see also ProMinent resistance
list (In the product catalogue or at
www.prominent.com )!
nAny other uses or modifications are prohibited.
nThe pump is not intended for the metering of gaseous media or solids.
nThe pump is not intended for operation in hazardous locations.
nThe pump is not intended for exterior applications without use of suit‐
able protective equipment.
nThe pump should only be operated by trained and authorised per‐
sonnel, see the following "Qualifications" table.
nYou are obliged to observe the information contained in the operating
instructions at the different phases of the device's service life.
Identification of safety notes
Warning signs denoting different types of
danger
Correct and proper use
Safety chapter
9

WARNING!
Warning of dangerous or unknown feed chemical
Should a dangerous or unknown feed chemical be used: It
may escape from the hydraulic components when working
on the pump.
– Take appropriate protective measures before working on
the pump (e.g. safety glasses, safety gloves, ...).
Observe the safety data sheet for the feed chemical.
– Drain and flush the liquid end before working on the
pump.
WARNING!
Danger from hazardous substances!
Possible consequence: Fatal or very serious injuries.
Please ensure when handling hazardous substances that
you have read the latest safety data sheets provided by the
manufacture of the hazardous substance. The actions
required are described in the safety data sheet. Check the
safety data sheet regularly and replace, if necessary, as the
hazard potential of a substance can be re-evaluated at any
time based on new findings.
The system operator is responsible for ensuring that these
safety data sheets are available and that they are kept up to
date, as well as for producing an associated hazard assess‐
ment for the workstations affected.
CAUTION!
Warning of feed chemical spraying around
Feed chemical can spray out of the hydraulic components if
they are manipulated or opened due to pressure in the liquid
end and adjacent parts of the system.
– Disconnect the pump from the mains power supply and
ensure that it cannot be switched on again by unauthor‐
ised persons.
– Depressurise the system before commencing any work
on hydraulic parts.
CAUTION!
Warning of feed chemical spraying around
An unsuitable feed chemical can damage the parts of the
pump contacted by the chemical.
– Take into account the resistance of the materials which
will come into contact with the chemical when selecting
the feed chemical - see the ProMinent product catalogue
or under
www.prominent.com .
CAUTION!
Danger of personnel injury and material damage
The use of untested third party parts can result in personnel
injuries and material damage.
– Only fit parts to metering pumps, which have been
tested and recommended by ProMinent.
Safety notes
Safety chapter
10

CAUTION!
Danger from incorrectly operated or inadequately maintained
pumps
Danger can arise from a poorly accessible pump due to
incorrect operation and poor maintenance.
– Ensure that the pump is accessible at all times.
– Adhere to the maintenance intervals.
CAUTION!
Warning of illegal operation
Observe the regulations that apply where the unit is to be
installed.
WARNING!
At the pump an on/off switch can be lacking, depending on
identitycode and installation.
In the event of an electrical accident, disconnect the mains cable from the
mains or press the emergency cut-off switch fitted on the side of the
system!
If feed chemical escapes, also depressurise the hydraulic system around
the pump as necessary. Adhere to the safety data sheet for the feed
chemical.
Activity Qualification level
Storage, transport, unpacking Instructed person
Assembly, installation of hydraulic
system
Technical personnel, service
Installation, electrical Electrical technician
Operation Instructed person
Maintenance, repair Technical personnel, service
Decommissioning, disposal Technical personnel, service
Troubleshooting Technical personnel, electrical
technician, instructed person,
service
Explanation of the terms:
Technical personnel
A qualified employee is deemed to be a person who is able to assess the
tasks assigned to him and recognise possible dangers based on his/her
technical training, knowledge and experience, as well as knowledge of
pertinent regulations.
Note:
A qualification of equal validity to a technical qualification can also gained
by several years employment in the relevant work area.
Electrical technician
Information in the event of an emergency
Qualification of personnel
Safety chapter
11

Electrical technicians are deemed to be people, who are able to complete
work on electrical systems and recognize and avoid possible dangers
independently based on their technical training and experience, as well as
knowledge of pertinent standards and regulations.
Electrical technicians should be specifically trained for the working envi‐
ronment in which the are employed and know the relevant standards and
regulations.
Electrical technicians must comply with the provisions of the applicable
statutory directives on accident prevention.
Instructed person
An instructed person is deemed to be a person who has been instructed
and, if required, trained in the tasks assigned to him/her and possible dan‐
gers that could result from improper behaviour, as well as having been
instructed in the required protective equipment and protective measures.
Service
Customer Service department refers to service technicians, who have
received proven training and have been authorised by ProMinent or Pro‐
Maqua to work on the system.
Sound pressure level LpA < 70 dB in accordance with EN ISO
20361:2010-10
at maximum stroke length, maximum stroke rate, maximum back pressure
(water)
Sound pressure level
Safety chapter
12

3 Storage, transport and unpacking
WARNING!
Only return metering pumps for repair in a cleaned state and
with a flushed liquid end - refer to the section on decommis‐
sioning!
Only send metering pumps with a filled in Decontamination
Declaration form. The Decontamination Declaration consti‐
tutes an integral part of an inspection / repair order. A unit
can only be inspected or repaired when a Declaration of
Decontamination Form is submitted that has been completed
correctly and in full by an authorised and qualified person on
behalf of the pump operator.
You can find the "Decontamination Declaration" form under
www.prominent.com or on the CD.
CAUTION!
Danger of material damage
The device can be damaged by incorrect or improper storage
or transportation!
– The unit should only be stored or transported in a well
packaged state - preferably in its original packaging.
– The packaged unit should also only be stored or trans‐
ported in accordance with the stipulated storage condi‐
tions.
– The packaged unit should be protected from moisture
and the ingress of chemicals.
Compare the delivery note with the scope of supply:
nMetering pump with mains power cable
nIf necessary, connector kit for hose/pipe connection
nProduct-specific operating instructions with EC Declaration of Con‐
formity
nGeneral Operating Instructions ProMinent motor-driven metering
pumps and hydraulic accessories
nAs necessary, documents for options and accessories
Personnel: nTechnical personnel
1. Plug the caps on the valves.
3. Preferably place the pump standing vertically on a pallet and secure
against falling over.
4. Cover the pump with a tarpaulin cover - allowing rear ventilation.
Store the pump in a dry, closed shop under the following ambient condi‐
tions.
Safety notes
Scope of supply
Storage
Storage, transport and unpacking
13

Data Value Unit
Minimum storage and transport tempera‐
ture
-10 °C
Maximum storage and transport tempera‐
ture
+50 °C
Maximum air humidity * 95 % rel.
humidity
* non-condensing
Ambient conditions
Storage, transport and unpacking
14

4 Overview of equipment and control elements
P_SI_0110_SW
1
2
5
6
7
3
4

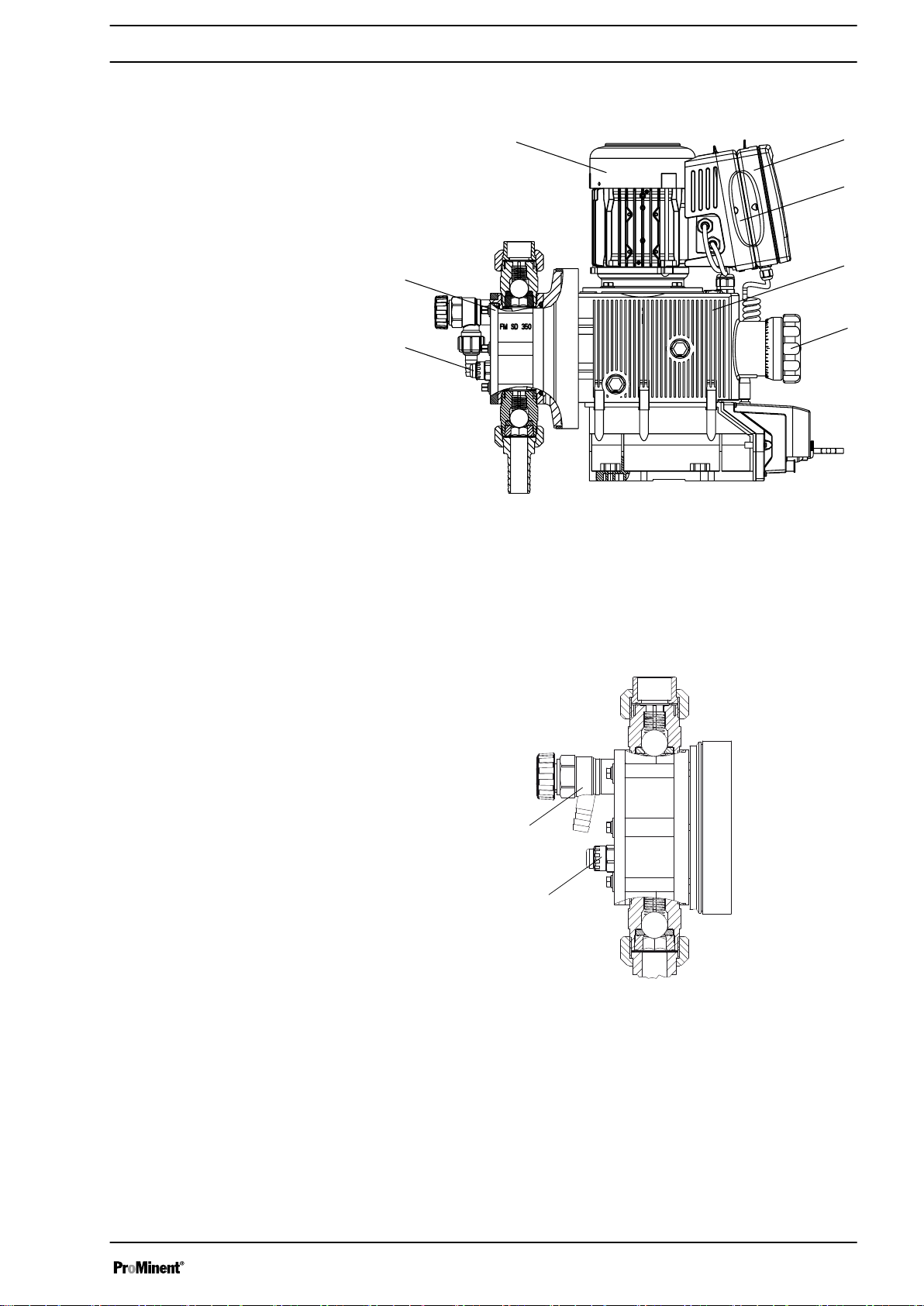

Fig. 2: Overview of equipment S1Cb
1 HMI control unit
2 Frequency converter
3 Drive unit
4 Stroke length adjustment wheel
5 Drive motor
6 Liquid end
7 Diaphragm rupture sensor
1
2
P_SI_0088_SW
Fig. 3: Sigma control elements
1 Bleed valve (Option)
2 Diaphragm rupture sensor (visual)
Overview of equipment
Control elements
Overview of equipment and control elements
15

2
1
510
8
9
6
7
3
4
P_SI_0105_SW
Fig. 4: HMI control elements
1 LCD screen
2 Fault indicator (red)
3 Warning indicator (yellow)
4 Operating indicator (green)
5 [i] key / Cursor to right
6 [ESC] key
7 [START/STOP] key
8 [DOWN] key
9 [P / OK] key
10 [UP] key
P_SI_0106_SW
6
7
543
2
1
8
Fig. 5: Connector cover control elements
1 Relay and mA-output (option)
2Optional module slot (timer, PROFIBUS®)
3 "Diaphragm rupture" terminal
4 "External control" terminal
5 "Dosing monitor" terminal
6 "Level Switch" terminal
7 "CAN-bus" port (external)
8 LEDs (as Fig. 4) and status LED CAN bus (external)
not shown Stroke length adjustment wheel
Overview of equipment and control elements
16

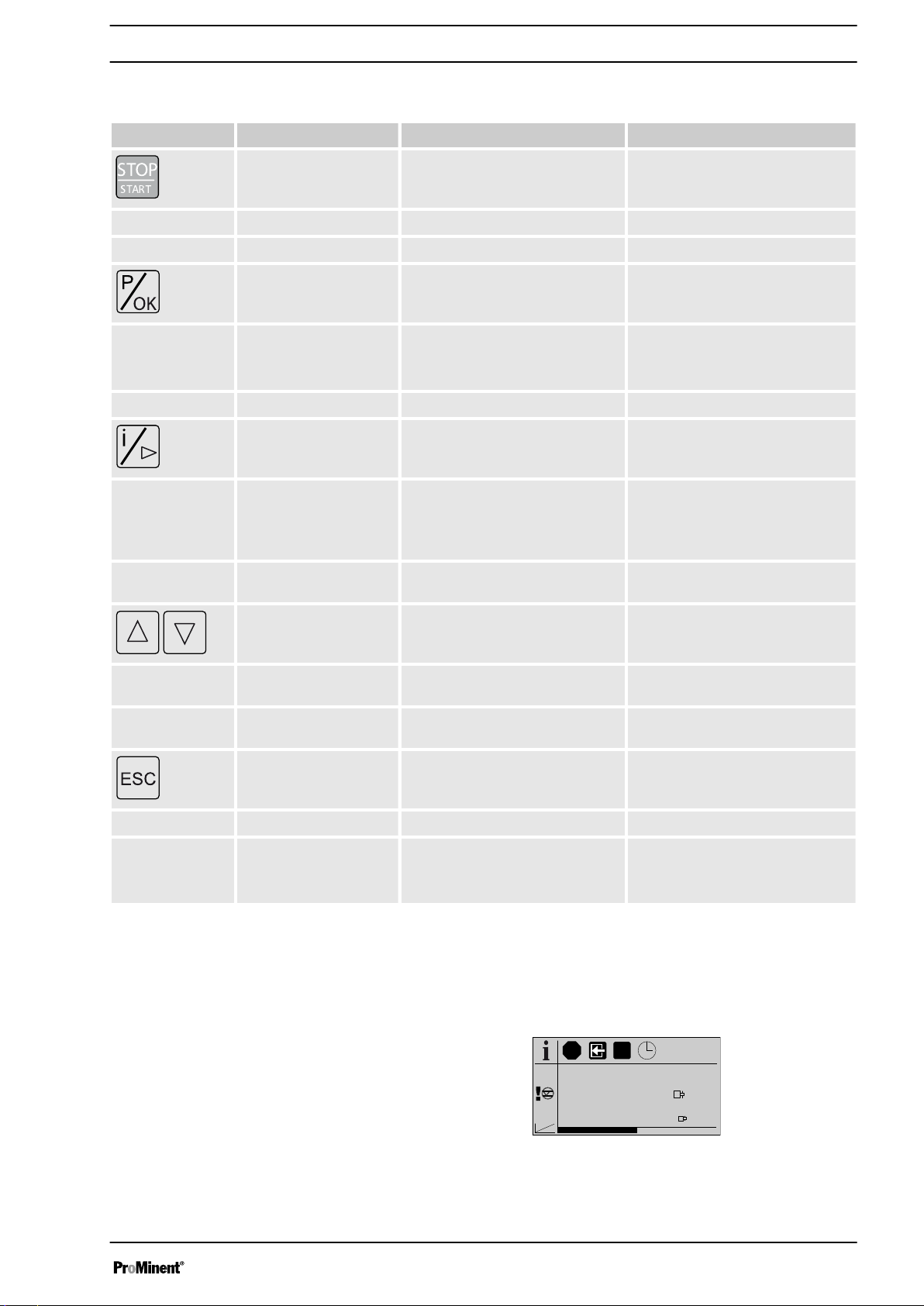

4.1 Key functions
Key Application In continuous displays (operation) In adjustment mode (set up)
[STOP/START]
Pressed briefly Stop pump, Stop pump,
start pump start pump
[P / OK]
Pressed briefly Start batch (only in
‘Batch’ oper‐
ating mode),
Acknowledge errors
Confirm entry - jump to next menu
option or to continuous display
Pressed for 2 s Change to adjustment mode -
[ i / >]
1x short press Change between the continuous
displays
Change between the secondary
displays
Change between "Changing indi‐
vidual numbers" and "Changing a
number"
Change to the next digit
1x long press Change from the continuous dis‐
plays to the secondary displays
[UP] , [DOWN]
Pressed briefly Change directly changeable varia‐
bles
Select another setting, change
individual number or number.
Simultaneous long
press
Priming -
[ESC] Pressed briefly - Jumps back one menu level
Pressed for 2s - Jumps to a continuous display
Exit the setting menu without
saving

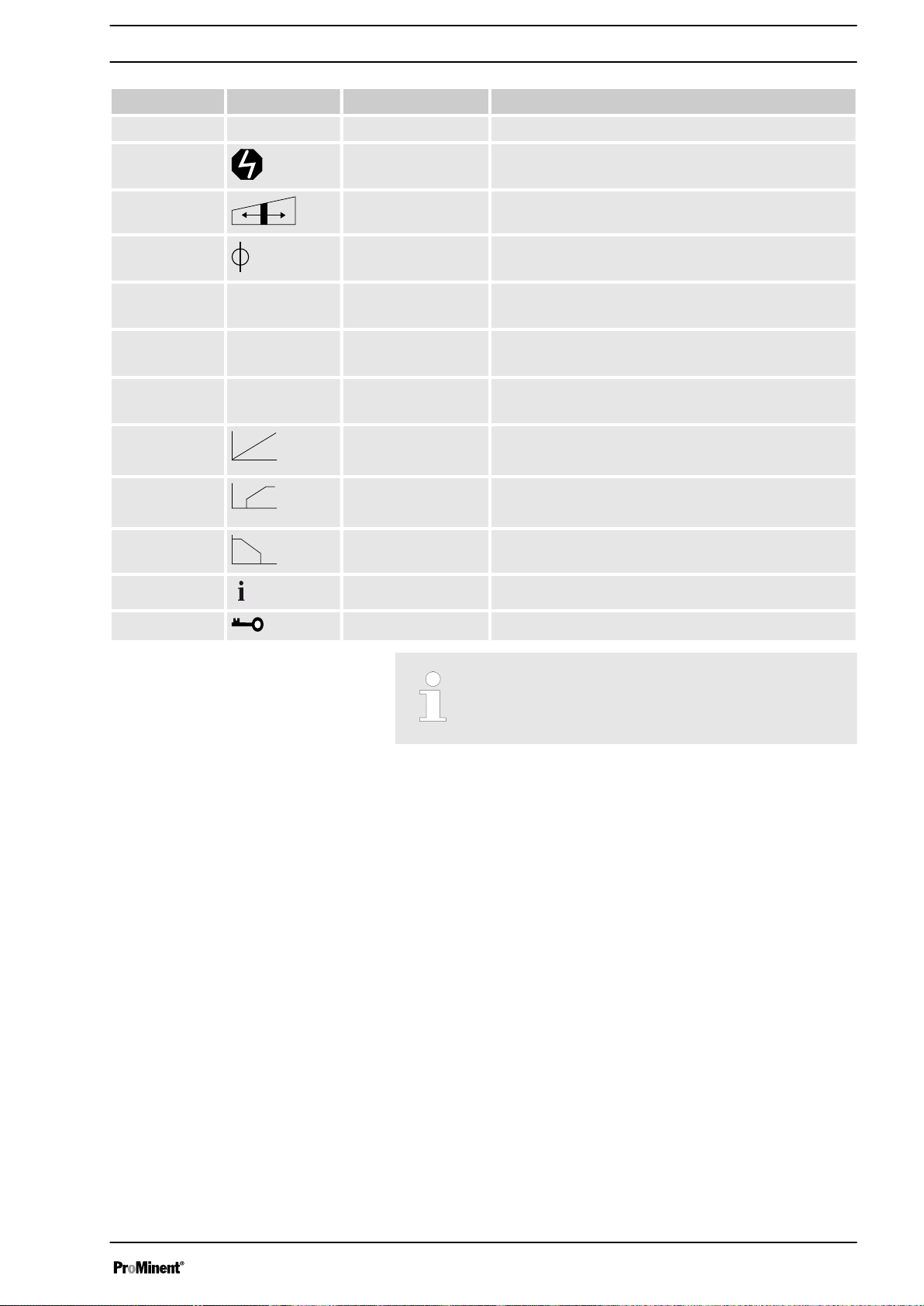

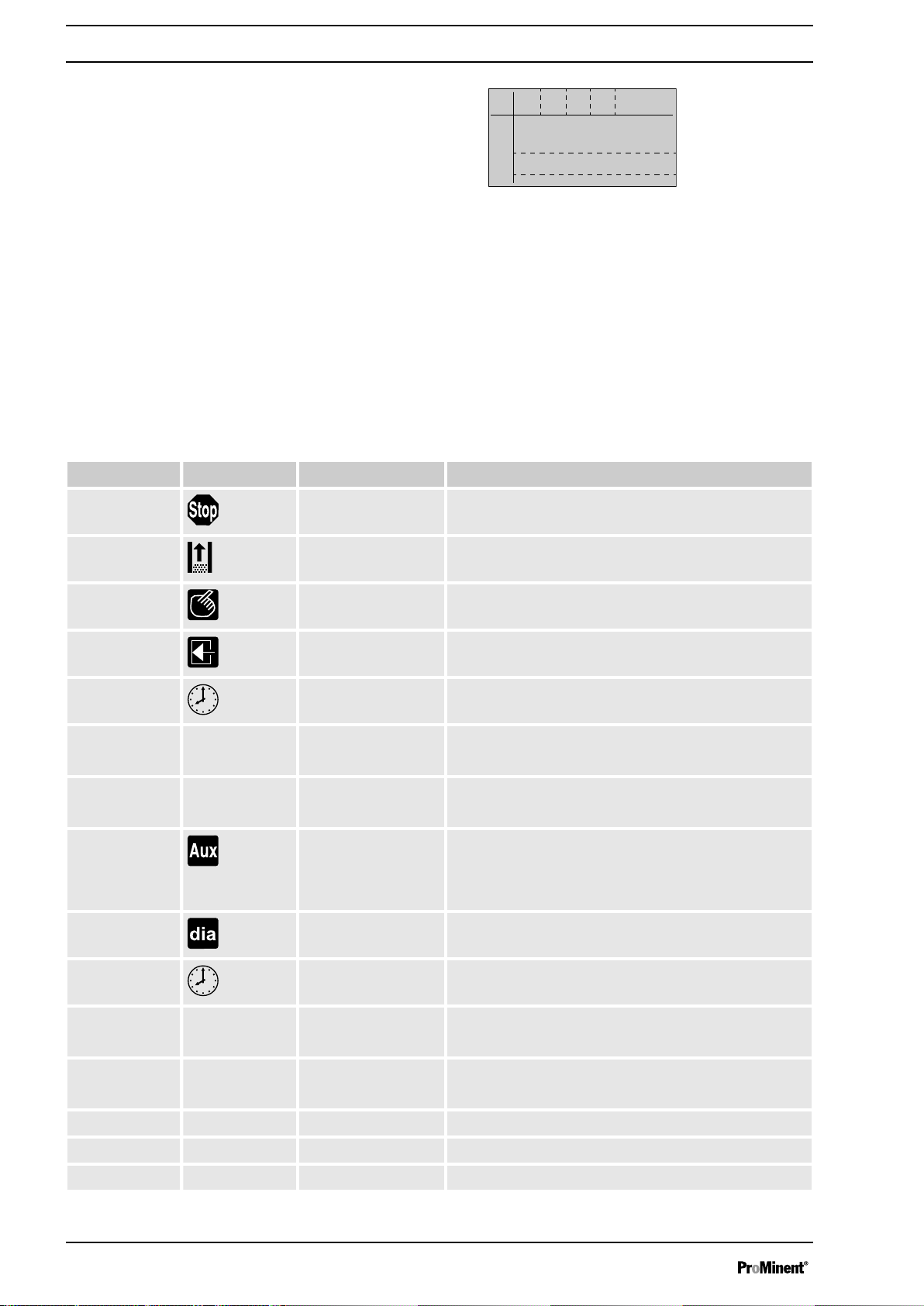

4.2 LCD screen identifiers
The LCD screen supports the operation and adjustment of the pump using
different identifiers:
10548
Manual
180 /min
Stop
Aux
B0412
The identifiers and information in the various fields of the LCD screen
have different meanings:
Overview of equipment and control elements
17

1 2 3 4 5
6
9
10
7
8
B0413
1 Operating main display
2 Source indicator for stop
3 Auxiliary operation / Diaphragm break sensor deactivated
4 Module option
5 Mode
6 Main display
7 Secondary display
8 Display type (number of pages)
9 Other identifiers, error source indicator
10 Continuous display identifier (" i " as "Info")
The identifiers have the following meanings:
Field no. Icon Name Meaning
1 Stop The pump is stopped. Cause see field 2.
1 Priming The pump is currently priming (both
[arrow keys]
pressed).
2 Manual The pump was stopped manually.
2 External signal The pump was externally stopped by the Pause contact.
2 Timer The pump was stopped via the timer.
2CAN
open
CANopen The pump was stopped via the external CAN bus.
2Profi
bus
PROFIBUS®The pump was externally stopped by the PROFIBUS®.
3 Auxiliary The pump is currently pumping with the auxiliary fre‐
quency as the stroke rate.
During this time, the pump is in
‘Manual’ operating
mode.
3 Diaphragm rupture A diaphragm rupture sensor is connected, but deacti‐
vated.
4 Timer The "Timer" option is active.
4CAN
open
CANopen The "CANopen" option is active.
4Profi
bus
PROFIBUS®The "PROFIBUS®" option is active.
5 MANUAL
‘Manual’ ‘Manual’ operating mode
5 CONTACT
‘Contact’ ‘Contact’ operating mode
5 BATCH
‘Batch’ ‘Batch’ operating mode
Overview of equipment and control elements
18

Field no. Icon Name Meaning
5 ANALOG
‘Analog’ ‘Analog’ operating mode
9 Error A fault exists.
9 Stroke length adjust‐
ment
Deviation in the stroke length from the value set at the
time of the last locking of the setting menu.
9 Flow control A flow control is connected.
9
mm
Memory The pump is in operating mode
‘Contact’ or ‘Batch’ and
the auxiliary function "Memory" is set.
9
0..200..20
0...20 mA The pump is in operating mode
‘Analog’ . The processing
type ‘0...20’ is set.
9
4..204..20
4...20 mA The pump is in operating mode
‘Analog’ . The processing
type ‘4...20’ is set.
9 Linear The pump is in operating mode
‘Analog’ .
The processing type ‘Curve’ - ‘Linear’ is set.
9 Upper sideband The pump is in operating mode
‘Analog’ .
The processing type ‘Curve’ - ‘Upper sideband’ is set.
9 Lower sideband The pump is in operating mode
‘Analog’ . The processing
type ‘Curve’ - ‘Lower sideband’ is set.
10 Continuous display A continuous display appears on the LCD screen.
10 Security Security lock (if a code was set).
For identifiers which appear in response to errors, see the
"Troubleshooting" chapter.
Overview of equipment and control elements
19

5 Functional description
5.1 Drive unit
The metering pump is an diaphragm pump, the stroke length of which can
be adjusted. An electric motor (1) drives the pump. A worm gear (2) steps
down its drive rotation A cam (3), in conjunction with the uptake fork (8)
converts this into an oscillation movement of the slide rod (4). A return
spring (5) presses the uptake fork together with the slide rod positively
against the cam thus producing the reciprocal stroke. The stroke length
can be adjusted using the stroke adjustment dial (6) and the axle (7). The
different stroke lengths are in effect caused by a limitation of the return
stroke, see figure. The slide rod transmits the stoke motion to the metering
diaphragms.
P_SI_0124_SW
6
7
8
3
1
56
Fig. 6: Section through the drive unit Sigma 1
1 Electric motor
2 Worm gear (not visible)
3 Eccentric cam
4 Slide rod
5 Return spring
6 Stroke adjustment dial
7 Axle
8 Uptake fork
The stroke movement of the displacement body is continuously measured
and regulated so that the stroke is executed according to a previously set
dosing profile, see chapter
‘Set-up’ - ‘Metering’ .
The following dosing profiles are available:
nNormal
nDischarge opti.
nSuction opti.
Illustration of the stroke movement
Functional description
20
