Prorack K997W User manual

K997W
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 2 x 1 x 1 x 2
x 2 x 2 x 1 x 1
x 2 x 2 x 2
Revision No: 1A 1

Fitting Kit K997W
MAX kgs (lbs)
W/P WHD
Jeep
Renegade Sport, 5dr SUV 15-+ AU 68 kgs (149 lbs) 68 kgs (149 lbs)
Renegade Sport, 5dr SUV 15-+ EU 68 kgs (149 lbs) 68 kgs (149 lbs)
Renegade Sport, 5dr SUV 16-+ NZ 68 kgs (149 lbs) 68 kgs (149 lbs)
2

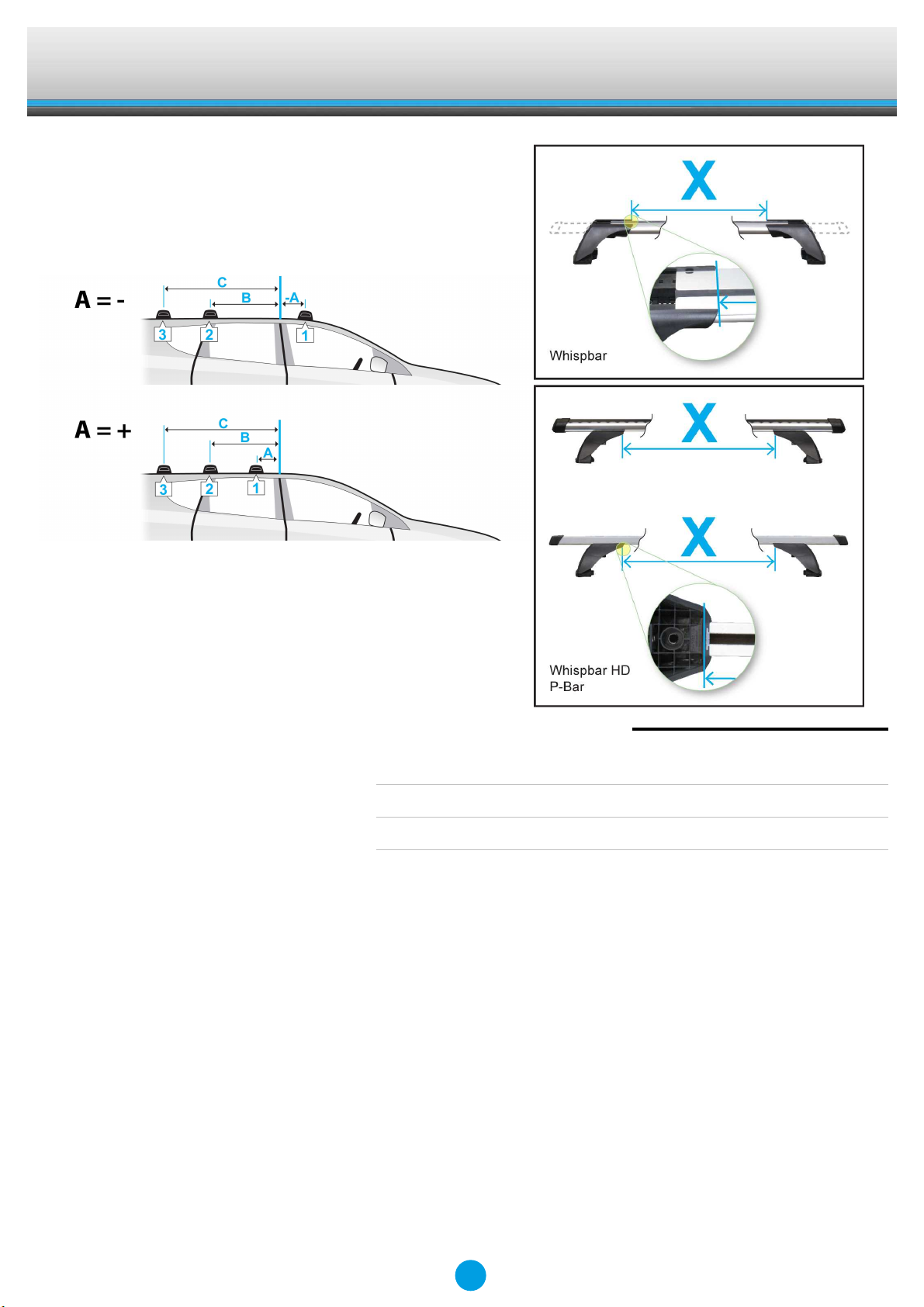

Fitting Kit K997W
X
A B C 1 2 3
Renegade Sport, 5dr SUV 15-+ (AU) 275mm 480mm - 915mm 970mm -
10 13/16ths" 18 7/8ths" - 36" 38 3/16ths" -
Renegade Sport, 5dr SUV 15-+ (EU) 275mm 480mm - 915mm 970mm -
10 13/16ths" 18 7/8ths" - 36" 38 3/16ths" -
Renegade Sport, 5dr SUV 16-+ (NZ) 275mm 480mm - 915mm 970mm -
10 13/16ths" 18 7/8ths" - 36" 38 3/16ths" -
3

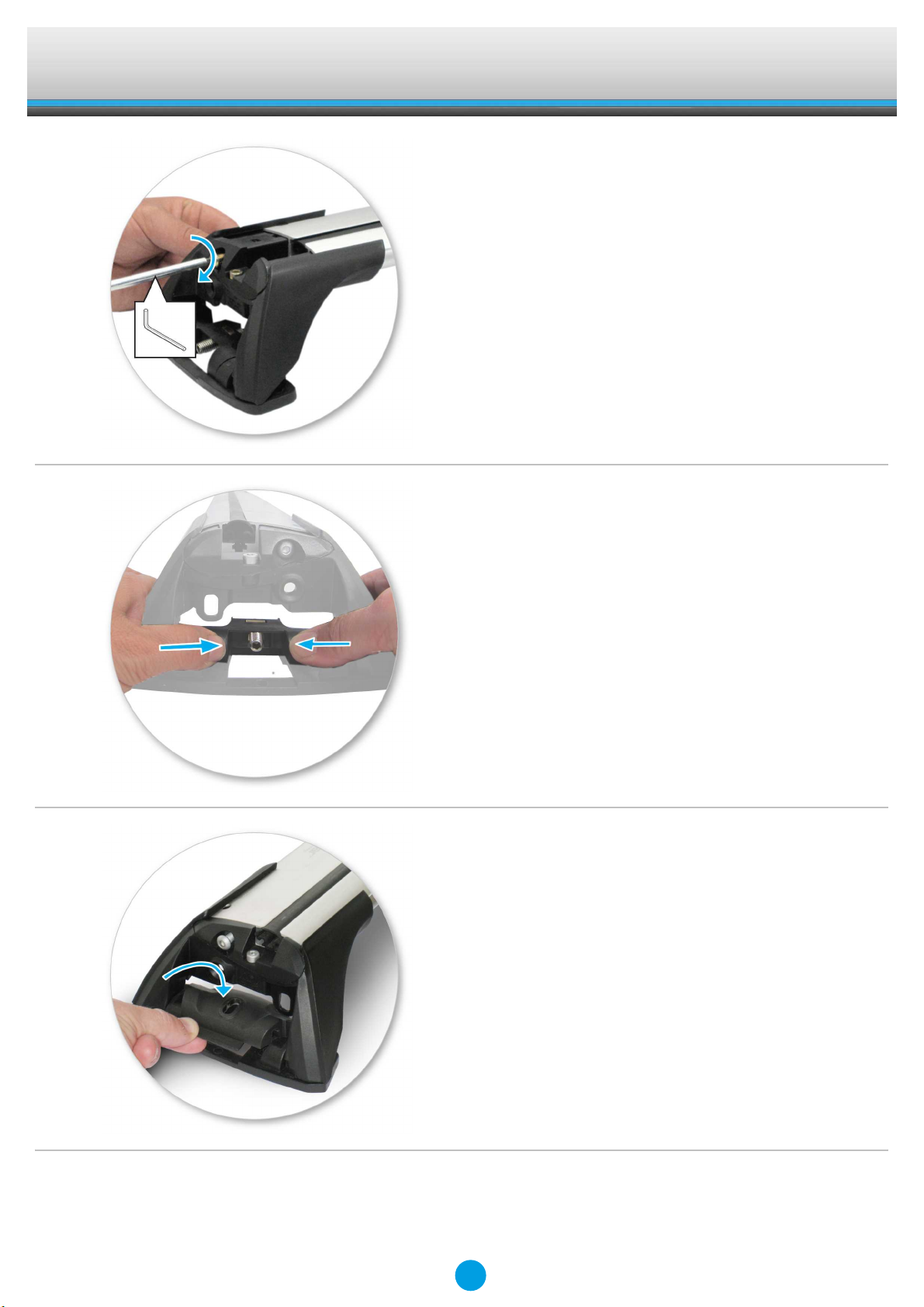

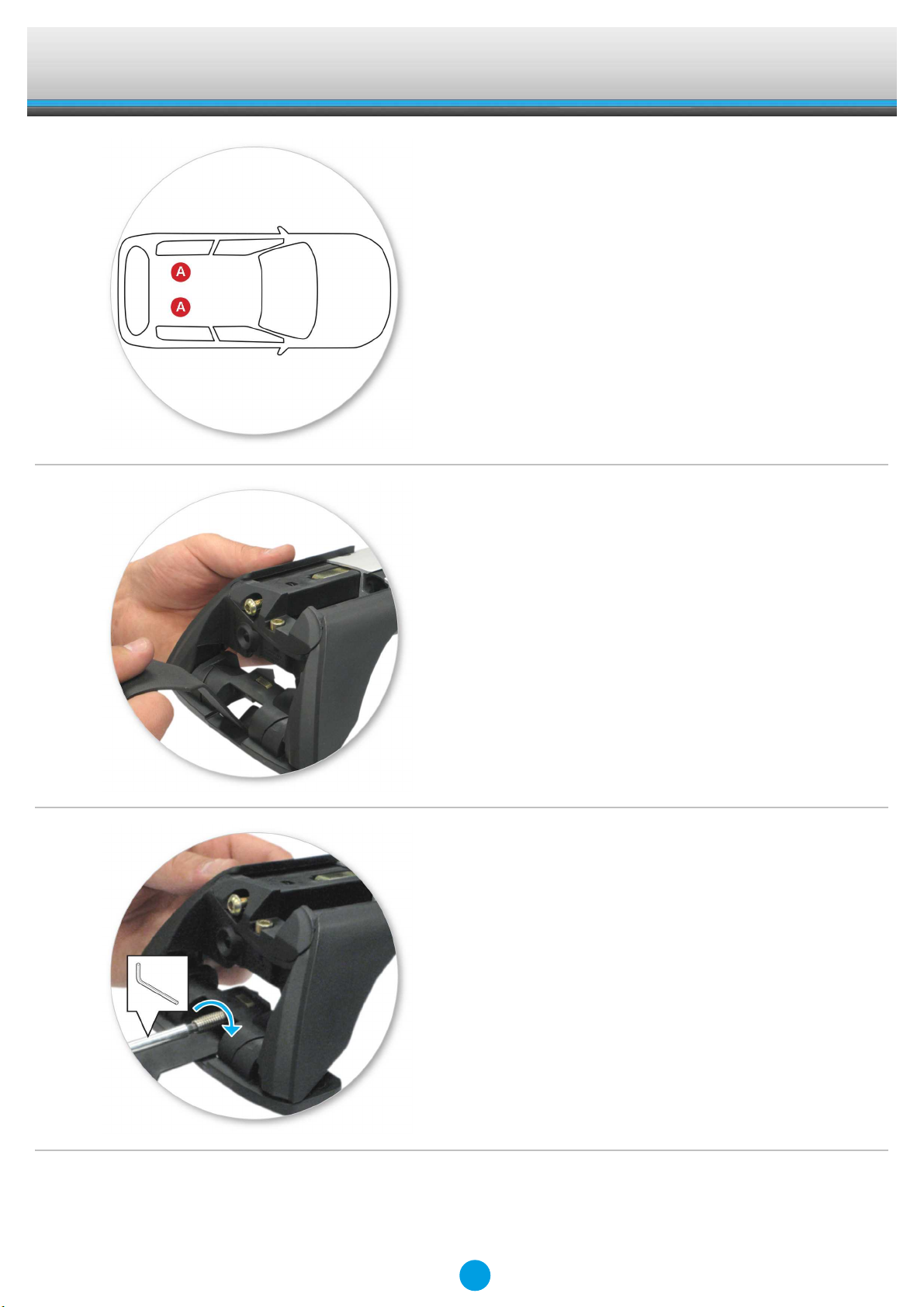

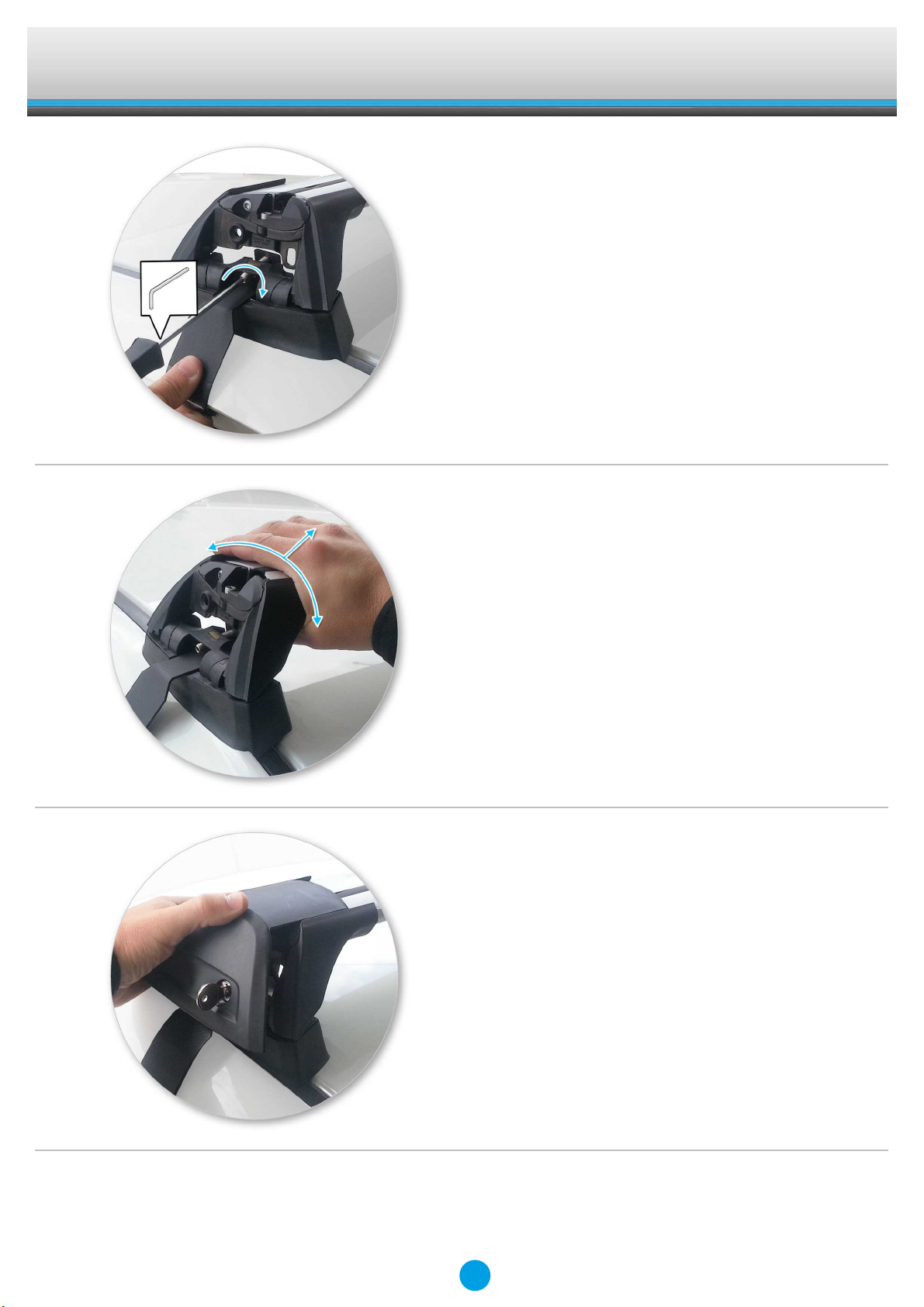

Fitting Kit EN
K997W
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●Use keys to remove covers.
4

Fitting Kit EN
K997W
Fitment FRONT ONLY
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Adjust crossbar in or out to suit vehicle.
Refer to the crossbar instructions for
crossbar adjustment.
5

Fitting Kit EN
K997W
●Tighten adjusting screw to 3 Nm (2.2 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Select plastic internal block (from fitting kit)
and insert into foot.
6

Fitting Kit EN
K997W
●Remove as shown.
●Mark as shown.
Fitment Front Bar Only
●Use drill bit supplied, to drill holes in
marked positions.
7

Fitting Kit EN
K997W
●Re-install rubber ditch mould back into roof
channel and click into place.
●Select grubscrews and screw into the
vehicle's fixed points.
●Do not over tighten.
●Repeat for all items.
●Refer to the underside of the pad for the
part number.
8

Fitting Kit EN
K997W
●It is important to put the pads in the correct
position on the vehicle.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 224
B = 225
●Place crossbars on pads ensuring the pads
fit into the holes underneath the foot and
the grubscrew passes through the hole in
the foot.
●Tighten the plastic knob. The side with the
nut showing should be facing up.
9

Fitting Kit EN
K997W
●Ensure the plastic knob is in the position
shown when fully tightened.
●Repeat at other end.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
●If crossbars are removed, please install the
rubber plugs into the ditch moulding.
10

Fitting Kit EN
K997W
Fitment REAR ONLY
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Remove locking screw.
11

Fitting Kit EN
K997W
●Refer to the underside of the pad for the
part number.
●It is important to put the pads in the correct
position on the vehicle.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 221
●Place rubber pads (supplied with fitting kit)
on the vehicle roof. Pad may vary in shape
to that shown.
12

Fitting Kit EN
K997W
●Make sure the pad fits into the holes
underneath the foot.
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).
●Apply protective strip as shown.
Trim if required.
13

Fitting Kit EN
K997W
●It is important to put the clamps in the
correct position on the vehicle.
●Letters refer to the part numbers stamped
on clamps.
●Clamp Part Number:
A = A853
●Attach clamp to each leg.
●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
14

Fitting Kit EN
K997W
●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
●Clamps directly to edge of roof under the
doors
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Adjust crossbar in or out to suit vehicle.
Refer to the crossbar instructions for
crossbar adjustment.
●Tighten adjusting screw to 3 Nm (2.2 ft lb)
hand tight.
15

Fitting Kit EN
K997W
●Tighten locking screw on both legs evenly,
2.5 Nm (1.8 ft lb).
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
16

Fitting Kit EN
K997W
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
17

Fitting Kit EN
K997W
Maintenance
●Never drive into a car wash with the roof
rack system fitted.
●Lubricate locks and adjusting screws at
regular intervals.
●Remove the products from the vehicle
when not in use. Make sure all loose parts
are stored safely.
●Make sure all loads are securely fastened
with non-elastic straps. Check regularly
during longer journeys.
●A loaded roof rack system can alter the
performance of your vehicle. Be especially
aware of the effects of side winds,
changing of direction, and braking
performance. Avoid rapid acceleration and
deceleration. Drive carefully.
●Note that the total height of the vehicle
increases when upright loads are carried.
●Products should be locked during transport
if they have locks fitted.
●Check and replace worn out or defective
parts.
●Keep the product clean and maintained.
●Do not modify this product.
●Refer to the maximum permitted load
capacity specified in the fitting instructions.
Do not exceed the vehicle manufacturers
roof load rating if it is lower than the
maximum load capacity specified in the
fitting instructions.
●Loads should not overhang the sides of the
product and be evenly distributed with the
lowest possible centre of gravity.
●Long loads should be secured with non-
elastic straps to the front and rear of the
vehicle.
●Objects with pointed ends (e.g. ski poles)
should be carried with the pointed ends to
the rear of the vehicle.
●Remove all loose or removable objects
from the load prior to loading.
●Clean the car roof and surfaces of the
product that will be in contact with the car
roof.
●Follow the fitting instructions for fitting the
product to your vehicle. Make sure all steps
are carried out in order.
18

Fitting Kit EN
K997W
●Set crossbars a minimum distance of
700mm (27 1/2") apart where no other
distance is specified in the fitting
instructions. This is especially important
when carrying long loads.
●Check unit is securely attached whenever
you refit it to the vehicle. If the unit feels
loose, refer to the fitting instructions and
readjust.
●Some glass/panoramic roofs and radio
antennae may not be able to be used when
the product is fitted.
●Yakima Australia Pty Ltd
17 Hinkler Court
Brendale QLD 4500
AUSTRALIA
www.whispbar.com
www.whispbar.com.au
www.whispbar.co.nz
www.whispbar.co.uk
www.whispbar.co.za
www.whispbar.eu
www.whispbar.ca
19
