Prorack K998 User manual

K998
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 2 x 2 x 4 x 4
x 4 x 4 x 4
Revision No: 3C 1

Fitting Kit K998
MAX kgs (lbs)
W/P WHD
Nissan
NV350 High Roof, 5dr Van 12-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
NV350 High Roof, 5dr Van 12-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
NV350 Low Roof, 5dr Van 12-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
NV350 Low Roof, 5dr Van 12-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
2

Fitting Kit K998
X
A B C 1 2 3
NV350 High Roof, 5dr Van 12-+ (AU) 800mm 1650mm - 840mm 840mm -
31 1/2ths" 64 15/16ths" - 33 1/16ths" 33 1/16ths" -
NV350 High Roof, 5dr Van 12-+ (NZ) 800mm 1650mm - 840mm 840mm -
31 1/2ths" 64 15/16ths" - 33 1/16ths" 33 1/16ths" -
NV350 Low Roof, 5dr Van 12-+ (NZ) 800mm 1650mm - 1020mm 1020mm -
31 1/2ths" 64 15/16ths" - 40 3/16ths" 40 3/16ths" -
NV350 Low Roof, 5dr Van 12-+ (AU) 800mm 1650mm - 1020mm 1020mm -
31 1/2ths" 64 15/16ths" - 40 3/16ths" 40 3/16ths" -
3

Fitting Kit EN
K998
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●Use keys to remove covers.
4

Fitting Kit EN
K998
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Adjust crossbar in or out to suit vehicle.
Refer to the crossbar instructions for
crossbar adjustment.
●Please check the front of this manual for
information relating specifically to your
vehicle.
5

Fitting Kit EN
K998

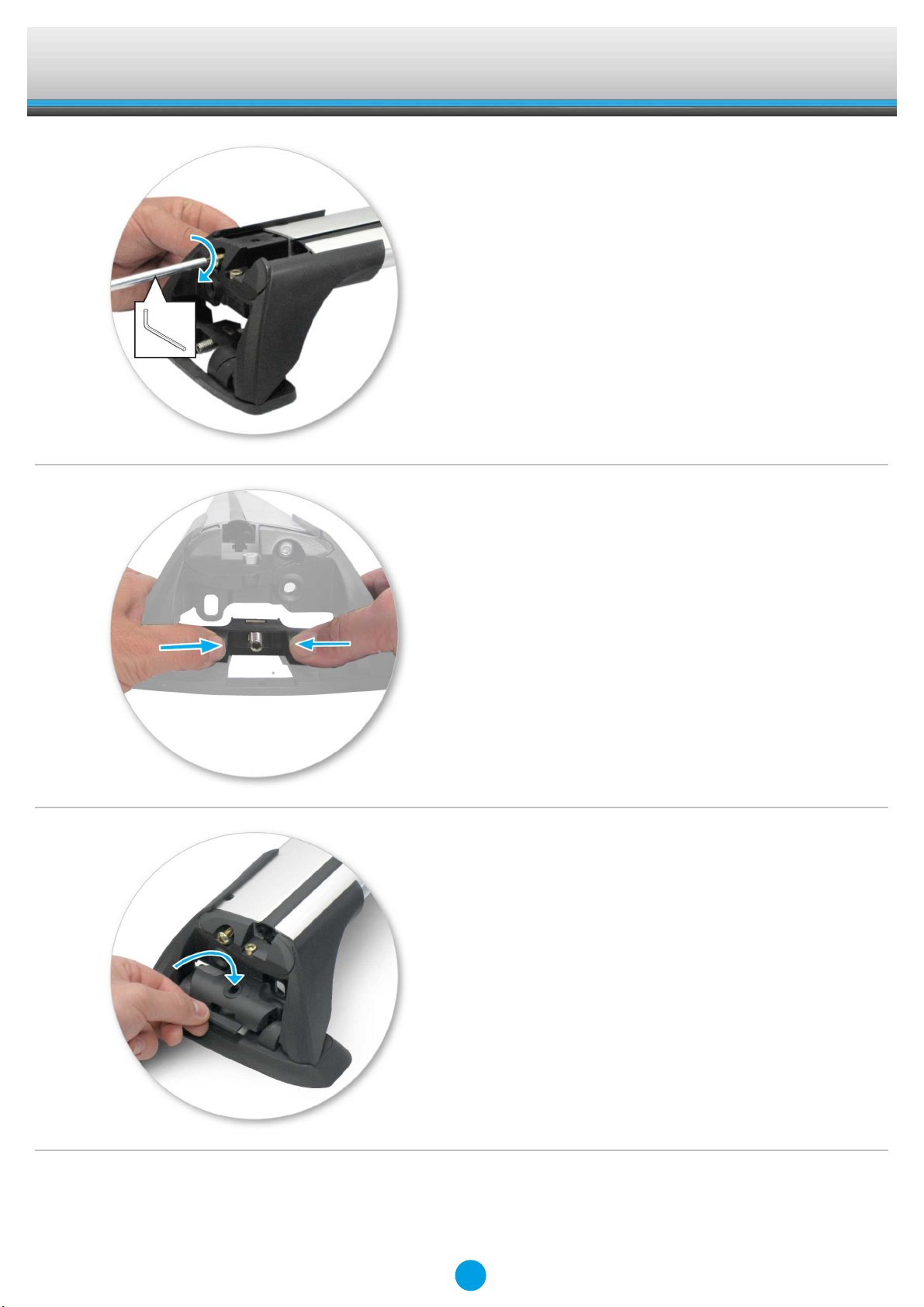

●Tighten adjusting screw to 2 Nm (1.5 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Select plastic internal block (from fitting kit)
and insert into foot.
●Repeat for all legs.
6

Fitting Kit EN
K998
●It is important to put the pads in the correct
position on the vehicle.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 267
B = 268
●Note: Pads may be different to that shown.
●Make sure the pad fits into the holes
underneath the foot.
Fitment
●Remove fixed-point cover.
7

Fitting Kit EN
K998
●Use the following grubscrew lengths for
each position:
A = M8 x 80 mm (3 1/8")
●Screw M8 grubscrew into fixed-point,
leaving 60mm (2 3/8") visible.
●Place M8 washer over grubscrew.
●Fit nut to grubscrew.
●Tighten firmly.
8

Fitting Kit EN
K998
●Place crossbar foot over clamp.
●Tighten the plastic knob.
●In the fully tightened position, the knobs
should be parallel with the vehicle.
●Repeat for all positions.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
9

Fitting Kit EN
K998
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
