Proteus EEC-1500 User manual

Owner's manual
EEC-1500/5550
ELLIPTICAL
ME
HO

Features of product with GS-TUV mark :
Mechanical safety.
Symbol of high quality.
Reliability assurance.
Testing specification :
EN 957-1+A1, EN 957-9.

INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Introduction / Safety Guideline
Information EEC-1500 / 5550
Assembly
Exploded View
Parts List
01~03
03
04~06
07
08

- 1 -
INTRODUCTION/SAFETY GUIDELINE
A. Introduction
Thank you very much for choosing PROTEUS products. To ensure your safety, please read the
manual and all suggestions carefully before using this product. While you get everything ready,
believe that you could enjoy the pleasure of exercise and healthy.
B. Safety guideline
a. Read the owner's manual and all accompanying literature. Follow it carefully before using your
machine.
b.
c. Inspect your exercise machine prior to exercising to ensure that all nuts and bolts are fully
tightened .
d. Make sure machine is stable on the floor. Avoid uneven surfaces.
e. Most exercise equipment is not recommended for small children.Children should not use the
machine. Keep unsupervised children away from the equipment.
f. Exercise equipment has moving parts. Keep others, especially children, at a safe distance
while exercising.
g. Make sure all devices are fully adjusted before use to avoid injury.
h. Remove all jewelry, including rings, chains and pins before exercising.
i. Always wear suitable clothing and footwear during exercise. Do not wear loose fitting clothing
that could become caught in the moving parts of your exercise machine.
j. Warm up 5 to 10 minutes before each workout and cool down 5 to 10 minutes afterward. This
allows your heart rate to gradually increase and decrease and will help prevent muscle strain.
k. Never hold your breath while exercising. You should breathe at a normal rate in conjunction
with the level of exercise being performed.
l. Rest adequately between workouts. Muscles tone and develop during these rest periods.
Beginners should work out twice a week and increase gradually to 4 or 5 times per week.
m.Do not "over train". Incorrect or excessive training may result in Injury.
This machine is intended for indoor home use only. It is not designed for commercial use.

Information on braking system:
Speed-dependent : With increasing speed more power is required to drive
the bike and vice versa.
Important : Read all instructions carefully. Assemble the unit in accordance with the steps in
the manual. Lay out all parts on the floor and check if you have all the parts
included completely before begin assembly. In case of a discrepancy, please call
customer service of the store for help.
Note : Some parts may be factory pre-assembled.
Warning : Before beginning any exercise program, please consult your physician. If at any
time you feel faint, dizzy or are experiencing pain, stop and consult your physician.
The manufacturer may use same as a defense to any claim for injuries, damage or
loss. The above warnings are in no way intended to limit or modify the consumer's
remedies for breach of warranties pursuant to applicable federal and state laws
of regulations. They are being supplied strictly to ensure the safety of the
individuals using this product.
The appliances are not for children under 14 years of ages.
The safety level of the equipment can be maintained only if it is examined regularly for
damaged and wear.
Safe distance : Front and back : 50cm
Left and right sides : 30cm
Replace defective components immediately and keep the equipment out of use
until repaired.
BEFORE YOU BEGIN
- 2 -
IMPORTANT : THE MAXIMUM RECOMMENDED WEIGHT CAPACITY FOR YOUR
EQUIPMENT IS 125 KG ( 275 LB ). ALL OF THE TEST STIPULATE
TO THE EN 957-1+A1 / -9, CLASS HC.
CLASS H: ( HOME ) DOMESTIC USE.
CLASS C: MINIMUM ACCURACY.
NOTE :THE EQUIPMENT IS SPEED-DEPENDENT ON BRAKING SYSTEM.

Bearing / Belt
C. Information EEC-1500 / 5550
- 3 -
We enclose with three simple assembling tools for your assembly convenience
One spanner, one allen key & one screwdriver.
THE MOST SUSCEPTIBLE TO WEAR PARTS ARE
TOOLS REQUIRED FOR ASSEMBLY
Note : If your model no. Is EEC-5550, do not plug to power supply before
machine is fully assembled. Input power supply specification
depends on local electricity supply , and a proper transformer may
be needed.
DC transformer spec. : Input : 220-240V (100-120V) ~ 50HZ
Output : 6V 500 mA
INFORMATION EEC-1500/5550 SERVICE INFORMATION
Resistance External Magnetic Wheel External Magnetic Wheel
Driving Industrial Poly-V Belt 1549-J-6 Industrial Poly-V Belt 1549-J-6
Hub Industrial Double Sealed Industrial Double Sealed
Bearing 6203ZZ Bearing 6203ZZ
Axle / Crank Three-Piece Type Three-Piece Type
Max User Weight 125 kg 125 kg
Machine Size 139 x 73 x 160 cm 139 x 73 x 160 cm
Carton Size 123 x 37 x 91.5 / 39.5 cm 123 x 37 x 91.5 / 39.5 cm
NW / GW 53.4 / 59.0 kg 54.4 / 59.3 kg
EEC-1500 EEC-5550

Step 1 : Assemble handlebar post
Fold up the handlebar post ( 17 ) to the
upright position, fix with bolts ( 34 / 35 )
and washers ( 36 ). Then fully tighten
them with spanner.
Step 2 : Assemble protective cover
Step 3 : Assemble stabilizer
Attach front stabilizer ( 02 ) & rear
stabilizer ( 03 ) to main frame ( 01 ) , fix
with carriage bolts ( 40 ) , washers ( 42 )
and nuts ( 41 ). Then fully tighten them
with spanner.
Step 4 : Assemble adjust tube ( for EEC-5550 )
a. Insert adjust tube ( 52 ) to the
connecting arms ( 13 / 14 ) and fix
with knob ( 54 ).
b. Connecting arms adjust :
Adjust the height of the pedal arm
( 04 / 05 ) by the knob ( 54 ).
Tightened the knob ( 54 ) firmly after
adjustment.
Fix the protective cover ( L )( 37 ) to the
main frame ( 01 )with screw ( 39 ).
Repeat same procedure on protective
cover ( R )( 38 ). Then tighten them
with screwdriver.
ASSEMBLY
- 4 -
17
39
38
37
1
3
40 19
42 41
41 42
1
2
STEP 4 14
54
15 53
52
STEP 3
STEP 2
STEP 1
1 36
34
36
35
17

11
44
43
43
44
5
4
10
15
16
- 5 -
Step 5 : Assemble pedal
a. Fix pedal ( L )( 10 ) to pedal arm
( L )( 04 ) with screws ( 43 ) &
washers ( 44 ), then tighten them with
spanner. Repeat same procedure on
the right pedal then assemble pedal
arm assembly left & right ( 04 / 05 ).
b. Insert the shaft ( at rear side of pedal
arm ) to the cross joint-rear ( 16 )( at
the main frame ) then insert the other
shaft ( at front side of pedal arm ) to
the cross joint-front ( 15 ) at
connecting arms ( 13 / 14 ).
Step 6 : Assemble handlebar
Connect pulse wire ( 28 ) and extension
pulse wire ( 29 ), then insert the
handlebars ( 06 / 07 ) to the connecting
arms ( 13 / 14 ) and fix with bolts ( 46 ),
cone washers ( 48 ) & nuts ( 47 ). Then
fully tighten them with spanner.
Step 7 : Assemble cycle monitor
Connect extension monitor cable ( 26 ) &
extension grip pulse wire ( 29 ) to the
monitor ( 12 ) then fix the monitor to
mounting plate ( located on top of
handlebar post ) with screws ( 49 ). Then
tighten them with screwdriver.
NOTE : THE PEDAL ARMS ARE NOT
FIXED WITH BOLTS. DO NOT
HOLD THE PEDAL ARMS FOR
MOVING THE MACHINE.
NOTE : THE PEDAL ARMS ARE NOT
FIXED WITH BOLTS. DO NOT
HOLD THE PEDAL ARMS FOR
MOVING THE MACHINE.
48
46
46
48
28 29 47
48
47
48
29
28
67
STEP 6
STEP 5-b
STEP 5-a
49
49
12 29
26
12 29
26
STEP 7
EEC-1500
EEC-5550
13
14

- 6 -

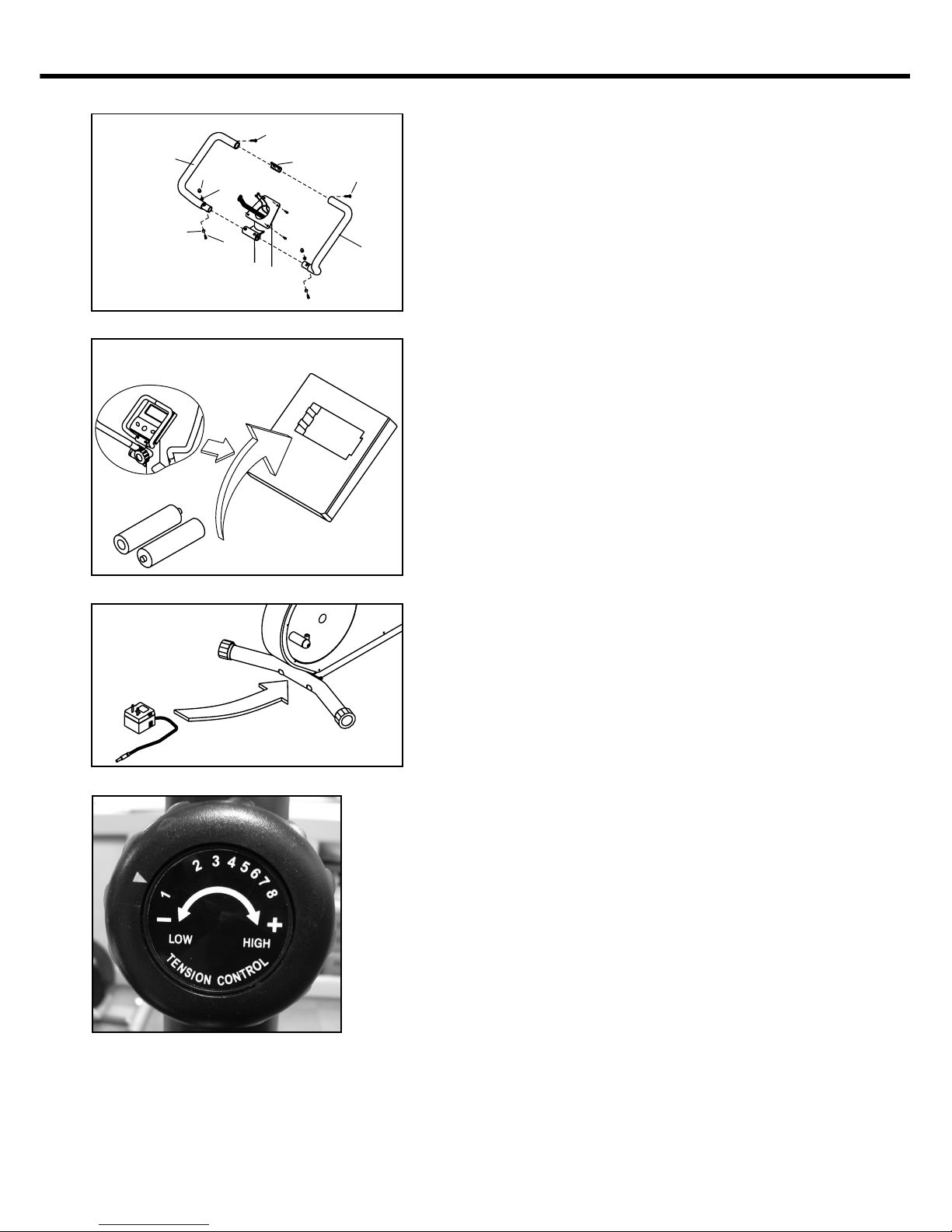

Step 8 : ASSEMBLE HANDLE
Insert connect bracket ( 55 ) into rest
handlebar ( L )( 08 ), fix with screw ( 50 )
without tighten it. Insert rest handlebar
( L )( 08 ) into handlebar post ( 17 ), fix
with bolt ( 46 ), cone washers ( 48 ) and
nut ( 47 ), without tighten it. Insert rest
handlebar ( R )( 09 ) into handlebar post
( 17 ), and attach top of bar with connect
bracket ( 55 ), fix with screw ( 50 ), bolt
( 46 ), cone washers ( 48 ) and nut ( 47 ).
Then fully tighten 2 sets of screw ( 50 )
and bolts ( 46 ) with spanner and
/screwdriver.
Step 9 : INSTALL POWER SOURCE.
EEC-1500 => step 9-a
Put battery into back of cycle monitor
( 07 ).
Battery spec. :
1.5V UM-3 ( or AA ) x 2 PCS
EEC-5550 => step 9-b
Connect DC transformer to socket.
DC transformer spec. :
Output DC 6V/500mA
Note : Tension adjust
EEC-1500 =>
Adjust the tension ( 1 to 8 level ) by the
tension control ( 51 ).
Turn clockwise tension increases
from 1 ( low ) to 8 ( high ).
Turn counter-clockwise tension
decreases from 8 ( high ) to 1 ( low ).
EEC-5550 =>
Tension adjustment operating by the
motor. Please refers to the operating
instruction of monitor.
STEP 9-a
EEC-1500
STEP 8
8,32
47
48 46
50
55
9,33
50
48
STEP 9-b
EEC-5550
NOW YOUR EEC-1500 / 5550 HAS BEEN FULLY ASSAMBLED.
THANK YOU FOR CHOOSING PROTEUS PRODUCT !

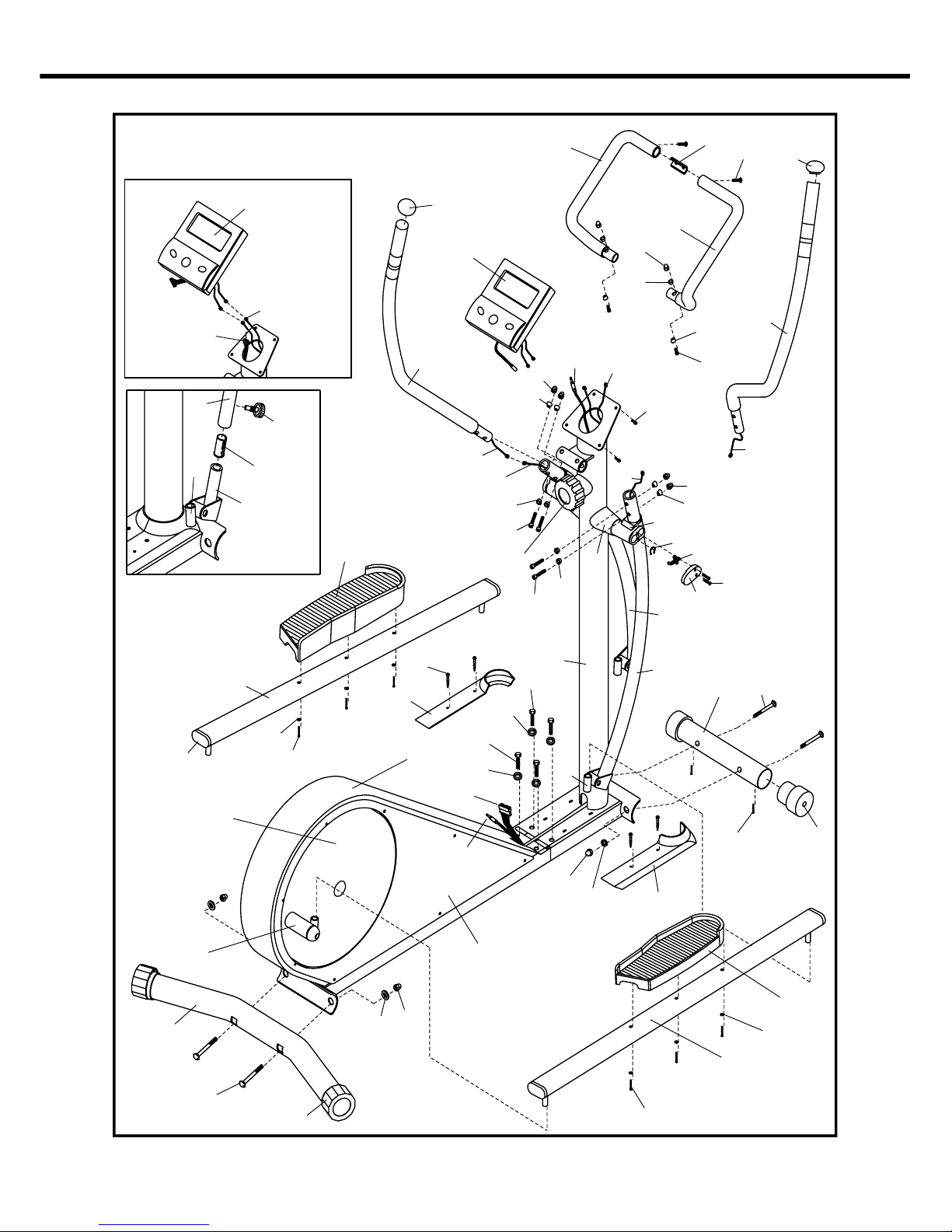

EXPLODED VIEW
- 7 -
8,32 55 50 45
7
9,33
47
48
13
47
48
49
29
44
43
4
25
22
39
37
10
17
35
36
24
1 15
51
46
48
28
63
59
61
20
26 29 46
48
45
12
47
48
62
60
28
29
48
46
36
34
14
2 40
41
42 38
56 18
41
42
43
5
44
11
40
19
3
16
31
27
6
EEC-1500
14
15
54
53
52
EEC-5550
12
30
29
EEC-5550

key D 'ty
escription Q
33 Foam grip (D) 1
34 M10 bolt x 15mm 2
35 M10 bolt x 55mm 2
36 M10 spring washer 4
37 Protective cover (L) 1
38 Protective cover (R) 1
39 3/16" (4.8mm) screw x 38mm 4
40 3/8" (9.5mm) bolt x 70mm 4
41 3/8" (9.5mm) dome nut 4
42 3/8" (9.5mm) washer 4
43 M6 screw x 40mm 6
44 M6 washer 6
45 Handlebar end cap 2
46 M6 socket screw x 40mm 6
47 M6 dome nut 6
48 M6 cone washer 12
49 M5 screw x 10mm 4
50 M5 screw x 10mm 2
51 Tension control 1
52 Adjust tube 2
53 Sleeve 4
54 Knob 1
55 Connecting bracket 1
56 5/32"(4.0mm) screw x 16mm 2
57 3/8" (9.5mm) bolt x 50mm 2
58 3/8" (9.5mm) nut 2
59 C-clip 2
60 Wire holder 2
61 3/8" (9.5mm) bolt x 50mm 4
62 Plastic plate 2
63 Axle spacer 2
64 Power transformer 1
key D 'ty
escription Q
1 Main frame 1
2 Front stabilizer 1
3 Rear stabilizer 1
4 Pedal arm (L) 1
5 Pedal arm (R) 1
6 Handlebar (L) 1
7 Handlebar (R) 1
8 Rest handlebar (L) 1
9 Rest handlebar (R) 1
10 Pedal (L) 1
11 Pedal (R) 1
12 Monitor 1
13 Connecting arm (L) 1
14 Connecting arm (R) 1
15 Cross joint-front 2
16 Cross joint-rear 2
17 Handlebar post 1
18 Wheel 2
19 Foot cap 2
20 Pivot end cap 2
21 Disk (L) 1
22 Disk (R) 1
23 Chain cover (L) 1
24 Chain cover (R) 1
25 30 x 60 plug 4
32 Foam grip (C) 1
26 Extension wire 1
27 Sensor wire 1
28 Pulse wire 2
29 Extension pulse wire 1
30 Extension monitor cable 1
31 Motor 1
