Puls DIMENSION U Series User manual

UZK24.262/-E1, UZO24.262/-E1
U-Series
BATTERY MODULE 24V, 26AH, 40A
Apr. 2022 / Rev. 0.3 DS-UZK/UZO24.262-xx-EN
All parameters are typical values specified at 25°C ambient temperature unless otherwise noted.
www.pulspower.com Phone [phone] Germany
1/11
BATTERY MODULE
•24V, 26Ah Battery capacity (2x 12V batteries in series)
•Long Life Battery: 10 to 12 years according to EUROBAT
•Easy access to the terminals and the fuse
•Heavy duty fuse holder and spare fuse included
•UZK24.262 and UZO24.262 battery modules include the
connection board and wiring kit UZW24.100
•UZK24.262-E1 and UZO24.262-E1 extensions for the paralleling of
a second battery pack
•3 year warranty (except for batteries which are considered a
service part)
PRODUCT DESCRIPTION
The UZK24.262 battery module utilizes two or four non -spillable
maintenance-free VRLA lead-acidbatteries (connected inseries) that are
assembled in one package with all the required wiring included.
Connectorterminals for the paralleling of 2 batteries are included too.
The UZK24.262 comes with the sensor board UZW24.100 which contains
a temperature sensor, fuses for 2 to 4 batteries plus an auto-resett abl e
fuse which is suitablefor balancer currents upto 2.5A. This fuse protects
the center-tapwire between the battery module and the DC-UPS control
unit.
The sensor board enables to monitor and charge the two batteries
individuallyand precisely, extending the service life of the batteries an d
making matching of replacement batteries unnecessary. Usage o f t he
sensor board is optional, the DC-UPS will also function without the
sensor board installed.
The battery module is available in four different options. It can be
ordered as UZK-module with batteries or as UZO-module without
batteries,so these can be procured separately and installed at a l ater
date to avoid outdated batteries. Both modules contain the connecti on
board and wiring kit UZW24.100.
The extension kits can be ordered as UZK24.262-E1 withbatteries or as
UZO24.262-E1 without batteries for the paralleling of a second b at te ry
pack. Each module contain battery terminal covers and ring cable lugs.
SHORT-FORM DATA
Battery type
VRLA
Battery life
10 to 12 years
Nominal, acc. EUROBAT
Battery voltage
DC 24V
Nominal
Battery capacity
26Ah
Nominal
Battery current
Max. 50A
Discharging current
Max. 7.5A
Charging current
Max. 2.5A
Balancer current
Recommended
charging voltage
27.8V
27.5V
27.15V
26.8V
At 10°C
At 20°C
At 30°C
At 40°C
Self-discharge rate
3%/month
At 20°C
Battery fuse
2*40A
ATOF®287 040 from Littelfuse
Temperature sensor
PT1000
Temperature range
-10°C to +50°C
For charging
-15°C to +50°C
-15°C to +50°C
-20°C to +50°C
For discharging @50A
For discharging @40A
For storage
Size (WxHxD) (*)
359x214x167mm
359x214x128mm
UZK24.262 incl.UZW24.100
UZK24.262–E1
Weight (*)
2x 10.0kg / 22lb
2x 0.70kg / 1.54lb
2x 10.0kg / 22lb
2x 0.70kg / 1.54lb
0.25kg / 0.55lb
UZK24.262
UZO24.262
UZK24.262-E1
UZO24.262-E1
UZW24.100
ORDER NUMBERS
Battery module UZK24.262 Battery module 24V,26Ah
UZO24.262 UZK24.262 w/o batteries
UZK24.262-E1 Battery extension 24V, 26Ah
UZO24.262-E1 UZK24.262-E1 w/o batteries
Batteries UZB12.121 Battery replacement 12V,
26Ah; 2pcs needed for
one battery module
MAIN APPROVALS
For details and the complete approval list, see chapter 12.
UL 508
(planned)
ATEX
(planned)
IECEx
(planned)
Class I Div 2
(planned)

UZK24.262/-E1, UZO24.262/-E1
U-Series
BATTERY MODULE 24V, 26AH, 40A
Apr. 2022 / Rev. 0.3 DS-UZK/UZO24.262-xx-EN
All parameters are typical values specified at 25°C ambient temperature unless otherwise noted.
www.pulspower.com Phone [phone] Germany
2/11
INDEX
Page Page
1. Intended Use .................................................................3
2. Installation Instructions.................................................3
3. Instructions for Battery Storage....................................3
4. Instructions for Replacing Batteries..............................4
5. Instructions for Disposal of the Batteries......................4
6. Product pictures ............................................................5
7. Functional Diagram .......................................................5
8. Environment ..................................................................6
9. Sensor Board .................................................................7
10. Terminals and Wiring ....................................................7
11. Protection Features .......................................................8
12. Approved, Fulfilled or Tested Standards.......................8
13. Regulatory Product Compliance....................................8
14. Physical Dimensions and Weight ..................................9
15. Recommendations for a Long Battery Life..................10
16. Mounting Orientations ................................................11
The information given in this document is correct to the best of our knowledge and experience at the time of publication. If not
expressly agreed otherwise, this information does not represent a warranty in the legal sense of the word. As the state of our
knowledge and experience is constantly changing, the information in this data sheet is subject to revision. We therefore kindly ask you
to always use the latest issue of this document (available under www.pulspower.com).
No part of this document may be reproduced or utilized in any form without our prior permission in writing.
WARNING
Risk of electrical shock, fire, personal injury or death.
- Turn power off before working on the device. Protect against inadvertent re-powering.
- Do not modify or repair the unit.
- Use caution to prevent any foreign objects from entering the housing.
- Do not use in wet locations or in areas where moisture or condensation can be expected.
- Do not touch during power-on, and immediately after power-off. Hot surfaces may cause burns.

UZK24.262/-E1, UZO24.262/-E1
U-Series
BATTERY MODULE 24V, 26AH, 40A
Apr. 2022 / Rev. 0.3 DS-UZK/UZO24.262-xx-EN
All parameters are typical values specified at 25°C ambient temperature unless otherwise noted.
www.pulspower.com Phone [phone] Germany
3/11
1. INTENDED USE
This module is designed for installation in an enclosure and is intended for the general professional use such as in industrial control,
office, communication, and instrumentation equipment.
Do not use this module in equipment, where malfunction may cause severe personal injury or threaten human life.
2. INSTALLATION INSTRUCTIONS
This device may only be installed and put into operation by qualified personnel.
Before initial use, check the last charging which is marked on the battery. If it is older than 9 months, replace the battery.
Do not install the battery fuse until the installation work is complete.
This device does not contain serviceable parts, except the fuse or replacement battery. If malfunction should occur during installation or
operation, first check the fuse and battery for proper functionality. If the unit is damaged or if the malfunction continues, immediately
turn power off and send device to the factory for inspection.
Replacement fuses must be of the same type or an UL listed fuse with the same nominal value and characteristics.
Do not short-circuit the battery poles or power wires and always check correct battery polarity.
Mount the device onto a flat surface. Do not install the battery module upside down.
Place the battery module in a cool area inside a cabinet.
Install the device in an enclosure providing protection against electrical, mechanical and fire hazards. Ensure sufficient ventilation by
following the requirements of the EN 50272-2.
CAUTION: The unit contains wet cell batteries. Ventilation of the installation room in accordance with the rules of Canadian Electrical
Code, part 1 is required if used in Canada.
The battery module is for use in a controlled environment. Do not use the device in pollution degree 3 areas without additional
protection or in applications where a degree of protection better than IP00 is required.
Do not use batteries other than the original batteries supplied by the manufacturer to avoid conflicts with agency approvals.
The maximum surrounding air temperature is +50°C / +122°F. The operational temperature is the same as the ambient or surrounding
air temperature and is defined as the air temperature 2cm below the device.
3. INSTRUCTIONS FOR BATTERY STORAGE
Do not store batteries or battery modules at temperatures higher than 25°C or performance and lifetime may change.
Do not store discharged batteries. Keep batteries fully charged!
Charge retention is important to get the longest battery life. Stored batteries which are not fully charged age faster than charged
batteries.
Do not store batteries longer than 9 months without charging or performance and lifetime may change. Every 9 months or w henever
the open circuit voltage (OCV) falls below 12.6V, the battery module should be charged. Apply a charging voltage of 13.8V (at 25°C) for
72 hours. Batteries with an OCV below 12V must not be charged anymore and must be disposed.

UZK24.262/-E1, UZO24.262/-E1
U-Series
BATTERY MODULE 24V, 26AH, 40A
Apr. 2022 / Rev. 0.3 DS-UZK/UZO24.262-xx-EN
All parameters are typical values specified at 25°C ambient temperature unless otherwise noted.
www.pulspower.com Phone [phone] Germany
4/11
4. INSTRUCTIONS FOR REPLACING BATTERIES
Batteries need to be replaced periodically. The time interval depends on the ambient temperature in which the battery is used and on
the number and depth of discharge cycles. In a typical application it is recommended to replace the batteries at least every 2 years.
Disconnect battery fuse before replacing the battery.
Regarding disposal of used batteries see chapter 5.
Fig. 4-1 Replacing the battery
To replace battery:
ATTENTION! Disconnect battery fuse before replacing the battery.
1) Loosen screw of battery holder with only one turn.
Remove Insulating caps from the battery terminals.
2) Unscrew the battery terminals.
3) Slide the mounting bracket sideways and take the mounting
bracket off.
4) Remove the battery.
5) Insert the new battery.
6) Fix it again with the mounting bracket and make sure that
the lock washer lies between the screw head and mounting
bracket.
7) Screw the mounting bracket with tightening torque: 2Nm (18
lb.inch).
8) Do not over-tighten screws of the terminal bolts of the
battery. Recommended tightening torque: 2.5Nm (22
lb.inch)
9) Insert battery fuse
5. INSTRUCTIONS FOR DISPOSAL OF THE BATTERIES
Batteries must be completely discharged before replacement and can be returned to the supplier of the battery module or the battery
manufacturer for disposal.
Always dispose batteries through a recycling organization.

UZK24.262/-E1, UZO24.262/-E1
U-Series
BATTERY MODULE 24V, 26AH, 40A
Apr. 2022 / Rev. 0.3 DS-UZK/UZO24.262-xx-EN
All parameters are typical values specified at 25°C ambient temperature unless otherwise noted.
www.pulspower.com Phone [phone] Germany
5/11

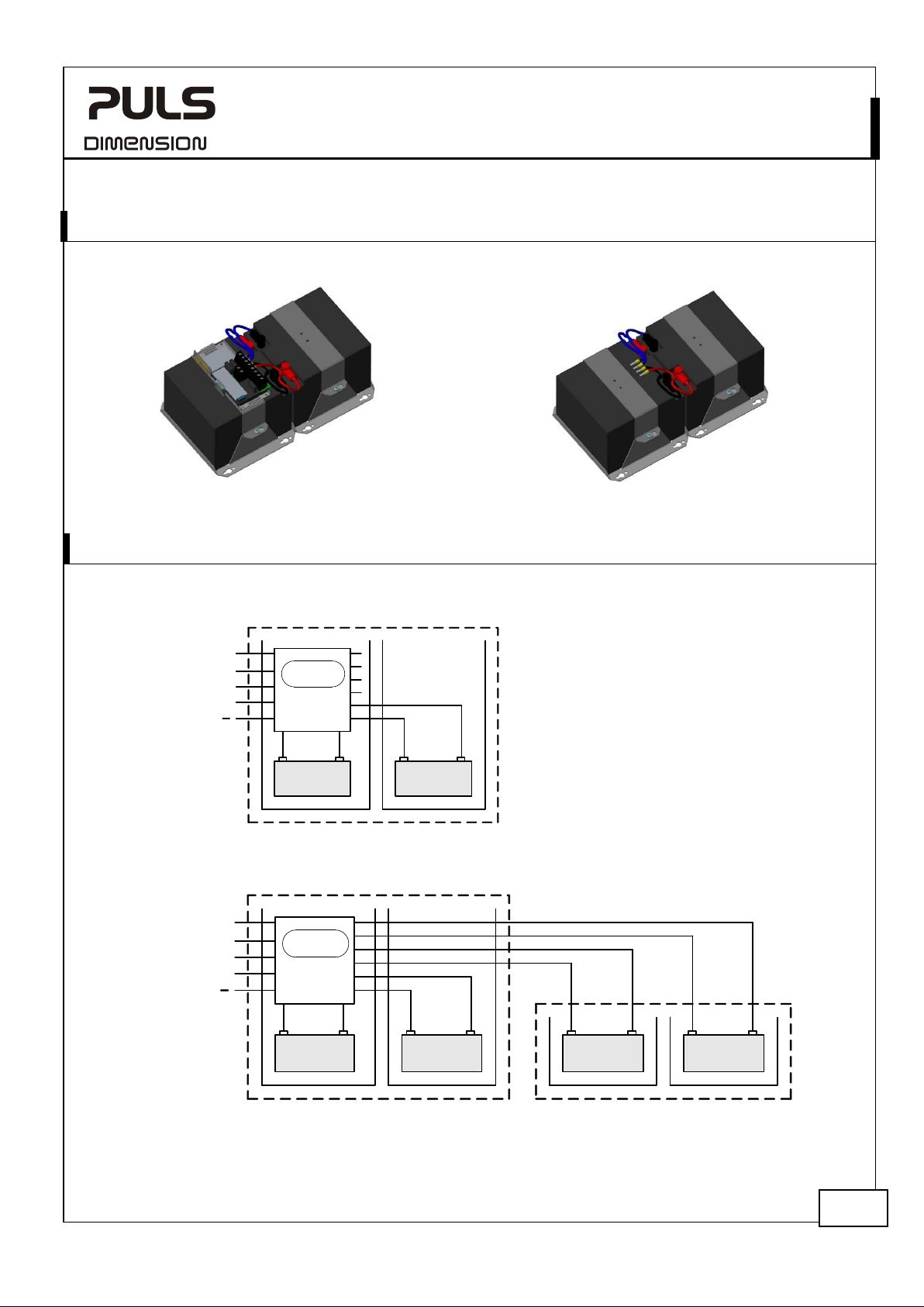

6. PRODUCT PICTURES
Fig. 6-1 UZK24.262
Fig. 6-2 UZK24.262-E1 (*)
(*) Actual wire lengthis longerthan the shown wire length to connect tothe
screw terminals of the master module
7. FUNCTIONAL DIAGRAM
UZK24.262
+ -12V
26Ah
BAT1
Fuse and
Connection
Board
PT100
Temp.Sensor
+ -12V
26Ah
BAT2
Temperature
Temperature
Center Tap
+
UZK24.262 with UZK24.262-E1
+ -12V
26Ah
BAT1
+ -12V
26Ah
BAT2
+ -12V
26Ah
BAT1
Fuse and
Connection
Board
PT100
Temp.Sensor
+ -12V
26Ah
BAT2
Temperature
Temperature
Center Tap
+
UZK24.262 UZK24.262-E1

UZK24.262/-E1, UZO24.262/-E1
U-Series
BATTERY MODULE 24V, 26AH, 40A
Apr. 2022 / Rev. 0.3 DS-UZK/UZO24.262-xx-EN
All parameters are typical values specified at 25°C ambient temperature unless otherwise noted.
www.pulspower.com Phone [phone] Germany
6/11
8. ENVIRONMENT
Operational temperature *)
-10°C to +50°C (14°F to 122°F)
For charging
Frequently charging below +5°C (41°F) reduced the
lifetime of the battery
-15°C to +50°C (5°F to 122°F)
-15°C to +50°C (5°F to 122°F)
For discharging @50A
For discharging @40A
Storage temperature
-20°C to +50°C (-4°F to 122°F)
For storage and transportation
Recommendation:
For best performance and lifetime do not store at
temperatures higher than 25°C.
Humidity
5 to 95% r.h.
IEC 60068-2-30
Do not energize while condensation is present
Vibration sinusoidal
±4mm at 16.7Hz
fixed frequency for 1hour
Vibration in vertical mounting orientation
according to IEC/EN 61056-1
Shock
free fall from 20cm
onto a wooden floor
Shock with bottom down orientation according to
IEC/EN 61056-1
Altitude
0 to 6000m (0 to 20 000ft)
Degree of pollution
2
According to IEC 62477-1, not conductive
*) Operational temperature is the same as the ambient temperature and is definedas the air temperature 2cmbelow the unit.
Fig. 8-1 Temperature Effects in Relationto Battery Capacity
0
20
100
120%
80
60
40
Percentage of capacity available
50° C
122° F
-20°
-4° -10° 14°
0°
32°
10°
50°
20°
68°
30°
86°
40°
104°
Temperature

UZK24.262/-E1, UZO24.262/-E1
U-Series
BATTERY MODULE 24V, 26AH, 40A
Apr. 2022 / Rev. 0.3 DS-UZK/UZO24.262-xx-EN
All parameters are typical values specified at 25°C ambient temperature unless otherwise noted.
www.pulspower.com Phone [phone] Germany
7/11
The battery module includes a monitoring and
protection board. This board contains a
temperature sensor and a center-tap connection
with an auto-resettable fuse to protect the center-
tap wire between the battery module and the DC-
UPS control unit.
The sensor board enables to monitor and charge
the two batteries individually and precisely,
extending the service life of the batteries and
making matching of replacement batteries
unnecessary.
Usage of the sensor board is optional, the DC-UPS
will also function without the sensor board
installed.
10.TERMINALS AND WIRING
The terminals are IP20 Finger safe constructed and suitable for field- and factory wiring.
Power terminals
Centre tap and signal terminals
Type
Screw terminals
Screw terminals
Maximal wire size, solid wire
10mm2
1.5mm2
Maximal wire size, stranded wire
10mm2
1.5mm2
American Wire Gauge
AWG 22-8
AWG 26-14
Maximal wire diameter
5.2mm (including ferrules)
1.5mm (including ferrules)
Wire stripping length
12mm / 0.5inch
6mm / 0.25inch
Screwdriver
3.5mm or 5mm slotted or
crosshead No 2
3.5mmslotted
Recommended tightening torque
2.3Nm, 20.5lb.in
0.5Nm, 4lb.in
Cable length
UZK24.262 / UZO24.262
UZK24.262-E1 / UZO24.262-E1
0.2m
1m
Instructions:
a) Follow national installation codes and installation regulations!
b) Ensure that all strands of a stranded wire enter the terminal connection!
c) Unused terminal compartments should be securely tightened.
d) Ferrules are allowed.
e) Do not use individual wires smaller than 6mm² (AWG 10) or longer than 2m (7ft) to avoid voltage drops on this connection
9. SENSOR BOARD

UZK24.262/-E1, UZO24.262/-E1
U-Series
BATTERY MODULE 24V, 26AH, 40A
Apr. 2022 / Rev. 0.3 DS-UZK/UZO24.262-xx-EN
All parameters are typical values specified at 25°C ambient temperature unless otherwise noted.
www.pulspower.com Phone [phone] Germany
8/11
11.PROTECTION FEATURES
Degree of protection
IP 00
According to EN/IEC 60529
Class of protection
III
According to EN/IEC 61140
Internal input fuse
2*40A
DC-Fuse (blade type) ATOF®287 040 from Little fuse
Replacement fuses must be of the same type or an UL listed fuse with the
same nominal value and characteristics.
Isolation
1100Vac
Isolation voltage between power to chassis
12.APPROVED,FULFILLED OR TESTED STANDARDS
UL 508
(planned)
UL Certificate
Listed equipment for category NMTR - Industrial Control Equipment
Applicable for US and Canada
E-File: t.b.d
ATEX
(planned)
Agency Certificate (Bureau Veritas)
EN 60079-0 Explosive atmospheres - General requirements
EN 60079-7, EN 60079-15 Equipment protection by type of protection "e"
and "n"
Certificate: t.b.d
Temperature Code: t.b.d
Type of Protection: t.b.d
IECEx
(planned)
IECEx Certificate
IEC 60079-0 Explosive atmospheres - General requirements
IEC 60079-7, IEC 60079-15 Equipment protection by type of protection "e"
and "n"
Certificate: t.b.d.
Temperature Code: t.b.d
Type of Protection: t.b.d
Class I Div 2
(planned)
UL Certificate
Listed equipment for category NRAD - Listed equipment Industrial Control
Equipment for Use in Hazardous Locations
Applicable for US and Canada
E-File: t.b.d.
Temperature Code: t.b.d
Groups: t.b.d
13.REGULATORY PRODUCT COMPLIANCE
EU Declaration of Conformity
The CE mark indicates conformance with the
- EMC directive
- RoHS directive
REACH Regulation (EU)
Manufacturer's Declaration
EU regulation regarding the Registration, Evaluation, Authorisation and
Restriction of Chemicals (REACH) fulfilled.
EU Regulation (EC) 1907/2006.

UZK24.262/-E1, UZO24.262/-E1
U-Series
BATTERY MODULE 24V, 26AH, 40A
Apr. 2022 / Rev. 0.3 DS-UZK/UZO24.262-xx-EN
All parameters are typical values specified at 25°C ambient temperature unless otherwise noted.
www.pulspower.com Phone [phone] Germany
9/11
14.PHYSICAL DIMENSIONS AND WEIGHT
Width (*)
359mm / 14.13’’
Height
214mm / 8.43’’
Depth
167mm / 6.57’’
128mm / 5.04’’
UZK24.262 with UZW24.100
UZK24.262-E1
Weight (*)
2x 10.0kg / 22lb
2x 0.70kg / 1.54lb
2x 10.0kg / 22lb
2x 0.70kg / 1.54lb
0.25kg / 0.55lb
UZK24.262
UZO24.262
UZK24.262-E1
UZO24.262-E1
UZW24.100
Bracket material
Zinc-plated steel
(*) Battery modules canbe separated to ease installationof complete kit
Fig. 14-1 Top view
Fig. 14-2 Side view
All dimensions in mm
Fig. 14-3 Isometric view
Fig. 14-4 Hole pattern for wall mount
All dimensions in mm

UZK24.262/-E1, UZO24.262/-E1
U-Series
BATTERY MODULE 24V, 26AH, 40A
Apr. 2022 / Rev. 0.3 DS-UZK/UZO24.262-xx-EN
All parameters are typical values specified at 25°C ambient temperature unless otherwise noted.
www.pulspower.com Phone [phone] Germany
10/11
15.RECOMMENDATIONS FOR A LONG BATTERY LIFE
Temperature:
The temperature has the most impact on the service life. The hotter the temperature, the earlier the wear-out phase of the battery
begins. The wear-out results in a degradation of battery capacity. Place the battery module in a cool location, e.g. near the bottom of
the control cabinet. Do not place the battery module near heat generating devices. Do not overcharge batteries!
Fig. 15-1 Service life (according to EUROBAT) vs.
ambient temperature, typ.
20°C
10
30°C 35°C 40°C 45°C
8
6
4
2
Ambient Temperature
25°C
1
3
5
7
9
Service Life in Years
Design Life
of Battery
A: 3-5 Years
B: 6-9 Years
C: 10-12 Years
A
B
C
Number of discharge cycles and depth of discharge:
Do not discharge batteries more than necessary. Set buffer time limiter to the required buffer time. The number, as well as the depth of
discharging cycles is limited. A replacement of the battery might be necessary earlier.
When choosing the battery capacity, always try to get the next higher capacity than required. The depth of discharge reduces the
service life of the battery and limits the number of cycles.
Fig. 15-2 Battery degradation vs. discharging cycles, typ.
0
120%
100%
40%
20% Number of Discharging Cycles
200
60%
80%
Cell Capacity
Depth of
discharge
A: 100%
B: 50%
C: 30%
400 600 800 1000 1200
A
B
C
Store batteries fully charged
Do not store discharged batteries. Keep batteries fully charged!
Charge retention is important to get the longest battery life. Stored batteries which are not fully charged age faster than charged
batteries. Batteries which are not in use should be recharged at least once a year. The higher the ambient temperature, the shorter the
charging interval. At storage temperatures higher than 30°C, recharging should be done at least every nine months.

UZK24.262/-E1, UZO24.262/-E1
U-Series
BATTERY MODULE 24V, 26AH, 40A
Apr. 2022 / Rev. 0.3 DS-UZK/UZO24.262-xx-EN
All parameters are typical values specified at 25°C ambient temperature unless otherwise noted.
www.pulspower.com Phone [phone] Germany
11/11
16.MOUNTING ORIENTATIONS
The standard mounting orientation is an upright installation of the batteries onto a flat surface.
Fig. 16-1 Standard mounting orientation
The following mounting orientations are also allowed:
Fig. 16-2 Allowed mounting orientations
Do not use the battery module in an upside down position:
Fig. 16-3 Forbidden mounting orientation
