PureLink FX1070 User manual

FX1070
Single-Mode DVI LC-Fiber Extender Set
Instruction Manual

-2-
FX1070 | TABLE OF CONTENT
CHAPTER PAGE
Important safety instructions ������������������������������������������������������������������������������������������������������������������������������ 3
Introduction ������������������������������������������������������������������������������������������������������������������������������������������������������������� 4
Features ��������������������������������������������������������������������������������������������������������������������������������������������������������������������� 4
Application ��������������������������������������������������������������������������������������������������������������������������������������������������������������� 4
Package Includes ����������������������������������������������������������������������������������������������������������������������������������������������������� 4
Specications ���������������������������������������������������������������������������������������������������������������������������������������������������������� 5
Layout ������������������������������������������������������������������������������������������������������������������������������������������������������������������ 6 - 7
Dimension ���������������������������������������������������������������������������������������������������������������������������������������������������������������� 8
Installation ��������������������������������������������������������������������������������������������������������������������������������������������������������������� 9
LED-Codes ���������������������������������������������������������������������������������������������������������������������������������������������������������������� 9
Maintenance ���������������������������������������������������������������������������������������������������������������������������������������������������������� 10
Cleaning ������������������������������������������������������������������������������������������������������������������������������������������������������������������ 10
Warranty and liability ������������������������������������������������������������������������������������������������������������������������������������������ 10
CE conformity �������������������������������������������������������������������������������������������������������������������������������������������������������� 11
Disposal of the device ����������������������������������������������������������������������������������������������������������������������������������������� 11
FCC compliance statement ������������������������������������������������������������������������������������������������������������������������ 11 - 12
Disclaimer ��������������������������������������������������������������������������������������������������������������������������������������������������������������� 12

-3-
1. IMPORTANT SAFETY INSTRUCTIONS
Read the operating instructions carefully and especially observe the safety information before using
the device� If you do not follow the safety instructions and information on proper handling in this
manual, we assume no liability for any resulting personal injury or damage to property� Such cases
will invalidate the warranty/ guarantee�
CAUTION: Use of controls or adjustments or performance of procedures other than those specied
herein may result in hazardous radiation exposure�
ENGLISH
The device is not a toy� Keep it out of the reach of children and pets� Do not leave packaging ma-
terial lying around carelessly� These may become dangerous playing material for children� Risk of
suocation!
Pay attention to trip hazards; make sure that the cable is installed safely�
Protect the product from extreme temperatures, direct sunlight, strong jolts, high humidity, moisture,
ammable gases, vapors and solvents.
Do not place the product under any mechanical stress�
If it is no longer possible to operate the product safely, take it out of operation and protect it from
any accidental use�
Safe operation can no longer be guaranteed if the product:
• is visibly damaged
• is no longer working properly
• has been stored for an extended period in poor ambient conditions, or
• has been subjected to any serious transport-related stresses�
Please handle the product carefully� Jolts, impacts or a fall even from a low height can damage the
product�
Also observe the safety and operating instructions of any other devices which are connected to the
product�
Consult an expert when in doubt about the operation, safety or connection of the device�

-4-
2. INTRODUCTION
The FX1070 set is a DVI ber transmitter / receiver kit for up to 2Km distance transmission of max.
1080p / WUXGA signals�
Using Single-Mode Fiber technology, the DVI signals incl� HDCP encryption are transmitted over only
one Single-Mode 9/125 ber core. Sources and display devices both feature galvanic isolation to
avoid ground loops as well as humming eects. No delays occur in the signal, as the video image
is transported without any frame latency� The FX1070 extender pair supports EDID pass-through,
allowing the video source to read the video display device’s capability�
Pixel Accurate Reclocking is a technology which provides exceptional signal regeneration capability�
The circuitry cleans the signal from noise, skew and jitter which are caused by long cable runs and
EMC incompatible devices�
3. FEATURES
• DVI-D connector sized extenders
• 9/125 Single-Mode Fiber 2Km extension
• Single-Mode Fiber Technology, zero frame delay
• Pixel Accurate Reclocking
• HDCP compatibility
4. APPLICATION
• Professional AV systems, conference rooms
• Fixed installations, Rental and Staging
• Digital signage
• Long distance lossless DVI signal transmission
• Ground loop isolation
5. PACKAGE INCLUDES
1x FX1070 TX Extender
1x FX1070 RX Extender
2x 5V AC/DC Power Adapter
2x USB Power Cable
Please verify all items are included in the box� If anything is missing, please contact vendor
for replacement�
No signal cables are included in the package�
We strongly recommend that you contact your dealer to purchase high-quality cables�
Required Cables: 1 LC/LC Optical Fiber Cable, Single-Mode

-5-
6. SPECIFICATIONS
TX input, RX output: 24 pole DVI-D plug
Fiber: LC simplex
DC Power: Micro-B USB
Data rate: 6�75 Gbps (2�25 Gbps per color)
Resolution: WUXGA (1920x1200) / 60Hz
Video Delay: 0 frames
HDCP pass through: Yes
EDID emulation: Transparent EDID
LED indicators: Link & Power Status LED‘s
RS-232 pass through: No
Fiber: OS1, 9/125 LC Single-Mode
Transmission distance: OS1, 2Km
Dimensions: 74�66 x 40�2 x 15�9 mm (L x W x H), without Screw
Weight: 68 g
Power consumption (TX): 1�8 W
Power consumption (RX): 1�5 W
Compliance: CE, KC, FCC
Operating Temperature: 0 to 50°C
Storage Temperature: -20 to 70°C
Relative Humidity: 10 to 80 RH
TX (Source):
Parameter Symbol Min Max Unit
Transmitter
[10Gbps]
Center Wavelength λc 1260 1360 nm
Average Launch Power Po -6 1 dBm
Extinction Ratio ER 3�5 dB
Receiver
[1.25Gbps]
Maximum Input Power Pin 1 dBm
Receiving Wavelength λr 1480 1600 nm
Receiver Sensitivity Ps - -23 dBm
RX (Sink):
Parameter Symbol Min Max Unit
Transmitter
[1.25Gbps]
Center Wavelength λc 1480 1600 nm
Average Launch Power Po -9 0 dBm
Extinction Ratio ER 6 dB
Receiver
[10Gbps]
Maximum Input Power Pin 1 dBm
Receiving Wavelength λr 1260 1360 nm
Receiver Sensitivity Ps - -13 dBm
ENGLISH

-6-
7. LAYOUT
DVI Port:
Optical Port:
1. DVI Connector (Male):
TX Extender: Connect to the DVI output of a source
RX Extender: Connect to the DVI input of a monitor
2. Mounting Screw:
TX Extender: Secure to/remove from the DVI mounting hole of a source
RX Extender: Secure to/remove from the DVI mounting hole of a monitor
1. LC Connector (Female):
TX Extender: Connect to the RX Extender with the LC Optical Cable
RX Extender: Connect to the TX Extender with the LC Optical Cable
2. USB Power Connector (Micro):
Connect to the 5V AC/DC Power Adaptor with the USB Power Cable
3. Mounting Screw Head:
TX Extender: Help to secure to/remove from the DVI mounting hole of a source
RX Extender: Help to secure to/remove from the DVI mounting hole of a monitor
3 312
2 21

-7-
Top View:
ENGLISH
1. LED Status Indicator - Power
2. LED Status Indicator - Link
3. DVI Connector (Male)
TX Extender:
Connect to the DVI output of a source
RX Extender:
Connect to the DVI input of a monitor
4. Mounting Screw
TX Extender:
Secure to/remove from the DVI mounting hole
of a source
RX Extender:
Secure to/remove from the DVI mounting hole
of a monitor
5. Mounting Screw Head
TX Extender: Help to secure to/remove from
the DVI mounting hole of a source
RX Extender: Help to secure to/remove from
the DVI mounting hole of a monitor
4 43
5 5
1
2

-8-
8. DIMENSION
The dimension is measured in millimetre and is proximate values�

-9- ENGLISH
10. LED CODES
The blue LED will appear on the transmitter and receiver after all the
product connections are completed�
Red LED On: Power supply�
Blue LED On: Signal Transfer�
Red Led On and Blue LED Blinking: Only power supply, no signal recognized�

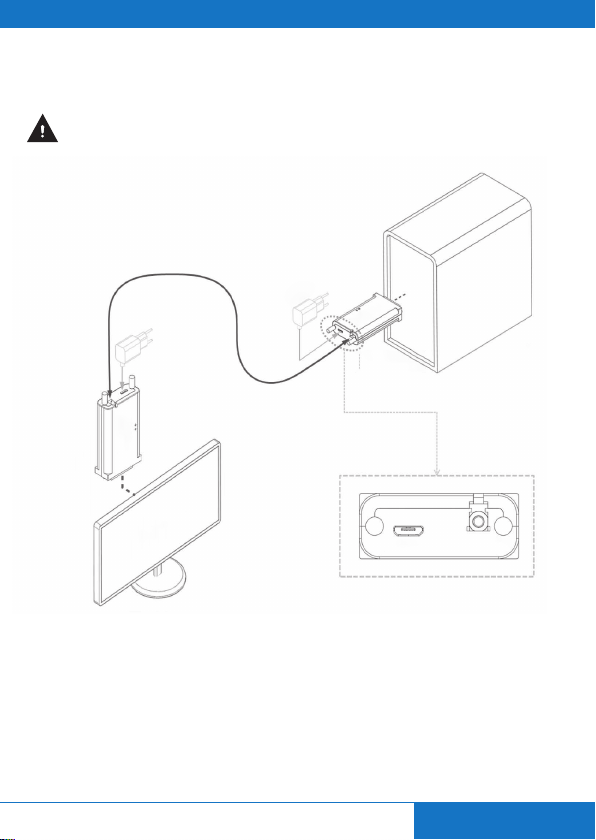

9. INSTALLATION DIAGRAM
CAUTION: DO NOT connect power to the device until all other connections
are made and the unit is installed.
Single-Mode
TX
RX

-10-
11. MAINTENANCE
There are no components located inside the product you need to maintain� Never open/dismantle
the product. Maintenance, modications and repairs are to be performed exclusively by an expert or
at a qualied shop. If you have questions which remain unanswered by these operating instructions,
contact our technical support service or other technical personnel�
12. CLEANING
Do not clean the LC connection without using appropriate ber cleaning equipment such as
a One-Click-Cleaner. Using any other type of cleaning product is liable to damage the ber port
beyond repair�
Before cleaning the product it must be disconnected from all other connected products� Ensure the
dust cap is always replaced when not connected to an LC cable�
Do not use any aggressive cleaning agents, rubbing alcohol or other chemical solutions as they can
cause damage to the housing or cause malfunctions� Be sure not to get cleaning products or sovents
in or around the the ber port, even when the dust cap is in place.
To clean the product, a dry, soft and clean cloth is sucient. Do not apply too much pressure to the
housing as this may cause scratch marks�
You can easily remove dust using a long-haired, soft and clean brush�
13. WARRANTY AND LIABILITY
PureLink warrants this product to be in good working order for a period of one year from the date of
purchase� The manufacturer guarantees full statutory warranty terms on the device only, as the ma-
nufacturer has no inuence on installation, warranty only applies to the product itself.
If any fault or damage is detected on your product, please contact your dealer and provide your
sales slip or invoice as evidence of the purchase, if necessary� Your dealer will repair the fault either
on site, or send the device to the manufacturer� You make the work of our technicians considerably
easier, describing possible faults in detail – only then you can be assured that faults, occurring only
rarely, will be found and repaired with certainty!
The manufacturer is not liable for damages to persons or property caused by improper installation,
operation or maintenance, not described in this manual�
Do not alter or modify the product or its accessories�
Any use other than described in this user`s manual is not permitted and causes loss of warranty, loss
of guarantee, and non-liability�

-11- ENGLISH
14. CE CONFORMITY
PureLink GmbH hereby declares that the FX1070 complies with Directive 2014/30/EU�
The full text of the EU Declaration of Conformity is available at the following Internet ad-
dress: www�purelink�de
15. DISPOSAL OF THE DEVICE
WEEE-Reg� No�: DE 93847290
According to the European WEEE directive, any electrical and electronic equipment must not
be disposed of along with consumer waste� As a consumer, you are committed by law to
deposit electrical and electronic devices at public collecting points or to the dealer for free
at the end of the device’s lifetime� Details are regulated in the respective national legisla-
tions� The Wheelie Bin symbol on the product, in the manual or on the packaging refers to
these terms� With the return of your used devices you actively take part in protecting the
environment�
16. FCC COMPLIANCE STATEMENT
This device complies with part 15 of the FCC rules� Operation is subject to the following two condi-
tions: (1) This device may not cause harmful interference, and (2) this device must accept any inter-
ference received, including interference that may cause undesired operation�
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules� These limits are designed to provide reasonable protection
against harmful interference in a residential installation�
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications�
However, there is no guarantee that interference will not occur in a particular installation�
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interfe-
rence by one or more of the following measures:
• Reorient or relocate the receiving antenna�
• Increase the separation between the equipment and receiver�
• Connect the equipment to an outlet on a circuit dierent from that to which the receiver is
connected�
• Consult the dealer or an experienced radio/TV technician for help�
Important: Changes or modications to this product not authorized by PureLink could void the elec-
tromagnetic compatibility (EMC) and wireless compliance and negate your authority to operate the
product�

-12-
This product has demonstrated EMC compliance under conditions that included the use of compliant
peripheral devices and shielded cables between system components� It is important that you use
compliant peripheral devices and shielded cables between system components to reduce the possi-
bility of causing interference to radios, television sets, and other electronic devices�
Exposure to radio frequency energy The radiated output power of this device meets the limits of
FCC/IC radio frequency exposure limits� This device should be operated with a minimum separation
distance of 20 cm (8 inches) between the equipment and a person’s body�
Responsible party (contact for FCC matters only):
PureLink GmbH
Von-Liebig-Straße 10
48432 Rheine
Germany
17. DISCLAIMER
This product complies with the statutory national and European requirements� All company names
and product names are trade- marks of their respective owners�
All rights reserved�
We reserve our right for misprints and changes of the device, packing or user`s manual�

-13- ENGLISH

-14-

-15-

PureLink GmbH
Von-Liebig-Straße 10
D - 48432 Rheine
Germany
Telefon: 0049 (0)5971-800 299 -0
Fax: 0049 (0)5971-800 299 -99
E-mail: info@purelink�de
Internet: www�purelink�de
© 2020 PureLink GmbH� All rights reserved�
All trade names are registered trademarks of
respective manufactures listed�
HDMI is a trademark of HDMI Licensing LLC� v1 | 2020-08
Table of contents
Other PureLink Receiver manuals

PureLink
PureLink VIP-300H User manual

PureLink
PureLink Luxi Presenter LU-TPR-110CR User manual

PureLink
PureLink VIP-T400 User manual

PureLink
PureLink WA-100 User manual

PureLink
PureLink CSW300-RX User manual

PureLink
PureLink Luxi Electronics RHB-350 User manual

PureLink
PureLink PLK-TR015-10 User manual

PureLink
PureLink Luxi Electronics Presenter LU-RPR-110CR User manual

PureLink
PureLink Luxi Electronics Presenter TPR-110CR User manual

PureLink
PureLink VIP-400 User manual
