PureLink WA-100 User manual

WA-100/101 USER MANUAL
VERSION 1.0
WA-100/101
True Diversity Wireless Audio Receiver
USER MANUAL
PureLink
220-10 State Route 208
Fair Lawn, NJ 07410 USA
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
For order support, please contact your local dealer.
For technical support, please contact us at [email protected].

WA-100/101 USER MANUAL
VERSION 1.0
Contents
What’s in the box .......................................................................................................................................... 3
Transmitter Options .................................................................................................................................. 3
Beltpack Microphone Options .................................................................................................................. 4
Antenna Systems ...................................................................................................................................... 4
Accessories ................................................................................................................................................ 4
Wireless Audio Kit SKUs ............................................................................................................................ 4
Product Description ...................................................................................................................................... 5
Specifications ................................................................................................................................................ 5
Front .............................................................................................................................................................. 6
1) Power Button ........................................................................................................................................ 6
2) IR Transmitter LED ................................................................................................................................ 6
3) IR-SW button ......................................................................................................................................... 6
4) Scan button ........................................................................................................................................... 6
5) Information Display .............................................................................................................................. 7
Rear Panel ..................................................................................................................................................... 8
Setting up the WA-100/101 Receiver ........................................................................................................... 9
Synchronizing the Receiver and Transmitter ................................................................................................ 9
Setting the Receiver .................................................................................................................................. 9
Setting the Transmitter ............................................................................................................................. 9
WA-BP1 Beltpack .................................................................................................................................. 9
WA-HH1 Handheld Microphone ......................................................................................................... 10
WA-PM1 Podium Microphone ............................................................................................................ 10
Warranty ..................................................................................................................................................... 11

WA-100/101 USER MANUAL
VERSION 1.0
When purchasing only the receiver, the contents will be as shown below.
What’s in the box
 1 WA-100 True Diversity Wireless Receiver 512 – 525 MHz Band
o OR
 1 WA-101 True Diversity Wireless Receiver 570 – 583 MHz Band
 2 whip antennas
 1 1U Rack adapter
 1 100-240VAC to 12 VDC power adapter
The receiver will require one of our transmitter options.
Transmitter Options
 WA-BP1 Beltpack for headset or lav mics: 512 – 525 MHz Band
o Only works with the WA-100
 WA-BP2 Beltpack for headset or lav mics: 570 – 583 MHz Band
o Only works with the WA-101
 WA-HH1 Cardioid handheld mic: 512 – 525 MHz Band
o Only works with the WA-100
 WA-HH2 Cardioid handheld mic: 570 – 583 MHz Band
o Only works with the WA-101
 WA-PM1 Omnidirectional podium mic: 512 – 525 MHz Band
o Only works with the WA-100
 WA-PM2 Omnidirectional podium mic: 570 – 583 MHz Band
o Only works with the WA-101

WA-100/101 USER MANUAL
VERSION 1.0
Beltpack Microphone Options
o WA-LV1 Lavalier microphone, 3.5mm connector
o WA-HS1-W Headset microphone, tan, 3.5mm connector
o WA-HS1-B Headset microphone, black, 3.5m connector
Antenna Systems
o WA-ADS-4000 Antenna distribution system: up to four receivers
o WA-ADS-1 Antenna paddle
o WA-ADS-B1 Antenna booster, adjustable
Accessories
o WA-CH1 Dual charging station, handheld or beltpack transmitters
o WA-1/4-3.5-1M ¼” to 3.5mm 1 meter mono cable
o WA-100B-RACK1 Rack mount kit for one WA-100/WA-101
o WA-100B-RACK2 Rack mount kit for two WA-100/101
o WA-RB2 2x AA rechargeable batteries for beltpacks, podium or handheld mics
For simplicity, systems can be purchased as a single SKU.
Wireless Audio Kit SKUs
 WA-100B
o WA-100 Receiver, WA-BP1 beltpack, WA-LV1 microphone: 512 – 525 MHz Band
 WA-100H
o WA-100 Receiver, WA-HH1 Handheld mic: 512 – 525 MHz Band
 WA-101B
o WA-100 Receiver, WA-BP1 beltpack, WA-LV1 microphone: 570 – 583 MHz Band
 WA-101H
o WA-100 Receiver, WA-HH1 Handheld mic: 570 – 583 MHz Band

WA-100/101 USER MANUAL
VERSION 1.0
Product Description
The WA-100/101 True Diversity Wireless Receiver provides thirty-two channels and is available in two
different FCC compliant frequency bands. Comprehensive adjustments are accessible on the front
panel. Transmitter options include a beltpack with options of lavalier or headset microphone, handheld
microphone, or podium microphone. WA-100/101 receivers can be mounted in a 1U rack space as
either a single receiver, or you can connect two receivers together with the WA-100/101 RACK2 kit. An
option antenna distribution system is available when using multiple recievers.
Specifications
 True Diversity
 32 channels
 Diagnostic LCD screen on Receiver and Transmitter
 XLR and ¼” TRS outputs
 3.5mm audio input on belt pack compatible with many microphone brands
 Rack mount kit included for one receiver
 Optional rack kit for two receivers
 Optional handheld microphone with diagnostic LCD
 Optional podium microphone with diagnostic LCD
 512.550 – 524.950 MHz (WA-100) or 570 – 583 MHz (WA-101) wireless frequency range

WA-100/101 USER MANUAL
VERSION 1.0
Front
1. Power button
2. IR Transmitter LED
3. IR-SW button
4. Scan button
5. Information Display
6. Set buttons
7. Volume buttons
1) Power Button
The Power button toggles the Receiver between standby and on modes. Hold the Power button for 2
seconds to change state. The Power button remains lit regardless of state. When the Receiver is in
Standby, the Information Display will have no data present and be dark. When the Receiver is in On
mode, the Information Display will show data and be illuminated green. If the Information Display may
be red if the selected channel/frequency experiences interference.
2) IR Transmitter LED
When the IR-SW button is pressed, the IR LED will flash and send the currently selected channel
of the Receiver to a Transmitter within line of sight and that is within 2 feet of the Receiver, for
easy synchronization. Once the data is successfully synchronized to the Transmitter, the IR LED
will stop flashing.
3) IR-SW button
The IR-SW starts the process of the Receiver sending out the current channel data via the IR
LED.
4) Scan button
This button performs a frequency scan to select the best available frequency that is not already
in use by a Transmitter. In order for this function to operate correctly, you must have all
transmitters, currently assigned channels, to be on. The Receiver will scan and detect which
channels that are unused are the best next option to use within your system.
1
3
2
4
5
6
7

WA-100/101 USER MANUAL
VERSION 1.0
5) Information Display
The Information Display has three backlight illumination states:
o Off: Receiver is in Standby
o Green: Receiver is On
o Red: Receiver is experiencing interference on the selected channel/frequency
1. Selected Frequency
2. Selected Channel
3. Output volume level (XLR and ¼”)
4. Lock state
5. Transmitter battery level (If connection established)
6. RF Strength meter
7. Audio level meter
8. Antenna A or B in indicator
1
3
2
4
5
6
7
8

WA-100/101 USER MANUAL
VERSION 1.0
Rear Panel
1. Power Adapter input
2. Antenna input A
3. XLR Balanced audio output
4. 1.4” Unbalanced audio output
5. Antenna input B
2
4
5
1
3

WA-100/101 USER MANUAL
VERSION 1.0
Setting up the WA-100/101 Receiver
Synchronizing the Receiver and Transmitter
Setting the Receiver
You can set the frequency of the Receiver using the Set button, and the up and down buttons.
If the Lock indicator shows the setup functions are locked, press the Set button twice, the press the
down button, then press the Set button twice again to enter in to frequency adjustment mode.
Select any one of the 32 channels, making sure that no other receiver channel in your system is set to
the same channel/frequency. The WA100 channels will be different frequencies than the WA101
channels, so it is okay to use the same channel number with a WA100 and WA101 in most cases.
Setting the Transmitter
WA-BP1 Beltpack
Power up the WA-BP-1 beltpack. Open the battery compartment. You do not need to press any buttons.
Press the IR-SW button on the Receiver you want to synchronize the beltpack to. You will see the IR LED
flash on/off.
Face the open side of the battery compartment towards the IR LED on the Receiver. You will see the
Receiver IR LED change from on/off to pulsing, indicating the Receiver and Transmitter are
communicating. When the Receiver IR LED turns off the Transmitter synchronization is complete. Check
the Transmitter LED display to confirm. You will now have live audio signal in to the Receiver.

WA-100/101 USER MANUAL
VERSION 1.0
WA-HH1 Handheld Microphone
Power up the WA-HH-1 Handheld microphone. Open the battery compartment. You do not need to
press any buttons.
Press the IR-SW button on the Receiver you want to synchronize the handheld microphone to. You will
see the IR LED flash on/off.

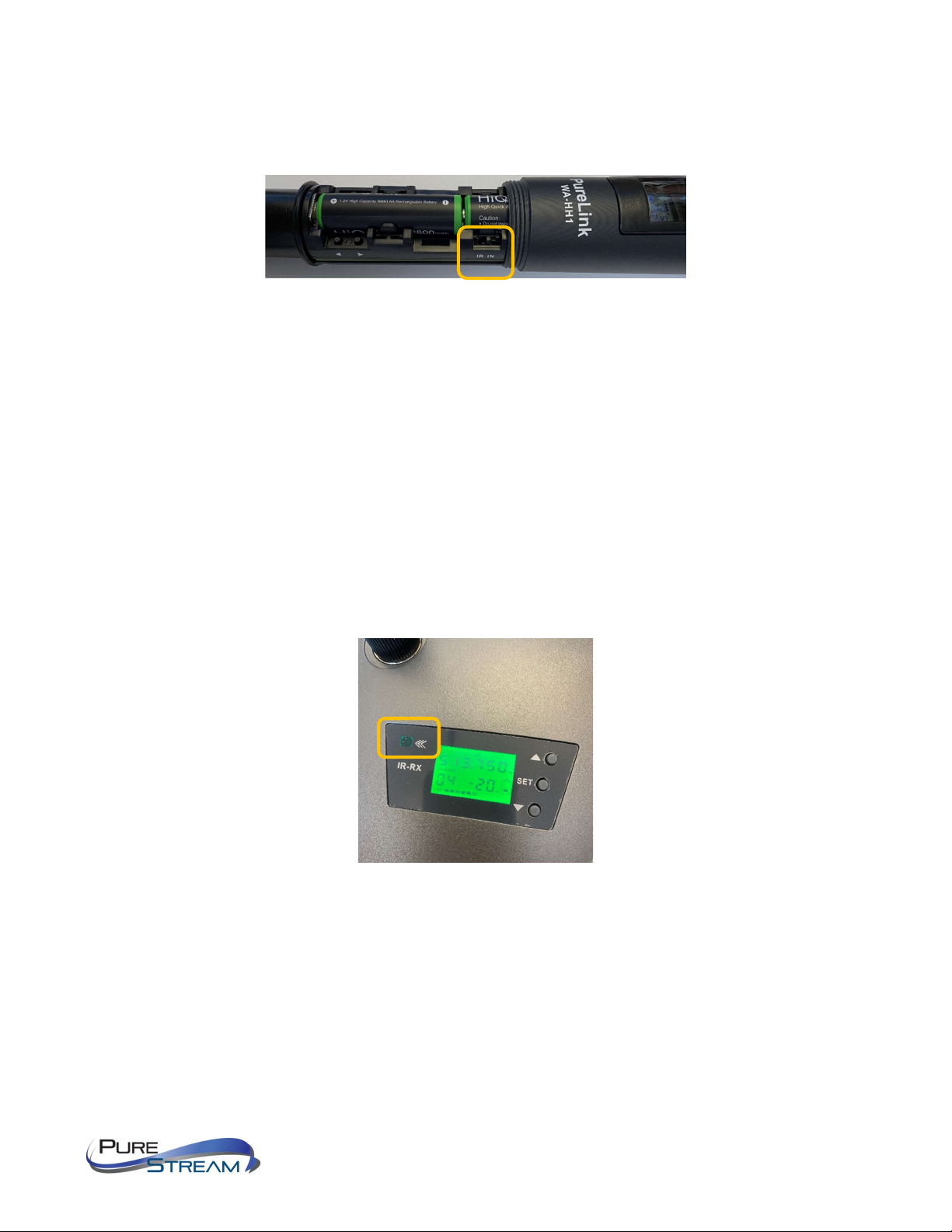

Face the IR IN inside the battery compartment towards the IR LED on the Receiver. You will see the
Receiver IR LED change from on/off to pulsing, indicating the Receiver and Transmitter are
communicating. When the Receiver IR LED turns off the Transmitter synchronization is complete. Check
the Transmitter LED display to confirm. You will now have live audio signal in to the Receiver.
WA-PM1 Podium Microphone
Power up the WA-PM1 Podium microphone.
Press the IR-SW button on the Receiver you want to synchronize the handheld microphone to. You will
see the IR LED flash on/off.
Face the IR RX LED towards the IR LED on the Receiver. You will see the Receiver IR LED change from
on/off to pulsing, indicating the Receiver and Transmitter are communicating. When the Receiver IR
LED turns off the Transmitter synchronization is complete. Check the Transmitter LED display to
confirm. You will now have live audio signal in to the Receiver.
