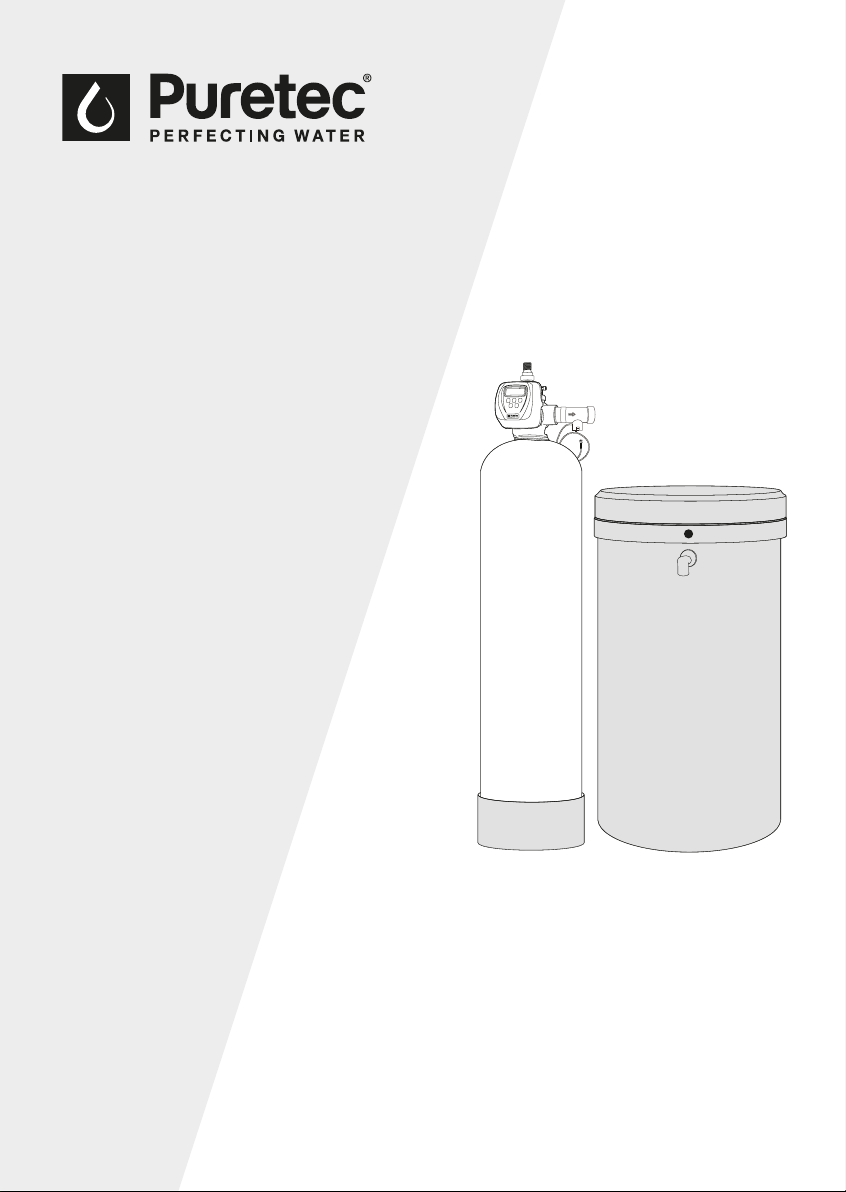

Puretec SOL-2CI Series User manual
User Guide
Automatic Volume Based Water Softening Appliance
SOL-2CI Commercial Series
For correct operation & installation it is essential to observe these instructions.FEB2019
2 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
What's Inside
What's Inside
Puretec Customer Service ............................................................................................................................3
Installation Record ............................................................................................................................................4
Before Installation..............................................................................................................................................5
........................................................................................................................................................7
Exploded Diagram..............................................................................................................................................8
.............................................................................................................................................9
Installation Procedure...................................................................................................................................10
Programming .....................................................................................................................................................14
Advanced Programming...............................................................................................................................17
Start-Up ................................................................................................................................................................22
Regeneration......................................................................................................................................................22
Replenishment of Salt Supply ..................................................................................................................23
Type of Salt to Use.........................................................................................................................................23
Brine Tank Clean-Out (Yearly)...................................................................................................................23
Media Replacement........................................................................................................................................23
Troubleshooting Guide..................................................................................................................................24
Warranty...............................................................................................................................................................26
3Copyright © Puretec Pty Ltd 2020 SOL-2CI Commercial Series User Guide
Puretec Customer Service
Puretec Customer Service
proven performer manufactured from only quality materials and components. It will give
years of reliability and trouble free operation if maintained properly.
This user guide is designed for Puretec SOL-2CI Water Treatment Systems. Be careful to
ensure the information and illustration is applicable to your particular unit.
Caution: Do not use with water that is microbiologically unsafe or without
adequate disinfection before or aer the system.
The systems are designed for metropolitan supply water but can be used in other
situations. For other types of water supply, please contact your local Puretec dealer.
the initial installation and periodic maintenance.
•
weeks.
•
must be installed.
• When line pressure exceeds 600 kPa, a pressure limiting valve must be installed.
Note: Water soener salt not supplied.
Installation Note:
eventually fail. Also sometimes failure happens early due to unforeseen circumstances.
To avoid possible property damage, this product should be regularly examined for
4 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
Product Information
Model Number:
Purchased from:
Date of Installation:
Regen Frequency: ________ Days
Water Analysis Information
Hardness:
Iron:
Manganese:
pH: ___________
TDS (Total Dissolved Salts):
Conductivity:
Chloride:
Sodium:
Installation Record
Installation Record
5Copyright © Puretec Pty Ltd 2020 SOL-2CI Commercial Series User Guide
Before Installation
Professional Installation Required
• Installation typically requires shutting the water supply, cutting the water supply
Make Sure Your Water Has Been Thoroughly Tested
• An analysis of your water should be made prior to the selection of your water
treatment equipment. Enter your analysis information on page 4 for your permanent
record.
•
of soluble iron if consideration is given to content when selecting model and
regeneration settings. For best results contact Puretec to discuss.
Install Water Conditioning Equipment Correctly
to proper location are as follows:
• Install as close as possible to a drain.
• Install in correct relationship to other water treatment equipment. Contact Puretec
for assistance.
•
•
• DO NOT install where water hammer conditions may occur without installing an
arrestor.
•
Before Installation
6 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
Before Installation
misalignment but are not designed to support the weight of a system or the plumbing.
• Do not use petroleum jelly, oils, other hydrocarbon lubricants or spray silicone anywhere.
A silicon lubricant may be used on the black o-rings but it is not necessary.
• Do not use pipe dope or other sealants on threads. Thread seal tape is the preferred
sealant but is not necessary on the nut connection or caps because of O-ring seals.
the drain line should be a minimum of 1”-1½ (depending on your model, see page 9).
• Install grounding strap on metal pipes if required.
• Ensure the system is protected against high pressure and extreme temperatures.
Things to Remember While Planning Your Installation:
• All installation procedures MUST conform to local plumbing codes.
•
WARNINGS
Note:
The nuts and caps are designed to be unscrewed or tightened by hand or with the special
plastic spanner provided. If necessary pliers can be used to unscrew the nut or cap. Do not use
or tap with a hammer.
7Copyright © Puretec Pty Ltd 2020 SOL-2CI Commercial Series User Guide
Specications
Specications
200 - 600 kPa
0 - 40 °C (protect from
Electrical Connection:
2" BSP
Drain Connection: 1” or 1½” BSP
Brine Connection: ½” BSP
SOL110-2CI SOL160-2CI SOL270-2CI SOL380-2CI
Width (mm) (W): 406 mm 533 mm 610 mm 762 mm
Height (mm) (H): 1980 mm 2040 mm 2230 mm 2170 mm
(W)
660 mm
1340 mm
(H)
8 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020

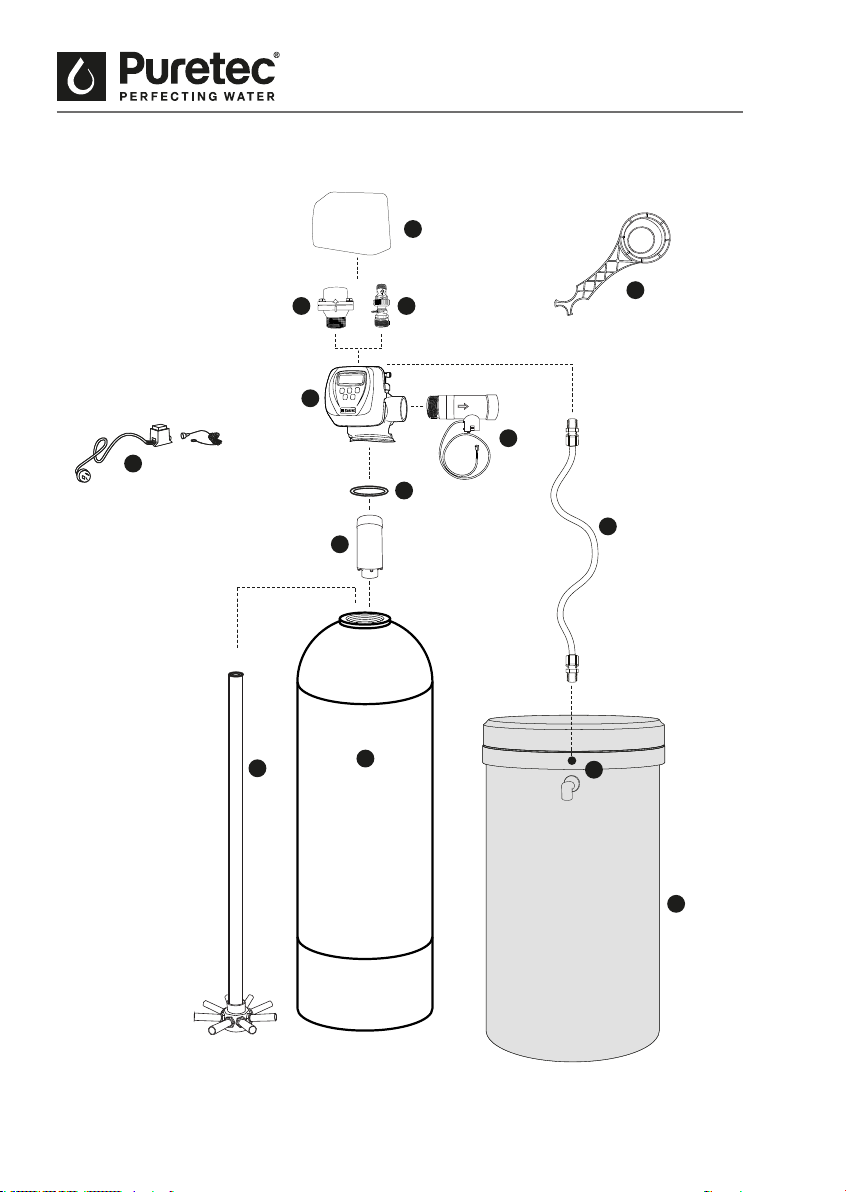

Exploded Diagram
Exploded Diagram
21
3
4
5
8
7a
9
12
11
10
7b
13
6
or
9Copyright © Puretec Pty Ltd 2020 SOL-2CI Commercial Series User Guide
Parts Identication
Outlet 2"
Control Panel
Inlet 2"
Diagram Identication
Item Part no Description
1 - Pressure Tank
2 WTD3320 Riser Pipe
3 WTD3100 Top Screen
4 WTD3040
5 Flow Meter
6
7a 1½" Drain Line Flow Controller
(270 & 380 models only)
7b 1" Drain Line Flow Controller
(110 & 160 models only)
8
Item Part no Description
9
10 - Brine Draw Line Connector
11 - Overflow
12 WTB2230 Brine Tank
13 Spanner
- Spacer Stack*
-
Brine ½ ”
Drain
1" (110 & 160 models)
1½" (270 & 380 models)
Parts Identication
*Not shown but pre-installed.
Outlet Pressure Guage Port
Inlet Pressure Guage Port
10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
Installation Procedure
1" (110 & 160 models )
or 1½" (270 & 380 models)
Tubing for drain (refer to page 13)
Bag of Salt (refer to page
16 for the type of salt to
be used)
Installation Procedure
Testing & Analysis
Ensure water has been tested, Input values into Table on page 4 and the
analysis has been inspected by Puretec.
3
Water Analysis Information
Hardness
Iron
Manganese
pH ___________
TDS (Total Dissolved Salts)
Conductivity
Chloride
Sodium
130
0.3
0.1
7
275
404
121
96
Customer Service Helpline
1300 140 140 (AU) 0800 130 140 (NZ)
Extra Items Required
2
Unpack the Equipment
Ensure all parts are present and have not been damaged in transport. You should have:
1
User Guide
Automatic Volume Based Water Softening Appliance
SOL-2CI Commercial Series
Forcorrect operation & installation it is essential to observe these instructions.
DEC2019
User Guide
Brine Draw Line Connector
Spanner
Media
(refer to page 13)
11Copyright © Puretec Pty Ltd 2020 SOL-2CI Commercial Series User Guide
Installation Procedure
Position the Soener System on a Level Surface
Environmental conditions
Operating temperature: 0 - 40 °C
Water conditions
Temperature: 0 - 50 °C
Pressure: 200 - 600 kPa
4
Media Installation
The Media has been shipped separately to avoid damage in transit.
The length of the internal riser pipe is pre-set and does not need adjustment.
1.
trapped outlet, in a position when the system can service all lines
requiring treated water. The system should be placed far enough
the system. A weatherproof power point and surge protector is
recommended.
2. Plug or cover the top end of the riser pipe in the tank making sure no
media can enter the tube.
3. Ensure that the riser pipe is sitting in the cradle at the base of the tank.
Then using a wide mouth funnel, place the media in the tank as per the
numbering on the buckets. (Buckets are labelled 4, 5 etc. Put No. 4 in
Note: The head is No. 1, the vessel No. 2 and the tank is labelled No.3.
riser pipe. Top up tank with water. Screw valve onto the tank (hand tight is
the valve.
5
12 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
Installation Procedure
Connecting the Drain Line
tubing (tubing not supplied) from the valve to the drain. Ensure the drain line is not
kinked. The line must not travel more than 2.4 m up from the valve, otherwise an
(see step 9) to sewer or storm water, whichever is approved by local authority for
salty discharge water. Ensure drain line has an adequate air gap.
7
Connecting the Sorol System
are inserted in the control module.
6
FOLLOW LOCAL
PLUMBING CODES
1"DRAIN
1½" DRAIN
BRINE BRINE
110 & 160 MODELS 270 & 380 MODELS
13Copyright © Puretec Pty Ltd 2020 SOL-2CI Commercial Series User Guide
Programming
6.1 Plug into an uninterrupted electrical outlet.
Note: All electrical connections must be connected accordingly to local codes.
6.2 Proceed to ‘Programming’ section
11
Connecting the Overow
Connecting Brine Draw Line Connector
9
8
the line to the drain. Do not connect
the overow into the drain line, as it
must be a direct and separate line to
the drain. Allow an air gap as per the
drain line. Make sure the drain is not
Locate the Brine Draw Line Connector. Apply thread seal tape around connector thread
7 and 9).
BRINE
Installation Procedure

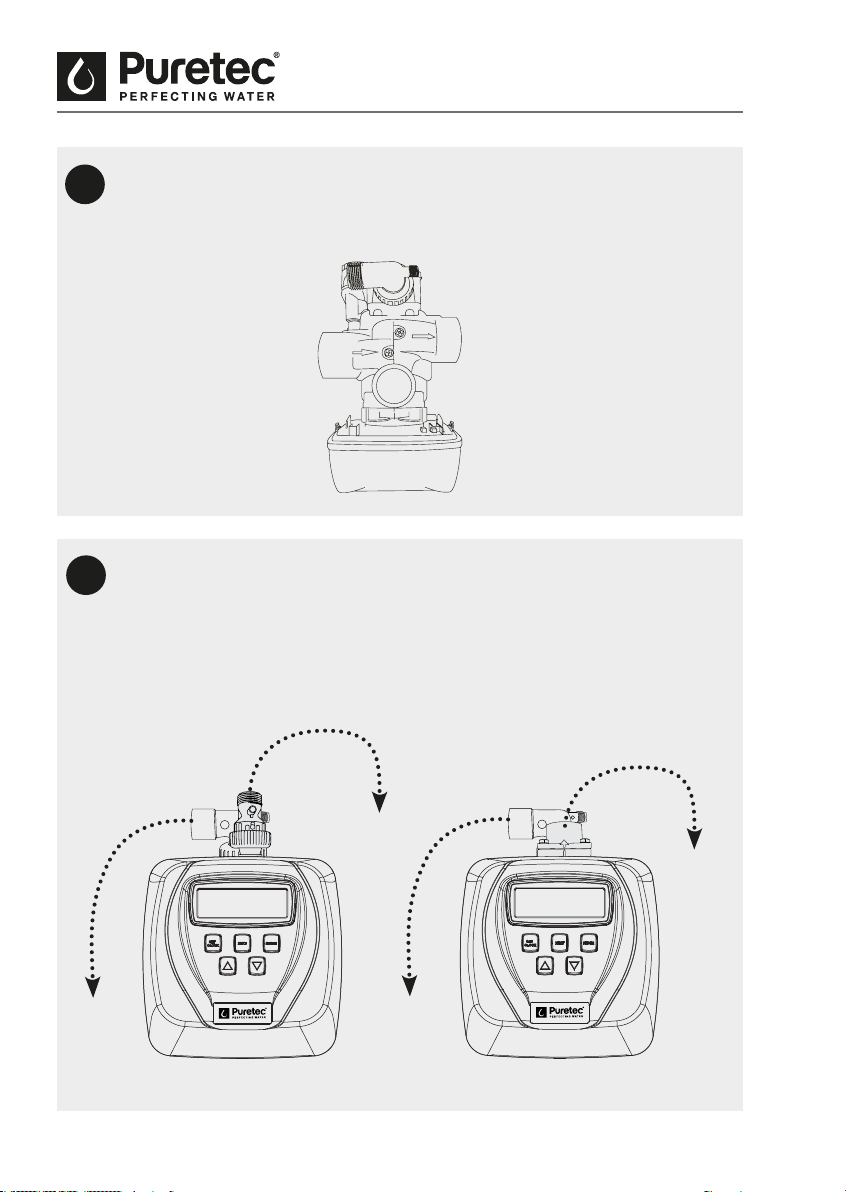

Connecting The Flow Meter
port connection, located on the bottom
right hand side of the PC Board.
Note: Flow meter MUST be installed
on the outlet side of the valve, and is
on components (i.e. No Hard Water
Bypass).
10
UP DOWNDOWN
SET
CLOCK NEXT REGEN
14 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
Programming
Programming

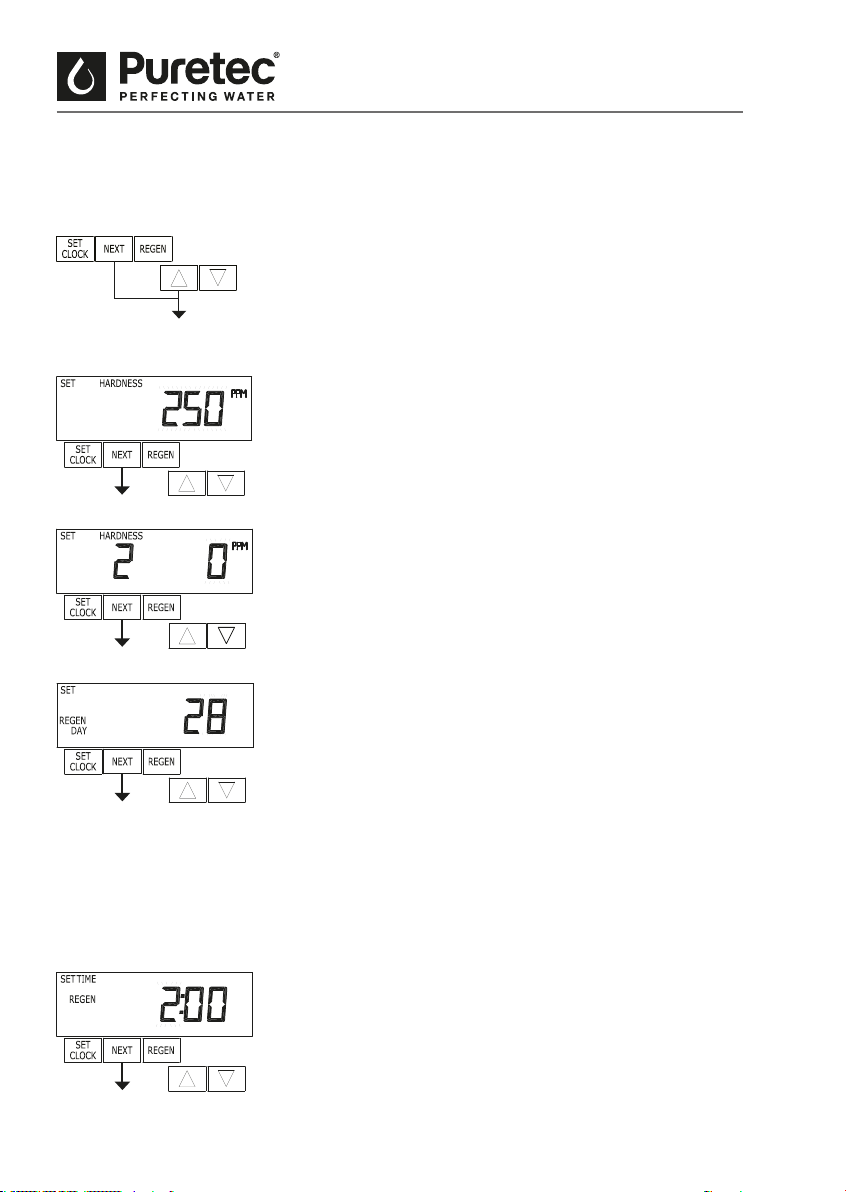

Installer Display Settings
Note: Press "REGEN" at any time to return to previous step.
2. Hardness:
Press "NEXT" to go to the next step.
0 - 100 ppm - Adjustable in increments of 1 ppm.
100 + ppm - Adjustable in increments of 10 ppm.
3. Service Water Hardness: Preset to default (0 ppm).
Changing this value will not alter the outlet hardness.
Press "NEXT" to go to the next step.
4. Day Override: Preset to default (28 days). Set Day Override
(always round-up to nearest ppm).
• Number of days between regeneration (1 to 28); or
• oFF
When volume capacity set to "oFF" or to a number, sets the
number of days between regenerations. If volume is set to
AUTO a regeneration initiation will be called for on that day
even if sufficient volume of water were not used to call for
regeneration.
Press "NEXT" to go to the next step.
5. Next Regeneration Time (hour) Preset to default to
2:00am :
"REGEN on 0 m" if "on 0" is selected in Set Regeneration
Time Option in Advanced Programming.
Press "NEXT" to go to the next step.
15Copyright © Puretec Pty Ltd 2020 SOL-2CI Commercial Series User Guide
Programming
6. Next Regeneration Time (minutes): Set the minutes of
This display will not be shown if "on 0" is selected in Set
Regeneration Time Option in Advanced Programming.
Press "NEXT" to exit Installer Display Settings.

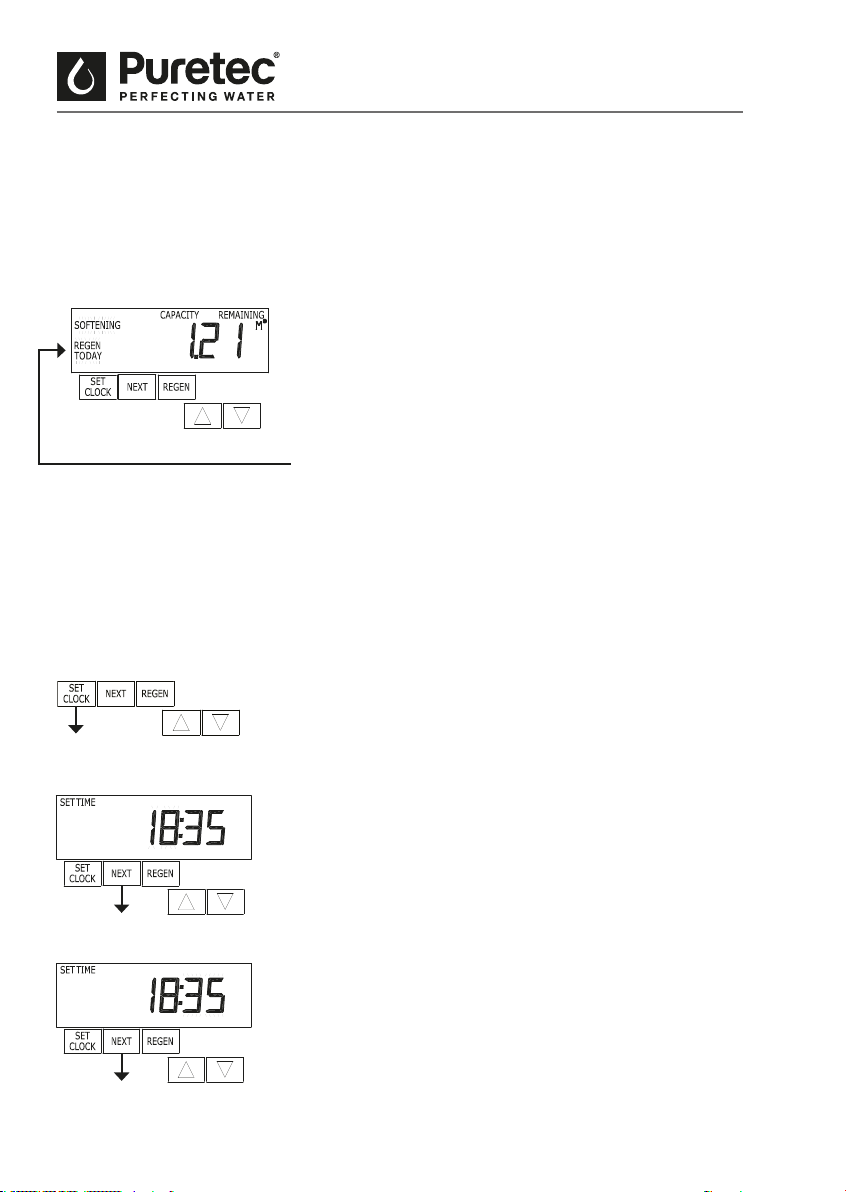

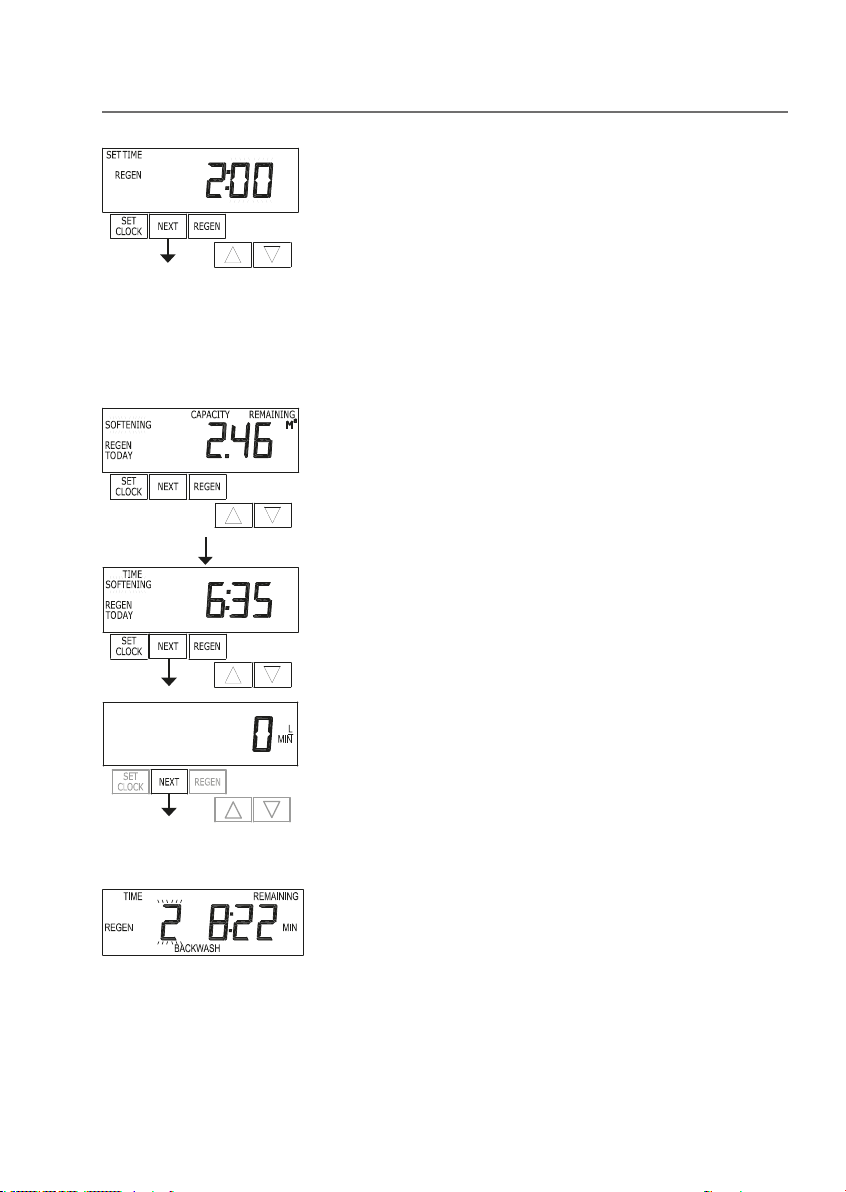

User Display Settings
General Operation: When the system is operating, one of the
following displays may be shown. Pressing "NEXT" will alternate
between the displays:
• Current Time of Day
• Days or Volume Remaining: Days remaining is the number of
days left before the system goes through a regeneration cycle.
Capacity remaining is the cubic meters that will be treated
before the system goes through a regeneration cycle.
• Current Treated Water Flow Rate: The current treated water
flow rate through the system.
If the system has called for a regeneration that will occur at
the present time of regeneration, the words "REGEN TODAY" will
appear on the display.
If a water meter is installed, the word "SOFTENING" flashes on the
display when water is being treated (i.e. water is flowing through
the system).
Regeneration Mode
Typically a system is set to regenerate at a time of low water
usage. An example of a time with low water usage is when a
household is asleep. If there is a demand for water when the
system is regenerating, untreated water will be used.
When the system begins to regenerate, the display will change to
include information about the step of the regeneration process
and the time remaining for that step to be completed. The system
runs through the steps automatically and will reset itself to
provide treated water when the regeneration has been completed.
RETURN TO
NORMAL MODE
RETURN TO NORMAL MODE
16 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
Manual Regeneration
Sometimes there is a need to regenerate the system sooner
than when the system calls for it, usually referred to as manual
regeneration. There may be a period of heavy water usage
because of guests or a heavy laundry day for example.
Immediate Regeneration: To initiate a manual regeneration
immediately, press and hold the "REGEN" button for three seconds.
The system will begin to regenerate immediately.
Note: The control valve may be forced through the various
regeneration cycles by pressing the "REGEN" button.
Delayed Regeneration: To initiate a manual regeneration at the
preset delayed regeneration time, press and release "REGEN". The
words "REGEN TODAY" will flash on the display to indicate that the
system will regenerate at the preset delayed regeneration time.
If you pressed the "REGEN" button in error, pressing the button
again will cancel the request.
If the regeneration time option is set to "on 0" there is no set
delayed regeneration time so "REGEN TODAY" will not activate if
"REGEN" button is pressed.
Note: For softeners, if brine tank does not contain salt, fill with
salt and wait at least two hours before regenerating.
Set Time of Day
Time of day should only need to be set on installation or when
daylight saving time begins or ends. If the time flashes on & off
after a power loss the time of day should be reset & the CR2032
button battery replaced. Note: All other settings will not require
reprogramming. In the unlikely event of a power loss during a
backwash, when the power is restored, a dry-reset should be
performed (see page 27), followed by a manual regeneration
(refer to above) if convenient.
1. Press "SET CLOCK".
2. Current Time (hour):
Press "NEXT" to go to next step.
3. Current Time (minutes): Set the minutes of the day using
RETURN TO NORMAL MODE
RETURN TO NORMAL MODE
RETURN TO NORMAL MODE
RETURN TO NORMAL MODE
Programming
17Copyright © Puretec Pty Ltd 2020 SOL-2CI Commercial Series User Guide
release.
Note: Press "REGEN" at any time to return to the previous step.
Press "NEXT" to go to the next step.
3. Select the Time for the First Cycle
Default is 8.
Press "NEXT" to go to the next step.
4. Select the Time for the Second Cycle
Default is 60.
Note: The display will flash between cycle number, time and brine
direction (dn).
Press "NEXT" to go to the next step.
5. Select the time for the Third cycle
Default is 4.
Press "NEXT" to go to the next step.
Advanced Programming
Advanced Programming
18 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
7. Select the "FILL" for the Forth Cycle
See Fill Chart below.
Fill Chart
Model No. Min.
SOL110-2CI 5.4
SOL160-2CI 9.5
SOL270-2CI 14.5
SOL380-2CI 20.5
Press NEXT to go to the next step.
8. Set System Capacity
Volume Capacity Chart
Model No. kg
SOL110-2CI 6.2
SOL160-2CI 11
SOL270-2CI 17
SOL380-2CI 23.5
Press "NEXT" to go to the next step.
9. Set Volume Capacity
• AUTO: Capacity will be automatically calculated.
• oFF: Regeneration will be based solely on the day
override set (see Installer Display Settings step 4);
• A Number: Regeneration initiation will be based on the
value specified (in M).
If "oFF" or a number is used, Installer Display Settings step
2 & 3 will not be displayed.
Press "NEXT" to go to the next step.
Advanced Programming
19Copyright © Puretec Pty Ltd 2020 SOL-2CI Commercial Series User Guide
10. Set Regeneration Time Options
• NORMAL: Regeneration will occur at the preset time
• On 0: Regeneration will occur immediately when the
• NORMAL + on 0: Regeneration will occur when:
- The preset time when the volume capacity falls below
the reserve or the specified number of days between
regenerations is reached, whichever comes first; or
- Immediately after 10 minutes of no water usage
when th
Press "NEXT" to go to the next step.
11. Set Relay 1 Operation
Note: Relay points provide a 12v DC, 100 MA output.
• Time On: Relay activates after a set time at the
beginning of a regeneration cycle and then deactivates
after a set period of time. The start of regeneration is
cycle, whichever comes first.
• L Softening On: Relay activates after a set number of
litres has been treated and then deactivates after a set
period of time or after the meter stops registering flow,
whichever comes first.
• L Softening Regen On: Relay activates after a set
number of litres have been used while in service or
during regeneration and then deactivates after a set
period of time or after the meter stops registering flow,
whichever comes first.
• Off: If set to "oFF", steps 12 & 13 will not be shown.
Press "NEXT" to go to the next step.
12. Set Relay 1 Actuation Time or Litres
• Relay Actuation Time: After the start of a
regeneration the amount of time that should pass prio
r to activating the relay. The start of regeneration is
defined as the first backwash cycle or Dn brine cycle,
whichever comes first. Ranges from 1 second to 200
minutes.
Set to Total of: Backwash + Brine + Rinse + Fill + 1 min.
• Relay Actuation Litres: Relay activates after a set
number of litres has passed through the meter when
the valve is in service mode. Ranges from 1 to 200L.
Advanced Programming
(Default is "on")
Flashes between the two screens.
20 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
Press "NEXT" to go to the next step.
13. Set Relay 1 Deactivate Time
• If "on" is selected in step 10, the relay will deactivate
after the time set has expired. Ranges from 1 second to
200 minutes.
• If "L on" or "L softening regen on" is selected in step 10,
the relay will deactivate after the time set has expired
or after the meter stops registering flow, whichever
comes first. Ranges from 1 second to 20 minutes.
Press "NEXT" to go to the next step.
14. Set Relay 2 Operation
• On: Relay activates after a set time at the beginning of
a regeneration cycle and then deactivates after a set
period of time. The start of regeneration is defined as
the first backwash cycle or Dn brine cycle, whichever
comes first.
• Set L Softening On: Relay activates after a set
number of litres has been treated and then deactivates
after a set period of time or after the meter stops
registering flow, whichever comes first.
• L Softening Regen On: Relay activates after a set
number of litres have been used while in service or
during regeneration and then deactivates after a set
period of time or after the meter stops registering flow,
whichever comes first.
• Error: Relay closes whenever the control enters the
error mode and immediately deactivates when the error
mode is exited.
• Off: If set to "oFF", steps 15 & 16 will not be shown.
Press "NEXT" to go to the next step.

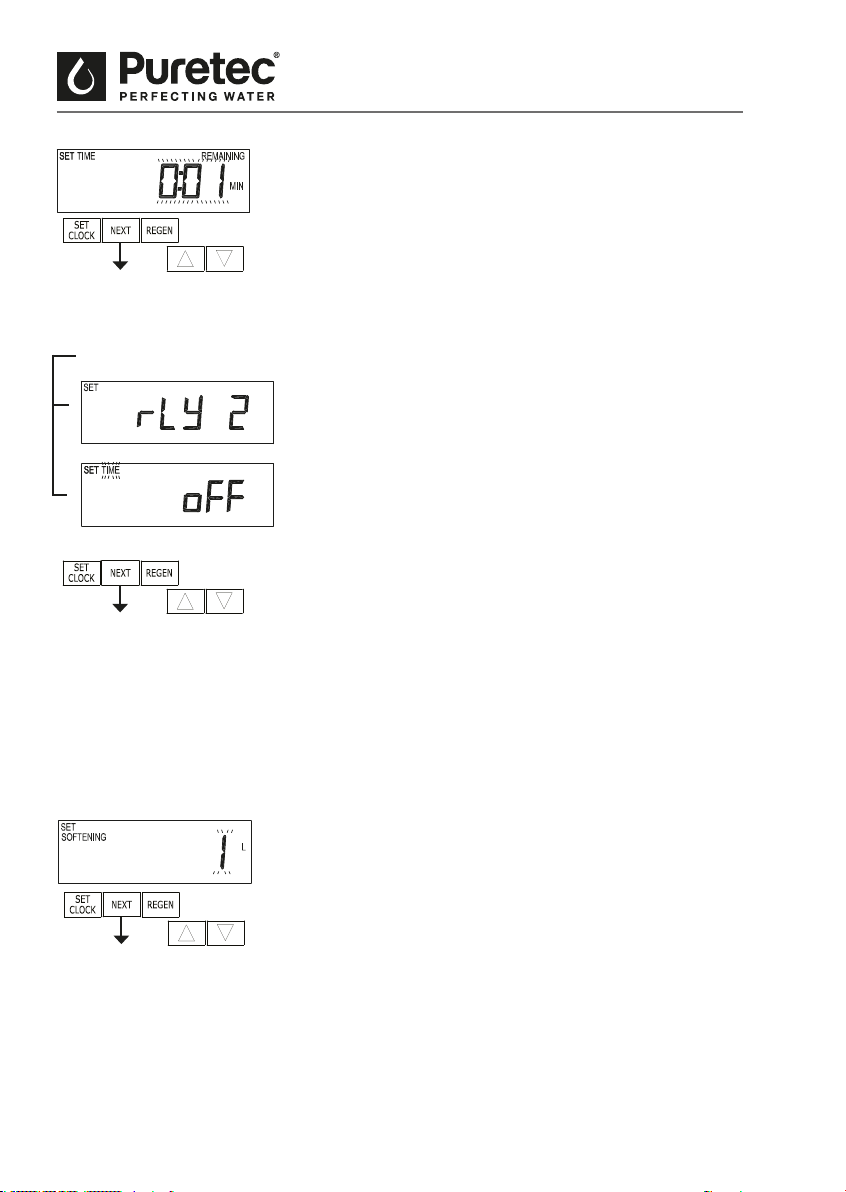

15. Set relay 2 Actuation Time or Litres
• Relay Actuation Time: After the start of a
regeneration the amount of time that should pass prior
to activating the relay. The start of regeneration is
cycle, whichever comes first. Ranges from 1 second to
200 minutes.
• Relay Actuation Litres: Relay activates after a set
number of litres has passed through the meter when
the valve is in the service mode. Ranges from 1 to 200
litres.
Advanced Programming
(Default is "oFF")
Flashes between the two screens.
This manual suits for next models
4
Table of contents
Other Puretec Water Dispenser manuals
Puretec
Puretec Softrol E1 User manual
Puretec
Puretec Softrol E3 User manual
Puretec
Puretec SOL-E3 Series User manual
Puretec
Puretec SOL-SE Series User manual
Puretec
Puretec SOL-E1 Series User manual
Puretec
Puretec Sparq S4 User manual
Puretec
Puretec UF10 Series User manual
Puretec
Puretec QT18 User manual
Puretec
Puretec SOL-E3 Series User manual
Puretec
Puretec Basic SIB Series User manual
Popular Water Dispenser manuals by other brands
Tier1
Tier1 165 Series owner's manual
Eco Pure
Eco Pure EP 7130 Installation and operation manual
Clear Water
Clear Water DELUXE SYSTEM owner's manual
Pureit
Pureit Marvella RO instruction manual
HomePlus
HomePlus SoftPlus SP-5800SXT Series Owner's manual & installation guide
Water Boss
Water Boss 700 Owner's manual and installation guide
SYR
SYR LEX Smart Series Instructions for use and maintenance
Culligan
Culligan CTM 21 Installation, Operation, and Service Instructions with Parts Lists
Everpure
Everpure EV9613-01 Performance data sheet
Sylvania
Sylvania SE80092 instruction manual
lancer
lancer MB-18 Installation and service manual
Follett
Follett Chewblet 7 Series installation guide
socorex
socorex CALIBREX solutae 530 Operating instruction
Drinkpod
Drinkpod DP1000 installation guide
Franklin
Franklin PWS1HE Series Installation instructions and owner's manual
Elkay
Elkay LMABF8*1A Installation, care & use manual
SCHLIESSMANN
SCHLIESSMANN AQUA Compact User instructions
Hague Quality Water
Hague Quality Water Maximizer owner's manual
