Puretec SOL-TA Series User manual
User Guide
Volumetric Water Softening System
SOL-TA Commercial Series
For correct operation & installation, it is essential to observe these instructions.AUG2020
WMTS103:2016
Licence No. WM 74593
Australian Certication
Services
2 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
What's Inside
What's Inside
Puretec Customer Service ............................................................................................................................3
Installation Record ............................................................................................................................................4
Before Installation..............................................................................................................................................5
........................................................................................................................................................7
Exploded Diagram..............................................................................................................................................8
.............................................................................................................................................9
Installation Procedure...................................................................................................................................10
Programming .....................................................................................................................................................15
Advanced Programming (optional) ........................................................................................................16
DP Switch Programming (optional) .......................................................................................................20
General Operation...........................................................................................................................................22
Manual Regeneration ....................................................................................................................................23
Start-Up ...............................................................................................................................................................24
Regeneration......................................................................................................................................................24
Replenishment of Salt Supply ..................................................................................................................25
Type of Salt Used ............................................................................................................................................25
Brine Tank Clean-Out.....................................................................................................................................25
Media Replacement........................................................................................................................................25
Bypass Valve Operation - optional accessory .................................................................................26
Troubleshooting Guide..................................................................................................................................27
Warranty...............................................................................................................................................................31
3Copyright © Puretec Pty Ltd 2020 SOL-TA Commercial Series User Guide
Puretec Customer Service
Puretec Customer Service
system is a proven performer manufactured from only quality materials and components.
It will give years of reliability and trouble free operation if maintained properly.
This user guide is designed for Puretec SOL-TA Water Treatment Systems. Be careful to
ensure the information and illustration is applicable to your particular unit.
If you require any assistance, please contact our Customer Service Helpline 1300 140 140
(Australia) 0800 130 140 (New Zealand).
Caution: Do not use with water that is microbiologically unsafe or without
adequate disinfection before or aer the system.
The systems are designed for metropolitan supply water but can be used in other
situations. For other types of water supply, please contact your local Puretec dealer.
the initial installation and periodic maintenance.
must be installed.
When line pressure exceeds 500 kPa, a pressure limiting valve must be installed.
Note: Water soener salt not supplied.
Installation Note:
eventually fail. Also sometimes failure happens early due to unforeseen circumstances.
To avoid possible property damage, this product should be regularly examined for
INSTALLATION MUST BE COMPLETED BY A LICENCED PLUMBER. FAULTY OPERATION DUE TO
UNQUALIFIED PERSONS WILL RESULT IN VOIDED WARRANTY COVERAGE.
Warning: Chlorine (free chlorine) tolerance is 0.5ppm - high chlorine levels permanently
to protect against chlorine spikes & prolong the resin life.
4 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
Product Information
Model Number:
Purchased from:
Date of Installation:
Regen Frequency: ________ Days
Water Analysis Information
Hardness:
Iron:
Manganese:
pH: ___________
TDS (Total Dissolved Salts):
Conductivity:
Chloride:
Sodium:
Installation Record
Installation Record
5Copyright © Puretec Pty Ltd 2020 SOL-TA Commercial Series User Guide
Before Installation
Professional Installation Required
•
Make Sure Your Water Has Been Thoroughly Tested
• An analysis of your water should be made prior to the selection of your water
you, and may send a sample to an independent laboratory for analysis and
recommendations. Enter your analysis information on page 4 for your permanent
record.
•
of soluble iron if consideration is given when selecting model and regeneration
settings. For best results contact Puretec to discuss.
Install Water Conditioning Equipment Correctly
to proper location are as follows:
• Install as close as possible to a drain.
• Install in correct relationship to other water treatment equipment. Contact Puretec
for assistance.
•
•
• DO NOT install where water hammer conditions may occur without installing an
arrestor.
•
switched 240V power source for the control valve.
Before Installation
6 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
Before Installation
misalignment but are not designed to support the weight of a system or the plumbing.
• Do not use petroleum jelly, oils, other hydrocarbon lubricants or spray silicone anywhere.
A silicon lubricant may be used on the black o-rings but it is not necessary.
• Do not use pipe dope or other sealants on threads. Thread seal tape is the preferred
sealant but is not necessary on the nut connection or caps because of o-ring seals.
• Install grounding strap on metal pipes if required.
• Ensure the system is protected against high pressure and extreme temperatures.
• Chlorine (free chlorine) tolerance is 0.5ppm - high chlorine levels permanently damage
protect against chlorine spikes & prolong the resin life.
Things to Remember While Planning Your Installation:
• All installation procedures MUST conform to local plumbing codes.
•
WARNINGS
7Copyright © Puretec Pty Ltd 2020 SOL-TA Commercial Series User Guide
Specications
Specications
138 - 862 kPa
0 - 40 °C (protect from
Electrical Connection:
1" BSPT
Drain Connection:
SOL45-TA SOL60-TA
Width (mm) (W): 608 mm 710 mm
Height (mm) (H): 1762 mm 1711 mm
Maximum Salt Storage
Capacity: 75 kg 75 kg
(W)
370
900
(H)
430
900
8 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
Exploded Diagram
Exploded Diagram
2
1
3
4
11
12
10
13
14
15
16
17
9
2
1
3
4
5
6
7
Secondary Tank Primary Tank
8
9Copyright © Puretec Pty Ltd 2020 SOL-TA Commercial Series User Guide
Parts Identication
Outlet 1"
Control Panel Inlet 1"
Diagram Identication
Item Part no Description
1 - Presure Tank x 2
2 - Secondary Tank Head
3 WTD2030 Riser Pipe x 2
4 WTD1010 Top Screen x 2
5 WTD3030 Pressure Tank UV Sheild x 2
6 - Interconnect Pipe Kit
7 WTV4250 TA Volumetric Valve
8 WTB5070 Plastic Fitting Kit, Elbow
9 - Drain Tube Assembly
Item Part no Description
10 WTV5135 Transformer, Suit Auto Valve
11 WTV5110 Valve Cover
12 WTV5000 Bypass Assembly
(purchased separately)
13 KTV6SVC ⅜" Black Tubing
14 KEC66 ⅜" Elbow Connector
15 WTB4000 Brine Pickup Assembly
16 WTB2200 Brine Tank
17 WTB5150
Brine
Drain
Parts Identication
Meter Port
10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
Installation Procedure
Bag of Salt (refer to page
16 for the type of salt to
be used)
Installation Procedure
Ensure Water Has Been Tested
Input values into Table on page 4 and the analysis has been inspected by Puretec.
3
Water Analysis Information
Hardness
Iron
Manganese
pH ___________
TDS (Total Dissolved Salts)
Conductivity
Chloride
Sodium
130
0.3
0.1
7
275
404
121
96
Customer Service Helpline
1300 140 140 (AU) 0800 130 140 (NZ)
Extra Items Required:
2
Unpack the Equipment
1
User Guide
Volumetric Water Softening System
SOL-TA Commercial Series
Forcorrect operation & installation, it is essential to observe these instructions.
FEB2020
Primary
Pressure Tank
(Vessel 1)
User Guide
Drain Tube Assembly
Bypass Assembly
(purchased separately)
Media
TA Control Valve
Interconnect Pipe Kit
Secondary Pressure
Tank with Head
(Vessel 2)
11Copyright © Puretec Pty Ltd 2020 SOL-TA Commercial Series User Guide
Installation Procedure
Position the Soening System on a Level Surface
Environmental conditions
Operating temperature: 0 - 40 °C
Water conditions
Temperature: 0 - 50 °C
Pressure: 138 - 862 kPa
4
Media Installation
The Media has been shipped seperately to avoid damage in transit.
The length of the internal riser pipe is pre-set and does not need adjustment.
1.
outlet, in a position when the system can service all lines requiring treated
water. The system should be placed far enough away from any water
powerpoint and surge protector is recommended.
2. Plug or cover the top end of the riser pipe in the primary pressure tank
(labelled Vessel 1) making sure no media can enter the tube.
3. Ensure that the riser pipe is sitting in the cradle at the base of the tank.
Then using a wide mouth funnel, place the media in the tank as per the
numbering on the buckets. (Buckets are labelled Vessel 1 - Pour 1, 2, 3 etc.
4.
riser pipe. Top up tank with water.
5.
making sure the distributor tube is properly inserted into the valve.
6. Unscrew the head counterclockwise from the secondary pressure tank
(labelled Vessel 2).
7. Repeat the steps 2 - 4 for Vessel 2, using the buckets labelled Vessel 2 -
Pour 1, 2, 3 etc.
8. Screw the secondary head back onto the tank (hand tight is usually
head.
5
12 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
Installation Procedure
Installing the Bypass (purchased separately)
Uninstall the plastic
counterclockwise.
Connect the bypass assembly
Hand tighten the knobs, do not
overtighten.
6
7Connecting the Pressure Tanks
Install the Interconnect Fittings between the secondary tank head and the control
valve (Side of the valve where the yellow 'Connect to second tank' sticker is located),
tighten up by hand only.
Top View
13Copyright © Puretec Pty Ltd 2020 SOL-TA Commercial Series User Guide
Connecting the Drain Line
Locate the 300mm drain tube and attach to the drain connection, refer to page 9 for
Connecting Brine Line
9
10
Locate Elbow Fitting in the Brine Tank, remove black tubing and dispose. Connect 2 m
(refer to diagrams in step 9 and 11)
Connect extra tube (tubing not supplied)
to the drain. Ensure the drain line is not
kinked. The line must not travel more than
2.4m up and no more than 6 m long from
the valve, otherwise increase the diameter
of the drain line.
stormwater, whatever is approved by local
authority for salty discharge water.
Ensure drain line has an adequate air gap
of 2 times the pipe diameter or 25 mm,
whichever is larger. Brine
Installation Procedure
Drain
Connecting the Sorol System
they are inserted in the control module.
8
Apply plumbing tape to
the nipple as required.
Connect the pipe work to the
valve, refer to page 9 for
FOLLOW LOCAL
PLUMBING CODES
14 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
Installation Procedure
Programming
6.1 Plug into an uninterrupted electrical outlet.
Note: All electrical connections must be connected accordingly to local codes.
6.2 Proceed to ‘Programming’ section
12
Connecting the Overow
11
line to the drain. Do not connect the
overow into the drain line, as it must
be a direct and separate line to the
drain. Allow an air gap as per the drain
line. Make sure the drain is not higher
Overow
Brine
15Copyright © Puretec Pty Ltd 2020 SOL-TA Commercial Series User Guide
Programming
Programming
Set Time of Day
1. Push NEXT until the time of day screen is displayed. Press
correct minute is displayed.
3. Press NEXT to return to the user displays.
Time of day should only need to be set on installation or when
daylight saving time begins or ends. If the time flashes on & off
after a power loss the time of day should be reset & the CR2032
button battery replaced. Note: All other settings will not require
reprogramming. In the unlikely event of a power loss during a
backwash, when the power is restored, a dry-reset should be
performed, followed by a manual regeneration if convenient.
Installer Display Settings
Note: If optional Advanced Programming or optional DP
Switch Programming is required, complete those steps prior to
programming the Installer Display Settings.
simultaneously for about 5 seconds and release.
Note: Press "REGEN" at any time to return to the previous step.
2. Hardness:
0 - 100 ppm - Adjustable in increments of 1 ppm.
100 + ppm - Adjustable in increments of 10 ppm.
3. Hardness 2: If using a mixing valve, set the amount of
may vary depending on system capacity selected and
hardness selected in step 2.
Note: This display will not be available if 'oFF' or a number was
selected in Advanced Programming, step 11.
Step 1I
Step 2I
Step 3I
Step 4I
Step 1I
Step 2I
Step 3I
Step 4I
Step 1I
Step 2I
Step 3I
Step 4I
16 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
Advanced Programming
4. Day Override: Preset to default (off). Set Day Override
• Number of days between regeneration (1 to 28); or
• oFF (default)
When volume capacity set to "oFF" or to a number, sets the
number of days between regenerations. If volume is set to
AUTO a regeneration initiation will be called for on that day
even if sufficient volume of water were not used to call for
regeneration.
Press "NEXT" to go to step 5.
5. Preset to default.
Note:
This option is only available when 'NORMAL' or 'NORMAL + on
0' were selected in Set Regeneration Time Option in Advanced
Settings.
Press NEXT to go to step 6.
6. Preset to skip this this step.
Note: Next Regeneration Time (minutes) can be set in this step
'NORMAL + on 0' were selected in Set Regeneration Time Option
in Advanced Settings.
release.
Press NEXT to go to step 3.
Advanced Programming
Step 4I
Step 5I
Step 6I
EXIT INSTALLER DISPLAY SETTINGS
Step 3I
Step 4I
Step 5I
Step 6I
EXIT INSTALLER DISPLAY SETTINGS
EXIT INSTALLER DISPLAY SETTINGS
Step 6CS
Step 7CS
Step 2S
Step 1S
Step 3S
Step 10S
Step 11S
Step 9S
Step 6CS
Step 7CS
Step 2S
Step 1S
Step 3S
Step 10S
Step 11S
Step 9S
17Copyright © Puretec Pty Ltd 2020 SOL-TA Commercial Series User Guide
Advanced Programming
Press NEXT to go to step 4.
4. Set Refill Location
• PoST: To refill the brine tank after the final rinse; or
• PrE: To refill the brine tank four hours before the
regenration time is set.
Press NEXT to go to step 5.
5. Select the Time for the First Cycle
Press NEXT to go to step 6.
6. Select the Time for the Second Cycle
Press NEXT to go to step 7.
7. Select the Time for the Third Cycle
Press NEXT to go to step 8.
8. Select the Time for the Forth Cycle
Press NEXT to go to step 9.
EXIT TO DISPLAY SCREENS
Step 6CS
Step 7CS
Step 3S
Step 4S
Step 5S
Step 6S
Step 7S
Step 8S
Step 10S
Step 11S
Step 12S
Step 13S
Step 14S
Step 15S
EXIT OEM SOFTENER SYSTEM SETUP
EXIT INSTALLER DISPLAY SETTINGS
EXIT TO DISPLAY SCREENS
Step 6CS
Step 7CS
Step 2S
Step 3S
Step 4S
Step 5S
Step 6S
Step 7S
Step 8S
Step 10S
Step 11S
Step 12S
Step 13S
Step 14S
Step 15S
EXIT OEM SOFTENER SYSTEM SETUP
EXIT INSTALLER DISPLAY SETTINGS
EXIT TO DISPLAY SCREENS
Step 6CS
Step 7CS
Step 2S
Step 3S
Step 4S
Step 5S
Step 6S
Step 7S
Step 8S
Step 10S
Step 11S
Step 12S
Step 13S
Step 14S
Step 15S
EXIT OEM SOFTENER SYSTEM SETUP
EXIT INSTALLER DISPLAY SETTINGS
EXIT TO DISPLAY SCREENS
Step 6CS
Step 7CS
Step 2S
Step 3S
Step 4S
Step 5S
Step 6S
Step 7S
Step 8S
Step 10S
Step 11S
Step 12S
Step 13S
Step 14S
Step 15S
EXIT OEM SOFTENER SYSTEM SETUP
EXIT INSTALLER DISPLAY SETTINGS
EXIT TO DISPLAY SCREENS
Step 6CS
Step 7CS
Step 2S
Step 3S
Step 4S
Step 5S
Step 6S
Step 7S
Step 8S
Step 10S
Step 11S
Step 12S
Step 13S
Step 14S
Step 15S
EXIT OEM SOFTENER SYSTEM SETUP
EXIT INSTALLER DISPLAY SETTINGS
EXIT TO DISPLAY SCREENS
Step 6CS
Step 7CS
Step 2S
Step 3S
Step 4S
Step 5S
Step 6S
Step 7S
Step 8S
Step 10S
Step 11S
Step 12S
Step 13S
Step 14S
Step 15S
EXIT OEM SOFTENER SYSTEM SETUP
EXIT INSTALLER DISPLAY SETTINGS
18 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
9. Select the Kg for the Fifth Cycle
Note: If step 2 in DP Switch Programing is set to 2.0 or step 7 in
DP Switch Programming is set to MIN, fill will be in minutes.
SOL45-TA = 5.20
SOL60-TA = 7.20
Press NEXT to go to step 10.
10. Set System Capacity
setting should be based on the volume of resin and Kg of
salt fill set in Step 9. When using ppm, dH or FH the system
capacity and hardness levels entered are used to determine
the volume capacity.
SOL45-TA = 2.20
SOL60-TA = 3.10
Press NEXT to go to step 11.
11. Set Volume Capacity
• AUTO: Capacity will be automatically calculated and
reverse capacity will be automatically estimated;
• Off: Regeneration will be triggered soley by the day
override setting (see Installer Display Settings , step 4);
• Volume: Regeneration will be by the value specified (in
M).
If oFF or volume is used, the hardness display will not be
allowed to be set in Installer Display Settings step 2 & 3.
Press NEXT to go to step 12.
Step 10S
Step 11S
Step 12S
Step 13S
Step 9S
Step 14S
Step 15S
Step 1I
Step 2I
Step 3I
Step 4I
Step 5I
Step 6I
EXIT INSTALLER DISPLAY SETTINGS
Step 10S
Step 11S
Step 12S
Step 13S
Step 9S
Step 14S
Step 1I
Step 2I
Step 3I
Step 4I
Step 5I
Step 6I
EXIT INSTALLER DISPLAY SETTINGS
Step 10S
Step 11S
Step 12S
Step 13S
Step 9S
Step 1I
Step 2I
Step 3I
Step 4I
Step 5I
Step 6I
Advanced Programming
19Copyright © Puretec Pty Ltd 2020 SOL-TA Commercial Series User Guide
12. Set Regeneration Time Options
set to:
• NORMAL: Means regeneration time will be triggered by
the value specified (in M).
• on O (default) : Means regenration will occur
or
• NORMAL + on O: Means regeneration will occur at one of
the following:
- The preset time when the volume capacity falls below
the reserve or the specified number of days between
regenerations is reached whichever comes first; or
- Immediately after 10 minutes of no water usage when
Note: 'on 0' is the default if step 2 in DP Switch Programming is
set to 1.0, and 'NORMAL + on O' is not available. This step will not
appear if step 11 is set to 'oFF'.
Press NEXT to go to step 13.
13. Set Relay Operation
• Set Time On: Relay activates after a set time at the
beginning of a regeneration and then deativates after a
set period of time. The start of regeneration is defined
as the first backwash cycle or Dn brine cycle., whichever
comes first.
• Set Litres Softening On: Replay activates after a set
number of litres have been used while in service and then
deactivates after a set period of time or after the meter
stops registering flow, whichever comes first.
• Set Litres Softening Regen On: Relay activates after
a set number of litres have been used while in service or
during a regeneration and then deactivates after a set
period of time or after the meter stops registering flow,
whichever comes first.
• ERROR: Relay closes whenever the value enters error
mode, and immediately deativates when error mode is
exited. If set to ERROR, steps 14 & 15 will not be shown.
• Off (default): If set to 'oFF", steps 14 & 15 will not be
shown.
Press NEXT to go to step 14.
Step 4S
Step 5S
Step 6S
Step 7S
Step 8S
Step 12S
Step 13S
Step 14S
Step 15S
EXIT OEM SOFTENER SYSTEM SETUP
Step 4I
Step 5I
Step 6I
EXIT INSTALLER DISPLAY SETTINGS
Step 2S
Step 3S
Step 4S
Step 5S
Step 6S
Step 7S
Step 8S
Step 10S
Step 11S
Step 12S
Step 13S
Step 14S
Step 15S
EXIT OEM SOFTENER SYSTEM SETUP
Step 3I
Step 4I
Step 5I
Step 6I
EXIT INSTALLER DISPLAY SETTINGS
Step 10S
Step 11S
Step 12S
Step 13S
Step 9S
Step 14S
Step 15S
EXIT OEM SOFTENER SYSTEM SETUP
Step 1I
Step 2I
Step 3I
Step 4I
Step 5I
Step 6I
EXIT INSTALLER DISPLAY SETTINGS
Step 2S
Step 1S
Step 3S
Step 4S
Step 5S
Step 6S
Step 7S
Step 8S
Step 10S
Step 11S
Step 12S
Step 13S
Step 9S
Step 14S
Step 15S
EXIT OEM SOFTENER SYSTEM SETUP
Step 1I
Step 2I
Step 3I
Step 4I
Step 5I
Step 6I
EXIT INSTALLER DISPLAY SETTINGS
Flashes between these screens.
Advanced Programming
20 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
14. Set Relay Actuation Time or Litres
• Relay Actuation Time: After the start of a regeneration
the amount of time that should pass prior to activating
the relay. The start of regeneration is defined as the first
comes first. Ranges from 1 second to 200 minutes.
• Relay Actuation Litres: Relay activates after a set
number of litres has passed through the meter when
the valve is in the service mode. Ranges from 1 to 200
litres.
Press "NEXT" to go to the next step.
15. Set Relay Deactivate Time
• If "on" is selected in step 14 the relay will deactivate
after the time set has expired. Ranges from 1 second to
200 minutes.
• If "L on" or "L softening regen on" is selected in step 14
the relay will deactivate after the time set has expired
or after the meter stops registering flow, whichever
comes first. Ranges from 1 second to 20 minutes.
Press "NEXT" to exit Advanced Programming.
release for a second time.
Press NEXT to go to step 3.
DP Switch Programming
(Optional - change if required for DP Switch installation or for external backwash
control i.e BMS)
Step 14S
Step 15S
EXIT OEM SOFTENER SYSTEM SETUP
Step 6I
EXIT INSTALLER DISPLAY SETTINGS
Step 13S
Step 14S
Step 15S
EXIT OEM SOFTENER SYSTEM SETUP
Step 6I
EXIT INSTALLER DISPLAY SETTINGS
Step 1CS
Step 2CS
Step 3CS
Step 5CS
Step 1CS
Step 2CS
Step 3CS
Step 5CS
DP Switch Programming
This manual suits for next models
2
Table of contents
Other Puretec Water Dispenser manuals
Puretec
Puretec SOL-2CI Series User manual
Puretec

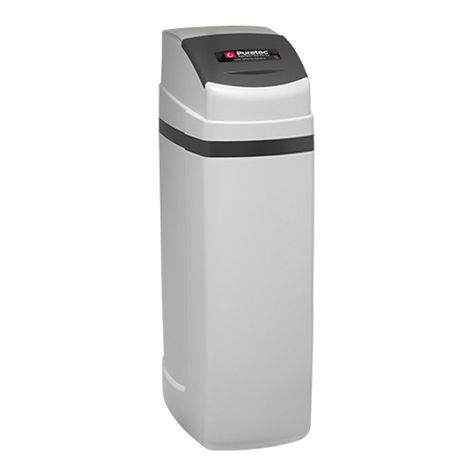

Puretec SOL-E1 Series User manual
Puretec
Puretec Sparq S4 User manual
Puretec

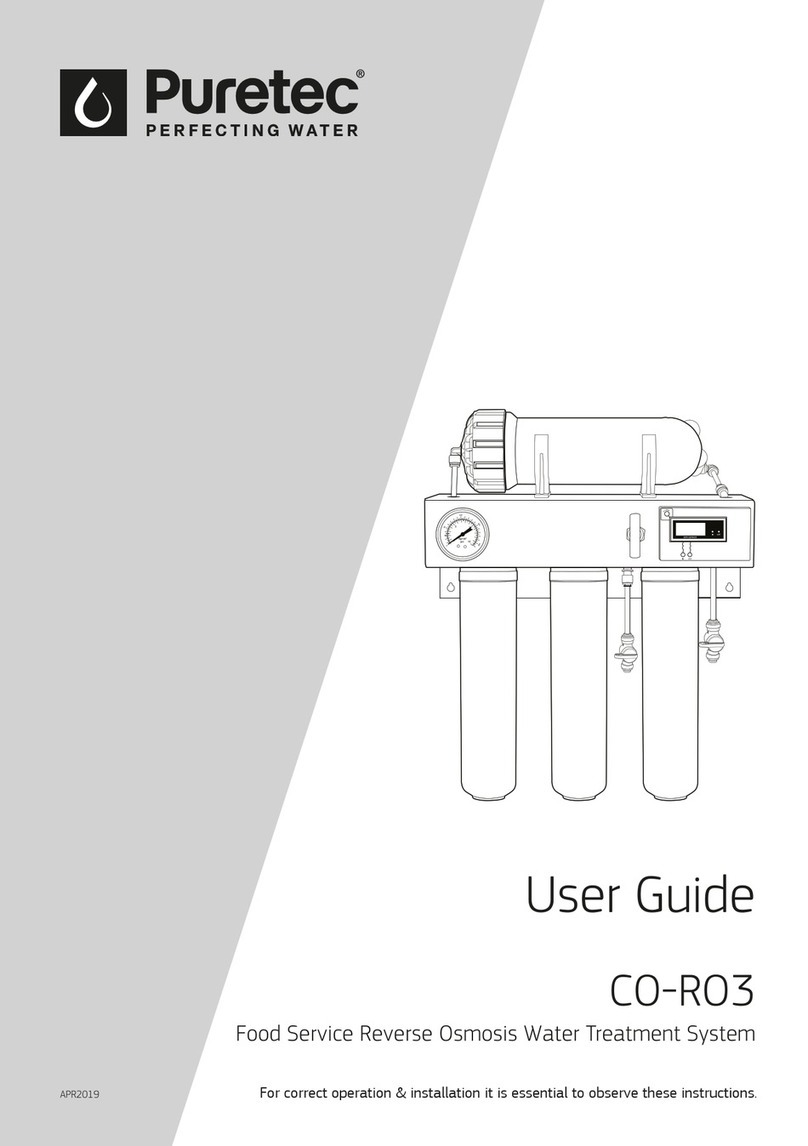

Puretec CO-RO3 User manual
Puretec

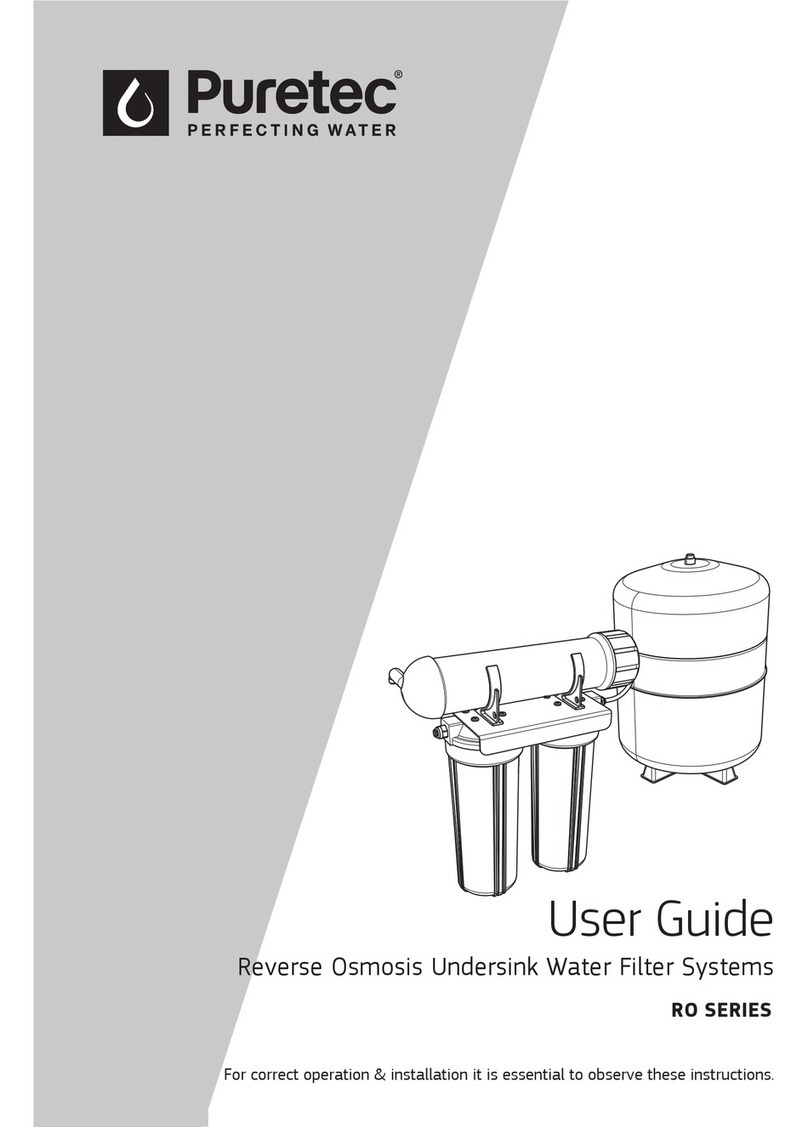

Puretec RO SERIES User manual
Puretec

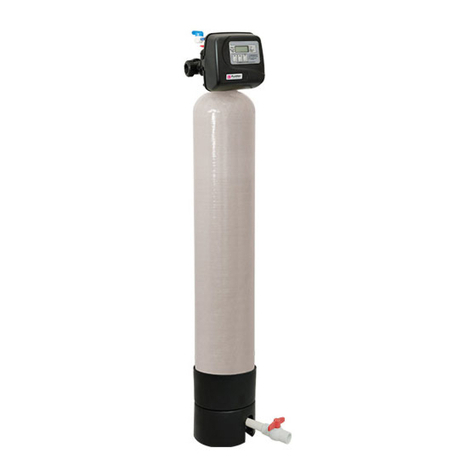

Puretec UF10 Series User manual
Puretec
Puretec Basic SIB Series User manual
Puretec
Puretec Softrol E1 User manual
Puretec
Puretec ROS2700 User manual
Puretec

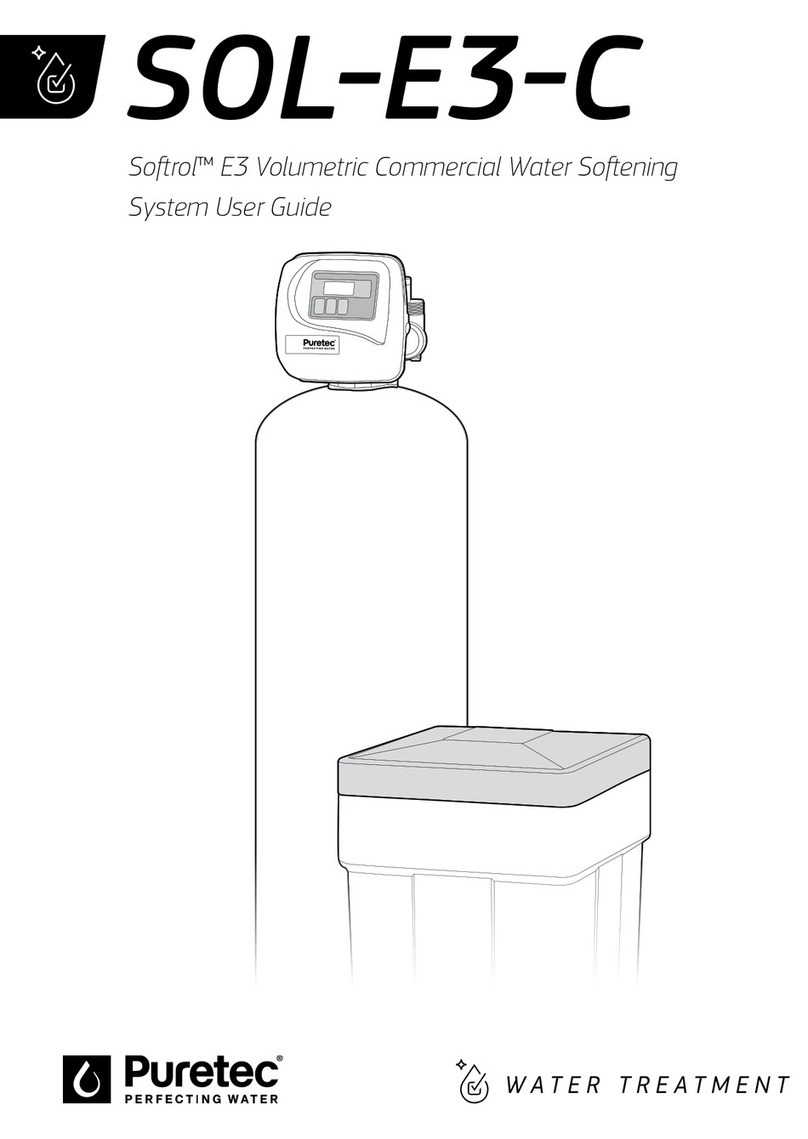

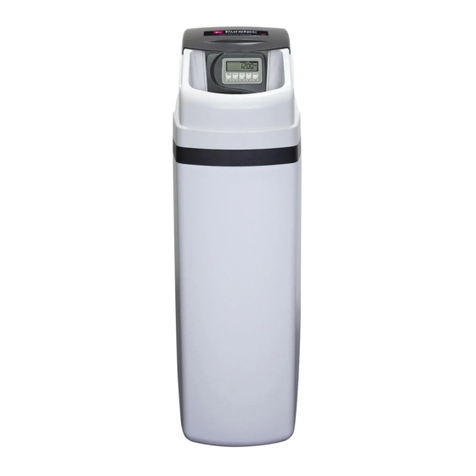

Puretec Softrol E3 User manual
Popular Water Dispenser manuals by other brands

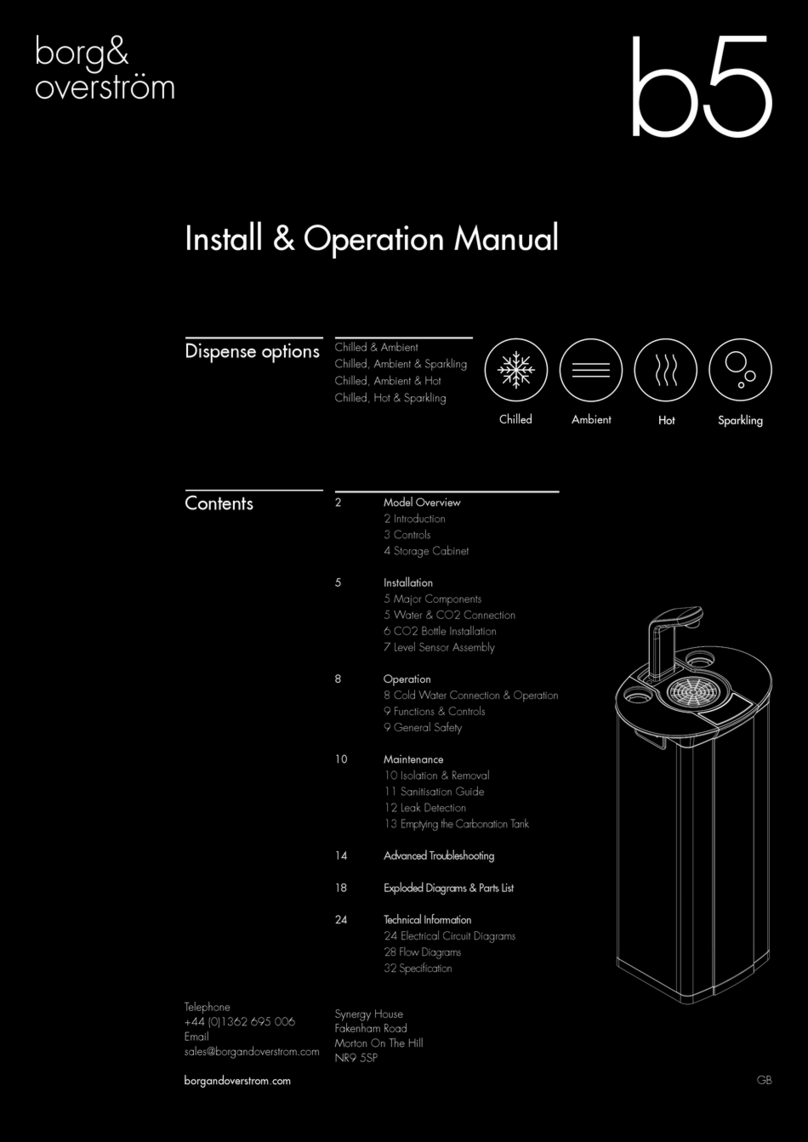

Borg & Overstrom
Borg & Overstrom b5 Install & Operation Manual
Ecodyne Water Systems
Ecodyne Water Systems EP 6130 Installation, operation, maintenance & repair parts
Aqua Cooler
Aqua Cooler M2F owner's manual
Omnifilter
Omnifilter OM34K installation instructions
Elkay
Elkay LZ Series Installation, care & use manual
Breville
Breville Hot Cup Instructions for use
Elkay
Elkay EMABFTL8 Series Installation, care & use manual
ScaleBlaster
ScaleBlaster SB-175 Installation & operation manual
BRIO
BRIO Moderna CLBL730SC user manual
Murdock
Murdock A611.8 Series Installation & maintenance instructions
Instanta
Instanta InstaTap UCCH1000 User instructions
PEERLESS
PEERLESS FM Series Startup Procedure
Russell Hobbs
Russell Hobbs RHSWD3 Instructions and warranty
Ice-O-Matic
Ice-O-Matic GEMD270A2 Installation and service manual
Elkay
Elkay EMABFDTL A Series Installation, care & use manual
Vertex
Vertex PureWaterCooler PWC-3500 Owners & installation manual
lonsid
lonsid GR310MB user manual
Elkay
Elkay ESWA8 1G Series Installation, care & use manual
