Pylontech US3000C User manual

Rechargeable Li-ion Battery
US3000C Operation Manual
Information Version: 1.1
20CQSV0902

This manual introduces US3000C from Pylontech. Please read this manual
before you to install the battery and follow the instruction carefully during the
installation process. Any confusion, please contact Pylontech immediately for
advice and clarification.
1. Safety Precautions 1
1.1 Before Connecting 2
1.2 In Using 2
2. Introduction 3
2.1 Features 3
2.2 Specification 4
2.3 Equipment interface instruction 6
Definition of RJ45 Port Pin 8
3. Safe handling of lithium batteries guide 10
3.1 Schematic diagram of solution 10
3.2 Danger label 10
3.3 Tools 11
3.4 Safety gear 11
4. Installation and operation 12
4.1 Package items 12
4.2 Installation location 13
4.3 Grounding 15
4.4 put into cabinet or racks 16
4.5 Put into bracket 18
4.6 power on 21
4.7 Power off 22
4.8 Multi-group mode 23
5. Trouble shooting. 25
6. Emergency Situations 28
7. Remarks 29

1
1. Safety Precautions
Reminding
1) It is important and necessary to read the user manual carefully (in the
accessories) before installing or using battery. Failure to do so or to follow
any of the instructions or warnings in this document can result in electrical
shock, serious injury, or death, or can damage battery, potentially rendering
it inoperable
2) If the battery is stored for long time, it is required to charge them every six
months, and the SOC should be no less than 90%
3) Battery needs to be recharged within 12 hours, after fully discharged
4) Do not install the product in outdoor environment, or an environment out of
the operation temperature or humidity range listed in manual.
5) Do not expose cable outside
6) Do not connect power terminal reversely.
7) All the battery terminals must be disconnected for maintenance
8) Please contact the supplier within 24 hours if there is something abnormal.
9) Do not use cleaning solvents to clean battery
10) Do not expose battery to flammable or harsh chemicals or vapors
11) Do not paint any part of battery, include any internal or external components
12) Do not connect battery with PV solar wiring directly
13) The warranty claims are excluded for direct or indirect damage due to items
above.
14) Any foreign object is prohibited to insert into any part of battery

2
Warning
1.1 Before Connecting
1) After unpacking, please check product and packing list first, if product is
damaged or lack of parts, please contact with the local retailer
2) Before installation, be sure to cut off the grid power and make sure the
battery is in the turned-off mode
3) Wiring must be correct, do not mistake the positive and negative cables,
and ensure no short circuit with the external device
4) It is prohibited to connect the battery and AC power directly
5) The embedded BMS in the battery is designed for 48VDC, please DO NOT
connect battery in series
6) Battery must connect to ground and the resistance must be less than 0.1Ω
7) Please ensured the electrical parameters of battery system are compatible
to related equipment
8) Keep the battery away from water and fire.
1.2 In Using
1) If the battery system needs to be moved or repaired, the power must be
cut off and the battery is completely shutdown
2) It is prohibited to connect the battery with different type of battery.
3) It is prohibited to connect batteries with faulty or incompatible inverter
4) It is prohibited to disassemble the battery (QC tab removed or damaged);
5) In case of fire, only dry powder fire extinguisher can be used, liquid fire
extinguishers are prohibited
6) Please do not open, repair or disassemble the battery except staffs from
Pylontech or authorized by Pylontech. We do not undertake any consequences
or related responsibility which because of violation of safety operation or
violating of design, production and equipment safety standards.

3
2. Introduction
US3000C lithium iron phosphate battery is the new energy storage products
developed and produced by Pylontech, it can be used to support reliable power
for various types of equipment and systems.
US3000C has built-in BMS battery management system, which can manage
and monitor cells information including voltage, current and temperature.
2.1 Features
1) NEW: Build-in soft-start function able to reduce current strike when inverter
need to start from battery.
2) NEW: Dual active protection on BMS level.
3) NEW: Automatic address setting when connect in multi-group.
4) NEW: Support wake up by 5~12V signal from RJ45 port.
5) NEW: Support upgrade battery module from upper controller via CAN or
RS485 communication.
6) NEW: Enable 95% depth of discharge, available for the inverter which
completely follow Pylontech latest protocol to operate.
7) The module is non-toxic, non-polluting and environmentally friendly
8) Cathode material is made from LiFePO4 with safety performance and long
cycle life
9) Battery management system (BMS)has protection functions including over-
discharge, over-charge, over-current and high/low temperature
10) The system can automatically manage charge and discharge state and
balance voltage of each cell
11) Flexible configuration, multiple battery modules can be in parallel for
expanding capacity and power
12) Adopted self-cooling mode rapidly reduced system entire noise
13) The module has less self-discharge, up to 6 months without charging it on
shelf, no memory effect, excellent performance of shallow charge and

4
discharge
14) Small size and light weight, standard of 19-inch embedded designed
module is comfortable for installation and maintenance
15) Compatible with the US2000C, US3000, and US2000.
2.2 Specification

5
Basic Parameters
US3000C
Nominal Voltage (V)
48
Nominal Capacity (Wh)
3552
Usable Capacity (Wh)
3374.4

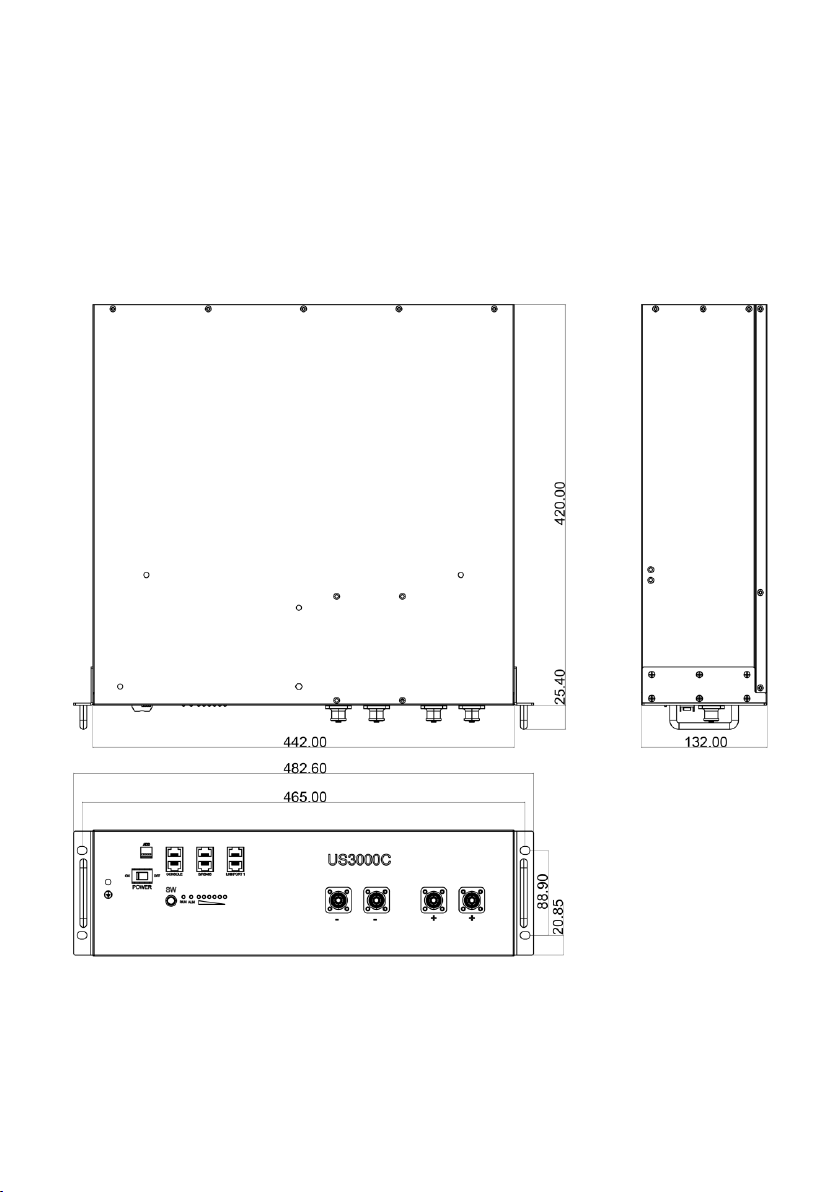

Dimension (mm)
442*420*132
Weight (Kg)
32
Discharge Voltage (V)
44.5 ~ 53.5
Charge Voltage (V)
52.5 ~ 53.5
Recommend Charge/Discharge Current (A)
37
Max. Charge/Discharge Current (A)
74
Peak Charge/Discharge Current (A)
90A@15sec
Communication
RS485, CAN
Depth of discharge (%)
95
Configuration (max. in 1 battery group)
16pcs
Working Temperature
0℃~50℃Charge
-10℃~50℃Discharge
Shelf Temperature
-20℃~60℃
Protective class
I
IP rating of enclosure
IP20
Humidity
5 ~ 95%(RH)
Altitude(m)
<2000
Certification
TÜV / CE / UN38.3/UL
Design life
10+ Years (25℃/77℉)
Cycle Life
>4,500 25℃
Reference to standards
IEC62619, IEC63056,
IEC62040, IEC62477-1,
UL1973,UL1642,VDE2510-50,
IEC61000-6-2,IEC61000-6-3,
UN38.3

6

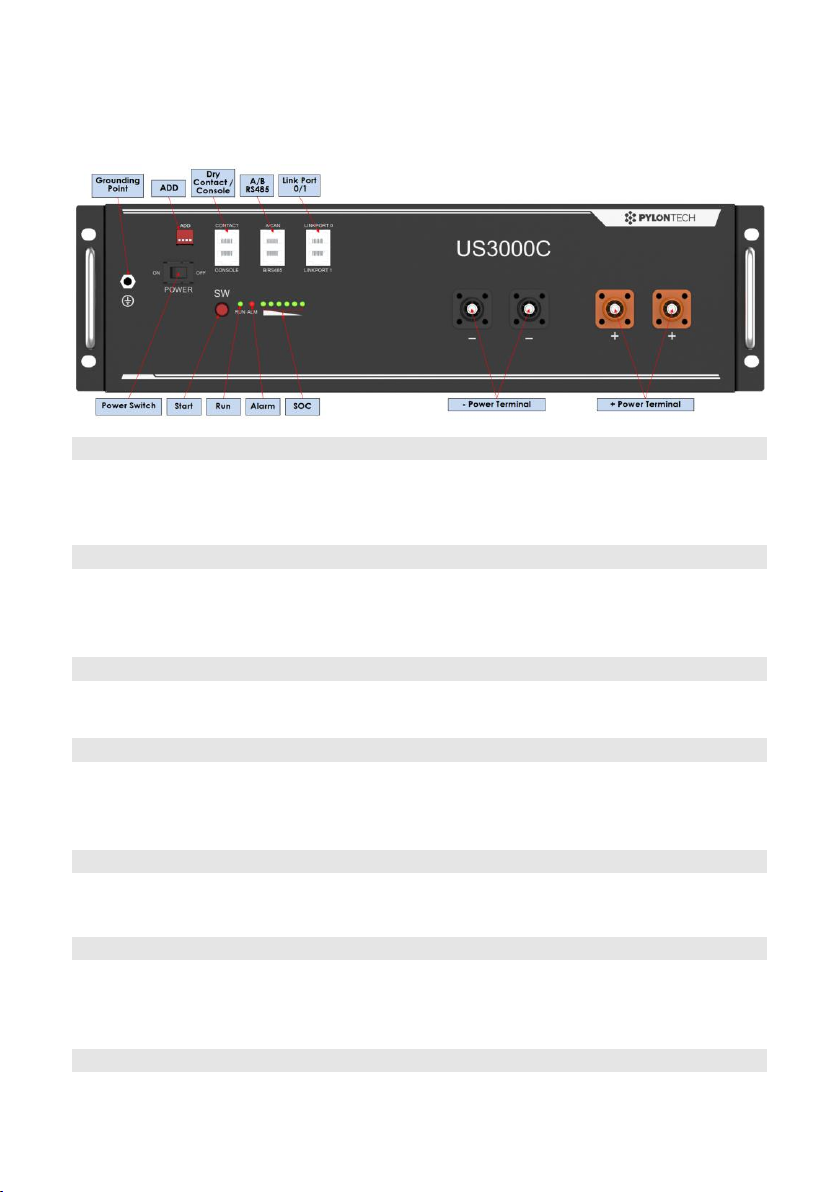

2.3 Equipment interface instruction
Power Switch
ON: ready to turn on.
OFF: power off. For storage or shipping.
Start
Turn on: press more than 0.5s to start the battery module
Turn off: press more than 0.5s to turn off the battery.
RUN
Green LED lighting to show the battery running status
Alarm
Red LED flashing to show the battery has alarm; lighting to show the battery is
under protection.
SOC
6 green LEDs to show the battery’s current capacity.
ADD Switch
Dip1: RS485 baud rate 1: 9600; 0: 115200
Dip2~4, reversed.
Console
For manufacturer or professional engineer to debug or service.

7
Pin3
232-TX
Pin4*
+5~+12V for wake up
Pin5*
GND for wake up
Pin6
232-RX
Pin8
232-GND
*Wake up signal shall ≥0.5Sec, current between 5~15mA. After send wake up signal, the voltage shall
disappear for normal operation.
Contact
Pin1
Input, passive signal. On: turn off battery. Off: normal.
Pin2
Pin3
Output1. On: stop charge.
+
Pin4
-
Pin5
Output2. On: stop discharge.
+
Pin6
-
Pin7
Output3. On: BMS error.
+
Pin8
-
Output request signal voltage ≤25V
CAN
500 Kbps. 120Ω. For connection to LV-HUB, inverter, or upper battery.
RS485
9600 or 115200 bps.120Ω. For connection to inverter, or slave battery.
Link Port 0, 1
for communication between multiple parallel batteries.

8

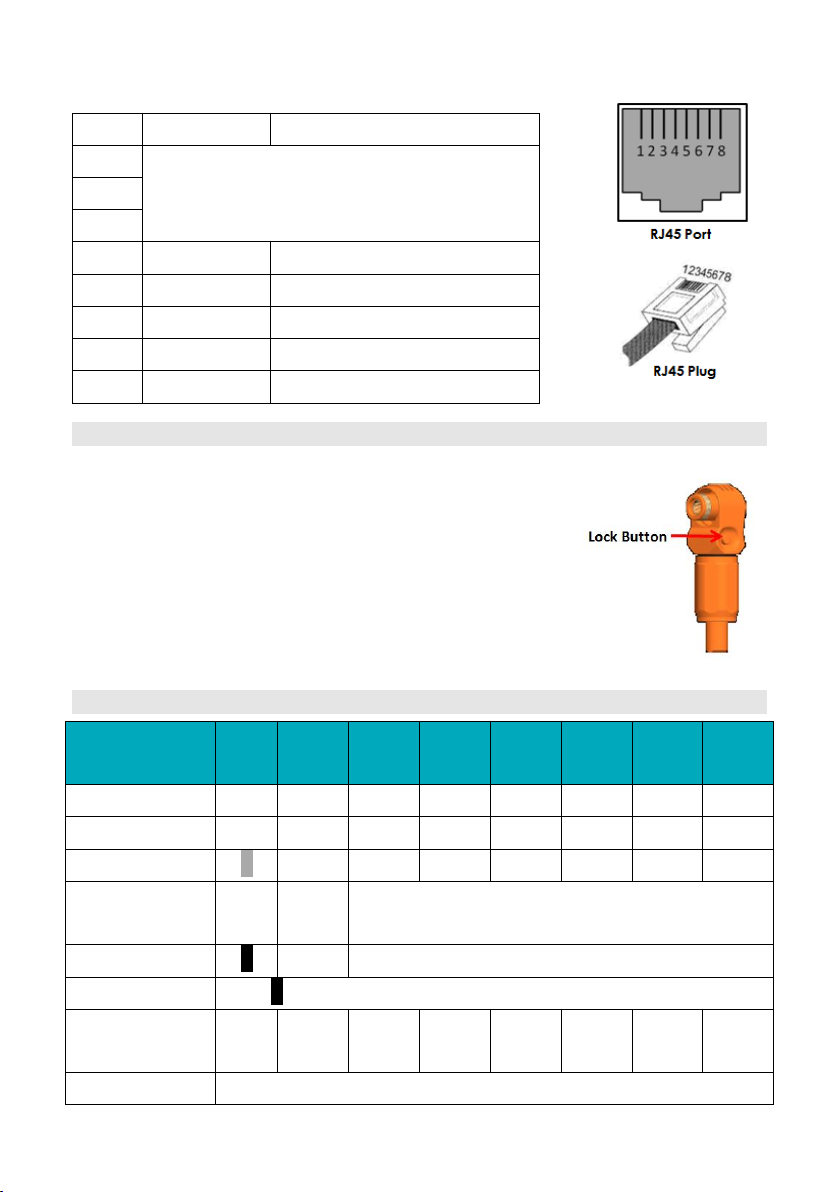

Definition of RJ45 Port Pin
A/CAN
B/RS485
Pin1
Shall be NULL.
If not, may influence BMS function.
Pin2
Pin3
Pin4
CAN-H
CAN-H (single group)
Pin5
CAH-L
CAN-L (single group)
Pin6
CAN-GND
CAN-GND (single group)
Pin7
485A
485A
Pin8
485B
485B
Power Terminals
Power cable terminals: there are two pair of terminals
with same function, one connects to equipment, the
other one paralleling to other battery module for capacity
expanding.
For power cables uses water-proofed connectors. must
keep pressing this Lock Button while pulling out the
power plug.
LED Status Indicators
Condition
RU
N
ALR
1
2
3
4
5
6
Power off
-
-
-
-
-
-
-
-
Power on
●
●
●
●
●
●
●
●
Idle/Normal
●
-
-
-
-
-
-
-
Charge
●
-
Show soc; highest LED flash
on: 0.5s; off 0.5s
Discharge
●
Show soc
Alarm
ALR:●; Other LEDs are same as above.
System
error/Protect
-
●
-
-
-
-
-
●/●
ON

9
●
flash, on: 0.3s; off: 3.7s
●/●
flash, on:0.5s; off: 1.5s
BMS basic function
Protection and alarm
Management and monitor
Charge/Discharge End
Cells Balance
Charge Over Voltage
Intelligent Charge Model
Discharge Under Voltage
Charge/Discharge Current Limit
Charge/Discharge Over Current
Capacity Retention Calculate
High/Low Temperature(cell/BMS)
Administrator Monitor
Short Circuit
Operation Record
Power Cable Reverse
Soft start of inverter

10
3. Safe handling of lithium batteries guide
3.1 Schematic diagram of solution
3.2 Danger label

11
3.3 Tools
Wire cutter
Crimping modular plier
Screwdriver
NOTE
Use properly insulated tools to prevent accidental electric shock or short circuits.
If insulated tools are not available, cover the entire exposed metal surfaces of
the available tools, except their tips, with electrical tape.
3.4 Safety gear
It is recommended to wear the following safety gear when dealing with the
battery pack
Insulated gloves
Safety goggles
Safety shoes

12
4. Installation and operation

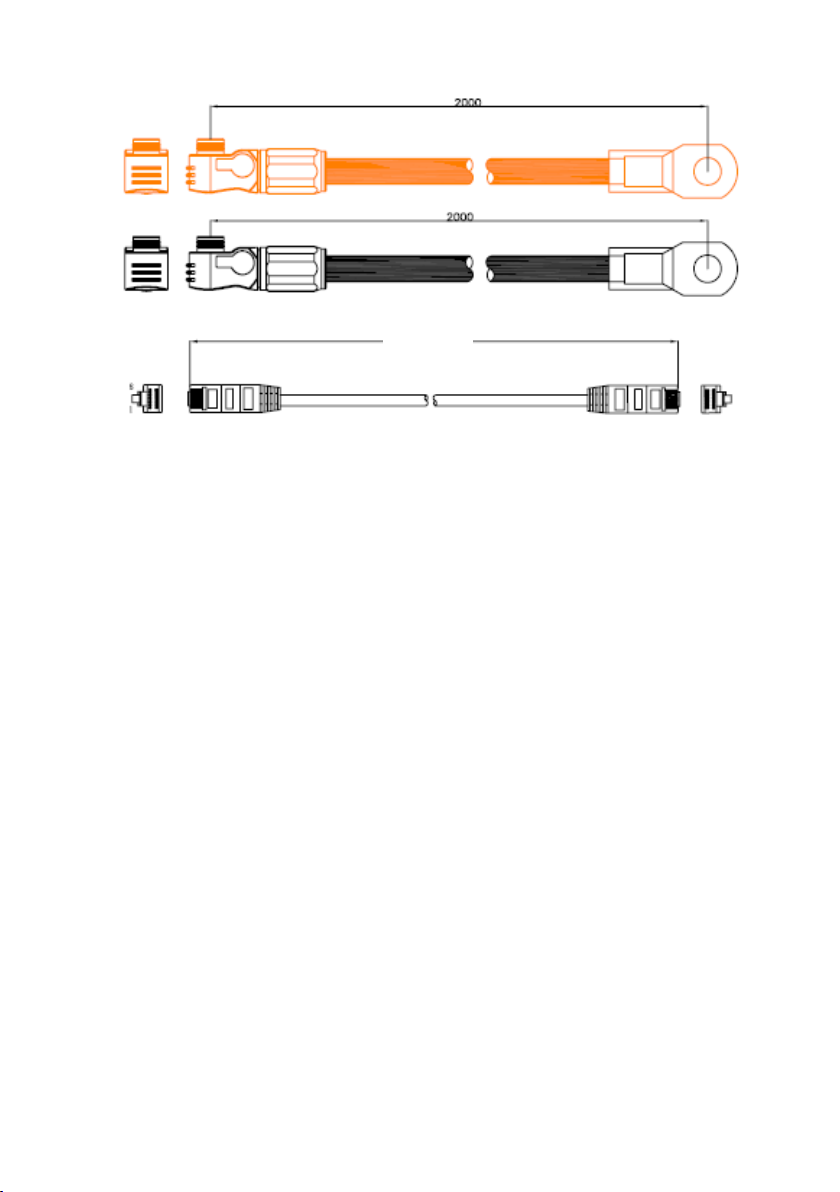

4.1 Package items
Unpacking and check the Packing List
1) For battery module package:
Two power cables and one communication cable for each battery package:
Grounding cable:
2) For battery system connects to inverters:
Two long power cables (current capacity 120A, constant 100A) and one
communication cable for each energy storage system:
NOTE
These three cables are belonging to External Cable Kit, NOT in battery
package. They are in another extra small cable box. If there is anything
missed please contact dealer.
180
180
180

13
4.2 Installation location
Make sure that the installation location meets the following conditions:
1) The area is completely water proof
2) The floor is flat and level.
3) There are no flammable or explosive materials.
4) The ambient temperature is within the range from 0°C to 50°C.
5) The temperature and humidity is maintained at a constant level.
6) There is minimal dust and dirt in the area.
7) The distance from heat source is more than 2 meters.
8) The distance from air outlet of inverter is more than 0.5 meters.
9) The installation areas shall avoid of direct sunlight.
10) There is no mandatory ventilation requirements for battery module, but
please avoid of installation in confined area. The aeration shall avoid of
high salinity, humidity or temperature.
3000

14
Caution
If the ambient temperature is out of the operating range, the battery stops
operating to protect itself. The optimal temperature range for the battery pack
to operate is 10°C to 40°C. Frequent exposure to harsh temperatures may
deteriorate the performance and life of the battery.

15
4.3 Grounding
Grounding cables shall be 10AWG or higher yellow-green cables. After
connection, the resistance from battery grounding point to Ground connection
point of room or installed place shall smaller than 0.1Ω.
1) based on metal directly touch between the module’s
surface and rack’s surface. If using painted rack the
corresponding place shall remove the painting.

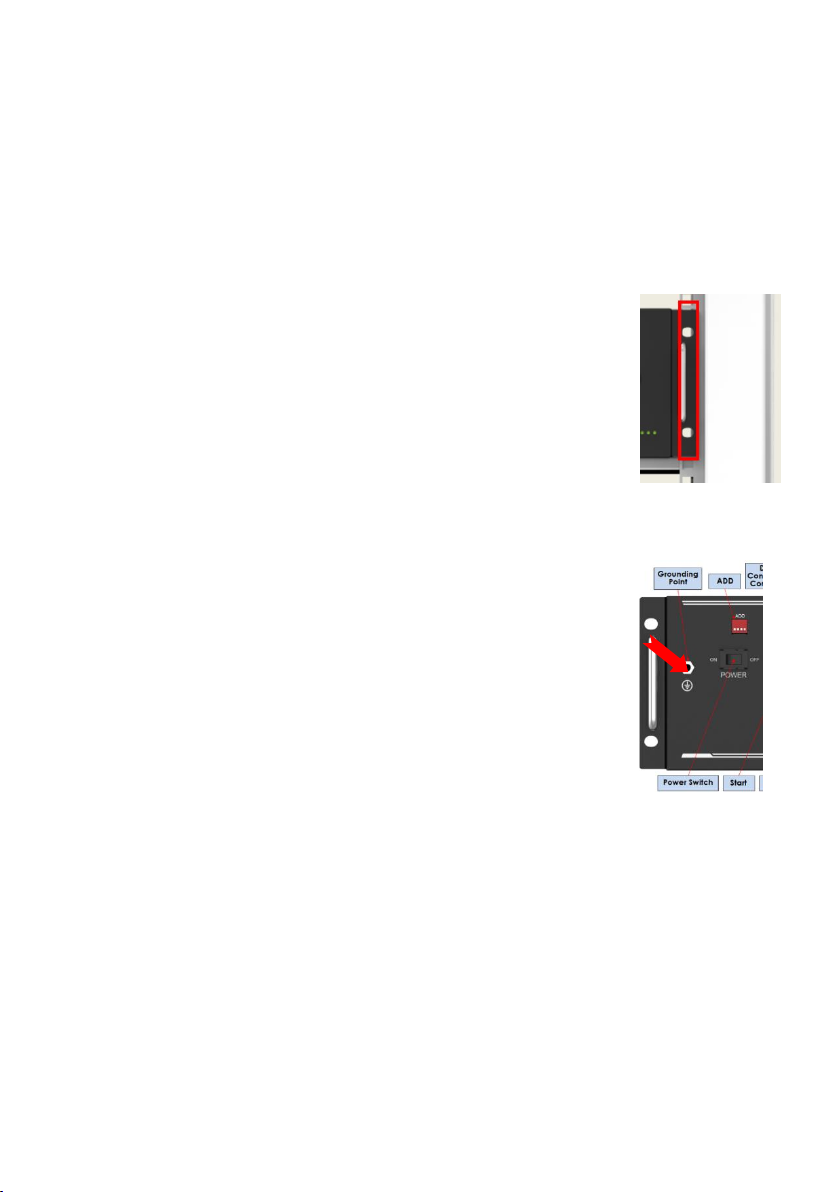

2) install a grounding cable to the grounding point of the
modules.

16
4.4 put into cabinet or racks

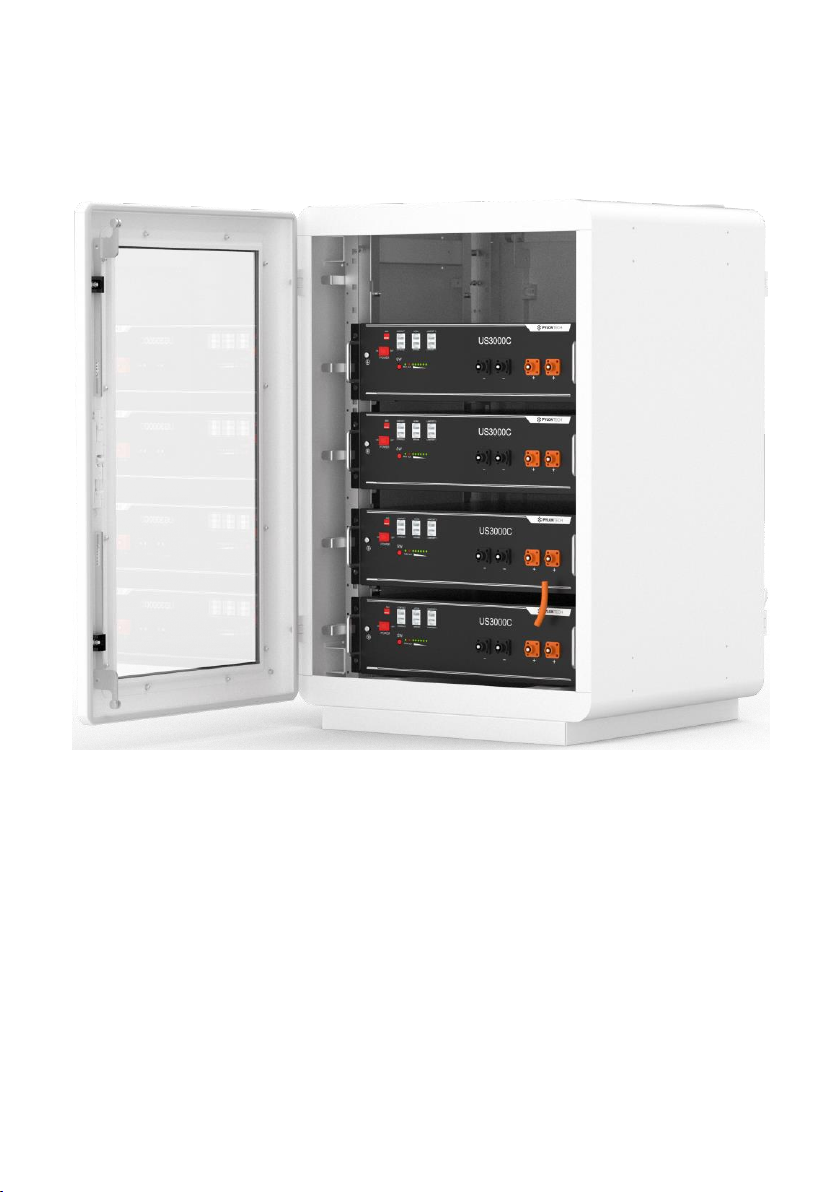

Put battery modules into cabinet and connect the cables:
1) Put the battery into the cabinet
2) Drive the 4 pcs screws
3) Connect the cables between battery modules
