Pylontech US5000-B User manual

Rechargeable Li-ion Battery
US5000 series Operation Manual
Information Version: PM0MUS500255
SD21US501001

This manual introduces US5000 from Pylontech (unless otherwise indicated, all
US5000 information are applied to US5000-B). Please read this manual before
using and follow the instruction carefully during the installation process. Any
confusion, please contact Pylontech for advice and clarification.
1. Symbol 1
2. Safety Precautions 3
2.1 Before Connecting 4
2.2 In Using 4
3. Introduction 5
3.1 Features 5
3.2 Specification 7
3.3 Equipment interface instruction 8
Definition of RJ45 Port Pin 12
4. Safe handling of lithium batteries guide 14

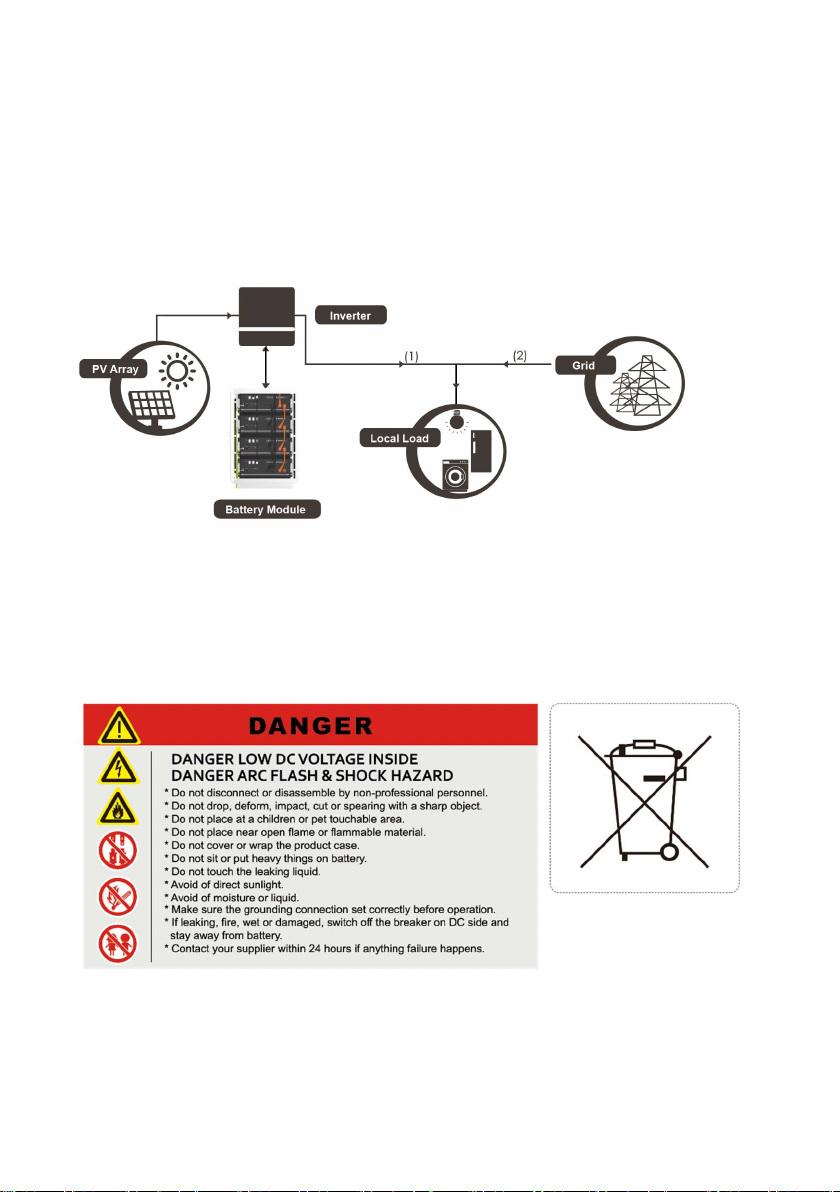

4.1 Schematic diagram of solution 14
4.2 Danger label 14

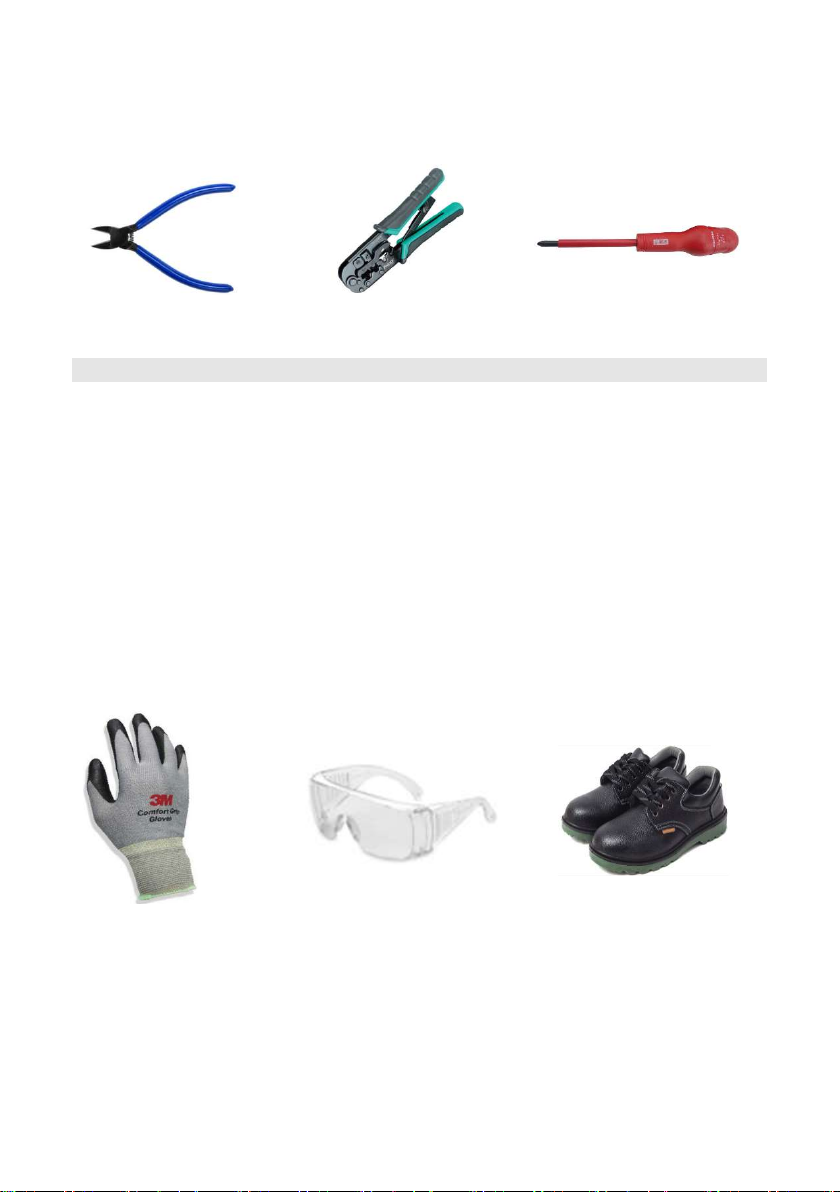

4.3 Tools 15
4.4 Safety gear 15
5. Installation and operation 16
5.1 Package items 16
5.2 Installation location 18
5.3 Installation Direction 19
5.4 Grounding 20
5.5 Put into cabinet or rack 21
5.6 Put into bracket 22
5.7 Suitable disconnection device 23
5.8 Power on 24
5.9 Power off 25
5.10 Multi-group mode 26
6. Trouble shooting 28
7. Emergency Situations 31
8. Remarks 32

1

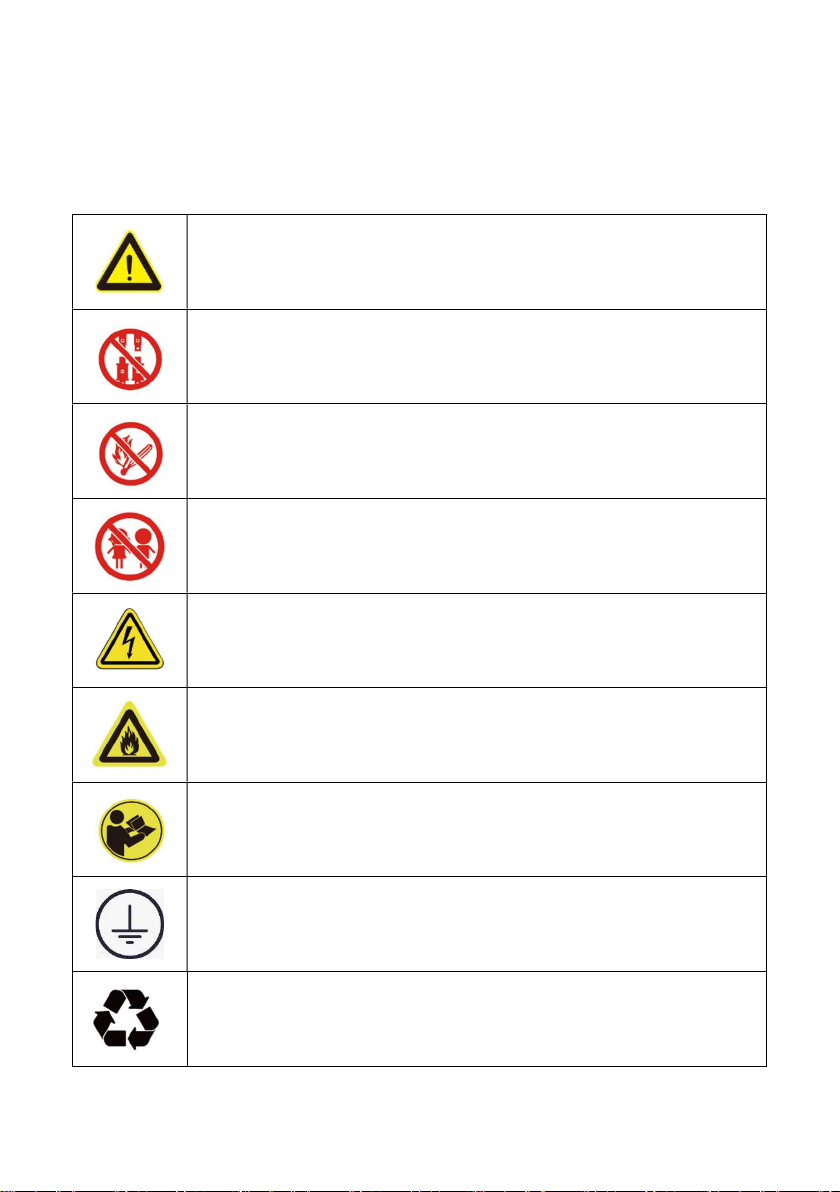

1. Symbol
Caution! Warning! Reminding.
Safety related information.
Risk of battery system failure or life cycle reduces.
Do not reverse connect the positive and negative port.
Do not place near open flame.
Do not place at the children or pet touchable area.
Warning electric shock.
Warning Fire.
Do not place near flammable material
Read the product and operation manual before operating the
battery system!
Grounding.
Recycle label.

2
The certificate label for EMC/CE.
The certificate label for UKCA.
The certificate label for Safety by TÜV Rheinland.
The certificate label for Safety by TÜV SÜD.
The certificate label for Safety by CSA.
Label for Waste Electrical and Electronic Equipment (WEEE)
Directive (2012/19/EU)

3
2. Safety Precautions
Reminding
1) It is important and necessary to read the user manual carefully before
installing or using battery. Failure to do so or to follow any of the
instructions or warnings in this document can result in electrical shock,
serious injury, or death, or can damage battery, potentially rendering it
inoperable.
2) If the battery is stored for long time, it is required to charge every six months,
and the SOC should be no less than 90%
3) Battery needs to be recharged within 12 hours after fully discharged.
4) Do not install the product in outdoor environment, or an environment out
of the operation temperature or humidity range listed in manual.
5) Do not expose cable outside.
6) Do not connect power terminal reversely.
7) All the power terminals must be disconnected for maintenance.
8) Please contact the supplier within 24 hours if there is something abnormal.
9) Do not use cleaning solvents to clean battery.
10) Do not expose battery to flammable or harsh chemicals or vapors.
11) Do not paint any part of battery, include any internal or external
components.
12) Do not connect battery with PV solar wiring directly.
13) Any foreign object is prohibited to insert into any part of battery.
14) The warranty claims are excluded for direct or indirect damage due to items
above.

4
2.1 Before Connecting
Warning
1) After unpacking, please check product and packing list first, if product is
damaged or lack of parts, please contact with the local retailer.
2) Before installation, be sure to cut off the grid power and make sure the
battery is in the turned-off mode.
3) Wiring must be correct, do not mistake the positive and negative cables,
and ensure no short circuit with the external device.
4) It is prohibited to connect the battery and AC power directly.
5) The embedded BMS in the battery is designed for 48VDC, please DO NOT
connect battery in series.
6) Battery must connect to ground and the resistance must be less than 0.1Ω.
7) Please ensured the electrical parameters of battery system are compatible
to related equipment.
8) Keep the battery away from water and fire.
2.2 In Using
1) If the battery system needs to be moved or repaired, the power must be cut
off and the battery is completely shut down.
2) It is prohibited to connect the battery with different type of battery.
3) It is prohibited to connect batteries with faulty or incompatible inverter
4) It is prohibited to disassemble the battery (QC tab removed or damaged).
5) In case of fire, dry powder fire extinguisher or vast amount of water can be
used.
6) Please do not open, repair or disassemble the battery except staffs from
Pylontech or authorized by Pylontech. We do not undertake any consequences
or related responsibility which because of violation of safety operation or
violating of design, production and equipment safety standards.

5
3. Introduction
US5000 lithium iron phosphate battery is the new energy storage products
developed and produced by Pylontech, it can be used to support reliable high
power for various types of equipment and systems.
3.1 Features
1) Build-in soft-start function able to reduce current strike when inverter need
to start from battery.
2) Dual active protection on BMS level.
3) Automatic address setting when connect in multi-group.
4) Support wakeup by 5~12V signal from RJ45 port.
5) Support upgrade battery module from upper controller via CAN or RS485
communication.
6) Enable 95% depth of discharge, available for the inverter which completely
follow Pylontech latest protocol to operate.
7) The module is non-toxic, non-pollution and environmentally friendly.
8) Cathode material is made from LiFePO4 with safety performance and long
cycle life.
9) Battery management system (BMS)has protection functions including
over-discharge, over-charge, over-current and high/low temperature.
10) The system can automatically manage charge and discharge state and
balance voltage of each cell.
11) Flexible configuration, multiple battery modules can be in parallel for
expanding capacity and power.
12) Adopted self-cooling mode rapidly reduced system entire noise.
13) The module has less self-discharge, up to 6 months without charging it on
shelf, no memory effect, excellent performance of shallow charge and
discharge.

6
14) Small size and light weight, standard of 19-inch embedded designed
module is comfortable for installation and maintenance.
15) Compatible with the 48V series battery of Pylontech.
*Mixture using master battery priority:
US5000>UP5000/US3000C/US2000C>U3000/US2000
For same type of module always use the latest production unit as master.
*Mixture using battery deployment option:
Master battery (1st) US5000
Slave 2nd ~8th US5000/UP5000/US3000C/US2000C/
US3000/US2000
Slave 9th ~16th US5000/UP5000/US3000C/US2000C

7
3.2 Specification

8
Basic
Parameters
US5000
US5000
-
B
Nominal Voltage (Vdc) 48
Nominal Capacity (Wh) 4800
Usable Capacity (Wh) 4560
Depth of discharge (%) 95
Dimension (mm) 442*420*161
Weight (Kg) 39.7 40
Discharge Voltage (Vdc) 43.5 ~ 53.5
Charge Voltage (Vdc) 52.5 ~ 53.5
Recommended
Charge/Discharge Current (A)
80*
Max.
continuous
Charge/Discharge
Current (A)
100*
Peak Charge/Discharge Current (A)
101
-
120@15min
121~200@15sec
Communication RS485, CAN
Configuration
(max.
in 1 battery group)
16pcs
Working Temperature 0°C ~50°C Charge
-10°C ~50°C Discharge
Shelf Temperature -20°C ~45°C
Short current/duration time
<2000A/1ms
Cooling type
Natural
Breaker
No Yes
Protective class
I
IP rating of enclosure
IP20
Humidity
5% ~ 95%(RH) No Condensation
Altitude(m)
≤4000
Certification TÜV / CE / UL / UN38.3
Design life
15+ Years (25°C /77℉)
Cycle Life >6,000 25°C
Reference standards
I
EC62619, IEC63056,
UL1973, UL9540A, IEC61000-6-2,
IEC61000
-
6
-
3, UN38.3
*: The recommended and max. continuous operation current is for a battery cell temperature
within 10~40°C to consider, out of such temp. range will cause a derating on operation current.

9
3.3 Equipment interface instruction

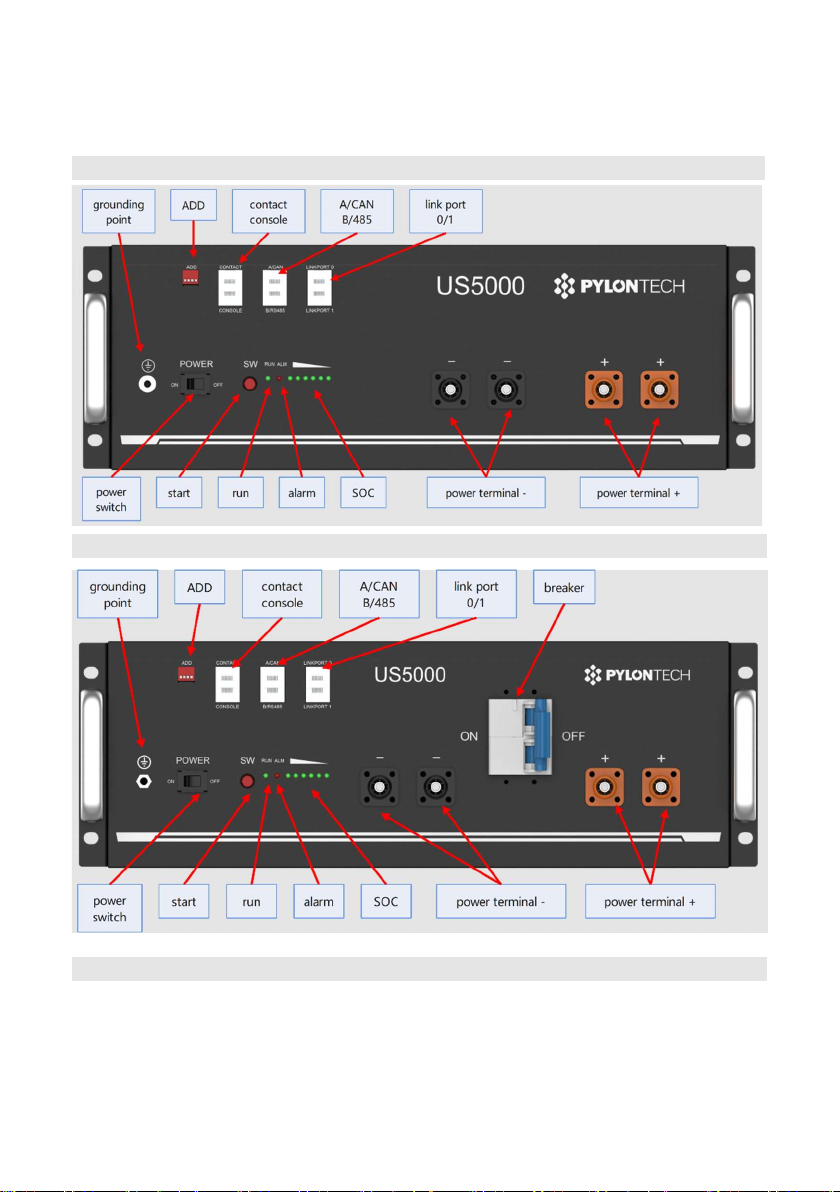

US5000 front panel
US5000-B front panel
Breaker (for US5000-B)
Parameter: type C, rated voltage 60V/DC, rated current 125A, Icu: 10kA.
Standard reference: UL1077, IEC60947-2.
ON: power terminals connect with battery.
OFF: power terminals disconnect with battery.

10
Reminding
When breaker released for protection, check the root cause of current surge
and cable connection between battery and inverter first. Then try to connect
again.
Power Switch
ON: ready to turn on.
OFF: power off. For storage or shipping.
Start (SW)
Turn on: press more than 0.5s to start the battery.
Turn off: press more than 0.5s to turn off the battery.
RUN
Green LED flashing or lighting to show the battery running status.
Alarm (ALM)
Red LED flashing to show the battery has alarm; lighting to show the battery is
under protection.
SOC
LEDs to show the battery’s current capacity.
Dip Switch (ADD)
Dip1: RS485 baud rate: 1: 9600; 0: 115200. After change, please restart battery.
Dip2: CAN terminal resistance on BMS side. 1: NONE. 0: connected. After
change, no restart required. In single group mode, please keep dip2 at 0
position. For multi-groups, please refer to [5.10].
Dip3~4, reversed.
Based on design of BMS, the dip switch is deployed physically reversely.

11
For instance:
Dip1 Dip2 Dip3 Dip4
The
corresponding
position of switch
Status
0 0 0 0
RS485:115200
CAN terminal resistance:
connected
1 0 0 0
RS485:9600
CAN terminal resistance:
connected
0 1 0 0
RS485: 115200
CAN terminal resistance:
disconnected.
Console
For manufacturer or professional engineer to debug or service.
Pin3 232-TX
Pin4* +5~+12V for wake up
Pin5* GND for wake up
Pin6 232-RX
Pin8 232-GND
*Wake up signal shall ≥0.5Sec, current between 5~15mA. After send wake up signal, the
voltage shall disappear for normal operation.
Contact
Pin1 Input, passive signal. On: turn off battery. Off: normal.
Pin2
Pin3 Output1. On: stop charge. +
Pin4 -
Pin5 Output2. On: stop discharge. +
Pin6 -
Pin7 Output3. On: BMS error. +
Pin8 -
Input terminals: BMS provide 5Vdc internally. External contactor control ON/OFF.
Output terminals: BMS control ON/OFF. External source request signal voltage ≤25V, current <0.3A.

12
CAN
500 Kbps. Recommended 120Ω. To inverter or upper battery.
RS485
9600 or 115200 bps. Recommended 120Ω. To inverter or slave battery.
Link Port 0, 1
For communication between multiple parallel batteries.
Definition of RJ45 Port Pin
A/CAN B/RS485
Pin1 These pins shall be NULL.
If not, may influence communication
between BMS and inverter.
Pin2
Pin3
Pin4 CAN-H CAN-H
Pin5 CAH-L CAN-L
Pin6 CAN-GND CAN-GND
Pin7 485A 485A
Pin8 485B 485B
Power Terminals
Power cable terminals: there are two pair of terminals
with same function, one connects to equipment, the
other one paralleling to other battery module for
capacity expanding.
For power cables uses self-locked connectors. must
keep pressing this Lock Button while pulling out the
power plug.

13
LED Status Indicators
Condition RUN
ALR
1 2 3 4 5 6
Power off - - - - - - - -
Power on ● ● ● ● ● ● ● ●
Idle/Normal
● - - - - - - -
Charge ● - Show soc; highest LED flash, on 0.5s, off 0.5s
Discharge ● Show soc
Alarm ALR:●; Other LEDs are same as above.
System
error/Protect
- ● - - - - -
●/● ON
● flash, on: 0.3s; off: 3.7s
●/● flash, on:0.5s; off: 1.5s
SOC level (%) 91-100 70-90
51-70 31-50 11-30 0~10
BMS basic function
Protection and alarm Management and monitor
Charge/Discharge End Cells Balance
Charge Over Voltage Intelligent Charge Model
Discharge Under Voltage Charge/Discharge Current Limit
Charge/Discharge Over Current Capacity Retention Calculate
High/Low Temperature(cell/BMS) Administrator Monitor
Short Circuit Operation Record
Power Cable Reverse
Soft start of inverter

14
4. Safe handling of lithium batteries guide
4.1 Schematic diagram of solution
4.2 Label

15
4.3 Tools
Wire cutter Crimping modular plier Screwdriver
NOTE
Use properly insulated tools to prevent accidental electric shock or short
circuits.
If insulated tools are not available, cover the entire exposed metal surfaces of
the available tools, except their tips, with electrical tape.
4.4 Safety gear
It is recommended to wear the following safety gear when dealing with the
battery.
Insulated gloves Safety goggles Safety shoes

16
5. Installation and operation
5.1 Package items
Unpacking and check:
1) For battery module package:
- Battery Module
- 2 * 210mm 4AWG power cables
- 1 * 210mm RJ45 communication cable
- 1 * 1000mm 6AWG grounding cable

17
2) For External cable kits:
NOTE: Power and communication cables connect to inverter belongs to an
External Cable Kit, NOT include in battery carton box . They are in another
extra small cable box. If there is anything missed, please contact dealer.

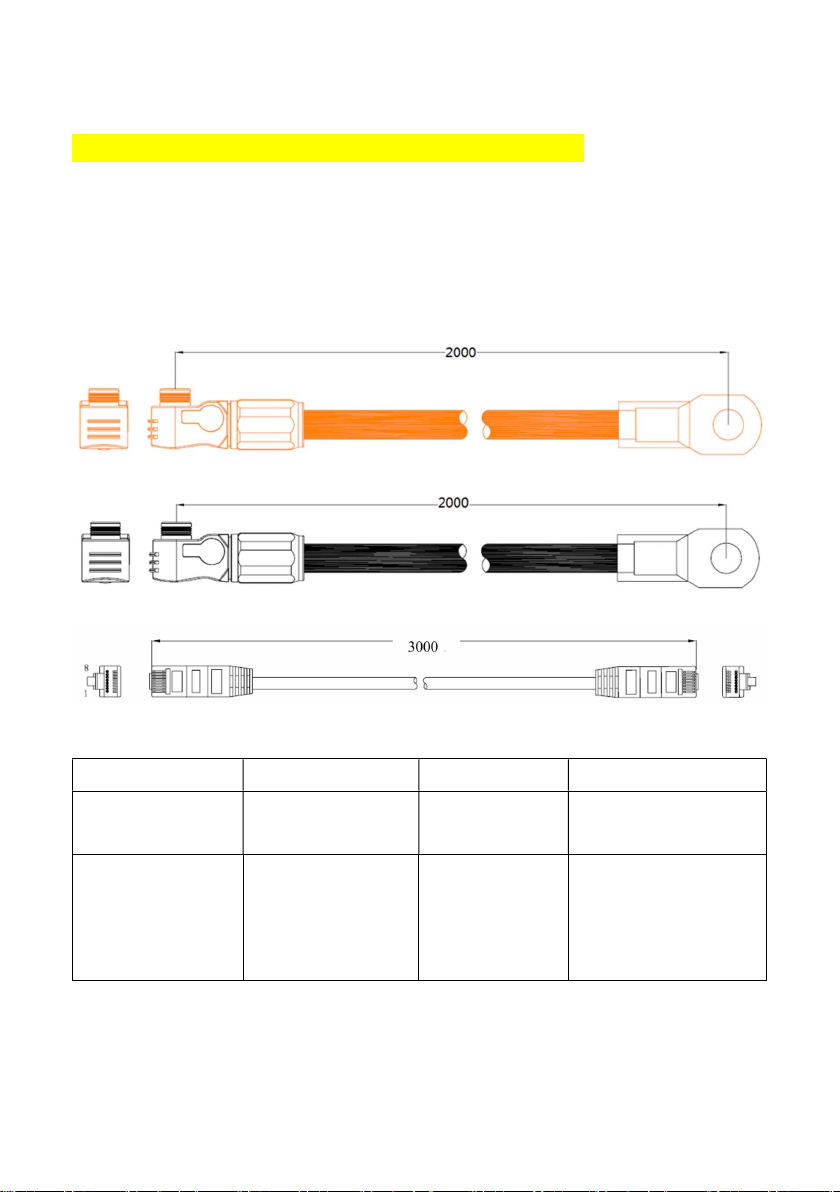

- 2 * 2000mm power cables (4 AWG, peak current capacity 120A, constant
100A) and communication cable for each energy storage system.
- 2 * 3000mm RJ45 communication cable, specification as below:
SN of RJ45cable Mark Pin
WI0SCAN30RJ1
With blue
mark:
Battery-Inverter
1~3: NULL
4~8: pin to pin
For connection to
inverter and HUB
WI0SCAN35RJ3
With silver mark:
Battery-Battery 1~8: pin to pin
For parallel
connection
between master
batteries
For the external cables, the length shall less than 3 meters.
