Pyroistech TAKHI Series User manual

TAKHI-series
User Manual
Fiber coupled
Halogen Light Source
VIS-NIR
Pyroistech S.L.
Edificio I+D Jerónimo de Ayanz
Campus Arrosadía
31006, Pamplona, Spain
[phone]
www.pyroistech.com
[e-mail]
© 2020 Pyroistech

www.pyroistech.com
[e-mail]
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system, or transmitted, by any means, electronic, mechanical, photocopying, recording, or
otherwise, without written permission from Pyroistech S.L.
This manual accompanies a product order and is subjected to the condition that it shall
not, by way of trade or otherwise, be lent, re-sold, hired out or otherwise circulated
without the prior consent of Pyroistech S.L. in any form of binding or cover other than
that in which it is published.
The specifications indicated in this manual are subject to change without prior notice.
Disclaimer
Every effort has been made to make this manual as complete and as accurate as possible,
but no warranty is implied on it. The information provided is on an “as is” basis. Pyroistech
S.L. shall have neither liability nor responsibility to any person or entity with respect to any
loss or damages arising from the information contained in this manual.
2

www.pyroistech.com
[e-mail] 3
Table of Contents
0. Introduction……………………………...………………......
1. Technical Specifications……………………………..........
2. Operation………………………………………...……………
2.1 Package Content………………………………………………………………………....
2.2 Operating instructions………………………………………………………………..
2.3 TAKHI-series diagram…...…………………………………………………………….
3.Maintenance….…………..…………………………..……….
3.1 Cleaning of the output connector...……………..……………….………........
3.2 Light bulb replacement..………....……………………………………………........
4. Important Notes………..…………………………..……....
5. Warranty………………….…………………………..……...
6. Compliance…………………………………………………..
5
6
7
7
7
7
7
7
8
9
10
10

www.pyroistech.com
[e-mail] 4

www.pyroistech.com
[e-mail]
0. Introduction
Thank you for purchasing this TAKHI light source from Pyroistech.SL. This document
describes the TAKHI light source and provides you with instructions for its correct
operation. Please do not hesitate to contact us through [email protected] if you
have any questions or doubts about this manual.
The TAKHI series comprises high power halogen light sources with a spectrum that
range from VIS to NIR (350-2250nm). They are conceived as user friendly, compact tools
and being ideal for spectroscopy and general optical fiber illumination applications. These
light sources have been designed to obtain a high coupling efficiency to optical fiber
through a SMA connector.
5

www.pyroistech.com
[e-mail]
Optical
characteristics HP MP
Output connector SMA 905
Spectral range 350 - 2250 nm
Typical optical
power output (1) 9.3 mW 6.2 mW
(1) Measured with an optical fiber (core Ø
600µm) and a Si photodiode (OPHIR™ )
Light bulb
specifications HP MP
Power 12V/50W DC
Useful life (2) 50 h 2000 h
Color T 3300 K 2900 K
Luminous Flux 1500 lm 930 lm
Lamp holder G6.35 GY6.35
(2) To get replacement light bulbs, contact us
through [e-mail]
Electrical characteristics
Power
input
(3)
Input Voltage 12 V
Input Current 4.5 A max
Connector type
DC female
2.1mm
Other characteristics
Working T 15 -25ºC
Humidity <80% HR
Equipment Surface T 42ºC
Stabilization time 25 min typ.
Size 10.5 x 11.5 x 8 cm
Ventilation 2 fans
Weight 500 g
(3) AC/DC adapter is included with the
source. Input 100-240V , 50-60Hz.
1. Technical Specifications
Pyroistech counts with 2 models of its TAKHI halogen light source: TAKHI-HP (more
powerful) and TAKHI MP (longer lifetime). The specifications of both models are:
*Please note that both spectra look similar as the spectrum of each halogen light source has been
scaled by dividing by the corresponding maximum. Each of the 3 parts of the spectrum has been
measured with a different detector. Remark that the total output power is not same, and differences
can also be observed between the spectral power distribution of the 2 models.
0
0,1
0,2
0,3
0,4
0,5
0,6
0,7
0,8
0,9
1
400 600 800 1000 1200 1400 1600 1800 2000 2200 2400
Relative power (a.u.)
λ(nm)
Spectral power distribution*
TAKHI-HP (9.3 mW)
TAKHI-MP (6.2 mW)
Si detector
(400 - 900 nm)
InGaAs detector
(900 - 1600 nm)
TE cooled
InGaAs detector
(1500 - 2500 nm)

www.pyroistech.com
[e-mail]
2. Operation
2.1 Package Content
•Requested TAKHI light source
•Power source: input 100 - 240 V~, 50 - 60 Hz; output 12 V, 5.5 A;
99 x50 x33 cm, cord length 1.5 m.
•Power cord 1.85 m long
•User’s manual
Inspect carefully the devices and make sure there is no damage. On the contrary, do
not employ the light source and please contact us through i[email protected]m for
repair or replacement information.
2.2 Operating instructions
Insert the plug of the power cord into the power supply and connect the power cord
to the power outlet. Then, introduce the plug of the power supply into the light source
power input (DC female type).
Unscrew the cap of the SMA 905 connector on the front face of the light source and
connect the fibre cable. Always do this step before turning on the light source.
Finally, turn on the light source (MODE control switch to the ‘ON’ position) and wait
for 25 minutes until the light source reaches the thermal equilibrium and the output
power is stabilized. Now, the TAKHI light source is ready to be used.
In order to turn off the light source, move the switch to the ‘OFF’ position.
1MODE
(ON-OFF)
2Power input
(12V, 4.5A max)
3SMA 905
output connector
7
3. Maintenance
3.1 Cleaning of the output connector
The output connector of the light source should be periodically cleaned employing
compressed air to remove the dust. It is recommended to have the output connector with
the cap on it whenever the light source is not being used. The connector of the fiber used
with the light source also has to be clean to ensure the best possible performance.
2.3 TAKHI-series diagram
Left side Right side
2
1
3

www.pyroistech.com
[e-mail]

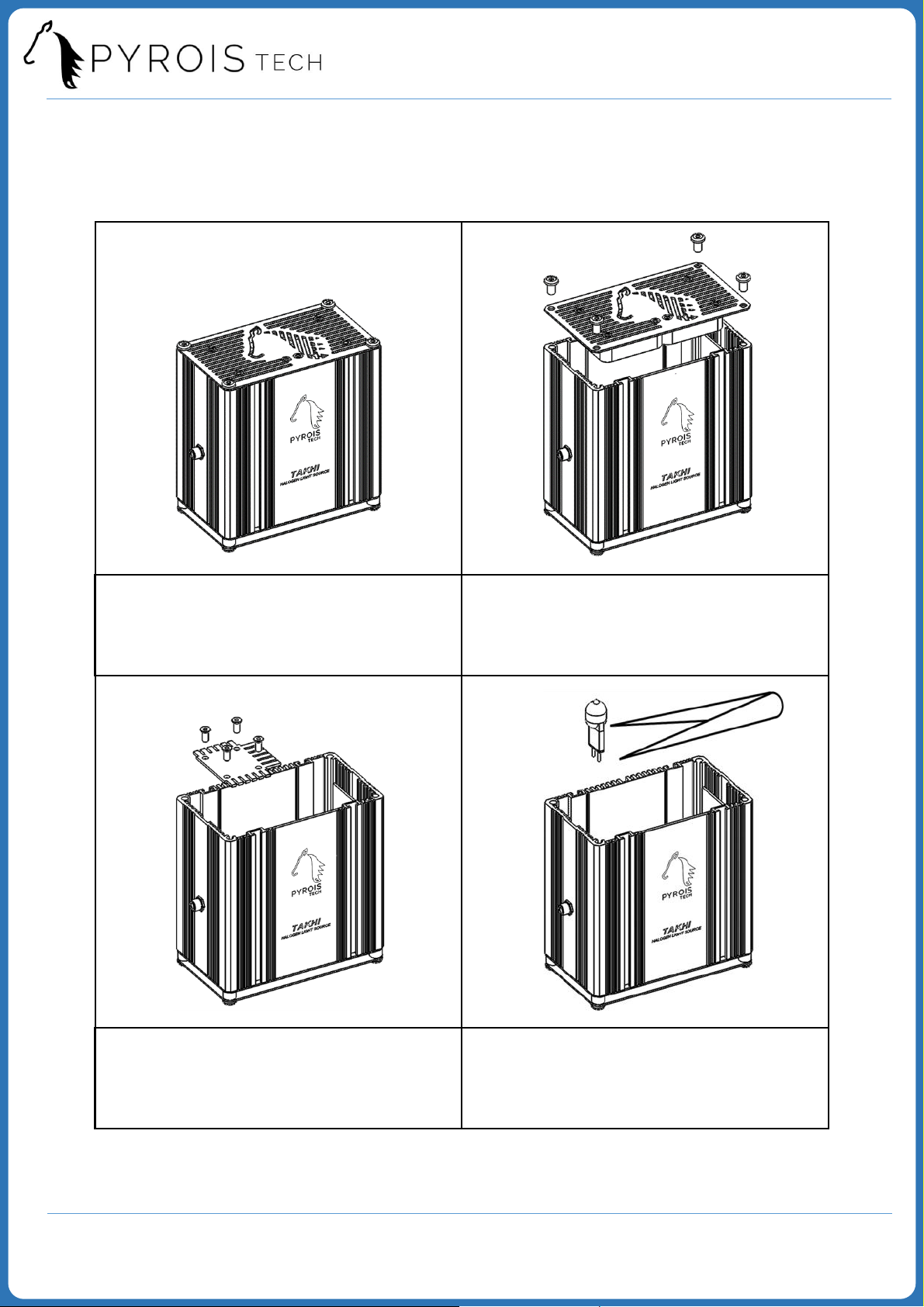

3.2 Light bulb replacement
To replace the light bulb when it has ended its life cycle, the following process must be
done carefully.
2) Remove the screws using an allen key
Nº2.5 and remove the top cover carefully
without pulling the fan cables.
4) Carefully remove the bulb using
tweezers. Install the new bulb (*) without
touching it with bare hands. To reassemble,
repeat the process in reverse order.
3) Remove the screws using an allen key
Nº2in order to have access to the inner
box cover.
1) Disconnect the power source. Wait for
the light source to cool down if it is hot.
(*) To ensure maximum output power, the light bulb must be carefully aligned with
SMA 905 connector.
8

www.pyroistech.com
[e-mail] 9
4. Important Notes
Before operation
•Do not remove or alter any installed safety device on this equipment. Doing so will
cancel your warranty and create an unsafe operating environment.
•There are NO user serviceable parts inside. Dangerous currents are present in this
device. Only allow qualified personnel to service this unit.
•Inspect this unit and its power supply before using it for the first time. Do not use the
unit if it is damaged in any way. Contact us for repair or replacement information.
During operation
•Do not cover the source or obstruct the air flow for its refrigeration. Avoid exposure to
direct sun light. A rise in the light source’s temperature could affect its operation or even
damage its components.
•The equipment should not be used adjacent to or stacked with other equipment. If
adjacent or stacked use is necessary, the equipment should be observed to verify
normal operation in the configuration in which it will be used.
Eye safety
•Non visible infrared light can be hazardous depending on total system configuration
(including, but not limited to optics, drive current and temperature). Observe safety
precaution given in IEC 62471 when operating these light sources.

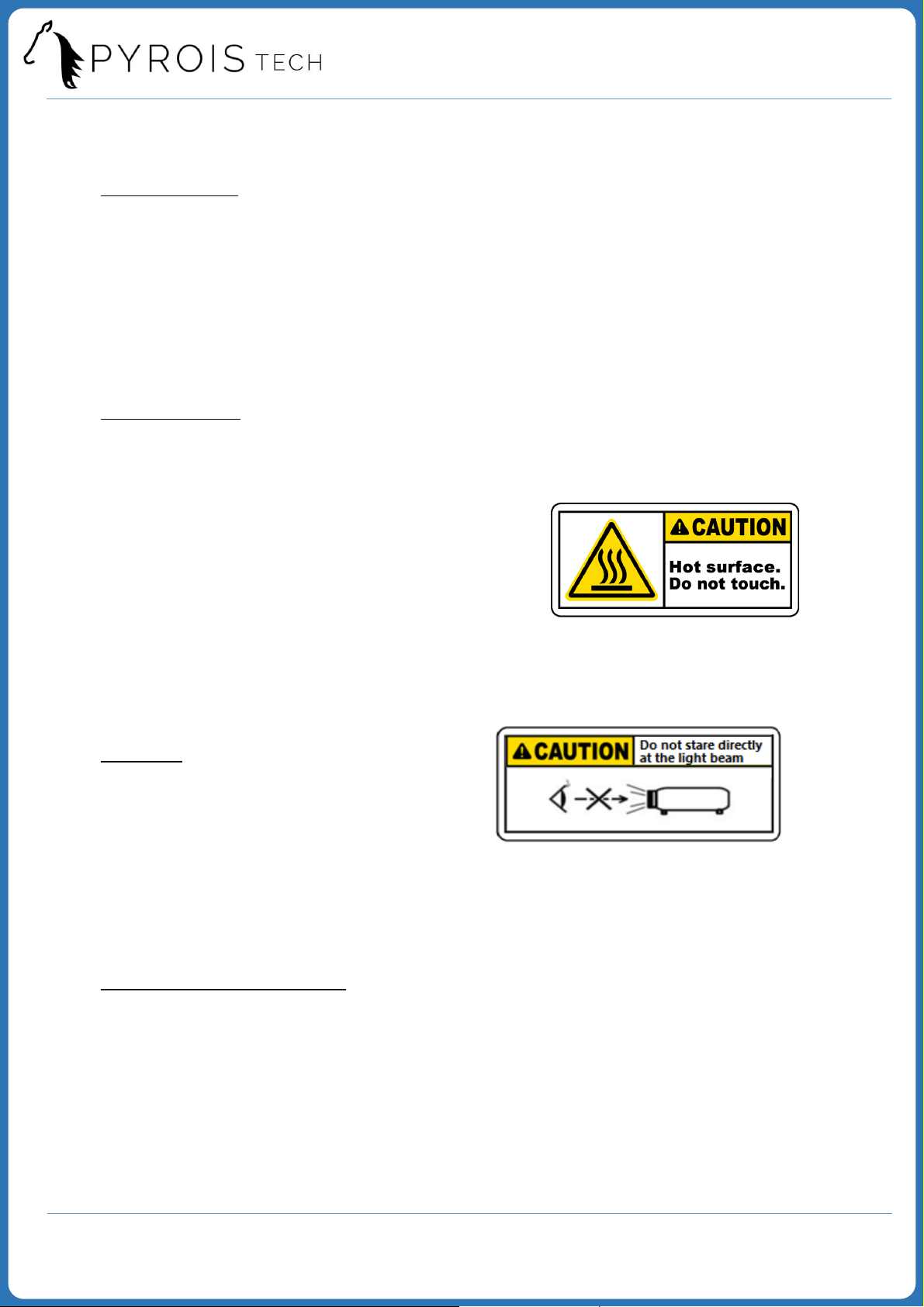

•Optical radiation can damage your eyes.
Do NOT stare directly at the light beam.
•The output connector of the light source may get
hot during operation. After its employment, allow
enough time to cool down before handling.
Electromagnetic Compatibility
•Portable RF communications equipment (including peripherals such as antenna cables
and external antennas) should be used no closer than 30 cm (12 inches) to any part of
this equipment. Otherwise, degradation of the performance of this equipment could
result.
•The use of cables, power supplies, transformers and accessories other than those
specified by Pyroistech S.L., in addition to not being covered by the warranty, may lead
to increased emissions and/or decreased electromagnetic compatibility.

www.pyroistech.com
[e-mail] 10
4. Warranty
Pyroistech’s general warranty for a product has a 1 year duration.
This warranty includes repairs and replacement of damaged parts due to a malfunction
of the source, as long as said malfunction can be attributed to errors made in the
manufacture of it by Pyroistech SL, not to a punctual misuse of the source or to a
continued incorrect employment of it by the user, whether conscious or unconscious,
due to not having followed the operation recommendations indicated by Pyroistech SL
There is the possibility of extending this guarantee. For more information, contact
Pyroistech S.L.
WEEE
Compliance
5. Compliance
This device complies the following standards:
Contact Pyroistech S.L. if you
require more information about
the electromagnetic compatibility
of the product.
If you consider that the product has reached the end of its
useful life and you want to dispose of it, you can contact
Pyroistech S.L. so that it is in charge of its management.
EMC 2014/30/EU
RoHS-compliant
Federal
Communications
Commision

www.pyroistech.com
[e-mail] 11
Version
Date
Description
1.0
16 August 2020
First Document

PYROISTECH S.L.
Edificio I+D Jerónimo de Ayanz
Campus Arrosadía
31006, Pamplona, Spain
[phone]
Email: [e-mail]
https://es.linkedin.com/company/pyroistech
