USER MANUAL
Q.HOME CORE
H4 / H5

Table of Contents
1 Information in this Manual ............................................................................. 4
1.1 About This Manual .....................................................................................................................4
1.2 Target Group................................................................................................................................4
1.3 Symbols Used in This Manual.................................................................................................4
2 Safety ............................................................................................................. 5
2.1 Intented Use ................................................................................................................................. 5
2.2 Safety Precaution........................................................................................................................ 5
2.3 Earth Fault Alarm.........................................................................................................................6
2.4 Product Safety Labels ...............................................................................................................6
2.5 Disposal......................................................................................................................................... 7
3 Product Description ...................................................................................... 8
3.1 Q.VOLT Overview...................................................................................................................... 8
3.2 Q.SAVE Overview......................................................................................................................9
3.3 Specifications ............................................................................................................................10
4 Power On/Off .............................................................................................. 12
4.1 Turnig On Q.HOME CORE ...................................................................................................12
4.2 Using the Dark Start button ...................................................................................................12
4.3 Turning Off Q.HOME CORE.................................................................................................13
5 LED Status ................................................................................................... 14
6 Using the Q.OMMAND HOME App .......................................................... 15
6.1 Getting Started..........................................................................................................................15
6.2 Main Menu Overview..............................................................................................................16
6.3 Using the Dashboard Tab.......................................................................................................16
6.4 Using the Overview Tab ......................................................................................................... 17
6.5 Using the Report Tab............................................................................................................... 17
6.6 Changing the User Information.............................................................................................18
6.7 Viewing the Installation Information .....................................................................................18
6.8 Setting the Energy Backup ....................................................................................................19

7 Operating Mode.......................................................................................... 20
7.1 ON-Grid Mode ........................................................................................................................ 20
7.2 Off-Grid Mode..........................................................................................................................21
7.3 Seamless Transfer.....................................................................................................................22
8 Features........................................................................................................ 23
8.1 Protection....................................................................................................................................23
8.2 Power Derating .........................................................................................................................23
8.3 Power Quality Response........................................................................................................23
8.4 Battery Management...............................................................................................................24
8.5 Demand Response Modes (DRMS) ...................................................................................25
8.6 Dark Start....................................................................................................................................25
9 Maintenance ................................................................................................ 26
9.1 Cleaning the Cover..................................................................................................................26
10 Full Warranty ................................................................................................ 27

4
1 Information in this Manual
1.1 About This Manual
This is the installation manual for Q.HOME CORE H4 / H5. Please read this installation and user
manual carefully before installing and operating Q.HOME CORE H4 / H5. It contains important safety
instructions. The warranty will be void if you fail to follow the instructions in this manual.
1.2 Target Group
Electricians and qualied technicians who are allowed to install and to connect electrical systems.
1.3 Symbols Used in This Manual
This symbol indicates a hazardous situation which could result in death or serious injury,
if not avoided.
This symbol indicates a hazardous situation which could result in minor or moderate
injury, if not avoided.
Prohibited.
Note This indicates valuable tips for installation of the product.

5
2 Safety
The safety section may not include all regulations for your locale; personnel working with
Q.HOME CORE H4 / H5 must review applicable federal, state and local regulations as well as the
industry standards regarding this product.
2.1 Intented Use
Q.HOME CORE H4 / H5 is designed for residential use only. It should not be used for commercial
or building. It is a single-phase, Grid-connected system of solar energy sources and Li-Ion Battery
energy storage.
Q.HOME CORE H4 / H5 uses solar energy power connected to the input/output terminal installed
on the side of the device in order to:
• charge the Li-Ion Battery energy storage,
• provide a supply to the household load, and
• convert direct current (DC) electricity of the Battery to alternating current (AC) to discharge as
household single-phase load or electric system.
This device should not be used for any purpose other than the purpose described in this installation
manual. Any substitute use of this device, random change in any of its parts, and use of components
other than sold or recommended by Q CELLS will nullify the product’s guarantee.
For example, Q CELLS Li-Ion Battery energy storage should not be replaced by other manufacturer’s
Battery storages. For further information on proper use of this device, contact the Q CELLS Service-
Hotline.
2.2 Safety Precaution
The following safety precautions and the warning messages described in this section must be
observed. If any of the following precautions are not fully understood, or if you have any questions,
contact the customer support for guidance.
• All work on the ESS and electrical connections must be carried out by qualied
personnel only.
• High voltages in power conditioning circuits. Lethal hazard of electric shock or
serious burns. Wear rubber gloves and protective clothing (protective glasses and
boots) when working on high voltage/high current systems such as the inverter and
battery systems.
• This product provides a safe source of electrical energy when operated as intended
and as designed. But a potentially hazardous circumstance such as excessive heat or
electrolyte mist may occur due to improper operating conditions, damage, misuse
and/or abuse.
• Do not connect or disconnect PVs, batteries, and grid connectors with the power
on. Otherwise, it may generate electric arcs or sparks, causing fire or injury.
• Do not open the enclosure while the inverter is operating. Touching live inner
components may lead to electric shock, causing death or serious injury.
• Before maintenance, turn off the equipment and strictly comply with the safety
precautions stated in this manual.

Safety
6
• This product is intended to be used for PV source inputs and residential home grids
(AC 230V). If not used as intended, the protection provided by the equipment may
be impaired.
• This product is designed appropriate for two-PV string structure. Therefore, the
PV string 1 and PV string 2 must be connected to PV input 1 and PV input 2,
respectively. Do not split one PV string output for connecting it into the PV input
terminal 1 and input terminal 2.
• After disconnecting the inverter from the battery pack or PV, wait 5 minutes to
discharge the inverter.
• Do not touch the PV cable when the product is connected to the PV arrays. When
the photovoltaic array is exposed to light, it supplies DC voltage to the product.
• In case of short circuit, high-voltage components inside the inverter may influence
the product or other properties. Cover the product or take other precautions to
prevent metal objects from entering inside during installation and wiring.
2.3 Earth Fault Alarm
When an earth fault occurs, the inverter stops operation and the buzzer operates for 2 minutes.
Note: This feature is only supported on models released in Australia.
2.4 Product Safety Labels
Wear eye protection at all times
(installation, maintenance, etc.)
Follow the instruction in this manual for
service and replacement.
Caution: Risk of Electric Shock
Alternating current (AC) and direct current (DC) sources are connected
to this device. To prevent risk of electric shock during installation or
maintenance, ensure that all AC and DC connections are disconnected.
Caution: Hot Surface
Metallic parts of enclosure may be hot during operation.
Caution: Risk of Electric Shock
Hazardous voltage is still present 5 minutes after all power sources have
been disconnected. Wait for at least 5 minutes before maintenace to
prevent electric shock.
Warning: Explosion
Do not expose to heat or flame. Keep away from flammable substances.
Warning: Corrosive Subsatances Leaking
Do not disassemble or modify the battery. Otherwise, corrosive substances
may leak.

7
Safety
2.5 Disposal
1 Disposal of Q.VOLT
• When this crossed-out wheeled bin symbol is attached to a product, it means the
product is covered by the European Directive 2002/96/EC.
• All electrical and electronic products should be disposed of separately from
the municipal waste stream via designated collection facilities appointed by the
government or the local authorities.
• The correct disposal of your old appliance will help prevent potential negative
consequences for the environment and human health.
• For more detailed information about disposal of your old appliance, please contact
your city office, waste disposal service or the shop where you purchased the
product.
2 Disposal of Q.SAVE
• When this crossed-out wheeled bin symbol is attached to batteries/accumulators
of your product, it means they are covered by European Directive 2006/66/CE.
• This symbol may be combined with chemical symbols for mercury(Hg),
cadmium(Cd) or lead(Pb) if the battery contains more that 0.0005% of mercury,
0.002% of cadmium or 0.004% of lead.
• All batteries/accumulators should be disposed separately from the municipal waste
stream via designated collection facilities appointed by the government or the local
authorities.
• The correct disposal of your old batteries/accumulators will help to prevent
potential negative consequences for the environment, animal and human health.
• For more detailed information about disposal of your old batteries/accumulators,
please contact your city office, waste disposal service or the shop where you
purchased the product.

8
3 Product Description

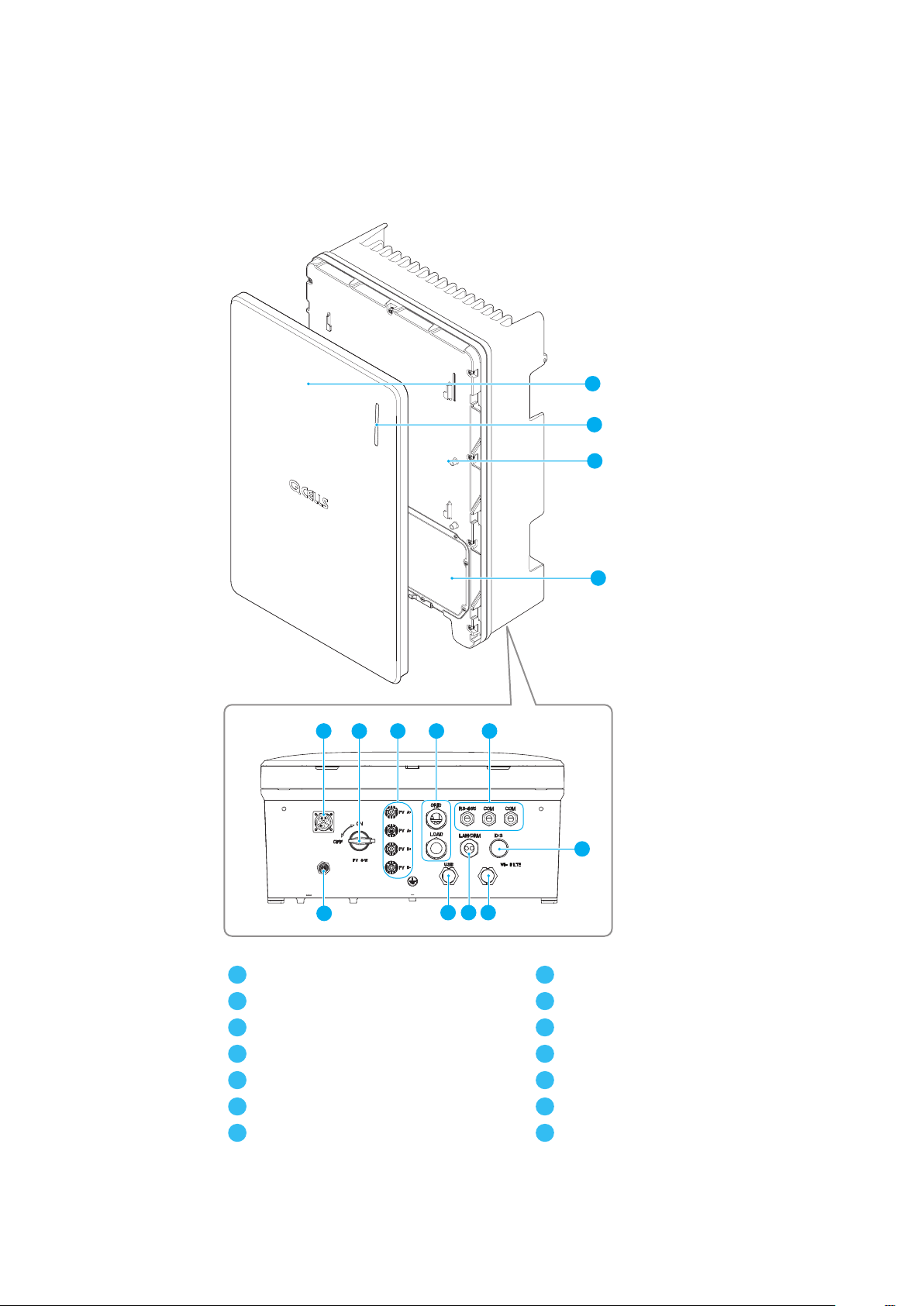

3.1 Q.VOLT Overview
BAT IN
BMS IN
F
5
6
7 9
14
10 11 12 13
8
3
2
1
4
1Front cover 8Grid and Load port
2LED indicator 9Communication port
3Inner cover 10 BMS Connector
4Wiring cover 11 USB Port
5Battery power connector 12 LAN / DRM port
6PV switch 13 Wi-Fi / LTE Dongle port
7PV connector (H4/ H5 only) 14 Dark Start switch
Note
For information about how to open the covers, refer to the installation manual.

9
Product Description
3.2 Q.SAVE Overview
7 8
9
2
1
3
5 6
4
1Front cover 6BMS board
2Inner cover 7Battery DC Switch
3Wiring cover 8Battery Power Connector
4Battery module 9BMS Connector
5Relay board

Product Description
10
3.3 Specifications
H4 H5
GENERAL PRODUCT INFORMATION
Dimensions Inverter Module/ Battery Module
(W × H × D) [mm] 460 × 700 × 221, 238 (From Wall)
Weight Inverter Module/ Battery Module [kg] 37.5/ 61.1
Operating Temperature Range [°C] Q.VOLT: −20 to +60 / Q.SAVE: −10 to +45
Relative Humidity [%] 4 to 100 (Condensing)
Protection Degree/ Class IP65
Mounting Wall-Mounted or Floor-Mounted Options
Max. Operating Height without Power Loss [m] 2,000
Cooling Method Natural air cooling
Product Warranty/ Performance Warranty 15/ 15 years
Noise Emissions ≤ 40 dB (A) @ 1 m
Over Voltage Category OVC II (DC)/ OVC III (AC)
Communications LAN, RS485, CAN, Wi-Fi(optional), LTE(optional)
Remote Monitoring Web, Mobile & App
Software Update Online update
Energy Management System Integrated
Country of Manufacturer Republic of Korea
PV DATA (DC)
Max. Input Usable Power [kWp] 8.0 (4.0 per MPPT)
Max. Input Voltage [Vdc]600
Start Input Voltage/ MPP Voltage Range [V] 120/ 90 to 550
Number of Independent MPPTs 2
Number of DC Input Pairs per MPPT 1
Max. Input Current per MPPT/ Max. Short Circuit Current
per MPPT [A] 15/ 20
DC Connection Type MC4
GRID DATA (AC)
Max. Apparent Power/ Rated Output Power [kVA / kW] 5 (4.6 for DE)/ 5 (4.6 for DE) 5/ 5
Nominal Voltage/Range [V] 230/ 184 to 264 230/ 180 to 260
Nominal Grid Frequency/Range [Hz] 50, 60 / −5 Hz to +5 Hz
Feed-in Phases/Connection Phases Single/ Single
Nominal Current/Max. Current /Max. Over-Current
Protection [A]
21.7/ 25 / 30
(20/ 25 / 30 for DE) 21.7/ 25 / 30
Power Factor Range 0.95 lagging to 0.95 leading 0.8 lagging to 0.8 leading
Total Harmonic Distortion [%] ≤ 5
BACKUP POWER OUTPUT (ALTERNATING CURRENT)
Connection Phases Single
Rated Apparent Power/ Rated Power(Only Battery)
[kVA/ kW]
3.3 to 4.5/ 3.3 to 4.5
@ 1 Battery Pack
5 / 5 (DE: 4.6) @ 2 Battery
Pack
3.3 to 4.5/ 3.3 to 4.5
@ 1 Battery Pack
5 / 5 @ 2 Battery Pack

11
Product Description
H4 H5
Rated Apparent Power/ Rated Power (With PV)
[kVA/ kW]
5 (4.6 for DE)/
5 (4.6 for DE) (max) 5/ 5 (max)
Rated Voltage [V] 230
Rated Frequency [Hz] 50, 60
Switch over Time to Backup Power less than 0.1 seconds
Support by PV during Backup Power Operation YES
EFFICIENCY
MPPT Efficiency [%] 99.9
Max. Efficiency (PV to Grid) [%] 97
Max. Efficiency (PV to Battery) [%] 97.8
Max. Efficiency (Battery to Grid) [%] 96.3
BATTERY UNIT (DC)
Battery Technology Lithium-ion
Battery Energy [kWh] 6.8/ 13.7 / 20.5 (6.86 kWh / pack)
Battery Usable Energy [kWh] 6.51/ 13.03 / 19.55
Max. Charge Power [kW] 2.8 to 3.8 @ 1 Battery Pack
5 @ 2 Battery Pack
Max. Discharge Power [kW] 3.3 to 4.5 @ 1 Battery Pack
5 (DE: 4.6) @ 2 Battery Pack
3.3 to 4.5 @ 1 Battery Pack
5 @ 2 Battery Pack
Converter Technology Non-isolated
Rated Battery Voltage/ Battery Voltage Range [Vdc]202.8 / 168.0 to 228.2
Maximum Charge/Discharge Current [A] 16.9/ 20
Depth of Discharge (DoD) [%] 95
CERTIFICATES AND APPROVALS
Inverter Model Name
Q.VOLT H4.6S Q.VOLT H5S
Battery Model Name Q.SAVE B6.8S
Certificates and Approvals
VDE-AR-N 4105:2018, CE,
IEC62109-1, IEC 62109-2,
IEC62040-1, IEC 62619,
IEC62477-1, EN 61000-6-2,
EN61000-6-3, IEC 60068.2-
52, EN60730-1 ANNEX.H
AS/NZS 4777.2:2020, CE,
IEC62109-1, IEC 62109-2,
IEC62040-1, IEC 62619,
IEC62477-1, EN 61000-6-2,
EN61000-6-3, IEC 60068.2-
52, EN60730-1 ANNEX.H

12
4 Power On/Off
4.1 Turnig On Q.HOME CORE
To turn on the Q.HOME CORE:
1Turning on the AC circuit breaker.
2Turning on the PV switch.
3Turning on the battery DC switch.
4.2 Using the Dark Start button
To turn on Q.HOME CORE when there are no PV and Grid:
Press the Dark Start button for about 10 seconds.
• Once the power is supplied and the LED turns blue, release the Dark Start button.
• Once the inverter enters the Off-grid mode and starts operation, the LED turns green.

13
Power On/Off
4.3 Turning Off Q.HOME CORE
If the AC circuit breaker cannot remain switched on after commissioning (e.g. because
the new meter has not yet been installed), the DC switch on the hybrid inverter must
remain switched on to avoid deep discharge of the battery. Alternatively, the device can
also be switched off completely.
To turn off the Q.HOME CORE:
1Turning off the battery DC switch.
2Turning off the PV switch.
3Turn off the AC circuit breaker in the junction box.
Note
After turning off the Q.HOME CORE, the DC and PV swiches can be locked for safety.
For details about locking the DC and PV swiched, see "16 Power Off" in the installation manual.

14
5 LED Status
After turning on the Q.HOME CORE, check the status of the LED indicator on the front.
The meanings of the LEDs by color and behavior are as follows:
LED Color LED Behavior Description
Sky Blue
Solid Charging or discharging in online mode
Flashing Standby in online mode
Magenta
Solid Charging or discharging in offline mode
Flashing Standby in offline mode
Green
Solid Charging or discharging in off-grid mode
Flashing Standby in off-grid mode
Blue Solid All operations are paused
Red
Solid Major and minor error status
Flashing Critical error status
Yellow
Solid Setup in progress
Flashing Connecting to the network
White Solid Upgrading firmware

15
6 Using the Q.OMMAND HOME App
6.1 Getting Started
Search and install Q.OMMAND HOME on the Apple AppStore or Google Play Store.
1 Log In
When you install and run the app initially, you have to select the server to access.
Then, when you run it again, it starts from the login step (Step 3).
1Select the server to access between Austarlia and Europe.
2Tap SAVE.
3Enter your ID and password and tap LOGIN, or use a social login.
Note
If you don’t have your account yet, select “Don't Have an Account? Register” at the bottom of the
login screen to register for membership. You can also select a social login to register for membership.
2 Sign Up
1Read and agree to the terms and conditions.
2Tap NEXT.
3Enter your name, Home ID, ID and password.
• Home ID is the household identification number and necessary information when creating
your user account and is provided by the installer.
4Tap SAVE.

Using the Q.OMMAND HOME App
16
3 Log Out
1Tap on the right top of the screen.
2Tap Logout.
6.2 Main Menu Overview
12 3
1Dashboard: Provides a variety of real-time information about the system.
2Overview: Provides various usage analysis information.
3Report: Provides hourly, daily and monthly history for energy usage.
6.3 Using the Dashboard Tab
1 Energy Flow & Inventory
Flow: Updates the PV generation amount,
the battery charging/discharging amount, the
household power consumption amount, and
the grid system power information every 3
seconds. You can view the current household
energy flow at a glance.
Inventory: Shows the current PV/battery
capacity installed in the household.
2 Live Load
Updates the household power consumption every 3 seconds.
3 Today Chart
Visualizes today’s generation and consumption amounts (24 hours)
Top numbers indicate cumulative values of respective charts.

17
Using the Q.OMMAND HOME App
4 You Saved
Shows how much power is saved in % or amount ($, €, etc.).
• To change the cost unit, tap the unit .
6.4 Using the Overview Tab
The Overview tab shows the power usage pattern of the month compared to that of the same
month of the previous year.
• Generation: PV generation amount
• Consumption: Household power consumption amount
• Charging: Battery charging amount
• Discharging: Battery discharging amount
• Feedin: Power sales to the grid system
• Demand: Power purchase from the grid system
6.5 Using the Report Tab
The Report tab provides hourly, daily and monthly history for
Generation, Consumption, Feedin, Demand, Charge, Discharge, and
the detailed information of Battery SOC (State of Charge, 0%: empty,
100%: full).
• Battery SOC is provided only in the hourly report.
• Tap the calendar to select the date.

Using the Q.OMMAND HOME App
18
6.6 Changing the User Information
1Tap on the right top of the screen.
2Tap User Info.
3Change the desired item (E-mail, password, etc.).
4Tap SAVE.
6.7 Viewing the Installation Information
1Tap on the right top of the screen.
2Tap Installation Info.
3Selet the desired tab.
• Product: Provides the product information such as the serial no., Home ID, etc.
• Installer: Provides the contact information for the installer.
• Address: Provides the installation location
1

19
Using the Q.OMMAND HOME App
6.8 Setting the Energy Backup
The charging amount of the battery should be maintained above a certain range considering
situations such as blackout. By setting the Energy Backup option, you can set the battery to
discharge only up to the specific amount under normal circumstances and backup energy can be
used when blackout occurs.
To set the energy backup:
1Tap on the right top of the screen.
2Tap Control.
3Tap Edit.
4Adjust the slider or enter the value (%) for the energy backup.
5Tap Save.

20
7 Operating Mode
7.1 ON-Grid Mode
1 Daytime On-Grid
• PV Power > Load Power: The PV power is preemptively supplied to the household load (Critical
load + Main Load), and then it charges the battery. If PV energy remains, it is operated according to
the operation mode as below.
- Self consumption mode: The remaining PV energy is supplied to Grid.
- Zero export mode: Q.VOLT decreases the PV generation amount.
• PV Power < Load Power: If the PV power is less than the household load (Critical load + Main
Load) power, the battery discharges to provide the short household load energy. If the PV + battery
power is less than the load power, the short load power is supplied from the grid system.
Q.VOLT
Q.SAVE
With current
No current
Charging
Discharging
Energy
Meter
Recloser
Grid
Critical Load
Main Load
PV power generation
2 Nighttime On-Grid
While the battery discharges, it supplies energy to the load. If the battery power is not enough to
supply energy to the household load (Critical load + Main Load), the short power is supplied from the
grid system.
Q.VOLT
Q.SAVE
With current
No current
Discharging
Critical Load
Main Load
Energy
Meter
Recloser
Grid
3
