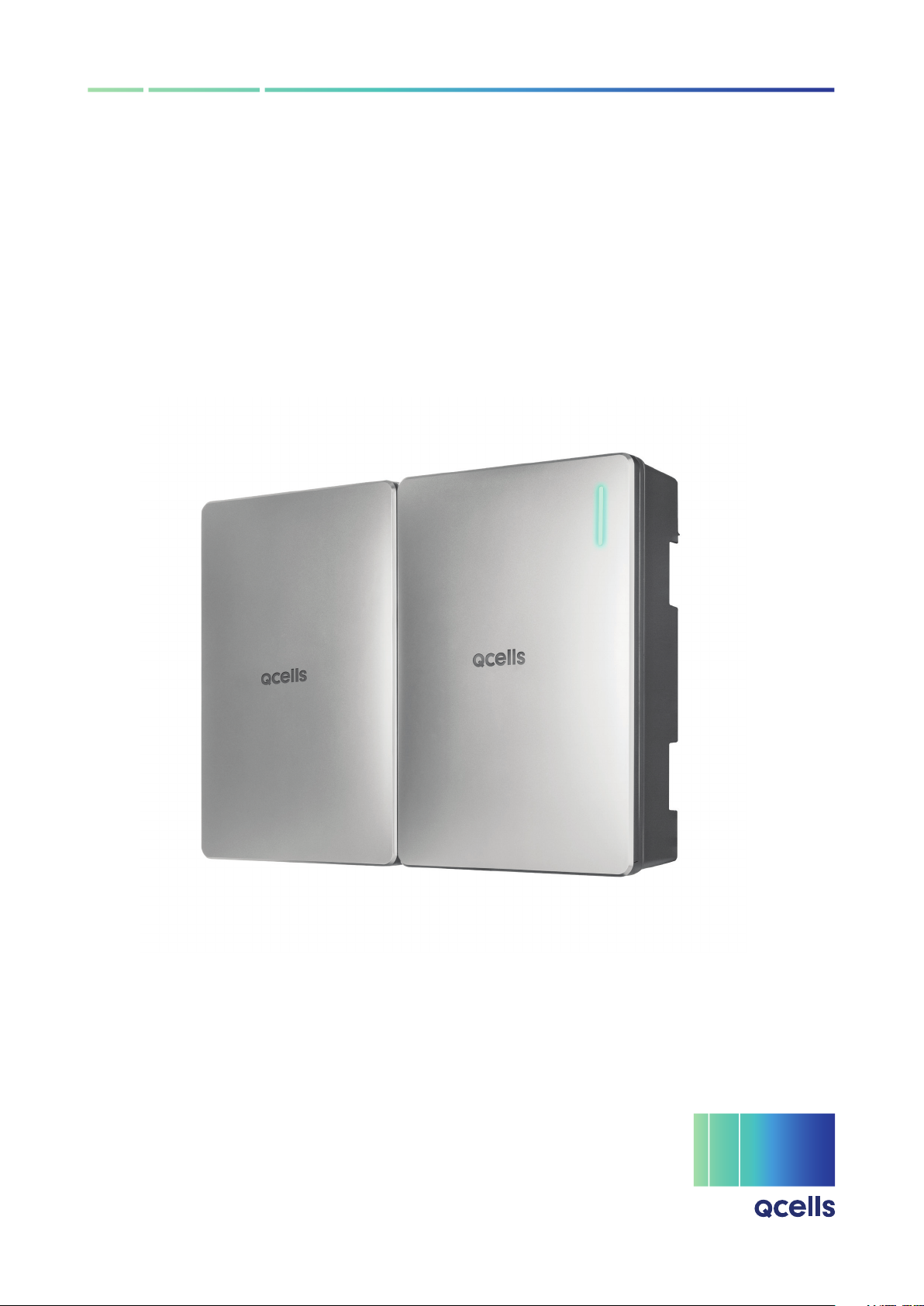

Qcells Q.HOME CORE H5 User manual

INSTALLATION
MANUAL
Q.HOME CORE
H5

Table of Contents
1 Information in This Manual 5
1.1 About This Manual 5
1.2 Target Group 5
1.3 Symbols Used in This Manual 5
2 Safety 6
2.1 Intended Use 6
2.2 Safety Precaution 6
2.3 Earth Fault Alarm 7
2.4 Product Safety Labels 7
2.5 Disposal 8
3 Product Overview 9
3.1 Unpacking 9
3.2 Package Contents 10
3.3 Q.VOLT Overview 12
3.4 Q.SAVE Overview 13
3.5 Specifications 14
3.6 Network System Diagram 16
4 Installation requirements 18
4.1 Installation Environment 18
4.2 Installation Space 19
4.3 Mounting Bracket Dimensions 20
4.4 Safety Gear 20
4.5 Tools 21
5 Mounting Q.HOME CORE 22
5.1 Wall Mount 22
5.2 Stand for Floor Mount (Option) 23

6 Electrical Connection Overview 24
6.1 Connectors and Ports Layout 24
6.2 Power Cable Specification 25
6.3 Circuit Breaker 26
6.4 Grounding Q.HOME CORE 26
7 Opening the Covers 27
7.1 Opening the Front Cover 27
7.2 Opening the Wiring Cover 27
8 Grid and Load Connection 28
8.1 Grid and Load Cables Description 28
8.2 Connecting the Load and Grid Cables 29
9 Communication Connection 31
9.1 Internet & DRM Connection 31
9.2 Energy Meter Connection 33
10 Closing the Covers 34
11 Battery Connection 35
11.1 Connecting the BMS Communication Cables 35
11.2 Battery Power Connection 36
11.3 Setting the Termination Resistance 38
12 PV connection 39
12.1 Assembling the PV Connector 39
12.2 Connecting the DC cables from PV 40
13 Energy Meter Installation 41
13.1 EM24, Carlo Gavazzi (Three-Phase) 41
13.2 EM24, Carlo Gavazzi (Single-Phase) 43

13.3 EM112, Carlo Gavazzi (Single-Phase) 45
13.4 EM530, Carlo Gavazzi (Three-phase) 47
13.5 EM530, Carlo Gavazzi (Single-phase) 49
13.6 EM540, Carlo Gavazzi (Three-phase) 51
13.7 EM540, Carlo Gavazzi (Single-phase) 53
13.8 DTSU666, CHINT (Three-phase) 55
13.9 DDSU666, CHINT (Single-phase) 57
13.10DDSU666-Direct, CHINT (Single-phase) 59
14 Power On 61
14.1 Turning On Q.HOME CORE 61
14.2 Checking the LED indicator 61
14.3 Using the Dark Start button 62
15 Commissioning the System 63
15.1 Connecting to the System 63
15.2 Local Commissioning with the Q.OMMAND GO App 64
15.3 Energy Policy Mode 66
15.4 Advanced Settings 67
15.5 Checking the Settings Information 73
16 Power Off 74
16.1 Turning Off Q.HOME CORE 74
16.2 Locking the DC and PV Switches 75
17 Maintenance 76
17.1 Battery Maintenance 76
18 Registering the Product 77
18.1 Q.OMMAND Web 77
18.2 Q.OMMAND PRO App 77
19 Troubleshooting with Error Code 78

5
1 Information in This Manual
1.1 About This Manual
This is the installation manual for Q.HOME CORE H5. Please read this installation and user manual carefully
before installing and operating Q.HOME CORE H5. It contains important safety instructions. The warranty will
be void if you fail to follow the instructions in this manual.
1.2 Target Group
Electricians and qualified technicians who are allowed to install and to connect electrical systems.
1.3 Symbols Used in This Manual
WARNING
This symbol indicates a hazardous situation which could result in death or serious injury,
if not avoided.
CAUTION
This symbol indicates a hazardous situation which could result in minor or moderate
injury, if not avoided.
Prohibited.
Note This indicates valuable tips for installation of the product.

6
2 Safety
The safety section may not include all regulations for your locale; personnel working with
Q.HOME CORE H5 must review applicable federal, state and local regulations and the industry standards
regarding this product.
2.1 Intended Use
Q.HOME CORE H5 is designed for residential use only. It should not be used for commercial or construction
area. It is a single-phase, Grid-connected system of solar energy sources and Li-Ion Battery energy storage.
Q.HOME CORE H5 uses solar energy power connected to the input/output terminal installed on the side of the
device in order to:
■charge the Li-Ion Battery energy storage,
■provide a supply to the household load, and
■convert direct current (DC) electricity of the Battery to alternating current (AC) to discharge as household
single-phase load or electric system.
This device should not be used for any purpose other than the purpose described in this installation manual.
Any substitute use of this device, random change in any of its parts, and use of components other than sold or
recommended by Qcells will nullify the product’s guarantee.
For example, Qcells Li-Ion Battery energy storage should not be replaced by other manufacturer’s Battery
storages. For further information on proper use of this device, contact the Qcells Service-Hotline.
2.2 Safety Precaution
The following safety precautions and the warning messages described in this section must be observed. If
any of the following precautions are not fully understood, or if you have any questions, contact the customer
support for guidance.
WARNING
■All work on the ESS and electrical connections must be carried out by qualified
personnel only.
■High voltages in power conditioning circuits. Lethal hazard of electric shock or
serious burns. Wear rubber gloves and protective clothing (protective glasses and
boots) when working on high voltage/high current systems such as the inverter and
battery systems.
■This product provides a safe source of electrical energy when operated as intended
and as designed. But a potentially hazardous circumstance such as excessive heat
or electrolyte mist may occur due to improper operating conditions, damage, misuse
and/or abuse.
■Do not connect or disconnect PVs, batteries, and grid connectors with the power on.
Otherwise, it may generate electric arcs or sparks, causing fire or injury.
■Do not open the enclosure while the inverter is operating. Touching inner
components under running condition may lead to electric shock, causing death or
serious injury.
■Before maintenance, turn off the equipment for at least 5 minutes and strictly comply
with the safety precautions stated in this manual.

7
Safety
CAUTION
■This product is intended to be used for PV source inputs and residential home grids
(AC 230V). If not used as intended, the protection provided by the equipment may
be impaired.
■This product is designed appropriate for two-PV string structure. Therefore,
the PV string 1 and PV string 2 must be connected to PV input 1 and PV input 2,
respectively. Do not split one PV string output for connecting it into the PV input
terminal 1 and input terminal 2.
■After disconnecting the inverter from the battery pack or PV, wait 5 minutes to
discharge the inverter.
■Do not touch the PV cable when the product is connected to the PV arrays. When
the photovoltaic array is exposed to light, it supplies DC voltage to the product.
■In case of short circuit, high-voltage components inside the inverter may influence
the product or other properties. Cover the product or take other precautions to
prevent metal objects from entering inside during installation and wiring.
2.3 Earth Fault Alarm
When an earth fault occurs, the inverter stops operation and the buzzer operates for 2 minutes.
Note: This feature is only supported on models released in Australia.
2.4 Product Safety Labels
Wear eye protection at all times
(installation, maintenance, etc.)
Follow the instruction in this manual for
service and replacement.
Caution: Risk of Electric Shock
Alternating current (AC) and direct current (DC) sources are connected to this
device. To prevent risk of electric shock during installation or maintenance,
ensure that all AC and DC connections are disconnected.
Caution: Hot Surface
Metallic parts of enclosure may be hot during operation.
Caution: Risk of Electric Shock
Hazardous voltage is still present 5 minutes after all power sources have
been disconnected. Wait for at least 5 minutes before maintenance to
prevent electric shock.
Warning: Explosion
Do not expose to heat or flame. Keep away from flammable substances.
Warning: Corrosive Substances Leaking
Do not disassemble or modify the battery. Otherwise, corrosive substances
may leak.

8
Safety
2.5 Disposal
1 Disposal of Q.VOLT
■When this crossed-out wheeled bin symbol is attached to a product, it means the
product is covered by the European Directive 2002/96/EC.
■All electrical and electronic products should be disposed of separately from
the municipal waste stream via designated collection facilities appointed by the
government or the local authorities.
■The correct disposal of your old appliance will help prevent potential negative
consequences for the environment and human health.
■For more detailed information about disposal of your old appliance, please contact
your city office, waste disposal service or the shop where you purchased the
product.
2 Disposal of Q.SAVE
■When this crossed-out wheeled bin symbol is attached to batteries/accumulators of
your product, it means they are covered by European Directive 2006/66/CE.
■This symbol may be combined with chemical symbols for mercury(Hg),
cadmium(Cd) or lead(Pb) if the battery contains more that 0.0005% of mercury,
0.002% of cadmium or 0.004% of lead.
■All batteries/accumulators should be disposed separately from the municipal waste
stream via designated collection facilities appointed by the government or the local
authorities.
■The correct disposal of your old batteries/accumulators will help to prevent
potential negative consequences for the environment, animal and human health.
■For more detailed information about disposal of your old batteries/accumulators,
please contact your city office, waste disposal service or the shop where you
purchased the product.

9
3 Product Overview
Q.HOME CORE H5 includes the inverter, battery charger/discharger, li-ion battery, and EMS. The basic
operating modes consist of stand-alone (back-up) mode, PV generation mode, PV generation and charge/
discharge mode. The operation mode of this product is automatically determined by the EMS algorithm.

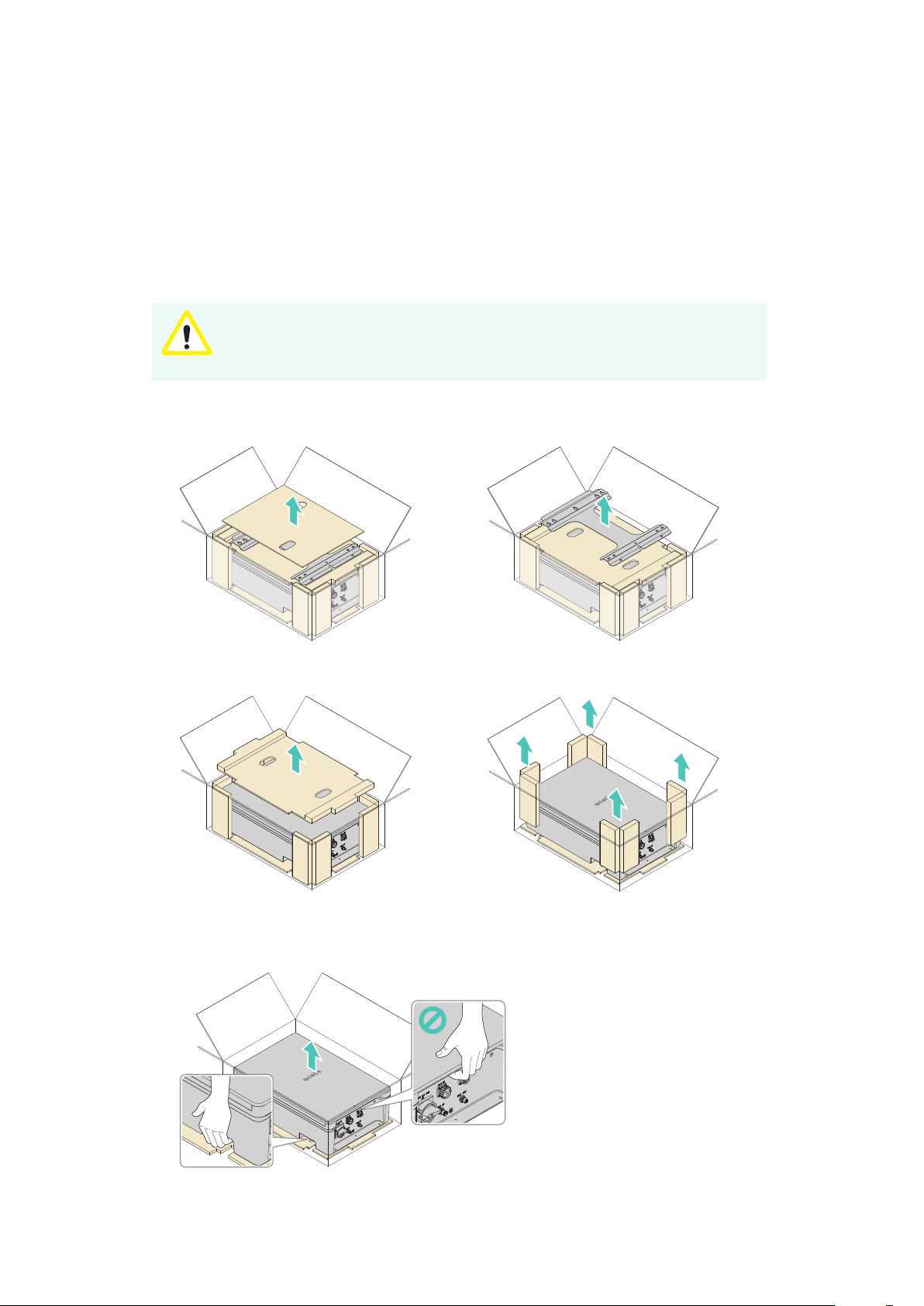

3.1 Unpacking
CAUTION
The Q.VOLT weighs about 37.5kg and Q.SAVE weighs about 61.1kg. Therefore, special
care is required when handling. At least two people have to carry and take it out.
1Open the box and remove the top pad. 2Take the mounting bracket out of the box.
3Remove the middle pad. 4Remove the side pads.
5Take the product out of the box.
■When lifting the product, do NOT hold the cover. Hold the slots on both
sides of the product to lift it.

10
Product Overview
3.2 Package Contents
Check for any damages that may have occurred during transportation. If there is any damage to the product or
packaging, please contact your supplier immediately.
CAUTION
Do not operate with other components not approved by Qcells. (Connecting other
products to Qcells products may result in abnormal operation.)
1 Q.VOLT Package Contents
Quick Guide
Q.VOLT (Inverter): 1EA Mounting bracket 1EA Quick guide: 1EA
PV connector (+): 2EA PV connector (−): 2EA
Wall mount bolt & anchor: 6EA Bracket mount bolt (M6): 2EA
2 Q.SAVE Package Contents
Quick Guide
Q.SAVE (Battery): 1EA Mounting bracket: 1EA Quick guide: 1EA

11
Product Overview
Wall mount bolt & anchor: 6EA Bracket mount bolt (M6): 2EA
Battery Power Cable (0.6m): 1EA
BMS (Battery Management System) communication cable (0.6m): 1EA
3 Options
Wi-Fi dongle
Stand for floor mount Wi-Fi/LTE waterproof cover
Energy Meter (EM24, EM112) BMS communication extension cable (1m, multi-linkable)
Energy Meter (EM530, EM540) Battery Power Cable (1.6m, 2.6m)
Energy Meter (DTSU666, DDSU666)

12
Product Overview

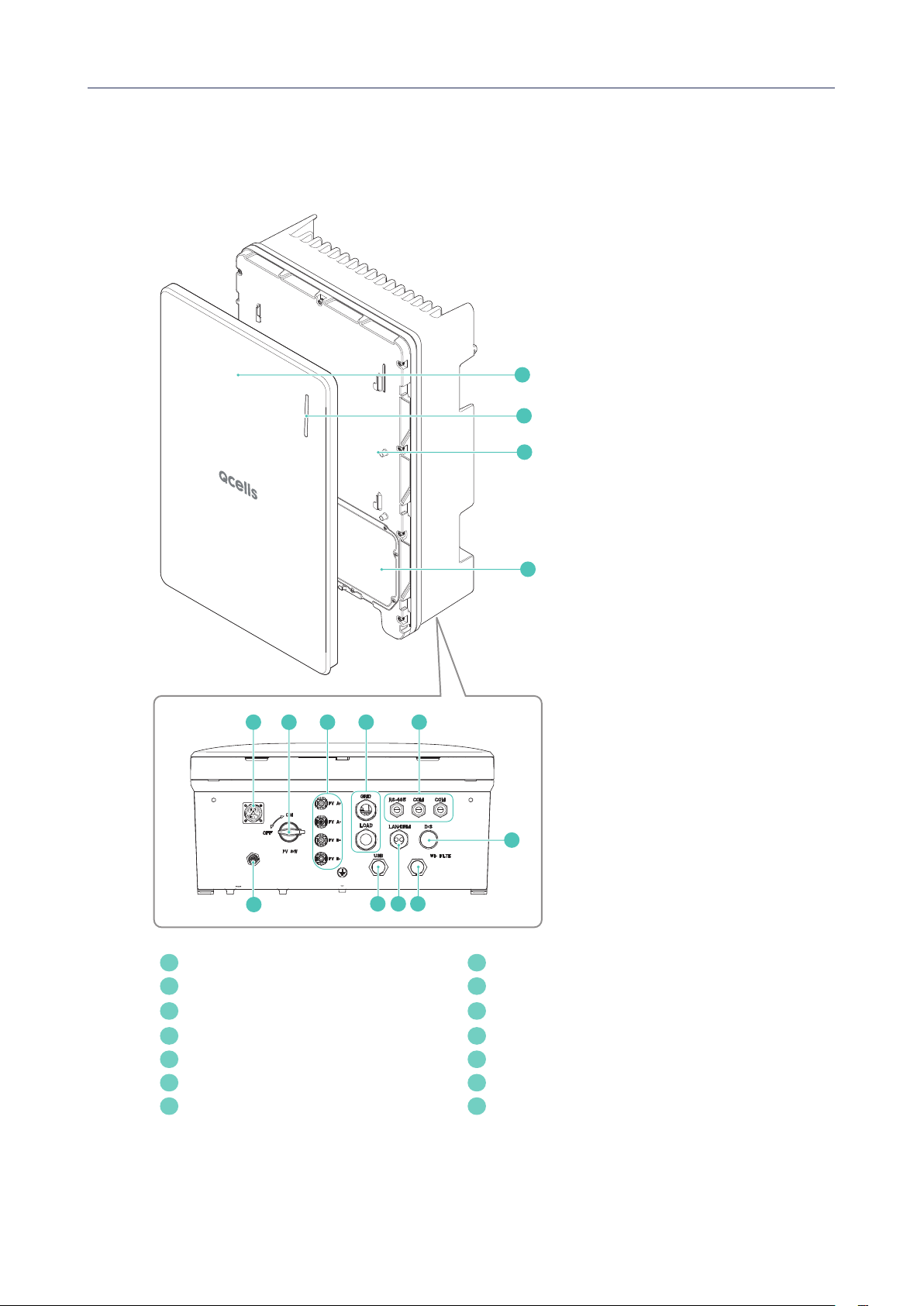

3.3 Q.VOLT Over v iew
BAT IN
BMS IN
F
5
6
7 9
14
10 11 12 13
8
3
2
1
4
1Front cover 8Grid and Load port
2LED indicator 9Communication port
3Inner cover 10 BMS Connector
4Wiring cover 11 USB Port
5Battery power connector 12 LAN / DRM port
6PV switch 13 Wi-Fi / LTE Dongle port
7PV connector 14 Dark Start switch
Note
For information about how to open the covers, see "7 Opening the Covers" on page 27.

13
Product Overview
3.4 Q.SAVE Overview
7 8
9
2
1
3
5 6
4
1Front cover 6BMS board
2Inner cover 7Battery DC Switch
3Wiring cover 8Battery Power Connector
4Battery module 9BMS Connector
5Relay board

14
Product Overview
3.5 Specifications
GENERAL PRODUCT INFORMATION
Dimensions Inverter Module/
Battery Module (W × H × D) [mm] 460 × 700 × 221, 238 (From Wall)
Weight Inverter Module/Battery Module [kg] 37.5/61.1
Operating Temperature Range [°C] Q.VOLT: −20 to 60, Q.SAVE: −10 to 45
Relative Humidity [%] 4 to 100 (Condensing)
Protection Degree/Class IP65
Mounting Wall-Mounted or Floor-Mounted Options
Max. Operation Altitude [m] 2,000
Cooling Method Natural air cooling
Product Warranty/Performance Warranty 15/15 years
Noise Emissions ≤ 40dB (A) @ 1m
Over Voltage Category OVC II (DC)/OVC III (AC)
Communications LAN, RS485, CAN, Wi-Fi (optional), LTE (optional)
Remote Monitoring Web, Mobile & App
Software Update Online update
Energy Management System Integrated
Country of Manufacturer Republic of Korea
PV DATA (DC)
Max. Input Usable Power [kWp] 8.0 (4.0 per MPPT)
Max. Input Voltage [VDC]600
Start Input Voltage [V] 120 to 550
MPP Voltage Range (Operation Range) [V] 90 to 550 (Derating from 520 to 550)
Number of Independent MPPTs 2
Number of DC Input Pairs per MPPT 1
Max. Input Current per MPPT/
Max. Short Circuit Current per MPPT [A] 15/20
DC Connection Type MC4
* If PV open circuit voltage is between 550V and 600V, PV over voltage error will occur.
GRID DATA (AC)
Max. Apparent Power/Rated Output Power [kVA/kW] 5.0/5.0
Nominal Voltage/Range [V] 230/180 to 260
Nominal Grid Frequency/Range [Hz] 50, 60/−5Hz to +5Hz
Feed-in Phase/Connection Phase Single/Single
Nominal Current/Max. Current/
Max. Over-Current Protection [A] 21.7/25/30
Power Factor Range 0.8 lagging to 0.8 leading
Total Harmonic Distortion [%] ≤5

15
Product Overview
BACKUP POWER OUTPUT (ALTERNATING CURRENT)
Connection Phase Single
Rated Apparent Power/
Rated Power (only Battery) [kVA/kW] 3.3 to 4.5/3.3 to 4.5 @ 1 Battery Pack, 5/5 @ 2, 3 Battery Pack
Rated Apparent Power/
Rated Power (With PV) [kVA/kW] 5.0/5.0 (max)
Rated Voltage [V] 230
Rated Frequency [Hz] 50, 60
Switch over Time to Backup Power less than 0.1 seconds
Overload support
30 sec for 5.0 - 5.5kVA, 20 sec for 5.5 - 6.0kVA,
10 sec for 6.0 - 6.5kVA
@ 2, 3 Battery Pack and Off-grid
* The backup power output of load terminal is not suitable to supply inductive or capacitive load that causes high inrush
current.
EFFICIENCY
MPPT Efficiency [%] 99.9
Max. Efficiency (PV to Grid) [%] 97
Max. Efficiency (PV to Battery) [%] 97.8
Max. Efficiency (Battery to Grid) [%] 96.3
BATTERY UNIT (DC)
Battery Technology Lithium-ion NCA (Samsung SDI)
Battery Energy [kWh] 6.8/13.7/20.5 (6.86kWh/pack)
Battery Usable Energy [kWh] 6.51/13.03/19.55
Max. Charge Power/Max. Discharge Power [kW] 3.8/4.5 @ 1 Battery Pack, 5.0/5.0 @ 2, 3 Battery Pack
Converter Technology Non-isolated
Rated Battery Voltage/Battery Voltage Range [VDC]202.8/168.0 to 228.2
Maximum Charge/Discharge Current [A] 16.9/20 (for each Q.SAVE unit)
Depth of Discharge (DoD) [%] 95
CERTIFICATES AND APPROVALS
Inverter Model Name
Q.VOLT H5S
Battery Model Name Q.SAVE B6.8S
Certificates and Approvals
AS/NZS 4777.2:2020, CE, IEC62109-1, IEC62109-2,
IEC62040-1, IEC62619, IEC62477-1, EN61000-6-2,
EN61000-6-3, IEC60068.2-52, IEC60730-1ANNEX.H

16
Product Overview
3.6 Network System Diagram
1 TN-S Network System (Single-Phase)
PE
Circuit
Breaker
Critical Load
L
PE
N
Earth Bar
N
L
LN
kWh
(Utility Meter)
kWh
(ESS Meter)
Circuit
Breaker
Circuit
Breaker
Energy
Meter
(RS-485)
Circuit
Breaker
PE
PV#1
PV#2
LAN
DRM
RS-485
GRID
LOAD
PV1 Array PV2 Array
+ - + -
GRID
E
Q.SAVE #2 Q.SAVE #1
PE PE
BAT
IN BAT
IN
BAT
IN
BAT
OUT BAT
OUT
BMS
OUT
(CAN)
BMS
OUT
(CAN)
BMS
IN
(CAN)
BMS
IN
(CAN)
BMS
IN
(CAN) USB
Wi-Fi Dongle
Q.VOLT
Main Load
L
PE
N
2 TT Network System (Single-Phase)
PE
PV#1
PV#2
LAN
DRM
RS-485
GRID
LOAD
PV1 Array PV2 Array
+ - + -
Circuit
Breaker
Critical Load
L
PE
N
Circuit
Breaker
Circuit
Breaker
PE
Earth Bar
N
L
LN
kWh
(Utility Meter)
kWh
(ESS Meter)
Circuit
Breaker
Energy
Meter
(RS-485)
GRID
E
Q.SAVE #2 Q.SAVE #1
PE PE USB
Wi-Fi Dongle
Q.VOLT
BAT
IN
BAT
OUT
BMS
OUT
(CAN)
BMS
IN
(CAN)
BAT
IN
BAT
OUT
BMS
OUT
(CAN)
BMS
IN
(CAN)
BAT
IN
BMS
IN
(CAN)
Main Load
L
PE
N

17
Product Overview
3 TN-S Network System (Three-Phase)
PE
Circuit
Breaker
Circuit
Breaker
Main Load
Main Load
Critical Load
L
PE
N
PE
N
L
PE
N
L3
L2
L1
Earth Bar
L1 L2 L3 N
L1 L2 L3 N
kWh
(Utility Meter)
kWh
(ESS Meter)
Circuit
Breaker
Circuit
Breaker
Circuit
Breaker
Energy
Meter
(RS-485)
PEPE
PV#1
PV#2
LANUSB
DRM
RS-485
GRID
LOAD
Q.SAVE #2 Q.SAVE #1
PV1 Array PV2 Array
+ - + -
PE
GRID
E
Wi-Fi Dongle
Q.VOLT
BAT
IN
BMS
IN
(CAN)
BAT
IN BAT
IN
BAT
OUT BAT
OUT
BMS
OUT
(CAN)
BMS
OUT
(CAN)
BMS
IN
(CAN)
BMS
IN
(CAN)
4 TT Network System (Three-Phase)
Circuit
Breaker
PE
PV#1
PV#2
LAN
DRM
RS-485
GRID
LOAD
PV1 Array PV2 Array
+ - + -
PE
Circuit
Breaker
Circuit
Breaker
Main Load
Main Load
Critical Load
L
PE
N
PE
N
L
PE
N
L3
L2
L1
Earth Bar
L1 L2 L3 N
L1 L2 L3 N
kWh
(Utility Meter)
kWh
(ESS Meter)
Circuit
Breaker
Circuit
Breaker
Energy
Meter
(RS-485)
GRID
E
Q.SAVE #2 Q.SAVE #1
PE PE USB
Wi-Fi Dongle
Q.VOLT
BAT
IN BAT
IN
BAT
OUT BAT
OUT
BMS
OUT
(CAN)
BMS
OUT
(CAN)
BMS
IN
(CAN)
BMS
IN
(CAN)
BAT
IN
BMS
IN
(CAN)

18
4 Installation requirements

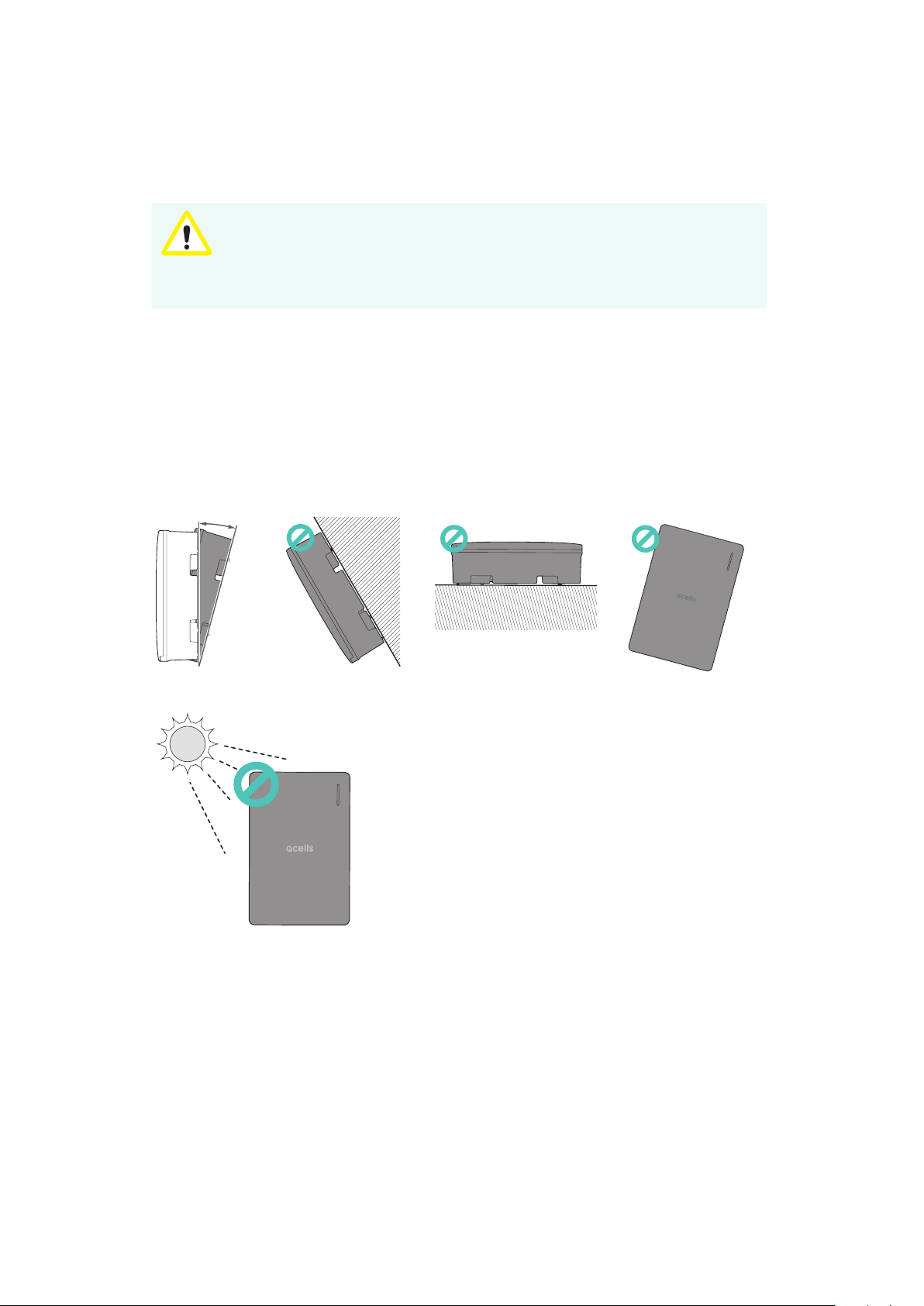

4.1 Installation Environment
CAUTION
■Although it supports the waterproof performance equivalent to the IP65 rating,
install in a place not directly exposed to direct sunlight, rain, and snow.
■If the product is installed in direct sunlight, abnormal operation may occur due
to high internal temperature of the product, and if the product is damaged or
malfunctions due to this, the product may be excluded from the warranty.
Make sure the installation site meets the following conditions:
■Not in areas where highly flammable materials are stored.
■Not in potential explosive areas.
■Not near the television antenna or antenna cable.
■Not higher than an altitude of about 2000m above sea level.
■Under good ventilation conditions.
■The ambient temperature in the range of -10 °C to 45 °C
■While it can be installed by slanting it backward up to 5 degrees or lower, do not install it tilted on the side. The
wiring area should point downward.
5˚

19
Installation requirements

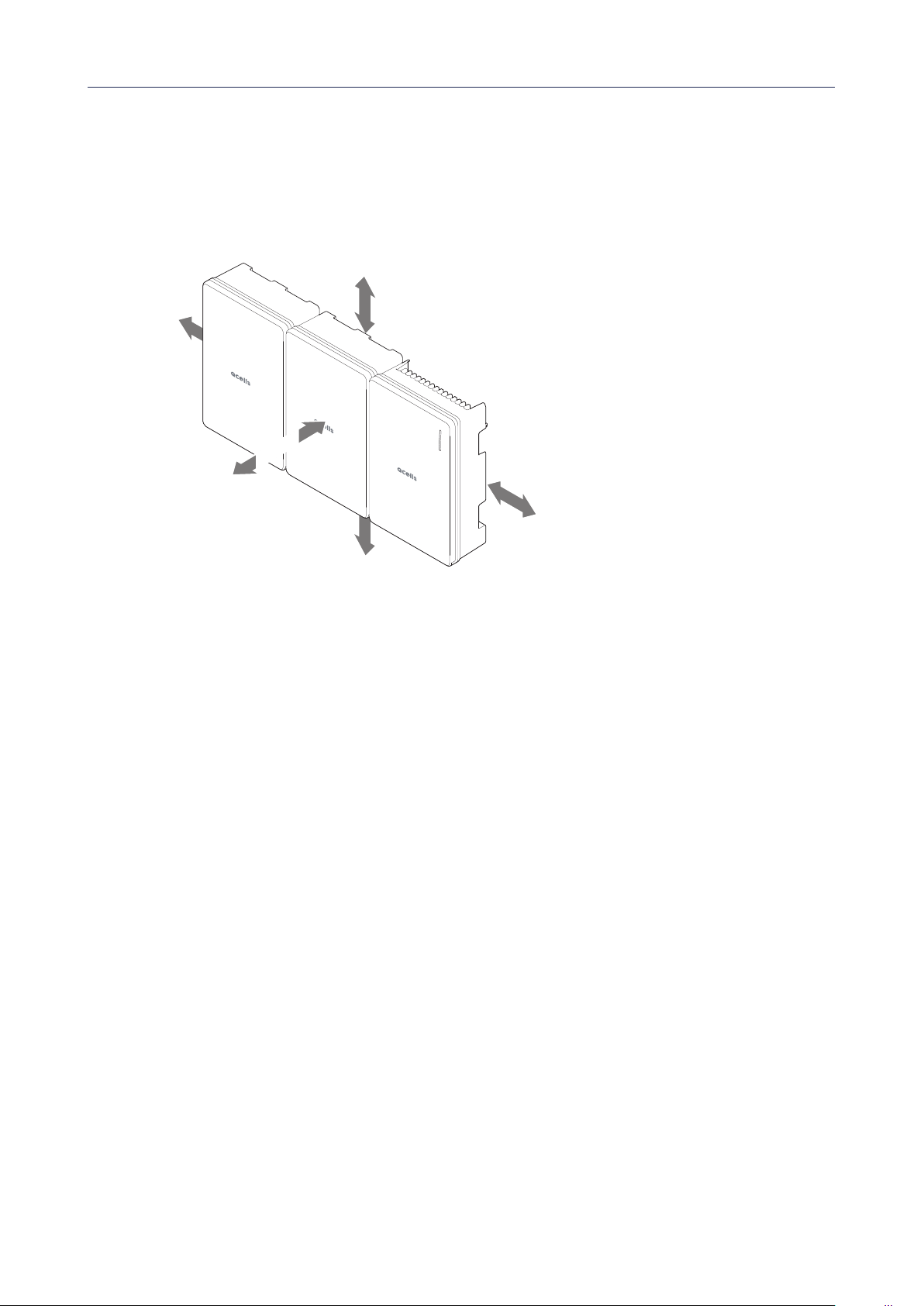

4.2 Installation Space
For effective heat dissipation, there must be sufficient distance from surrounding objects and sufficient space
for cabling work is required.
300mm
300mm
300mm
300mm
600mm

20
Installation requirements
4.3 Mounting Bracket Dimensions
410 mm
460 mm 0 mm - 5 mm
320 mm
C
472 mm
600 mm
Ø9
Ø9 9×15
4.4 Safety Gear
WARNING
All tasks regarding the PV module, inverter, and battery system must be performed by
certified personnel. Wear safety gloves and protective clothing while working.
Wear the following safety gear when installing the product. Installers must meet the relevant requirements of
international standards, such as IEC 60364 or the domestic legislation.
Insulated Gloves Safety Goggles Safety Shoes
