Qlightec S60R User manual

5020
44
1
S60R
• Protection rating : IP44
• Ambient operating temperature : -20°C to +50°C
S60R - 220 - R
[Model
number] [Voltage] [Color]
| | |
• S60R • 12 - DC12V
• 24 - DC24V
• 110 -AC110V
• 220 -AC220V
R-Red
A-Amber
G-Green
B-Blue
Model
number
Voltage Current
Bulb specications
Certicate Weight Color
Volts/
Watts
Conguration Part#
S60R
DC12V 0.484A 12V5W
T16x35
15S
5
0.18kg R-Red
A-Amber
G-Green
B-Blue
DC24V 0.310A 24V5W 6
AC110V 0.072A 110V5W
T16x35
15D
7
-0.27kg
AC220V 0.036A 220V5W 8
Ordering Specications

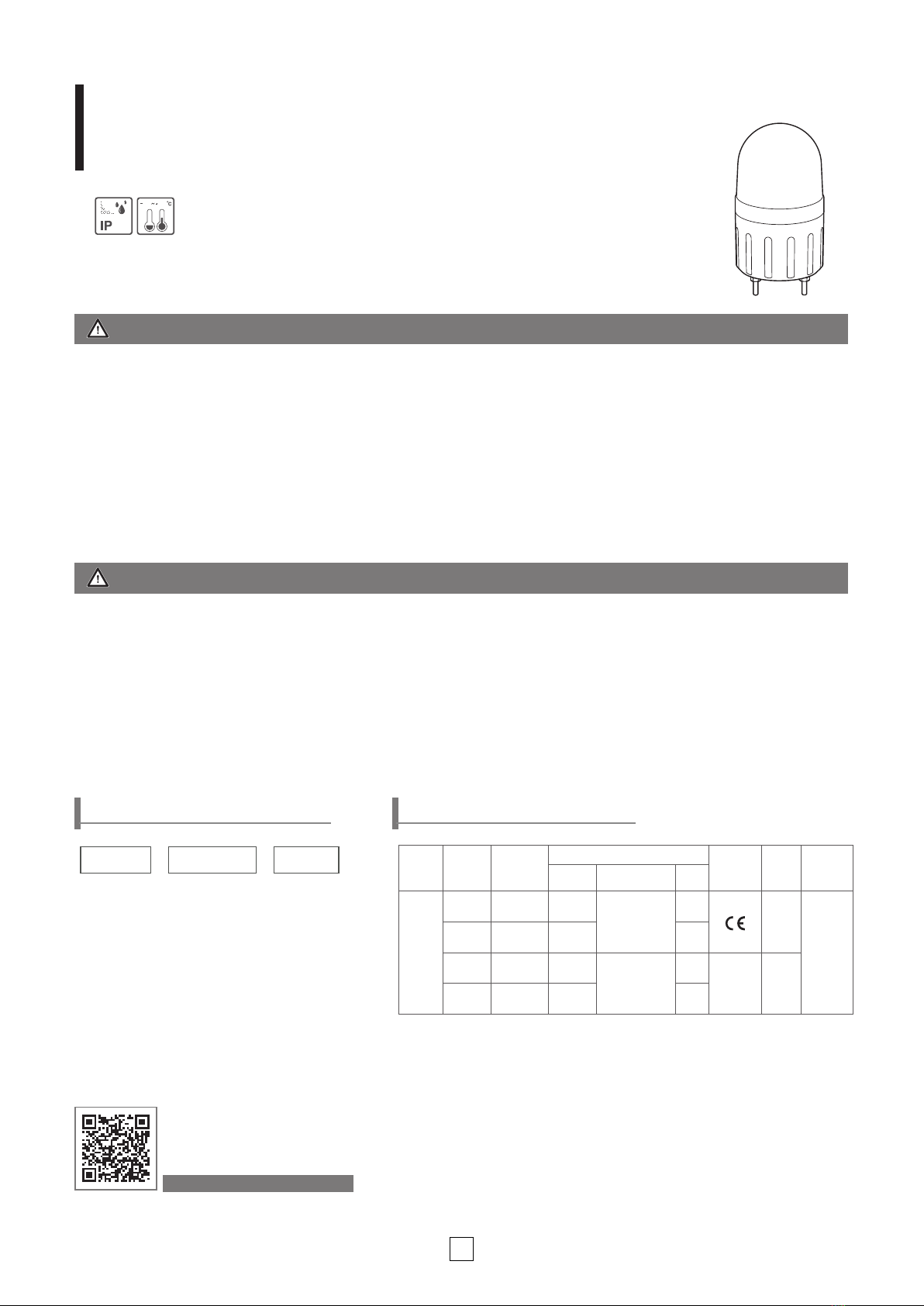

Bulb Revolving Warning Light
Thank you for purchasing Qlight’s products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn o󰀨 the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product’s specication.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, re, and electric shock.
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the
product that would void the warranty.
1. During wiring or maintenance, please completely turn o󰀨 the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a re to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to re, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to re, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, re, electric shock and loss of life.)
Product Specications
Please scan the QR code for more
detailed product information.
www.qlight.com

2
• External power line - UL1015 AWG18(0.75sq) x 2C 400mm
DC
AC
Parts Denition/ Installation/ Mounting Hole Specications/ Bulb Replacement Instructions
■ Parts Denition/ Installation
Wiring InstructionsDimensions
(Units : mm)
■ Mounting Hole Specications
• Machine holes on the mounting surface referring to the
diagram below.
• First, remove the ange nuts from bolts and place the
product through the mounting surface holes.
• Fasten the ange nuts on the opposite side of the
mounting surface until the product is tightened securely.
Reector
(Heat resistant ABS)
Lens(AS)
Light bulb
Housing(ABS)
Flange nut
Flat washer
Red
Black
White
Black
Power
Power
Fuse
Fuse
PCD 38
3-Ø5 HOLES
Min.Ø5 CABLE ENTRY
S60R
Ø70
70
15 121
51
Ø8 CABLE ENTRY PCD 38
360°/3-M4 BOLT
• Please wait at least 1 minute after turning o󰀨 the power
before replacing the bulb.
• In order to dissemble the bulb, please push down the bulb(①)
lightly and screw it counterclockwise.
• In order to put the bulb in to the unit, please place the bulb(①)
in the socket(②) and screw it clockwise while lightly pushing
down the bulb.
■ Bulb Replacement Instructions
Assemble
bulb
Disassemble
bulb
①
②

3

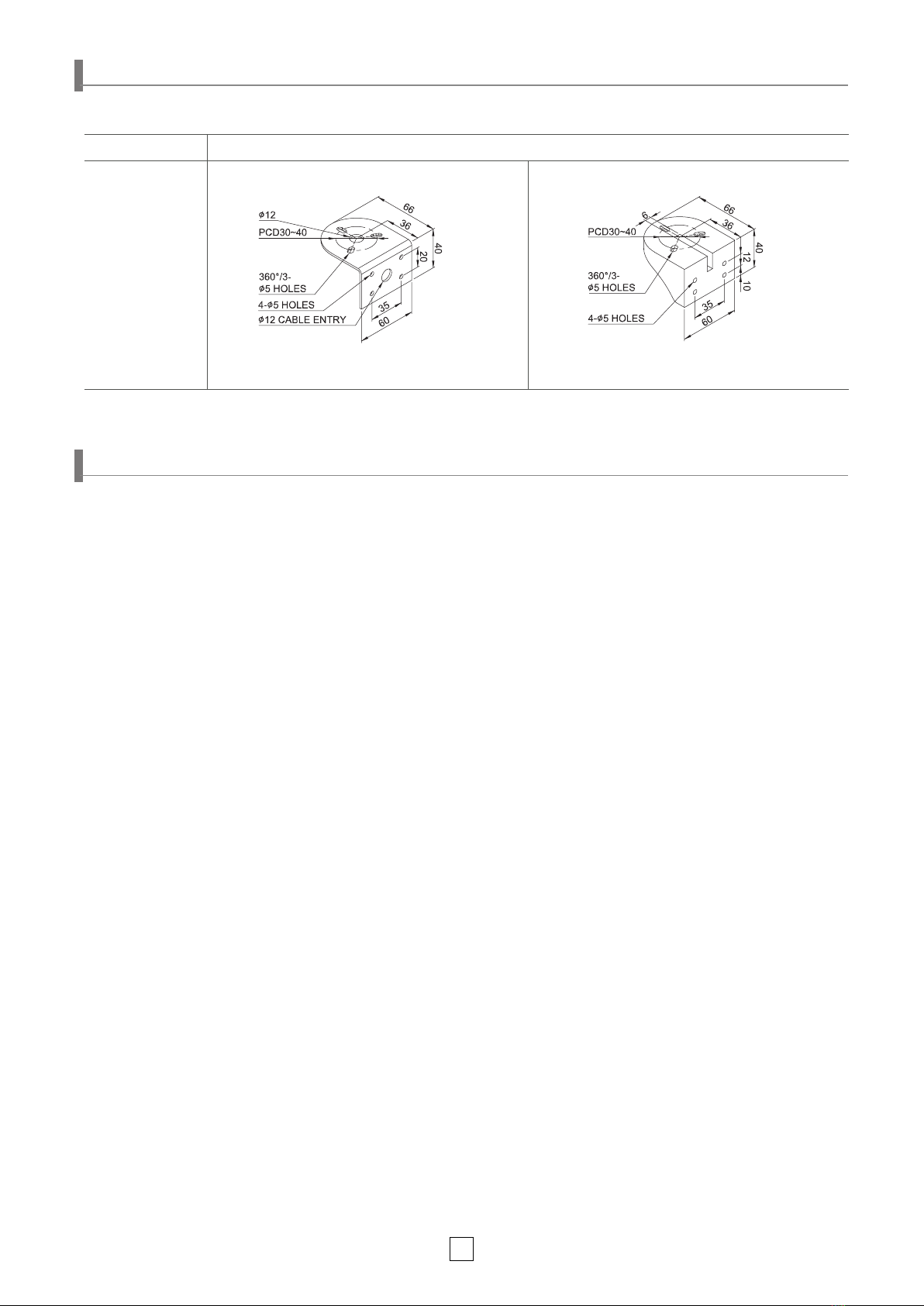

Mounting Accessories (Sold Separately)
Dimensions
S60R
TWS45 TWA45
• Please refer to the dimensions below for installation of mounting brackets
Installation Environment and Protection Rating
• This product is designed for use with protection rating of IP44.
• If the product is installed in locations that subject it to excessive dust or water other than the designated IP protection rating
indicated(IP44), it may cause malfunction or damage to the product.
• In case of outdoor applications, install the product in the upright position. Do not install the product horizontal or upside-
down positions where water can potentially penetrate into the product and impact it’s operation.
• For further information, please visit our website(www.qlight.com).

Qlight Co., Ltd. www.qlight.com | [email protected]
Head O󰀩ce | Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea
Tel. [phone](Toll free. [phone]) Fax. [phone]
Factory | 185-25, Mukbang-ro, Sangdong-myeon, Gimhae-si, Gyeongsangnamdo, Korea Tel. [phone](Toll free. [phone])
Qlight OverSEAs Sales Dept | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : [phone]
Qlight Public Relations & Marketing Team O󰀩ce | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel. [phone]
Qlight USA, Inc. www.qlight.com www.qlightusa.com | [email protected]
3003 North First Street, Suite #341, San Jose, CA 95134 USA Tel. [phone] Fax. [phone]
SHANGHAI Qlight Electronic Co., Ltd. www.qlight.com www.qlightcn.com | [email protected]
China Factory/ Shanghai Sales O󰀩ce | #19, Nanda Road, Baoshan Area, Shanghai, China Tel. +86 - 21 - 6651 - 7100 Fax. +86 - 21 - 6315 - 3929
China Factory Site 2 (Qidong) | #33, Haiyan Road, Qidong High-tech Industrial Development Zone, Qidong, Jiangsu Province, China
Tel +86 - 513 - 8384 - 9999 Fax +86 - 513 - 8384 - 9910
Product Operation Inquiry / Customer Support [phone]
You can expect prompt service if you have exact information such as model name, symptom, telephone number and address.
※ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Head office : Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea (Postal Code : 08507)
Factory : 185-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-Si, Gyeongsangnam-Do, Korea (Postal Code : 50805)
For your safety
Specication and dimensions listed in this catalogue subject to change without notice for product quality improvement.
The newest product information is available on our website.(www.qlight.com)
Please read the instruction manual attached to the product carefully before installation and use.
www.qlight.com
EN - S60R - 2106A

1
LED Steady/ Flashing Signal Light
S60L
• Protection rating : IP44
• Ambient operating temperature : -30°C to +50°C
S60L - 220 - R
[Model number] [Voltage] [Color]
| | |
• S60L • 12/24
- DC12V~24V
• 110 - AC110V
• 220 - AC220V
R-Red
A-Amber
G-Green
B-Blue
Model
number
Voltage Current Certicate Weight Color
S60L
DC12V~24V Max.0.120A
-
0.15kg R-Red
A-Amber
G-Green
B-Blue
AC110V 0.025A
0.20kg
AC220V 0.015A
Thank you for purchasing Qlight’s products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn o󰀨 the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product’s specication.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, re, and electric shock.
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the
product that would void the warranty.
1. During wiring or maintenance, please completely turn o󰀨 the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a re to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to re, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to re, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, re, electric shock and loss of life.)
Ordering Specications Product Specications
Please scan the QR code for more
detailed product information.
www.qlight.com
5030
44

Reector
(Heat resistant ABS)
2
Parts Denition/ Installation/ Light Function Selection/ Mounting Hole Specications
■ Parts Denition/ Installation ■ Light Function Selection
■ Mounting Hole Specications
Lens(AS)
LED unit
• External power line - UL1015 AWG18(0.75sq) × 2C 400mm
• This product can be wired regardless of polarity.
S60L
Ø70
Ø8 CABLE ENTRY
70
15
51
121
PCD 38
360°/3-M4 BOLT
Wiring InstructionsDimensions
(Units : mm)
+
-
DC
AC
Red
Black
White
Black
Power
Power
Fuse
Fuse
Housing(ABS)
Flange nut
Rubber spacer
Flat washer
• Please refer to the chart below to use light function selection
switch located inside the product.
• Default function is set at steady LED. Select the desired function
for your application during installation.
▶ L : Steady ▶ LF : Flashing
• Machine holes on the mounting surface referring to the
diagram below.
• First, remove the ange nuts from bolts and place the
product through the mounting surface holes.
• Fasten the ange nuts on the opposite side of the
mounting surface until the product is tightened securely. PCD 38
3-Ø5 HOLES
Min.Ø5 CABLE ENTRY

3
Mounting Accessories (Sold Separately)
Dimensions
S60L
TWS45 TWA45
• Please refer to the dimensions below for installation of mounting brackets
Installation Environment and Protection Rating
• This product is designed for use with protection rating of IP44.
• If the product is installed in locations that subject it to excessive dust or water other than the designated IP protection rating
indicated(IP44), it may cause malfunction or damage to the product.
• In case of outdoor applications, install the product in the upright position. Do not install the product horizontal or upside-
down positions where water can potentially penetrate into the product and impact it’s operation.
• For further information, please visit our website(www.qlight.com).

Qlight Co., Ltd. www.qlight.com | [email protected]
Head O󰀩ce | Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea
Tel. [phone](Toll free. [phone]) Fax. [phone]
Factory | 185-25, Mukbang-ro, Sangdong-myeon, Gimhae-si, Gyeongsangnamdo, Korea Tel. [phone](Toll free. [phone])
Qlight OverSEAs Sales Dept | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : [phone]
Qlight Public Relations & Marketing Team O󰀩ce | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel. [phone]
Qlight USA, Inc. www.qlight.com www.qlightusa.com | [email protected]
3003 North First Street, Suite #341, San Jose, CA 95134 USA Tel. +1 - 408 - 519 - 5740 Fax. +1 - 408 - 519 - 5739
SHANGHAI Qlight Electronic Co., Ltd. www.qlight.com www.qlightcn.com | [email protected]
China Factory/ Shanghai Sales O󰀩ce | #19, Nanda Road, Baoshan Area, Shanghai, China Tel. +86 - 21 - 6651 - 7100 Fax. +86 - 21 - 6315 - 3929
China Factory Site 2 (Qidong) | #33, Haiyan Road, Qidong High-tech Industrial Development Zone, Qidong, Jiangsu Province, China
Tel +86 - 513 - 8384 - 9999 Fax +86 - 513 - 8384 - 9910
Product Operation Inquiry / Customer Support [phone]
You can expect prompt service if you have exact information such as model name, symptom, telephone number and address.
※ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Head office : Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea (Postal Code : 08507)
Factory : 185-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-Si, Gyeongsangnam-Do, Korea (Postal Code : 50805)
For your safety
Specication and dimensions listed in this catalogue subject to change without notice for product quality improvement.
The newest product information is available on our website.(www.qlight.com)
Please read the instruction manual attached to the product carefully before installation and use.
www.qlight.com
EN - S60L - 2106A

Ordering Specications
LED Revolving Warning Light
• Protection rating : IP44
• Ambient operating temperature : -20°C to +50°C
Thank you for purchasing Qlight’s products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn o󰀨 the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product’s specication.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, re, and electric shock.
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the
product that would void the warranty.
1. During wiring or maintenance, please completely turn o󰀨 the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a re to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to re, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to re, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, re, electric shock and loss of life.)
Product Specications
Please scan the QR code for more
detailed product information.
www.qlight.com
5020
44
1
S60LR
S60LR - 220 - R
[Model number] [Voltage] [Color]
| | |
• S60LR • 12 - DC12V
• 24 - DC24V
• 110 -AC110V
• 220 -AC220V
R-Red
A-Amber
G-Green
B-Blue
Model
number
Voltage Current Certicate Weight Color
S60LR
DC12V 0.183A
-
0.21kg R-Red
A-Amber
G-Green
B-Blue
DC24V 0.127A
AC110V 0.040A
0.28kg
AC220V 0.020A

2
PCD 38
3-Ø5 HOLES
Min.Ø5 CABLE ENTRY
• External power line - UL1015 AWG18(0.75sq) x 2C 400mm
S60LR
Ø70
70
15 121
51
Ø8 HOLES PCD 38
360°/3-M4 BOLT
DC
AC
Parts Denition/ Installation/ Mounting Hole Specications
■ Parts Denition/ Installation
Wiring InstructionsDimensions
(Units : mm)
■ Mounting Hole Specications
• Machine holes on the mounting surface referring to the
diagram below.
Reector
(Heat resistant ABS)
LED unit
Lens(AS)
Housing(ABS)
Flange nut
Rubber spacer
Flat washer
• First, remove the ange nuts from bolts and place the
product through the mounting surface holes.
• Fasten the ange nuts on the opposite side of the
mounting surface until the product is tightened securely.
Red
Black
White
Black
Power
Power
Fuse
Fuse

3
Mounting Accessories (Sold Separately)
Dimensions
S60LR
TWS45 TWA45
• Please refer to the dimensions below for installation of mounting brackets
Installation Environment and Protection Rating
• This product is designed for use with protection rating of IP44.
• If the product is installed in locations that subject it to excessive dust or water other than the designated IP protection rating
indicated(IP44), it may cause malfunction or damage to the product.
• In case of outdoor applications, install the product in the upright position. Do not install the product horizontal or upside-
down positions where water can potentially penetrate into the product and impact it’s operation.
• For further information, please visit our website(www.qlight.com).

Qlight Co., Ltd. www.qlight.com | [email protected]
Head O󰀩ce | Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea
Tel. [phone](Toll free. [phone]) Fax. [phone]
Factory | 185-25, Mukbang-ro, Sangdong-myeon, Gimhae-si, Gyeongsangnamdo, Korea Tel. [phone](Toll free. [phone])
Qlight OverSEAs Sales Dept | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : [phone]
Qlight Public Relations & Marketing Team O󰀩ce | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel. [phone]
Qlight USA, Inc. www.qlight.com www.qlightusa.com | [email protected]
3003 North First Street, Suite #341, San Jose, CA 95134 USA Tel. +1 - 408 - 519 - 5740 Fax. +1 - 408 - 519 - 5739
SHANGHAI Qlight Electronic Co., Ltd. www.qlight.com www.qlightcn.com | [email protected]
China Factory/ Shanghai Sales O󰀩ce | #19, Nanda Road, Baoshan Area, Shanghai, China Tel. +86 - 21 - 6651 - 7100 Fax. +86 - 21 - 6315 - 3929
China Factory Site 2 (Qidong) | #33, Haiyan Road, Qidong High-tech Industrial Development Zone, Qidong, Jiangsu Province, China
Tel +86 - 513 - 8384 - 9999 Fax +86 - 513 - 8384 - 9910
Product Operation Inquiry / Customer Support [phone]
You can expect prompt service if you have exact information such as model name, symptom, telephone number and address.
※ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Head office : Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea (Postal Code : 08507)
Factory : 185-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-Si, Gyeongsangnam-Do, Korea (Postal Code : 50805)
For your safety
Specication and dimensions listed in this catalogue subject to change without notice for product quality improvement.
The newest product information is available on our website.(www.qlight.com)
Please read the instruction manual attached to the product carefully before installation and use.
www.qlight.com
EN - S60LR - 2106A
