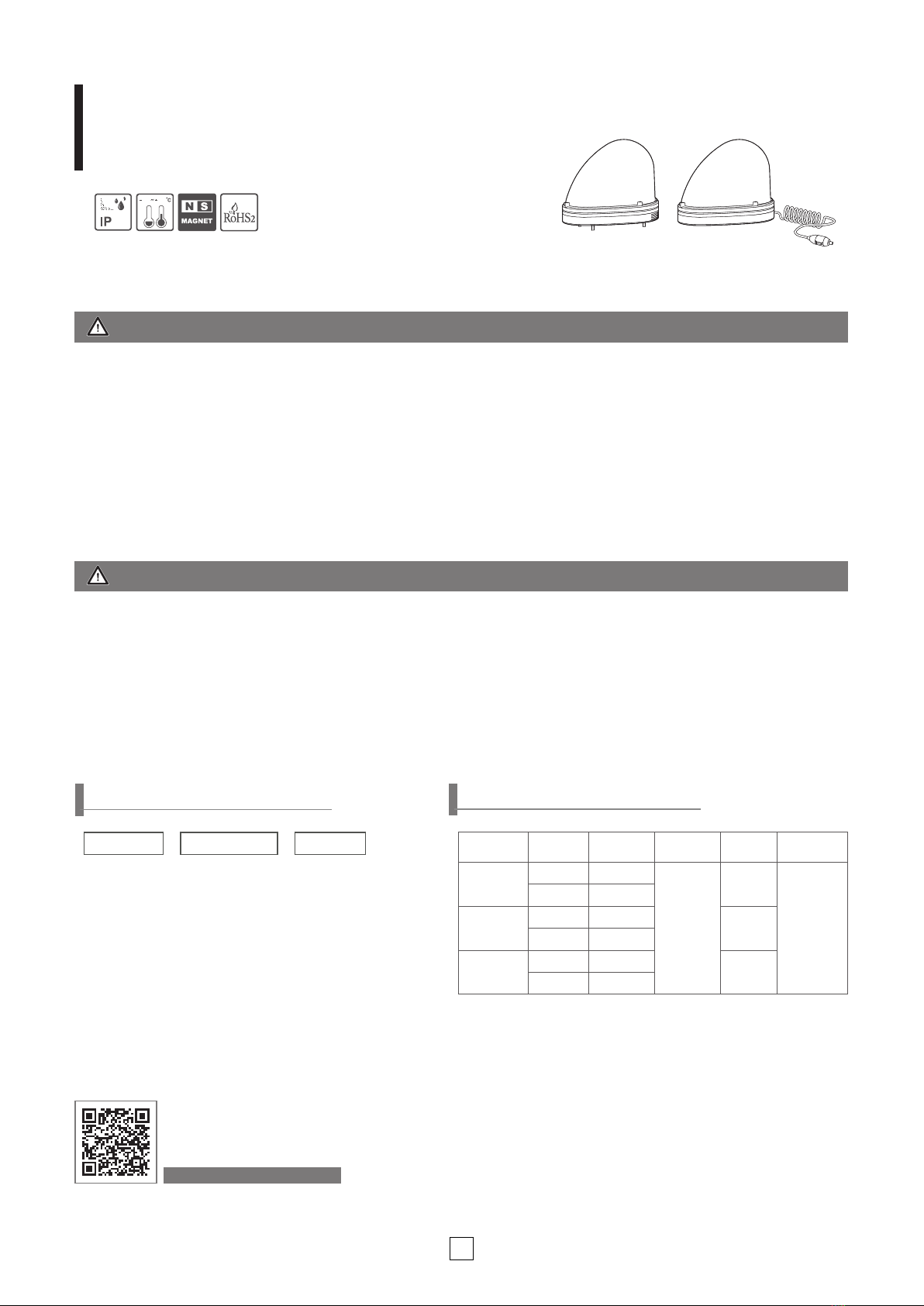

Qlightec SKLR User manual

1
5020
54
Streamline LED Revolving Warning Light
SKLR/ SKMLR/ SKMPLR
• Protection rating : IP54
• Ambient operating temperature : -20°C to +50°C
Model
number
Voltage Current Certicate Weight Color
SKLR
DC12V 0.422A
-
0.38kg
R-Red
A-Amber
G-Green
B-Blue
DC24V 0.266A
SKMLR
DC12V 0.422A
0.46kg
DC24V 0.266A
SKMPLR
DC12V 1.544A
0.63kg
DC24V 0.766A
SKLR - 24 - R
[Model
number] [Voltage] [Color]
| | |
• SKLR
• SKMLR
• SKMPLR
• 12-DC12V
• 24-DC24V
R-Red
A-Amber
G-Green
B-Blue
Please scan the QR code for more
detailed product information.
www.qlight.com
Product Specications
Ordering Specications
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn o󰀨 the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product’s specication.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, re, and electric shock.
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the product
that would void the warranty.
1. During wiring or maintenance, please completely turn o󰀨 the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a re to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to re, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to re, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, re, electric shock and loss of life.)
Thank you for purchasing Qlight’s products. Please read this user manual carefully prior to instal-
lation and operation to ensure safe and correct use.

2
SKMLRSKLR
SKMPLR
135
119
12
183
124
74
46
4-M4 BOLT
43 98 42
Ø10 CABLE ENTRY
(0.75sq) x 2P 2,000mm
(0.75sq)Ⱌ2P 2,000mm
46
124
74
183
3135
119
9843 42
Ø10 CABLE ENTRY
4-Ø24 MAGNET
183
192
142
119
FULL AREA MAGNET
Ø10 CABLE ENTRY
128
124
Dimensions
(Units : mm)
• External power line - UL1015 AWG18(0.75sq)×2C 400mm (SKLR only)
• Cigarette lighter plug, IEC42(0.75sq) × 2P 2,000m
• SKMLR/ SKMPLR models, please connect the cigarette lighter plug of the product to a cigarette lighter socket of a vehicle.
Wiring Instructions
Red
Black Power
Fuse
DC

3
Reector
(Heat resistant ABS)
LED unit
Parts Denition/ Installation
• First, machine holes on the mounting surface.
(SKLR only)
• Remove the M4 nuts from bolts and place the product through the mounting surface holes.
(SKLR only)
• Fasten the ange nuts(M4) on the opposite side of the mounting
surface until the product is tightened securely.
(SKLR only)
• SKMLR/ SKMPLR models have strong magnets at the base of the product that allows attachment to any metal surface.
SKLR SKMLR/ SKMPLR
Lens
(PC)
Cigarette lighter plug
Housing
(PC)
Installation Environment and Protection Rating
• This product is designed for use with protection rating of IP54.
• If the product is installed in locations that subject it to excessive dust or water other than the designated IP protection rating
indicated(IP54), it may cause malfunction or damage to the product.
• In case of outdoor applications, install the product in the upright position. Do not install the product horizontal or upside-
down positions where water can potentially penetrate into the product and impact it’s operation.
• For further information, please visit our website (www.qlight.com).
Mounting Hole Specications
• Machine holes on the mounting surface referring to the diagram below.
98
74
46
4-Ø5 HOLES

Qlight Co., Ltd. www.qlight.com | [email protected]
Head O󰀩ce | Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea
Tel. [phone](Toll free. [phone]) Fax. [phone]
Factory | 185-25, Mukbang-ro, Sangdong-myeon, Gimhae-si, Gyeongsangnamdo, Korea Tel. [phone](Toll free. [phone])
Qlight OverSEAs Sales Dept | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : [phone]
Qlight Public Relations & Marketing Team O󰀩ce | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel. [phone]
Qlight USA, Inc. www.qlight.com www.qlightusa.com | [email protected]
3003 North First Street, Suite #341, San Jose, CA 95134 USA Tel. +1 - 408 - 519 - 5740 Fax. +1 - 408 - 519 - 5739
SHANGHAI Qlight Electronic Co., Ltd. www.qlight.com www.qlightcn.com | [email protected]
China Factory/ Shanghai Sales O󰀩ce | #19, Nanda Road, Baoshan Area, Shanghai, China Tel. +86 - 21 - 6651 - 7100 Fax. +86 - 21 - 6315 - 3929
China Factory Site 2 (Qidong) | #33, Haiyan Road, Qidong High-tech Industrial Development Zone, Qidong, Jiangsu Province, China
Tel +86 - 513 - 8384 - 9999 Fax +86 - 513 - 8384 - 9910
Product Operation Inquiry / Customer Support [phone]
You can expect prompt service if you have exact information such as model name, symptom, telephone number and address.
※ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Head office : Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea (Postal Code : 08507)
Factory : 185-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-Si, Gyeongsangnam-Do, Korea (Postal Code : 50805)
For your safety
Specication and dimensions listed in this catalogue subject to change without notice for product quality improvement.
The newest product information is available on our website.(www.qlight.com)
Please read the instruction manual attached to the product carefully before installation and use.
www.qlight.com
EN - SKLR - 2106A
