Qomo QWB200-BW User manual

Interactive Whiteboard
Owner’s Manual
Model: QWB200-BW

1
Table of Contents
What’s In The Box ..............................................2
System Requirements........................................3
Introduction ........................................................4
Whiteboard Software Features: ........................5
How to Install Hardware.....................................6
How to Install Software......................................9
Troubleshooting Guide....................................13
Interactive Whiteboard User Tips....................15
Specifications...................................................16

2
What’s In The Box
Thank you for your purchase of the Interactive Whiteboard. If any items are
missing or damaged, please contact your authorized reseller immediately.
CONTENTS:
White Board *1pc Writing Pen *3pc
USB Cable *1pc Floor Stand (Optional) *1set
Installation CD * 1 pc Pen Tray (Optional) * 1 pc
Wall-mounting Bracket (Optional) * 1 set

3
System Requirements
Lowest Environmental Requirements:
·CPU: 300MHz×86
·Memory: 128M
·Display Card: Support 256 or above
·Hard Disk: 100M
·Screen Display Resolution: 800×600,1024×768,
1280×1024
·USB1.1 port
Recommended:
·CPU: 1GHz×86
·Memory: 256M or above
·Display Card: Support 256 or above
·Hard Disk: 500M
·Screen Display Resolution: 1024×768 ,1280×1024
·USB 2.0 port
Software Running Environment: Windows 2000/XP/Vista/7

4
Introduction
Interactive Whiteboard uses infrared technology. Working seamlessly
with a projector and computer, the Interactive Whiteboard provides more
convenient, interactive and effective presentations. Perfect for school
auditoriums, conference rooms, trade shows, symposiums and lecture
halls. Users can write on the screen using the included pens, wand or the
user’s finger.
Writing: Write, draw and perform mouse functions with your finger.
The Whiteboard displays your penmanship instantaneously.
Annotating: The user can operate and annotate over any computer
applications, or save notes directly into Flow! Software, including
PowerPoint, Word, Excel, MPEG JPEG, AVI and etc.
Interacting: In video conferencing, both parties can share data and
write in real time just like a standard conference room. Once
integrated with Polycom or other video conferencing systems, using
Interactive Whiteboard can improve video conference results and
efficiency. The system can support up to 40 writing locations.
Touch System: Interactive Whiteboard is sensitive to pressure and
can be used as a high-resolution interactive white board.
Touch Recognition: Can recognize touch of a single-finger,
multi-finger, right-click, left-click and double click.
Energy conservation: Controls energy cost within 0.5W. No need
for additional power supply.

5
Whiteboard Software Features:
Designed for teaching and conference systems.
The screen display is high light and low glare.
Saves images in Vector image format. Vector images take up less
storage space and makes file transferring easier and faster.
Users can customize pen type, line width, and color schemes to fit
their individual preferences.
Powerful screen functioning supports real-time editing.
Graphic tools allow users to choose a background, input graphics and
images.
Paintbrush pen is pressure sensitive.
Writing file allows for easy conversion to many other formats such as:
PDF, JPG, GIF, PNG, TIFF, BMP, etc.
Graphic tools and Hot Keys allow users to choose a pen to annotate,
or use as a mouse control.
Supports other application software.
Note: The projection area is outlined at the upper left and lower right corner of
the board using these icons（“，”）. Please project onto this area for best
results.

6
How to Install Hardware
Whiteboard Installation. There are two kinds of way to install whiteboard:

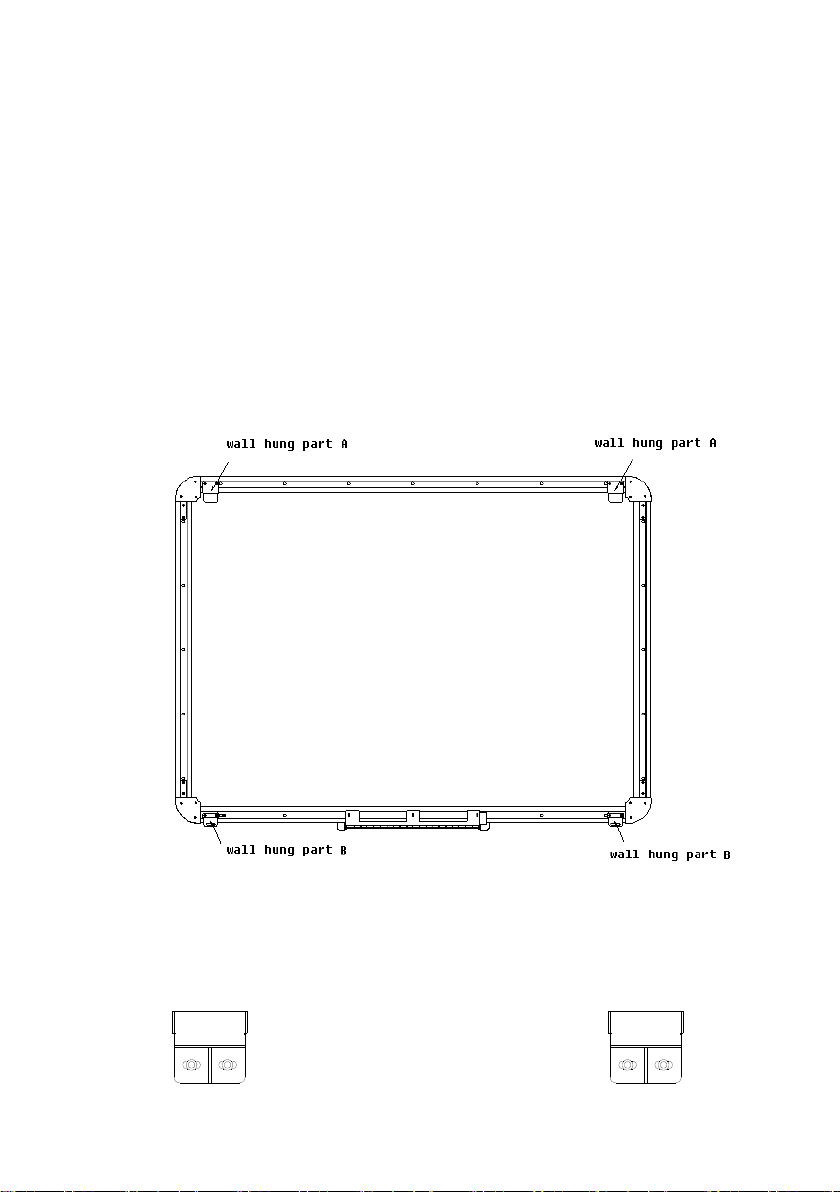

A. Wall mounting installation: There are wall mounting part Aand part B at the
back of the whiteboard, wall mounting B needs to be fixed by screws.(shown
as below)
According to the space between two wall mounting parts A to fix the plates on
wall.

7
After hanging the white board, then according to the actual position to punch
two expansion after fix whiteboard on wall, then according to actual position to
punch for two expansion screws and fix wall mount part B on the wall. (Shown
as below)
B. If you buy a whiteboard with stand, you need install mobile stand on
whiteboard installation, please follow these steps to install:

8
(1) Use screws to assemble the brackets, shown as below.
(2) The wheels are installed in the bottom of the two brackets, shown as
below.
(3) To hang the whiteboard on the stand, there are two kinds of height on the
whiteboard brackets, according to your actual needs to choose.

9
How to Install Software
1. Install Software
Before software installation, please exit anti-virus and protection software
first.

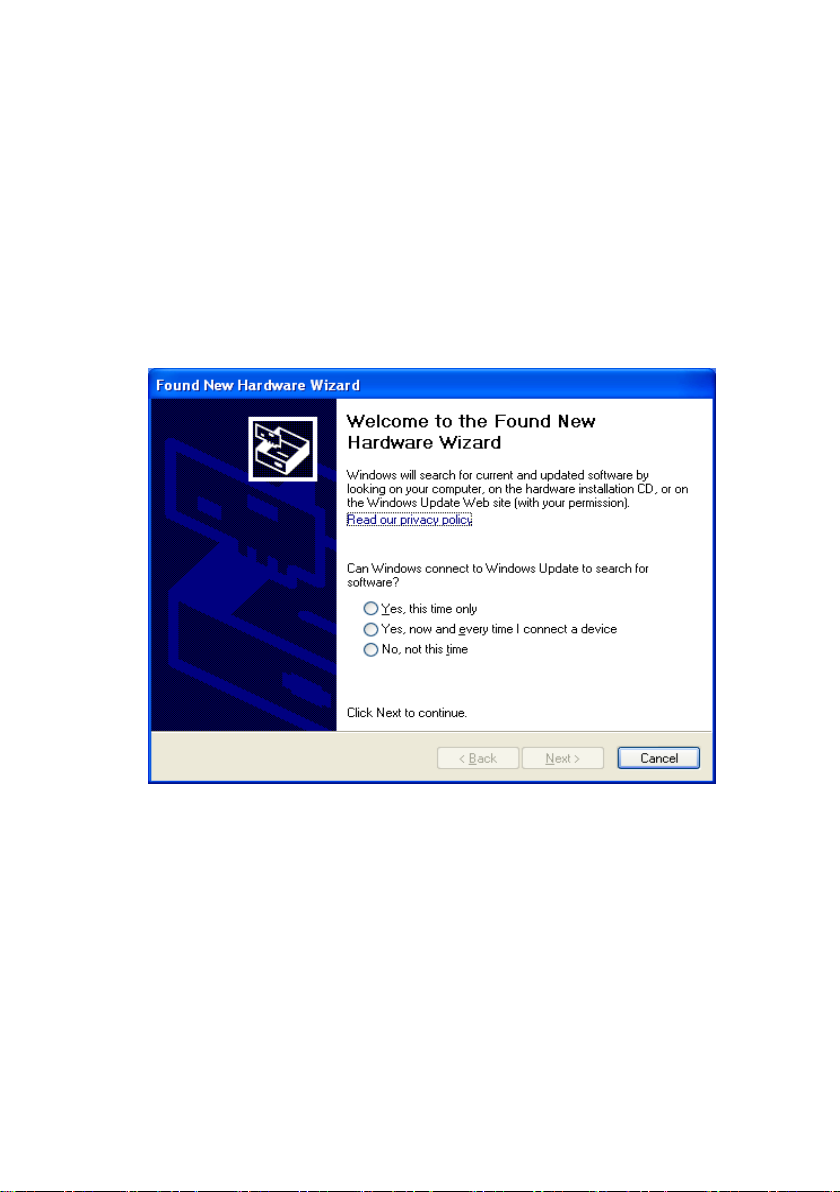

Once whiteboard is connected to computer, the system will prompt “Find
new hardware”, shown as below:
Click “Cancel”, please install software as below:
Insert the installation CD into the computer’s ROM, Double click the disc
software for installation.
After installation is finished, please restart computer to active software.
Please save files before restart.
Once the software is installed an icon will appear in the computer’s windows

10
system tray.
indicates a connection has been made to the whiteboard.
indicates no connection has been made, please check the hardware
connection and USB driver.
Note: Under Windows XP, the USB driver may need to be reinstalled if the
connection to another USB port. Please press “Next” to search USB driver
automatically.
Double-click on the icon to populate the options menu.

11

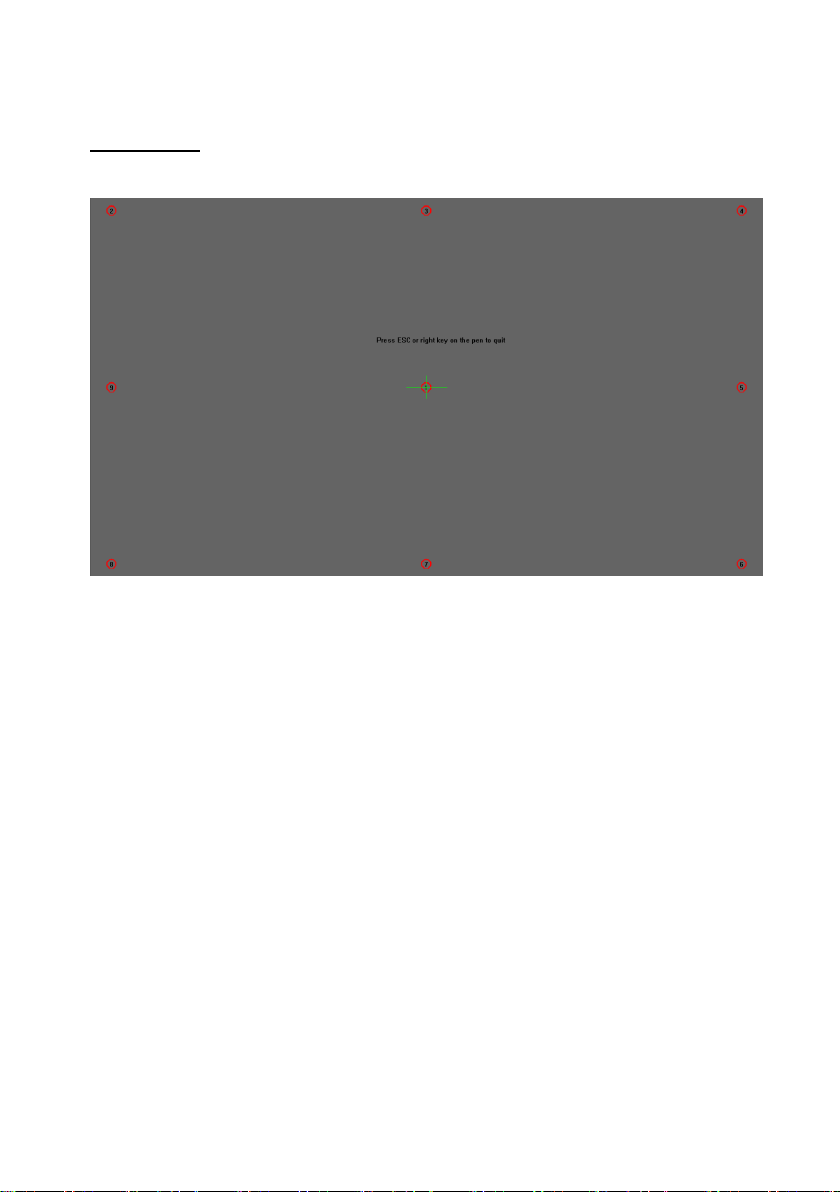

Calibrating
Click the center of the flashing “十” with pen to make four “十”s stop
flashing. This is a successful calibration. And according to the operation
to calibrate the other “十” one by one to finish the Whiteboard calibration.
★Tips:
1. When you use finger to calibrate, it will cause inaccurate calibration,
please use pen to calibrate to get accurate calibration.
2. Wrong calibration may cause whiteboard cannot work, please do
calibration again.
3. During calibration, click the key "ESC” to will cancel the calibration
operation.
4. There is hotkey calibration process if your whiteboard has hotkey, please
do calibration as screen prompt.

12
Exit
When the Interactive whiteboard is no longer needed, click “Exit” to exit the
program and stop whiteboard. When you want to use whiteboard again,
please click to open whiteboard server program from the start menu and
connect the whiteboard.

13
Troubleshooting Guide
Problem
phenomenon
May caused by
Try the following
Whiteboard
does not
work
There is no server
icon on system tray
Does not start server
program
Start server program
Has not install server
program
Install server program
The server icon is in
red
The whiteboard and
computer does not
connect
Connect whiteboard and
computer with USB cable
Whiteboard cannot
pass self test, so
caused whiteboard
cannot connect
Check if there are object
pressed on whiteboard
surface, please move it
away
Something wrong
with driver
Uninstall driver and install
again
The server icon is in
green
Wrong calibration
Calibrate again
When
calibrating,
some
calibration
point can not
been seen
No green crossed
cursor on
whiteboard
There are something
wrong with projector
adjustment so that part
of image is outside the
whiteboard projected
area
Adjust projector
Cannot write
Mouse can move
but no writing stroke
Software is not in
writing mode
Shift to writing mode and
set mouse status as pen
Mouse can move in
desktop operation
mode but cannot
The selected stroke
color is same to or
similar to the
Change stroke color or
background color

14
write under writing
mode
background color
Pen can
operate, but
calibration
has deviation
Whiteboard pen is
accurate in some
place while have big
deviation in some
other place
Calibration is not
accurate
Calibrate again properly
Projection image is not
proper
Adjust projector
Pen can
write, but
operation
speed is
slow
Writing stroke don’t
accord with writing
operation and is
slow than writing
operation
Conflict with anti-virus
software such as Rising
Close the monitoring of
concerned anti-virus
software
Computer run too many
software
Close the software which
will not be used at
present
Computer hardware
configuration is too low
Contact with professional
person to upgrade
computer hardware
Something
wrong with
pen tray
Cannot change pen
stroke color when
pick up or put down
pen
There is dust or other
object on pen tray
Clean pen tray or move
object away
Pen tray is loose or
does not connect well
to whiteboard
Please take off and plug
pen tray, fix screws at the
bottom of pen tray

15
Interactive Whiteboard User Tips
When searching for a specific page among many pages, enter the Page Index
mode and look up this page quickly on the Page Sorter window.
To improve the displaying speed, the size of the image in use should be no
larger than the size of the screen resolution.
If possible, convert the picture that will be inserted into WMF format first. This
operation can improve the displaying speed and reduce distortion when
magnifying or shrinking the image.
In order for the image to be displayed on the screen clearly, set the image
size to the same size as the screen being displayed. For example: If the
screen resolution is 1024×768, the image pixel should be set to1024×768.

16
Specifications
78" Interactive Whiteboard
QWB200
Technology
Infrared
Touch System
Pen, Wand or Finger
Touchable range
1649mm x 1157mm
Resolution
1024 x 1024
Response Time
First dot:25ms,continuous dot:8ms
Cursor Speed
120 inches/second
Coordinate Accuracy
3mm
Consumer Current Active
Area Size (Diagonal)
≤80mA 78"
Port
USB
Dimensions
1818mm x 1325mm
Packing Dimensions
1990 x 1420 x 130mm
Net Weight
25kg
Gross Weight
35kg
Software Drivers
Windows 2000/XP/32/bits vista/7
Accessories
Standard: 3 Interactive Pens (red, black,
blue)
Optional: Floor Stand
Operating Temp
5°F to 122°F (-15°C to 50°C)
Operating Humidity
20~90%
Storage Temp
-40°F to 122°F (-40°C to 50°C)
Storage Humidity
10~95%
