Qstarz 6000s User manual

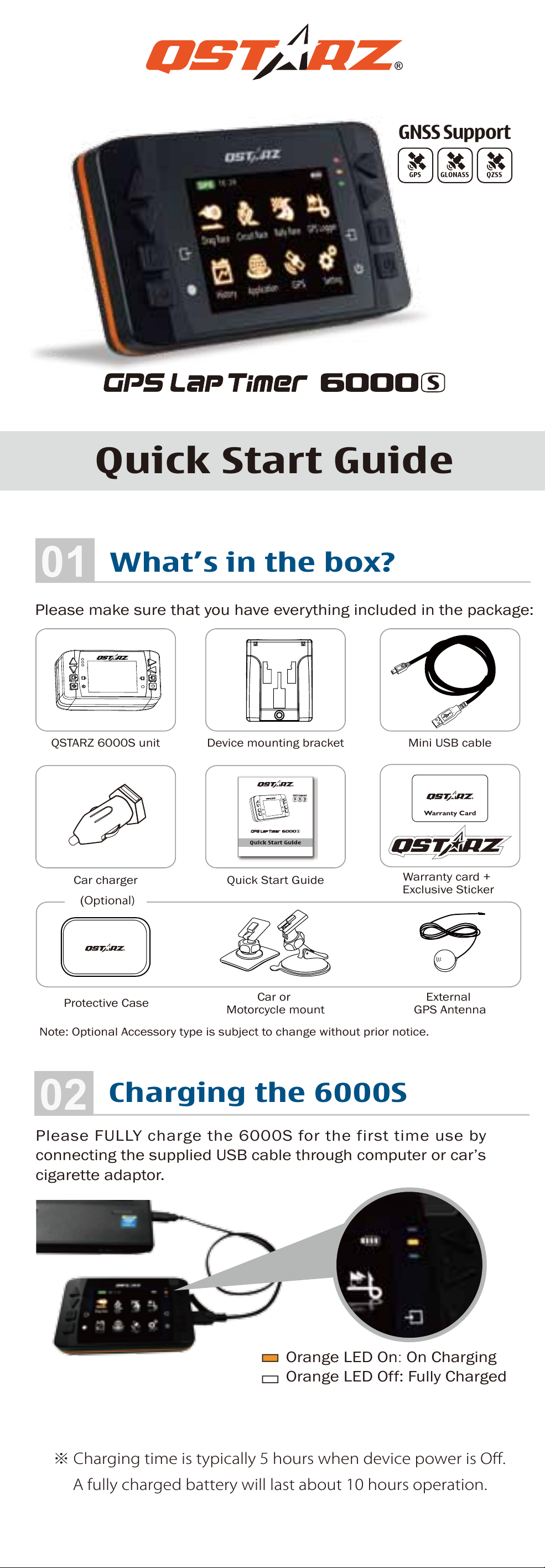

Quick Start Guide
What’s in the box?
GNSS Support
05
Install External GPS antenna
(Optional accessory)
02
Charging the 6000S
Orange LED On: On Charging
Orange LED Off: Fully Charged
04
6000S Car Mount Installation
01
Please make sure that you have everything included in the package:
QSTARZ 6000S unit Device mounting bracket Mini USB cable
Warranty Card
Car charger Quick Start Guide Warranty card +
Exclusive Sticker
Protective Case Car or
Motorcycle mount
03
2
1
4
3 4
5
5
6
3
2
1
7
6
8
7

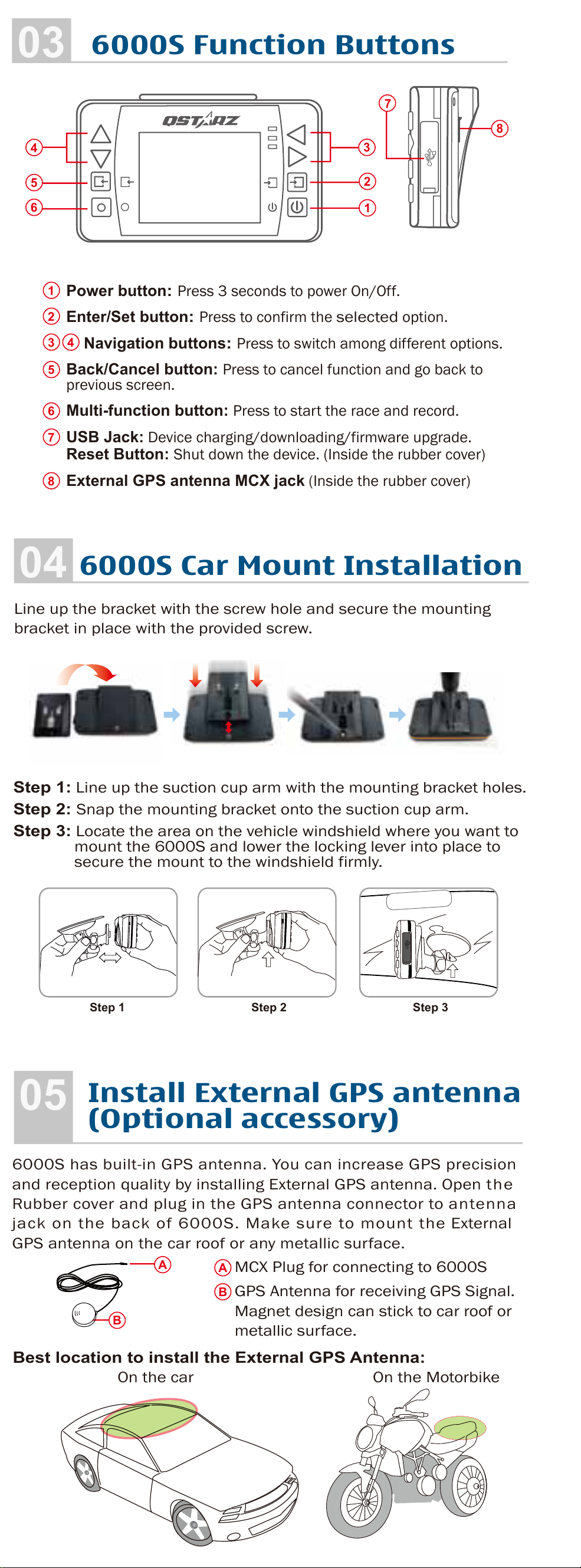

Power button : Press 3 seconds to power On/Off.
Enter/Set button
: Press to confirm the selected option.
Navigation buttons
: Press to switch among different options.
Back/Cancel button: Press to cancel function and go back to
previous screen.
Multi-function button: Press to start the race and record.
USB Jack: Device charging/downloading/firmware upgrade.
Reset Button: Shut down the device. (Inside the rubber cover)
External GPS antenna MCX jack (Inside the rubber cover)
6000S Function Buttons
Step 3Step 2Step 1
1
1
2Select one of the preset Profiles
(0-100 km/h, 400 m,10 sec, or
Custom) you want to use and
press Next button.
24
5
3Select Compare (Best or Last) &
Field option, and press Start
button
3
Use 6000S on Drag Race/Performance test
Use 6000S on the Circuit Race
External
GPS Antenna
Please FULLY charge the 6000S for the first time use by
connecting the supplied USB cable through computer or car’s
cigarette adaptor.
※Chargingtimeistypically5hourswhendevicepowerisOff.
Afullychargedbatterywilllastabout10hoursoperation.
Line up the bracket with the screw hole and secure the mounting
bracket in place with the provided screw.
Step 1: Line up the suction cup arm with the mounting bracket holes.
Step 2: Snap the mounting bracket onto the suction cup arm.
Step 3: Locate the area on the vehicle windshield where you want to
mount the 6000S and lower the locking lever into place to
secure the mount to the windshield firmly.
Set the track’s Beacon Width and
other settings. Then press Start
button.
Once the screen displays Ready
you can start timing your race.
Use the Navigation buttons to
select Circuit Race mode and
press Enter button.
Select one of the preset Profiles
(Practice, Prediction, Race,
Challenge, or Custom) you want
to use and press Next button.
6000S will auto-detect and
display the tracks nearby, select
the track and press Next button.
Acquiring GPS Satellite Signals
6000S is for outdoor use; an open
sky outdoor environment will enable
faster satellite acquisition and
provide better positioning accuracy.
If 6000S cannot detect your track’s
Start/Finish line , you can use attached
QRacing software or go to Qstarz
website to check and update the
latest version.
6000S has built-in GPS antenna. You can increase GPS precision
and reception quality by installing External GPS antenna. Open the
Rubber cover and plug in the GPS antenna connector to antenna
jack on the back of 6000S. Make sure to mount the External
GPS antenna on the car roof or any metallic surface.
MCX Plug for connecting to 6000S
GPS Antenna for receiving GPS Signal.
Magnet design can stick to car roof or
metallic surface.
Best location to install the External GPS Antenna:
On the car On the Motorbike
B
A
B
A
Use the Navigation buttons to
select Drag Race mode and
press Enter button.
8
(Optional)
Note: Optional Accessory type is subject to change without prior notice.
QZSSGLONASSGPS

Quick Start Guide
What’s in the box?
GNSS Support
05
Install External GPS antenna
(Optional accessory)
02
Charging the 6000S
Orange LED On: On Charging
Orange LED Off: Fully Charged
04
6000S Car Mount Installation
01
Please make sure that you have everything included in the package:
QSTARZ 6000S unit Device mounting bracket Mini USB cable
Warranty Card
Car charger Quick Start Guide Warranty card +
Exclusive Sticker
Protective Case Car or
Motorcycle mount
03
2
1
4
3 4
5
5
6
3
2
1
7
6
8
7
Power button : Press 3 seconds to power On/Off.
Enter/Set button
: Press to confirm the selected option.
Navigation buttons
: Press to switch among different options.
Back/Cancel button: Press to cancel function and go back to
previous screen.
Multi-function button: Press to start the race and record.
USB Jack: Device charging/downloading/firmware upgrade.
Reset Button: Shut down the device. (Inside the rubber cover)
External GPS antenna MCX jack (Inside the rubber cover)
6000S Function Buttons
Step 3Step 2Step 1
1
1
2Select one of the preset Profiles
(0-100 km/h, 400 m,10 sec, or
Custom) you want to use and
press Next button.
24
5
3Select Compare (Best or Last) &
Field option, and press Start
button
3
Use 6000S on Drag Race/Performance test
Use 6000S on the Circuit Race
External
GPS Antenna
Please FULLY charge the 6000S for the first time use by
connecting the supplied USB cable through computer or car’s
cigarette adaptor.
※Chargingtimeistypically5hourswhendevicepowerisOff.
Afullychargedbatterywilllastabout10hoursoperation.
Line up the bracket with the screw hole and secure the mounting
bracket in place with the provided screw.
Step 1: Line up the suction cup arm with the mounting bracket holes.
Step 2: Snap the mounting bracket onto the suction cup arm.
Step 3: Locate the area on the vehicle windshield where you want to
mount the 6000S and lower the locking lever into place to
secure the mount to the windshield firmly.
Set the track’s Beacon Width and
other settings. Then press Start
button.
Once the screen displays Ready
you can start timing your race.
Use the Navigation buttons to
select Circuit Race mode and
press Enter button.
Select one of the preset Profiles
(Practice, Prediction, Race,
Challenge, or Custom) you want
to use and press Next button.
6000S will auto-detect and
display the tracks nearby, select
the track and press Next button.
Acquiring GPS Satellite Signals
6000S is for outdoor use; an open
sky outdoor environment will enable
faster satellite acquisition and
provide better positioning accuracy.
If 6000S cannot detect your track’s
Start/Finish line , you can use attached
QRacing software or go to Qstarz
website to check and update the
latest version.
6000S has built-in GPS antenna. You can increase GPS precision
and reception quality by installing External GPS antenna. Open the
Rubber cover and plug in the GPS antenna connector to antenna
jack on the back of 6000S. Make sure to mount the External
GPS antenna on the car roof or any metallic surface.
MCX Plug for connecting to 6000S
GPS Antenna for receiving GPS Signal.
Magnet design can stick to car roof or
metallic surface.
Best location to install the External GPS Antenna:
On the car On the Motorbike
B
A
B
A
Use the Navigation buttons to
select Drag Race mode and
press Enter button.
8
(Optional)
Note: Optional Accessory type is subject to change without prior notice.
QZSSGLONASSGPS

Quick Start Guide
What’s in the box?
GNSS Support
05
Install External GPS antenna
(Optional accessory)
02
Charging the 6000S
Orange LED On: On Charging
Orange LED Off: Fully Charged
04
6000S Car Mount Installation
01
Please make sure that you have everything included in the package:
QSTARZ 6000S unit Device mounting bracket Mini USB cable
Warranty Card
Car charger Quick Start Guide Warranty card +
Exclusive Sticker
Protective Case Car or
Motorcycle mount
03
2
1
4
3 4
5
5
6
3
2
1
7
6
8
7
Power button : Press 3 seconds to power On/Off.
Enter/Set button
: Press to confirm the selected option.
Navigation buttons
: Press to switch among different options.
Back/Cancel button: Press to cancel function and go back to
previous screen.
Multi-function button: Press to start the race and record.
USB Jack: Device charging/downloading/firmware upgrade.
Reset Button: Shut down the device. (Inside the rubber cover)
External GPS antenna MCX jack (Inside the rubber cover)
6000S Function Buttons
Step 3Step 2Step 1
1
1
2Select one of the preset Profiles
(0-100 km/h, 400 m,10 sec, or
Custom) you want to use and
press Next button.
24
5
3Select Compare (Best or Last) &
Field option, and press Start
button
3
Use 6000S on Drag Race/Performance test
Use 6000S on the Circuit Race
External
GPS Antenna
Please FULLY charge the 6000S for the first time use by
connecting the supplied USB cable through computer or car’s
cigarette adaptor.
※Chargingtimeistypically5hourswhendevicepowerisOff.
Afullychargedbatterywilllastabout10hoursoperation.
Line up the bracket with the screw hole and secure the mounting
bracket in place with the provided screw.
Step 1: Line up the suction cup arm with the mounting bracket holes.
Step 2: Snap the mounting bracket onto the suction cup arm.
Step 3: Locate the area on the vehicle windshield where you want to
mount the 6000S and lower the locking lever into place to
secure the mount to the windshield firmly.
Set the track’s Beacon Width and
other settings. Then press Start
button.
Once the screen displays Ready
you can start timing your race.
Use the Navigation buttons to
select Circuit Race mode and
press Enter button.
Select one of the preset Profiles
(Practice, Prediction, Race,
Challenge, or Custom) you want
to use and press Next button.
6000S will auto-detect and
display the tracks nearby, select
the track and press Next button.
Acquiring GPS Satellite Signals
6000S is for outdoor use; an open
sky outdoor environment will enable
faster satellite acquisition and
provide better positioning accuracy.
If 6000S cannot detect your track’s
Start/Finish line , you can use attached
QRacing software or go to Qstarz
website to check and update the
latest version.
6000S has built-in GPS antenna. You can increase GPS precision
and reception quality by installing External GPS antenna. Open the
Rubber cover and plug in the GPS antenna connector to antenna
jack on the back of 6000S. Make sure to mount the External
GPS antenna on the car roof or any metallic surface.
MCX Plug for connecting to 6000S
GPS Antenna for receiving GPS Signal.
Magnet design can stick to car roof or
metallic surface.
Best location to install the External GPS Antenna:
On the car On the Motorbike
B
A
B
A
Use the Navigation buttons to
select Drag Race mode and
press Enter button.
8
(Optional)
Note: Optional Accessory type is subject to change without prior notice.
QZSSGLONASSGPS

Use QRacing software to provide advanced analysis of your race result
14
5
6
Use the replay function to analyze the Track
line between lap 6 and lap 7, and compare
the difference.
Green track: Lap 6 Orange track: Lap 7
3
2
Switch to Analysis section to view and
analyze your lap time, the best result will be
highlighted in blue.
e.g. Fastest lap is the lap 6
Fastest time from S-1 is lap 7
Fastest time from 1-2 is lap 5
Fastest time from 2-f is lap 6
Go to Track section, and analyze the difference
of sector S-1 between lap 6 and lap 7.
In Beacon section, mark the Start/Finish and
Split line on the track. Some of the tracks will
automatically show the Start/Finish line on the
track. You can mark split lines depending on
the track size.
Download your 6000S racing data into the
QRacing software. Select the track you want to
analyze.
7
9
10
8
It will show a mark on both the graph line
and the track line. You can easily see the
difference between laps.
When moving the mouse over the track
line, it will show the Speed, G value, Time
and Distance of that position.
By comparing the data of red mark and green
mark, you can easily compare the track lines
and the difference in acceleration/deceleration
point, thus find out the reason why lap 7 S-1 is
faster than lap 6.
By zooming the data graph, you can compare
the difference between speed, acceleration
and deceleration.
You can move the mouse over graph line and
left click to mark a red, green or white point.
The best lap is lap 6 with 01:40 879, but the
Best Theoretical Time is 01:40 086, which
means there’s a 0.793 time difference that
you can improve.
Turn off 6000S and connect to computer with
USB cable under Internet connection, then
QRacing will check and update software version,
QRacing trackmap, 6000S firmware, and 6000S
AutoMap to the latest version automatically.
(Please DO NOT unplug the USB during checking
and update process to make sure 6000S can
work properly. )
Other than vehicle setting, there are four key points that can affect your race result, and these key points can be analyzed through QRacing software.
1. Track line 2. Deceleration point 3. Acceleration point 4. Speed
You can check out Qstarz website to
get more information of 6000S.
Ver. C EN 2018-12
Product Safety Notice
● Keep the 6000S away from heat or high temperature
environment. Do not operate the device outside
temperature range of -10°C to 60°C.
● To prevent damage, remove the device from the
vehicle after use or store it in the glove box and
keep away from direct sunlight.
● To reduce the risk of fire or shock hazard, do not
expose the device to rain or moisture.
● Do not mount the device in a place where the driver
or passengers may receive injury during vehicle
operation or collision.
● Clean the unit with a dry and clean soft cloth. Do
not use harsh cleaning solvents, chemicals, or
strong detergents.
● Do not attempt to open up 6000S by yourself.
Unauthorized hacking may damage the unit, and
void your warranty.
QRacing software
6000S is bundled with QRacing lap timing
analysis software for PC Windows OS. Install
QRacing software from Qstarz website
(http://racing.qstarz.com/Download.html).
Input product key at first time use. (The
product key is located at Qstarz Warranty
Card)

Use QRacing software to provide advanced analysis of your race result
14
5
6
Use the replay function to analyze the Track
line between lap 6 and lap 7, and compare
the difference.
Green track: Lap 6 Orange track: Lap 7
3
2
Switch to Analysis section to view and
analyze your lap time, the best result will be
highlighted in blue.
e.g. Fastest lap is the lap 6
Fastest time from S-1 is lap 7
Fastest time from 1-2 is lap 5
Fastest time from 2-f is lap 6
Go to Track section, and analyze the difference
of sector S-1 between lap 6 and lap 7.
In Beacon section, mark the Start/Finish and
Split line on the track. Some of the tracks will
automatically show the Start/Finish line on the
track. You can mark split lines depending on
the track size.
Download your 6000S racing data into the
QRacing software. Select the track you want to
analyze.
7
9
10
8
It will show a mark on both the graph line
and the track line. You can easily see the
difference between laps.
When moving the mouse over the track
line, it will show the Speed, G value, Time
and Distance of that position.
By comparing the data of red mark and green
mark, you can easily compare the track lines
and the difference in acceleration/deceleration
point, thus find out the reason why lap 7 S-1 is
faster than lap 6.
By zooming the data graph, you can compare
the difference between speed, acceleration
and deceleration.
You can move the mouse over graph line and
left click to mark a red, green or white point.
The best lap is lap 6 with 01:40 879, but the
Best Theoretical Time is 01:40 086, which
means there’s a 0.793 time difference that
you can improve.
Turn off 6000S and connect to computer with
USB cable under Internet connection, then
QRacing will check and update software version,
QRacing trackmap, 6000S firmware, and 6000S
AutoMap to the latest version automatically.
(Please DO NOT unplug the USB during checking
and update process to make sure 6000S can
work properly. )
Other than vehicle setting, there are four key points that can affect your race result, and these key points can be analyzed through QRacing software.
1. Track line 2. Deceleration point 3. Acceleration point 4. Speed
You can check out Qstarz website to
get more information of 6000S.
Ver. C EN 2018-12
Product Safety Notice
● Keep the 6000S away from heat or high temperature
environment. Do not operate the device outside
temperature range of -10°C to 60°C.
● To prevent damage, remove the device from the
vehicle after use or store it in the glove box and
keep away from direct sunlight.
● To reduce the risk of fire or shock hazard, do not
expose the device to rain or moisture.
● Do not mount the device in a place where the driver
or passengers may receive injury during vehicle
operation or collision.
● Clean the unit with a dry and clean soft cloth. Do
not use harsh cleaning solvents, chemicals, or
strong detergents.
● Do not attempt to open up 6000S by yourself.
Unauthorized hacking may damage the unit, and
void your warranty.
QRacing software
6000S is bundled with QRacing lap timing
analysis software for PC Windows OS. Install
QRacing software from Qstarz website
(http://racing.qstarz.com/Download.html).
Input product key at first time use. (The
product key is located at Qstarz Warranty
Card)

Use QRacing software to provide advanced analysis of your race result
14
5
6
Use the replay function to analyze the Track
line between lap 6 and lap 7, and compare
the difference.
Green track: Lap 6 Orange track: Lap 7
3
2
Switch to Analysis section to view and
analyze your lap time, the best result will be
highlighted in blue.
e.g. Fastest lap is the lap 6
Fastest time from S-1 is lap 7
Fastest time from 1-2 is lap 5
Fastest time from 2-f is lap 6
Go to Track section, and analyze the difference
of sector S-1 between lap 6 and lap 7.
In Beacon section, mark the Start/Finish and
Split line on the track. Some of the tracks will
automatically show the Start/Finish line on the
track. You can mark split lines depending on
the track size.
Download your 6000S racing data into the
QRacing software. Select the track you want to
analyze.
7
9
10
8
It will show a mark on both the graph line
and the track line. You can easily see the
difference between laps.
When moving the mouse over the track
line, it will show the Speed, G value, Time
and Distance of that position.
By comparing the data of red mark and green
mark, you can easily compare the track lines
and the difference in acceleration/deceleration
point, thus find out the reason why lap 7 S-1 is
faster than lap 6.
By zooming the data graph, you can compare
the difference between speed, acceleration
and deceleration.
You can move the mouse over graph line and
left click to mark a red, green or white point.
The best lap is lap 6 with 01:40 879, but the
Best Theoretical Time is 01:40 086, which
means there’s a 0.793 time difference that
you can improve.
Turn off 6000S and connect to computer with
USB cable under Internet connection, then
QRacing will check and update software version,
QRacing trackmap, 6000S firmware, and 6000S
AutoMap to the latest version automatically.
(Please DO NOT unplug the USB during checking
and update process to make sure 6000S can
work properly. )
Other than vehicle setting, there are four key points that can affect your race result, and these key points can be analyzed through QRacing software.
1. Track line 2. Deceleration point 3. Acceleration point 4. Speed
You can check out Qstarz website to
get more information of 6000S.
Ver. C EN 2018-12
Product Safety Notice
● Keep the 6000S away from heat or high temperature
environment. Do not operate the device outside
temperature range of -10°C to 60°C.
● To prevent damage, remove the device from the
vehicle after use or store it in the glove box and
keep away from direct sunlight.
● To reduce the risk of fire or shock hazard, do not
expose the device to rain or moisture.
● Do not mount the device in a place where the driver
or passengers may receive injury during vehicle
operation or collision.
● Clean the unit with a dry and clean soft cloth. Do
not use harsh cleaning solvents, chemicals, or
strong detergents.
● Do not attempt to open up 6000S by yourself.
Unauthorized hacking may damage the unit, and
void your warranty.
QRacing software
6000S is bundled with QRacing lap timing
analysis software for PC Windows OS. Install
QRacing software from Qstarz website
(http://racing.qstarz.com/Download.html).
Input product key at first time use. (The
product key is located at Qstarz Warranty
Card)

Use QRacing software to provide advanced analysis of your race result
14
5
6
Use the replay function to analyze the Track
line between lap 6 and lap 7, and compare
the difference.
Green track: Lap 6 Orange track: Lap 7
3
2
Switch to Analysis section to view and
analyze your lap time, the best result will be
highlighted in blue.
e.g. Fastest lap is the lap 6
Fastest time from S-1 is lap 7
Fastest time from 1-2 is lap 5
Fastest time from 2-f is lap 6
Go to Track section, and analyze the difference
of sector S-1 between lap 6 and lap 7.
In Beacon section, mark the Start/Finish and
Split line on the track. Some of the tracks will
automatically show the Start/Finish line on the
track. You can mark split lines depending on
the track size.
Download your 6000S racing data into the
QRacing software. Select the track you want to
analyze.
7
9
10
8
It will show a mark on both the graph line
and the track line. You can easily see the
difference between laps.
When moving the mouse over the track
line, it will show the Speed, G value, Time
and Distance of that position.
By comparing the data of red mark and green
mark, you can easily compare the track lines
and the difference in acceleration/deceleration
point, thus find out the reason why lap 7 S-1 is
faster than lap 6.
By zooming the data graph, you can compare
the difference between speed, acceleration
and deceleration.
You can move the mouse over graph line and
left click to mark a red, green or white point.
The best lap is lap 6 with 01:40 879, but the
Best Theoretical Time is 01:40 086, which
means there’s a 0.793 time difference that
you can improve.
Turn off 6000S and connect to computer with
USB cable under Internet connection, then
QRacing will check and update software version,
QRacing trackmap, 6000S firmware, and 6000S
AutoMap to the latest version automatically.
(Please DO NOT unplug the USB during checking
and update process to make sure 6000S can
work properly. )
Other than vehicle setting, there are four key points that can affect your race result, and these key points can be analyzed through QRacing software.
1. Track line 2. Deceleration point 3. Acceleration point 4. Speed
You can check out Qstarz website to
get more information of 6000S.
Ver. C EN 2018-12
Product Safety Notice
● Keep the 6000S away from heat or high temperature
environment. Do not operate the device outside
temperature range of -10°C to 60°C.
● To prevent damage, remove the device from the
vehicle after use or store it in the glove box and
keep away from direct sunlight.
● To reduce the risk of fire or shock hazard, do not
expose the device to rain or moisture.
● Do not mount the device in a place where the driver
or passengers may receive injury during vehicle
operation or collision.
● Clean the unit with a dry and clean soft cloth. Do
not use harsh cleaning solvents, chemicals, or
strong detergents.
● Do not attempt to open up 6000S by yourself.
Unauthorized hacking may damage the unit, and
void your warranty.
QRacing software
6000S is bundled with QRacing lap timing
analysis software for PC Windows OS. Install
QRacing software from Qstarz website
(http://racing.qstarz.com/Download.html).
Input product key at first time use. (The
product key is located at Qstarz Warranty
Card)
