Quadra-Fire 4300 Series User manual

1February 19, 20207037-801B
R
4300 SERIES
WOOD APPLIANCES
AUTOMATIC COMBUSTION
CONTROL (ACC)
MODEL NUMBERS:
43M-ACC-C
43ST-ACC-C
Installation Manual
Installation & Appliance Set-Up
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT DISCARD THIS MANUAL
Installation and service of this appliance should be performed by
qualified personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certified professionals.
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
WARNING
Hot glass and appliance will cause burns.
• Do not touch glass until it is cooled
• Use leather gloves when reloading fuel
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room
as appliance.
• Alert children and adults to hazards of
high temperatures
• High temperatures may ignite clothing or other
ammable materials.
• Keep clothing, furniture, draperies and other
ammable materials away.
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may over re and generate
poisonous gases (i.e. carbon monoxide).
If the information in these instructions is
not followed exactly, a re could result
causing property damage, personal injury,
or death.
WARNING
• Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any
other appliance.
• Do not over re - If appliance or chimney connector
glows, you are over ring. Over ring will void
your warranty.
• Comply with all minimum clearances to combustibles
as specied.
Failure to comply may cause house re.
NOTE: To obtain a French translation of this
manual, please contact your dealer or visit
www.quadrare.com
REMARQUE : Pour obtenir une traduction française de
ce manuel, s’il vous plaît contacter votre
revendeur ou visitez www.quadrare.com

2February 19, 20207037-801B
TABLE OF CONTENTS
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Indicates practices which may cause damage to the appliance or to property.
Quadra-Fire is a registered trademark of Hearth & Home Technologies.
1 Important Safety Information............. 3
A. Appliance Safety Certication ..................3
B. Appliance Emissions Certication ...............3
C. BTU & Efciency Specications ................3
D. Mobile Home Approved.......................4
E. Glass Specications .........................4
F. Non-Combustible Materials ....................4
G. Combustible Materials .......................4
H. Sleeping Room .............................4
I. California - Prop65 ...........................4
2 Getting Started .................................... 5
A. Design and Installation Considerations ...........5
B. Fire Safety .................................5
C. Negative Pressure...........................5
D. Tools And Supplies Needed ...................6
E. Inspection of Appliance and Components .........6
F. Removal of Appliance from Shipping Materials .....7
G. Install Checklist .............................8
3 Dimensions and Clearances.............. 9
A. Appliance Dimensions ........................9
B. Hearth Protection Requirements ...............13
C. Clearances to Combustibles ..................15
4 Chimney Systems ............................. 16
A. Locating Your Appliance & Chimney ............16
B. Chimney Termination Requirements ............17
C. 2-10-3 Rule ...............................17
D. Chimney Height / Rise and Run ...............18
E. Venting Components ........................18
F. Chimney Systems ..........................18
G. Installing Chimney Components ...............20
H. Proper Draft...............................20
5 Appliance Set-Up .............................. 21
A. Pedestal Assembly & ARS Installation ..........21
B. Access Cover Handle .......................23
C. Leg Kit & ARS Installation ....................23
D. Traditional Leg Installation ...................25
E. Outside Air Kit Installation ....................26
F. Door Handle Assembly ......................27
G. Blower (Optional) ..........................28
6 Mobile Home Installation.................. 29
7 Reference Materials.......................... 30
A. Service & Maintenance Log ..................30
B. 4300 Millennium Accessories .................34
C. 4300 Step Top Accessories ...................35

3February 19, 2020 7037-801B
A. Appliance Safety Certication
B. Appliance Emissions Certication
C. BTU & Efciency Specications
Model: 43M-ACC-C & 43ST-ACC-C
Laboratory: OMNI Test Laboratories, Inc.
Report Number: 0061WS067S
Type: Listed Room Appliance, Solid
Fuel Type
Standard:
UL1482-11 (R2015), ULC S627-00
and (UM) 84-HUD,
Mobile Home Approved.
Model: 43M-ACC-C & 43ST-ACC-C
Laboratory: PFS-TECO
Report Number: 19-538
Standard: Method 28 and 5G, and
ASTM E2515
Can be found at:
www.quadrare.com/about-us/epa-certication
This wood appliance needs periodic inspection and repair for proper operation. Consult the owner’s manual for further
information. It is against federal regulations to operate this wood heater in a manner inconsistent with the operating
instructions in the owner’s manual.
NOTE: This installation must conform with local codes. In the absence of local codes you must comply with (UM) 84-
HUD and NFPA211 in the U.S.A. and CAN/CSA-B365 Installation Codes in Canada.
1 Important Safety Information
EPA Certication
Number: Number: N/A
EPA Certied
Emissions: 1.6 grams per hour
*LHV Tested Efciency: 80.2%
**HHV Tested Efciency: 74.2%
***EPA BTU Output: 13,200 to 36,800 / hr.
****Peak BTU/Hour
Output: 61,700
Vent Size: 6 inches
Firebox Size: 2.26 cubic feet
Recommended Log
Length 18 inches
Fuel: Seasoned Cordwood
(20% moisture)
* Weighted average LHV (Low Heating Value) efciency
using Douglas Fir dimensional lumber and data collected
during EPA emission tests in accordance with the
requirements of CSA B415.1. LHV assumes the moisture
is already in a vapor state so there is no loss in energy to
vaporize.
** Weighted average HHV (High Heating Value) efciency
using Douglas Fir dimensional lumber and data collected
during EPA emission tests in accordance with the
requirements of CSA B415.1. HHV includes the energy
required to vaporize the water in the fuel.
*** A range of BTU outputs calculated using HHV
Efciency and the burn rates from the EPA tests, using
Douglas Fir dimensional lumber.
**** A peak BTU out of the appliance calculated using
the maximum rst hour burn rate from the High EPA Test
and BTU content of seasoned cordwood (8600) times
the efciency.
The 43M-ACC-C & 43ST-ACC-C
are Certied to comply with
2020 crib wood particulate
emission standards.

4February 19, 20207037-801B
E. Glass Specications
This appliance is equipped with 5mm ceramic glass.
Replace glass only with 5mm ceramic glass. Please
contact your dealer for replacement glass.
D. Mobile Home Approved
H. Sleeping Room
I. California - Prop65
• This appliance is approved for mobile home
installations; when not installed in a sleeping room and
when an outside combustion air inlet is provided.
• The structural integrity of the mobile home oor, ceiling,
and walls must be maintained.
• The appliance must be properly grounded to the frame
of the mobile home with #8 copper ground wire, and
chimney must be listed to UL103 HT or a listed UL-
1777 full length six inch (152mm) diameter liner must
be used.
• Outside Air Kit, part OAK-ACC must be installed in a
mobile home installation.
Hearth & Home Technologies WILL NOT warranty
appliances that exhibit evidence of over-ring. Evidence
of over-ring includes, but is not limited to:
• Warped air tube
• Deteriorated refractory brick retainers
• Deteriorated bafe and other interior components
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
For assistance or additional information, consult a qualied
installer, service agency or your dealer.
• Installation and use of any damaged appliance.
• Modication of the appliance.
• Installation other than as instructed by Hearth &
Home Technologies.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
• Operating appliance without fully assembling
all components.
• Operating appliance without legs attached (if
supplied with appliance).
• Do NOT Over re - If appliance or chimney connector
glows, you are over ring.
Any such action that may cause a re hazard.
WARNING
Fire Risk
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
WARNING
This product and the fuels used to operate this product (wood), and
the products of combustion of such fuels, can expose you to
chemicals including carbon black, which is known to the State of
California to cause cancer, and carbon monoxide, which is known to
the State of California to cause birth defects or other reproductive
harm. For more information go to: WWW.P65Warnings.ca.gov
F. Non-Combustible Materials
Material which will not ignite and burn, composed of any
combination of the following:
- Steel
- Plaster
- Brick
- Iron
- Concrete
- Tile
- Glass
- Slate
Materials reported as passing ASTM E 136, Standard
Test Method for Behavior of Metals, in a Vertical Tube
Furnace of 750° C.
G. Combustible Materials
Material made of/or surfaced with any of the
following materials:
- Wood
- Compressed Paper
- Plant Fibers
- Plastic
- Plywood/OSB
- Sheet Rock (drywall)
Any material that can ignite and burn: ame proofed or not,
plastered or non-plastered.
NOTE: Hearth & Home Technologies, manufacturer
of this appliance, reserves the right to alter
its products, their specications and/or price
without notice.
When installed in a sleeping room it is recommended that
a smoke and/or CO alarm be installed in the bedroom. The
size of the room must be at least 50ft³ per 1,000 Btu/hr
stove input, if the stove exceeds the room size, outside air
must be installed.

5February 19, 2020 7037-801B
Install Guide
2 Getting Started
A. Design and Installation Considerations
Consideration must be given to:
• Safety
• Convenience
• Trafc ow
• Chimney and chimney connector required
It is a good idea to plan your installation on paper, using
exact measurements for clearances and oor protection,
before actually beginning the installation. If you are not
using an existing chimney, place the appliance where there
will be a clear passage for a factory-built listed chimney
through the ceiling and roof.
We recommend that a qualied building inspector and
your insurance company representative review your plans
before and after installation.
If this appliance is in an area where children may be near
it is recommended that you purchase a decorative barrier
to go in front of the appliance. Remember to always keep
children away while it is operating and do not let anyone
operate this appliance unless they are familiar with these
operating instructions.
NOTICE: Hearth & Home Technologies assumes no
responsibility for the improper performance of
the appliance system caused by:
• Inadequate draft due to environmental conditions
• Down drafts
• Tight sealing construction of the structure
• Mechanical exhausting devices
• Over drafting caused by excessive chimney heights
• Ideal performance is with height of chimney between
14-16 feet (4.26-4.88m) measured from the base of
the appliance.
C. Negative Pressure
B. Fire Safety
To provide reasonable re safety, the following should be
given serious consideration:
1. Install at least one smoke detector on each oor of
your home to ensure your safety. They should be
located away from the heating appliance and close
to the sleeping areas. Follow the smoke detector
manufacturer’s placement and installation instructions,
and be sure to maintain regularly.
2. A conveniently located Class A re extinguisher to
contend with small res resulting from burning embers.
3. A CO detector should be installed in the room with
the appliance.
4. A practiced evacuation plan, consisting of at least two
escape routes.
5. A plan to deal with a chimney re as follows:
- In the event of a chimney re:
– Evacuate the house immediately
– Notify re department.
Negative pressure results from the imbalance of air
available for the appliance to operate properly. It can be
strongest in lower levels of the house.
Causes include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustion air requirements for furnaces, water
appliances and other combustion appliances
• Clothes dryers
• Location of return-air vents to furnace or air
conditioning
• Imbalances of the HVAC air handling system
• Upper level air leaks such as:
- Recessed lighting
- Attic hatch
- Duct leaks
Check building codes prior to installation.
• Installation MUST comply with local, regional, state
and national codes and regulations.
• Consult insurance carrier, local building, re ofcials
or authorities having jurisdiction about restrictions,
installation inspection, and permits.
CAUTION
WARNING
Asphyxiation Risk.
• Negative pressure can cause spillage
of combustion fumes, soot and
carbon monoxide.
• Appliance needs to draft properly
for safety.
WARNING
Asphyxiation Risk.
• Do NOT connect this appliance to a
chimney ue servicing another appliance.
• Do NOT connect to any air distribution
duct or system.
May allow ue gases to enter the house.

6February 19, 20207037-801B
To minimize the effects of negative air pressure:
• Install optional outside air kit with the intake facing
prevailing winds during the heating season
• Ensure adequate outdoor air for all combustion
appliances and exhaust equipment
• Ensure furnace and air conditioning return vents are
not located in the immediate vicinity of the appliance
• Avoid installing the appliance near doors, walkways or
small isolated spaces
• Recessed lighting should be a “sealed can” design
• Attic hatches weather stripped or sealed
• Attic mounted duct work and air handler joints and
seams taped or sealed
• Basement installations should be avoided
D. Tools And Supplies Needed
Before beginning the installation be sure the following tools
and building supplies are available:
- Reciprocating saw
- Framing material
- Pliers
- High temp caulking material
- Hammer
- Gloves
- Phillips screwdriver
- Framing square
- Flat blade screwdriver
- Electric drill and bits
- Plumb line
- Safety glasses
- Level
- Tape measure
- Miscellaneous screws and nails
- 7/16 socket or wrench
- 1/2-3/4 in. length, #6 or #8 self-drilling screws
• Remove appliance and components from packaging
and inspect for damage.
• Report to your dealer any parts damaged in shipment.
• Read all the instructions before starting the
installation. Follow these instructions carefully
during the installation to ensure maximum safety
and benet.
E. Inspection of Appliance and Components
WARNING
Fire Risk.
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
• Installation and use of any damaged appliance.
• Modication of the appliance.
• Installation other than as instructed by Hearth &
Home Technologies.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
• Operating appliance without fully assembling
all components.
• Operating appliance without legs attached (if supplied
with appliance).
• Do NOT Over re - If appliance or chimney connector
glows, you are over ring.
Any such action that may cause a re hazard.

7February 19, 2020 7037-801B
Figure 7.1
Figure 7.2
Millennium:
1. Remove box and 2x4 structural boards being careful
not to damage product.
2. Using 7/16 inch socket or wrench remove one bolt
located inside front part of appliance (Figure 7.1).
3. Moving to the back of the appliance and using 7/16
inch socket or wrench remove two bolts (Figure 7.1).
4. Carefully pull appliance off of pallet and put in desired
location following Hearth Pad on page 13 and
Clearance to Combustibles on page 15.
F. Removal of Appliance from Shipping
Materials
2
3
Lag boltLag bolt
Mounting
bracket
Step Top:
1. Remove box and 2x4 structural boards being careful
not to damage product.
2. Using 7/16 inch socket or wrench, remove and discard
the two lag bolts from mounting brackets; one on
each side, that is attaching the appliance to the pallet
(Figure 7.2).
3. Carefully pull appliance off of pallet and lay appliance
on back side on a protective surface.
4. Reference Appliance Set-Up on page 21 for ash
removal system, leg or pedestal attachment options.
5. After appliance is completely assembled place in
desired location following Hearth Pad on page 14 and
Clearance to Combustibles on page 15.
Fire Risk.
Inspect appliance and components for
damage. Damaged parts may impair
safe operation.
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
WARNING

8February 19, 20207037-801B
G. Install Checklist
ATTENTION INSTALLER:
Follow this Standard Work Checklist
This standard work checklist is to be used by the installer in conjuction with, not instead of, the instructions contained in this installation manual.
Customer:
Date Installed:
Lot / Address:
Location of Appliance:
Installer:
Dealer / Distributor Phone #:
Serial #:
Model:
WARNING! Risk of Fire or Explosion! Failure to install appliance according to these instructions can lead to a fire or explosion.
Appliance Install
Verified clearances to combustibles.
Appliance is leveled and connector is secured to appliance.
Hearth extension size/height decided.
Outside air kit installed.
Floor protection requirements have been met.
If appliance is connected to a masonry chimney, it should be cleaned and
inspected by a professional. If installed to a factory built metal chimney, the
chimney must be installed according to the manufacturer’s instructions and
clearances.
Chimney
Chimney configuration complies with diagrams.
Chimney installed, locked and secured in place with proper clearance.
Chimney meets recommended height requirements (14-16 feet).
Roof flashing installed and sealed.
Terminations installed and sealed.
Clearances
Combustible materials not installed in non-combustible areas.
Verified all clearances meet installation manual requirements.
Mantels and wall projections comply with installation manual requirements.
Protective hearth strips and hearth extension installed per manual requirements.
Appliance Setup
All packaging and protective materials removed.
Firebrick, baffle and ceramic blanket installed correctly.
All labels have been removed from the door.
All packaging materials are removed from inside/under the appliance.
Manual bag and all of its contents are removed from inside/under the appliance
and given to the party responsible for use and operation.
Hearth & Home Technologies recommends the following:
• Photographing the installation and copying this checklist for your file.
• That this checklist remain visible at all times on the appliance until the installation is complete.
Comments: Further description of the issues, who is responsible (Installer/Builder/Other Trades, etc.) and corrective action needed:
Comments communicated to party responsible ____________________________ by _____________________ on ___________
(Builder / Gen. Contractor) (Installer) (Date)
_________________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
________________________________________________________________________
___________________________________________________________________________________
___________________________________________________________________
___________________________________________________________________________________
____________________________________________________________________________________
YES IF NO, WHY?
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________

9February 19, 2020 7037-801B
Figure 9.1 - Front View
3 Dimensions and Clearances
A. Appliance Dimensions
26-1/4 in [667mm]
30-1/2 in
[773mm]
15-1/8 in [ 383mm]
11 in
[278mm]
21 in [533mm]
43M-ACC-C
Figure 9.2 - Side View
NOTE: Flue Collar size is 6 inch (152mm) diameter (ID)
32-1/4 in
[820mm]
26-3/8 in [668mm]
28-5/8 in [728mm]
19-3/4 in [501mm]
Figure 9.3 - Top View
6-3/4 in
[170mm]
13-1/8 in
[333mm]
3-5/8 in
[92mm]

10 February 19, 20207037-801B
Figure 10.1 - Front View
15-1/8 in (383mm)15-1/8 in (383mm)
21 in (533mm)21 in (533mm)
11 in
(278mm)
11 in
(278mm)
34-1/4 in
(868mm)
34-1/4 in
(868mm)
26 in (660mm)
26 in (660mm)

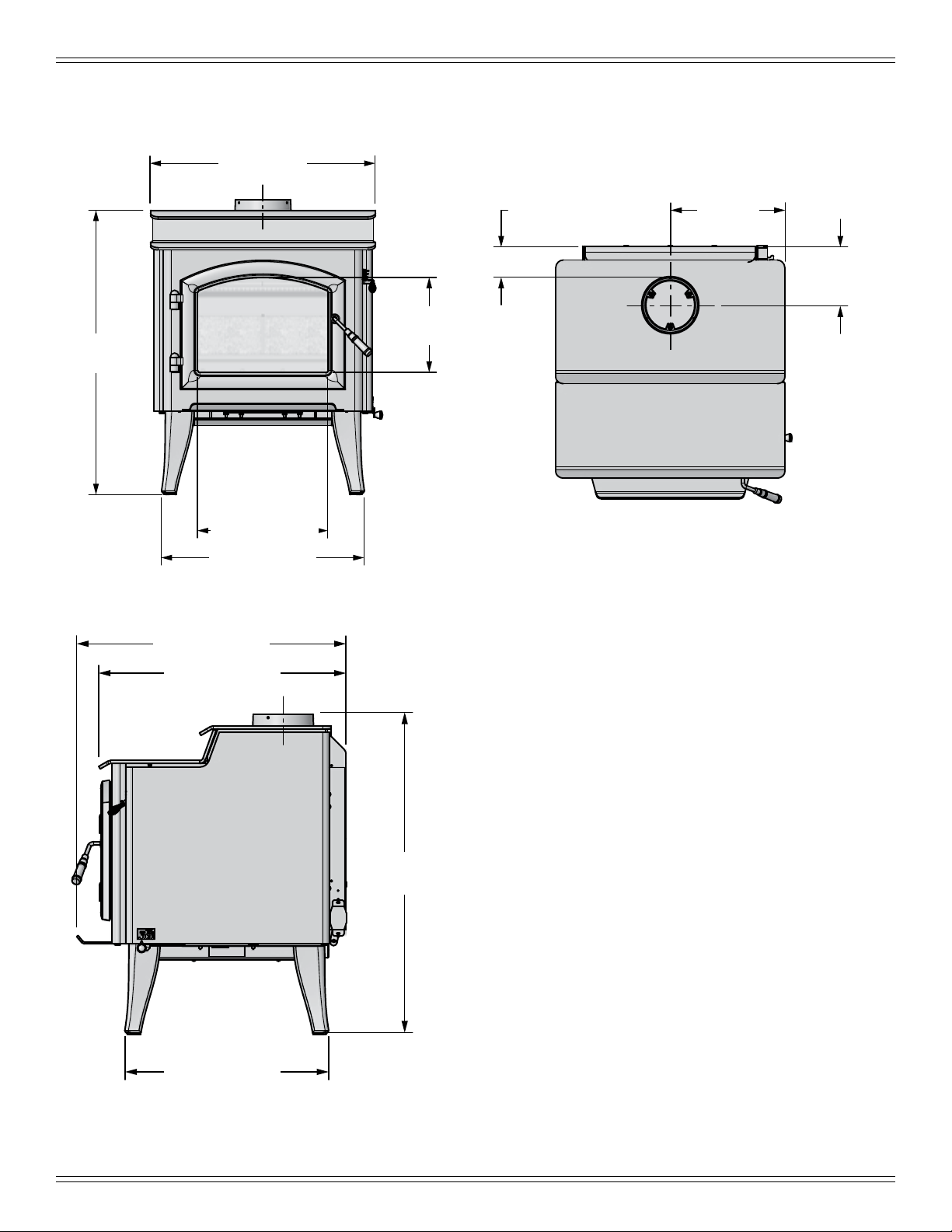

43ST-ACC-C WITH PED-KIT-43 (PEDESTAL KIT)
Figure 10.2 - Side View
26-3/8 in [668mm]
28-5/8 in [728mm]
19-3/4 in [501mm]
35-1/2 in
[900mm]
Figure 10.3 - Top View
13 in
[330mm]
3-1/2 in
[87mm]
6-3/4 in
[170mm]

11February 19, 2020 7037-801B
11 in
[278mm]
26 in [660mm]
32-7/8 in
[834mm]
25 in [636mm]
15-1/8 in [383mm]
Figure 11.1 - Front View

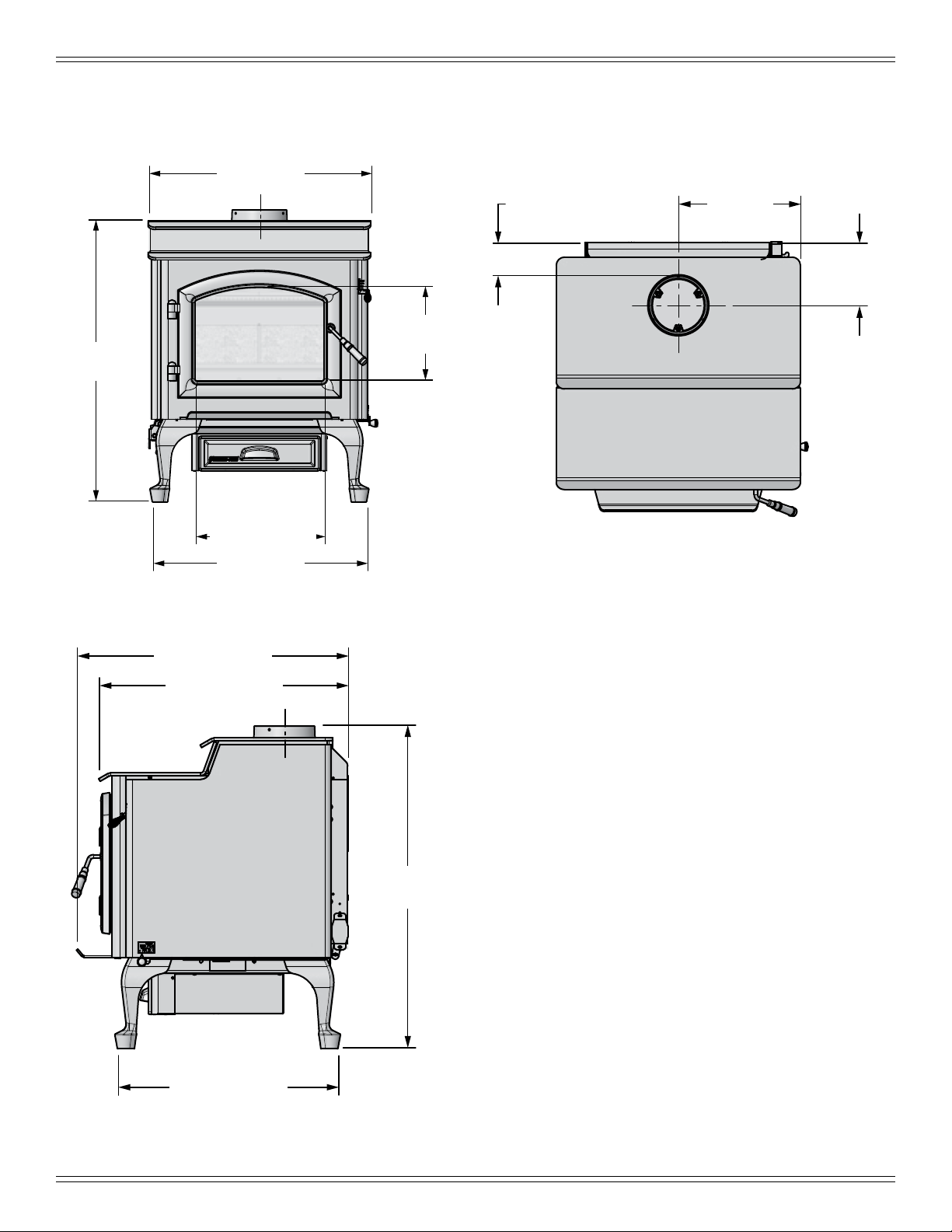

43ST-ACC-C WITH LEG-KIT-BK OR LEG-KIT-NL (QUEEN ANNE LEG KIT)
Figure 11.2 - Side View
34-1/8 in
[866mm]
26-3/8 in [668mm]
28-5/8 in [728mm]
23-1/4 in [592mm]
Figure 11.3 - Top View
13 in
[330mm]
3-1/2 in
[87mm]
6-3/4 in
[170mm]

12 February 19, 20207037-801B
Figure 12.2 - Side View
Figure 12.1 - Front View
43ST-ACC-C WITH TRAD-LEG-BK (TRADITIONAL LEG KIT)
26 in [660mm]
11 in
[278mm]
32-7/8 in
[834mm]
15-1/8 in [383mm]
23-3/8 in [595mm]
34-1/8 in
[866mm]
28-5/8 in [728mm]
26-3/8 in [668mm]
21-5/8 in [550mm]
Figure 12.3 - Top View
13 in
[330mm]
3-1/2 in
[87mm]
6-3/4 in
[170mm]

13February 19, 2020 7037-801B
B. Hearth Protection Requirements In Canada, similar oor protection must be provided
18 inches (457mm) in front and 8 inches (203mm)
from the sides and rear of the appliance unless the
hearth pad is placed against the wall (for 43M-ACC-C
see Figure 13.2 on page 13 or for 43ST-ACC-C see 14.2
on page 14). Then the clearance may be reduced using
double wall pipe and the Clearance to Combustibles table
listed on page 15.
*Exception: Non-combustible oor protector must extend
beneath the ue pipe when installed with horizontal
venting and extend 2 inches (51mm) beyond each side
(for 43M-ACC-C see Figure 13.2 on page 13 or for
43ST-ACC-C see 14.2 on page 14).
EMBER PROTECTION: Ember protection shall be either a
Type 1 oor protector or made of non-combustible material
to the requirements below.
Floor protector must be non-combustible material,
extending beneath appliance with a minimum of 16 inches
(406mm) in front of glass and 8 inches (203mm) to both
sides of the fuel loading door. Open the door and measure
8 inches (203mm) from the side edge of the opening in the
face of the appliance. *See exception.
WARNING
Fire Risk.
Hearth pads must be installed exactly as
specied. High temperatures or hot embers
may ignite concealed combustibles.

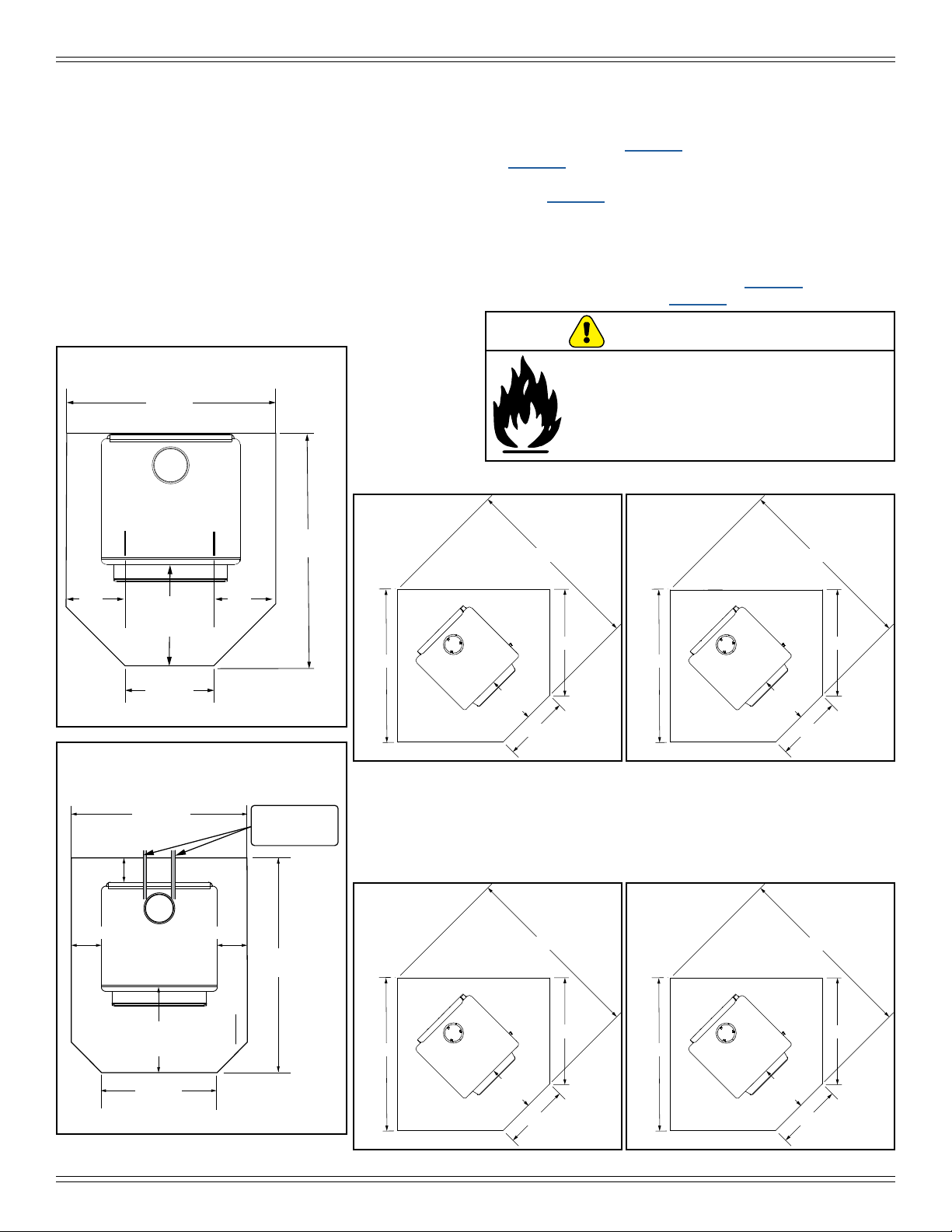

43M-ACC-C
Figure 13.4
Figure 13.3 Figure 13.5
Figure 13.6
Corner hearth pad dimensions with single wall pipe
Corner hearth pad dimensions with double wall pipe
**These dimensions will vary
depending installation.
Figure 13.1
USA, minimum at wall hearth
pad dimensions
16 in
from fuel
loading door
16 in
from fuel
loading door
8 in8 in
31-5/8 in
minimum
31-5/8 in
minimum
41 in
minimum
41 in
minimum
8 in8 in
Fuel loading door
Fuel loading door
15-5/8 in
minimum
USA
16 in.
from the fuel door
opening
50-1/4 in
63-1/4 in
39 in
15-5/8 in
USA
16 in.
from the fuel door
opening
50-1/4 in
63-1/4 in
39 in
15-5/8 in
CANADA
457mm
from the fuel door
opening
1405mm
1657mm
938mm
660mm
CANADA
457mm
from the fuel door
opening
1405mm
1657mm
938mm
660mm
Figure 13.2
**Canada, at wall hearth pad
dimensions with double wall
horizontal venting
203mm203mm
203mm
457mm
from fuel door
opening
1066mm
minimum
1295mm
minimum
660mm
minimum
660mm
minimum
Must extend 51mm
beyond each side of
pipe (shaded area) to
the wall thimble.
Must extend 51mm
beyond each side of
pipe (shaded area) to
the wall thimble.

14 February 19, 20207037-801B
Figure 14.1
Figure 14.4
Figure 14.3
Figure 14.2
Figure 14.5
Figure 14.6
Corner hearth pad dimensions with single wall pipe
Corner hearth pad dimensions with double wall pipe
USA, minimum at wall hearth
pad dimensions
**Canada, at wall hearth pad
dimensions with double wall
horizontal venting
**These dimensions will vary
depending installation.
31-5/8 in
minimum
41 in
minimum
8 in 8 in
15-5/8 in
minimum
16 in
from fuel door
opening
16 in
from fuel door
opening
Fuel loading door
USA
54-3/4 in
44-1/4 in
33-1/8 in
15-5/8 in
16 inches
from the fuel
door opening
CANADA
1440mm
1252mm
785mm
660mm
457mm
from the fuel
door opening
USA
54-3/4 in
44-1/4 in
33-1/8 in
15-5/8 in
16 inches
from the fuel
door opening
CANADA
1440mm
1252mm
785mm
660mm
457mm
from the fuel
door opening
1066mm
minimum
1295mm**
minimum
203mm
203mm
203mm
660mm
minimum
Must extend 51mm
beyond each side of
pipe (shaded area)
to the wall thimble.
Must extend 51mm
beyond each side of
pipe (shaded area)
to the wall thimble.
457mm
from fuel door
opening
457mm
from fuel door
opening
43ST-ACC-C

15February 19, 2020 7037-801B
C. Clearances to Combustibles
BACKWALL / SIDEWALL
A B
D
C
CORNER INSTALLATION
F
E
E
F
ALCOVE SIDE VIEW
G
A
G
H
90° OFF TOP UP
& OUT CEILING
CLEARANCE
STOVE TO
CEILING
CLEARANCE
* If H = N/A, follow Pipe
Manufacturer’s clearances
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS in inches (Millimeters)
NOTE: A, C, and F Dimensions are to the center of the fl ue collar
43M-ACC-C AND 43ST-ACC-C WOOD APPLIANCE (2020)
A B C D E F G H
INSTALLATION: FULL VERTICAL OR HORIZONTAL WITH MINIMUM 2 FOOT VERTICAL OFF STOVE TOP
SINGLE WALL PIPE
43M-ACC-C 18-1/2 (470) 11-3/4 (298) 27-1/2 (699) 14-1/2 (368) 8 (203) 20-1/2 (521) 53-1/2 (1359) 12 (305)
43ST-ACC-C 18-1/2 (470) 11-3/4 (298) 27-1/2 (699) 14-1/2 (368) 2-1/2 (64) 15 (381) 49-1/2 (1257) 12 (305)
DOUBLE WALL PIPE
43M-ACC-C 12 (305) 5-1/4 (133) 27-1/2 (699) 14-1/2 (368) 8 (203) 20-1/2 (521) 53-1/2 (1359) 12 (305)
43ST-ACC-C 10-1/2 (267) 3-3/4 (95) 25 (635) 12 (305) 2-1/2 (64) 15 (381) 49-1/2 (1257) 5 (127)
INSTALLATION: 90 DEGREE ELBOW OFF TOP OF APPLIANCE THROUGH BACKWALL
DOUBLE WALL PIPE
43M-ACC-C 11-1/2 (292) 4-3/4 (121) 27-1/2 (699) 14-1/2 (368) 8 (203) 20-1/2 (521) 53-1/2 (1359) N/A
43ST-ACC-C 10-1/2 (267) 3-3/4 (95) 22 (559) 9 (229) 2-1/2 (64) 15 (381) 49-1/2 (1257) N/A
INSTALLATION: ALCOVE
DOUBLE WALL PIPE
43M-ACC-C 16 (406) 9-3/8 (238) 27 (686) 13-7/8 (352) N/A N/A 53-1/2 (1359) 12 (305)
43ST-ACC-C 10-1/2 (267) 3-3/4 (95) 25 (635) 12 (305) N/A N/A 49-1/2 (1257) 5 (127)
For alcove only: Six inch diameter listed Double wall air insulated connector pipe with UL103 HT listed factory built Class A chimney or masonry chimney. Maximum
depth of Alcove shall be no more than 48 inches (1219mm) and the referenced alcove clearances. Canada must comply with CAN/ULC-S269 M87 for the 650° factory built
chimney.
* FOLLOW PIPE MANUFACTURES CLEARANCES AS REQUIRED
NOTE: Clearances may only be reduced by
means approved by the regulatory
authority having jurisdiction
NOTE: Service Space
In order to replace the tube channel assembly a
clearance of 19 inches (483mm) is required on the right
side of appliance in order to remove the tubes with
the appliance in place. If space is not available, the
appliance will have to be disconnected from the chimney
to proceed with the tube replacement.
Fire Risk.
• Comply with all minimum clearances to
combustibles as specied.
• Failure to comply may cause house re.
WARNING
ALCOVE TOP VIEW
C
D

16 February 19, 20207037-801B
Recommended
Location
Marginal
Location
Location
Not
Recommended
Recommended
Location
Location NOT
Recommended
Multi-level Roofs
Windward
Leeward
Outside Air Kit Termination Cap

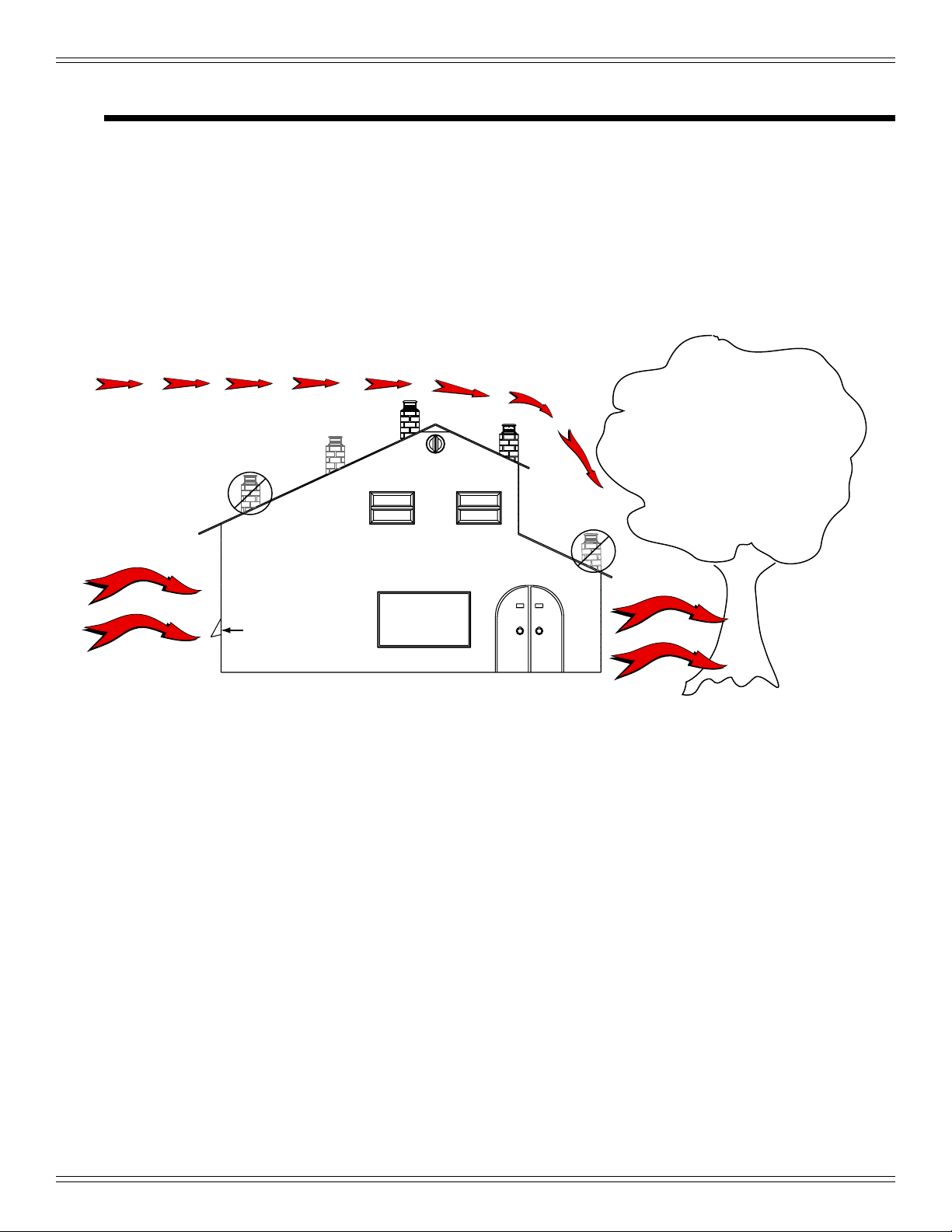

Figure 16.1
4 Chimney Systems
A. Locating Your Appliance & Chimney
Location of the appliance and chimney will affect
performance. As shown in Figure 16.1 the chimney should:
• Install through the warm space enclosed by the building
envelope. This helps to produce more draft, especially
during lighting and die down of the re.
• Penetrate the highest part of the roof. This minimizes
the affects of wind turbulence and down drafts.
• Consider the appliance location in order to avoid oor
and ceiling attic joists and rafters.
• Locate termination cap away from trees, adjacent
structures, uneven roof lines and other obstructions.
Your local dealer is the expert in your geographic area and
can usually make suggestions or discover solutions that will
easily correct your ue problem.

17February 19, 2020 7037-801B
3 ft (91 cm)
Minimum
Less than 10 ft (305 cm)
2 ft (61 cm) 3 ft (91 cm)
Minimum
10 ft (305 cm) To Nearest Roofline
2 ft (61 cm)
10 ft. (305cm) or more
3 ft. (91cm) Minimum
Less than 10 ft. (305cm)
2 ft. (61cm) Minimum
3 ft. (91cm) Minimum
Wall or Parapet

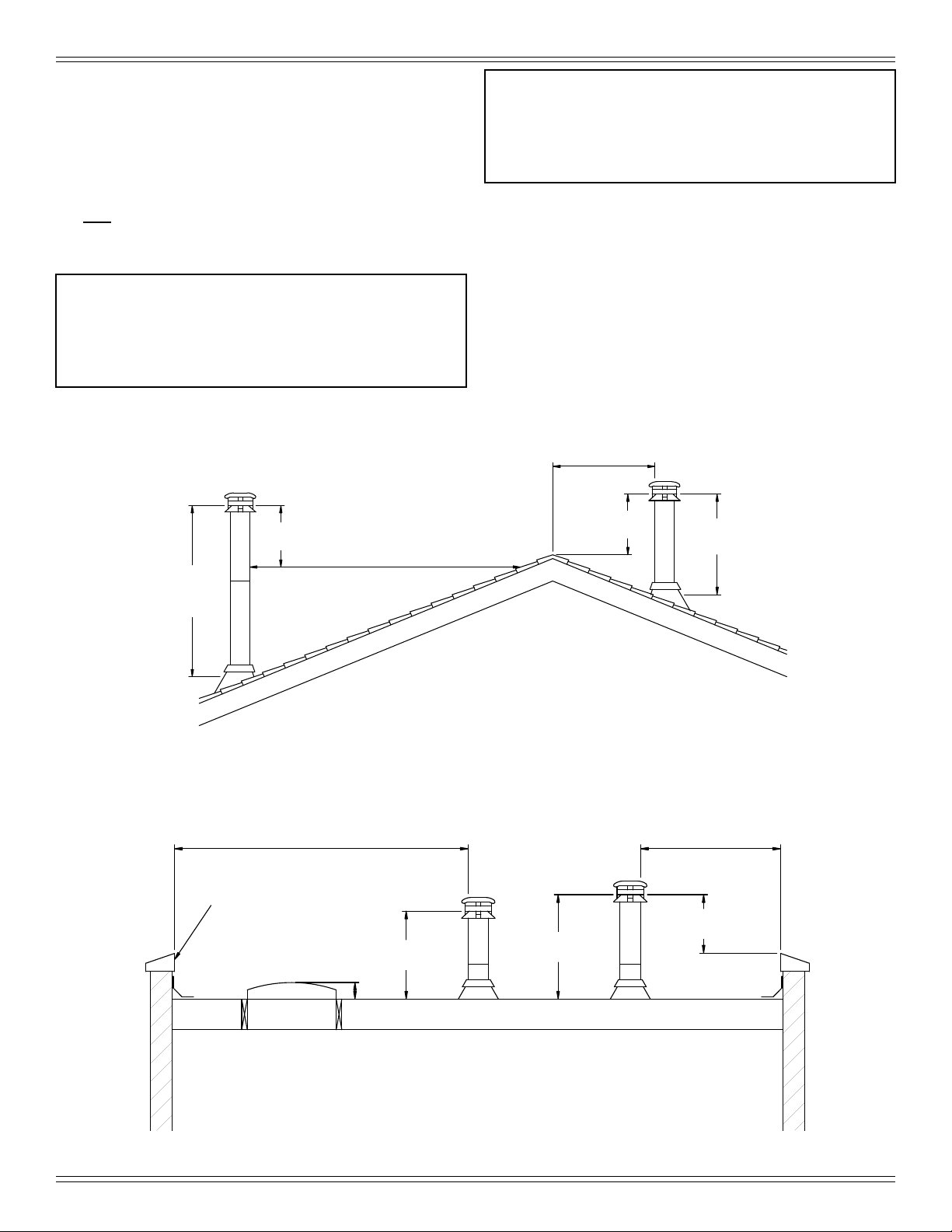

Figure 17.1
Figure 17.2
C. 2-10-3 Rule
These are safety requirements and are not meant to
assure proper ue draft.
This appliance is made with a 6 inch (152mm) diameter
chimney connector as the ue collar on the appliance.
• Changing the diameter of the chimney can affect draft
and cause poor performance.
• It is not recommended to use offsets and elbows at
altitudes above 4000 feet above sea level and or when
there are other factors that affect ue draft.
B. Chimney Termination Requirements
Follow manufacturer’s instructions for clearance, securing
ashing and terminating the chimney (Figure 17.1 and
Figure 17.2).
• Must have an approved and Listed cap
• Must not be located where it will become plugged by
snow or other material
• Must terminate at least 3 feet (91cm) above the roof
and at least 2 feet (61cm) above any portion of the roof
within 10 feet (305cm).
• Must be located away from trees or other structures
NOTICE:
• Chimney performance may vary.
• Trees, buildings, roof lines and wind conditions
affect performance.
• Chimney height may need adjustment if smoking or
overdraft occurs.
NOTICE: Locating the appliance in a basement or in
a location of considerable air movement
can cause intermittent smoke spillage from
appliance. Do not locate appliance near
• Frequently open doors
• Central heat outlets or returns

18 February 19, 20207037-801B
NOTE: In Canada, when using a factory-built chimney it
must be safety listed, Type UL103 HT (2100°F)
CLASS “A” or conforming to CAN/ULC-
S629M, STANDARD FOR 650°C FACTORY-
BUILT CHIMNEYS.
Floor
Protector
Chimney
Connector
Insulated "T "
Flashing
Listed Termination Cap
Trim Collar on
Inside Wall Listed Chimney
Storm Collar
Wall Support
Roof Brace (if required)
Thimble

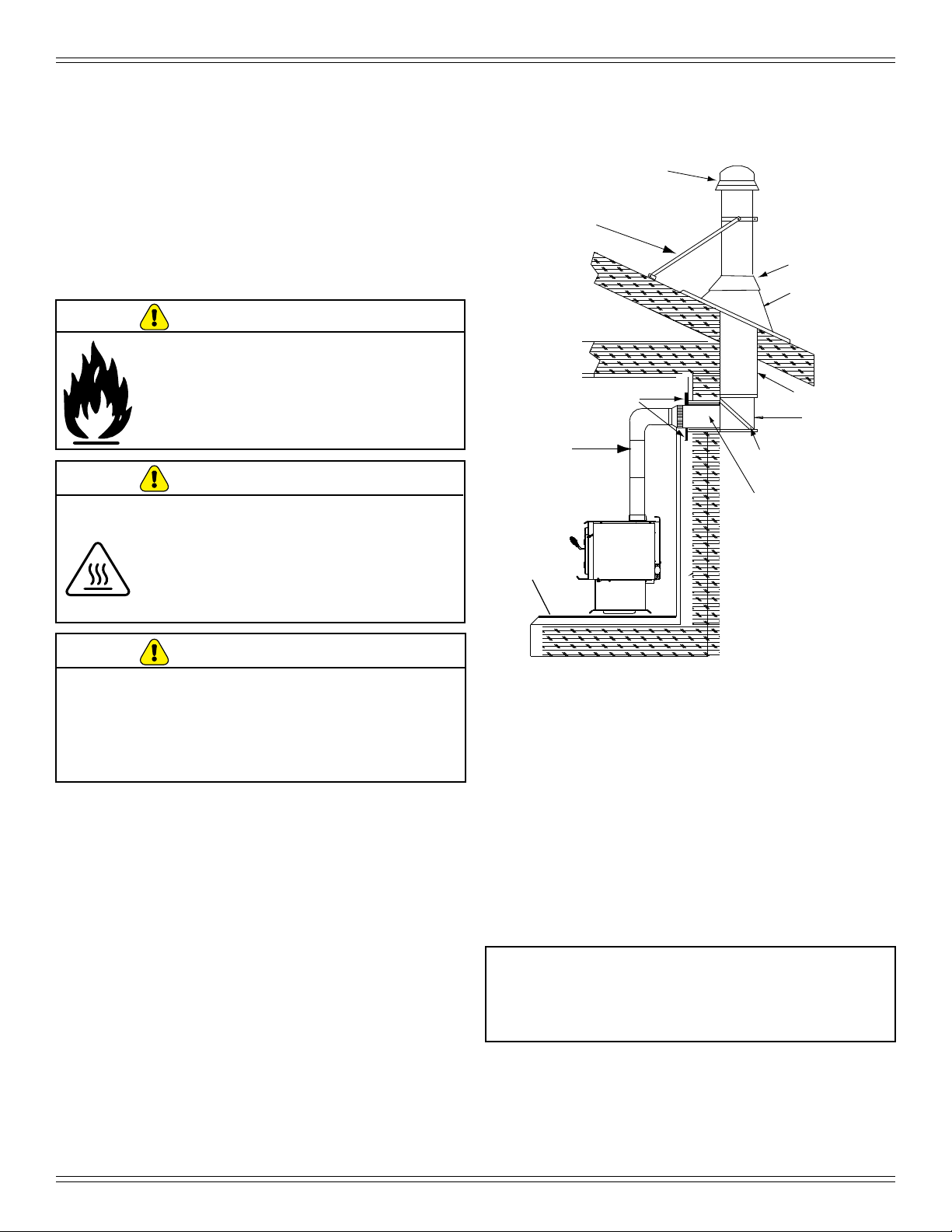

Figure 18.1 - Prefabricated Exterior Chimney
E. Venting Components
Chimney Connector:
It is also known as ue pipe or appliance pipe. The chimney
connector joins the appliance to the chimney. It must be
a 6 inch (152mm) minimum diameter 24 gauge mild steel
black or 26 gauge blued steel, or an approved air-insulated
double wall venting pipe.
Thimble:
A manufactured or site-constructed device installed in
combustible walls through which the chimney connector
passes to the chimney. It is intended to keep the walls from
igniting. Site constructed thimbles must meet NFPA 211
Standards. Prefabricated must be suitable for use with
selected chimney and meet UL103 Type HT Standards.
Follow instructions provided by the manufacturer for
manufactured thimbles for masonry chimney and
prefabricated chimneys.
F. Chimney Systems
Prefabricated Metal Chimney
• Must be minimum 6 inch (152mm) diameter (ID) high
temperature chimney listed to UL 103 HT (2100°F) or
ULC S629M.
• Must use components required by the manufacturer
for installation.
• Must maintain clearances required by the manufacturer
for installation.
• Refer to manufacturers instructions for installation.
D. Chimney Height / Rise and Run
This product was designed for and tested on a 6 inch
(152mm) chimney, 14 to 16 feet (420-480cm) high,
(includes appliance height) measured from the base of the
appliance. The further your stack height or diameter varies
from this conguration, the greater the likelihood it may
affect performance.
Chimney height may need to be increased by 2 - 3% per
each 1000 feet above sea level. It is not recommended
to use offsets or elbows at altitudes above 4000 feet
above sea level or when there are other factors that affect
ue draft.
Chimney:
The chimney can be new or existing, masonry or
prefabricated and must meet the following minimum
requirements and as specied in Section 4 -
Chimney Systems.
Fire Risk. Inspection of Chimney:
• Chimney must be in good condition.
• Meets minimum standard of NFPA 211
• Factory-built chimney must be 6 inch
(152mm) UL103 HT.
WARNING
WARNING
Asphyxiation Risk.
• DO NOT CONNECT THIS Appliance
TO A CHIMNEY FLUE SERVICING
ANOTHER APPLIANCE.
• DO NOT CONNECT TO ANY AIR
DISTRIBUTION DUCT OR SYSTEM.
May allow ue gases to enter the house.
Improper installation, adjustment, alteration, service
or maintenance can cause injury or property damage.
Refer to the owner’s information manual provided with
this appliance. For assistance or additional information
consult a qualied installer, service agency or
your dealer.
WARNING

19February 19, 2020 7037-801B
Floor
Protector
Chimney
Connector
Ceiling Support
Listed Chimney
Listed Termination Cap
Storm Collar
Flashing
Figure 19.1 - Prefabricated Interior Chimney
Thimble
Site constructed for masonry chimney installation:
Components
A minimum length of 12 inches [305mm] (longer for thicker
walls) of solid insulated factory-built chimney length
constructed to UL 103 Type HT 6 inch (152mm) inside
diameter. Chimney needs to extend a minimum of 2 inches
(51mm) from the interior wall and a minimum of 1 inch
(25mm) from the exterior wall.
Wall spacer, trim collar and wall band to t solid pack
chimney selected.
Minimum 8 inch (203mm) diameter clay liner section (if not
already present in chimney) and refractory mortar.
When jurisdiction requires install approved chimney liner in
masonry chimney.
Air Clearances
• Masonry chimney clearance must meet NFPA 211
minimum requirement of 2 inches (51mm) to sheet
metal supports and combustibles.
• Minimum of 1 inch (25mm) clearance around the
chimney connector.
• Top of wall opening is a minimum of 13-1/2 inches
(343mm) from ceiling or 4-1/2 inches (114mm) below
minimum clearance specied by chimney connector
manufacturer. NFPA 211 minimum vertical clearance of
18 inches (457mm) from chimney connector and ceiling
or minimum recommended by chimney connector
manufacturer (Figure 19.2).
Instructions:
1. Open inside wall at proper height for the chimney
connector to entry the masonry chimney (Figure 19.2).
2. Entry hole to masonry chimney must be lined with
an 8 inch (203mm) minimum diameter clay liner, or
equivalent, secured with refractory mortar.
3. Construct a 17 inch x 17 inch (432mm x 432mm)
outside dimension frame from 2 x 2 framing lumber to
t into wall opening. Inside opening of frame should
be no less than 14 inch x 14 inch (356mm x 356mm)
(Figure 19.2).
4. Attach the wall spacer to the chimney side of the frame.
5. Nail the frame into the wall opening. The spacer should
be on the chimney side.
6. Insert the section of the solid insulated chimney into the
outer wall of the masonry chimney.
7. Tightly secure the length of the solid insulated chimney
with the wall band to the masonry chimney.
8. Insert a section of chimney connector into the chimney.
Make sure it does not protrude past the edge of the
clay chimney liner inside the chimney.
9. Seal the end of the chimney connector to the clay liner
with refractory mortar.
10. Install trim collar around the solid pack
chimney section.
Figure 19.2
1.5”
1.0”
2.0”
2.0”
1.5”
14.0” ID
17.0” OD
ceiling
13.5” below ceiling to top of
opening or top of opening is a
minimum of 4.5” below
minimum clearance specified
by connector manufacturer.
1.0”
8.0”
1.5 2x2 framing stud
2.0 min air clearance
1.0 min air clearance
4.5
Center of Hole
Minimum 18.0”
NFPA 211
Thimble
Wall
Include depth
of hearth pad

20 February 19, 20207037-801B
Trim Collar
Chimney Section
with 2 inch
(51mm) Clearance
to Combustibles
Chimney
Connector
Fire Clay Flue
Liner with Airspace
Masonry
Chimney
Wall Band to
Secure Chimney
Section
Wood Studs Used for
Framing - Spaced 2 inch
(51mm) clearance from
Masonry Chimney
Wall Spacer
Solid Pack Chimney with Metal Supports as a Thimble
Figure 20.1
Flue Gas
Direction
Crimped
End Toward
Appliance
Secure pipe sections with a minimum
of 3 screws
Figure 20.3 - Chimney Connector (Appliance Pipe)
Chimney Flue
Liner
Fireclay
Liner or
Equivalent
Masonry Chimney
Constructed to NFPA 211
Wall Spacer
Wall Band
Trim Collar
Chimney
Connector
1 inch (25mm) Air
Space to Chimney
Section
Min. Clearance
2 inch (51mm)
Min. Chimney Clearance to
Wall Spacer and
Combustibles - 2 inch (51mm)
Chimney Section
Figure 20.2
G. Installing Chimney Components
Chimney Connector
Single wall connector or appliance pipe.
This must be at least 24 gauge mild steel or 26 gauge blue
steel. The sections must be attached to the appliance and
to each other with the crimped (male) end pointing toward
the appliance. All joints, including the connection at the ue
collar, should be secured with 3 sheet metal screws. Make
sure to follow the minimum clearances to combustibles.
Where passage through the wall, or partition of combustible
construction is desired in Canada, the installation shall
conform to CAN/CSA-B365.
Factory-built listed chimney connector (vented).
A listed connector (vented) must be used when installing
this appliance in a mobile home. The listed connectors
must conform to each other to ensure a proper t and seal.
H. Proper Draft
To be sure that your Quadra-Fire appliance burns properly,
the chimney draft (static pressure) should be approximately
-0.10 inches water column (W.C.) during a high burn and
-0.04 inches W.C. during a low burn, measured 6 inches
(152mm) above the top of the appliance after one hour of
operation at each burn setting.
Fire Risk.
Do NOT pack insulation or other combustibles
between spacers.
• ALWAYS maintain specied clearances
around venting and spacers.
• Install spacers as specied.
Failure to keep insulation or other material
away from vent pipe may cause re.
WARNING
WARNING
Fire Risk.
Follow Chimney Connector Manufacturer’s
Instructions for Proper Installation.
ONLY use connector:
• Within the room, between appliance and
ceiling or wall.
Connector shall NOT pass through:
• Attic or roof space
• Closet or similar concealed space
• Floor or ceiling
Maintain minimum clearances to
combustibles
