Quadra-Fire 31M-ACC-AU User manual

1 7033-361B November, 2021
R
3100 MILLENNIUM AUSTRALIAN
WOOD APPLIANCE
AUTOMATIC COMBUSTION
CONTROL (ACC)
MODEL NUMBER:
31M-ACC-AU
Installation Manual
Installation & Appliance Set-Up
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT DISCARD THIS MANUAL
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
WARNING
Hot glass and appliance will cause burns.
• Do not touch glass until it is cooled
• Use leather gloves when reloading fuel
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room
as appliance.
• Alert children and adults to hazards of
high temperatures
• High temperatures may ignite clothing or other
ammable materials.
• Keep clothing, furniture, draperies and other
ammable materials away.
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may over re and generate
poisonous gases (i.e. carbon monoxide).
• Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any
other appliance.
• Do not over re - If appliance or chimney connector
glows, you are over ring. Over ring will void
your warranty.
• Comply with all minimum clearances to combustibles
as specied.
Failure to comply may cause house re.
WARNING
If the information in these instructions is
not followed exactly, a re could result
causing property damage, personal injury,
or death.
This unit has been retired.
Service parts pages within have
been removed.
For replacement parts, please
refer to the individual service parts
list located on the brand website.

2 7033-361B November, 2021
1 Important Safety Information
A. Appliance Certication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
B. BTU & Efciency Specications........................3
C. Glass Specications.................................3
D. Non-Combustible Materials . . . . . . . . . . . . . . . . . . . . . . . . . . .3
E. Combustible Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2 Getting Started
A. Design and Installation Considerations ..................4
B. Fire Safety ........................................4
C. Negative Pressure ..................................4
D. Tools And Supplies Needed ...........................5
E. Inspection of Appliance and Components ................5
F. Removal of Appliance from Shipping Materials ............5
G. Install Checklist ....................................6
3 Dimensions and Clearances

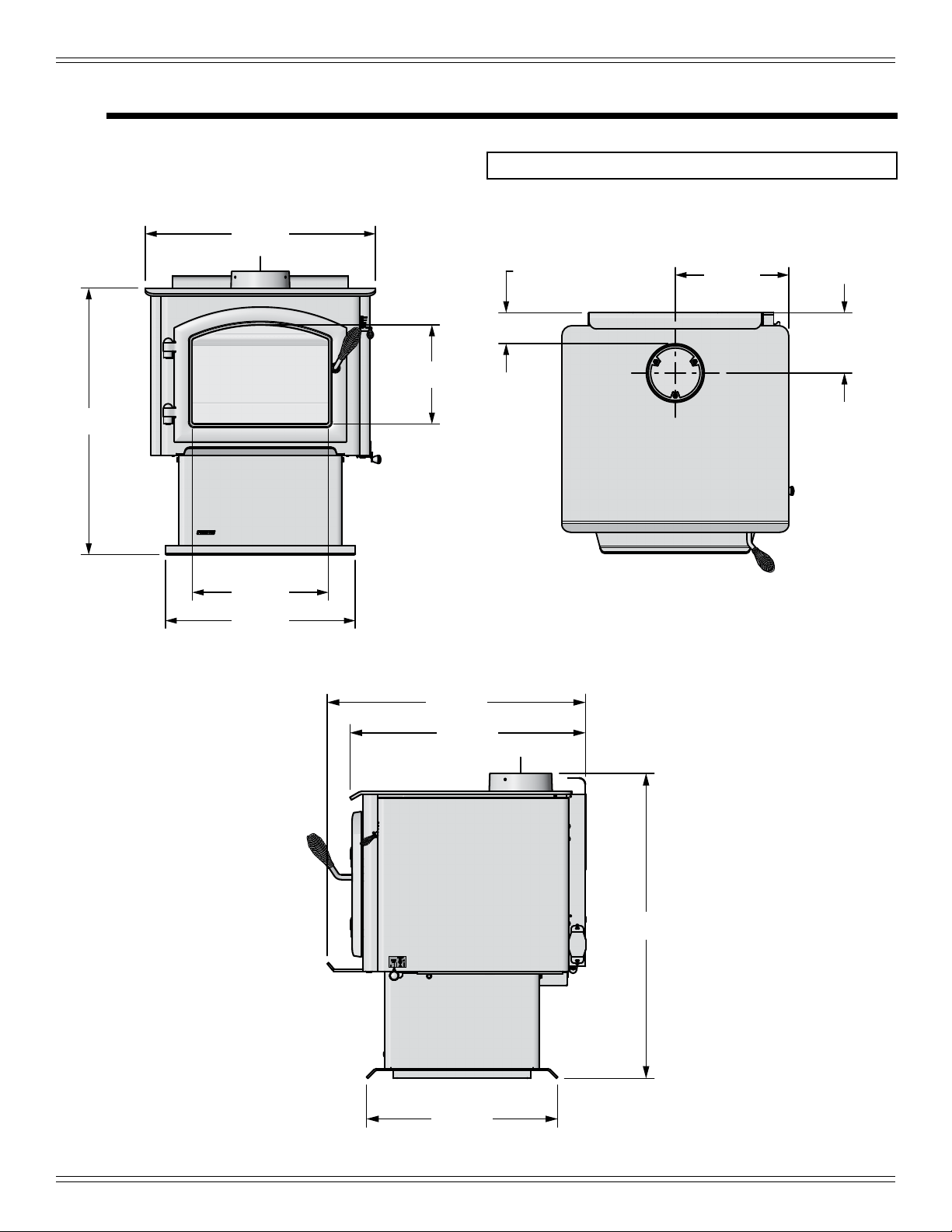

A. Appliance Dimensions ...............................7
B. Hearth Protection Requirements .......................8
C. Firebox Installation..................................8

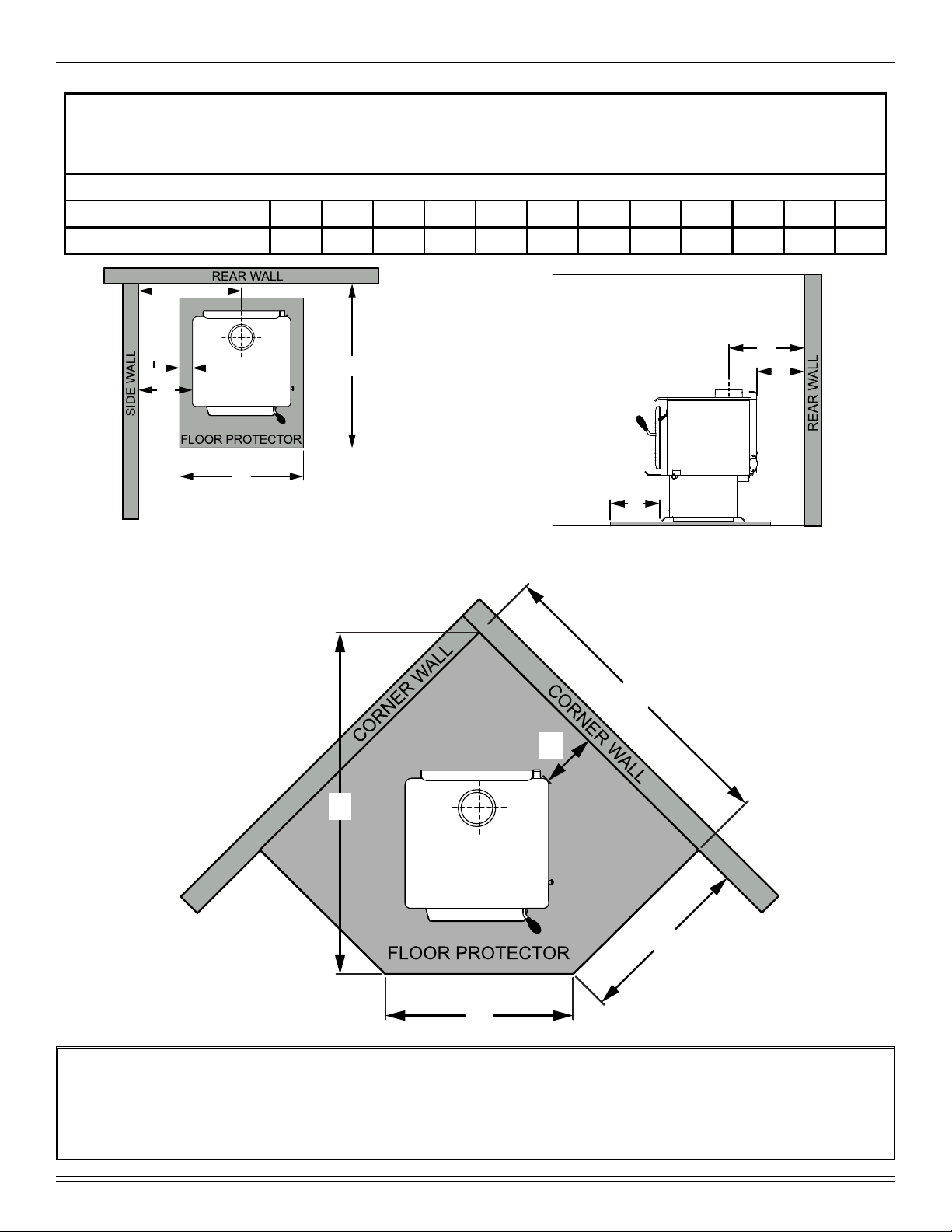

D. Clearances to Combustibles ..........................9
4 Chimney Systems
A. Locating Your Appliance & Chimney ...................10
B. Minimum Height of Flue System Exit ...................11

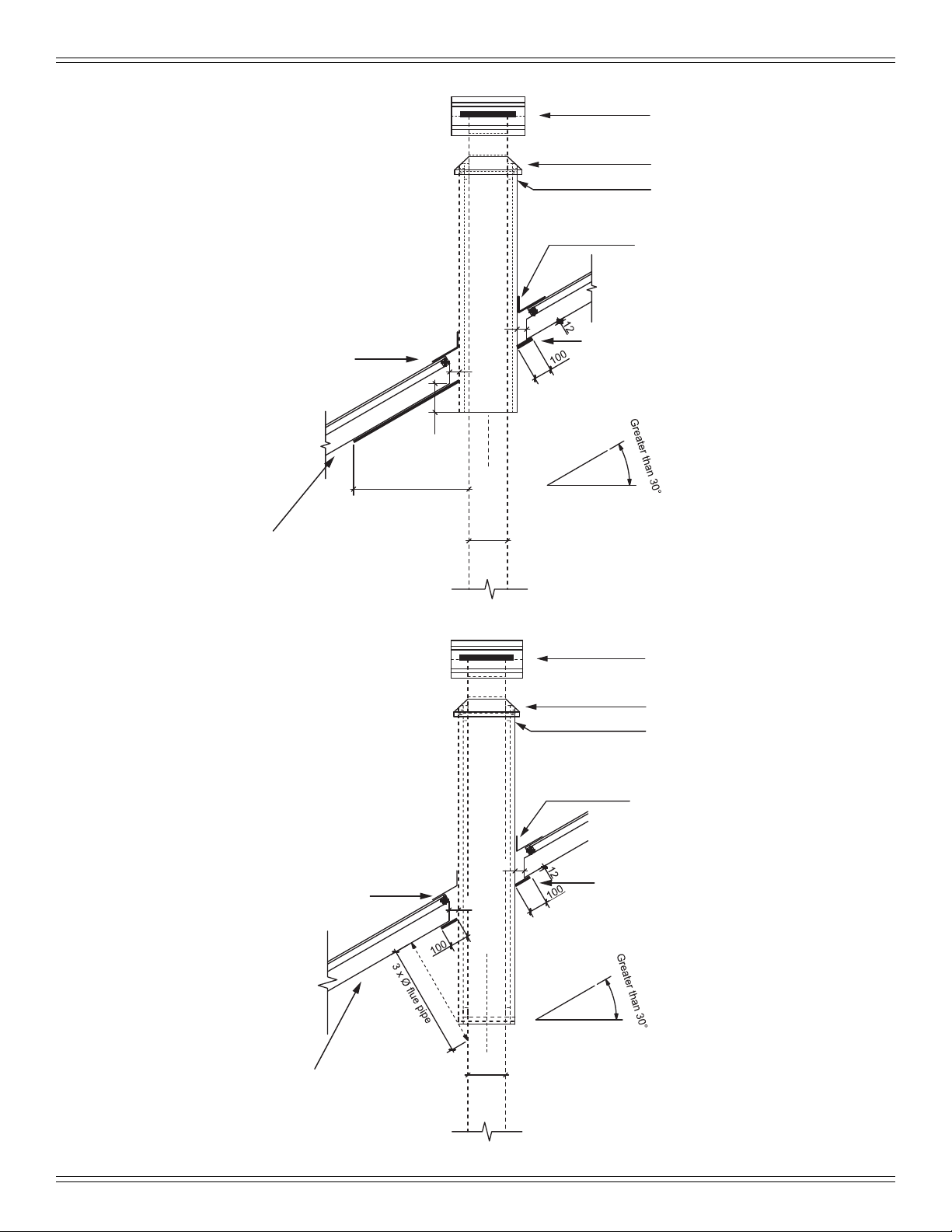

C. Chimney Termination Requirements ...................12
D. General Flue System Instructions .....................13
E. Chimney Height / Rise and Run.......................13
F. Installing Chimney Components.......................13
G. Proper Draft ......................................13
H. Tested Flue Systems ...............................14
I. Un-Tested Flue Systems .............................15
5 Appliance Set-Up
A. Outside Air Kit Installation ...........................16
B. Door Handle Assembly..............................17
6 AS/NZS 2918:2001 General Notes ....................18
TABLE OF CONTENTS
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided may result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.
• NOTICE: Indicates practices which may cause damage to the appliance or to property.
Quadra-Fire is a registered trademark of Hearth & Home Technologies.

3 7033-361B November, 2021
The Quadra-Fire 3100 Millennium Australian Wood Appliance is Hardwood Certied. Particulate Emissions equaling
1.4 g/kg with a space heating efciency of 71%.
Overall Average Efciency
Burning Hardwood (AS/NZS
4012)
71%
Average Particulate
Emission Factor Burning
Hardwood (AS/NZS 4013)
1.4 g/kg
Maximum Average Heat
Output Burning Hardwood 7.1kW
Wetback
Wetbacks are NOT an
approved option and
must be tted.
Vent Size: 6 inches
Firebox Size: 2 cubic feet
Recommended Wood
Length: 16 inches
Fuel Orientation: Front-to-Back
Approved Fuel
Hardwood only with a
Moisture content less
than 25% (dry basis)
Model: 3100 Millennium AU Wood Appliance
Laboratory: HRL Technology
Report No: HCMG/12/043A
Type: Hardwood only at 25% dry basis
Standard: AS/NZS 2918:2001
A. Appliance Certication
B. BTU & Efciency Specications
1 Important Safety Information
This wood appliance needs periodic inspection and repair for proper operation. It is against federal regulations to operate
this wood appliance in a manner inconsistent with operating instructions in this manual.
NOTE: Hearth & Home Technologies, manufacturer of this appliance, reserves the right to alter its products, their
specications and/or price without notice.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
For assistance or additional information, consult a qualied
installer, service agency or your dealer.
Hearth & Home Technologies WILL NOT warranty
appliances that exhibit evidence of over-ring. Evidence
of over-ring includes, but is not limited to:
• Warped air tube
• Deteriorated refractory brick retainers
• Deteriorated bafe and other interior components
C. Glass Specications
This appliance is equipped with 5mm ceramic glass.
Replace glass only with 5mm ceramic glass. Please
contact your dealer for replacement glass.
D. Non-Combustible Materials
Material which will not ignite and burn, composed of any
combination of the following:
- Steel
- Plaster
- Brick
- Iron
- Concrete
- Tile
- Glass
- Slate
E. Combustible Materials
Material made of/or surfaced with any of the
following materials:
- Wood
- Compressed Paper
- Plant Fibers
- Plastic
- Plywood/OSB
- Sheet Rock (drywall)
Any material that can ignite and burn: ame proofed or not,
plastered or non-plastered.

4 7033-361B November, 2021
Install Guide
2 Getting Started
A. Design and Installation Considerations
Consideration must be given to:
- Safety
- Convenience
- Trafc ow
- Chimney and chimney connector required
It is a good idea to plan your installation on paper, using
exact measurements for clearances and oor protection,
before actually beginning the installation. If you are not
using an existing chimney, place the appliance where there
will be a clear passage for a factory-built listed chimney
through the ceiling and roof.
We recommend that a qualied building inspector and your
insurance company representative review your plans before
and after installation.
If this appliance is in an area where children may be near
it is recommended that you purchase a decorative barrier
to go in front of the appliance. Remember to always keep
children away while it is operating and do not let anyone
operate this appliance unless they are familiar with these
operating instructions.
To provide reasonable re safety, the following should be
given serious consideration:
1. Install at least one smoke detector on each oor of
your home to ensure your safety. They should be
located away from the heating appliance and close
to the sleeping areas. Follow the smoke detector
manufacturer’s placement and installation instructions,
and be sure to maintain regularly.
2. A conveniently located Class A re extinguisher to
contend with small res resulting from burning embers.
3. A CO detector should be installed in the room with
the appliance.
4. A practiced evacuation plan, consisting of at least two
escape routes.
5. A plan to deal with a chimney re as follows:
6. In the event of a chimney re:
a. Evacuate the house immediately
b. Notify re department.
C. Negative Pressure
Negative pressure results from the imbalance of air
available for the appliance to operate properly. It can be
strongest in lower levels of the house.
Causes include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustion air requirements for furnaces, water
appliances and other combustion appliances
• Clothes dryers
• Location of return-air vents to furnace or air
conditioning
• Imbalances of the HVAC air handling system
• Upper level air leaks such as:
- Recessed lighting
- Attic hatch
- Duct leaks
B. Fire Safety
Check building codes prior to installation.
• Installation MUST comply with local, regional, state
and national codes and regulations.
• Consult insurance carrier, local building, re ofcials
or authorities having jurisdiction about restrictions,
installation inspection, and permits.
CAUTION
WARNING
Asphyxiation Risk.
• Do NOT connect this appliance to a
chimney ue servicing another appliance.
• Do NOT connect to any air distribution
duct or system.
May allow ue gases to enter the house.
NOTICE: Hearth & Home Technologies assumes no
responsibility for the improper performance of
the appliance system caused by:
• Inadequate draft due to environmental conditions
• Down drafts
• Tight sealing construction of the structure
• Mechanical exhausting devices
• Over drafting caused by excessive chimney heights
• Ideal performance is with height of chimney between
14-16 feet (4.26-4.88m) measured from the base of
the appliance.
WARNING
Asphyxiation Risk.
• Negative pressure can cause spillage
of combustion fumes, soot and
carbon monoxide.
• Appliance needs to draft properly
for safety.

5 7033-361B November, 2021
Figure 5.1
1. Remove box and 51mm x 102mm structural boards
being careful not to damage product.
2. Using 7/16 socket or wrench remove one bolt located
inside front part of appliance (Figure 5.1).
3. Moving to the back of the appliance and using 7/16
socket or wrench remove two bolts (Figure 5.1).
4. Carefully pull appliance off of pallet and put in
desired location following Hearth Pad on page 9 and
Clearance to Combustibles on page 8.
F. Removal of Appliance from Shipping
Materials
2
3
D. Tools And Supplies Needed
Before beginning the installation be sure the following tools
and building supplies are available:
- Reciprocating saw
- Pliers
- Hammer
- Phillips screwdriver
- Flat blade screwdriver
- Plumb line
- Level
- Misc. screws and nails
- Framing material
- High temp caulking material
- Gloves
- Framing square
- Electric drill and bits
- Safety glasses
- Tape measure
- 7/16 socket or wrench
- 1/2-3/4 in. length, #6 or #8 self-drilling screws
To minimize the effects of negative air pressure:
• Install optional outside air kit with the intake facing
prevailing winds during the heating season
• Ensure adequate outdoor air for all combustion
appliances and exhaust equipment
• Ensure furnace and air conditioning return vents are
not located in the immediate vicinity of the appliance
• Avoid installing the appliance near doors, walkways or
small isolated spaces
• Recessed lighting should be a “sealed can” design
• Attic hatches weather stripped or sealed
• Attic mounted duct work and air handler joints and
seams taped or sealed
• Basement installations should be avoided
• Installation and use of any damaged appliance.
• Modication of the appliance.
• Installation other than as instructed by Hearth &
Home Technologies.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
• Operating appliance without fully assembling
all components.
• Operating appliance without legs attached (if
supplied with appliance).
• Do NOT Over re - If appliance or chimney connector
glows, you are over ring.
Any such action that may cause a re hazard.
WARNING
Fire Risk.
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
• Remove appliance and components from packaging
and inspect for damage.
• Report to your dealer any parts damaged in shipment.
• Read all the instructions before starting the installation.
Follow these instructions carefully during the installation
to ensure maximum safety and benet.
E. Inspection of Appliance and Components
Fire Risk.
Inspect appliance and components for
damage. Damaged parts may impair
safe operation.
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
WARNING

6 7033-361B November, 2021
G. Install Checklist
ATTENTION INSTALLER:
Follow this Standard Work Checklist
This standard work checklist is to be used by the installer in conjuction with, not instead of, the instructions contained in this installation manual.
Customer:
Date Installed:
Lot / Address:
Location of Appliance:
Installer:
Dealer / Distributor Phone #:
Serial #:
Model:
WARNING! Risk of Fire or Explosion! Failure to install appliance according to these instructions can lead to a fire or explosion.
Appliance Install
Verified clearances to combustibles.
Appliance is leveled and connector is secured to appliance.
Hearth extension size/height decided.
Outside air kit installed.
Floor protection requirements have been met.
If appliance is connected to a masonry chimney, it should be cleaned and
inspected by a professional. If installed to a factory built metal chimney, the
chimney must be installed according to the manufacturer’s instructions and
clearances.
Chimney
Chimney configuration complies with diagrams.
Chimney installed, locked and secured in place with proper clearance.
Chimney meets recommended height requirements (14-16 feet).
Roof flashing installed and sealed.
Terminations installed and sealed.
Clearances
Combustible materials not installed in non-combustible areas.
Verified all clearances meet installation manual requirements.
Mantels and wall projections comply with installation manual requirements.
Protective hearth strips and hearth extension installed per manual requirements.
Appliance Setup
All packaging and protective materials removed.
Firebrick, baffle and ceramic blanket installed correctly.
All labels have been removed from the door.
All packaging materials are removed from inside/under the appliance.
Manual bag and all of its contents are removed from inside/under the appliance
and given to the party responsible for use and operation.
Hearth & Home Technologies recommends the following:
• Photographing the installation and copying this checklist for your file.
• That this checklist remain visible at all times on the appliance until the installation is complete.
Comments: Further description of the issues, who is responsible (Installer/Builder/Other Trades, etc.) and corrective action needed:
Comments communicated to party responsible ____________________________ by _____________________ on ___________
(Builder / Gen. Contractor) (Installer) (Date)
_________________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
________________________________________________________________________
___________________________________________________________________________________
___________________________________________________________________
___________________________________________________________________________________
____________________________________________________________________________________
YES IF NO, WHY?
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________

7 7033-361B November, 2021
618mm
676mm
796mm
501mm
Figure 7.1 - Front View
Figure 7.3 - Side View
648mm
749mm
383mm
533mm
278mm
Figure 7.2 - Top View
89mm
171mm
323mm
A. Appliance Dimensions NOTE: Flue Collar size is 152mm inside diameter (ID)
3 Dimensions and Clearances

8 7033-361B November, 2021
B. Hearth Protection Requirements C. Firebox Installation
1. If a separate oor protector is being used position
now. Place the rebox on the oor protector to suit
the minimum installation clearances (Figures 9.1 and
Figure 9.2 on page 9).
2. Systemically restrain the rebox and the oor protector
to the oor.
3. Fit 2mm x 6mm xings suitable for the oor material.
DO NOT over tighten.
4. Fit timber trim pedestal edging to front and back of
base (optional).
Quadra-re 3100 Millennium ACC do not require a
insulating Floor Protector, as they are tested and comply
with the minimum Floor Protector requirements of AS/NZS
2918:2001.
WARNING
Fire Risk.
Hearth pads must be installed exactly as
specied. High temperatures or hot embers
may ignite concealed combustibles.
Fire Risk.
• Comply with all minimum clearances to
combustibles as specied.
• Failure to comply may cause house re.
WARNING
NOTE:
- The minimum Floor Protector sizes are specied
in the clearance chart, see Figure 9.1 and
Figure 9.2 on page 9.
- A Floor Protector can include ceramic tiles with
grouted joints xed directly onto a wooden oor
or a sheet of toughened glass, panel steel or any
other non combustible material laid directly onto
a wooden oor.
- If installed directly onto a concrete slab, the
concrete slab can be considered as the oor
protector,but must maintain the minimum
measurement listed.

9 7033-361B November, 2021
Figure 9.1
Figure 9.3
Figure 9.2
D. Clearances to Combustibles
G
D
E
H
C
A
I
B
FF
J
J
G
G
L
L
K
K
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS in Millimeters
Note: A, C, and F Dimensions are to the center of the flue collar
3100 Millennium AU Wood Appliance
INSTALLATION
345 175 668 360 76 225 800 1062 300
DOUBLE WALL PIPE
A B C D E F G H
756 1197
I J
1469
K L
NOTE: Service Space
In order to replace the tube channel assembly a clearance of 483mm is required on the right side of appliance in order
to remove the tubes with the appliance in place.
If space is not available, the appliance will have to be disconnected from the chimney to proceed with the tube
replacement.

10 7033-361B November, 2021
4 Chimney Systems
Recommended
Location
Marginal
Location
Location
Not
Recommended
Recommended
Location
Location NOT
Recommended
Multi-level Roofs
Windward
Leeward
Outside Air Kit Termination Cap
Figure 10.1
A. Locating Your Appliance & Chimney
Location of the appliance and chimney will affect
performance. As shown in Figure 10.1 the chimney should:
• Install through the warm space enclosed by the building
envelope. This helps to produce more draft, especially
during lighting and die down of the re.
• Penetrate the highest part of the roof. This minimizes
the affects of wind turbulence and down drafts.
• Consider the appliance location in order to avoid oor
and ceiling attic joists and rafters.
• Locate termination cap away from trees, adjacent
structures, uneven roof lines and other obstructions.
Your local dealer is the expert in your geographic area and
can usually make suggestions or discover solutions that will
easily correct your ue problem.

11 7033-361B November, 2021
B. Minimum Height of Flue System Exit
Figure 11.1
increase as necessary until nothing
within 3000mm of fluetop
increase from
1000mm minimum
until clear within
3000mm of flue top
any nearby structure
6000mm
3000mm
3000mm
or less
more than 3000mm
600mm
minimum
NOTICE:
• Chimney performance may vary.
• Trees, buildings, roof lines and wind conditions affect
performance.
• Chimney height may need adjustment if smoking or
overdraft occurs.
NOTICE: Locating the appliance in a basement or
in a location of considerable air movement
can cause intermittent smoke spillage from
appliance. Do not locate appliance near
• Frequently open doors
• Central heat outlets or returns

12 7033-361B November, 2021

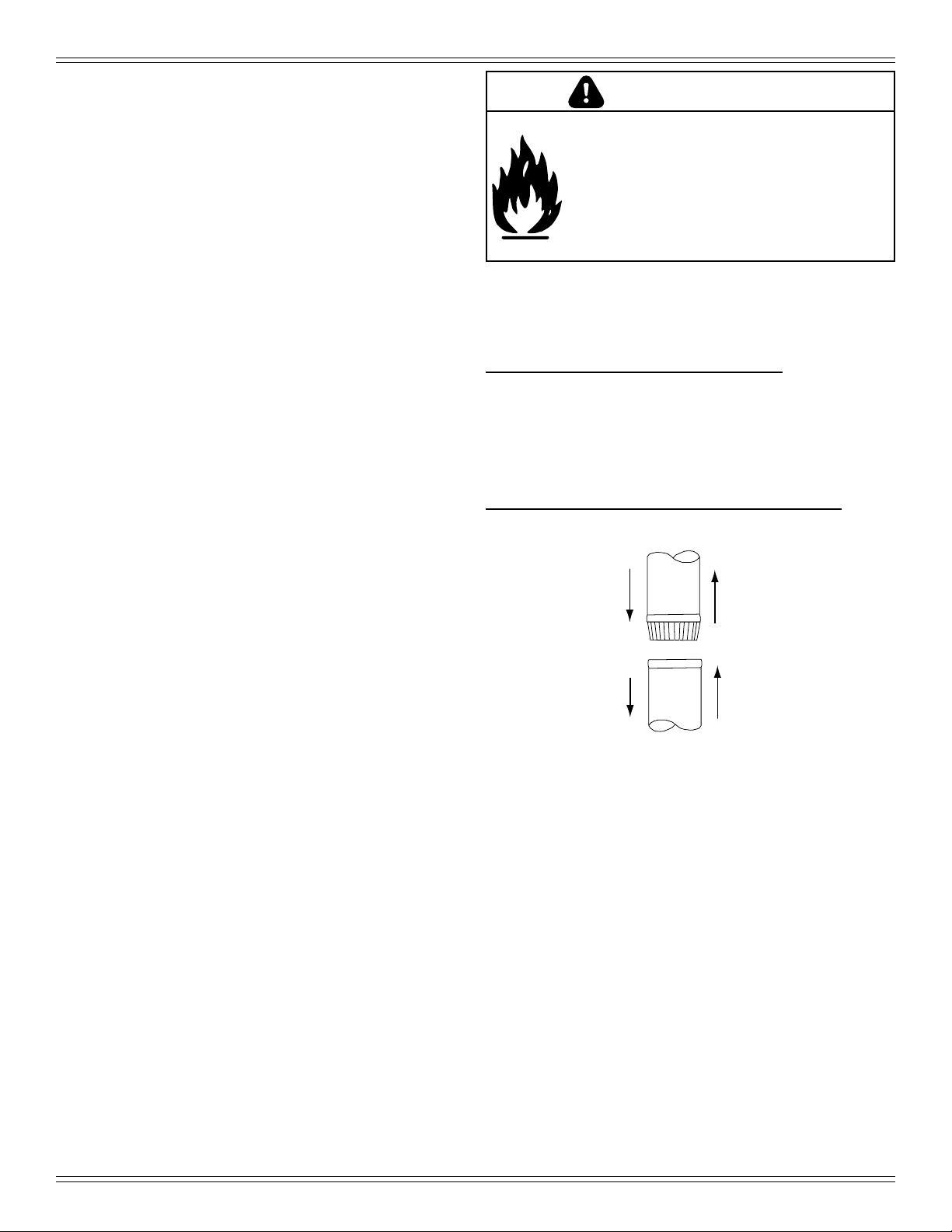

- Flue pipe installed crimp/narrow end down
- Outer casings installed crimped/narrow end up.
(Critical when exposed above the roof)
- Inner casings:
– direction not critical
- Flue pipes:
– seal all joints including rebox spigot.
– x with a minimum of 3 stainless steel rivets
- Flue pipe spacers:
– afx to ue pipe
- Flue system termination point:
– Refer to AS/NZS 2918:2001 4.9.1, see Figure
15.2 on page 15.
- Flue pipe shall extend not less than 4.6m above
top of the oor protector as per AS/NZS 2918:2001
4.9.1(a)
- Facade or chase systems:
– same rule applies as above.
- Roof penetration and ashing method refer to NZ
Building Code E2.(From 01/07/05)
1. Either locate the appliance in position or by measuring
at the ceiling mark the ue pipe center position. Check
that the outer casing is unobstructed through the attic
space or roof area.
2. Spike the center with a nail. Transfer this position to the
next surface above. Plumb bob/laser.
3. Cut out the ceiling penetration hole – square or
rectangle – short axis equals outer casing diameter
plus 50mm, long axis as required. See Tested Flue
System on page 14 and Un-Tested Flue System on
page 15. Perform the same at the roof penetration.
4. Frame out the hole with minimum 75mm x 50mm
timber or as required for roong material. Minimum
requirement at roof penetration see NZ Building Code
E2 Acceptable Solution (from 01/07/05).
5. Install the outer casing so that:
i. lower end is ush with the underside of the ceiling
material and
ii. with the addition of metal “L” brackets, afx to the
outer casing at 90 degrees secure the outer casing
centrally to the ceiling and roof nogs. Alternatively
substitute the “L” brackets for 25mm thick non heat
sensitive packers. Secure the outer casing through
the packers with horizontal xings to the nogs.
Refer to the General Flue System Instructions on
page 13 for termination height. The option of outer
casing slips to be taken into account.
6. Flash the outer casing to the roof material with the
appropriate approved ashing.
7. If using an outer/inner casing combination, now install
the inner casing ensuring it extends a minimum 200mm
above the high side of the roof penetration. If not using
a combination see ‘11’ below.
8. Refer to steps 1 and 2 under Firebox Installation on
page 8.
C. Chimney Termination Requirements
NOTE: These instructions apply to 150mm diameter ue
pipe systems as tested to AS/NZS 2918:2001
9. Prepare the ceiling plate and place upside down over
the ue spigot.
10. Install the ue pipes by preferred method – either up or
down the outer casing. Afx each length per the notes
in General Instructions (above). Extend the ue pipe
above the outer casing to suit the casing cover/cowl
assembly.
11. If the inner casing has not been installed, install now.
Refer to step 7 on page 12 for minimum height.
12. Install the cowl assembly, i.e. Top spacer, casing cover
and cowl.
13. Position and secure the ceiling plate with the screws
and spacers.
14. Wipe the ue pipe to remove nger marks.
15. Refer to step 3 under Firebox Installation on page 8.
16. If ue offset is required, refer to AS/NZS 2918:2001 4.1
WARNING
Asphyxiation Risk.
• DO NOT CONNECT THIS Appliance TO A
CHIMNEY FLUE SERVICING ANOTHER
APPLIANCE.
• DO NOT CONNECT TO ANY AIR
DISTRIBUTION DUCT OR SYSTEM.
May allow ue gases to enter the house.
Improper installation, adjustment, alteration, service
or maintenance can cause injury or property damage.
Refer to the owner’s information manual provided with
this appliance. For assistance or additional information
consult a qualied installer, service agency or
your dealer.
WARNING
WARNING
Fire Risk.
Follow Chimney Connector Manufacturer’s
Instructions for Proper Installation.
ONLY use connector:
• Within the room, between appliance and
ceiling or wall.
• Connector shall NOT pass through:
• Attic or roof space
• Closet or similar concealed space
• Floor or ceiling
Maintain minimum clearances to combustibles

13 7033-361B November, 2021
This product was designed for and tested on a 152mm
chimney, 427-488cm high, (includes appliance height)
measured from the base of the appliance. The further your
stack height or diameter varies from this conguration, the
greater the likelihood it may affect performance.
Chimney height may need to be increased by 2 - 3% per
each 305 meters above sea level. It is not recommended
to use offsets or elbows at altitudes above 1219 meters
above sea level or when there are other factors that affect
ue draft.
1. Unpack the Flue Mounted Shield, detach the three
brackets and familiarize yourself with the illustrations.
2. Using a sharp knife or razor blade, carefully cut through
the plastic lm on the “inside face” where it meets the
outer shield (refer sketch). Cut along the full length of
the Flue Mounted Shield on both side, then peel off
and fully remove the plastic lm from the stainless steel
inner shield.
3. Peel back and fully remove the plastic lm from the
outer shield.
4. Fit the top bracket to the Flue Mounted Shield as
illustrated ensuring the rear mid section of the bracket
ts “outside” while the two outer sections of the bracket
t “inside”.
5. Fit the appropriate lower bracket to your wood re.
Lower Bracket “5B suitable for all other wood res
without an inner rear heat shield. On certain model
wood res without a raised ue spigot it will be
necessary to cut off both the lower outer legs from the
bracket “5B” leaving the central tongue to locate inside
the ue outlet only.
Two tabs are provided and if folded back at 90 degrees
the bracket and Flue Mounted Shield will mount lower
onto the appliance.
The Flue Mounted Shield then locates into the two
notches provided n bracket “5B” as illustrated.
6. Once the Flue Mounted Shield is tted in position onto
either of the two lower mounting brackets, check to
ensure a large gap is not present between the top of
the wood re and the base of the Flue Mounted Shield,
as this may result in a hot spot on the rear wall directly
behind the ue outlet. If your wood re has a lift off
top grill the Flue Mounted Shield should be raised
sufciently to enable the top grill to be removed.
7. Using the pre-punched holes in the two tabs provided
on the top bracket as guides, drill into the ue pipe
and secure the top bracket to the ue pipe with two
stainless steel rivets (not supplied).
E. Chimney Height / Rise and Run
D. General Flue System Instructions
Flue Gas
Direction
Crimped
End
Toward
Appliance
Secure pipe sections with a
minimum of 3 screws
Figure 13.1 - Chimney Connector (Appliance Pipe)
F. Installing Chimney Components
Chimney Connector
Single wall connector or appliance pipe:
This must be at least 24 gauge mild steel or 26 gauge blue
steel. The sections must be attached to the appliance and
to each other with the crimped (male) end pointing toward
the appliance. All joints, including the connection at the ue
collar, should be secured with 3 sheet metal screws. Make
sure to follow the minimum clearances to combustibles.
Factory-built listed chimney connector (vented):
The listed connectors must conform to each other to ensure
a proper t and seal.
G. Proper Draft
To be sure that your Quadra-Fire insert burns properly, the
chimney draft (static pressure) should be approximately
-2.54mm water column (W.C.) during a high burn and
-1.016mm W.C. during a low burn, measured 152mm
above the top of the insert after one hour of operation at
each burn setting.
Fire Risk.
Do NOT pack insulation or other combustibles
between spacers.
• ALWAYS maintain specied clearances
around venting and spacers.
• install spacers as specied.
Failure to keep insulation or other material
away from vent pipe may cause re.
WARNING

14 7033-361B November, 2021
H. Tested Flue Systems
12
ADD Cowl
Casing Cover
Spider Bracket
oversized casing cover
is necessary
minimum 25mm gap
between flue pipe casing &
combustible material
Non combustible material
Hebel block or 12mm
Promina board or similar
under the flashing 25 25
Approved Flashing
Roof Line
Inner Casing 200mm
above roof line
Outer Casing
Inner Casing
25 Internal Swage
25 25
12.5
V ented
Ceiling Plate
Flue Pipe
C
L
C L
Floor
Protector
, as per AS/NZS 2918:2001
Figure 14.1

15 7033-361B November, 2021
I. Un-Tested Flue Systems, as per AS/NZS 2918:2001, 4.6.3(b)
150
AS/NZS2918:2001
Un-tested flue with sloped ceiling
penetration greater than 30° from
horizontal
A = 25mm
4.6.3(b)
Fig 4.6= downward distance of
casingand 3 x ø flue distance of
theceiling plate
ADD Cowl
Casing Cover
Spider Bracket
Approved Flashing
Ceiling Plate
Batten
A
3 x Ø flue pipe
Ceiling flue pipe
Ø
ADD Cowl
AS/NZS2918:2001
Un-tested flue with sloped ceiling
penetration greater than 30° from
horizontal
A = 25mm
4.6.3(b)
Fig 4.6 = 3 x ø flue from active flue
to heat sensitive surface
Casing Cover
Spider Bracket
Approved Flashing
A
Ceiling Plate
Batten
A
Ceiling
flue pipe
Ø
Figure 15.1
Figure 15.2

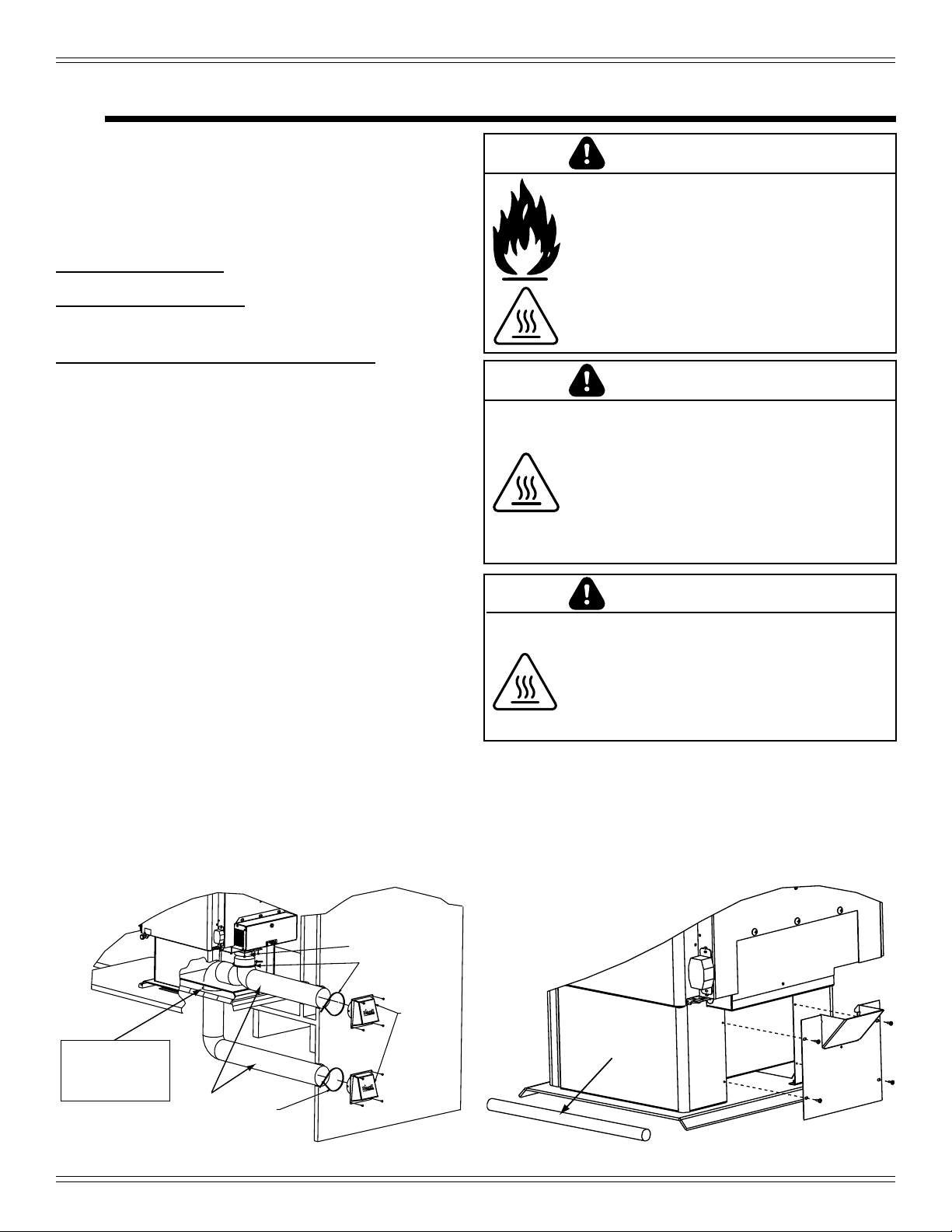

16 7033-361B November, 2021
Flex Line
Wire Tie
Wire Tie
Flex Adapter
Termination
Cap
For Floor Installa-
tions Remove
Circular “Knock-Out”
in Base of Pedestal.
Figure 16.2
Cover
Plate
Rope to Seal
Pedestal
Items Needed for Installation (not supplied)
- 102mm ex aluminum pipe, or if using alternate
material, then it shall be made from durable,
non-combustible, heat resistant material up to
350oF. Cut the pipe to the required length for your
installation.
- Phillips head screw driver
- Silicone sealant
- Drills and saws necessary for cutting holes through
the wall or ooring in your home.
1. Remove all materials from packing box.
2. Using a #2 Phillips screw driver attach the ex adapter
to the appliance using 4 screws (Figure 16.1)
3. For oor installations, remove circular” knock-out” in
the base of the pedestal.
4. Floor & Rear Installation: Cut a 102mm hole in
outside wall or oor to accommodate outside air piping.
Use 102mm aluminum metal ex or rigid piping to
directly connect outside air to appliance intake. Use
the supplied termination cap with a rodent screen. Seal
between the wall (or oor) and the pipe with silicone to
prevent moisture penetration.
5. Floor Installation Alternative: In some instances
you may not be able to install the ex pipe as show in
Figure 16.1. If that is the case, you will need to order
SRV7033-041 which includes a cover plate and sealing
rope as shown in Figure 16.2. The goal is to seal the
pedestal so no room air can leak into the pedestal or
for cold air inltration.
A. Outside Air Kit Installation
A source of air (oxygen) is necessary in order for
combustion to take place. Whatever combustion air is
consumed by the re must be replaced. Air is replaced via
air leakage around windows and under doors. In homes
that have tightly sealed doors and windows, an outside air
source is needed. An optional Outside Air Kit is available.
Included in OAK-ACC:
Termination cap, (2) wire ties, ex adapter, and fasteners
Included in SRV7033-041:
Cover plate and sealing rope (see Floor Installation
Alternative below, Figure 16.2)
Figure 16.1 - Floor & Rear Installation
5 Appliance Set-Up
WARNING
Asphyxiation Risk.
Outside air inlet must be located to prevent
blockage from:
• Leaves
• Snow or ice
• Other debris
Block may cause combustion air starvation.
Smoke spillage may set off alarms or irritate
sensitive individuals.
WARNING
Fire Risk.
Asphyxiation Risk.
Do not draw outside combustion air from:
• Wall, oor or ceiling cavity
• Enclosed space such as an attic or
garage
• Close proximity to exhaust vents or
chimneys
Fumes or odor may result
Asphyxiation Risk.
Length of outside air supply duct shall NOT
exceed the length of the vertical height of the
exhaust ue.
• Fire will not burn properly
• Smoke spillage occurs when door is
opened due to air starvation
WARNING

17 7033-361B November, 2021
B. Door Handle Assembly
Figure 17.1
Install spring handle using a counter-clockwise motion until
the spring handle has a 51mm clearance from bend of
door hand rod (Figure 17.1).
51mm clearance is
required from bend in
door handle rod to
end of spring handle
Spring
handle
Door handle

18 7033-361B November, 2021
6 AS/NZS 2918:2001 General Notes
WARNINGS
WARNING: THE APPLIANCE AND FLUE SYSTEM SHALL BE INSTALLED IN ACCORDANCE
WITH AS/NZS 2918 AND THE APPROPRIATE REQUIREMENTS OF THE RELEVANT BUILDING
CODE OR CODES.
WARNING: APPLIANCES INSTALLED IN ACCORDANCE WITH THIS STANDARD SHALL
COMPLY WITH THE REQUIREMENTS OF AS/NZS 4013 WHERE REQUIRED BY THE
REGULATORY AUTHORITY, I.E. THE APPLIANCE SHALL BE IDENTIFIABLE BY A COMPLIANCE
PLATE WITH THE MARKING ‘TESTED TO AS/NZS 4013’.
ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN APPROVED IN WRITING BY
THE TESTING AUTHORITY IS CONSIDERED TO BE IN BREACH OF THE APPROVAL GRANTED
FOR COMPLIANCE WITH AS/NZS 4013.
CAUTION: MIXING OF APPLIANCE OR FLUE SYSTEM COMPONENTS FROM DIFFERENT
SOURCES OR MODIFYING THE DIMENSIONAL SPECIFICATION OF COMPONENTS MAY
RESULT IN HAZARDOUS CONDITIONS. WHERE SUCH ACTION IS CONSIDERED, THE
MANUFACTURER SHOULD BE CONSULTED IN THE FIRST INSTANCE.
CAUTION: CRACKED AND BROKEN COMPONENTS, e.g. GLASS PANELS OR CERAMIC TILES,
MAY RENDER THE INSTALLATION UNSAFE.
WARNING: ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN APPROVED IN
WRITING BY THE TESTING AUTHORITY IS CONSIDERED AS BREACHING AS/NZS 4013.
WARNING: DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS TO START OR REKINDLE
THE FIRE.
WARNING: DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS IN THE VICINITY OF THIS
APPLIANCE WHEN ITS OPERATING.
WARNING: DO NOT STORE FUEL WITHIN HEATER INSTALLATION CLEARANCES.
WARNING: FOR OPTIMUM PERFORMANCE FUEL MUST BE LOADED SO THE LOGS LAY
“FRONT TO REAR” IN PREFERENCE TO LAYING ACROSS THE WIDTH OF THE FIREBOX.
SPACES SHOULD BE LEFT BETWEEN THE LOGS TO ENABLE OXYGEN TO GET TO AS MUCH
OF THE SURFACE OF THE FUEL AS POSSIBLE.
CAUTION: THIS APPLIANCE SHOULD BE MAINTAINED AND OPERATED AT ALL TIMES IN
ACCORDANCE WITH THESE INSTRUCTIONS.
CAUTION: THE USE OF SOME TYPES OF PRESERVATIVE-TREATED WOOD AS A FUEL CAN
BE HAZARDOUS.

19 7033-361B November, 2021

20 7033-361B November, 2021
CONTACT INFORMATION
Hearth & Home Technologies
352 Mountain House Road
Halifax, PA 17032
Division of HNI INDUSTRIES
Please contact your Quadra-Fire dealer with any questions or concerns.
For the number of your nearest Quadra-Fire dealer
log onto www.quadrafi re.com
CAUTION
DO NOT
DISCARD
DO NOT DISCARD THIS MANUAL
• Important operating
and maintenance
instructions
included.
• Read, understand
and follow these
instructions for
safe installation
and operation.
• Leave this
manual with party
responsible for
use and operation
of this appliance.
We recommend that you record the following pertinent
information for your heating appliance.
Date purchased/installed:
Serial Number: Location on appliance:
Dealership purchased from: Dealer Phone: 1( ) -
Notes:
This product may be covered by one or more of the following patents: (United States) 5341794, 5263471, 6688302, 7216645, 7047962
or other U.S. and foreign patents pending.
