ELECTRIC FIREPLACE
HEATER
Model: MM850P-28AHDW
IMPORTANT:
PLEASE NOTE: WHEN YOU OPEN THE CARTON, CAREFULLY CHECK THE UNIT AND
MAKE SURE THERE IS NO DAMAGE. IF YOU HAVE ANY PROBLEMS WITH THE UNIT,
WITH HOW THE VARIOUS FUNCTIONS WORK, OR HAVE DAMAGED OR MISSING
PARTS PLEASE CALL 1-800-459-4409 (MONDAY TO FRIDAY, 8:30AM TO 5:00PM,
EST) IMMEDIATELY FOR SERVICE.
NOTE: DO NOT RETURN UNIT TO THE STORE BEFORE CALLING THE TOLL FREE
NUMBER. DO NOT DISPOSE OF YOUR CARTON UNTIL YOU ARE COMPLETELY
SATISFIED WITH YOUR NEW FIREPLACE HEATER.
NOTE: Light bulbs may become loose during shipping. If the flame effect is dim or does
not work, please check that light bulb or bulbs are finger tight in socket. See instructions for
replacing bulb or bulbs.
NOTE: The electric fireplace heater may emit a slight harmless odor when first turned on.
This is caused by activating the internal heater components for the first time and should not
occur again.
INSTRUCTION MANUAL
ATTENTION:
1. Find a location for the fireplace heater that is protected from direct sunlight.
2. Do not plug the unit into the power outlet before reading all instructions.
IMPORTANT SAFETY INSTRUCTIONS
WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAUTIONS SHOULD ALWAYS
BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND INJURY TO
PERSONS, INCLUDING THE FOLLOWING:
1) Read all instructions before using this electric fireplace heater.
2) This electric fireplace heater is hot when in use. To avoid burns, do not let bare
skin touch hot surfaces. The grill directly in front of the heater outlet becomes
hot during heater operation. Keep combustible materials, such as furniture,
pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) away
from the front of the unit and keep them away from the sides and rear.
3) Extreme caution is necessary when any heater is used by or near children
or individuals with disabilities and whenever the fireplace is left operating
and unattended.
4) Always unplug fireplace when not in use.
5) Do not operate any electric fireplace with a damaged cord or plug or after
the heater malfunctions, has been dropped or damaged in any manner.
6) Do not use outdoors.
7) This electric fireplace heater is not intended for use in bathrooms, laundry
areas and similar indoor locations. Never locate heater where it may fall into a
bathtub or other water container.
8) Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or
similar coverings. Arrange cord away from traffic area and where it will not be
tripped over.
9) To disconnect fireplace, turn controls to off, then remove plug from outlet.
10) Connect to properly grounded outlets only.
11) Do not insert or allow foreign objects to enter any ventilation or exhaust
opening as this may cause an electric shock or fire, or damage the heater.
12) To prevent a possible fire, do not block air intakes or exhaust in any manner.
Do not use on soft surfaces, like a bed, where openings may become blocked.
13) A heater has hot and arcing or sparking parts inside. Do not use it in areas
where gasoline, paint, or flammable liquids are used or stored.
14) Use this fireplace heater only as described in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock, or injury
to persons.
15) Avoid the use of an extension cord because the extension cord may overheat
and cause a risk of fire. However, if you have to use an extension cord, the cord
shall be No.14 AWG minimum size and rated not less than 1875 watts.
16) Do not plug this product into a receptacle controlled by a wall switch
or dimmer.
17) When storing or transporting the unit and cord, keep in a dry place,
free from excessive vibration and store so as to avoid damage.
SAVE THESE INSTRUCTIONS
FOR FUTURE USE.
CAUTION:
IF YOU USE THIS HEATER IN CONJUNCTION WITH A THERMAL CONTROL, A
PROGRAM CONTROLLER, A TIMER OR ANY OTHER DEVICE THAT SWITCHES THE
HEATER ON AUTOMATICALLY, REMEMBER TO OBSERVE ALL SAFETY WARNINGS
AT ALL TIMES. THE FIREPLACE HEATER HAS SAFETY OVERHEAT PROTECTION.
IF THE OVERHEAT PROTECTION TRIPS, SWITCH OFF ALL SWITCHES AND WAIT
APPROXIMATELY 5–10 MINUTES. IT SHOULD RESET AUTOMATICALLY ONCE THE
UNIT COOLS DOWN.
WARNING:
PROCEDURES AND TECHNIQUES, IF NOT CAREFULLY FOLLOWED, WILL RESULT
IN DAMAGE TO THE EQUIPMENT, AND WILL EXPOSE THE USER TO THE RISK OF
SERIOUS INJURY, ILLNESS OR DEATH.

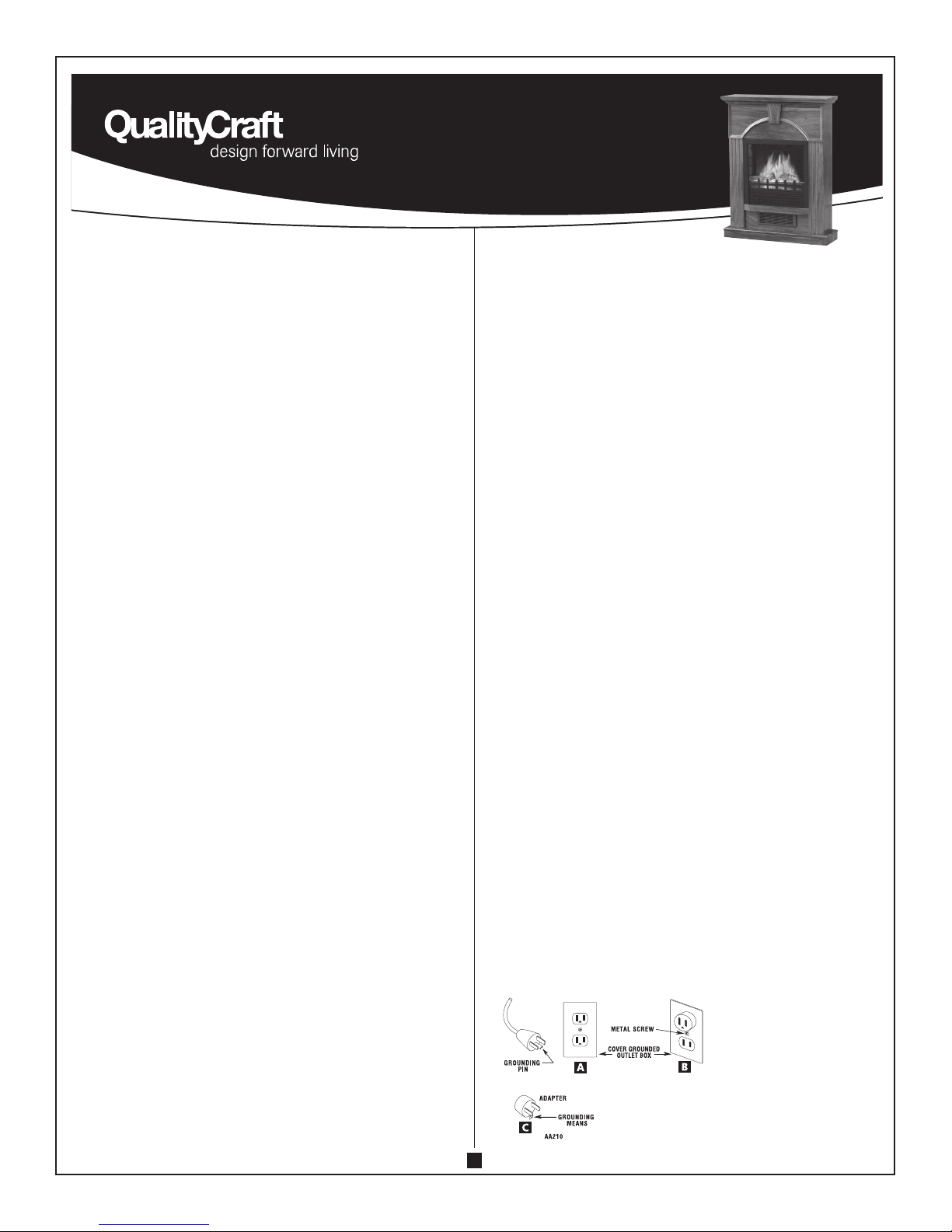

THIS ELECTRIC FIREPLACE HEATER IS FOR USE ON 120 VOLTS. THE CORD HAS
A PLUG AS SHOWN AT A IN ILLUSTRATION BELOW. AN ADAPTER AS SHOWN AT
C IS AVAILABLE FOR CONNECTING THREE-BLADE GROUNDING-TYPE PLUGS TO
TWO-SLOT RECEPTACLES. THE GREEN GROUNDING PLUG EXTENDING FROM
THE ADAPTER MUST BE CONNECTED TO A PERMANENT GROUND SUCH AS A
PROPERLY GROUNDED OUTLET BOX. THE ADAPTER SHOULD NOT BE USED IF A
THREE-SLOT GROUNDED RECEPTACLE IS AVAILABLE.
A 15 AMP CIRCUIT IS REQUIRED TO OPERATE THIS HEATER. IF THE BREAKER
TRIPS WHEN THE HEATER IS USED, YOU MAY NEED TO MOVE THE HEATER TO
ANOTHER LOCATION OR UNPLUG OTHER APPLIANCES THAT ARE ON THE SAME
CIRCUIT. IF YOU REQUIRE AN EXTENSION CORD, USE ONE THAT IS RATED AT
1875 WATTS.

2
PARTS LIST:
Fireplace insert..................................................................................................... 1
A) Top panel ........................................................................................................ 1
B) Base panel ...................................................................................................... 1
C) Upper front panel............................................................................................. 1
D) Lower front panel............................................................................................. 1
E) Left front panel................................................................................................ 1
F) Right front panel .............................................................................................. 1
G) Left upper side panel ....................................................................................... 1
H) Right upper side panel ..................................................................................... 1
J) Left lower side panel........................................................................................ 1
K) Right lower side panel...................................................................................... 1
Q) Mounting Feet ................................................................................................. 2
R) Screws for mounting feet ................................................................................. 8
S) 4-HOLE WOOD CONNECTORS......................................................................... 4
T) Short KD screws.............................................................................................. 2
U) Mounting Clips................................................................................................. 2
V) Mounting Brackets........................................................................................... 2
W) KD screws ..................................................................................................... 53
X) Plastic Connectors......................................................................................... 11
Y) SELF REPAIR SET
Touch-up repair paint (bottle)............................................................................ 1
L shape bracket................................................................................................ 2
Screws for L shape ........................................................................................... 8
Plastic connector .............................................................................................. 1
KD screws........................................................................................................ 3
KD nuts............................................................................................................ 3
Z) WALL ANCHOR SAFETY CABLE
Wall anchor ...................................................................................................... 1
Screw for wall anchor ....................................................................................... 1
Screw for mantel .............................................................................................. 1
Safety cable ..................................................................................................... 1
TOOLS REQUIRED: PHILLIPS SCREWDRIVER
MANTEL ASSEMBLY:
CAUTION: Place a piece of cardboard or protective sheet on the floor in order to avoid
scratching the decorative surface of your mantel during assembly.
Please DO NOT fully tighten the KD screws until all panels are assembled.
NOTE: Each plastic connector is pre-assembled (pre-drilled) on the specific panels with
2 screws. If the KD screw(s) do not fit during assembly, loosen the 2 (pre-drilled) screws to
adjust the plastic connector until the KD screws are able to be installed. Tighten all KD screws
once all panels are assembled.

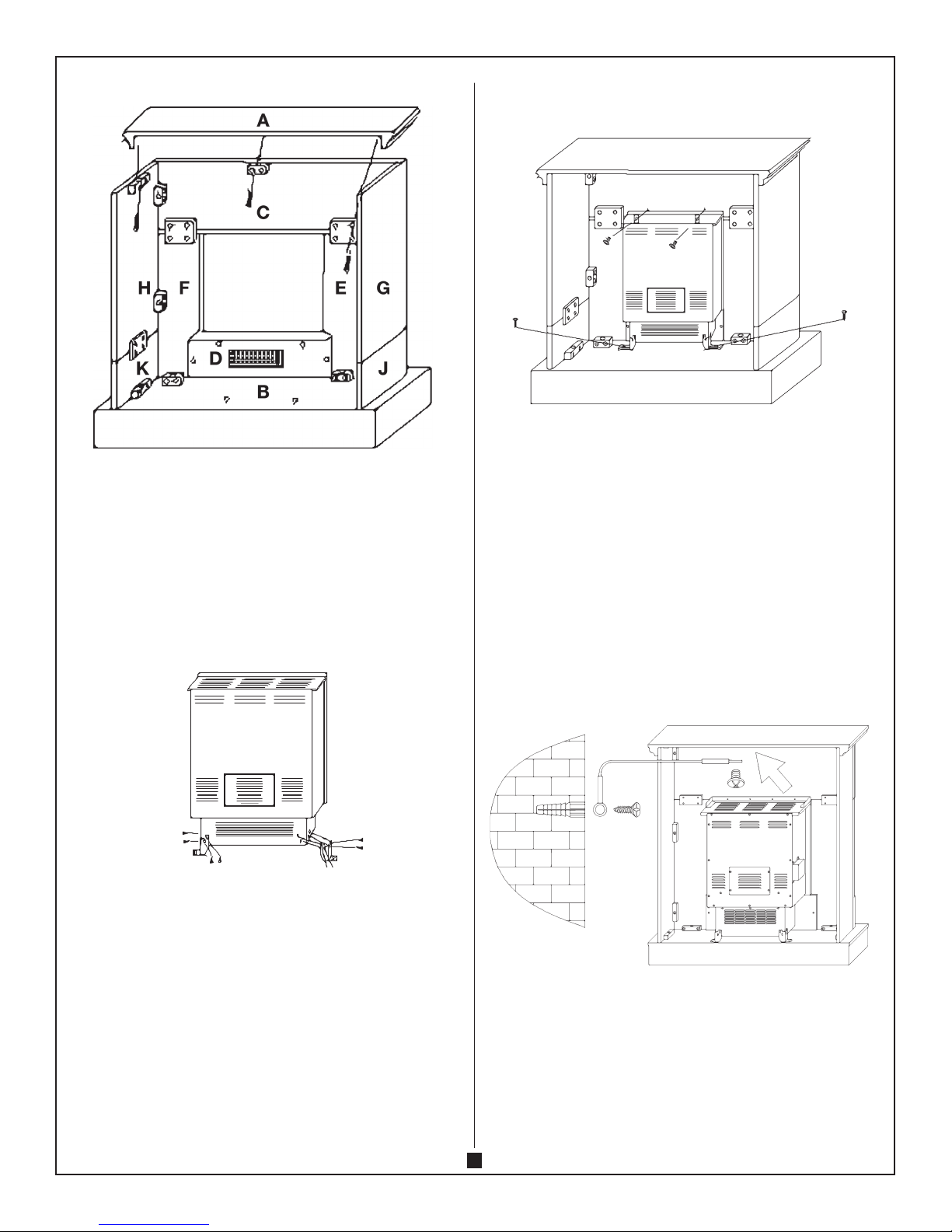

Step 1: Attach 11 plastic connectors [X] to panels C, E, F, G, H, J and K as shown in
Fig. A (2 pcs KD screws for each plastic connector). Attach panels H and K
together with 4-hole wood connector [S] and 4 KD screws. Attach Panels G and
J together with 4-hole wood connector [S] and 4 KD screws. See Fig A.
Fig. A BACK

3
Step 2: Attach panel E to panel G and J with 1 KD screw. Attach panel F to panel H and
K with 1 KD screw. See Fig. B.
Fig. B BACK
Step 3: Attach two 4-hole wood connectors [S] to panel E and F with 4 KD screws (2
screws for each wood connector). Attach Panels E, G and J to base panel [B]
with 2 KD screws. Attach Panels F, H and K to base panel [B] with 2 KD screws.
See Fig. C.
Fig. C BACK
Step 4: Attach lower front panel [D] to the unit as shown in Fig. D with 2 KD screws.
Fig. D BACK
Step 5: Attach upper front panel [C] to the unit as shown in Fig. E with 6 KD screws.
Fig. E BACK

4
Step 6: Attach top panel [A] on top with 3 KD screws. See fig. F.
Fig. F BACK
Step 7: Tighten all KD screws.
FIREPLACE INSERT INSTALLATION:
The fireplace insert can be installed after the mantel has been fully assembled.
WARNING: MAKE SURE THE FIREPLACE INSERT CONTROLS ARE IN THE OFF
POSITION AND THE UNIT IS NOT PLUGGED IN.
Step 1: Attach two mounting feet [Q] to the fireplace insert (one at each side) with 8
screws for mounting feet [R] (4 screws for each mounting foot). See Fig G.
Fig. G BACK
Step 2: Carefully place the insert in the unit opening. The front of insert should be flush
with the front of the mantel. Carefully lift the insert into the mantel until the top
stopper is against the mantel.
Step 3: Attach 2 mounting clips [U] to the top side of insert with 2 short KD screws [T].
Attach 2 mounting brackets [V] to the feet of insert with 2 KD screws.
See Fig H.
Fig. H BACK
Step 4: Move assembled unit to desired location. Unit should not be positioned in area
exposed to direct sunlight.
WALL ANCHOR SAFETY CABLE
The use of wall anchor safety cable is highly recommended in order to reduce the risk of the
fireplace being tipped over accidentally.
WARNING: THIS CABLE MAY REDUCE POSSIBLE RISK OF INJURY IF THE
FIREPLACE IS IMPROPERLY HANDLED, BUT IS NOT A SUBSTITUTE FOR PROPER
ADULT SUPERVISION. CHILDREN SHOULD NOT BE LEFT UNATTENDED NEAR
ANY HEATER.
1. Drill a 5/16 in (8 mm) hole in the wall. Insert the plastic wall anchor into the hole and gently
tap until the flange on the anchor is against the wall surface.
2. Position the back edge of the mantel close to the wall.
3. Attach the safety cable to the mantel using the screw for mantel. See figure I.
Fig. I BACK
4. Use the screw for wall to attach the other end of safety cable to the wall.
5. Make sure all screws are tight.
OPERATION
After reading complete instructions, confirm all controls on fireplace are in the OFF position.
Plug the fireplace into a 15AMP/120Volt outlet. If the cord does not reach, you may use an
extension cord rated for a minimum of 1875 WATTS. Once the fireplace insert has been
properly connected to a grounded electrical outlet, it is ready to operate.

5

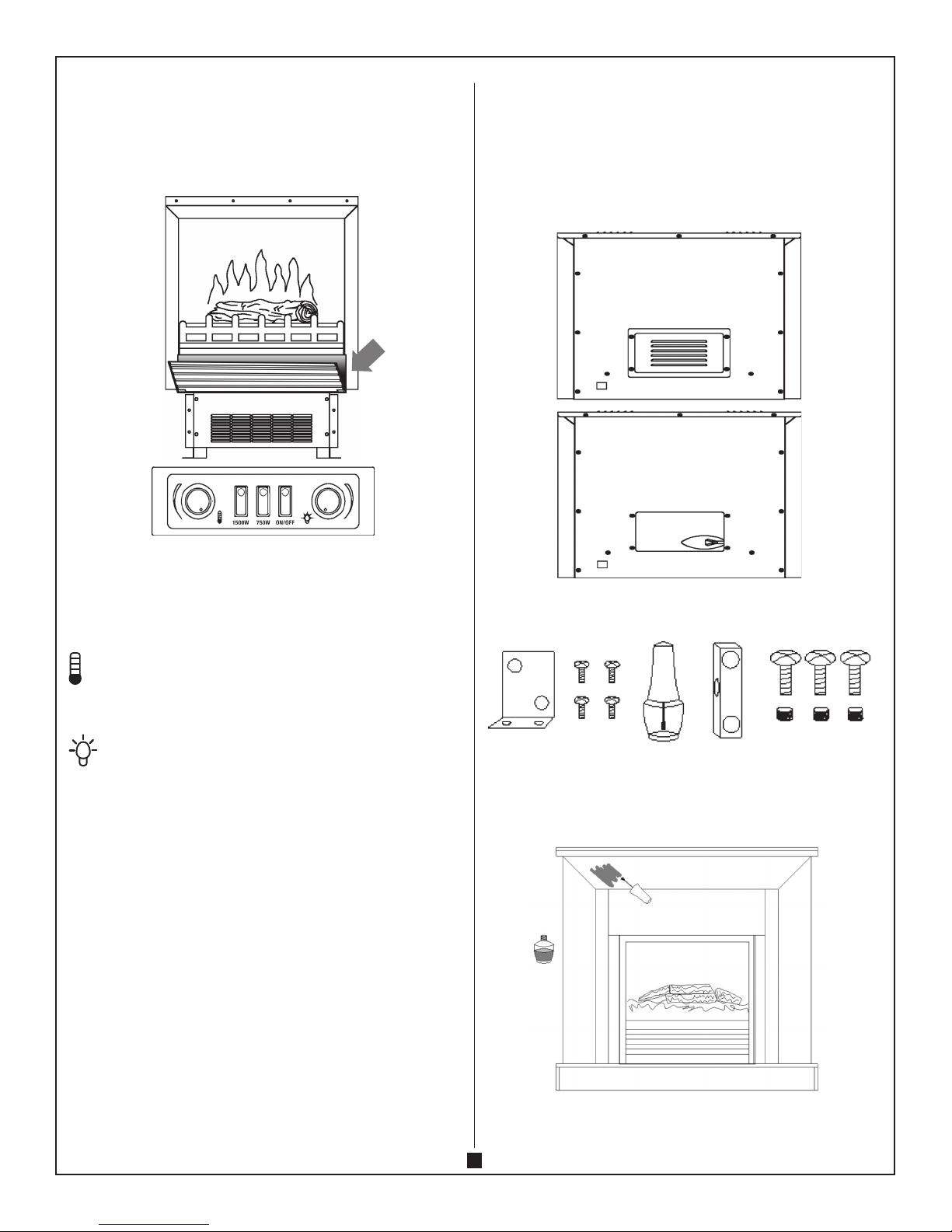

OPERATION BY THE CONTROL PANEL
The controls are located behind the grill below the front glass and can be accessed by pulling
the grill from the top, forward and down.
WARNING: DO NOT TOUCH HOT SURFACE AT CENTRE OF GRILL, HANDLE, LEFT OR
RIGHT SIDE OF GRILL WHEN PULLING OUT.
ON/OFF: Press this switch for main power and flame effect. The indicator light will turn
on. See below for other control switches.
750W: For low heat function, press this switch while the ON/OFF switch is in the on
position for low heat. The indicator light will turn on.
1500W: For high heat function, press this switch while the ON/OFF switch and the
750W switch are in the on position for high heat. The indicator light will turn on.
TEMPERATURE CONTROL: To adjust the temperature to your individual
requirements, turn the temperature control dial to the right (clockwise) to increase
the desired temperature and to the left for lower temperature. This temperature
control dial can only be used while the ON/OFF, 750W and 1500W switches are in
the ON position.
DIMMER CONTROL KNOB: Turn the dimmer dial clockwise or counter clockwise
to get the desired flame intensity. The dimmer switch can only be used when the
ON/OFF switch is in the on position.
NOTE: When the ON/OFF switch is turned off, all other heater functions will stop even
though the switches may be in the on position.
MAINTENANCE
WARNING:
DISCONNECT POWER AND UNPLUG THE POWER CORD BEFORE ATTEMPTING ANY
MAINTENANCE OR CLEANING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
DAMAGE TO PERSONS. THE BULBS IN YOUR UNIT CAN BECOME EXTREMELY HOT.
ALLOW AT LEAST 10 MINUTES BETWEEN TURNING OFF THE UNIT AND REMOVING
THE LIGHT BULBS TO AVOID THE ACCIDENTAL BURNING OF THE SKIN.
RISK OF FIRE: DO NOT EXCEED THE RECOMMENDED BULB WATTAGE.
REPLACING THE LIGHT BULBS
Step 1: Remove 4 screws on the back of fireplace and remove the rear cover of the unit.
Step 2: You will find 1 X E12 40W Type B-10 bulb under log-set bed.
Step 3: Loosen and remove burnt out bulb and replace with new bulb.
Step 4: Close the rear cover and secure with the 4 screws.
Step 5: Plug in the unit.
REPAIR SET
TOUCH-UP REPAIR PAINT
Paint directly on the mantel unit if necessary.

6
REPAIRS
If any problems are found with the original parts during mantel assembly – such
as if the panels cannot be installed with the plastic connector – try to solve by one
of the following methods.
Tools required: Electric drill, drill bits 3/4 inches (10 mm) or 1/16 inches (2 mm),
pencil, hammer, Phillips screwdriver, safety goggles and gloves (if necessary).
WARNING: WEAR GOGGLES BEFORE YOU START DRILLING.
OPTION 1:
Use the spare KD nuts, KD screws and plastic connector.
1. Place the plastic connector on the mantel unit and mark the drill-holes as shown in
Fig. A.
Fig. A
2. Drill the holes with diameter 3/4 inches (10 mm) and depth 3/4 inches (10 mm) on
the mantel. Each plastic connector needs 3 holes. See Fig. B.
Fig. B Fig. C
3. Gently install the KD nuts into the drilled-holes with hammer as shown in Fig. C.
4. Attach the plastic connector and lock in place with KD screws as shown in Fig. D.
Fig. D
OPTION 2:
Use the small L-brackets and screws.
1. Place the small L-bracket to the unit and mark the drill holes on the mantel, as shown
in Fig. E.
Fig. E
2. Drill the holes with diameter 1/16 inches (2 mm) and depth 5/16 inches (8 mm) on
the mantel. Each small L-bracket needs 4 holes. See Fig. F.
Fig. F Fig. G
3. Attach the small L-bracket and lock in place with screws, as shown in Fig. G.
CLEANING
To clean the unit first turn off the controls on the unit and unplug the unit from power
source.
To clean the glass display panel; remove dust with a clean, dry cloth or remove finger
prints and other marks with a clean damp cloth. Do not use abrasive cleaners or spray
liquids on glass display panel surface.
Metal and metal painted parts should be cleaned with a damp cloth. Do not use
abrasive cleaners or spray liquids on these surfaces.

7
WARRANTY
Every electric fireplace heater is tested before it leaves the factory and it is guaranteed for one
year. If the unit should fail to operate correctly within one year from the date of purchase, call
customer service at 1-800-459-4409 (Monday to Friday, 8:30am to 5:00pm, EST). We will,
at our discretion, either repair or replace the unit. It will have to be returned to us freight prepaid
and we will return the repaired or replaced unit to you freight prepaid. The company’s sole
obligation is to repair or replace the unit.
This warranty is void, if in the opinion of Quality Craft, the unit has been tampered with, altered,
misused, damaged, abused or used with the wrong power source. Light bulbs are not covered
by this warranty. The warranty is for homeowner use only and does not cover units used in
commercial situations.
WARRANTY CLAIM PROCEDURE
If a claimable defect occurs, please fill out a claim form through our website at
www.qualitycraft.com or contact our customer service department at 1-800-459-4409
(Monday to Friday, 8:30am to 5:00pm, EST).
Before you make your claim call, please make sure you have:
1. The description of the electric fireplace
2. Proof of sale
3. Details regarding the defect
4. Name and address of the owner and installer
Claims must be filled out in writing and returned within six (6) months of appearance of defect.
Failure to comply with this stipulation will make the warranty null and void. We reserve the
right to a thirty-day (30) delay following receipt of claim in which to inspect the product. We
assume no responsibility for labor costs, removing/replacing a previously installed product,
transportation, or return of the product.
Imported by
Quality Craft
Laval, Quebec, Canada H7C 0A5
1-800-459-4409 (EST)
www.qualitycraft.com
Made in China
