QUALITY LIFTS Q10 Instruction manual

Rev. 10/22/08
INSTALLATION, OPERATION & MAINTENANCE MANUAL
Two Post
Surface Mounted Lift
MODEL Q10
10,000 LBS. CAPACITY
2500 LBS. PER ARM
QUALITY LIFTS, LLC
200 Cabel St., P.O. Box 3972, Louisville, KY 40206
FAX: [phone]
TOLL FREE: 877-771-5438
E-mail: [email protected]
www.qualitylifts.com
IMPORTANT: READ THIS MANUAL COMPLETELY BEFORE
INSTALLING or OPERATING LIFT

Model Q10
Installation, Operation and Maintenance
Page 2
Rev. 10/22/08
Q10-IOM-Q.doc
GENERAL SPECIFICATIONS
See Figure 1 Q10
ARise Height (Screw Pads Highest Position) 78 3/4" (2000mm)
BOverall Height (Adjustable) 147 1/2" (3748mm) / 137 1/2" (3494mm)
COverall Width 131 3/4" (3347mm)
DDrive-Thru Clearance 98 3/8" (2499mm)
EFloor to Overhead Switch 140 1/2" (3568mm)/ 130 1/2" (3314mm)
FShort Arm Reach 21 3/4"-39 1/4" (553mm-998mm)
GLong Arm Reach 38 1/4"-55 3/8" (971mm-1407mm)
HScrew Pad Height 4 1/4"-7 3/4" (109mm-199mm)
KInside of Columns 110 1/4" (2800mm)
Lifting Capacity * 10,000 lbs. (4536 kg)
Ceiling Height Required 149" (3785mm)
Motor 2HP, Single Phase, 60Hz
Voltage 208-230
Speed of Rise ** 52 seconds
Max Load Per Arm 2500 lbs (1134 kg)
* Lift capacity ratings are based on loads equally distributed on all four arms.
** Lifting and lowering speeds may vary depending on the weight of the vehicle.
Fig 1a - General Specifications Fig1b - Service Bay Layout

Model Q10
Installation, Operation and Maintenance
Page 3
Rev. 10/22/08
Q10-IOM-Q.doc
WARNING
VERTICAL CLEARANCE
Check the height of the area where the lift is to
be installed. Clearance should be calculated
based on the full raised height of the lift.
Failure by purchaser to
provide adequate
clearance could result in
unsatisfactory lift performance, property
damage, or personal injury.
FLOORING
Be certain you have the proper concrete floor to
properly handle the loaded lift. Floor should be in
generally good condition with no large cracks,
spalling or deterioration.
Minimum requirements for concrete are 4
inches minimum depth, with steel
reinforcement, 3500 psi, cured for 28 days per
local commercial practice. Floor should be
level within 3/8 inch over the installation area. No
anchors should be installed within 8 inches of any
crack, edge, or expansion joint. If these
conditions cannot be met, a pad may be poured
to accommodate the lift.
Check with local building inspectors and/or
permits office for any special instructions or
approvals required for your installation.
Failure by purchaser to
provide the recommended
mounting surface could
result in unsatisfactory lift performance,
property damage, or personal injury.
LOCATION
This lift has been evaluated for indoor use only
with an operating ambient temp. range of 5 –
40°C (41–104°F)
ELECTRICAL REQUIREMENTS
For lift installation and operation for single phase
units, it is necessary to have a dedicated circuit
with a double pole 25 amp circuit breaker or time
delay fuse.
SAFETY NOTICES AND DECALS
For your safety, and the safety of others, read
and understand all of the safety notices and
decals included here.
READ ENTIRE MANUAL BEFORE
ASSEMBLING, INSTALLING,
OPERATING, OR SERVICING THIS
EQUIPMENT.
PROPER MAINTENANCE AND
INSPECTION IS NECESSARY FOR SAFE
OPERATION.
DO NOT OPERATE A DAMAGED LIFT.
Safety decals similar to those shown here are
found on a properly installed lift. Be sure that all
safety decals have been correctly installed on the
Power Unit reservoir. Verify that all authorized
operators know the location of these decals and
fully understand their meaning. Replace worn,
faded, or damaged decals promptly.
Do not attempt to raise a
vehicle on the lift until the
lift has been correctly
installed and adjusted as described in this
manual.
WARNING
WARNING

Model Q10
Installation, Operation and Maintenance
Page 4
Rev. 10/22/08
Q10-IOM-Q.doc
RECEIVING
The shipment should be thoroughly inspected as
soon as it is received. The signed bill of lading is
acknowledgement by the carrier of receipt in
good condition of shipment covered by our
invoice.
If any of the goods called for on this bill of lading
are shorted or damaged, do not accept them until
the carrier makes a notation on the freight bill of
the shorted or damaged goods. Do this for your
own protection.
NOTIFY Quality Lifts AT ONCE if any hidden
loss or damage is discovered after receipt.
IT IS DIFFICULT TO COLLECT FOR LOSS OR
DAMAGE AFTER YOU HAVE GIVEN THE
CARRIER A CLEAR RECEIPT.
File your claim with Quality Lifts promptly.
Support your claim with copies of the bill of
lading, freight bill, and photographs, if available.
Component Packing List
QTY/ LIFT DESCRIPTION
1 Power Column Assembly
1 Idler Column Assembly
1 Overhead Assembly
1 Hardware Box
1 Power Column Extension
1 Idler Column Extension
2 Rear Arm Assembly
2 Front Arm Assembly
2 Synchronizer Cable
Assembly
1 Hydraulic Hose Pack
1 Power Lock Cover
1 Idler Lock Cover
INSTALLATION
IMPORTANT:Always wear safety glasses while installing lift.
TOOLS (MINIMUM REQUIRED)
a. Tape measure, 16ft
b. Chalk line
c. 4ft level
d. 10” adjustable wrench
e. Metric open end wrenches 10mm, 13mm,
14mm, 15mm, 17mm, 18mm, 19mm and
24mm
f. Metric Allen Wrenches 4mm, 5mm, 6mm,
and 8mm.
g. Needle Nose pliers
h. Snap Ring pliers
i. Hammer drill with 3/4” diameter carbide
tipped bits
j. 2lb hammer
k. Torque wrench: 150 foot pounds minimum
with 1 1/8” socket
l. 12 ft. Step ladder
m. Anti-Seize lubricant (for arm pins and foot
pad screw threads and stop rings)
LAYOUT
1) Layout the service bay according to the
architect’s plans or owners instructions (see
Fig 1b). Failure to install in this
orientation can result in personal and
property damage. Be certain that the
proper conditions exist, see page 3.
2) Assemble column extension to column using
M12 x 30 Hex bolts. Repeat for opposite
column and extension. Install power column
extension on power column, see Fig 6.
3) Using the Overall Width (C) Dimension from
Fig 1b, chalk two parallel lines on the floor
within 1/8” tolerance. Erect both column
assemblies. Align the base plate edges to the
chalk lines.

Model Q10
Installation, Operation and Maintenance
Page 5
Rev. 10/22/08
Q10-IOM-Q.doc
ANCHORING
4) The anchor bolts must be installed at least 8”
from any crack, edge, or expansion joint.
5) Use a concrete hammer drill with a 3/4 inch
carbide bit. Tip diameter should conform to
ANSI Standard B94.12-1977 (.775 to .787).
Do not use excessively worn bits or bits
which have been incorrectly sharpened. A
core bit may be necessary if an obstruction is
encountered. Never substitute with shorter
anchor.
6) Recheck “Inside of Columns” dimension,
Fig 1. Drill the anchor holes using the base
plate as a template. Drill through the floor if
possible or to a depth of 5 inches minimum.
7) Vacuum dust from the hole for proper holding
power.
8) Shim both columns to plumb using the shims
provided as shown in Fig 2. DO NOT shim
more than 1/2" at any given point. Use a level
no less than 24” in length to plumb columns.
9) Assemble washer and nut to anchor with nut
just below impact section of bolt. Drive
anchor into hole until nut and washer contact
base.
Fig 2 – Column Shimming
10) Tighten power column anchors and recheck
column for plumb. Re-shim if necessary.
Torque to 150 foot-pounds to set anchors.
OVERHEAD
11) Raise and install Overhead Assembly using
M12 x 30 Hex Bolts.
12) Install Overhead Limit Switch under the
Overhead Assembly on the Power Side.
Route cable around outside of column as
shown in Fig. 6.
13) Check idler column shimming. Use additional
shims (see Fig. 2) to remove any gaps that
may have been created while installing
overhead beam. Tighten anchor bolts and re-
check column for plumb. Torque to 150 foot-
pounds.
SYNCHRONIZER CABLES
14) At the upper beam sheave locations
disassemble and reassemble the cable
trapping rod to install the cable onto the
sheave, See Fig 3. To install the cable
bottom sheave will need to be removed then
reassembled.
Fig 3-Cable Trapping
15) Attach one end of synchronizing cable to
carriage. See Fig 4 for proper attachment.
16) Route cable up and over sheave in
overhead. Follow across to other sheave on
opposite column. Route down through
carriage to sheave in bottom of column.
Route under sheave and up to cable
attachment. Lower attachment point is used
for Standard Height Installation (147 ½”) and
the Upper attachment point is used for
Reduced Height Installation (137 ½”). Use
Fig 4 for proper attachment.
17) Repeat for opposite side.
Fig 4 – Synchronizing Cables

Model Q10
Installation, Operation and Maintenance
Page 6
Rev. 10/22/08
Q10-IOM-Q.doc
POWER UNIT & HYDRAULIC LINES
Fig 5 – Power Unit Mounting
18) Mount Power Unit to power column as shown
in Fig 5. The mounting hardware, (4) M8 hex
nuts, are pre-installed on power unit
mounting bracket.
19) Attach Hydraulic elbow fitting threading the
O-Ring end into the power unit.
20) IMPORTANT – To insure proper hose
fitting seal without damage to the fitting
follow this procedure for each hose
connection: Screw flared fitting on finger
tight. Rotate flared fitting 1 ½ flats or 90
degrees. Back the flared fitting off one full
turn and repeat.
21) Thread power unit hose (short) to elbow in
power on power unit.
22) Beginning on the idler side start with the Idler
Extension hose at the elbow fitting (This hose
has a male fitting on one end and is removed
for reduced height installations). Continue
with the Idler Column Hose (long) up the
backside of the column through the two
capture rings and guide at the top of the
extension. Continue across the overhead
through each of the guides as shown and
down the backside of the power column.
See Fig 6.
Overhead
Shutoff Cord
Lock Release
Cable
Hydraulic Hose
Synchronizing
Cables
Fig 6 – Hose Routing (Power Side)
23) Route the remaining Power column hose
beginning at the elbow fitting at the base up
the backside of the column. Join the three
hoses with the supplied union tee.
24) BE CERTAIN ALL FITTINGS AND CONNECTIONS
ARE TIGHT. IT IS THE INSTALLERS
RESPONSIBILITY TO INSURE SYSTEM IS LEAK-
FREE. Fill the Power Unit with three gallons of
clean 10wt anti-foam anti-rust hydraulic oil or
Dexron III ATF. DO NOT USE OILS WITH
DETERGENTS.
LOCK RELEASE
25) Install Lock Release Stud and Knob to the
Power Column Lock using one M10 Nut.
26) Attach Mechanical Lock Release Cable
Assembly to each lock pawl. See Fig 7.
Fig 7 – Lock Assembly
THE LOCK RELEASE CABLE ADJUSTMENT IS NOT
COMPLETE UNTIL THE LIFT HAS BEEN LOWERED AND
“FINAL ADJUSTMENTS” HAVE BEEN MADE.
ARM INSTALLATION
27) Lubricate the arm pin or carriage arm pin
hole with “anti-seize” and install the arms.
Insure that the arm restraint gears engage
and disengage properly. Arm restraints
should disengage when lift is fully lowered. If
any binding occurs, insure that the large gear
mounted to the arm has been factory
installed tight against the arm pin.
28) Extend the footpad to both extents and apply
anti-seize to the three retaining rings and
where the double screw makes contact with
the base of the footpad.

Model Q10
Installation, Operation and Maintenance
Page 7
Rev. 10/22/08
Q10-IOM-Q.doc
ELECTRICAL
29) Refer to Fig 8 Wiring Diagram for all steps
under this heading.
Single Phase
30) Connect the Overhead Limit Switch Cord to
Power Unit as shown.
31) Connect Power Unit to suitable electrical
source as shown.
Three Phase
32) Power unit is factory wired for 240 volt.
Refer to wiring diagram or motor plate for
optional voltages.
33) Connect Contactor Enclosure to column.
Mounting hardware should be centered on
the column side to side to avoid the path of
the slide blocks.
34) Connect Overhead Limit Switch Cord to
Contactor as shown.
35) Connect Contactor to Power unit as shown.
Connect Contactor to suitable electrical
source as shown.
IMPORTANT: AFTER WIRING HAS BEEN
COMPLETED, TEST OPERATION OF POWER UNIT &
OVERHEAD LIMIT SWITCH.WHILE RAISING LIFT,
OPERATE OVERHEAD SHUTOFF BAR. POWER UNIT
MOTOR SHOULD STOP WHEN SHUTOFF BAR IS
RAISED.
FINAL ADJUSTMENTS
HYDRAULICS
36) Lower the lift to the floor and raise the lift
approximately one foot.
37) Start with Idler side first. Slowly and carefully
loosen the bleed plug on top side of the
cylinder just enough to allow the entrapped
air to escape. Repeat for power side.
38) Raise lift 6 inches. Repeat step 32 until no air
comes out of cylinder.
39) Pressure test hydraulic system. Energize
power unit, raise lift to full rise and continue
to run motor for additional 10 seconds.
(NOTE: pressure relief will make a high pitch
squeal sound for these 10 seconds.) Check
hydraulic system for leaks.
40) Energize power unit again for 10 seconds.
With a clean rag, wipe down both cylinder
rods. (The cylinders are shipped with a small
amount of clear anti-corosive lubricant that
will be forced out through the wiper when the
lift reaches full rise.) If lubricant is not
wiped clean from the cylinder rod, the
cylinder will apear to be leaking.
SYNCHRONIZING CABLES
41) Raise lift and insure carriages lower into
same lock position.
42) Adjust synchronizing cables so the tension is
equal in both cables and carriages are firmly
sitting on locks.
43) Cycle lift to insure that latches operate
simultaneously.
LOCK RELEASE CABLE
44) Raise lift to a lock position but don’t set into
the lock. Pull and release Power Column
lock release handle while watching Idler
Column lock. Adjust Cable tension by
removing slack and retightening cable clamp
at the power side. IMPORTANT: IF IDLER
SIDE LOCK PAWL DOES NOT FULLY DISENGAGE,
DAMAGE MAY RESULT TO IDLER SIDE CARRIAGE
AND OR CABLE SYNCHRONIZING SYSTEM.
45) Remove lock release knob and install both
covers. Replace lock release knob.
OWNER/OPERATOR CHECKLIST
46) Demonstrate the operation of the lift to the
owner/operator and review correct and safe
lifting procedures using the Lifting It Right
booklet as a guide.
47) Complete the Installation Checklist/Warranty
Validation questionnaire with the owner.
Review the terms of the warranty registration
card, and return the card and a copy of the
questionnaires to:
QUALITY LIFTS, LLC
200 Cabel St., P.O. Box 3972,
Louisville, KY 40206

Model Q10
Installation, Operation and Maintenance
Page 8
Rev. 10/22/08
Q10-IOM-Q.doc
1
5
4
6
(Normally Open) M
Wiring Diagram
A2A1
T9
T5
T4
T6
M
T8
T3
T7
T2
T1
12
34
56
L3
L2
L1
T3
T2
T1
FOR SINGLE PHASE
FACTORY WIRED FOR
208−240V
6
4
2
5
3
1
RECONNECTIONS FOR
440−480V
T3
T2
T1
T9
T6
T7
T4
T8
T5
FOR THREE PHASE
M
FIELD
CONECTIONS
Fig 8 – Electrical Wiring Diagram

Model Q10
Installation, Operation and Maintenance
Page 9
Rev. 10/22/08
Q10-IOM-Q.doc
OPERATION PROCEDURE
SAFETY NOTICES AND DECALS
This product is furnished with graphic safety
warning labels, which are reproduced on
page 3 of these instructions. Do not remove
or deface these warning labels, or allow them
to be removed or defaced. For your safety,
and the safety of others, read and understand
all of the safety notices and decals included.
OWNER/EMPLOYER RESPONSIBILITIES
This lift has been designed and constructed according
to ANSI/ALI ALCTV-2006 standard. The standard
applies to lift manufactures, as well as to owners and
employers. The owner/employer’s responsibilities as
prescribed by ANSI/ALI ALOIM-2000, are summarized
below. For exact wording refer to the actual standard
provided with this manual in the literature pack.
The Owner/Employer shall insure that lift
operators are qualified and that they are trained
in the safe use and operation of the lift using the
manufacturer’s operating instructions; ALI/SM
93 -1, ALI Lifting it Right safety manual; ALI/ST-
90 ALI Safety Tips card; ANSI/ALI ALOIM-2000,
American National Standard for Automotive Lifts-
Safety Requirements for Operation, Inspection
and Maintenance; ALI/WL Series, ALI Uniform
Warning Label Decals/Placards; and in case of
frame engaging lifts, ALI/LP-GUIDE, Vehicle
Lifting Points/Quick Reference Guide for Frame
Engaging Lifts.
The Owner/Employer shall establish
procedures to periodically inspect the lift in
accordance with the lift manufacturer’s
instructions or ANSI/ALI ALOIM-2000, American
National Standard for Automotive Lifts-Safety
Requirements for Operation, Inspection and
Maintenance; and the employer shall insure that
the lift inspectors are qualified and that they are
adequately trained in the inspection of the lift.
The Owner/Employer shall establish
procedures to periodically maintain the lift in
accordance with the lift manufacturer’s
instructions or ANSI/ALIOIM-2000, American
National Standard for Automotive Lifts-Safety
Requirements for Operation, Inspection and
Maintenance; and the employer shall insure that
the lift maintenance personnel are qualified and
that they are adequately trained in the
maintenance of the lift.
The Owner/Employer shall maintain the
periodic inspection and maintenance records
recommended by the manufacturer or ANSI/ALI
ALOIM-2000, American National Standard for
Automotive Lifts-Safety Requirements for
Operation, Inspection and Maintenance.
The Owner/Employer shall display the lift
manufacturer’s operating instructions; ALI/SM
93 -1, ALI Lifting it Right safety manual; ALI/ST-
90 ALI Safety Tips card; ANSI/ALI ALOIM-2000,
American National Standard for Automotive Lifts-
Safety Requirements for Operation, Inspection
and Maintenance; and in the case of frame
engaging lift, ALI/LP-GUIDE, Vehicle Lifting
Points/Quick Reference Guide for Frame
Engaging Lifts; in a conspicuous location in the
lift area convenient to the operator.
IMPORTANT SAFETY INSTRUCTIONS
When using your garage equipment, basic safety
precautions should always be followed, including
the following:
1. Read all instructions.
2. Care must be taken as burns can occur from
touching hot parts.
3. To reduce the risk of fire, do not operate
equipment in the vicinity of open containers
of flammable liquids (gasoline).
4. Keep hair, loose clothing, fingers, and all
parts of body away from moving parts.
5. Use only as described in this manual. Use
only manufacturer’s recommended
attachments.
6. ALWAYS WEAR SAFETY GLASSES.
Everyday eyeglasses only have impact
resistant lenses, they are not safety glasses.
SAVE THESE INSTRUCTIONS

Model Q10
Installation, Operation and Maintenance
Page 10
Rev. 10/22/08
Q10-IOM-Q.doc
LIFTING A VEHICLE
1) Insure that the lifting arms are parked, out to
full drive thru position.
2) Position the vehicle in the service bay so that
the vehicle’s center of gravity is on a line
between the two columns, and so the vehicle
is centered between the two columns.
DO NOT EXCEED 2500 POUNDS PER ARM.
DO NOT ATTEMPT TO LIFT THE VEHICLE WITH
ONLY TWO ARMS, AS THIS WILL VOID THE
WARRANTY
INSURE THAT THE HIGHEST POINT ON THE
VEHICLE WILL CONTACT THE OVERHEAD LIMIT
SWITCH BAR.
DO NOT PLACE THE VEHICLE IN THE SERVICE BAY
BACKWARDS.
REFER TO THE VEHICLE MANUFACTURERS SERVICE
MANUAL, TECHNICAL BULLETINS, “VEHICLE LIFTING
POINTS GUIDE” (ALI/LP-GUIDE) OR OTHER
PUBLICATIONS TO LOCATE THE RECOMMENDED
LIFTING POINTS.
3) Position the arms and adapters so all four
pads contact the vehicle simultaneously.
The vehicle should remain level during lifting.
4) Raise the lift until all four wheels are off the
ground. Test the stability of the vehicle by
attempting to rock the vehicle. Check adapters
for secure contact with vehicle lift points. If the
vehicle seems unstable, lower the lift and
readjust the arms. If the vehicle is stable,
raise the vehicle to a height a few inches
above the desired working height.
5) Lower the vehicle until the safety latches on
both columns engage. The vehicle should
remain level when both latches are engaged.
If one side engages and the other continues to
descend, stop lowering the vehicle, raise it
several inches, and try again to engage both
latches.
Always lower lift into locks before entering
the area beneath the vehicle.
Always use safety stands when removing or
installing heavy components.
LOWERING A VEHICLE
1) Insure that the area under the vehicle is clear
of personnel and tools.
2) Raise the vehicle until both latches are free.
3) Disengage the latches by pulling down and
holding the lock release lever.
4) Lower the vehicle by depressing the lowering
valve handle.
5) Continue to lower the vehicle until the
carriages stop against the base plate. Retract
the extension arms, and park them.
MAINTENANCE
To avoid personal injury, permit only qualified
personnel to perform maintenance on this
equipment. Maintenance personnel should follow
lockout/tagout instructions per ANSI Z244.1.
The following maintenance points are suggested
as the basis of a preventive maintenance
program. The actual maintenance program
should be tailored to the installation. See
ANSI/ALI ALOIM booklet for periodic inspection
checklist and maintenance log sheet.
• If lift stops short of full rise or chatters, check
fluid level and bleed both cylinders per
Installation Instructions.
• Replace all Safety, Warning or Caution Labels
if missing or damaged (See Installation
instructions page 3.)
Daily
• Keep lift components clean.
• Check for loose or broken parts.
• Check hydraulic system for fluid leaks.
• Check adapters for damage or excessive wear.
Replace as required with genuine Quality Lifts
parts.
• Check lock release activation. When properly
adjusted, the idler column lock should rest
firmly against the back of the column when
engaged and pull clear of the column back
when disengaged.
Weekly
• Check synchronizer cables and sheaves for
wear. Replace as required with genuine Quality
Lifts parts.
• Check lock release cable adjustment per
Installation Instructions step 39.
IMPORTANT: IF IDLER SIDE LOCK PAWL DOES
NOT FULLY DISENGAGE, DAMAGE MAY RESULT
TO IDLER SIDE CARRIAGE AND OR CABLE
SYNCHRONIZING SYSTEM.
• Check synchronizer cable tension per
Installation Instructions. Adjust if necessary.
Monthly
• Torque concrete anchor bolts to 80 ft-lbs.
• Check overhead shutoff switch. While raising
lift, operate overhead shutoff bar. Power Unit
motor should stop when bar is raised.
• Lubricate carriage slide tracks with heavy
viscous grease. (Grease all (4) corners of both
columns.)
• Visually inspect concrete floor for cracks and/or
spalls within 12” of base plate
If any problems are encountered, contact
your local service representative.

Model Q10
Installation, Operation and Maintenance
Page 11
Rev. 10/22/08
Q10-IOM-Q.doc

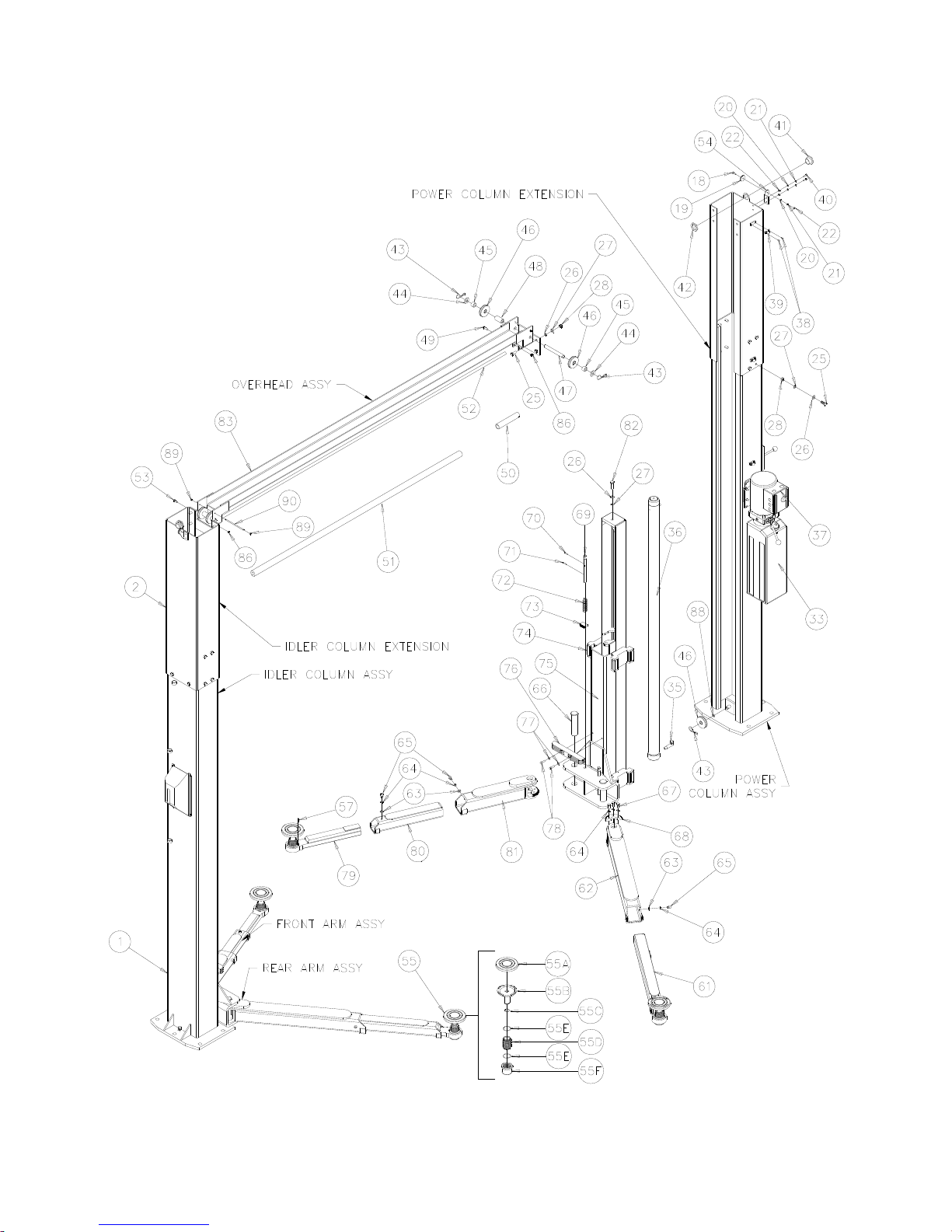

Parts Breakdown

Model Q10
Installation, Operation and Maintenance
Page 12
Rev. 10/22/08
Q10-IOM-Q.doc

Model Q10
Installation, Operation and Maintenance
Page 13
Rev. 10/22/08
Q10-IOM-Q.doc
IMPORTANT
Replace all worn or broken parts with genuine Quality Lifts parts. Contact your local Quality
Lifts parts distributor for pricing and availability. Call Quality Lifts, Inc. at [phone] for
the distributor in your area.
Item # Part # Qty. Description Item # Part # Qty. Description
1 JSJ5-02-01-00 1 Power Column Weld 45 X10-056 4 Spacer Sleeve
JSJ5-02-01-00f 1 Idler Column Weld 46 X10-057 6 Synch. Sheave
2 JSJ5-02-02-00Q 1 Power Extension Weld 47 X10-058 2 Axle
JSJ5-02-02-00fQ 1 Idler Extension Weld 48 X10-059 2 Middle Spacer Sleeve
3 X10-013 1 Power Lock Cover 49 X10-060 2 Bolt M8 x 25
X10-014 1 Idler Lock Cover 50 36027 1 Limit Switch
4 X10-065 8 Screw M5 x10 51 JSJ5-03-03Q 1 Shutoff Bar Cushion
5 X10-017 1 Lock Release Knob 52 JSJ5-03-02Q 1 Shutoff Bar
6 X10-018 1 Lock Release Stud 53 X10-063 1 Bolt M8
7 X10-019 1 Nut M10 54 JSJ4-02-11-00 1R/1L Pulley Bracket
8 X10-020 4 “C” Ring 20 55 B2250 4 Foot Pad Assembly
9 X10-021 2 Lock Release Wire Pin 55A B2208 4 Rubber Insert
10 X10-022 2 Lock Release Spring 1 55B B2205 4 Foot Pad Weld
11 X10-023 2 Lock Release Spring 2 55C B17256 4 2x30 Retaining Ring
12 X10-024 2 Lock Release Shaft 55D B17254 4 Threaded Sleeve
13 X10-025 2 Lock Release Cam 55E B2250 8 3x45 Retaining Ring
14 X10-026 2 Bolt M6 55F B17276-1 4 Threaded Insert
15 X10-027 2 Spring Pin 6 x 35 57 B2211 4 Roll Pin, ø6x30
16 X10-028 2 Lock Pawl 61 JSJ5B-09-02-00CH 2 Rear Male Arm
17 X10-029 2 Washer 62 JSJ5B-09-01-00B 2 Rear Female Arm
18 X10-030 4 Pulley Axle 63 X10-073 6 Washer 10mm
19 X10-031 4 Pulley 64 X10-074 18 Spring Washer 10mm
20 X10-032 8 Washer 6mm 65 X10-075 6 Screw M10
21 X10-033 8 Spring Washer 6mm 66 X10-076 4 Arm Pin
22 X10-034 9 Nut M6 67 X10-077 12 Screw M10 x 25
23 X10-035 1 Bolt (Cable Clamp) 68 X10-078 4 Inner Gear
24 X10-036 1 Sleeve 69 JSJ5-13Q 4 Arm Restraint Pin
25 X10-037 28 Bolt M12 x 30 70 X10-080 4 Spring Pin 4 x 24
26 X10-038 28 Washer 12mm 71 X10-081 4 Spring Pin 4 x 30
27 X10-039 28 Spring Washer 12mm 72 X10-082 4 Arm Restraint Spring
28 X10-040 28 Nut M12 73 X10-083 4 Outer Gear
29 JSJ5-18Q 1 Idler Column Hose 74 X10-084 16 Slide Block
29a JSJ5-21Q 1 Idler Extension Hose 75 JSJ5-08-00Q 2 Carriage
30 X10-042 1 Union Tee 76 X10-086 2 Door Guard
31 X10-043 1 Power Unit Hose 77 X10-087 4 Washer 8mm
32 X10-044 1 O-Ring Elbow 78 X10-088 4 Bolt M8 x 30
33 31368-21 1 Power Unit 79 JSJ5B-10-03-00CH 2 Front Male Arm
34 X10-045 1 Power Column Hose 80 JSJ5B-10-02-00 2 Front Intermediate Arm
35 X10-046 2 Long Elbow 81 JSJ5B-10-01-00 2 Front Female Arm
36 X10-047 2 Cylinder 82 X10-092 2 Bolt M12 x 45
37 X10-048 4 Nut M8 83 JSJ5-03-01-00Q 1 Overhead Weld
38 X10-049 10 Bolt M5 x 8 84 JSJ5-04-00Q 2 Synchronizing Cable
39 X10-050 5 Plate-Shutoff Cord Clamp 85 X10-095 6 Nut M16
40 X10-051 4 Bolt M6 x 20 86 X10-096 2 Lock Nut M10
41 X10-052 2 Hose Guide 87 X10-097 1 Lock Release Cable
42 X10-053 2 Hose Guide Nut 88 X10-099 4 Washer 20mm
43 X10-054 6 Hair Pin Cotter 89 B31061 4 M6 Lock Nut
44 X10-055 4 Washer 90 JSJ5-03-07ch 2 Cable Trapping Rod
