Quark-Elec QK-A023 User manual

Quark-Elec Manual
https//www.quark-elec.com 1 of 15 2016
V1.0
QK-A023 AIS Wireless Receiver
(Auto-hopping V2.0)
Features
Receiving on dual channels (161.975 MHzand162.025 MHz) alternately
Auto-hopping channel algorithm improves captured message rate by 4%
Sensitivity up to -105 dBm@30% PER
Up to 45 nautical miles receiving range
USB 2.0 powered (<32mA@5.0V)
Serial output: 38400 bps baud rate over USB
Integrated TCP/IP protocol stack supports up to 4 simultaneous TCP clients
Message output in NMEA-0183 format
Supports interworking with GPS receiver
Adhoc mode
BNC connector for 50 Ohm VHF antenna
Compatible with Windows 7,8,10,Mac OS X, Linux systems,Android and iOS
Plug & Play connectivity with chart plotters and PCs
Compatible with Windows, Mac, Linux, Android and iOS (optional Configuration must be
completed using Windows software.)
This device does not come pre-loaded with map data. We advise using openCPN for map
data. Some iOS apps may charge for map use.

Quark-Elec Manual
https//www.quark-elec.com 2 of 15 2016
V1.0
Figure 1 Typical application(Ad-hoc mode)
Figure 2 Typical application(station mode)

Quark-Elec Manual
https//www.quark-elec.com 3 of 15 2016
V1.0
Limited warranty
Quark-elec warrants this product to be free from defects in materials and manufacture
for one year from the date of purchase. Quark-elec will, at its sole option, repair or
replace any components that fail in normal use. Such repairs or replacement will be
made at no charge to the customer for parts and labour. The customer is, however,
responsible for any transportation costs incurred in returning the unit to Quark-elec. This
warranty does not cover failures due to abuse, misuse, accident or unauthorized
alteration or repairs. A returns number must be given before any unit is sent back for
repair.
The above does not affect the statutory rights of the consumer.
Disclaimer
This product is designed to aid navigation and should be used to augment normal
navigational procedures and practices. It is the user‟s responsibility to use this product
prudently. Neither Quark-elec, nor their distributors or dealers accept responsibility or
liability either to the product user or their estate for any accident, loss, injury or damage
whatsoever arising out of the use or of liability to use this product.
Accuracy of this manual
Quark-elec AIS receiver may be upgraded from time to time and future versions may
therefore not correspond exactly with this manual. The manufacturer of this product
disclaims any liability for consequences arising from omissions or inaccuracies in this
manual and any other documentation provided with this product.
Document history
Issue
Date
Changes / Comments
1.0
31-10-
2016
Initial release
2.0
26-01-
2018
Upgrade to Operator Specified Auto-Hopping(V2.0)
Order Information
Part No
Description
QK-A023
Dual channel AIS wireless receiver (Auto-hopping v2.0)

Quark-Elec Manual
https//www.quark-elec.com 4 of 15 2016
V1.0
Contents
Contents..................................................................................................................................................4
1Hardware.........................................................................................................................................4
2Mounting..........................................................................................................................................5
3Power up..........................................................................................................................................5
4USB connection...............................................................................................................................5
4.1 Connect antenna......................................................................................................................5
4.2 Install driver..............................................................................................................................7
5WiFi connection...............................................................................................................................9
5.1 Ad-hoc mode............................................................................................................................9
5.2 Station mode..........................................................................................................................10
6Hopping Interval Configuration......................................................................................................11
7Working with OpenCPN.................................................................................................................11
8Antenna .........................................................................................................................................13
9Specification ..................................................................................................................................14
1 HARDWARE
The QK-A023 is a single channel AIS receive-only unit, designed to be installed in a protected indoor
environment for the small-commercial, leisure, fishing boat and vessel monitoring markets in order to
listen to other vessel's AIS information. Patented Auto-hop Channel Algorithm(ACA) improves the
captured message rate by 4%. Connected to an on board PC running compatible software, or a chart
plotter, AIS data transmitted from ships within range can be displayed on the screen enabling the
skipper or navigator to visualize the traffic within VHF range. Using QK-A023 can enhance safety at
sea by providing proximity, size and directional information from other vessels, improve safety and
efficiency in navigation and help protect the marine environment. Although QK-A023 comes with an
extruded aluminum enclosure to shield it from external RF interference, it should not be fitted close to
generators or compressors (e.g. refrigerators) as they can generate substantial RF noise. Generally a
suitable placement of QK-A023 is with other types of navigation equipment and the PC or chart plotter
that will be used to display the AIS data.
The following figure shows an overview of the QK-A023. Two LEDs indicate the power status and
signal traffic. Power for QK-A023 is provided via USB cable which also outputs NMEA messages in
the absence of a connected WiFi device. If no USB data output is required this USB port can be
connected to any 5V 0.3Amp power supply.

Quark-Elec Manual
https//www.quark-elec.com 5 of 15 2016
V1.0
Figure 3 QK-A203 Connections diagram
QK-A023 has the following connections/indicators:
Antenna Fittings. BNC female 50 Ohm connector.
AIS antenna.Standard BNC female 50 Ohm connector. An active VHF antenna splitter is
required if one VHF antenna is shared by QK-A023 and VHF voice radio.
USB connector. A micro USB connector provides the power source for the product and also
outputs NMEA messages.
WiFi connectivity in Ad-hoc or station mode on 802.11 b/g/n.
LED lights.QK-A023 features two LEDs which indicate power and AIS status respectively.
2 MOUNTING
QK-A023 is designed to placed where it is well protected from humidity and water.
QK-A023 is not supplied with a VHF antenna as the type of antenna and cable requirements differ
from vessel to vessel. A suitable VHF antenna should be connected before the receiver will operate
fully.
3 POWER UP
QK-A023 is typically powered by PC, laptop, tablet, battery or other devices with 5.0V micro USB
connectors.
QK-A023 is supplied with a USB cable. This cable provides power supply and NMEA 0813 data
output. The QK-A023 can be linked directly to a USB port on a PC or other mobile device via the
supplied cable. (OTG adapter may be required for tablets.)
4 USB CONNECTION
4.1 Connect antenna
Connect the module to a suitable VHF antenna. SMA or N type adaptors can be used to connect

Quark-Elec Manual
https//www.quark-elec.com 6 of 15 2016
V1.0

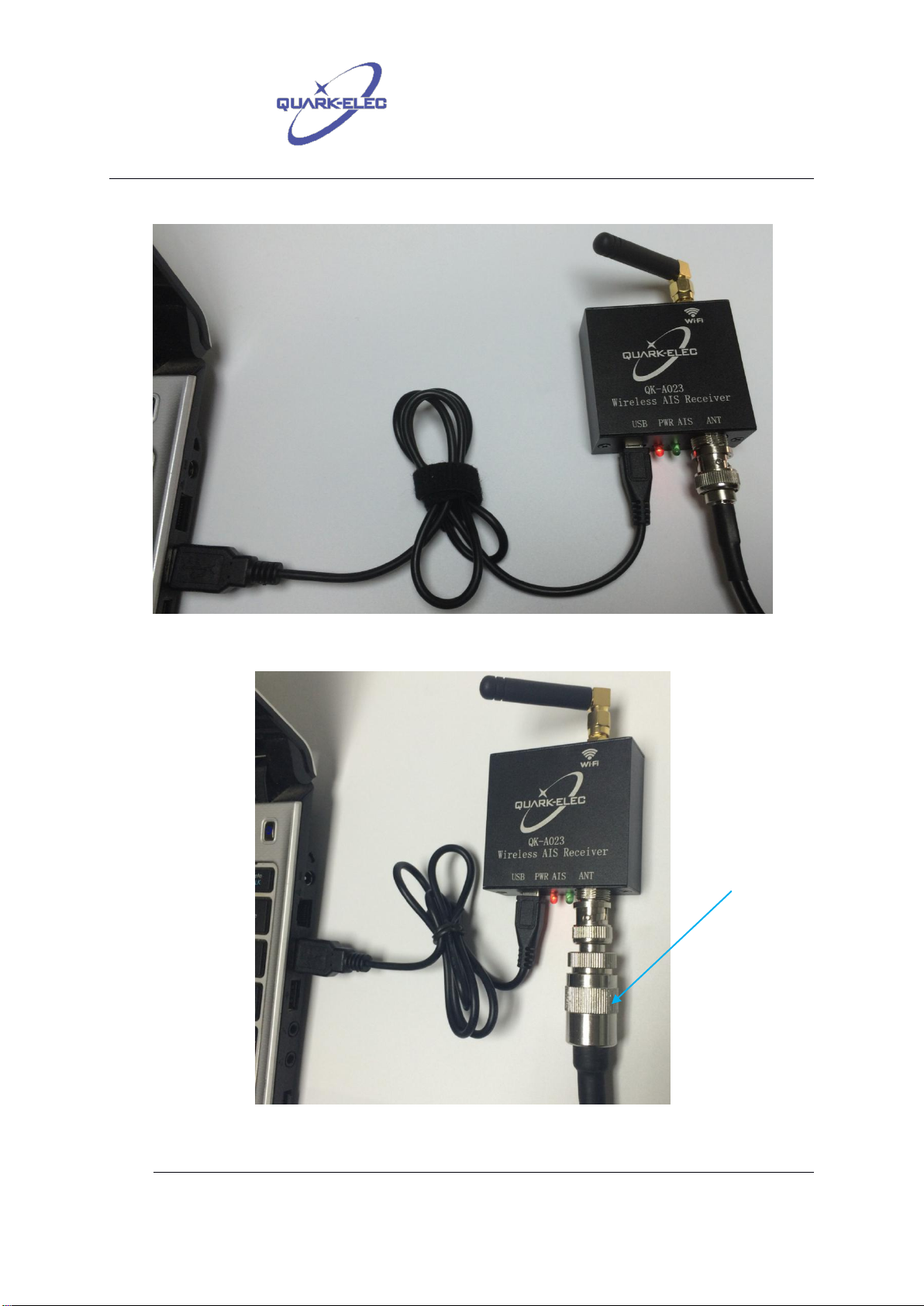

QK-A023 with different types of external VHF antenna.
Figure 4 QK-A023 connection
Figure 5 N type connection
N type
connector
with cable

Quark-Elec Manual
https//www.quark-elec.com 7 of 15 2016
V1.0
4.2 Install driver
To enable the USB data connection of QK-A023 to other devices, related hardware drivers may be
needed dependent on system requirements.
For Windows 8, 7, Vista and XP, the driver can be found on the CD in the packing box or can be
downloaded from the Quark-elec website at:
https://www.quark-elec.com/product/qk-a023-ais-wireless-receiver/
No drivers are required on Windows 10, QK-A023 registers itself to the computer as a virtual serial
port on Windows. A new COM port will automatically show up in the device manager after plug in.
For Mac OS X, QK-A023 will be recognized and shown as a USB modem. The ID can be checked
with the following steps:
--- After plugging QK-A023 into a USB port, launch Terminalapp.
--- Type ls /dev/*usb*
--- Mac systems will return a list of USB devices.QK-A023 will display as - “/dev/tty.usbmodemXYZ”
where XYZis a number. Nothing further needs to be done if it is listed.
No driver is required for Linux. When plugged into the computer, QK-A023 will show up as a USB
CDCdevice on /dev/ttyACM0.
The USB connection status can always be checked with a terminal application like Putty or
HyperTerminal. Ensure that the COM port is set at 38400bps, 8, N and 1, as shown below using
HyperTerminal on Windows as an example to illustrate this process.

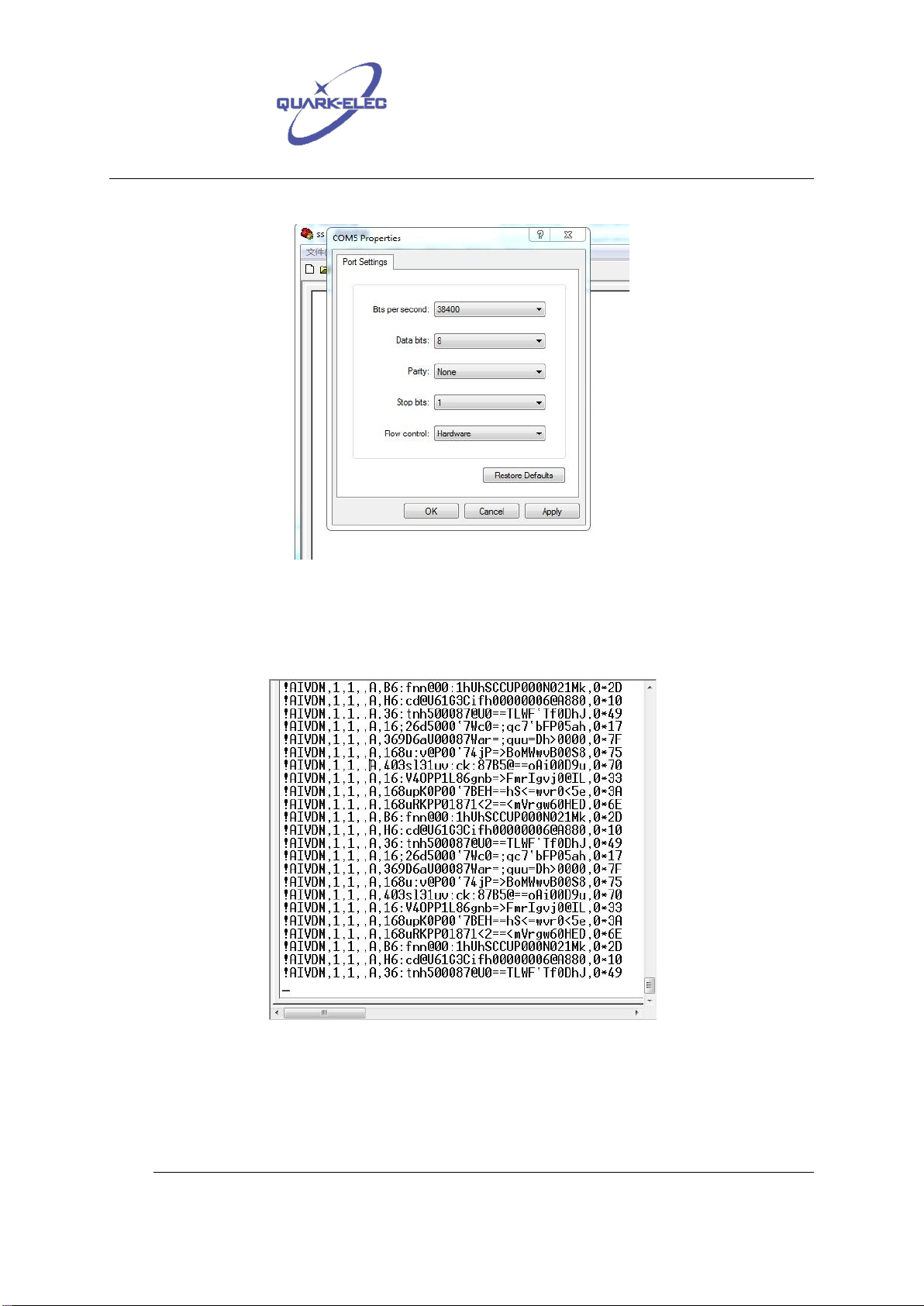

Figure 6 Virtual COM port
Run HyperTerminal to check the setting. Ensure that the COM port is set at 38400bps, 8, N and 1.
QK-A023 is in COM5

Quark-Elec Manual
https//www.quark-elec.com 8 of 15 2016
V1.0
Figure 7 Com port setting
If all the above is set up correctly, users will see the following information:
Figure 8HyperTerminal output

Quark-Elec Manual
https//www.quark-elec.com 9 of 15 2016
V1.0
5 WIFI CONNECTION
QK-A023 Version2.0 support both Ad-hoc mode and station mode. The module will work in Ad-hoc
mode by default but it can be easily setup to station mode through GUI.
Figure 9WiFi Antenna
5.1 Ad-hoc mode
15 seconds after QK-A023 has been powered up, the operator should be able to scan and find a WiFi
network (SSID) similar to „QK-A023xxxx‟ using WiFi enabled devices such as computers, mobile
phones or tablets.
Connect the device/s to „QK-A023xxxx‟ with „88888888‟ as the default password. Set the protocol as
„TCP‟, IP address as „192.168.1.100‟ and the port number as „2000‟ in the chart software.
Item
Setting
SSID
Similar to „QK-A023xxxx‟
Protocol
TCP
IP address
192.168.1.100
Port
2000
With the above settings, wireless connection should be set and the operator will be able to receive the
AIS messages through the chart software. the operator can always check the wireless connection
with TCP/IP port monitoring software as shown below:

Quark-Elec Manual
https//www.quark-elec.com 10 of 15 2016
V1.0
Figure 10 TCP/IP setting check
Note: In Ad-hoc mode, the IP address should not be changed and the password should
between 8 to 12 characters.
5.2 Station mode
QK-A023 can also be connected in station mode by changing these parameters to those of your
Wireless Access Point as illustrated below:

Quark-Elec Manual
https//www.quark-elec.com 11 of 15 2016
V1.0
6 HOPPING INTERVAL

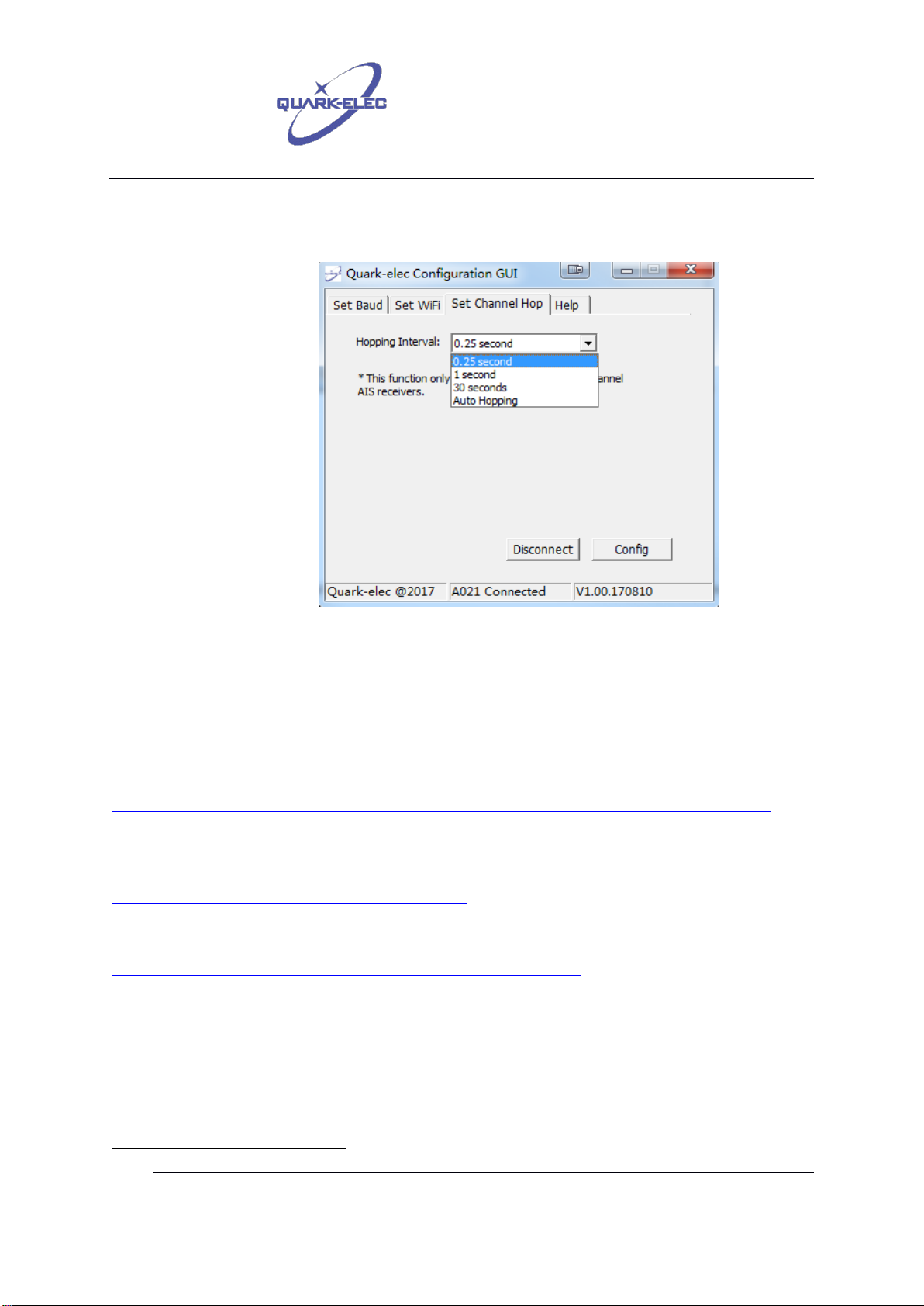

In the new V2.0 QK-A023, it is now possible to set the hopping interval manually via the GUI.
`
This enables the operator to specify hopping intervals of 1s, 30s and 0.25s according to preference
and need.
Our patented algorithm is likely to pick up more messages, faster than the manual settings but there
are certain environments and locations where manual setting may be desirable. An article is available
explaining this is on our blog:
https://www.quark-elec.com/blog/2017/12/20/latest-field-test-of-patented-autohopping-algorithm/
The Configuration Software (GUI) can be used to adjust these settings, including baud rates and WiFi
settings. You can download the software here:
https://quark-elec.com/doc/QE_MUX_configTool.zip
Detailed instructions on how to use the Configuration software are available here:
https://www.quark-elec.com/doc/QK-A0xx_GUI_application_note.pdf
Please check that no other APPs or programs are open when using the Configuration GUI.
7 WORKING WITH OPENCPN
OpenCPN is free software that can be used to view concise chart plotter and navigation information, It
is available for use on both Windows and the MAC OSX system from:
http://opencpn.org/ocpn/download

Quark-Elec Manual
https//www.quark-elec.com 12 of 15 2016
V1.0

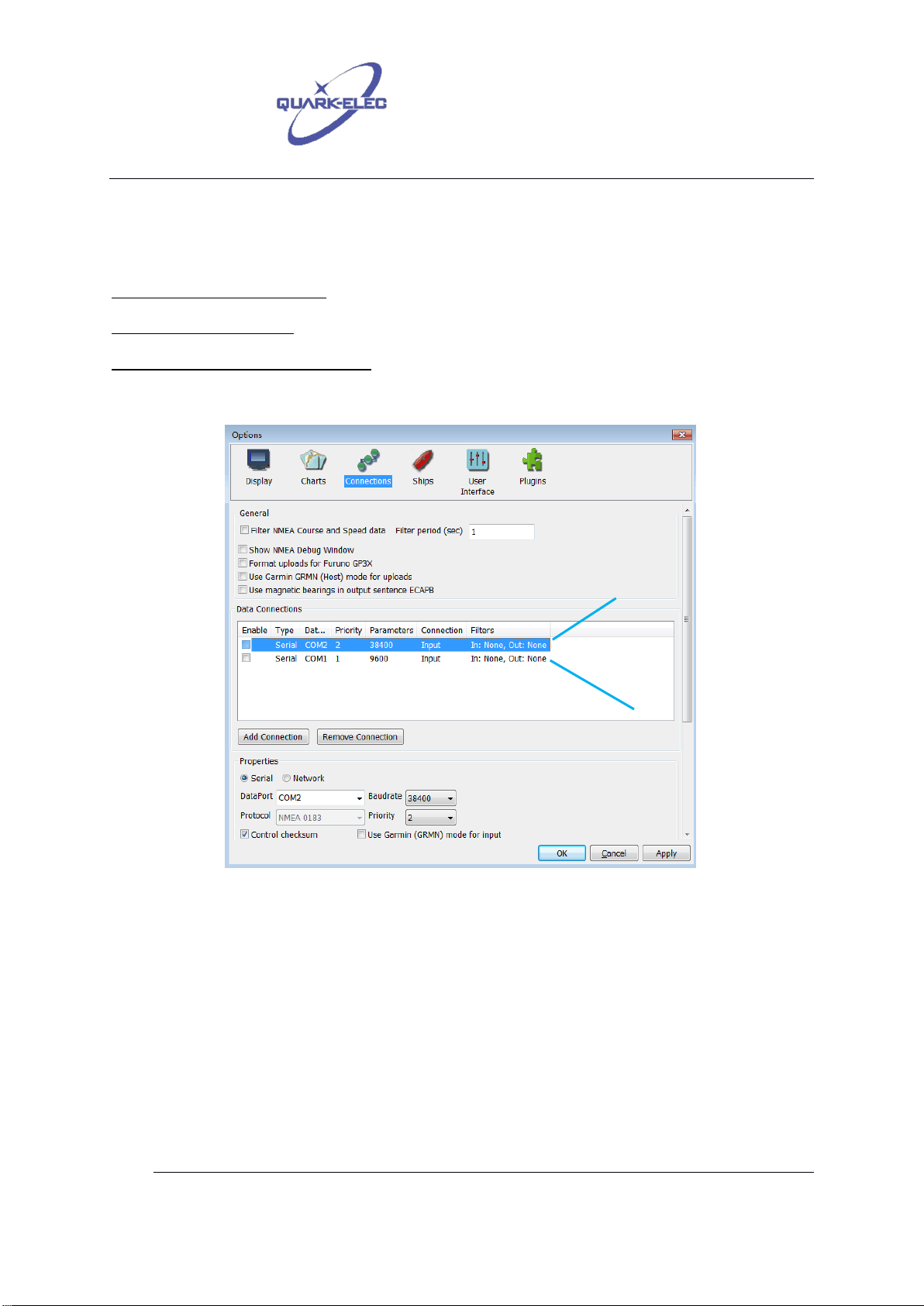

The following is a sample setting for the OpenCPN plotter. COM2 was set as the QK-A023 input and
COM1 is used for a standard serial port GPS input.
Other software is available such as SeaClear, PolarNavy, PolarView. They all have similar settings.
http://www.sping.com/seaclear/
http://www.polarnavy.com/
http://www.polarnavy.com/main/prod1

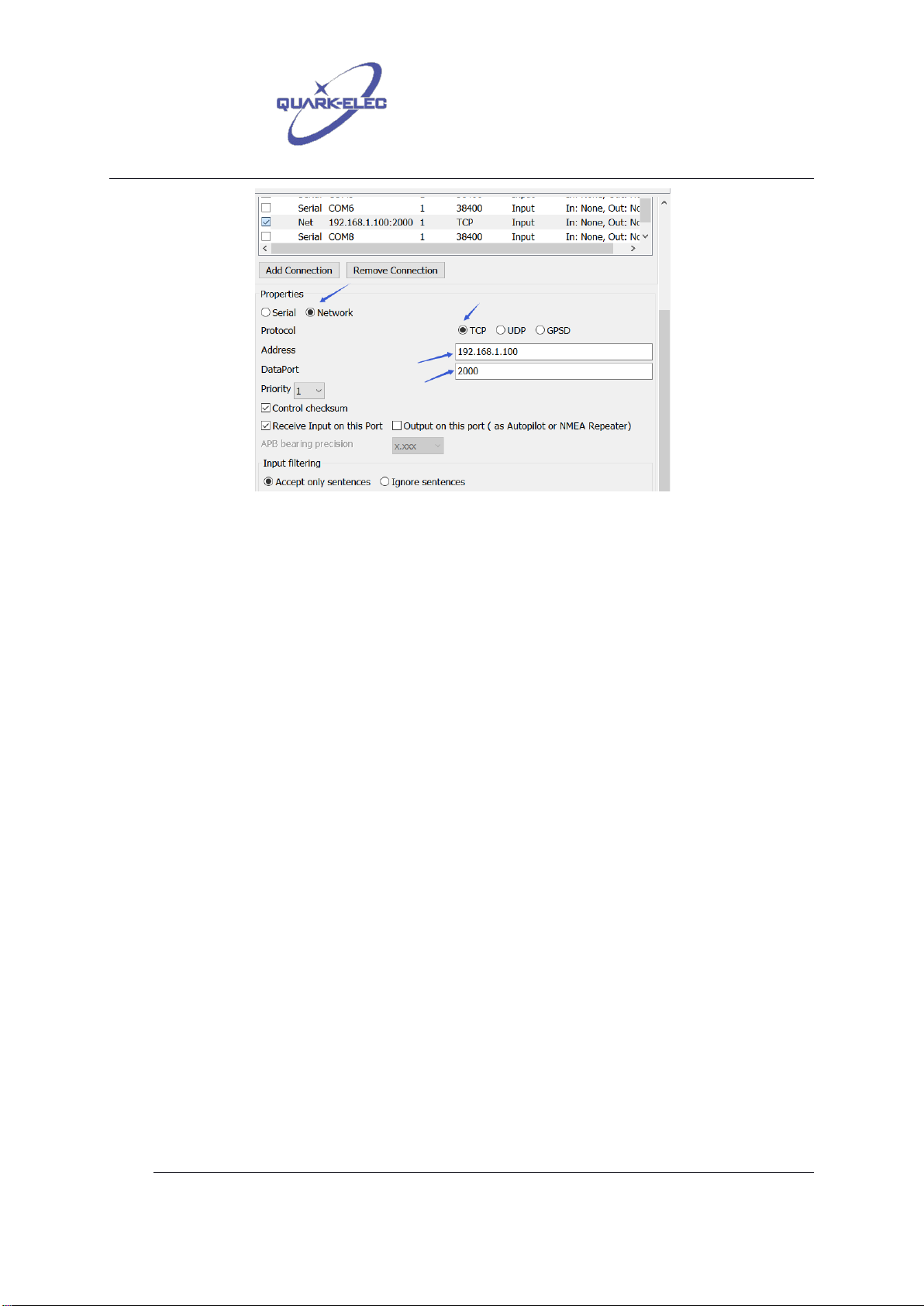

Figure 11Serial port setting on OpenCPN
For WiFi connection, „Network‟ rather than „Serial‟ needs to be selected in „Connections->Properties‟
and the following settings need to be input.
AIS input is in COM2
GPS input is in COM1

Quark-Elec Manual
https//www.quark-elec.com 13 of 15 2016
V1.0
Figure 12WiFi setting on OpenCPN
8 ANTENNA
AIS communication systems use frequencies in the maritime VHF band, which is considered to be
„line of sight‟ radio. This means that if the QK-A023 antenna cannot „see‟the antennas of other
vessels, the AIS signals from vessels will not reach QK-A023. In practice, this is not a strict
requirement, a few buildings and trees between them will be fine. Large obstacles such as hills and
mountains, on the other hand, will significantly degrade the AIS signal
To have the best possible receiving range, the AIS antenna should be placed as high as possible with
a relatively clear view of the horizon. Large obstructions might shade the AIS radio communication
from certain directions, giving uneven coverage.
AIS communication system frequencies are close tothe duplex channels used for marine
communication, so the antenna should be separated as much as possible(Ideally at least 3.0 meters)
from the voice communication VHF antenna to avoid unnecessary adjacent channel interference.
Best separation is achieved by installing the antennas over each other or on separate sides of the
mast. If an existing VHF transmitting antenna is used to receive AIS signals, proper separation
equipment(e.g., an active VHF antenna splitter) should be applied.

Quark-Elec Manual
https//www.quark-elec.com 14 of 15 2016
V1.0
9 SPECIFICATION
Item
Specification
Frequency bands
161.975MHz &162.025MHz
Operating temperature
-25°C to +80°C
Storage temperature
-25°C to +85°C
DC supply
5.0V(+/-0.2V)
Average supply current
[email protected]V
AIS receive sensitivity
-105dBm@30%PER
WiFi mode
Ad Hoc on 802.11 b/g/n
Security
WPA/WPA2
Network Protocols
TCP

Quark-Elec Manual
https//www.quark-elec.com 15 of 15 2016
V1.0
For more technical information and other enquiries, please go to the Quark-elec forum at:
https://www.quark-elec.com/forum/
For sales and purchasing information, please email us:[email protected]
Quark-elec (UK)
Unit 7, The Quadrant,
Newark Close
Royston, Herts
SG8 5HL
