QuickWorldWide Quick 50 Pro Quick guide

Page 1 of 79
2nd Version

Page 2 of 79
TABLE OF CONTENTS
INTRODUCTION 3
CUSTOMER SERVICE 4
FEATURES 5
FRE-ASSEMBLY INFORMATION 6
REQUIRED TOOLS 7
HARDWARE & OPTIONAL ACCESSORIES 8
OTHER HARDWARE & OPTIONAL ACCESSORIES 9
OTHER REQUIREMENTS 12
PART LIST 13
SECTION 1: UPPER FRAMES 14
SECTION 2: LOWER FRAMES 28
SECTION 3: LANDING GEAR ASSEMBLY 40
SECTION 4: DRIVING SYSTEM 42
SECTION 5: TAIL ASSEMBLY 44
SECTION 6: CONTROL SYSTEMS 50
SECTION 7: ROTOR HEAD 53
SECTION 8: LINKAGE RODS AND SETTINGS 56
FRE-LIGHT CHECKS 72
WARNINGS 73
ADJUSTMENTS 74
HOW TO HOVER 75
HOW TO FLY FORWARD 77
AFTER FLIGHT CHECKS 78
WHAT IF THE HELICOPTER CRASHED 78
SPECIFICTION 79
INTRODUCTION

Page 3 of 79
Congratulation and thank you for the purchase of great product! It is our sole desire for
you to enjoy the quality workmanship and performance of any of our Nitro powered
helicopters. We believe we have the latest designs and technology incorporated into our
model helicopters. Our CNC parts are produced using the best high density materials &
anodized using material hardening finishes with the tightest of tolerances. Our new
helicopters feature the latest advances in R/C helicopter design. The simple and
mechanically superior EMS design (also known as CCPM) ensures a helicopter that will
be more responsive and more stable than any other R/C helicopter you have ever
flown. Three servos are attached directly to the Swashplate to ensure precise control.
This kit features all metal construction, and a carbon or composite frames are standard.
Along with great products, our staffs are RC guys that fly and have hands on experience
with total manufacturing & testing of our helicopters. In addition, we stand behind all our
products 100% with satisfaction guaranteed. Our kits will be shipped 100% complete
and we can assure you that once you fly your helicopter you will love it.
The QUICK 50
We believe you hold in your hands one of the best helicopters manufactured in the world
today. The Quick 50 is one of the famous versions of our Big Nitro Quick line. It is
a bigger, stronger frames, yet powerful machine. This baby delivers amazing power
smoothly throughout the entire range of its nitro motor. It functions so responsive and
stable. The Quick 50 Pro version features a fully machined head, metal
grips, dual bearing tail rotor, carbon fiber frames, carbon rudder push rod, and carbon
fiber boom supports. The Big Quick 50 Sport version features a G10
fiberglass frame, machined metal head, molded plastic grips, carbon boom supports,
carbon rudder push rod, and dual bearing tail rotor. Our helicopters are carefully
designed and tested, and manufactured of the highest quality materials available.
In a short time, you can be flying.
We ask that you please read the entire manual before starting the construction of the
Quick 50, and if you have any questions our technical support staff can be reached
at [phone] M-F 9-6, S 9-4 Eastern time,
or by email at [email protected].
For the latest information and updates, please visit our website at
www.quickworldwide.com

CUSTOMER SERVICE
Quickworldwide
201 South 3rd. St. & 309 N.
Coopersburg, PA 18036
Phone: [phone]
Fax: [phone]
Websites:
http://www.hhiheli.com
http://www.quickheli.com
http://www.giantscaleplanes.com
E-mail: [email protected]
Office Hours: Mon – Fri: 8:30 – 6:00
Sat: 8:30 – 1:30
(Eastern Daylight Time)
Technical Support Personnel:
Chuck – [email protected]
Jon – [email protected]
Page 4 of 79

FEATURES
1. Frame Construction: Quick 50 frames are made of the highest Quality Black G-10
Frames or Carbon Fiber. These frames are not only rigid but will provide excellent
vibration absorption.
2. One-Way Hex Start Shaft System: The one-way bearing allows the engine to
continue to run after the starter motor has been stopped.
3. Constant Tail Rotor Drive System: The constant tail system will provide full tail
authority during engine off maneuvers.
4. Belt driven Tail: Belt Driven tail is not only a reliable way to drive a tail, but is also
very smooth and low maintenance.
5. High Quality Ball Bearings: Quick 50 offers ball bearings on all moving parts.
6. EMS Collective System: The EMS Collective design allows ease of setup with fewer
moving parts. EMS constitutes overall design simplicity and represents the future of
helicopter technology.
7. Heavy-Duty Clutch System: Based on the same design as our famous heavy-duty
clutch upgrade that fits most popular machines, this clutch will give many years of
problem free operation.
8. Control Linkages: The control linkages that are provided with the Quick Learner Kit
are high quality 2.3mm stainless steel rods and the rod ends are made of a high quality
Delrin.
9. Single Blade Axle Design: The single blade axle design is simple very responsive
system, with very consistent flight characteristics.
10. Advanced Airfoil Fly-bar Paddles: These paddles will provide the best both kind of
flight characteristics for both 3D & Sport flying. Not only do they provide smooth forward
flight, they also provide quick response upon demand.
11. Rearward facing Engine Design: This design provides quick access to the glow
plug and is advantageous for easy engine removal.
Page 5 of 79

PRE-ASSEMBLY INFORMATION
Warning
The radio-controlled model helicopter contained in this kit is not a toy.
Rather, it is a sophisticated piece of equipment. This product is not recommended for
use by children without adult supervision. Radio controlled models such as this are
capable of causing both property damage and/or bodily harm to both the
operator/assembler and spectators if not properly assembled and operated. Hobbies &
Helis assumes no liability for damage that could occur from the mis-assembly and/or
use/misuse of this product.
Academy of Model Aeronautics
We strongly encourage all prospective and current R/C aircraft pilots to join the
Academy of Model Aeronautics. The AMA is a non-profit organization that provides
services to model aircraft pilots. As an AMA member, you will receive a monthly
magazine entitled Model Aviation, as well as a liability insurance plan to cover against
possible accident or injury. All AMA charter aircraft clubs require individuals to hold a
current AMA sporting license prior to the operation of their model. For further information,
please contact AMA at:
Academy of Model Aeronautics
5161 East Memorial Drive
Muncie, IN 47302-9252
USA
Phone: [phone]
www.modelaircraft.org
Before you begin
Quick Helicopter kits are packaged with care and attention to detail. We recommend
when you are ready to begin building this model that you examine the kit carefully,
inspect the contents of each package, and read and understand these instructions
thoroughly before starting assembly. It is suggested that you purchase a parts box for
the small fasteners and hardware, or use small bowls or other containers.
Page 6 of 79

Page 7 of 79
REQUIRED TOOLS

HARDWARE & OPTIONAL ACCESSORIES
GLUES AND THREAD LOCK COMPOUNDS
RADIO MOUNTING ACCESSORIES
Page 8 of 79

Page 9 of 79

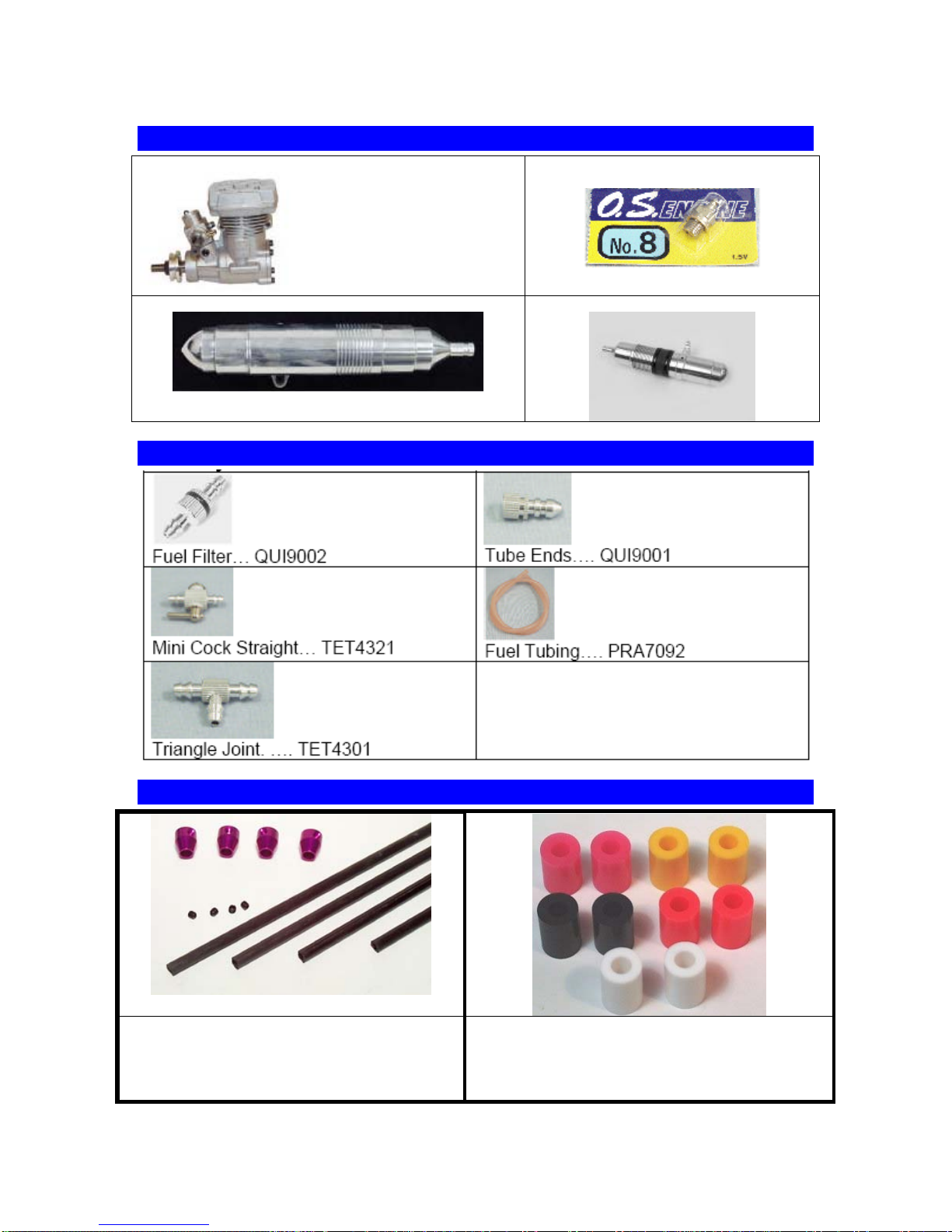

ENGINES, GLOW PLUGS, AND EXHAUST SYSTEM
ENGINES: we recommend OS50SX but others may work
GLOW PLUGS: OS # 8…OSMG2691
One-Piece Muffler
Two-Piece Muffler
FUEL SYSTEM
OTHER HARDWARE & OPTIONAL ACCESSORIES
3MM FLYBAR STIFFENERS
HHI 402
60 SIZE SKID STOPS
HHI 200 AVAILABLE IN COLORS

SERVO
ARM SET
LANDING GEAR DAMPENERS
HHI2004
Page 10 of 79
SERVO FIXING PLATES
•Transmits force of fastener to
plastic instead of rubber
W
ITH
HHI 1205 SERVO MOUNT KIT
W
ITHOUT •Includes hardware and fixing
plates to mount 5 servos
W
ITH
W
ITHOUT

BASE LOAD ANTENNA
HHI 53**
AVAILABLE IN BLUE, GOLD,
PURPLE
AND IN 40, 50, AND 72 MHz
Page 11 of 79
FINISHING CAPS
•Adds color and style
•Distributes force across larger surface area
3mm 4mm
(20 pcs in a package) (8 pcs in a package)
BLACK HHIM11100B ---
W
ITHOUT BLUE HHIM11103 HHIM11108
GOLD HHIM11101 HHIM11106
GREEN HHIM11100G ---
PURPLE HHIM11100 HHIM11105
W
ITH RED HHIM11100R ---
SILVER HHIM11100 HHIM11107

Page 12 of 79
OTHER REQUIREMENTS
Radios:
Any radio that supports EMS/CCPM Mixing will work fine. Hobbies & Helis & its
distributors carry various lines of helicopter radios.
Note: Please consult the instruction for your Gyro for setting the overall travel
and limits to ensure proper operation and travel of Tail Pitch Slider.
Servos:
Any sport servo will offer acceptable performance. However, because servos
operate all critical functions of the helicopter, they can be the single most
important component that contributes to proper function of the helicopter. Due to
the nature of EMS collective, we suggest the use of digital servos to enhance
and ensure matched servo timing without servo interaction.
Locktite Warning (CRITICAL):
This is a general warning about the use of Locktite and its
importance. Locktite must be used anywhere that a metal
fastener i.e. (M2, M3, M4 Cap Head Bolts, Set Screws etc.) is
threaded into a metal part i.e. (Bearing Blocks, Cross-members,
etc.). Failure to use Locktite can result in loosening of critical
operating components, loss of control of the model, and can
lead to a crash.

PART LIST
•In your kit, parts are bagged according to each major assembly and are labeled “Bag
1, Bag 2, etc.” You will note that the heading for each assembly indicates which bag
correlates with each assembly.
•For a good installation, only open up the bag that you need for particular assembly.
•Please check the parts in that bag against the parts list shown for each assembly as
well as each subassembly to make sure there are no missing parts.
•Small parts such as nuts and bolts can be put into containers or trays to prevent
losing parts.
•Part No. with ***** means that part is not included in the kit.
•The colors of drawings in this manual may look different from the parts you have in
the kit.
No. Bag No. Description Quantity Check
1 Bag 1 For Upper Frame Assembly 1
2 Bag 2 For Lower Frame Assembly 1
3 Bag 3 Landing Gear 1
4 Bag 4 Driving System 1
5 Bag 5 For Tail Assembly 1
6 Bag 6 Control System 1
7 Bag 7 Head Rotor 1
8 Bag 8 Linkage 1
9 Frame Frame 1
10 HB Hardware Bag 1
11 Loose in Box
Canopy
Carbon Push Rod
Tail Gear Belt
Tail Boom
Flybar
Decal Sheet
Instruction CD
1
1
1
1
1
1
1
Page 13 of 79

SECTION 1: UPPER FRAMES Bag 1
•In your kit, parts are bagged according to each major assembly and are labeled “Bag
1, Bag 2, etc.” You will note that the heading for each assembly indicates which bag
correlates with each assembly.
•For a good installation, only open up the bag that you need for particular assembly.
•Please check the parts in that bag against the parts list shown for each assembly as
well as each subassembly to make sure there are no missing parts.
•Small parts such as nuts and bolts can be put into containers or trays to prevent
losing parts.
•No. with ***** means that part is not included in the kit.
•Colors of the parts in the drawings may look differently from ones in the kit.

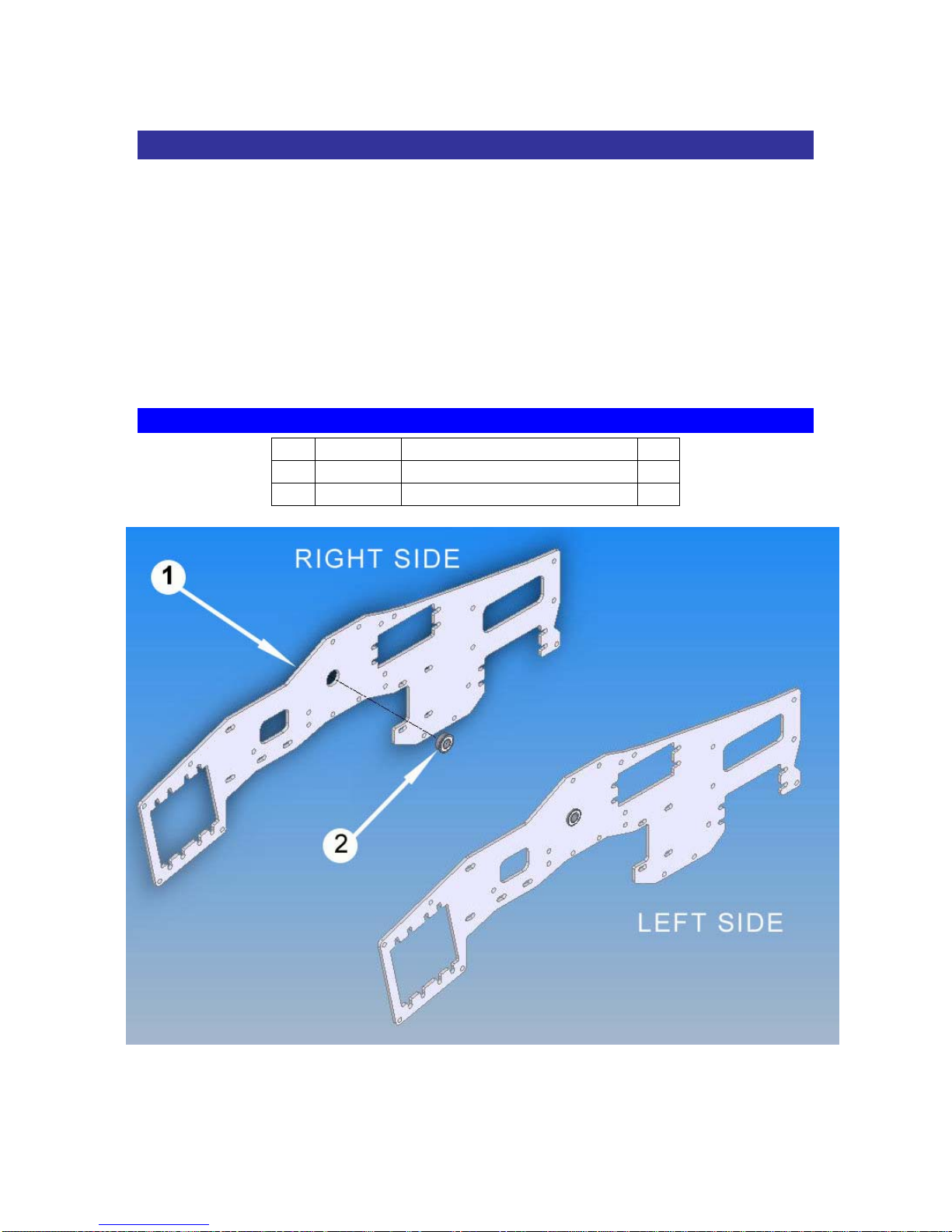

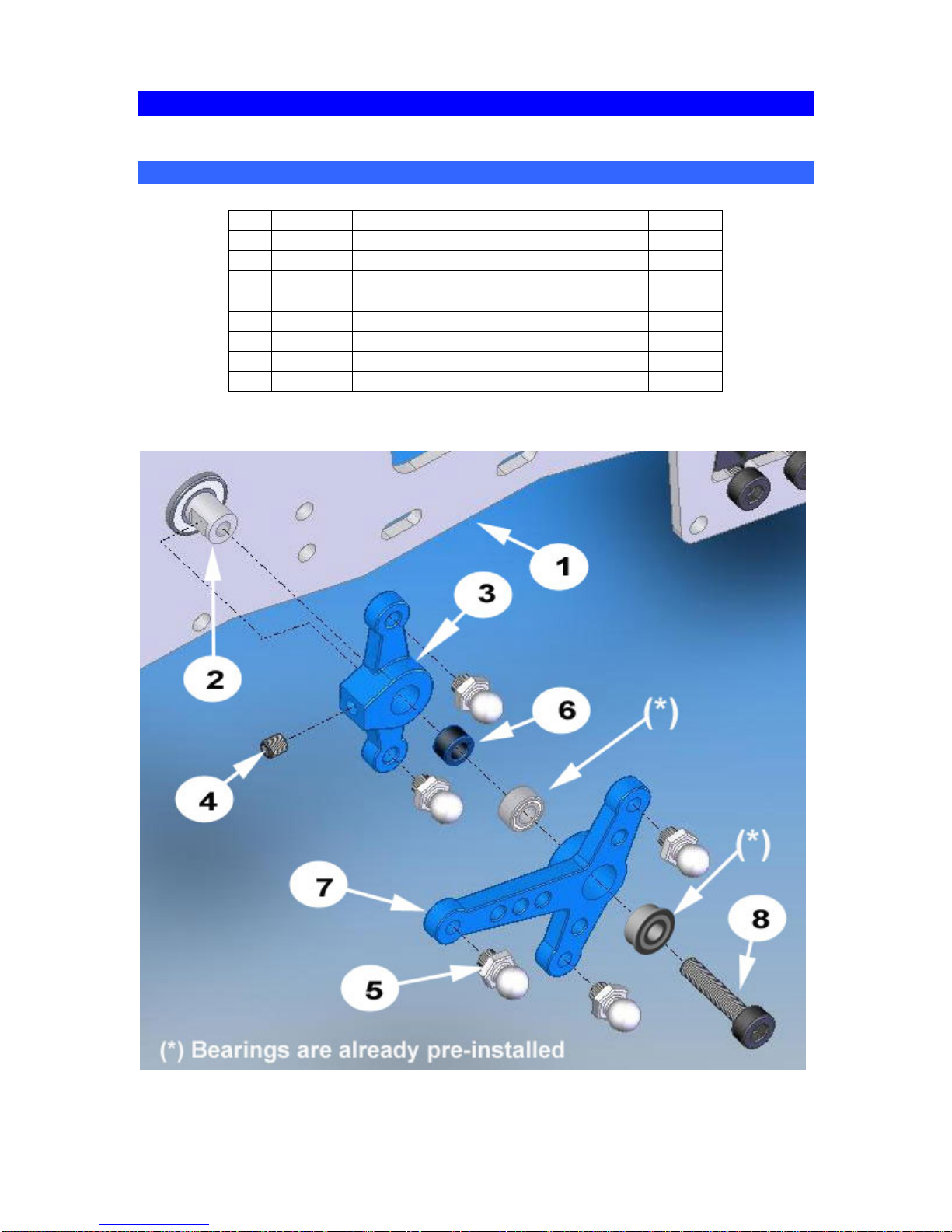

1-1 ELEVATOR SHAFT BEARINGS
No. Bag# Description Qty
1 Frame Upper Frame (from Frame Bag) 2
2 1 5X10X4Flanged Bearing 2

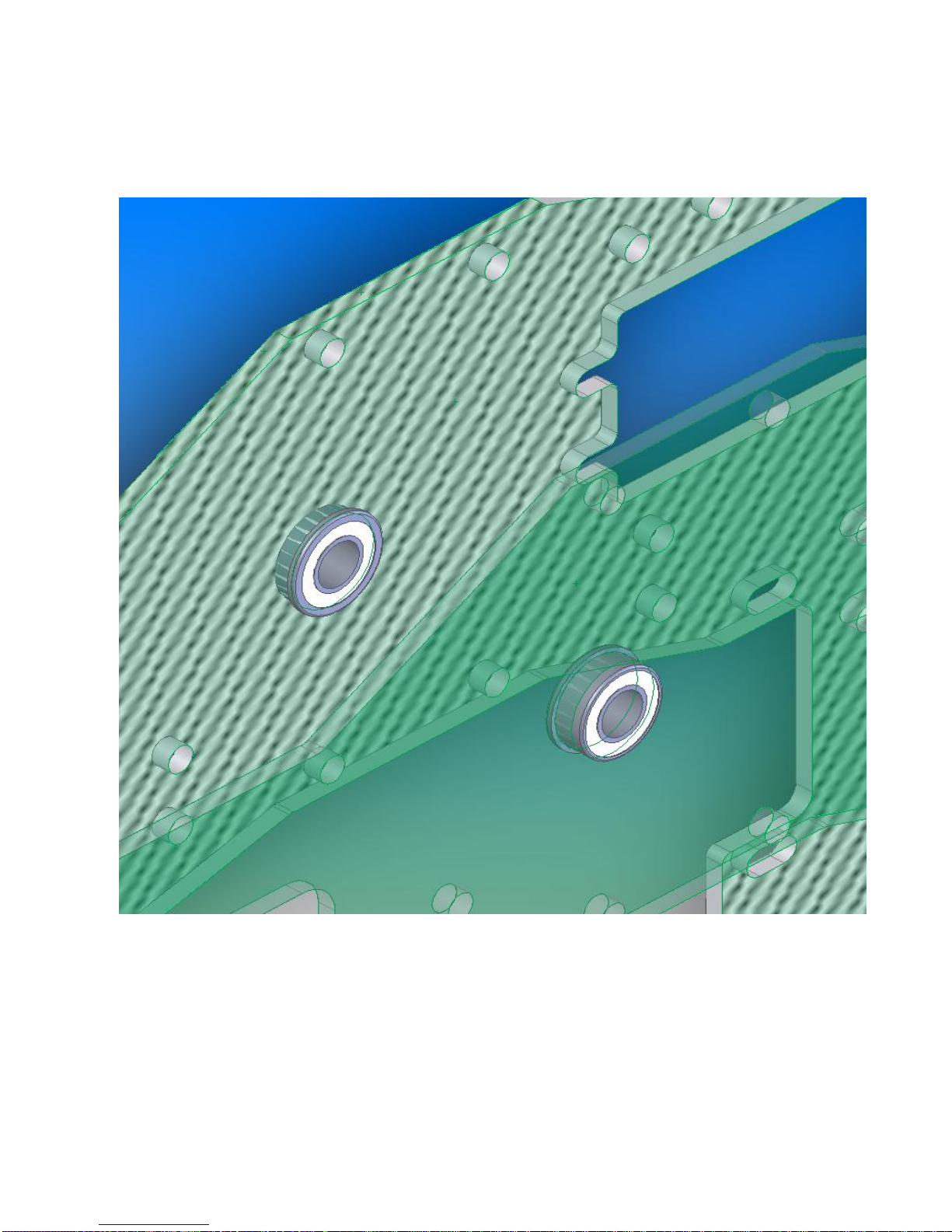

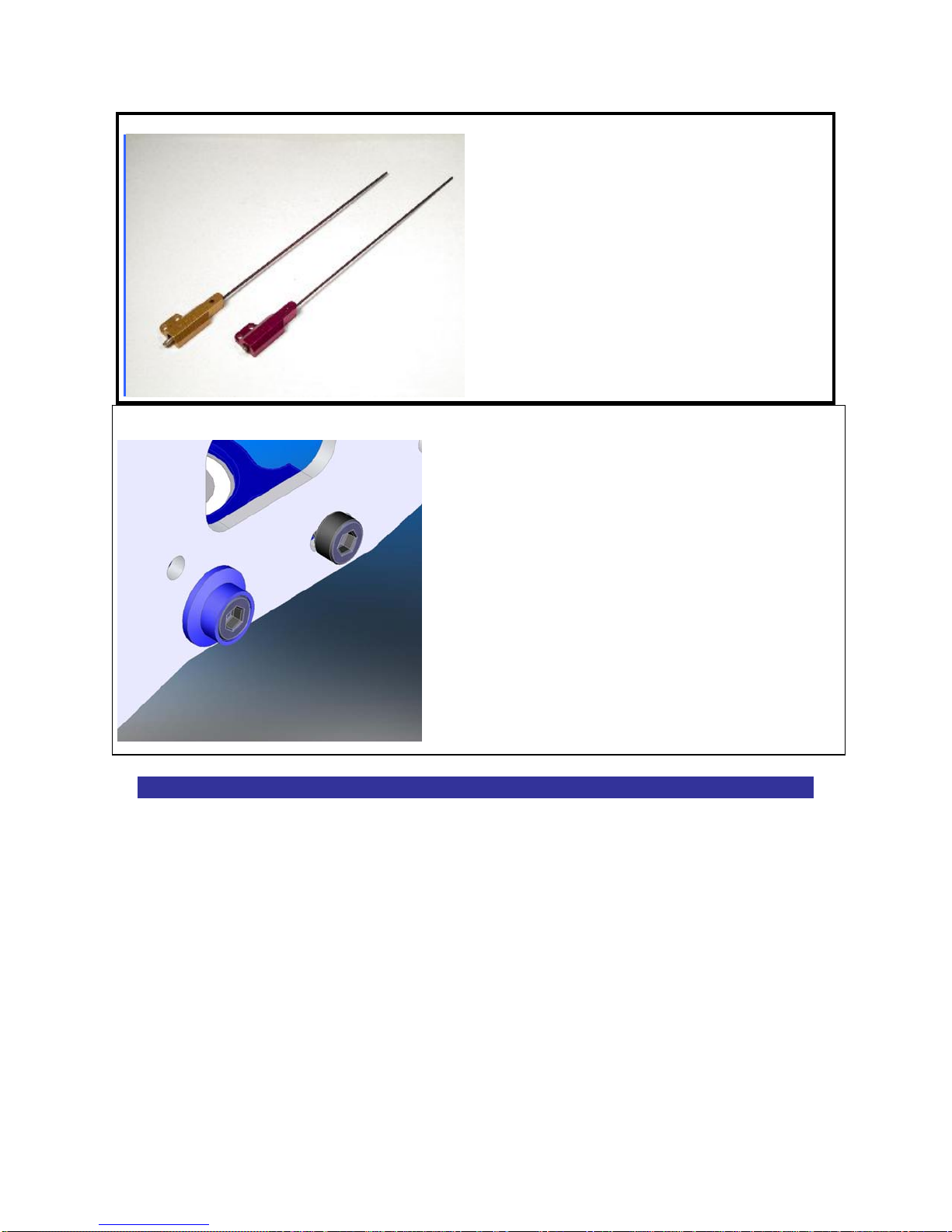

Note: The holes on the frames are designed for “push-fit” feature. Sometime you may
have to sand them a little bit before pushing the bearings in. The bearing flange mates
against the inside of the frame.
Page 14 of 79

Page 15 of 79

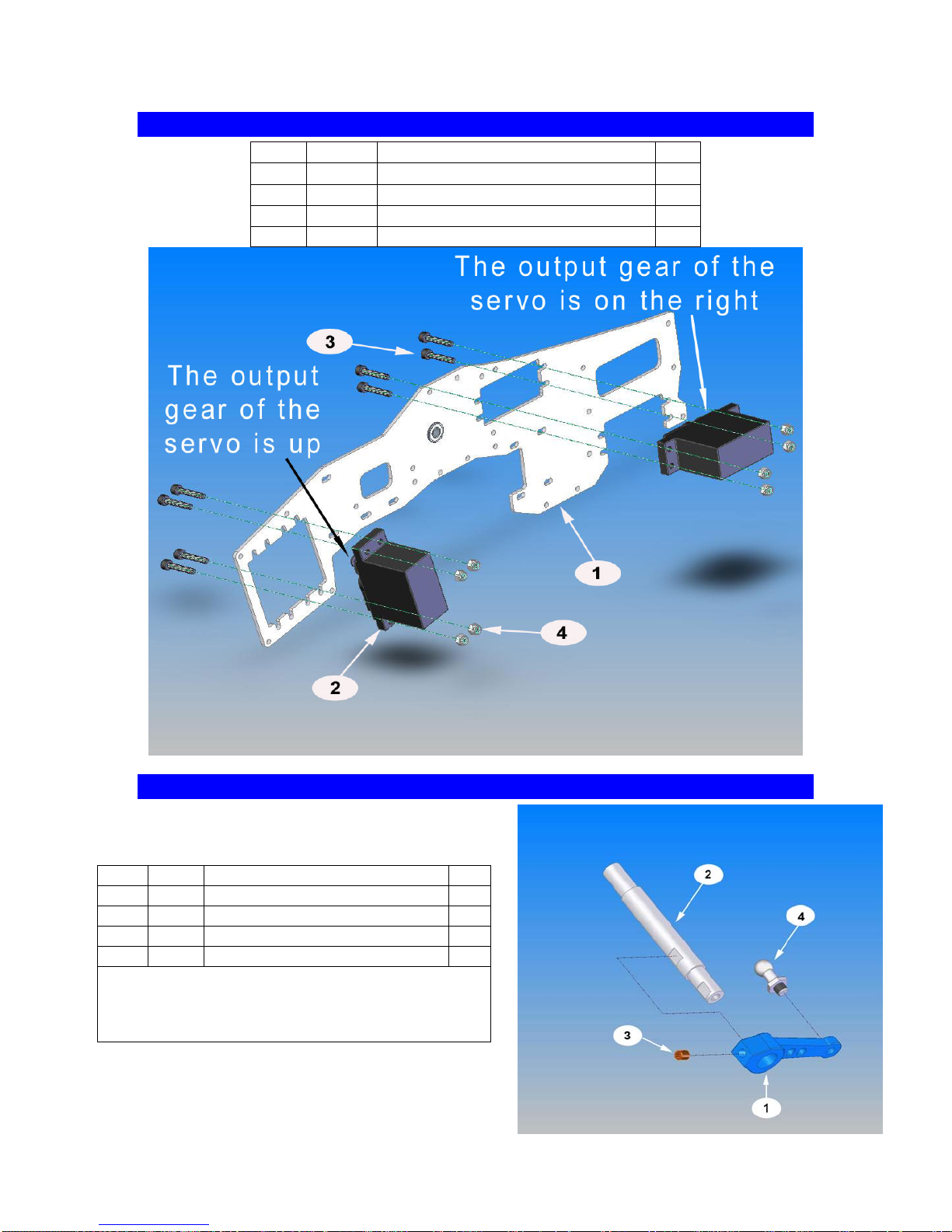

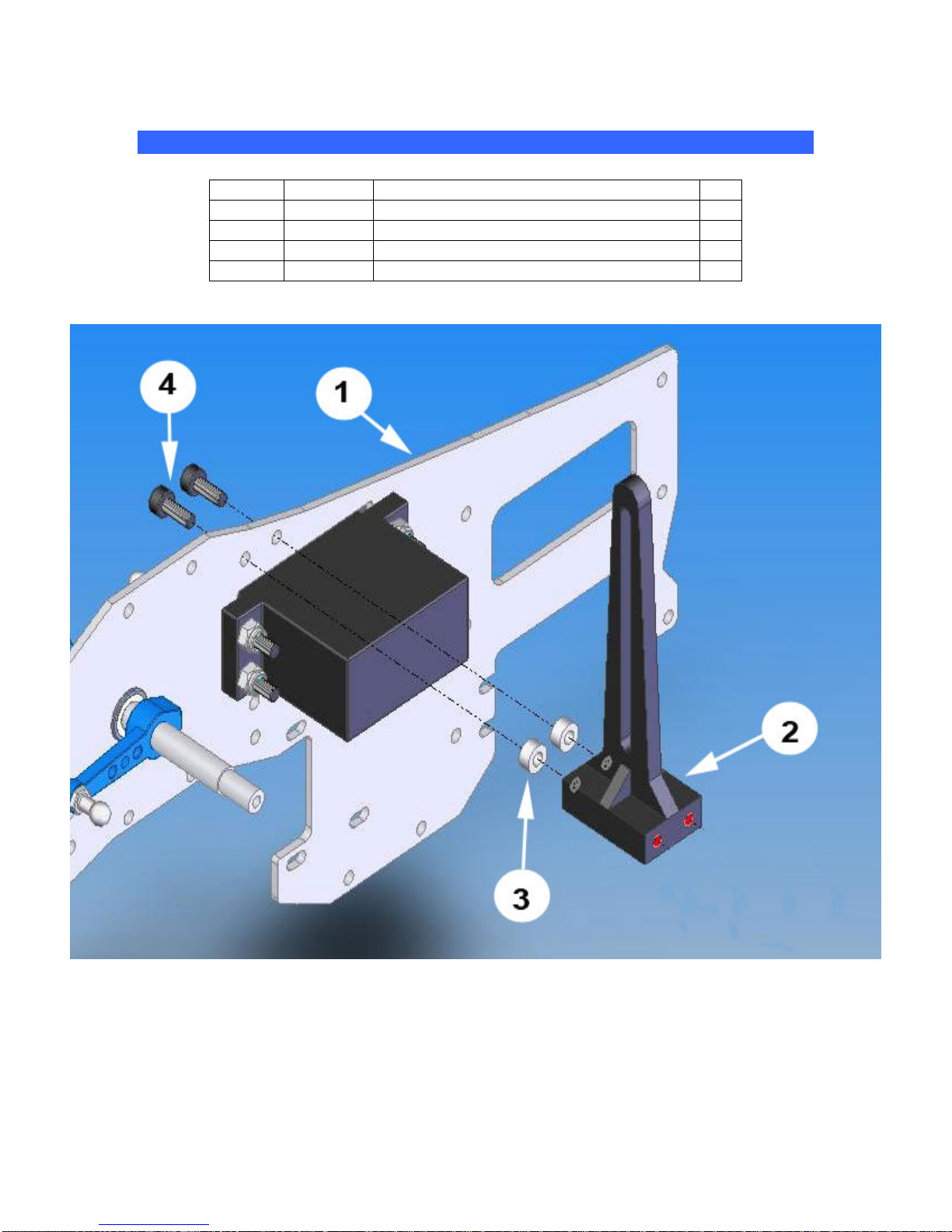

1-2 LEFT AILERON & RUDDER SERVO SUBASSEMBLY
No. Bag# Description Qty
1 Step
1
1
L. Upper Frame Subassembly 1
2***** Servo 2
3 HB M2.5x14 Cap Head Bolt 8
4 HB M2.5 Locknut 8
***** Part No. with ***** means that part is not included in the kit.
Note: If the servos come with anti-vibrating rubber, insert them on the servos first. We
recommend using the servo fixing plates to protect and get the best performance from
the servos. Please see “Hardware & Optional Accessories” for more details.
Page 16 of 79

1-3 RIGHT AILERON & ELEVATOR SERVO SUBASSEMBLY
No. Bag# Description Qty
1 Step 1-1 R. Upper Frame Subassembly 1
2 Servo 2
3 HB M2.5x14 Cap Head Bolt 8
4 HB M2.5 Locknut 8
1-4 INNER ELEVATOR CONTROL ARM SUBASSEMBLY
No. Bag # Description Qty
1 1 Inner Elevator Control Arm 1
2 1 Elevator Control Shaft 1
3 HB M3x5 Set Screw 1
4 HB M3x7 Pivot Ball Stud 1
Note: Remember to apply Locktite for Set Screw
and Pivot Ball Stud (see Locktite Warning on
page 11)
Page 17 of 79

1-5 TAIL TRANSMISSION SUBASSEMBLY
No Bag# Description Qty
1 1 Counter Gear 1
2 1 Counter Gear Shaft 1
3 1 Counter Gear Lock Pin 1
4 1 M4 E-clip 2
5 1 Counter Gear Bearing Block 2
6 1 Pulley Gear Plate 1
7 1 Pulley Gear Block Pin 1
8 1 Pulley Gear 1
9 ***** JP Weld glue 1
-Install Counter Gear to Counter Gear Shaft using Counter
Gear Lock Pin (No. 3) and M4 E-clip to secure it. Apply JP
Weld glue around the pin.
-Put Counter Gear Bearing Block (the lower) in with the
Flange facing up
-Install Counter Gear Bearing Block (the upper) with the
Flange facing up
-Install Pulley Gear Plate (No. 6)
-Insert Pulley Gear Lock Pin (No. 7). Apply JP Weld glue
around the pin
-Install Pulley Gear and retain with M4 E-clip
Page 18 of 79

1-6 UPPER FRAME INSTALLATION
1-6-a ELEVATOR CONTROL ARM-RIGHT SIDE
No. Bag# Description Qty
1 Step 1-3 R. A&E Arm Subassembly 1
2 Step 1-4 Inner El. Ctrl. Arm Subassembly 1
3 1 Outer Elevator Control Arm 1
4 HB M3x5 Set Screw 1
5 HB M3x4 Pivot Ball Stud 5
6 HB M3x5x3 Spacer 1
7 1 Right Aileron Control Lever 1
8 HB M3x12 Cap Head Bolt 1
Note: The Inner Elevator Control Arm (belongs to Inner Elevator Control Arm Sub
assembly) should be next to the upper right frame.
Note: The Elevator Control Shaft is designed to fit tight in the bearings. Sometime, you
might have to sand it a little to get it go into the bearings.
Page 19 of 79

1-6-b ANTI-ROTATION GUIDE ASSEMBLY (SPORT MODEL)
No. Bag# Description Qty
1 Step 1-6-a Right Upper Frame (up to step 1-6-a) 1
2 1 Washout Anti-Rot. Guide 1
3 HB M3x5x3 Spacer 2
4 HB M3x45 Cap Head Bolt 2
Note: The Elevator Control Shaft is designed to fit tight in the bearings. Sometime, you
might have to sand it a little to get it go into the bearings.
Page 20 of 79
