Quick Learner Pre-Assembly Information
Quick Worldwide & Hobbies & Helis International:
Quick of Japan and Hobbies & Helis International teamed up to make parts 6
years ago. In the beginning, our specialty was the manufacturing of various
upgrade parts for many of the plastic helicopters on the market.
After four years of distributing numerous upgrades and crash parts for other
helicopters, we decided to develop our own line of helicopters. That's when the
notion of the Quick Learner was conceived. As the development of the kit began,
initial designs were approved, proto-types were made and flown -all to ensure
that the design was flawless. No minor details were over-looked. After countless
hours of hard work and dedication, Quick-World-Wide is proud to release the first
in a new standard in Helicopters -the Quick Learner.
Warning:
The radio-controlled model helicopter contained in this kit is not a toy.
Rather, it is a sophisticated piece of equipment. This Product is not
recommended for use by children, without adult supervision. Radio controlled
models such as this, are capable of causing both property damage and/or bodily
harm to both the operator/assembler and/or spectator if not properly assembled
and operated. Hobbies & Helis assumes no liability for damage that could occur
from the assembly and/or use/misuse of this product.
AMA:
We strongly encourage all prospective and current R/C aircraft pilots to join the
Academy of Model Aeronautics. The AMA is a non-profit organization that
provides services to model aircraft pilots. As an AMA member, you will receive a
monthly magazine entitled Model Aviation, as well as a liability insurance plan to
cover against possible accident or injury. All AMA charter aircraft clubs require
individuals to hold a current AMA sporting license prior to the operation of their
model.
Pre-Assembly Information:
Quick Helicopters are put together with care and quality topping our priority list. A
recommendation when you are ready to begin building this model is that you
examine the kit and understand the contents of the packages and read
thoroughly before starting the assembly process. Purchase a parts box for all the
nuts, bolts, and other small parts. We take great care to ensure all parts are in
the box.

Quick Learner Features
1. Frame Construction: Quick Learner frames are made of the
highest Quality Black G-10 Frames. These frames are not only rigid
but will provide excellent vibration absorption.
2. One-Way Hex Start Shaft System: The one-way be
aring allows
the engine to continue to run after the starter motor has been
stopped.
3. Ball Bearing Idler Pulley: The ball bearing idler pulley provides
smooth consistent power to the tail by not allowing the belt to jump
teeth.
4. Belt driven Tail: Belt
Driven tail is not only a reliable way to drive
a tail, but is also very smooth and low maintenance.
5. High Quality Ball Bearings: Quick Learner offers ball bearings
on all moving parts.
6. EMS Collective System:
The EMS Collective design allows ease
of setup with fewer moving parts. EMS constitutes overall design
simplicity and represents the future of helicopter technology.
7. Heavy-Duty Clutch System: Based on the same design as our
famous heavy-duty clutch upgrade that fits most popular machines,
this clutch will give many years of problem free operation.
8. Control Linkages:
The control linkages that are provided with the
Quick Learner Kit are high quality 2.3mm stainless steel rods and
the rod ends are made of a high quality Delrin.
9. Single Blade Axle Design: The single blade axle design is
simple very responsive system, with very consistent flight
characteristics.
10. Advanced Airfoil Fly-bar Paddles:
These paddles will provide
the best both kind of flight characteristics for both 3D & Sport flyin
g.
Not only do they provide smooth forward flight, they also provide
quick response upon demand.
11. Rearward facing Engine Design: This design provides quick
access to the glow plug and is advantageous for easy engine
removal.

Tools Needed to Assemble the “Quick Learner”
Phillips Screw Driver
Ball End Drivers
HHI7050
Bubble Blade Balancer
HHI7010
High Point Balancer
DUB499
Piston Head Lock
HHI7020
Composite Paddle
Gauges
HHI7000
HHI7320 –6pc Nut &
Allen Driver Set
Pitch Gauge
HHI7001
Universal FlybarLock
HHI7040
Ruler
Hobby Knife
Needle Nose Pliers
Scissors

Hardware & Accessories

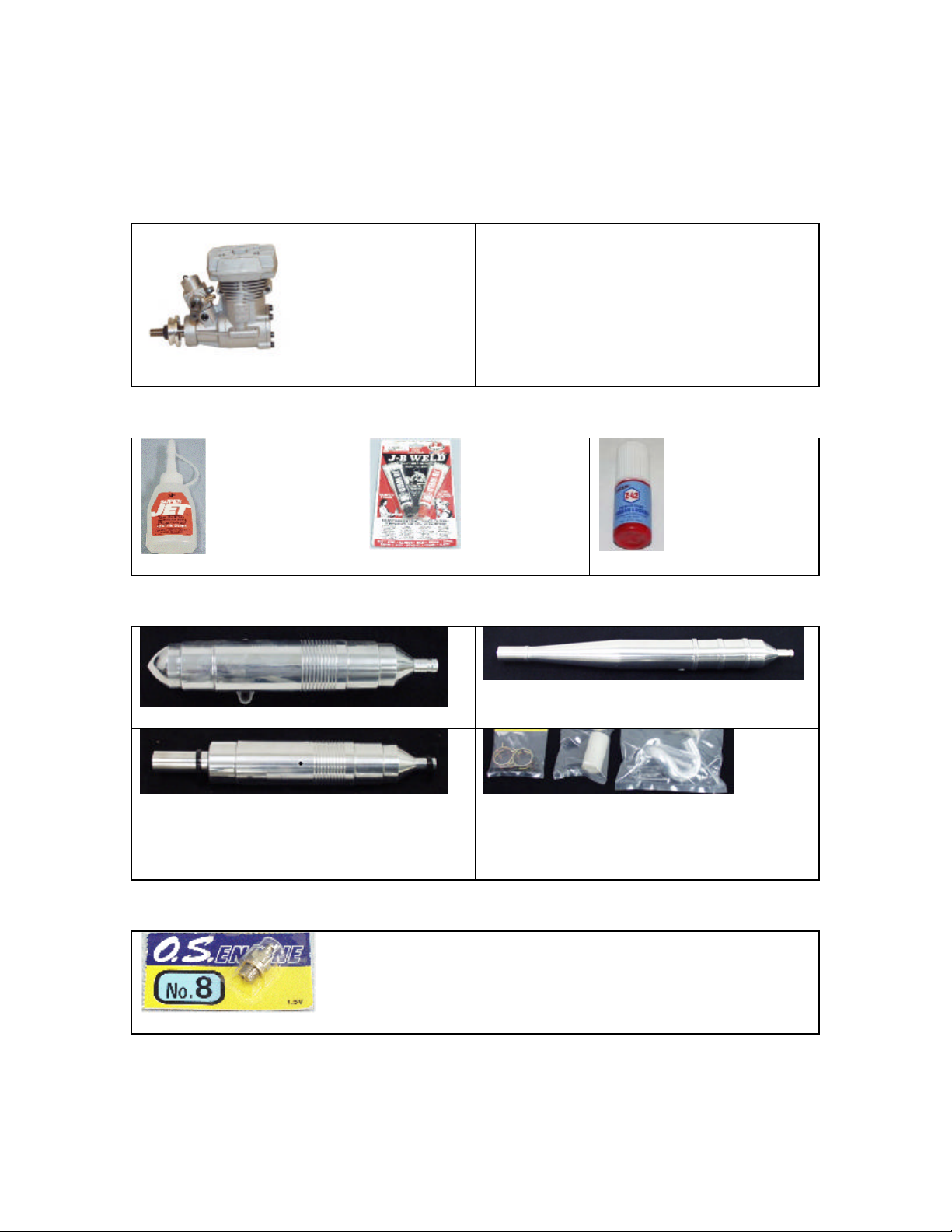

Engines (These are our Recommended Motor but others will work)
OS32SXH
Coming Soon….
Quick Big Shot 36
This ringed 36-size Japanese quality
motor will provide plenty of great
power at an affordable price.
Glues & Thread Lockers
Ca Glue. …GBG1
JB Weld…JBW8265S
Locktite. …….PT40
Exhaust Systems
HHI 30 Size Tuned Muffler
HHI 30 Size Long Tuned Pipe
HHI 30/46 Size Tuned Heli-Pipe
Tuned Pipe Accessories
Rear Facing Exhaust Header
Exhaust Coupler
Exhaust Coupler Clamps
Glow Plugs
OS #8 Glow Plug. …OSMG2691

Fuel System Accessories
Fuel Filter… QUI9002
Tube Ends…. QUI9001
Mini Cock Straight… TET4321
Fuel Tubing…. PRA7092
Triangle Joint. …. TET4301

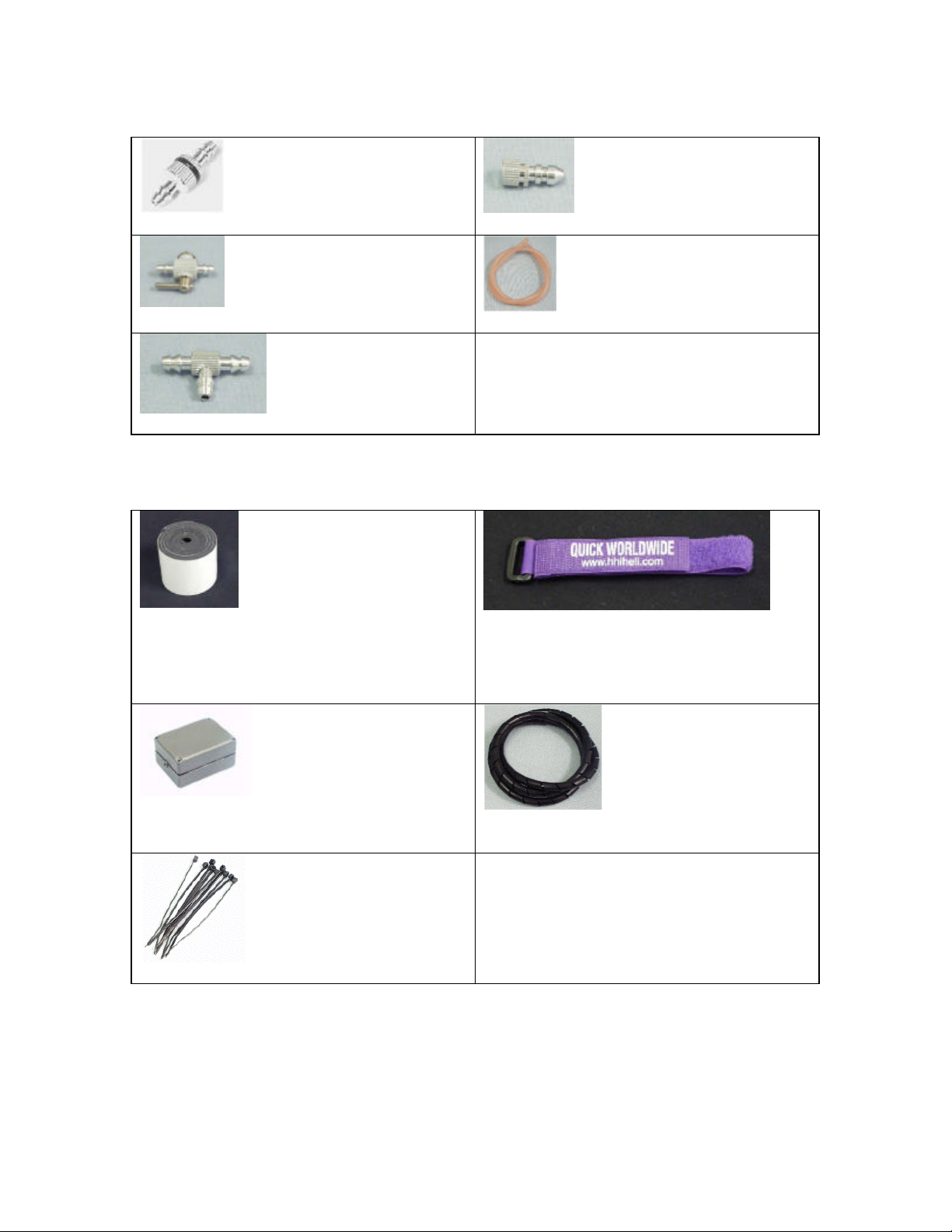

Radio Mounting Accessories
Single Sided Foam Tape… HHI2008
Receiver Hold Down Straps
HHI55** $4.99
2 Per Bag & Colors: Red, White,
Purple, Black
Receiver Strong Box… HHI2200
Spiral Wrap
HHI2809 & HHI2810
Wire Ties…HHIWT01

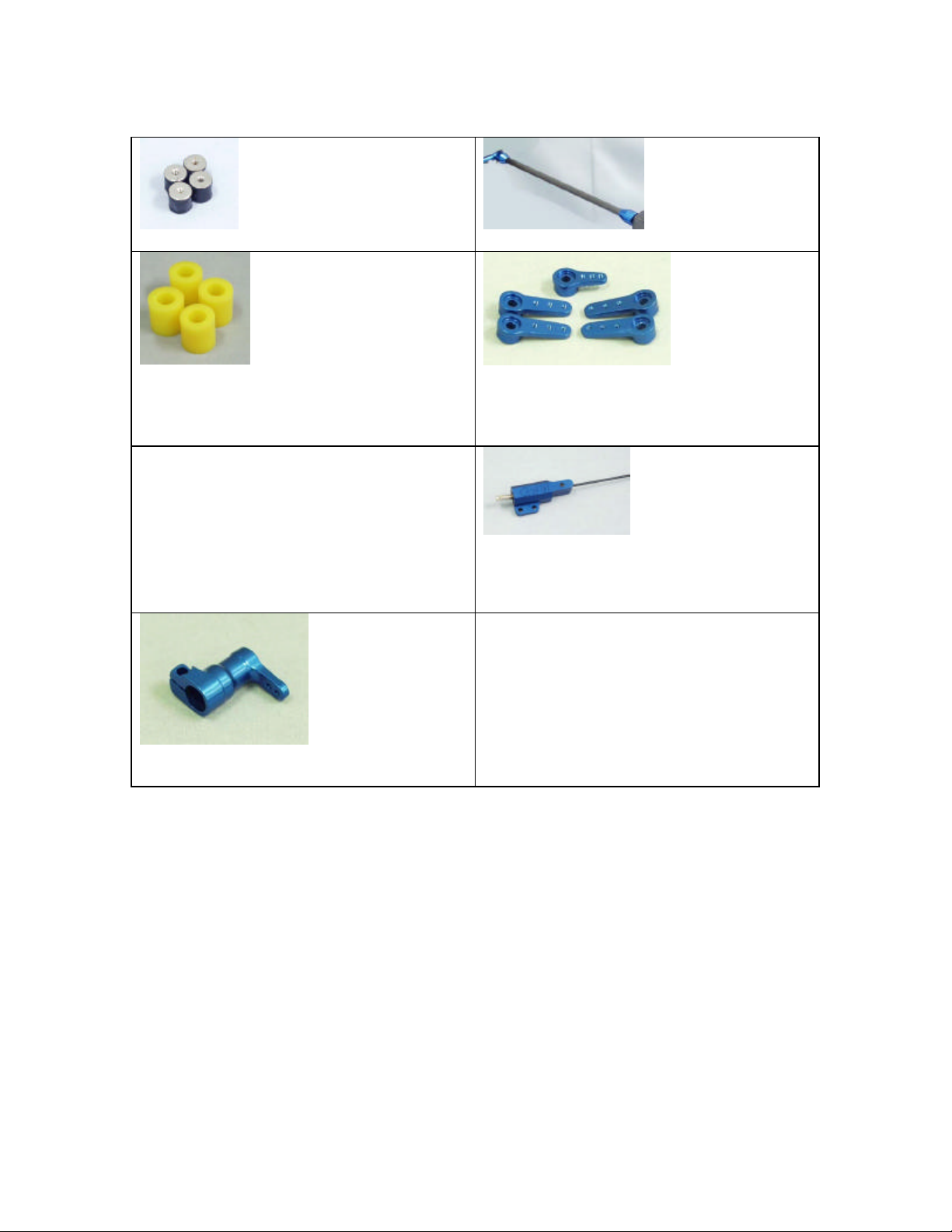

Other Optional Accessories
Landing Gear Dampeners…HHI2004 3mm Fly-bar Stiffeners…HHI402*
60Size Skid Stops
HHI200*
Available in many Colors
See website or Call for Detail
Quick Learner Servo Arm Set
3mm Finishing Caps
HHIM1110
Available in Blue, Silver, Gold, & Purple
Base Load Antenna
HHI53**
Available in Blue, Gold, Purple
& In 40, 50, 72mhz
Throttle Extension
OS32

Radio Requirements
Radios:
Hobbies & Helis & its distributors carry various lines of helicopter radios. Any radio that
supports EMS/CCPM Mixing will work fine.
Servos:
This is the single most important function of the helicopter. Any sport servo will offer
acceptable performance. However due to the nature of EMS collective we suggest the use of
digital servos to enhance and ensure matched servo timing without servo interaction.
Introduction:
Please read through the entire manual before starting your construction of the Quick Learner
if there are any question or concerns regarding theassembly of the Quick Learner you can
Call Hobbies & Helis International (610)-282-4811 or Email the any of the following techs.
Technical Support Personnel:
Stefan –[email protected]
Dale –[email protected]
Jon –[email protected]
Locktite Warning (Very Important):
This is a general warning about the use of Locktite and it’s importance. Locktite must be used
anywhere that a metal fastener i.e. (M2, M3, M4 Cap Head Bolts, Set Screws etc.) are
threaded into a metal part i.e. (Bearing Blocks, Cross-members, etc.). The Failure to use
Locktite can result in parts falling a part and possible loss of control of the model, which can
lead to a crash.

Section 1 –Upper Frame Assembly
Parts List
Bag 1
Clutch Bell Bearing Block X 1
Main-shaft Bearing Block X 2
Front Tail Trans. Bearing Blocks X 2
Counter Gear Shaft X 1
Counter Gear X 1
Front Tail Pulley X 1
26mm Cross Member X 1
M3-12 Cap Head Bolts X 16
M3 Locknuts X 16
M3-8 Cap Head Bolts X 22
M4-3 Set Screw X 1
M3-3 Set Screw X 1
Frame Set Bag
Upper Frames X 2
Step 1-Bearing Block Installation

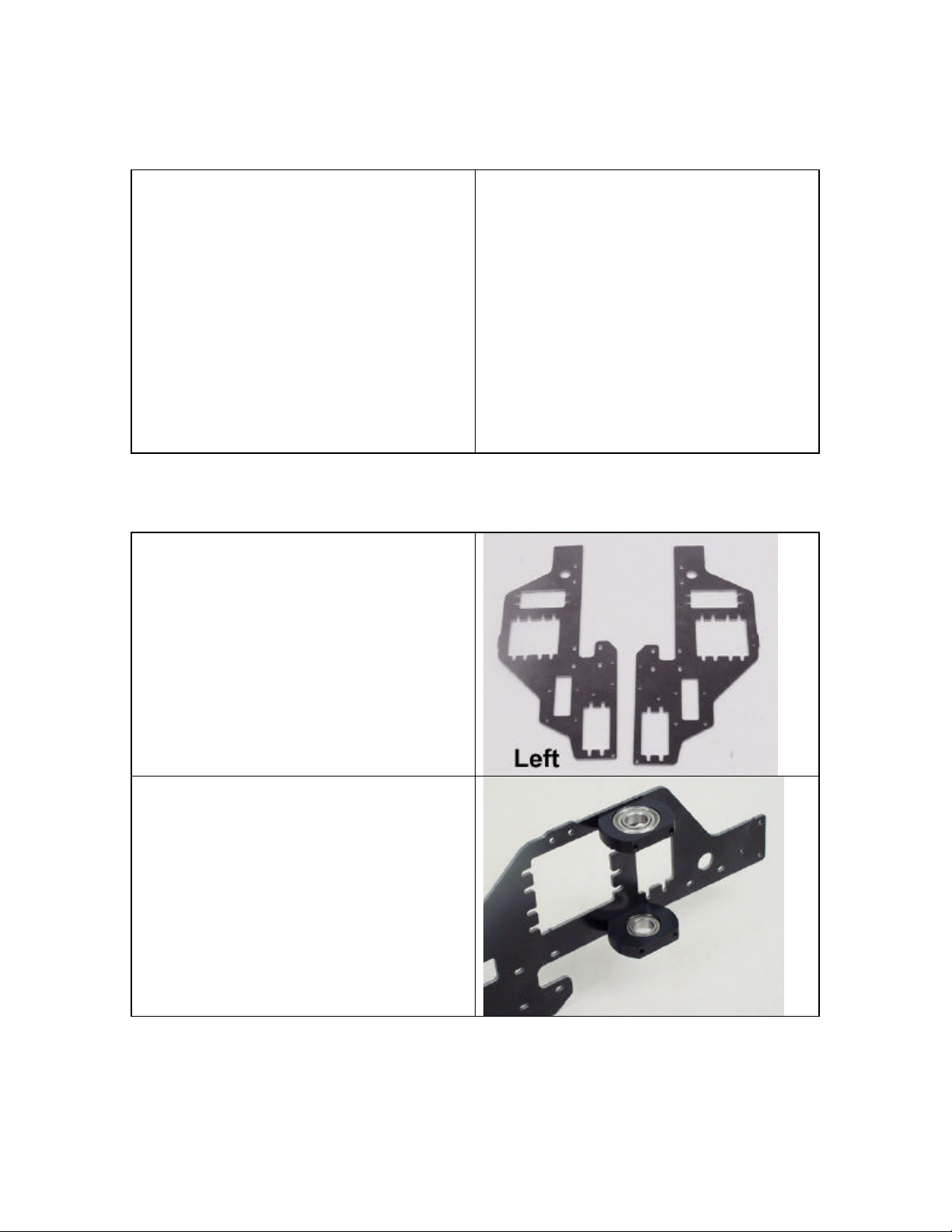

Locate and layout frames as displayed
in the picture the frames will be
Identified by left and right in the steps
to follow.
Replacement Part #:
Upper Frames -QFL351

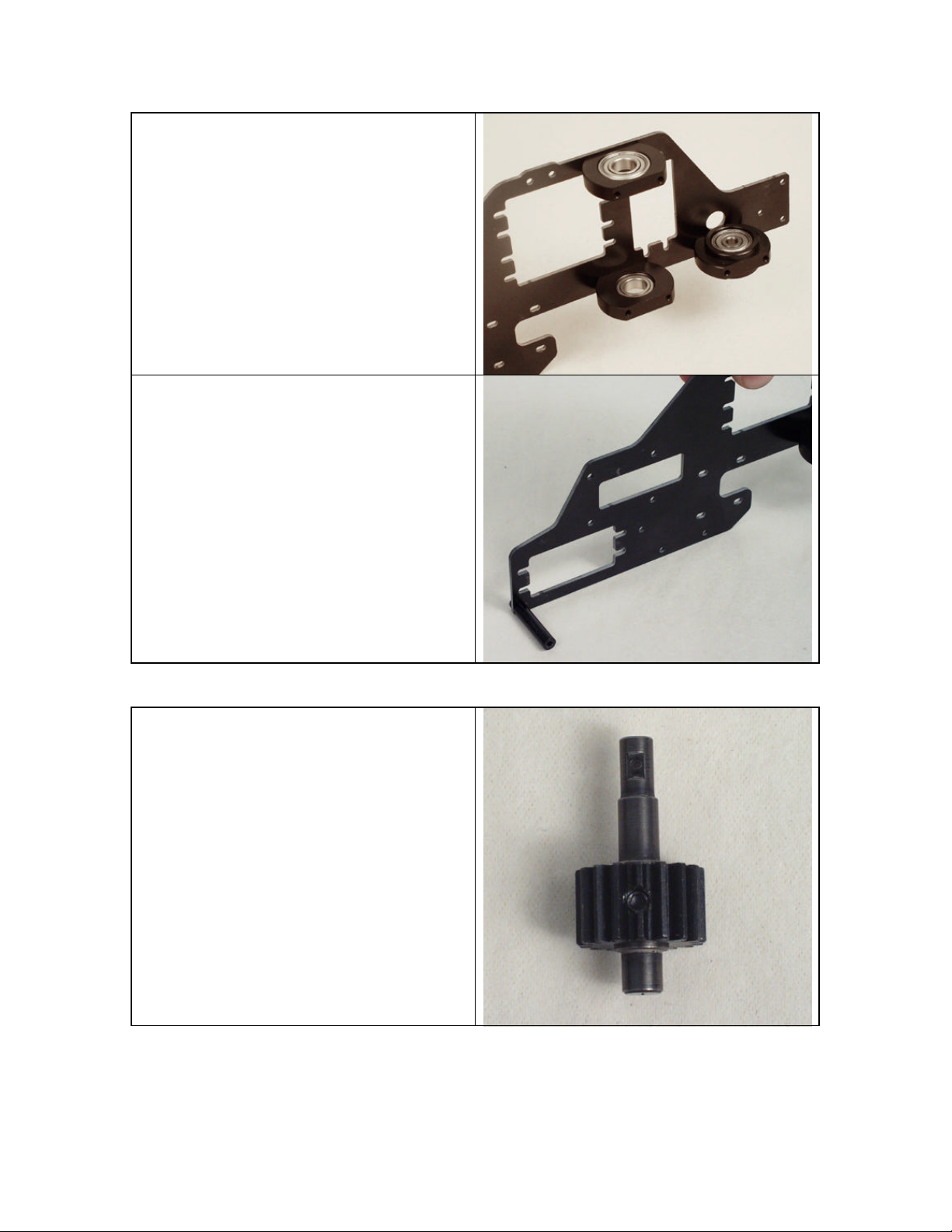

Install (2) Main-shaft Bearing Blocks to
the left frame half using (4) M3-8 Cap
Head Bolts.
Replacement Part #:
Main Shaft Bearing Blocks –QF359

Install (1) Clutch Bell Bearing Block to
the Left Frame half using (2) M3-8 Cap
Head Bolts.
Note: The open side of the bearing
blocks must face opposing outward
direction.
Replacement Part #:
Clutch Bell Bearing Block –QD352
Install (1) 26mm Cross-member using
(1) M3-8 Cap Head Bolt
Replacement Part #:
26mm Cross-members (3) –QF368
Step 2 –Front Tail Transmission Installation
Install (1) Counter Gear to (1) Counter
Gear Shaft using (1) M4-3 Set Screw.
Making sure thesetscrewhits the flat
on the Counter Gear Shaft.
Replacement Part #:
Counter Gear Assm. –QD351

Install both (2) Front Tail Transmission
Bearing Block so the protruding side of
the bearings face the counter gear
assembly. (Assembled above).
Replacement Part #:
Front Tail Trans Bearing Block –
QD353
Install (1) Tail Pulley Gear to the
reduced portion of the Counter Gear
Shaft using (1) M3-3 Set Screw,
Making sure the set screw hits the flat
on the counter gear shaft.
Note: The side of the pulley gear with
the holes should face up as per picture
in the next step.
Tail Pulley Gear –QT356
Install the above Transmission
Assembly to the Left upper frame using
(4) M3-8 Cap Head Bolts

Step 3 –Upper Frame Servo Installation
Prior to servo installation make sure you install the rubber grommets provided by
the servo manufacture to the servo. As for servo selection any sport servo will
work fine.

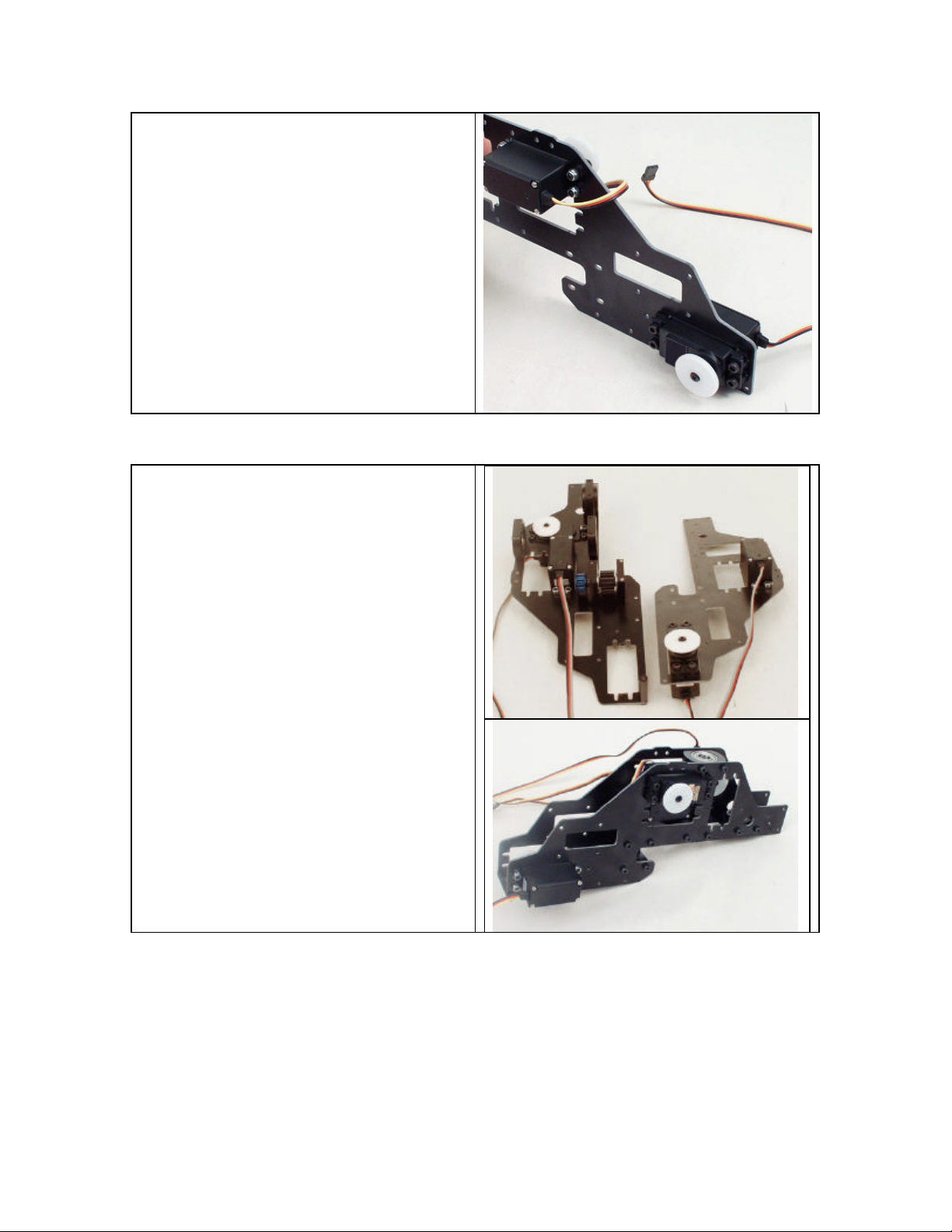

Install the Elevator Servo in the left
Frame half using (4) M3-12 Cap Head
Bolt & (4) M3 Locknuts.
Install the Lower Swashplate Aileron
Servo into the Left upper frame using
(4) M3-12 Cap Head Bolts & (4) M3
Locknuts.
Install the Upper Swashplate Aileron
Servo into the Right upper frame using
(4) M3-12 Cap Head Bolts & (4) M3
Locknuts.

Install Rudder Servo in right upper
frame using (4) M3-12 Cap Head Bolts
& (4) M3 Locknuts
Step 4 –Assembling the Upper Frames
Take the left and right frames and fit
them together and attach the right to
the left using (11) M3-8 Cap Head
Bolts

Section 2 –Lower Frame Assembly
Parts List
Bag 2
Rear Inner One-Piece
Cross-member X 1
Rear Outer One-Piece
Cross-members X 2
54mm Cross-member X 1
M3-8 Cap Head Bolts X 20
M3-20 Cap Head Bolts X 6
Frame Set Bag
Lower Front Frames X 2
Lower Rear Frames X 2
Frame Support Bulk-Head X 1
Plastic Radio Tray X 1
Plastic Gyro Plate X 1
Step 1 –Bulk-Head & Front Frame Installation
Install (2) Lower Front Frames to (1)
Frame Support Bulk-Head using (4)
M3-8 Cap Head Bolts.
Note: Notice the Left & Right
Orientation of the Front Frames as well
as bolt placement.
Replacement Part #:
Lower Front Frames –QFL352
Frame Support Bulk Head–QF354
Install (1) Front Plastic Radio Tray
between the two front frames using (6)
M3-8 Cap Head Bolts.
Replacement Part #:
Plastic Radio Bed–QFL305

Install (1) 54mm Cross-member using
(2) M3-8 Cap Head Bolts
Replacement Part #:
54mm Cross-members (2) -QF369
Step 2 –Lower Rear Frame Installation
Install (2) Rear Lower Frames using (1)
Rear Inner One-Piece Cross-member,
(2) Rear Outer One-Piece Cross-
members and (6) M3-20 Cap Head
Bolts.
Replacement Part #:
Rear Lower Frames –QFL353
Rear Inner Cross-member –QFL355
Rear Outer Cross-member (2)–
QFL356

Install (1) Rear Plastic Gyro Plate using
(4) M3-8 Cap Head
Replacement Part #:
Plastic Gyro Plate–QFL358

Section 3 –Drive-Train Assembly
Parts List
Bag 3
Main-shaft X 1
Main-Gear X 1
Auto-Rotation Clutch X 1
Main Shaft Collar X 1
Start Coupler X 1
Start Shaft X 1
Clutch Bell X 1
Clutch Lining X 1
Clutch X 1
Plastic Fan X 1
Fan Hub X 1
Lower Fan Hub Collet X 1
Upper Fan Hub Collet X 1
Engine Mount Blocks X 2
54mm Cross-members X 1
M3-3 Set Screws X 4
M4-4 Set Screws X 1
M2.6-6 Self Tap Screws X 4
M6 Nord-Lock Washers X 2
M3 Nuts X 4
M3 Locknuts X 5
M3-8 Cap Head Bolts X 14
M3-10 Cap Head Bolts X 8
M3 Washers X 4
M3-16 Cap Head Bolts X 1
M3-6 Flat Head Phillips X 4
Frame Set Bag
Right-Angle Frame Rails X 2
Loose in Box
Fan Shroud X1
Step 1 –Main Gear & Main Shaft Installation
Install (1) Main Gear to (1) Autorotation
Clutch using (4) M3-8 Cap Head Bolts
& (4) M3 Nuts.
Replacement Part #:
Main Gear –QD355
Plastic Auto Rotation Hub –QD354

Install (1) Main Shaft into Main Shaft
Bearing Blocks with reduced portion of
the shaft down.
Replacement Part #:
Main Shaft –QD356
Install (1) Auto-Rotation Clutch/Main
Gear Assembly to the Main Shaft using
(1) M3-16 Cap Head Bolt & (1) M3
Locknut.
Install (1) Main Shaft collar over the top
of the Main Shaft and secure using (4)
M3-3 Set Screws. Note: Be sure the
ridge on the collar goes down towards
the upper bearing. Also after the collar
is tightened to the shaft there should be
No up or down movement in the Main
Shaft.
Replacement Part #:
Main Shaft Collar –QD357

Adjust the Gear mesh between the
Main gear and the Counter Gear on the
Front Tail Transmission using a double
thick piece of notebook paper in
between the 2 gears and adjust the Tail
Transmission by pushing tight against
the main gear. Remember the gear
mesh should be smooth readjust if
necessary.
Step 2 –Clutch Bell Installation
Install (1) Clutch Lining into (1) Clutch
Bell using JB Weld or 30 min epoxy.
Note: The clutch lining length prior to
installation should be 121.9mm cut if
necessary. Also note that we score the
inner portion of the clutch bell where
lining is glued with 80 Grit Sandpaper.
Replacement Part #:
Clutch Bell w/ Lining–QD350
Clutch Lining –QD351

Install (1) Start Shaft into (1) Clutch
Bell.
Note: The larger Diameter side of the
shaft inside the Clutch Bell.
Replacement Part #:
Start Shaft –QD359
Install Start Shaft/Clutch Bell Assm.
Into the previously installed Clutch Bell
in the frames.
Install (1) Start Coupler with (1) 4-4 Set
Screw. Note: There should be no up or
down play in the clutch bell once the
start coupler is fastened to the Start
Shaft.
Replacement Part #:
Start Coupler –QD360
