QuickWorldWide Super Learner Pro User manual

Page 1 of 85

Page 2 of 85
TABLE OF CONTENTS
INTRODUCTION 3
CUSTOMER SERVICE 4
FEATURES 5
FRE-ASSEMBLY INFORMATION 6
REQUIRED TOOLS 7
HARDWARE & OPTIONAL ACCESSORIES 8
OTHER HARDWARE & OPTIONAL ACCESSORIES 9
OTHER REQUIREMENTS 11
PART LIST 12
SECTION 1: UPPER FRAMES 13
SECTION 2: LOWER FRAMES 28
SECTION 3: LANDING GEAR ASSEMBLY 41
SECTION 4: DRIVING SYSTEM 44
SECTION 5: TAIL ASSEMBLY 47
SECTION 6: CONTROL SYSTEMS 55
SECTION 7: ROTOR HEAD 60
SECTION 8: LINKAGE RODS AND SETTINGS 63
FRE-LIGHT CHECKS 78
WARNINGS 78
ADJUSTMENTS 79
HOW TO HOVER 80
HOW TO FLY FORWARD 81
AFTER FLIGHT CHECKS 83
WHAT IF THE HELICOPTER CRASHED 84
SPECIFICTION 84

Page 3 of 85
INTRODUCTION
Congratulation and thank you for the purchase of great product! It is our sole desire for
you to enjoy the quality workmanship and performance of any of our Nitro powered
helicopters. We believe we have the latest designs and technology incorporated into our
model helicopters. Our CNC parts are produced using the best high density materials &
anodized using material hardening finishes with the tightest of tolerances. Our new
helicopters feature the latest advances in R/C helicopter design. The simple and
mechanically superior EMS design (also known as CCPM) ensures a helicopter that will
be more responsive and more stable than any other R/C helicopter you have ever
flown. Three servos are attached directly to the Swashplate to ensure precise control.
This kit features all metal construction, and a carbon or composite frames are standard.
Along with great products, our staffs are RC guys that fly and have hands on experience
with total manufacturing & testing of our helicopters. In addition, we stand behind all our
products 100% with satisfaction guaranteed. Our kits will be shipped 100% complete
and we can assure you that once you fly your helicopter you will love it.

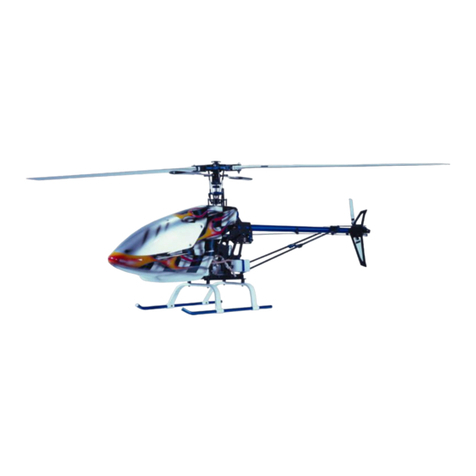

The Super Learner
We believe you hold in your hands one of the best helicopters manufactured in the world
today. The brand new Super Learner is the newest version of our Big Nitro
Quick line. It is a bigger, stronger frames, yet powerful machine. This baby delivers
amazing power smoothly throughout the entire range of its nitro motor. It functions so
responsive and stable. The Super Learner Pro version features a fully
machined dual-spindle head, metal tail rotor, metal grips, carbon fiber frames, bigger
carbon rudder push rod, and carbon fiber boom supports. The Super Learner
Sport version features a G10 fiberglass frame, fully machined metal head,
carbon boom supports, carbon rudder push rod, and molded tail blade grips. Our
helicopters are carefully designed and tested, and manufactured of the highest quality
materials available.
In a short time, you can be flying.
We ask that you please read the entire manual before starting the construction of the
Super Learner, and if you have any questions our technical support staff can be
reached at [phone] M-F 9-6, S 9-4 Eastern time,
or by email at [email protected].
For the latest information and updates, please visit our website at
www.quickworldwide.com

Page 4 of 85
CUSTOMER SERVICE
Quickworldwide
201 South 3rd. St. & 309 N.
Coopersburg, PA 18036
Phone: [phone]
Fax: [phone]
Websites:
http://www.hhiheli.com
http://www.quickheli.com
http://www.giantscaleplanes.com
E-mail: [email protected]
Office Hours: Mon – Fri: 8:30 – 6:00
Sat: 8:30 – 1:30
(Eastern Daylight Time)
Technical Support Personnel:
Chuck – [email protected]
Jon – [email protected]

Page 5 of 85
FEATURES
Super Learner
1. Frame Construction: Super Learner frames are made of the highest quality Carbon
Fiber or Black G-10. These frames are not only thick and rigid but will provide excellent vibration
absorption.
2. One-Way Hex Start Shaft System:The one-way bearing allows the engine to
continue to run after the starter motor has been stopped.
3. Constant Tail Rotor Drive System: provides full tail authority during motor off
maneuvers.
4. Belt driven Tail: Smooth, reliable, and low maintenance.
5. High Quality Ball Bearings: Super Learner offers high quality ball bearings on all
moving parts.
6. EMS Collective System:The EMS Collective design allows ease of setup with
fewer moving parts. EMS demonstrates overall design simplicity and represents the future of
helicopter technology.
7. Heavy-Duty Clutch System: Based on the same design as our famous heavy-
duty clutch upgrade that fits most popular machines, this clutch will give many years of problem
free operation.
7. Control Linkages: The control linkages are high quality 2.3mm stainless steel rods
with Delrin® acetal resin rod ends.
8. Single Blade Axle Design: simple, very responsive, with exceptionally consistent
flight characteristics.
9. Advanced Airfoil Fly-bar Paddles: These paddles will provide the best flight
characteristics for both 3D & Sport flying: Smooth forward flight, with quick response upon
demand.
10. Rearward facing Engine Design: This design provides quick access to the
glow plug and is advantageous for easy engine removal.
11. Heavy-Duty Bearing Blocks: Bearing Blocks is specially designed for this model.
They couple to high quality bearings to carry and support all high speed moving operations.

Page 6 of 85
PRE-ASSEMBLY INFORMATION
Warning
The radio-controlled model helicopter contained in this kit is not a toy.
Rather, it is a sophisticated piece of equipment. This product is not recommended for
use by children without adult supervision. Radio controlled models such as this are
capable of causing both property damage and/or bodily harm to both the
operator/assembler and spectators if not properly assembled and operated. Hobbies &
Helis assumes no liability for damage that could occur from the mis-assembly and/or
use/misuse of this product.
Academy of Model Aeronautics
We strongly encourage all prospective and current R/C aircraft pilots to join the
Academy of Model Aeronautics. The AMA is a non-profit organization that provides
services to model aircraft pilots. As an AMA member, you will receive a monthly
magazine entitled Model Aviation, as well as a liability insurance plan to cover against
possible accident or injury. All AMA charter aircraft clubs require individuals to hold a
current AMA sporting license prior to the operation of their model. For further information,
please contact AMA at:
Academy of Model Aeronautics
5161 East Memorial Drive
Muncie, IN 47302-9252
USA
Phone: [phone]
www.modelaircraft.org
Before you begin
Quick Helicopter kits are packaged with care and attention to detail. We recommend
when you are ready to begin building this model that you examine the kit carefully,
inspect the contents of each package, and read and understand these instructions
thoroughly before starting assembly. It is suggested that you purchase a parts box for
the small fasteners and hardware, or use small bowls or other containers.

Page 7 of 85
REQUIRED TOOLS

HARDWARE & OPTIONAL ACCESSORIES
GLUES AND THREAD LOCK COMPOUNDS
RADIO MOUNTING ACCESSORIES
Page 8 of 85

Page 9 of 85
ENGINES, GLOW PLUGS, AND EXHAUST SYSTEM
ENGINES: we recommend OS46SX but others may work
GLOW PLUGS: OS # 8…OSMG2691
One-Piece Muffer
Two-Piece Muffer
FUEL SYSTEM
OTHER HARDWARE & OPTIONAL ACCESSORIES
3MM FLYBAR STIFFENERS
HHI 402
30 SIZE SKID STOPS
HHI 200 AVAILABLE IN COLORS

SERVO ARM SET
LANDING GEAR DAMPENERS
HHI 2004
BASE LOAD ANTENNA
HHI 53**
AVAILABLE IN BLUE, GOLD,
PURPLE
AND IN 40, 50, AND 72 Mhz
Page 10 of 85
FINISHING CAPS
•Adds color and style
•Distributes force across larger surface area
3mm 4mm
(20 pcs in a package) (8 pcs in a package)
BLACK HHIM11100B ---
W
ITHOUT BLUE HHIM11103 HHIM11108
GOLD HHIM11101 HHIM11106
GREEN HHIM11100G ---
PURPLE HHIM11100 HHIM11105
W
ITH RED HHIM11100R ---
SILVER HHIM11100 HHIM11107

Page 11 of 85
OTHER REQUIREMENTS
Radios:
Any radio that supports EMS/CCPM Mixing will work fine. Hobbies & Helis & its
distributors carry various lines of helicopter radios.
Note: Please consult the instruction for your Gyro for setting the overall travel
and limits to ensure proper operation and travel of Tail Pitch Slider.
Servos:
Any sport servo will offer acceptable performance. However, because servos
operate all critical functions of the helicopter, they can be the single most
important component that contributes to proper function of the helicopter. Due to
the nature of EMS collective, we suggest the use of digital servos to enhance
and ensure matched servo timing without servo interaction.
Locktite Warning (CRITICAL):
This is a general warning about the use of Locktite and its
importance. Locktite must be used anywhere that a metal
fastener i.e. (M2, M3, M4 Cap Head Bolts, Set Screws etc.) is
threaded into a metal part i.e. (Bearing Blocks, Cross-members,
etc.). Failure to use Locktite can result in loosening of critical
operating components, loss of control of the model, and can
lead to a crash.

Page 12 of 85
PART LIST
•In your kit, parts are bagged according to each major assembly and are labeled “Bag
1, Bag 2, etc.” You will note that the heading for each assembly indicates which bag
correlates with each assembly.
•For a good installation, only open up the bag that you need for particular assembly.
•Please check the parts in that bag against the parts list shown for each assembly as
well as each subassembly to make sure there are no missing parts.
•Small parts such as nuts and bolts can be put into containers or trays to prevent
losing parts.
•Part No. with ***** means that part is not included in the kit.
•The colors of drawings in this manual may look different from the parts you have in
the kit.
No. Bag No. Description Quantity Check
1 Bag 1 For Upper Frame Assembly 1
2 Bag 2 For Lower Frame Assembly 1
3 Bag 3 Landing Gear 1
4 Bag 4 Driving System 1
5 Bag 5 For Tail Assembly 1
6 Bag 6 Control System 1
7 Bag 7 Rotor Head 1
8 Bag 8 Linkage & Settings 1
9 Frame Frame 1
10 Loose in Box
Canopy
Carbon Push Rod
Tail Gear Belt
Tail Boom
Flybar
Decal Sheet
Instruction CD
Fuel Tank & Accessories
Fan Shroud
1
1
1
1
1
1
1
1
1
11 HB Hardware Bag 1

Page 13 of 85
SECTION 1: UPPER FRAMES Bag 1

Page 14 of 85
1-1 ELEVATOR SHAFT BEARINGS
No. Bag# Description Qty
1 Frame Upper Frame (from Frame Bag) 2
2 1 5X10X4Flanged Bearing 2
Note: The holes on the frames are designed for “push-fit” feature. Sometime you may have to
sand them a little bit before pushing the bearings in. The bearing flange mates against the
inside of the frames.

Page 15 of 85
1-2 LEFT AILERON & RUDDER SERVO SUBASSEMBLY
No. Bag# Description Qty
1 Step 1-1 L. Upper Frame Subassembly 1
2***** Servo 2
3 HB* M2.5x14 Cap Head Bolt 8
4 HB M2.5 Locknut 8
5 HB Fixing Plate 8
Remember to apply
Loctite for the Srews
( see Locktite Warning on
page 11)
***** Part No. with ***** means that part is not included in the kit.
*HB stands for Hardware Bag
Note: Be sure to use the rubber grommets and eyelets that are provided by the servo
manufacturer. Output Shaft of Rudder Servo should be toward the boom.

Page 16 of 85
1-3 RIGHT AILERON & ELEVATOR SERVO SUBASSEMBLY
No. Bag# Description Qty
1 Step 1-1 R. Upper Frame Subassembly 1
2***** Servo 2
3 HB M2.5x14 Cap Head Bolt 8
4 HB M2.5 Locknut 8
5 HB Fixing Plate 8
***** Part No. with ***** means that part is not included in the kit.
Note: Be sure to use the rubber grommets and brass eyelets that are provided by the
servo manufacturer.

Page 17 of 85
1-4 INNER ELEVATOR CONTROL ARM SUBASSEMBLY
No. Bag # Description Qty
1 1 Inner Elevator Control Arm* 1
2 1 Elevator Control Shaft 1
3 HB M3x5 Set Screw 1
4 HB M3x7 Pivot Ball Stud 1
Note: Quick Super Learner 37 has shorter Inner Elevator Control Arm.

Page 18 of 85
1-5 TAIL TRANSMISSION ASSEMBLY
No Bag# Description Qty
1 1 Counter Gear 1
2 1 Counter Gear Shaft 1
3 HB M3X5 Set Screw 2
4 1 Pulley Gear 1
5 1 Counter Gear Bearing Block 2
-Install Counter Gear to Counter Gear Shaft using M3x5
Set Screw (No. 3) to secure it.
-Put Counter Gear Bearing Block (Lower one ) in with the
Flange facing down
-Install Counter Gear Bearing Block (Upper one) with the
Flange facing down
-Install Pulley Gear and secure it with M3x5 Set Screw

Note: Bearing Blocks shown may look differently.
Page 19 of 85

Page 20 of 85
1-6 ELEVATOR CONTROL ARM-RIGHT SIDE
No. Bag# Description Qty
1 Step 1-3 R. A&E Arm Subassembly (step 1-3) 1
2 Step 1-4 Inner El. Ctrl. Arm Subassembly (step 1-4) 1
3 1 Outer Elevator Control Arm 1
4 HB M3x5 Set Screw 1
5 HB M3x4 Pivot Ball Stud 5
6 HB M3x5x3 Spacer 1
7 1 Right Aileron Control Lever 1
8 HB M3x14 Cap Head Bolt 1
Note: For Quick Super Learner 37, install the 3x4 Pivot Ball Stud into the 2nd hole
instead of the first hole for correct timing.
