Quik n’ Crispy GF - II User manual





MODELGF–II
OPERATOR’SMANUAL



CoveringQuikn’Crispy
PartNumbers:
600015
600020
600025
600035

©2020 QNC, Inc. 0720 GF II OM 2

©2020 QNC, Inc. 0720 GF II OM 3
TableofContents
INTRODUCTION.....................................................................................................................4
PACKINGLIST.........................................................................................................................5
INSTALLATIONINSTRUCTIONS...............................................................................................6
INSTALLATIONPROCEDURES.................................................................................................7
POSITIONINGTHESEPARATIONWALLANDSPLASHGUARD...................................................9
THEINITIALOPERATIONOFYOURQUIKN'CRISPY®............................................................11
RECIPETIMEANDTEMPERATURESETTINGS........................................................................12
CONFIGURATION.................................................................................................................13
RECIPEEDITING...................................................................................................................14
NAME&COOKSEGMENTEDITING......................................................................................16
COOKINGARECIPE..............................................................................................................18
QUICKCOOKWINDOW........................................................................................................20
SETBACKCONFIGURATION..................................................................................................21
COOKINGPROCEDURES.......................................................................................................22
CLEANINGPROCEDURES......................................................................................................26
PRODUCTREGISTRATION....................................................................................................29
SERVICE...............................................................................................................................29
WIRINGDIAGRAMS.............................................................................................................30




©2020 QNC, Inc. 0720 GF II OM 4

INTRODUCTION

Marketedsince1990,theQuikn'Crispy®FatFreeFryeristheresultofyearsofresearch,
development,andrefinement.Byusingtheprinciplesofforcedhotairandradiantheat,the
Quikn'Crispycanquicklycookandbrownanumberof"ovenready"conveniencefoods.This
easy‐to‐usecountertopgreaselessfryersafelyandefficientlyeliminatesthehealthconcerns,
expense,andoperatingdifficultiesinherentwithhotoilcookingprocesses.

WearepleasedtoannouncethatstartinginJuly2020,wearemanufacturingallofour
GreaselessFryerswithanupgradedcontrollerplatform.Thisupgradedplatformincludesa
morepowerfulmicrocontroller,increasedcodestorage,andamoresophisticatedgraphics
system.Someotherkeybenefitsforourcustomersinclude:

 USBFirmwareUpdates:OwnerscaneasilyperformfirmwareupdatesusingonlytheUSB
port.
 OperationLogging:Storestotalhoursofoperation,heatinghours,heatercycles,
cookinghours,recipescooked,idlehour,andreadytocookhours(idlingatsetpoint)
 QuikCookfeature.Thisprovidestheoperatorwithaneasywaytoevaluatenewmenu
itemsbyeasilysettingthepreheatandcookingtemperatures,andthecookingtime
withouthavingtocreateanewrecipe.
 SetbackConfigurationprovidestheusewiththreenewfeatures.
o Thefirstfeatureisthe“HOLDSTAGE”option.Withthisfeature,theQuikn’Crispy
willholdthecookingtemperaturethatwasusedduringthepreviousrecipes.
o ThesecondfeatureistheSETBACKfeature.Whenthisfeatureisturnedon,your
Quikn’Crispywillmaintainthisminimumtemperatureforthetimethatyou
enteredintothisscreen.

Moreinformationontheenhancementstotheupgradedcontrollerareexplainedfurtherin
thefollowingpages.



©2020 QNC, Inc. 0720 GF II OM 5
PACKINGLIST


IncludedintheQuikn'Crispy®GreaselessFryerpackingcartonarethefollowingitems:

 1Quikn'Crispy®GreaselessFryer

 1CookingBasketAssembly

 1CookingBasketHandle&MountingScrews

1DripTray

 1SeparationWallPanel

 1RemovableFrontPanel

 1SplashGuardforCookingChamberCeiling

 4AdjustableLegs

 1Operator'sManual

 1ProductRegistrationForm



©2020 QNC, Inc. 0720 GF II OM 6
INSTALLATIONINSTRUCTIONS

BeforetheinstallationofyourQuikn'Crispy®,asuitablepositioninyourretaillocationshould
beselected.Pointstoconsiderwhenselectingalocationare:

 1. Accessibilitybystoreemployees

 2. Proximitytocustomers

 3. Proximitytorefrigeratorandfreezerequipment

 4. Proximity to other retail points of sale to take advantage of cross merchandising
opportunities

 5. Sight‐lineofcustomer(toenhancecustomerperceptionof"fresh"preparation).

TheQuikn'Crispy®shouldbemountedonasturdyfoodserviceappropriatetable.Stainless
steel would be the preferable material.  Allow for a certain amountofworkspacenearthe
Quikn'Crispy®GreaselessFryersothatoperatorswillnothavetoworkinaconfinedlocation.
Werecommendaminimumof1”or2.54cm.ofspacebetweentherear,sidesandtopofthe
Quikn'Crispy,andthewalls,ceilingorotherstructuralsurfacesofyourfacility.

In addition to suitable locations, accommodation must be made for the necessary electrical
hookups.Pleasenotethefollowingelectricalspecifications.

ElectricalSpecifications
Singlephaseonly•50/60Hz.
USAdomesticunitplugsandpowercords(6’)areshownonPage2ontheSpecificationSheet.
InternationalunitInformationisbelow.
Cord: 2m.length
  HO7RN‐F3G1.5mm2 
Plug: BritishStandard 240volt,50Hz.;13ampmax.
  OrContinentalEuropean"Schuko"
  220volt‐230volt,50Hz.;16ampmax.

©2020 QNC, Inc. 0720 GF II OM 7
INSTALLATIONPROCEDURES

 1. TheweightoftheQuikn’Crispyisapproximately70lb./25kg.Theuseofasecond
personisadvisedforportionsofthisinstallation.

 2. Open the shipping carton and fold back the shipping carton flaps.  With the flaps
foldedback,rotatethecartonupsidedownonthefloor.

 3. LiftthecartonleavingtheQuikn'Crispy®andthecorrugatedpackingsetinplaceon
thefloor.

 4. RemovethecorrugatedpackingsetfromaroundtheQuikn'Crispy®.

 5. Removethecookingbaskethandle,mounting screws,andadjustablelegs fromthe
OperatorsManualziplockbag.

 6. Screwthe4adjustablelegsintothebottomofthefryer.

 7. Lift the fryer into position on the designated counter.  Again, we recommend
minimumof1”/2.54cm.clearancefromanyadjacentwallsorequipment.

 8. Adjustthelegstobalancethefryeronthedesignatedcounter.

 9. Attach the cooking basket handle to the cooking basket.  A #2 Phillips head
screwdriveranda5/16"wrencharerecommended.

 10. Inspect the separation wall panel and look to see that it is mounted properly.
Because this is a five‐step process, we have included a separate installation
procedureonpages5to7.Pleaseturntopage5atthistimeand install the
separationwallpanel.

 11. Once the separation wall panel is installed, place the drip tray onto the bottom
drawerguides,angleitupwardstoa45°angletoclearthestopandslideitin.This
trayshouldslideinfreely.

 12. Placethecookingbasketontothedriptray.Thetwopartsshouldnowslideinand
outofthehot‐airfryerinunison.


©2020 QNC, Inc. 0720 GF II OM 8
 13. Atthispoint,besurethattheelectricalbreakerforthe Quik n' Crispy® Greaseless
Fryerisinthe"OFF"position.PluginyourQuikn'Crispy®GreaselessFryer,thenturn
thecircuitbreakertothe"ON"position.

©2020 QNC, Inc. 0720 GF II OM 9
POSITIONINGTHESEPARATIONWALLANDSPLASHGUARD

WARNING!

Beforeproceeding,makesuretheQuikn'Crispypowerswitchisinthe“OFF”position(thisis
theleftpositionoftheOn/OffSwitch)andthatthefanblowerisstationaryandthatthe
cookingchamberandheatingelementarenothot!

1. LifttheRemovableFrontPanel(RFP)thatislocateddirectlyabovetheCookingBasket
byapplyingslightupwardpressure.Itshouldslideoutatanupwardangle.

2. PulltheSplashguardoutofthetopofthecookingchamber.Thisisaformedpieceof
stainlesssteelthatislocatedbetweentheheatingelementandtheceilingoftheinner
chamber.Wheninsertedintothecookingchamber,thesurfaceofthesplashguard
shouldbeincontactwiththeceilingofthechamber.Thesplashguardshouldbe
removeddailyforcleaningwiththeotherremovableitemslocatedintheinner
chamber.



SeparationWallCutawayView

3. TheSeparationWallwaspositionedproperlyintherearoftheinnerchamberofyour
Quikn’Crispypriortoshipping.Itisheldinplacebygravitywithtwoinverted“U”
channelsthatareformedonthebackoftheSeparationWall,matingwithtwo“U”
channeltabsthatarelocatedoneithersideofthefan(Seepictureabove)ontherear
wallofthecookingchamber.TheSeparationWallcanoftencomeoffthetabsthathold
itinplaceduringshipping.Pleasecheckandconfirmthatitisinstalledproperlyby

©2020 QNC, Inc. 0720 GF II OM 10
removingandreplacingtheSeparationWallatthistime.Thephotoaboveillustrates
howtheseparationwallisinstalled.ItwastakenwiththetopoffoftheQuikn’Crispyin
ordertoclearlyshowtheinstallation.Itisnotnecessarytoremovethetopto
accomplishthisprocedure.

4. PlaceyourhandsoneachsideoftheSeparationWallandliftitstraightuptotheceiling
ofthechambertoclearthemountingtabs.PulltheSeparationWalltowardsyouuntilit
makescontactwiththeHeatingElement.NowpullthebottomoftheSeparationWall
outfirstandangleitoutoftheinnerchamberwiththebottomoftheSeparationWall
comingoutoftheinnerchamberfirst.

5. ReversetheprocessandreinstalltheSeparationWallbygraspingitbythesideswith
bothhandsandinsertitintothefrontopeningoftheQuikn'Crispy,enteringthefront
openingjustabovethetopsetofDripTrayguides.Insertthewallstraightbackintothe
Quikn'Crispyuntilyoutouchtherearwallofthecookingchamberkeepingthe
SeparationWallparalleltotheflooroftheQuikn'Crispy.

6. AnglethetopportionoftheSeparationWallupwardtowardstheceilingoftheinner
chamberuntilitcomesincontactwiththeceiling.SlidetheSeparationWallfurther
backintotheinnerchambersothatitcomesincontactwiththerearwalloftheinner
chamber.NowlowertheSeparationWallsothatthetwotabsoftheSeparationWall
catchontothetabsonthetoprightandleftsidesoftherearwallofthecooking
chamber.TheSeparationWallshouldnowbehangingupright,withthebottomofthe
SeparationWallapproximately.25"/.635cmupoffthefloorofthecookingchamber.

7. SlidetheSplashguardbackintothetopoftheinnerchamber.Pleasenotethatthe
surfaceofthesplashguardshouldbeclosesttotheceilingoftheinnerchamber.

8. PlacetheRemovableFrontPanelbackontothefrontoftheQuikn’Crispy.Itwillslide
downatanangleontothefourpinsthatarelocatedonthefrontoftheunit.

9. PleasenotethatontheINTERNATIONALUNITSONLY,thereisasafetyswitchinstalled
ontherightrearwallofthecookingchamber.Thisswitchwillbedepressedwhenthe
SeparationWallisproperlyinstalled.IftheSeparationisnotinstalledproperly,the
safetyswitchwillremainintheOpenPosition,andthecookingblowerwillnotoperate.
EnsurethatwhentheSeparationWallisinstalledthattheflatpartismakingsolid
contactwiththerearwalloftheovenchamberanddepressingthesafetyswitch.


©2020 QNC, Inc. 0720 GF II OM 11
THEINITIALOPERATIONOFYOURQUIKN'CRISPY®

Thefirstoperatingcycleafterinstallationshouldbeaconfirmationofthehot‐airfryer'sproper
workingorder.Todothis,werecommendthatyoudepresstheswitchtotheright"POWER
ON"position.ThecontrollershoulddisplaytheQuikn’Crispylogowiththecaption“Touchto
Start”. 



Next,touchthescreenandthenextscreenwillprovideyouwiththeoptionof“QuickCook”
(Wewillexplainthisoptionlaterinthemanual)or“CookARecipe”.Click“CookARecipeand
itwilldisplaythe15RecipesthathavebeenpreprogrammedintoyourQuikn’Crispy.These
settingsareshownonthenextpage:



©2020 QNC, Inc. 0720 GF II OM 12
RECIPETIMEANDTEMPERATURESETTINGS

Belowarethecookingtimeandtemperaturesthathavebeenpreprogrammedintoeachof
the15menus.Ifyoudesiretochangeanyofthesesettings,pleaseseethefollowingsection.


Menu TemperatureF° TemperatureF° TemperatureC° Time
 120VoltUnits 208/240VoltUnits International 
    
1 420° 400° 215° 1:00
2 420° 400° 215° 2:00
3 420° 400° 215° 2:30
4 420° 400° 215° 3:00
5 420° 400° 215° 3:30
6 420° 400° 215° 4:00
7 420° 400° 215° 4:30
8 420° 400° 215° 5:00
9 420° 400° 215° 5:30
10 420° 400° 215° 6:00
11 400° 370° 205° 6:30
12 400° 370° 205° 7:00
13 400° 370° 205° 7:30
14 400° 370° 205° 8:00
15 400° 370° 205° 8:30

Thefollowingsectionwillexplaininmoredetailhowtoaccesstheprogrammablefeatures
oftheLCDController.Pleasenotethattoaccesstheconfigurationscreen,thebottom
righthandcornerofthedisplaymustbehelduntiltheoperatorhearsadoublechirp.





©2020 QNC, Inc. 0720 GF II OM 13
CONFIGURATION

Accesstothecontrollerconfigurationhasthreesecuritylevels:Supervisor,Technician,and
Factory.ThismanualwillonlyaddresstheSupervisorlevel.Thislevelhasaccesstothe
History,SetClock,USBImport,USBExport,Recipes,andSettings.

Togainaccesstotheconfiguration,pressandholdthebottomrighthandcornerofthedisplay
for2seconds.Thecontrollerwillemitadoublechirp.Theinitialpresswillnotcauseaninitial
chirptopreventaccidentalaccesstothesefeatures.Oncethecontrollerchirpstwice,release
yourfingerandtheaccesscodeentrywindowappearsasshownbelow.Thedefault
supervisoraccesscodeis1234.Enterthecodeusingthenumerickeysandpressthe“Enter”
button.


©2020 QNC, Inc. 0720 GF II OM 14
RECIPEEDITING

Accesstotheeditingofthesystemrecipesfollowsthesameinstructionsasaccessingthe
supervisorconfiguration:Pressandholdinthemaincookingwindow,enterthesupervisor
accesscode(1234),andthentheSupervisorAccesswindowappears…




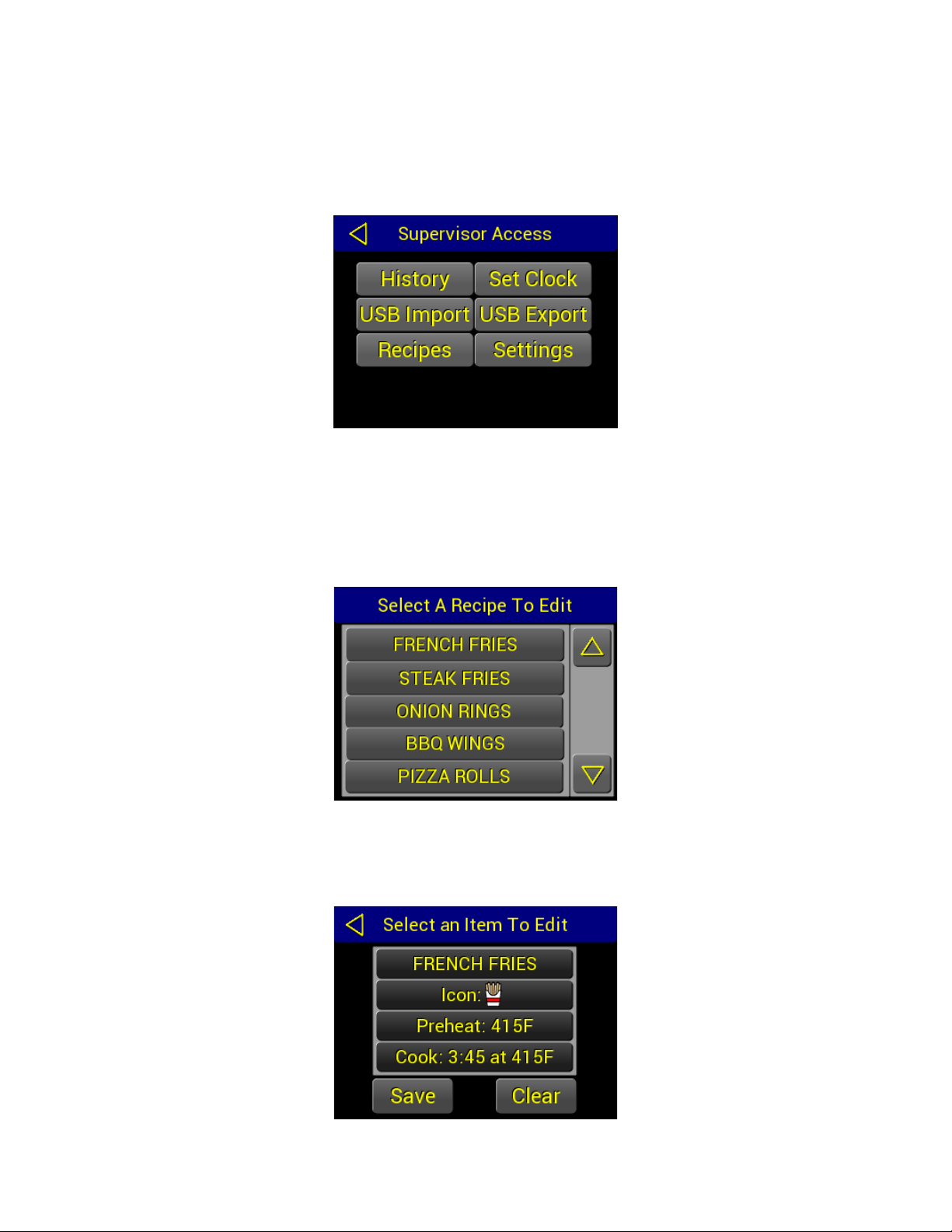

Pressthe“Recipes”buttonandthe15recipeswillappearonthescreen.Yourinitialscreen
willdisplay“NotUsed”forall15recipesbutfordisplaypurposesbelow,wehaveinserted
recipenames.Usetheupanddownarrowstoscrolltherecipelistuntilthedesiredrecipeis
shown.Touchtherecipetobeedited.



TheSelectItemwindowshowstheitemsthatmakeupthatrecipe.Thefirstitemisthename
oftherecipe,followedbythe“Icon”field,thePreheatfield,andtheCookfield.



©2020 QNC, Inc. 0720 GF II OM 15


©2020 QNC, Inc. 0720 GF II OM 16
NAME&COOKSEGMENTEDITING

Touchandhighlighttherecipenameintheselectionwindow.Ifyouwishtochangeorcreate
thenameoftherecipe,usethekeyboardthatwillpopuponthedisplayandenterthenew
name.Afteryouhaveenteredthename,makesurethathit“SAVE”atthebottomrighthand
corner.



ToenterorchangeanIconforthisrecipe,touchtheIconfield.



ToEditthePreheatfield,touchthePreheatscreen.Pleasenotethatwestronglyrecommend
thatyouenterthesametemperatureforboththePreheattemperatureandCook
temperature.



©2020 QNC, Inc. 0720 GF II OM 17

ToedittheCookTimeandTemperatureSettings,touchthefield.



Afteryouhavemadethechangestoarecipe,youneedtoclick“Save”atthebottomleft
portionoftherecipescreentosavethesechanges.Ifyoufailtodothis,youwillneedto
reenterthemodificationsthatyouhavemade.


©2020 QNC, Inc. 0720 GF II OM 18
COOKINGARECIPE

Touchandhighlighttherecipenameintheselectionwindow.



ThenpressVIEWtoviewtherecipedetails.ScrollbackandthenselecttheCOOKbutton



TouchthePREHEATbuttonandtheunitwillheatuptothepresettemperature.



ThewindowdisplaysPREHEATduringthepreheatingcycleanddisplaystheoventemperature
asitcontinuestorisetopresettemperature.WhentheovenreachesthePREHEAT
temperature,thedisplaywillread“StartCook”.Atthispoint,pullthecookingbasketoutof
theQuikn’Crispy,placeyourmenuitemsintothebasket,reinsertthecookingbasketand
touchthe“StartCook”button.

©2020 QNC, Inc. 0720 GF II OM 19



Pressingthethermometerbuttonatthebottomleftofthescreenwilldisplaythereal‐time
temperatureinthecookingchamberfor10secondsandwillthenrevertstothesetpoint
temperatureforthecurrentsegment.

Thebuttonwiththe+andclockfaceimagewilladdadditionaltimetothecurrentcookcycle.
Thefactorypresetonthisfeatureisanadditional30secondseachtimethisbuttonistouched.

Tostopacookingcycle,pressandholdthebackarrowtotheleftofthenameoftherecipe
for2secondsandthecontrollerchirpstwotwice.Thesystemwillreturntothepreheat/
cookselectionwindow.Ifyouwishtoswitchtoadifferentrecipe,hitthebackarrowagain
anditwilltakeyouthelistofthe15recipes. 

©2020 QNC, Inc. 0720 GF II OM 20
QUICKCOOKWINDOW

QUICKCOOKisanewfeaturethathasbeenaddedtotheJuly2020versionoftheController.
Itprovidestheoperatorwiththeabilitytoprogramarecipein3easystepswithoutgoing
throughtheRecipeEditingsteps.Thisisagreatfeaturefortestingcookingtimesand
temperaturesfornewmenuitemsthatyouwishtoaddtothe15menusettings.After
touchingtheQUIKCOOKbutton,thefirstscreenthatappearsisthePreheatsetting.



EnterthePreheattemperature.Aswerecommendedearlier,thistemperatureshouldbethe
sametemperaturethatwillbeutilizedforthecookingtemperature.Enterthetemperature
andselect“Next”.



Enterthecookingtimeandcookingtemperatureforthisfeatureandthenselect“Cook”.The
Quikn’Crispywillpreheattotheprogrammedtemperature.WhenitreachesthePreheat
temperature,thedisplaywillshow“StartCook”.TouchthebuttonandtheQUICKCOOK
featurewillengage.

