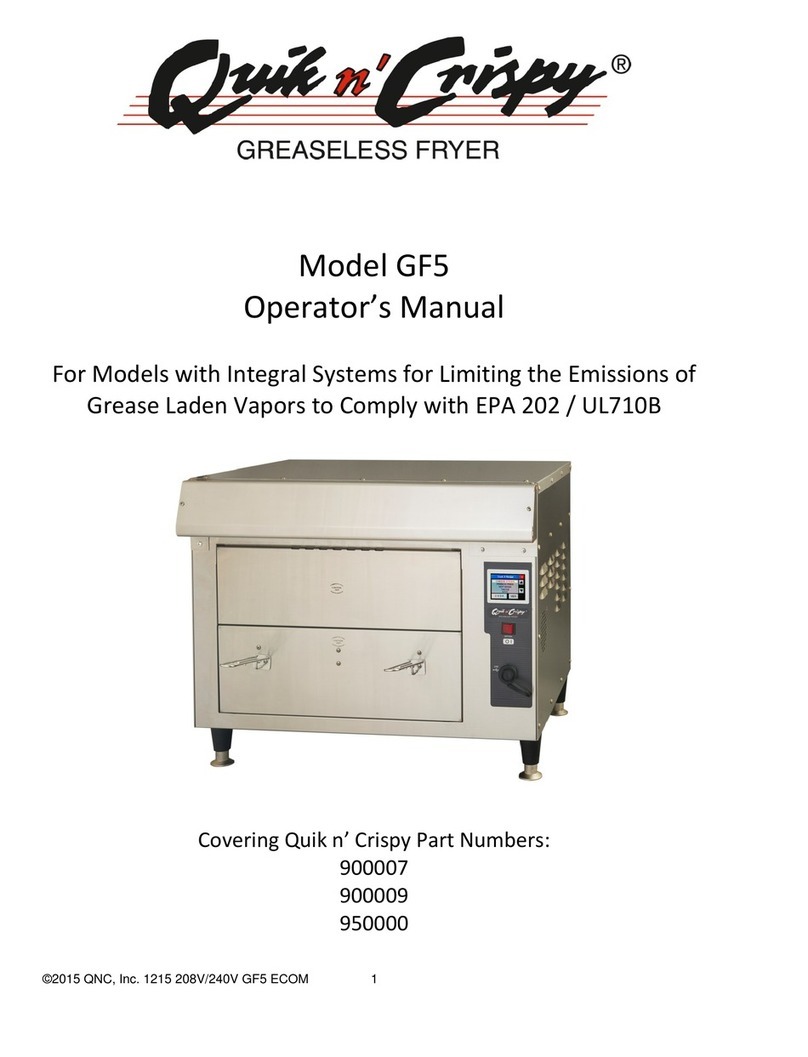

Quik n’ Crispy GF5 User manual

©2020 QNC, Inc. 0720 GF5 OM 1




ModelGF5
Operator’sManual

ForModelswithIntegralSystemsforLimitingtheEmissionsofGrease
LadenVaporstoComplywithEPA202/UL710B




CoveringQuikn’CrispyPartNumbers:
900007
900009
950000

©2020 QNC, Inc. 0720 GF5 OM 2





©2020 QNC, Inc. 0720 GF5 OM 3
TableofContents
INTRODUCTION........................................................................................4
PACKINGLIST............................................................................................5
INSTALLATIONPREPARATION..................................................................6
INSTALLATIONPROCEDURES...................................................................7
THEINITIALOPERATIONOFYOURQUIKN'CRISPY®................................9
MENUTEMPERATURE&TIMESETTINGS...............................................10
CONFIGURATION....................................................................................11
RECIPEEDITING......................................................................................12
NAME&COOKSEGMENTEDITING........................................................13
COOKINGARECIPE.................................................................................15
QUICKCOOKWINDOW..........................................................................17
SETBACKCONFIGURATION....................................................................18
COOKINGPROCEDURES.........................................................................19
PROCEDURESTOCLEANANDMAINTAINTHEFILTERS..........................22
CLEANINGPROCEDURES........................................................................24
PRODUCTREGISTRATION.......................................................................29
WARRANTY.............................................................................................29
SERVICE..................................................................................................29
EXTENDEDWARRANTY..........................................................................29
APPENDIX–WIRINGDIAGRAMANDIMAGES.......................................30


©2020 QNC, Inc. 0720 GF5 OM 4
INTRODUCTION

Marketedsince1990,theQuikn'Crispy®GreaselessFryeristheresultofyearsofresearch,
development,andrefinement.Byusingtheprinciplesofforcedhotairandradiantheat,the
Quikn'Crispycanquicklycookandbrownanumberof"ovenready"conveniencefoods.This
easy‐to‐usecountertopgreaselessfryersafelyandefficientlyeliminatesthehealthconcerns,
expense,andoperatingdifficultiesinherentwithhotoilcookingprocesses.

WearepleasedtoannouncethatstartinginJuly2020,wearemanufacturingallofour
GreaselessFryerswithanupgradedcontrollerplatform.Thisupgradedplatformincludesa
morepowerfulmicrocontroller,increasedcodestorage,andamoresophisticatedgraphics
system.Someotherkeybenefitsforourcustomersinclude:

 USBFirmwareUpdates:OwnerscaneasilyperformfirmwareupdatesusingonlytheUSB
port.
 OperationLogging:Storestotalhoursofoperation,heatinghours,heatercycles,
cookinghours,recipescooked,idlehour,andreadytocookhours(idlingatsetpoint)
 QuikCookfeature.Thisprovidestheoperatorwithaneasywaytoevaluatenewmenu
itemsbyeasilysettingthepreheatandcookingtemperatures,andthecookingtime
withouthavingtocreateanewrecipe.
 SetbackConfigurationprovidestheusewiththreenewfeatures.
o Thefirstfeatureisthe“HOLDSTAGE”option.Withthisfeature,theQuikn’Crispy
willholdthecookingtemperaturethatwasusedduringthepreviousrecipes.
o ThesecondfeatureistheSETBACKfeature.Whenthisfeatureisturnedon,your
Quikn’Crispywillmaintainthisminimumtemperatureforthetimethatyou
enteredintothisscreen.

Moreinformationontheenhancementstotheupgradedcontrollerareexplainedfurtherin
thefollowingpages.


©2020 QNC, Inc. 0720 GF5 OM 5
PACKINGLIST

IncludedintheQuikn'Crispypackingcartonarethefollowingitems:

 1Quikn'CrispyGreaselessFryer

 1CookingBasketAssembly

 2CookingBasketHandles&MountingHardware
  53/8”screws(1extra)
  6nuts(2extra)
  1¼”screw(extra)

1DripTray

 1Three‐PieceAirPlenum

 1RemovableFrontPanel

 4AdjustableLegs

 1Operator'sManual

 1ProductRegistrationForm


©2020 QNC, Inc. 0720 GF5 OM 6
INSTALLATIONPREPARATION

SelectasuitablepositionintheretaillocationtoinstalltheQuikn'Crispy.Pointstoconsider
whenselectingalocationare:

1. Accessibilitybystoreemployees

2. Proximitytocustomers

3. Proximitytorefrigeratorandfreezerequipment

4. Proximitytootherretailpointsofsaletotakeadvantageofcrossmerchandising
opportunities

5. Sightlineofcustomer(toenhancecustomerperceptionof"fresh"preparation).

TheQuikn'Crispyshouldbemountedonasturdy,foodservice‐appropriatesurface.Stainless
steelisthepreferredmaterial.AllowanadequateamountofworkspaceneartheQuikn'
Crispysothatoperatorswillnothavetoworkinaconfinedlocation.Aminimumof1"of
spacebetweentherear,sidesandtopoftheQuikn'Crispy,andthewalls,ceilingorother
structuralsurfacesofyourfacilityisrecommended.

Inadditiontoasuitablelocation,accommodationmustbemadeforthenecessaryelectrical
connection.Pleasenotethefollowingelectricalspecifications.

ElectricalSpecifications
US/Canada/International:SinglePhase,50/60Hz.
208VACUSA(5760Watts,29amps)3hourinputaveragingtest,lessthan24amps,canbe
installedon30ampcircuit
208VAC–Canada‐(4326Watts,21amps)
230VAC(5290Watts,23amps)
240VAC(5750Watts,24amps)
GF5Receptacle(USA/Canada)NEMA#6‐30R


©2020 QNC, Inc. 0720 GF5 OM 7
INSTALLATIONPROCEDURES

1. Opentheshippingcartonandliftoffthetopportion.

2. Liftoffthe4sidesofthecarton,leavingtheQuikn'Crispyandthecorrugatedcardboard
packingsetinplaceonthefloor.

3. RemovethecorrugatedcardboardpackingsetfromaroundthebaseoftheQuikn'
Crispy.

4. Liftthefryerintopositiononthedesignatedcounter.Thegreaselessfryerweighs
approximately165lb.Theuseofatleasttwopeopleisadvisedforthisstepofthe
installation.

5. Apieceoftapeisattachedtoeachappliancelegtopreventthemfromshiftingduring
shipment.Removethetapefromtheappliancelegs.Adjustthelegstolevelthefryer
onthecountersurface.

6. ApieceoftapeisattachedtotheCookingBasketAssembly.Usethetapetopullthe
CookingBasketopen.RemovetheplasticbagcontainingtheCookingBaskethandles,
screws,nuts,wrench,Operator’sManual,and32‐pageMenu.

7. MounttheCookingBaskethandlestotheCookingBasketbyattachingtwo3/8”screws
withacornnutstothebaseofeachhandleusingthewrenchtotighten.

8. Takethefouradhesivebackedrubberlegstopsandmountthemtothebottomofthe
fouradjustablelegs.ThisistopreventtheQuikn’Crispyfromslidingonastainlesssteel
appliancestandortable.

9. Apieceoftapeisattachedtotherearairdischargeventonthebacksideoftheunit(SEE
IMAGEBELOW).Carefullyremovethistapebypullingitdowngentlyfromtopto
bottom.THEUNITWILLNOTHEATUPPASTROOMTEMPERATUREIFTHISTAPEIS
NOTREMOVED!


©2020 QNC, Inc. 0720 GF5 OM 8
a. 
b. YellowTapeonAirDischargeVent

10. BesurethattheOn/OffSwitchfortheQuikn'Crispyisinthe“Off”Position.Plugthe
Quikn'Crispyintothereceptacle.

11. IfyouhaveengagedamenuandtheQuikn’Crispydoesn’theatuppasttheroom
temperature,youmightneedtoresetthehightemperaturesafetyswitchbypushing
redbutton.Itislocated6”abovethepowercord


HighLimitSwitch


©2020 QNC, Inc. 0720 GF5 OM 9
THEINITIALOPERATIONOFYOURQUIKN'CRISPY®

Thefirstoperatingcycleafterinstallationshouldbeaconfirmationofthehot‐airfryer'sproper
workingorder.Todothis,werecommendthatyoudepresstheswitchtotheright"POWER
ON"position.ThecontrollershoulddisplaytheQuikn’Crispylogowiththecaption“Touchto
Start”.




Next,touchthescreenandthenextscreenwillprovideyouwiththeoptionof“QuickCook”
(Wewillexplainthisoptionlaterinthemanual)or“CookARecipe”.Click“CookARecipeand
itwilldisplaythe15RecipesthathavebeenpreprogrammedintoyourQuikn’Crispy.These
settingsareshownonthenextpage:





©2020 QNC, Inc. 0720 GF5 OM 10
MENUTEMPERATURE&TIMESETTINGS

Belowarethecookingtimeandtemperaturesthathavebeenpreprogrammedintoeachof
the15menus.Ifyoudesiretochangeanyofthesesettings,pleaseseethefollowingsection.

Recipe TemperatureF° TemperatureC° Time
1 420° 215° 1:00
2 420° 215° 2:00
3 420° 215° 2:30
4 420° 215° 3:00
5 420° 215° 3:30
6 420° 215° 4:00
7 420° 215° 4:30
8 420° 215° 5:00
9 420° 215° 5:30
10 420° 215° 6:00
11 400° 205° 6:30
12 400° 205° 7:00
13 400° 205° 7:30
14 400° 205° 8:00
15 400° 205° 8:30


Pleasenotethatthesepresettemperaturesareestimatedtemperaturesforcookingmenu
itemsinyourQuikn’Crispy.Duetovoltagefluctuations,thevoltageatareceptaclecanrange
fromaslowas200voltstoashighas245volts.Presettemperaturesettingsmayneedtobe
adjustedaccordingly. 

©2020 QNC, Inc. 0720 GF5 OM 11
CONFIGURATION

Accesstothecontrollerconfigurationhasthreesecuritylevels:Supervisor,Technician,and
Factory.ThismanualwillonlyaddresstheSupervisorlevel.Thislevelhasaccesstothe
History,SetClock,USBImport,USBExport,Recipes,andSettings.

Togainaccesstotheconfiguration,pressandholdthebottomrighthandcornerofthedisplay
for2seconds.Thecontrollerwillemitadoublechirp.Theinitialpresswillnotcauseaninitial
chirptopreventaccidentalaccesstothesefeatures.Oncethecontrollerchirpstwice,release
yourfingerandtheaccesscodeentrywindowappearsasshownbelow.Thedefault
supervisoraccesscodeis1234.Enterthecodeusingthenumerickeysandpressthe“Enter”
button.


©2020 QNC, Inc. 0720 GF5 OM 12
RECIPEEDITING
Accesstotheeditingofthesystemrecipesfollowsthesameinstructionsasaccessingthe
supervisorconfiguration:Pressandholdinthemaincookingwindow,enterthesupervisor
accesscode(1234),andthentheSupervisorAccesswindowappears…


Pressthe“Recipes”buttonandthe15recipeswillappearonthescreen.Yourinitialscreen
willdisplay“NotUsed”forall15recipesbutfordisplaypurposesbelow,wehaveinserted
recipenames.Usetheupanddownarrowstoscrolltherecipelistuntilthedesiredrecipeis
shown.Touchtherecipetobeedited.



TheSelectItemwindowshowstheitemsthatmakeupthatrecipe.Thefirstitemisthename
oftherecipe,followedbythe“Icon”field,thePreheatfield,andtheCookfield.


©2020 QNC, Inc. 0720 GF5 OM 13
NAME&COOKSEGMENTEDITING
Touchandhighlighttherecipenameintheselectionwindow.Ifyouwishtochangeorcreate
thenameoftherecipe,usethekeyboardthatwillpopuponthedisplayandenterthenew
name.Afteryouhaveenteredthename,makesurethathit“SAVE”atthebottomrighthand
corner.


ToenterorchangeanIconforthisrecipe,touchtheIconfield.



ToEditthePreheatfield,touchthePreheatscreen.Pleasenotethatwestronglyrecommend
thatyouenterthesametemperatureforboththePreheattemperatureandCook
temperature.


©2020 QNC, Inc. 0720 GF5 OM 14


ToedittheCookTimeandTemperatureSettings,touchthefield.



Afteryouhavemadethechangestoarecipe,youneedtoclick“Save”atthebottomleft
portionoftherecipescreentosavethesechanges.Ifyoufailtodothis,youwillneedto
reenterthemodificationsthatyouhavemade.


©2020 QNC, Inc. 0720 GF5 OM 15
COOKINGARECIPE

Touchandhighlighttherecipenameintheselectionwindow.



ThenpressVIEWtoviewtherecipedetails.ScrollbackandthenselecttheCOOKbutton



TouchthePREHEATbuttonandtheunitwillheatuptothepresettemperature.



ThewindowdisplaysPREHEATduringthepreheatingcycleanddisplaystheoventemperature
asitcontinuestorisetopresettemperature.WhentheovenreachesthePREHEAT
temperature,thedisplaywillread“StartCook”.Atthispoint,pullthecookingbasketoutof

©2020 QNC, Inc. 0720 GF5 OM 16
theQuikn’Crispy,placeyourmenuitemsintothebasket,reinsertthecookingbasketand
touchthe“StartCook”button.



Pressingthethermometerbuttonatthebottomleftofthescreenwilldisplaythereal‐time
temperatureinthecookingchamberfor10secondsandwillthenrevertstothesetpoint
temperatureforthecurrentsegment.

Thebuttonwiththe+andclockfaceimagewilladdadditionaltimetothecurrentcookcycle.
Thefactorypresetonthisfeatureisanadditional30secondseachtimethisbuttonistouched.

Tostopacookingcycle,pressandholdthebackarrowtotheleftofthenameoftherecipe
for2secondsandthecontrollerchirpstwotwice.Thesystemwillreturntothepreheat/
cookselectionwindow.Ifyouwishtoswitchtoadifferentrecipe,hitthebackarrowagain
anditwilltakeyouthelistofthe15recipes. 

©2020 QNC, Inc. 0720 GF5 OM 17
QUICKCOOKWINDOW
QUICKCOOKisanewfeaturethathasbeenaddedtotheJuly2020versionoftheController.
Itprovidestheoperatorwiththeabilitytoprogramarecipein3easystepswithoutgoing
throughtheRecipeEditingsteps.Thisisagreatfeaturefortestingcookingtimesand
temperaturesfornewmenuitemsthatyouwishtoaddtothe15menusettings.After
touchingtheQUIKCOOKbutton,thefirstscreenthatappearsisthePreheatsetting.



EnterthePreheattemperature.Aswerecommendedearlier,thistemperatureshouldbethe
sametemperaturethatwillbeutilizedforthecookingtemperature.Enterthetemperature
andselect“Next”.



Enterthecookingtimeandcookingtemperatureforthisfeatureandthenselect“Cook”.The
Quikn’Crispywillpreheattotheprogrammedtemperature.WhenitreachesthePreheat
temperature,thedisplaywillshow“StartCook”.TouchthebuttonandtheQUICKCOOK
featurewillengage.


©2020 QNC, Inc. 0720 GF5 OM 18
SETBACKCONFIGURATION
ThisisanothernewfeatureoftheJuly2020Controllerupgrade.Thisfeatureprovidesyouto
engagetwolongrequestedupgradestotheQuikn’Crispy.Youhavetheoptiontoturnthese
featuresonoroff.PleaseexercisecautioninusingeitherofthesefeaturesastheQuikn’
Crispywillcontinuetohavetheheatingelementengagedforthetimethathasbeen
programmed.Eventhoughthecookingblowerisn’toperating,themenuitemswillcontinue
tocookifleftinthecookingbasket.



Thefirstfeatureisthe“HOLDSTAGE”option.Withthisfeature,theQuikn’Crispywillhold
thecookingtemperaturethatwasusedduringthepreviousrecipes.Ifyoucookedfrenchfries
at420°Ffor3½minutes,andyoucookseveralordersoffrenchfries,oneaftertheother,the
unitwillstayatthistemperatureforthepresettimethatyouenterintotheHOLDSTAGE

ThesecondfeatureistheSETBACKoption.Whenthisfeatureisturnedon,yourQuikn’
Crispywillmaintainthisminimumtemperatureforthetimethatyouenteredintothisscreen.
Wehavehadseveralcustomersprovideuswiththeirinputthatwouldlikethisfeatureinstead
ofhavingtheirunitcooldownbetweencookcycles.Theymighthaveabusylunchperiodthat
last3hoursandtheywouldliketokeeptheunitidlingatthistemperaturebetweenengaging
recipes.


©2020 QNC, Inc. 0720 GF5 OM 19
COOKINGPROCEDURES

TheQuikn'Crispycanfry,grill,andbakeawidearrayoffrozen,oven‐readyproductsavailable
throughnormalfoodservicedistributionand
wholesaleclubs.

Toprepare"fried"menuitemsintheQuikn’Crispy,thefoodsselectedmusthaveoven
preparationdirectionslistedonthepackage.Asanexample,eggrolls,corndogs,beer
batteredortempurabatteredvegetablesandbatteredcheesesticksaretypicallyfryableor
bakeable.SeasonedorcoatedFrenchfriesorpotatowedgesarefryableorbakeable.These
typesofproductswillcomeoutoftheQuikn'Crispycrispontheoutsideandmoistonthe
insideasiftheywerefried.Toprepareanon‐battered,non‐coated,ornon‐seasonedmenu
item,itmustbeabakeableversion.ToprepareshoestringorcrinklecutFrenchfries,orskin‐
onpotatowedges,youmustuseabakeableversion.

MenuitemspreparedintheQuikn'Crispythatdonothavebakingdirectionslistedonthe
packagewilltypicallybesoggyandlimp,andwillnotchangeincolorfromapalewhitetoa
goldenbrown.Contactyourfooddistributortoorderthecorrectversionofthemenuitemto
prepare.Ifthefooddistributorsalespersonisnotsureofthemenuitemsthatcanbe
preparedintheQuikn’Crispy,havethemreviewthe32pagemenufoundinthisOperators
Manual,orhavethemcontacttheQuikn’Crispydistributor,orQNC,Inc.directly.

Topreparebreadeditemssuchaschickennuggetsandchickenstripseitherapre‐cookedor
afullycookedproductmustbeused.Pre‐cookedmeansthattheproducthasbeenpartially
cooked,ispre‐brownedontheoutside,andtheinterioroftheproductisraw.Fullycooked
meansthattheproductiscookedonboththeoutsideandtheinterior.Youcannotprepare
ready‐to‐cookitemsthathaveawhitebreadingontheoutside.Theywillcook,buttheywill
notturngoldenbrownintheQuikn'Crispy.

TogrillfoodsintheQuikn'Crispy,youshouldusepre‐cookedorfullycookedmeat,poultry,
orfishproducts.Asanexample,hotdogsandsomesausagesarefullycookedproductsand
couldbeconsumedcoldrightfromthepackage.TheseitemswillgrillintheQuikn'Crispy
withacharbroiledappearance.Topreparegrilledchickenbreastsorhamburgers,usefully
cookedproducts.TheseproductswillcomeoutoftheQuikn'Crispysizzlingontheoutside
andtenderandjuicyontheinside.

TheQuikn'Crispycanbakefrozenpizzasorpreparefreshlymadepizzasusingapar‐baked
crust.Pleasenotethatanoptionalpizzabasketisavailable.PleasecontactQNCforpricing
information.Preparehot,open‐facedsandwichesinjust60to90seconds.Tobakecookies,

©2020 QNC, Inc. 0720 GF5 OM 20
pastries,ormuffins,lowerthetemperaturesettingto350°Fanduseamuffintin,asmallsheet
pan,orparchmentpaper.


OptionalPizzaBasket

Pleasenotethefollowinggeneralcookingprocedures:

1. AlwaysspraytheCookingBasketandDripTraywithanaerosolvegetableshortening(for
example,Pam®forGrilling)priortothefirstcookingcycleoftheday,orthefirstcooking
cyclesincecleaning.Donotspraynon‐stickaerosoldirectlyintothefryer,orwhilethe
fryerisoperating.WipeanyexcessoilfromtheDripTraywithanabsorbentpaper
towelorbartowel.TohelpreduceanydragbetweentheDripTrayandTrayGuides,
pulltheDripTrayoutasfaraspossible,andrubthetowelwiththeexcessoilonthe
undersideofeachsideoftheDripTray.

2. Forbestresults,priortothefirstcookingcycleoftheday,warmtheQuikn'Crispyatthe
preprogrammedcookingtemperaturefor10‐15minutes.

3. MostmenuitemswillcookintheQuikn'CrispyGF5at410°Fto425°F.Cookingata
temperaturehigherthan410°Fto425°FcancausetheQuikn'Crispytosmoke.If
smokeisemittedfromtheQuikn'Crispy,eithercleantheCookingBasketandDripTray
and/orlowerthetemperaturesetting.

4. Similarproductswillvaryincookingtimedependingoninternaltemperatureatthetime
ofcooking.Forexample,frozenfriedchickenwilltakelongertocookthanthesame
friedchickenthathasbeenthawedintherefrigerator.

