Quik n’ Crispy GF5 User manual

©2015 QNC, Inc. 1215 208V/240V GF5 ECOM 1




ModelGF5
Operator’sManual

ForModelswithIntegralSystemsforLimitingtheEmissionsof
GreaseLadenVaporstoComplywithEPA202/UL710B



CoveringQuikn’CrispyPartNumbers:
900007
900009
950000

©2015 QNC, Inc. 1215 208V/240V GF5 ECOM 2


©2015 QNC, Inc. 1215 208V/240V GF5 ECOM 3

TableofContents
INTRODUCTION........................................................................................4
PACKINGLIST............................................................................................4
INSTALLATIONPREPARATION..................................................................5
INSTALLATIONPROCEDURES...................................................................6
THEINITIALOPERATIONOFYOURQUIKN'CRISPY®................................8
MENUTEMPERATURE&TIMESETTINGS.................................................9
CONFIGURATIONACCESS.......................................................................10
RECIPEEDITING......................................................................................11
NAME&COOKSEGMENTEDITING........................................................12
COOKINGARECIPE.................................................................................13
COOKINGWINDOW...............................................................................14
COOKINGPROCEDURES.........................................................................15
PROCEDURESTOCLEANANDMAINTAINTHEFILTERS..........................19
CLEANINGPROCEDURES........................................................................21
PRODUCTREGISTRATION.......................................................................26
WARRANTY.............................................................................................26
SERVICE..................................................................................................26
EXTENDEDWARRANTY..........................................................................26
APPENDIX–WIRINGDIAGRAMANDIMAGES.......................................27


©2015 QNC, Inc. 1215 208V/240V GF5 ECOM 4

INTRODUCTION

Marketedsince1990,theQuikn'Crispy®GreaselessFryeristheresultofyearsof
research,development,andrefinement.Byusingtheprinciplesofforcedhotair
andradiantheat,theQuikn'Crispycanquicklycookandbrownanumberof
"ovenready"conveniencefoods.Thiseasy‐to‐usecountertopgreaselessfryer
safelyandefficientlyeliminatesthehealthconcerns,expense,andoperating
difficultiesinherentwithhotoilcookingprocesses.

PACKINGLIST

IncludedintheQuikn'Crispypackingcartonarethefollowingitems:

1Quikn'CrispyGreaselessFryer

1CookingBasketAssembly

2CookingBasketHandles&MountingHardware
53/8”screws(1extra)
6nuts(2extra)
1¼”screw(extra)

1DripTray

1Three‐PieceAirPlenum

1RemovableFrontPanel

4AdjustableLegs

1Operator'sManual

1ProductRegistrationForm

©2015 QNC, Inc. 1215 208V/240V GF5 ECOM 5
INSTALLATIONPREPARATION

SelectasuitablepositionintheretaillocationtoinstalltheQuikn'Crispy.Points
toconsiderwhenselectingalocationare:

1. Accessibilitybystoreemployees

2. Proximitytocustomers

3. Proximitytorefrigeratorandfreezerequipment

4. Proximitytootherretailpointsofsaletotakeadvantageofcross
merchandisingopportunities

5. Sightlineofcustomer(toenhancecustomerperceptionof"fresh"
preparation).

TheQuikn'Crispyshouldbemountedonasturdy,foodservice‐appropriate
surface.Stainlesssteelisthepreferredmaterial.Allowanadequateamountof
workspaceneartheQuikn'Crispysothatoperatorswillnothavetoworkina
confinedlocation.Aminimumof1"ofspacebetweentherear,sidesandtopof
theQuikn'Crispy,andthewalls,ceilingorotherstructuralsurfacesofyour
facilityisrecommended.

Inadditiontoasuitablelocation,accommodationmustbemadeforthe
necessaryelectricalconnection.Pleasenotethefollowingelectrical
specifications.

ElectricalSpecifications
US/Canada/International:SinglePhase,50/60Hz.
208VACUSA(5760Watts,29amps)3hourinputaveragingtest,lessthan24
amps,canbeinstalledon30ampcircuit
208VAC–Canada‐(4326Watts,21amps)
230VAC(5290Watts,23amps)
240VAC(5750Watts,24amps)
GF5Receptacle(USA/Canada)NEMA#6‐30R

©2015 QNC, Inc. 1215 208V/240V GF5 ECOM 6
INSTALLATIONPROCEDURES


1. Opentheshippingcartonandliftoffthetopportion.

2. Liftoffthe4sidesofthecarton,leavingtheQuikn'Crispyandthe
corrugatedcardboardpackingsetinplaceonthefloor.

3. Removethecorrugatedcardboardpackingsetfromaroundthebaseofthe
Quikn'Crispy.

4. Liftthefryerintopositiononthedesignatedcounter.Thegreaselessfryer
weighsapproximately165lb.Theuseofatleasttwopeopleisadvisedfor
thisstepoftheinstallation.

5. Apieceoftapeisattachedtoeachappliancelegtopreventthemfrom
shiftingduringshipment.Removethetapefromtheappliancelegs.Adjust
thelegstolevelthefryeronthecountersurface.

6. ApieceoftapeisattachedtotheCookingBasketAssembly.Usethetapeto
pulltheCookingBasketopen.Removetheplasticbagcontainingthe
CookingBaskethandles,screws,nuts,wrench,Operator’sManual,and32‐
pageMenu.

7. MounttheCookingBaskethandlestotheCookingBasketbyattachingtwo
3/8”screwswithacornnutstothebaseofeachhandleusingthewrenchto
tighten.

8. Takethefouradhesivebackedrubberlegstopsandmountthemtothe
bottomofthefouradjustablelegs.ThisistopreventtheQuikn’Crispy
fromslidingonastainlesssteelappliancestandortable.

9. Apieceoftapeisattachedtotherearairdischargeventonthebacksideof
theunit(SEEIMAGEBELOW).Carefullyremovethistapebypullingitdown
gentlyfromtoptobottom.THEUNITWILLNOTHEATUPPASTROOM
TEMPERATUREIFTHISTAPEISNOTREMOVED!


©2015 QNC, Inc. 1215 208V/240V GF5 ECOM 7
a. 
b. YellowTapeonAirDischargeVent

10.BesurethattheOn/OffSwitchfortheQuikn'Crispyisinthe“Off”
Position.PlugtheQuikn'Crispyintothereceptacle.

11.IfyouhaveengagedamenuandtheQuikn’Crispydoesn’theatuppast
theroomtemperature,youmightneedtoresetthehightemperature
safetyswitchbypushingredbutton.Itislocated6”abovethepowercord


HighLimitSwitch


©2015 QNC, Inc. 1215 208V/240V GF5 ECOM 8

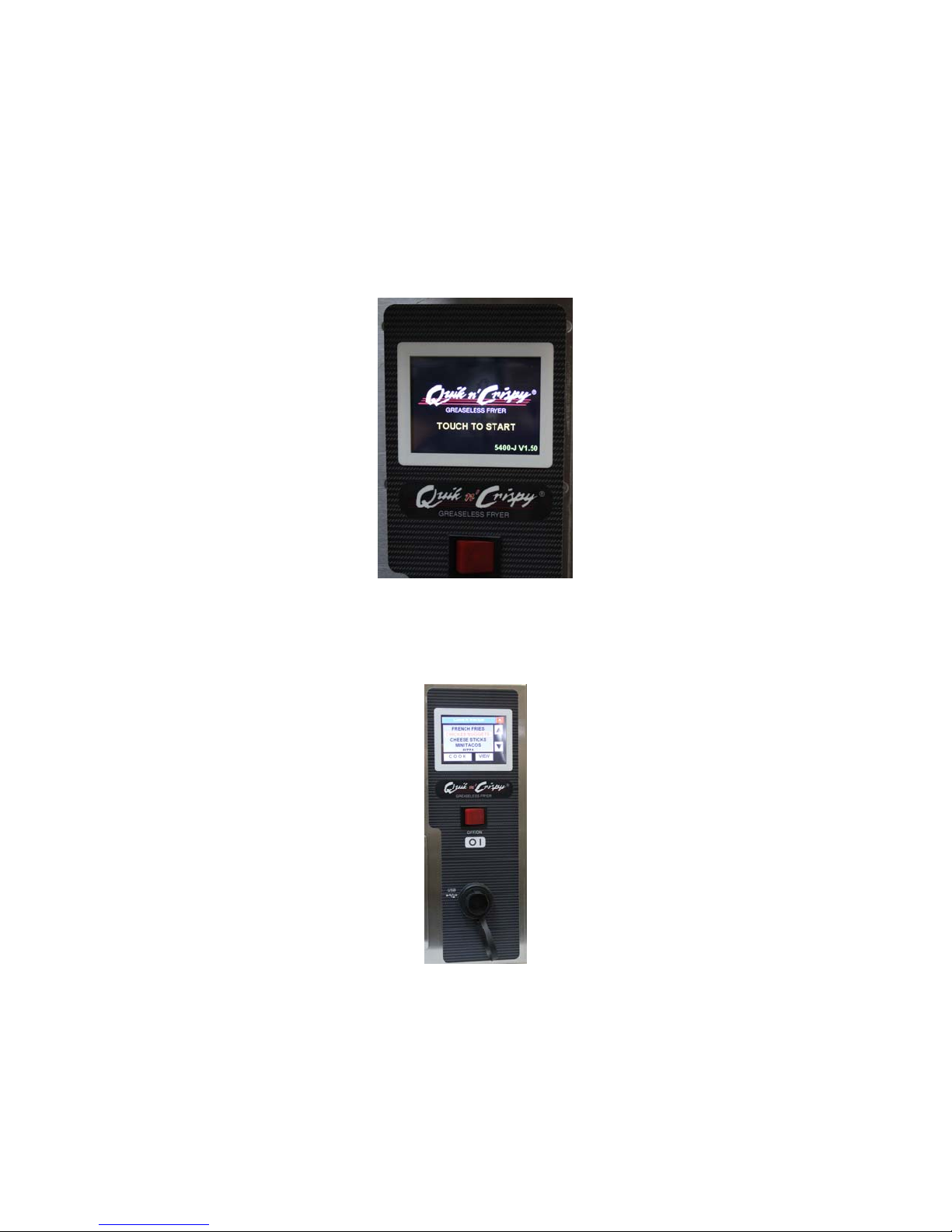

THEINITIALOPERATIONOFYOURQUIKN'CRISPY®

Thefirstoperatingcycleafterinstallationshouldbeaconfirmationofthehot‐air
fryer'sproperworkingorder.Todothis,werecommendthatyoudepressthe
switchtotheright"POWERON"position.ThecontrollershoulddisplaytheQuik
n’Crispylogowiththecaption“TouchtoStart”.



Next,touchthescreenandthenextscreenwilldisplaythe15Recipesthathave
beenpreprogrammedintoyourQuikn’Crispy.Thesesettingsareshownonthe
nextpage:


©2015 QNC, Inc. 1215 208V/240V GF5 ECOM 9

MENUTEMPERATURE&TIMESETTINGS

Belowarethecookingtimeandtemperaturesthathavebeenpreprogrammed
intoeachofthe15menus.Ifyoudesiretochangeanyofthesesettings,please
seethefollowingsection.

RecipeTemperatureF° TemperatureC° Time

1420° 215° 1:00
2420° 215° 2:00
3420° 215° 2:30
4420° 215° 3:00
5420° 215° 3:30
6420° 215° 4:00
7420° 215° 4:30
8420° 215° 5:00
9420° 215° 5:30
10420° 215° 6:00
11400° 205° 6:30
12400° 205° 7:00
13400° 205° 7:30
14400° 205° 8:00
15400° 205° 8:30


Pleasenotethatthesepresettemperaturesareestimatedtemperaturesfor
cookingmenuitemsinyourQuikn’Crispy.Duetovoltagefluctuations,the
voltageatareceptaclecanrangefromaslowas200voltstoashighas245
volts.Presettemperaturesettingsmayneedtobeadjustedaccordingly.



LCD Controller User’s Manual




CONFIGURATION ACCESS 

Accesstothecontrollerconfigurationhasthreesecuritylevels:Supervisor,Technician,andFactory.This
manualwillonlyaddresstheSupervisorlevel.Thislevelhasaccesstotherecipe ed i t in g ,beeper
configuration,changingtheaccesscode,temperaturedisplayunits(°F/°C),anddisplaylanguage.

Togainaccesstotheconfiguration,pressandholdtheareashownbelowinthemainmenulistuntilthe
controlleremitsadoublechirp.Theinitialpresswillnotcauseaninitialchirptopreventaccidentalaccess
tothesefeatures.








Pressandholdhere
untilthedoublechirp




X 




Oncethecontrollerchirpstwice,releaseyourfingerandtheaccesscodeentrywindowappearsasshown
below.Thedefaultsupervisoraccesscodeis1234.Enterthecodeusingthenumerickeys(a*isdisplayed
foreachdigit)andpressthe[Enter]button.The[Delete]buttondeletesthelastcharacter,[Clear]deletes
everything.





















Page 10 









RECIPE EDITING 

LCD Controller User’s Manual

Accesstotheeditingofthesystemrecipesfollowsthesameinstructionsasaccessingthesupervisor
configuration:Pressandholdinthemaincookingwindow,enterthesupervisoraccesscode(1234),and
thentheSupervisorAccesswindowappears...










X 




Pressthe[EditRecipes]buttonintheconfiguration
windowandtheSelectRecipewindowappears.Usethe
upanddownarrowstoscrolltherecipelistuntilthe
desiredrecipeisshown.Touchtherecipetobeedited
anditishighlighted,thenpressthe[EDIT]buttonand
therecipeconfigurationisshowninthewindowandis
readyforediting

TheSelect I temwindowshowsalltheitemsthatmakeup
thatrecipe.Thefirstitemisthenameoftherecipe,then
thepreheattemperatureisshown,thenanynumberof
cookcyclesandanoptionalholdcyclearedisplayed.

Thenumberofcookandholdcyclesdisplayedare
dependentonthecustomizationofthecontrollerdone
byArtisan.Thestandard5400modelhasthreedifferent
cookcyclesandaholdcycle.

Presstheitemdesiredtobeedited,itwillbehighlighted,
andthenpressthe[EDIT]buttontoshowtheediting
window.

Onceallchangeshavebeenmadeyoumustpressthe
[ S A VE]buttontostorethisnewrecipeintothenon‐
volatilememory.


Page11
Table of Contents




LCD Controller User’s Manual




NAME&COOKSEGMENT EDITING 

Touchandhighlighttherecipenameintheselectionwindow,thenpress[EDIT]toloadtherecipename
editingwindowbelow.Itwilldisplaythecurrentnameintheeditingboxabovethekeyboard



NameEdi t in g: 

[Clr]button:Clearstheeditingboxofallcharacters
[Rst]button:Restorestheoriginalrecipename
[Del]button:Deletesthelastcharacter
[Space]buttons:Addsaspacecharacterattheend.

Editthenameusingthebuttonsaboveandthealpha‐
numerickeyboardandpressthe[SAVE]buttonsto
changetherecipename.Recipenamesarelimitedto14
charactersmaximum.



CookItemEdi t in g: 

Allrecipesegments(preheat,cook,hold)areeditedin
thewindowshowntotheleft.The[<<]and[>>]buttons
allowtheeditortochangebetweenallthecooking
segments,andtheywillwraparoundfromthelastitem
tothefirstitemandviceversa.

Thecolorofthevaluefieldsandthebuttonsshowwhich
itemisbeinged ited,red=activeitem.Cooksegments
haveaatimeandatemperature,pressingthegrey[<]
buttonswitchestothatitem.Usethedialtotherightor
the[+]and[‐]buttonstochangethevalue.Press[SAVE]
tosavethecurrentvaluesthenusethe[<<]or[>>]
buttonstoselectthenextitemtoedit.Pressthered[X]
buttontoreturntotheitemselectionwindow.

NOTE:Preheatandholdsegmentsonlyhavea
temperaturevalue,thetimefieldand[<]buttonare
greyedoutandnonselectable.





Page 12 

Notice:ArtisanControlsCorporationassumesnoresponsibility f or cus tomersapplicationsorproductdesign.Theinformation a nddatacontainedhe re inisthesole and
exclusivepro pe rtyofArtisanCo nt r ol sCorporation.Anyduplication,misuse,orconve rsionofthi sinformationwithouttheexpresswri tt enconsentofArtisan Controls
Corporationis illega l a ndwillre sul t indamagesincludingcourtcostsandattorneyfeesbeing a  ssess edagainsttheparty mi susingthis property 



LCD Controller User’s Manual




COOKINGA RECIPE 

Touchandhighlighttherecipenameintheselectionwindow,thenpress[VIEW]toviewtherecipedetails
asshowninthewindowtotheright.Pressthe[COOK]buttontoopenthewindowshowingthe
[PREHEAT]and[COOK]buttonsinordertostartcooking










































Touchingthe[T]buttonwilldisplaythe
currentoventemperature.Pressthe
[PREHEAT]or[COOK]buttonstostart
cooking.
Thecookingprogressisdisplayedinthe
abovewindow.Seethenextpagefor
moredetails







Page 13 








COOKING WINDOW 

LCD Controller User’s Manual


























Thisisthemaincookingwindowdisplayedduringallcookcycles

Thewindowdisplays“Preheating”duringthepreheatingcycle,oncetheovenisuptotemperaturethe
controllerbeeps,displays“ReadyToCook”,andenablesthe[COOK]buttons.Pressingthe[COOK]button
startsthefirstcookingsegmentandautomaticallyproceedsthroughallcookingcycles,theprogressbar
atthebottomshowstheprogressthruthesumofallthecookingcycle t i mes .

Pressingthe[T]buttonchangesthe“Temp:”to“Oven:”anddisplaysthereal‐timeoventemperaturefor
10secondsthenrevertstothesetpointtemperatureforthecurrentsegment.

The[Ex]buttonautomaticallyaddsthepresetextratimetothecurrentcookcycle,andintheholding
cyclethecontrollerwillrevertbacktothelastcookingcyclefortheaddedtimetocookforalonger
periodoftime.

Ifthecontrollercustomizinghasonlyonecookcyclethecookingsegmenticonsintheupperleftcorner
arenotdisplayed.

Tostopacookingcycle,pressandholdthered[X]buttonuntilthecontrollerchirpstwiceandthesystem
returnstothepreheat/cookselectionwindow.






Page 14 


©2015 QNC, Inc. 1215 208V/240V GF5 ECOM 15
COOKINGPROCEDURES

TheQuikn'Crispycanfry,grill,andbakeawidearrayoffrozen,oven‐ready
productsavailablethroughnormalfoodservicedistributionand
wholesaleclubs.

Toprepare"fried"menuitemsintheQuikn’Crispy,thefoodsselectedmust
haveovenpreparationdirectionslistedonthepackage.Asanexample,egg
rolls,corndogs,beerbatteredortempurabatteredvegetablesandbattered
cheesesticksaretypicallyfryableorbakeable.SeasonedorcoatedFrenchfriesor
potatowedgesarefryableorbakeable.Thesetypesofproductswillcomeoutof
theQuikn'Crispycrispontheoutsideandmoistontheinsideasiftheywere
fried.Toprepareanon‐battered,non‐coated,ornon‐seasonedmenuitem,it
mustbeabakeableversion.ToprepareshoestringorcrinklecutFrenchfries,or
skin‐onpotatowedges,youmustuseabakeableversion.

MenuitemspreparedintheQuikn'Crispythatdonothavebakingdirections
listedonthepackagewilltypicallybesoggyandlimp,andwillnotchangein
colorfromapalewhitetoagoldenbrown.Contactyourfooddistributortoorder
thecorrectversionofthemenuitemtoprepare.Ifthefooddistributor
salespersonisnotsureofthemenuitemsthatcanbepreparedintheQuikn’
Crispy,havethemreviewthe32pagemenufoundinthisOperatorsManual,or
havethemcontacttheQuikn’Crispydistributor,orQNC,Inc.directly.

Topreparebreadeditemssuchaschickennuggetsandchickenstripseithera
pre‐cookedorafullycookedproductmustbeused.Pre‐cookedmeansthatthe
producthasbeenpartiallycooked,ispre‐brownedontheoutside,andthe
interioroftheproductisraw.Fullycookedmeansthattheproductiscookedon
boththeoutsideandtheinterior.Youcannotprepareready‐to‐cookitemsthat
haveawhitebreadingontheoutside.Theywillcook,buttheywillnotturn
goldenbrownintheQuikn'Crispy.

TogrillfoodsintheQuikn'Crispy,youshouldusepre‐cookedorfullycooked
meat,poultry,orfishproducts.Asanexample,hotdogsandsomesausagesare
fullycookedproductsandcouldbeconsumedcoldrightfromthepackage.These
itemswillgrillintheQuikn'Crispywithacharbroiledappearance.Toprepare
grilledchickenbreastsorhamburgers,usefullycookedproducts.Theseproducts

©2015 QNC, Inc. 1215 208V/240V GF5 ECOM 16
willcomeoutoftheQuikn'Crispysizzlingontheoutsideandtenderandjuicyon
theinside.

TheQuikn'Crispycanbakefrozenpizzasorpreparefreshlymadepizzasusinga
par‐bakedcrust.Pleasenotethatanoptionalpizzabasketisavailable.Please
contactQNCforpricinginformation.Preparehot,open‐facedsandwichesinjust
60to90seconds.Tobakecookies,pastries,ormuffins,lowerthetemperature
settingto350°Fanduseamuffintin,asmallsheetpan,orparchmentpaper.


OptionalPizzaBasket

Pleasenotethefollowinggeneralcookingprocedures:

1. AlwaysspraytheCookingBasketandDripTraywithanaerosolvegetable
shortening(forexample,Pam®forGrilling)priortothefirstcookingcycleof
theday,orthefirstcookingcyclesincecleaning.Donotspraynon‐stick
aerosoldirectlyintothefryer,orwhilethefryerisoperating.Wipeany
excessoilfromtheDripTraywithanabsorbentpapertowelorbartowel.
TohelpreduceanydragbetweentheDripTrayandTrayGuides,pullthe
DripTrayoutasfaraspossible,andrubthetowelwiththeexcessoilon
theundersideofeachsideoftheDripTray.

2. Forbestresults,priortothefirstcookingcycleoftheday,warmtheQuikn'
Crispyatthepreprogrammedcookingtemperaturefor10‐15minutes.


©2015 QNC, Inc. 1215 208V/240V GF5 ECOM 17
3. MostmenuitemswillcookintheQuikn'CrispyGF5at410°Fto425°F.
Cookingatatemperaturehigherthan410°Fto425°FcancausetheQuik
n'Crispytosmoke.IfsmokeisemittedfromtheQuikn'Crispy,either
cleantheCookingBasketandDripTrayand/orlowerthetemperature
setting.

4. Similarproductswillvaryincookingtimedependingoninternal
temperatureatthetimeofcooking.Forexample,frozenfriedchickenwill
takelongertocookthanthesamefriedchickenthathasbeenthawedin
therefrigerator.

5. ArrangetheproducttobecookedinasinglelayerintheCookingBasket.
Avoidstackingtheproducttobecooked.Asinglelayerofproductwillcook
moreevenlythanproductsplacedintotheCookingBasketinastackedor
clumpedarrangement.

.
FrenchFriesLayeredonCookingBasket

6. SelectaMenutimeapproximately70%ofthefoodmanufacturer's
suggestedconvectionovencookingtimes.Asanexample,ifthesuggested
convectionovencookingtimeis10minutes,thisitemshouldtake
approximately7minutesintheQuikn'Crispy.IfMenu12isprogrammed
to7minutes,usethismenuprogram.Reviewtheenclosed32pagemenu
forsuggestedcookingtimesforvariousmenuitems.


©2015 QNC, Inc. 1215 208V/240V GF5 ECOM 18
7. Pleasebeawarethatvariationsinthecookingtimeswilloccurdepending
onvariancesinvoltagesandthequantityoffoodbeingcookedatonetime.
Experimentingwithcookingtimesandtemperaturesandrecordingthe
resultsforfuturereferenceisrecommended.Thistestingwillprevent
under‐cookingorburningoffoodproducts.

8. RemovecookedproductfromtheopenCookingBasketwithaspatulaor
tongs.Forsmallfoodproducts,suchasFrenchfries,removetheCooking
Basketentirelywithbothhandsonthehandles,anddumpthefood
productintoafoilpanorholdingcontainer.



©2015 QNC, Inc. 1215 208V/240V GF5 ECOM 19
PROCEDURESTOCLEANANDMAINTAINTHEFILTERS

Pleasenotethatthefiltersmustbecleaned(weekly)andchangedona
regularbasis(every3months)ortheunitwillnotoperateproperly.
Sufficientairflowmustpassthroughthefiltersinordertoopenthe
dischargeventinthebackoftheunit.Failuretofollowthisrecommended
procedurewillvoidtheproductwarranty.

1. TheAirFiltrationBracketholds3separateairfilters.TheBracketcanbe
removedbyturningtwothumbscrewsatthetopleftofthegreaselessfryer
andslidingitout.The3filtershavedifferentthicknesses,andarecleaned
inthefollowingmanner:



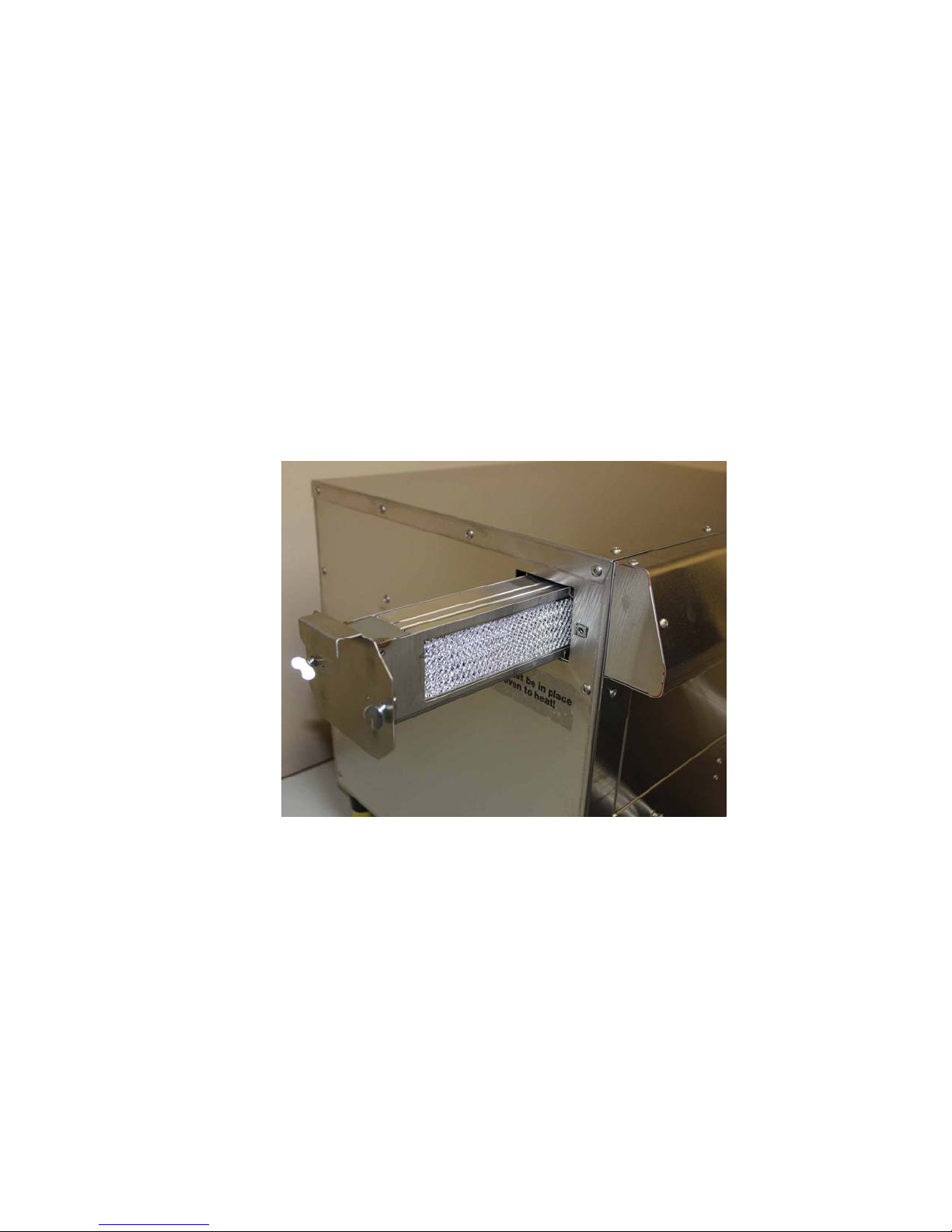

FilterTrayAssembly

a. TheGreaseFilteristhethinnestofthethreewiththewiremesh
screen.ItislocatedinthefrontoftheFilterTrayitcanbecleaned
eitherinasinkordishwasher.
b. TheElectrostaticFilteristheoneinthemiddlepositionwithinthe
bracketanditcannotbeimmersedinwater.Werecommend
periodicallywipingthesideswithadegreaser.

c. TheCarbonFilteristhethickestofthethreeandislocatedinthe
rearoftheFilterTray.Ithasablackcharcoalinterioranditcannot

©2015 QNC, Inc. 1215 208V/240V GF5 ECOM 20
beimmersedinwater.Werecommendperiodicallywipingthesides
withadegreaser.



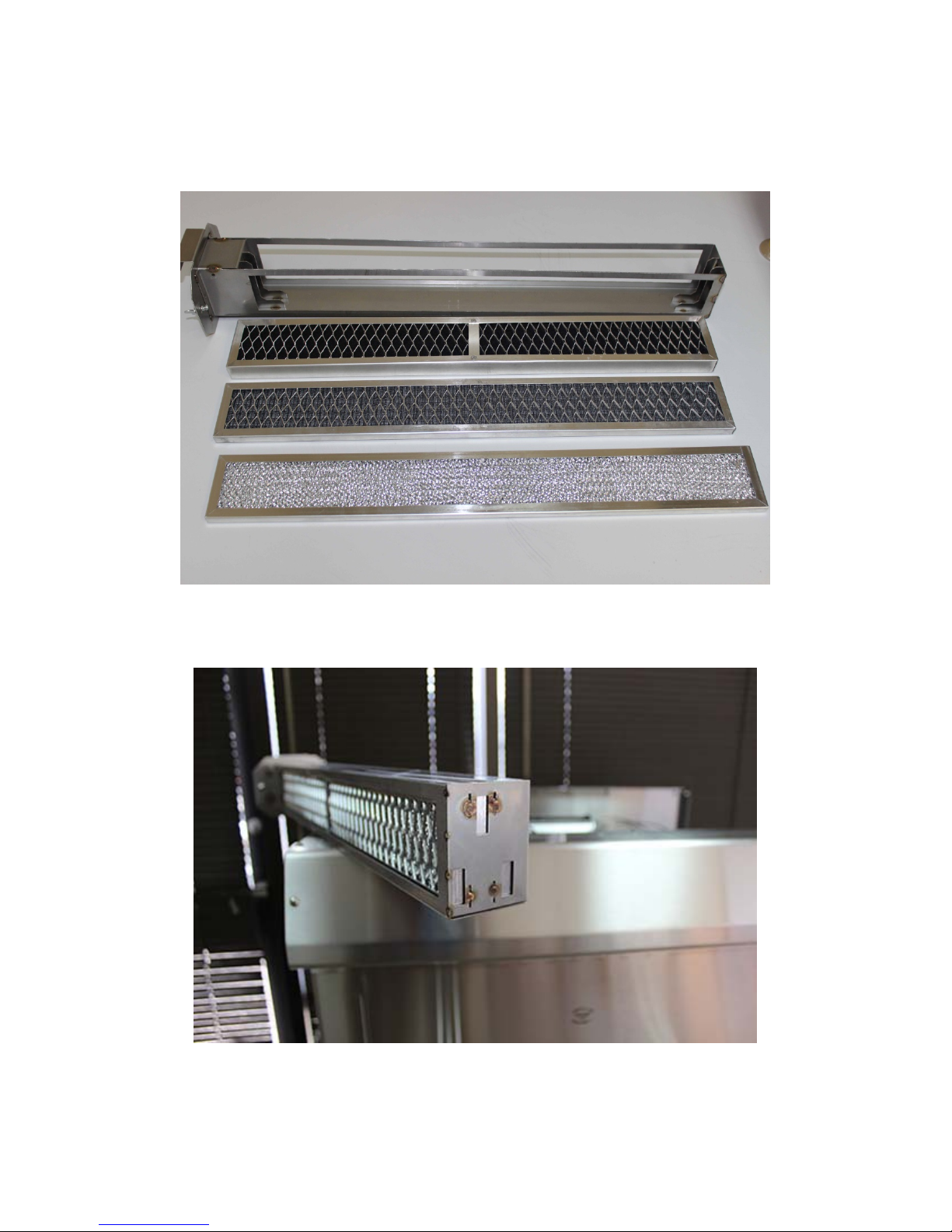

FilterTraywithFilters



FilterTrayNotchesforEngagingSwitches
(All3filtersmustbeinstalledcorrectlytoengageswitches
