R.V.R. Elettronica TJ5KPS User manual

TJ5KPS
UserManual
Volume 1
Manufactured by Italia

TJ5KPS-UserManual
Version 1.0
© Copyright 2004
R.V.R. Elettronica SpA
Via del Fonditore 2/2c - 40138 - Bologna (Italia)
Telephone: [phone]
Fax: [phone]
Email: [e-mail]
Web: www.rvr.it
Allrightsreserved
PrintedandboundinItaly.Nopart ofthismanualmaybereproduced,
memorized or transmitted in any form or by any means, electronic or
mechanic, including photocopying, recording or by any information
storageandretrievalsystem,withoutwrittenpermissionofthecopyright
owner.
File name: CAPITOLI_EN.P65
Version: 1.0
Date: 18/02/2004
Revision History
Date Version Reason Editor
18/02/04 1.0 New Version J. Berti
Notification of intended purpose and limitations of product use
This product is a FM transmitter intended for FM audio broadcasting. It utilises
operating frequencies not harmonised in the intended countries of use.
The user must obtain a license before using the product in intended country of
use. Ensure respective country licensing requirements are complied with.
Limitations of use can apply in respect of operating freuency, transmitter power
and or channel spacing.
Declaration of Conformity
Hereby, R.V.R. Elettronica SpA, declares that this FM transmitter is in
compliance with the essential requirements and other relevant provisions of
Directive 1999 5 EC.

TJ5KPS - Test Jig
iUser Manual Rev.1.0 -18/02/04
Table of Contents
1. Preliminary Instructions 1
2. Warranty 3
3. First Aid 5
3.1 Treatment of electrical shocks 5
3.2 Treatment of electrical Burns 6
4. Introduction 7
5. Description 7
6. Use 9
7. Software 10
8. Procedure of module setting 12

TJ5KPS - Test Jig
ii User ManualRev.1.0 -18/02/04
This page was intentionally left blank

TJ5KPS - Test Jig
1 / 14User Manual Rev. 1.0 - 18/02/04
1. Preliminary Instructions
This manual is written as a general guide for those having previous knowledge
and experience with this kind of equipment, well conscious of the risks connected
with the operation of electrical equipment.
It is not intended to contain a complete statement of all safety rules which should
be observed by personnel in using this or other electronic equipment.
The installation, use and maintenance of this piece of equipment involve risks
both for the personnel performing them and for the device itself, that shall be used
only by trained personnel.
R.V.R.Elettronica SpAdoesn’tassumeresponsibilityforinjuryordamageresulting
from improper procedures or practices by untrained/unqualified personnel in the
handling of this unit.
Please observe all local codes and fire protection standards in the operations of
this unit.
WARNING: alwaysdisconnectpowerbeforeopeningcovers or removing any part
of this unit.
Use appropriate grounding procedures to short out capacitors and high voltage
points before servicing.
WARNING: thisdevicecanirradiateradiofrequencywaves, and if it’snotinstalled
following the instructions contained in the manual and local regulations it could
generate interferences in radio communications.
This is a "CLASS A" equipment. In a residential place this equipment can cause
hash. In this case can be requested to user to take the necessary measures.
R.V.R. Elettronica SpA reserves the right to modifythedesignand/orthetechnical
specifications of the product and this manual without notice.

TJ5KPS - Test Jig
2 / 14 User ManualRev. 1.0 - 18/02/04
This page was intentionally left blank

TJ5KPS - Test Jig
3 / 14User Manual Rev. 1.0 - 18/02/04
2. Warranty
AnyproductofR.V.R. Elettronica is coveredbya24(twenty-four)monthwarranty.
Forcomponentsliketubesforpoweramplifiers,theoriginalmanufacturer’swarranty
applies.
R.V.R. Elettronica SpA extends to the original end-user purchaser all
manufacturers warranties which are transferrable and all claims are to be made
directly to R.V.R. per indicated procedures.
Warranty shall not include:
1 Damage while the equipment is being shipped to R.V.R. for repairs;
2 Any unauthorized repair/modification;
3 Incidental/consequential damages as a result of any defect
4 Nominal non-incidental defects
5 Re-shipment costs or insurance of the unit or replacement units/parts
Anydamagetothegoodsmustbereportedtothecarrierinwriting on the shipment
receipt.
Any discrepancy or damage discovered subsequent to delivery, shall be reported
to R.V.R. Elettronica within 5(five) days from delivery date.
To claim your rights under this warranty, you shold follow this procedure:
1 Contact the dealer or distributor where you purchased the unit. Describe the
problem and, so that a possible easy solution can be detected.
Dealers and Distributors are supplied with all the information about problems
that may occur and usually they can repair the unit quicker than what the
manufacturer could do. Very often installing errors are discovered by dealers.
2 If your dealer cannot help you, contact R.V.R. Elettronica and explain the
problem. If it is decided to return the unit to the factory, R.V.R. Elettronica
will mail you a regular authorization with all the necessary instructions to send
back the goods.
3 When you receive the authorization, you can return the unit. Pack it carefully
for the shipment, preferably using the original packing and seal the package
perfectly. The customer always assumes the risks of loss (i.e., R.V.R. is never
responsible for damage or loss), until the package reaches R.V.R. premises.
For this reason, we suggest you to insure the goods for the whole value.
Shipmentmustbe effectedC.I.F.(PREPAID)to theaddressspecifiedbyR.V.R.’s
service manager on the authorization
DO NOT RETURN UNITS WITHOUTOURAUTHORIZATIONAS THEY WILLBE
REFUSED

TJ5KPS - Test Jig
4 / 14 User ManualRev. 1.0 - 18/02/04
4 Be sure to enclose a written technical report where mention all the problems
found and a copy of your original invoice establishing the starting date of the
warranty.
Replacement and warranty parts may be ordered from the following address. Be
sure to include the equipment model and serial number as well as part description
and part number.
R.V.R. Elettronica SpA
Via del Fonditore, 2/2c
40138 BOLOGNA
ITALY
Tel. [phone]

TJ5KPS - Test Jig
5 / 14User Manual Rev. 1.0 - 18/02/04
3. First Aid
The personnel employed in the installation, use and maintenance of the device,
shall be familiar with theory and practice of first aid..
3.1 Treatment of electrical shocks
3.1.1 If the victim is not responsive
Follow the A-B-C's of basic life support
• Place victim flat on his backon a hard surface.
• Open airway: lift up neck, push forehead back (Fig. 3-1).
• clear out mouth if necessary and observe for breathing
• if not breathing, begin artificial breathing (Figure 3-2): tilt head, pinch nostrils,
make airtight seal, four quick full breaths. Remember mouth to mouth
resuscitation must be commenced as soon as possible
Figure 3-1 Figure 3-2
• Check carotid pulse (Fig 3-3); if pulse is absent, begin artificial circulation
(Fig. 3-4) depressing sternum (Fig. 3-5)
Figure 3-3 Figure 3-4 Figure 3-5
• In case of only one rescuer, 15 compressions alternated to two breaths.
• If there are two rescuers, the rythm shall be of one brath each 5 compressions.
• Do not interrupt the rythm of compressions when the second person is giving
breath.
• Call for medical assistance as soon as possible.

TJ5KPS - Test Jig
6 / 14 User ManualRev. 1.0 - 18/02/04
3.1.2 If victim is responsive
•Keep them warm
•Keep them as quiet as possible
•Loosen their clothing (a reclining position is recommended)
•Call for medical help as soon as possible
3.2 Treatment of electrical Burns
3.2.1 Extensive burned and broken skin
•Cover area with clean sheet or cloth
•Do not break blisters, remove tissue, remove adhered particles of clothing,or
apply any salve or ointment.
•Treat victim for shock as required.
•Arrange transportation to a hospital as quickly as possible.
•If arms or legs are affected keep them elevated
If medical help will not be available within an hour and the victim is conscious and
not vomiting, give him a weak solution of salt and soda: 1 level teaspoonful of salt
and 1/2 level teaspoonful of baking soda to each quart of water (neither hot or
cold). Allow victim to sip slowly about 4 ounces (half a glass) over a period of 15
minutes. Discontinue fluid if vomiting occurs
DO NOT give alcohol
3.2.2 Less severe burns
• Applycool (not ice cold)compressesusing the cleansed available clotharticle.
•Do not break blisters, remove tissue, remove adhered particles of clothing, or
apply salve or ointment.
•Apply clean dry dressing if necessary.
•Treat victim for shock as required.
•Arrange transportation to a hospital as quickly as possible
•If arms or legs are affected keep them elevated.

TJ5KPS - Test Jig
7 / 14User Manual Rev. 1.0 - 18/02/04
4. Introduction
TheTJ5KPS isabenchoftestingforthepower’smodulesofthePJ5KPS amplifier
productfromtheR.V.R.Elettronica.Itincludesthe devices thatallowtothemodules
to work out of the PJ5KPS and the necessary instruments for the check and the
setting of the modules. Together the TJ5KPS comes furnished the software with
which verify the states and the inner measures of the module under test, that
during the normal operation comes managed from the CCU (Central Control Unit)
of the PJ5KPS.
5. Description

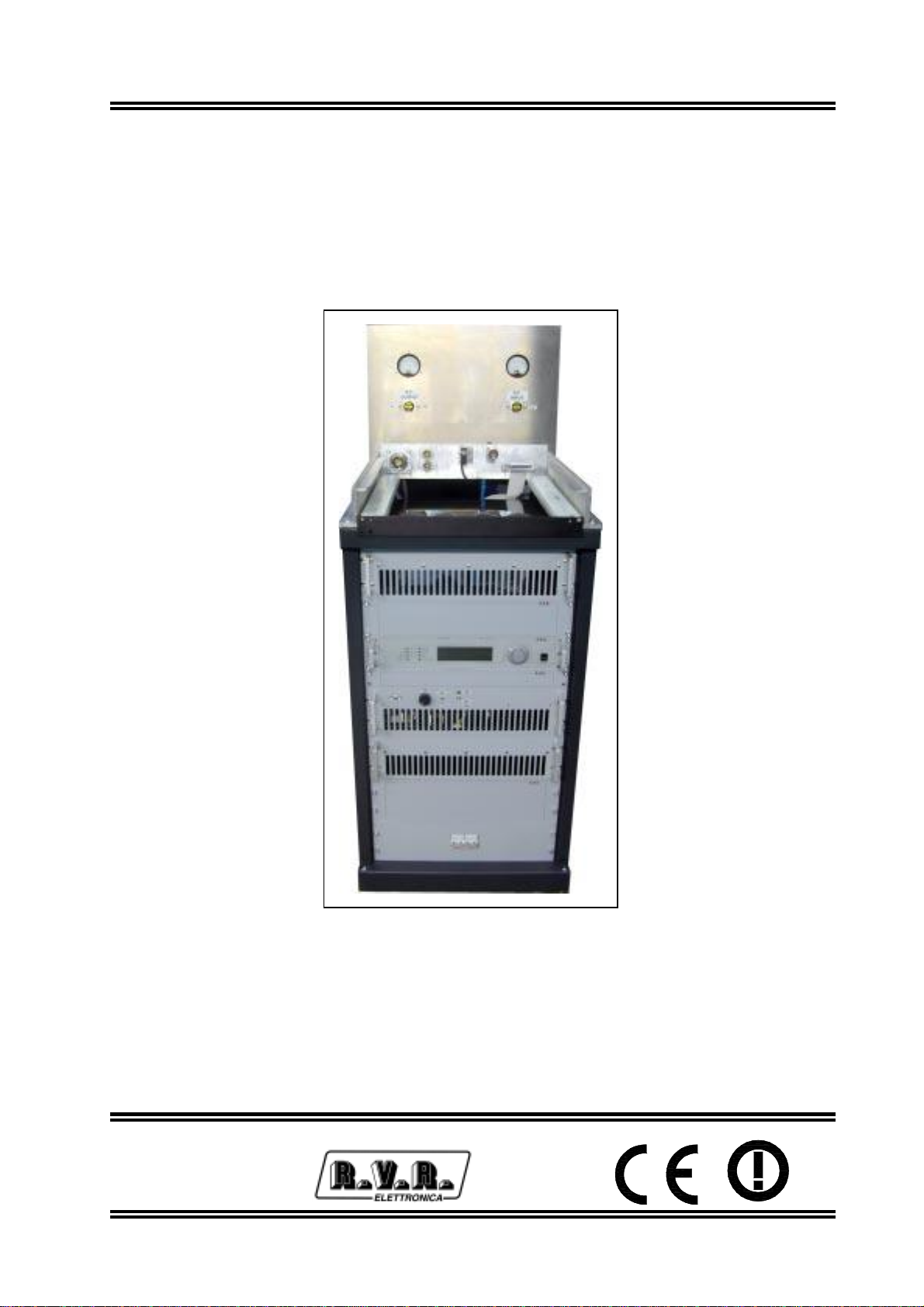

The TJ5KPS has constituted from a series of apparatuses inserted in a rack from
19" designed expressly.

TJ5KPS - Test Jig
8 / 14 User ManualRev. 1.0 - 18/02/04
1 - Instruments Panel
It contains two analogical instruments for the power’s measure power
disbursedbythemodule(instrumentofleft)andofthatinentrytothemodule.
The instruments have connected to sections of line Bird Thruline in which
they have lodged respectively the elements of measure model 1000B and
5B Bird. Orienting the elements of measure, each of the instruments could
measure the forward or reflected power.
2 - Module’s lodging
The module to test must be inserted inside this lodging. On the bottom have
loadged the connectors to allow the operation of the RF module and a
microswitch for survey his correct insertment in lodging.
1. Power Supply (+ 90 Vdc not stabilized)
2. Power SUpply (GND)
3. RF Output
4. RF Input
5. Microswitch for the module presence survey
6. DB37 Interface (measure, signal control, auxiliary power supply)

TJ5KPS - Test Jig
9 / 14User Manual Rev. 1.0 - 18/02/04
3 - Ventilation Unit
This device contains four fans for the cooling of the module. To the inside of
the PJ5KPS the RF modules are in fact cooled from a single turbine, while
fortheoperationonthe testing benchisnecessaryprovidetotheautonomous
ventilation.
4 - Exciter
The exciter furnishes the RF input for the module’s test. Take note that the
powerdisbursedfromanormalexciterisverybetterregardstothenecessary
one to the module, therefore in series to the RF output of the exciter has
inserted a 10dB coaxial attenuator.
5 - Control Unit / Power Suplly
This unit contains:
Power transformers and Rectifiers
Soft-start circuit
Address / interface board
RS 485 / RS 232 communication board
Interface board for modules’ test
6 - EDL1000FM Dummy Load
Cargo from 50 Ohm optimized for operation FM. It dissipates the power
generated from the module.
7 - Electric Panel
Are present two bipolar interrupters, one for the exciter and one for the other
apparatuses ("services")
6. Use
In this procedure, it is presumed that the RF module is functioning correctly. In the
typical case, the module will be in course of setting, reparation or verification,
therefore it could be necessary apply the procedure with small variations.
•Connect the power supply to the rack.
Is necessesary furnished 230 V A.C. 50 Hz, the cable of supply goes
connectedto the situated bare terminalsonthebottom in the backpartofthe
rack.
•Insert the RF module in his lodging.
Forpracticalityin theTest Jig theanteriorfixingscrewsofthemodule doesn't
come to use, to difference that in the PJ5KPS. It is necessary insert the
module in his lodging with a certain strength and speed, so that all the
connections come made correctly. We suggest to insert the module slowly
up to around 10 centimeters from the bottom and therefore of push it with
strength so that the all the connections are formed regularly.

TJ5KPS - Test Jig
10 / 14 User ManualRev. 1.0 - 18/02/04
•Setting the control unit
Setup the controls of the two interrupters on the control unit in OFF position,
rotate the encoder for the regulation of the power completely in
counterclockwise sense.
•Supply the equipment
Use to this purpose the electric panel switches at the base of the rack.
•Turn on the exciter
Making sure of setting the pilotage power to the minimum. Increase the
pilotage power gradually verifying the input power to the RF module onto the
right analogical instrument, up to have it to 800 mW.
•Activate the module with the unit of control
Put the switches of the control unit in "ON" position. Rotate the regulation
knob of the power in clockwise sense gradually checking the output power
level, up to that it reaches the 1000W.
It is possible connect itself with the PJXK software furnished together the Test Jig
to verify the measures done from the machine.
Tothis purpose, connect a PCserialportwith a standard serial cable to theRS232
connector on the frontal panel of control unit.
WARNING:
• Remember that the present voltage on the supplying DC connectors of the
module is approximately 90 V, and that to turning off of the power supply the
filtrationelectroliticcapacitors, totheinputofthe module, staysloads fordifferent
seconds.Doattentiontodon'ttouchthemorputthem inshortcircuit.Ifnecessary
unload them with a resistor of wattage adequate.
• The role of the Test Jig is that to allow the maintenance on the RF modules.
The modules comes employees normally with the cover removed. Is required
the maximum attention to the technical personnel in way to avoid any risk of
electric shock.
7. Software

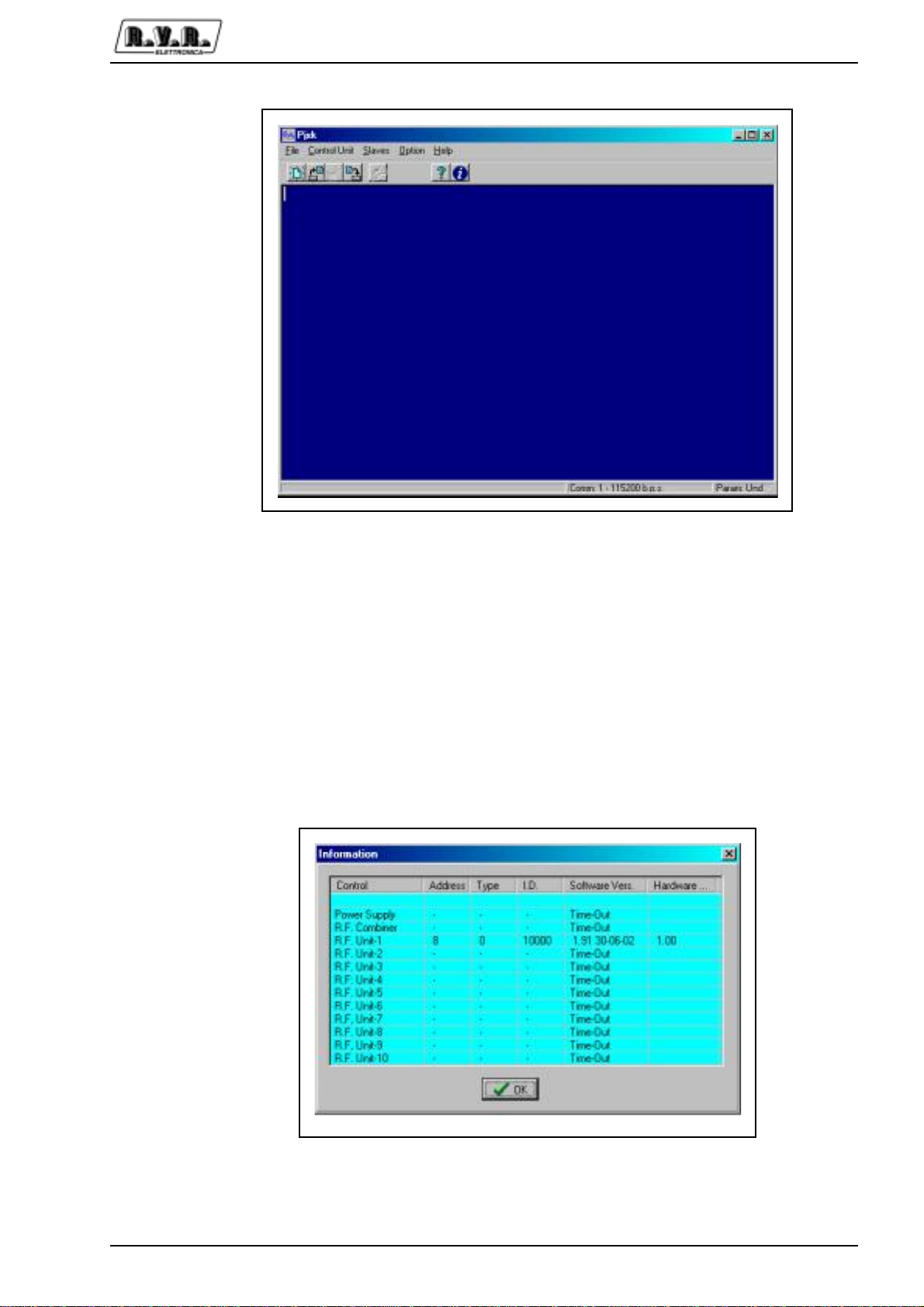

• Exctract the files contained in the archive “PJXK.ZIP” of your choice, for
example “C:\PJXK_PS”. Execute the computer program (in our example)
“C:\PJXK_PS\PJXK_SP.EXE”. Will come shown the main window:

TJ5KPS - Test Jig
11 / 14User Manual Rev. 1.0 - 18/02/04
N.B.: There are different ways to execute a computer program, for example
launches it with the start menu with Start -> Run…or with a double click on
the name of the file in a window of Explorer. You can create a link to the file in
your start menu also. The diverged modality depend on the operating system
used.
•Set the communication port used on the PC doing click on
Option -> Communication…, selecting the port desired in the descent box
Communication port and confirming with OK.
•Effect the communication with the module doing click on Slaves -> Info…
andattendingsomeseconds.It will open a window in which it comesconfirmed
the presence of the module 1:
•Click on OK to close the window
•Do click on Slaves -> Read Configuration… -> RF Unit 1

TJ5KPS - Test Jig
12 / 14 User ManualRev. 1.0 - 18/02/04
Attheendof theparameteresreading, clickonOKtoclosethe dialoguewindow:
•Do click on Slaves -> Slaves
At this point are available all the parameters as like are measured from RF
module
8. Procedure of module setting
Inhibit the power in entry to the module, switching off the exciter.
Click on SLAVES of the instruments bar, click on Slaves and select RF1, in order
to bring back the measurements and effect the setting of the module.
Measure on the PSSW 5040 board (Power Supply) the voltage on TP3, moving
the trimmer R58 up to obtain 60 mV.
Verifythepresenceofthe 3,3 Volt onTP1ofthe CPU card. Calibrate,ifnecessary,
working on TR12.
Measurement of the voltage on the 18 di JP3 and bring back it on the computer
working on TR4.

TJ5KPS - Test Jig
13 / 14User Manual Rev. 1.0 - 18/02/04
Measures on the DRIVER card.
Rotate the power regulation trimmer on the control unit completely in clockwise
sense: this allows that the VPAarrives to approximately 50.2 Volt, then check that
the relays work acting on the dip-switches.
Verify that there is Gate voltage in the module driver section, and bring it to 2.5
Volt through the trimmer.
Voltage measures on the BIAS card.
Measure the voltage on the pin 2 of U4, remove 500 mV and move the comma to
a space to left, bringing back the resultant value on TR5 of the CPU like
Temperature. Example: if the measured voltage is 721.0 mV, removing the 500
resulting 221,0: moving the comma to left of a cipher result 22,1; in degrees.
Be turned on the module acting on the ON/OFF switch of the control unit and
measure the VPA value on the pin 1 of CN4, bringing back the value on the
computer acting on TR9 of the CPU.
Setting of the BIAS Voltage and of the Finales current.
Interposing an amperometer between the VPA voltage (red cables of power) and
the MosFet source, act on the pallet’s trimmer up to obtain 20 mA of current.
With the help of an electronic load set the current of the current measurers of the
finals and of the driver.
For the finals are made absorb 8A from each channel setting the load between
GND and the supply wire of the pallet bring back the respective current on the
computer acting on the TR11 for the pallet, TR2 for the pallet 2, TR3 for the pallet
3 and TR8 for the pallet 4.
For the driver are made absorb 1.2 - 1.3Abetween GND and pin of the rear of the
fuse carrier FS1, (you must get away the fuse carrier of the driver) bringing back
the reading on the PC through TR10. Is recommended give between 4 and 5 turns
in counterclockwisesenseatTR10 before apply the load, avoidingthatthemodule
enters protection, delaying the testing.
Switch off power putting the switch on the control unit Stand-By, and connect the
power wires of the pallet and the fuse carrier of the driver.
Setting and testing on RF
Be turned on the pilot on 98 Hz verify that the bolometer is to ZERO, and put the
analyser on the internal state 7.

TJ5KPS - Test Jig
14 / 14 User ManualRev. 1.0 - 18/02/04
Acting on the power regulation PWR, checking the current, the harmonicses and
the Pout, make go up the power up to 400 W, with the tester setted with full scale
at mV. With the metal point on the pin 4 of CN3 on the bias card, trying to set to
zero the measure most possible, acting through a non-metallic screwdriver on the
trimmer more to left (toward the flank) that is situated on the measure card of Pout
placed at the end of the filter, doing attention that the tester probes are to the
outside of the module avoiding the interference of the RF on the measure. Then
switch off the pilot and the H.T., carry the tester on the measure of Ohm, and
measurethevalueofthistrimmerbringsbackitonthetrimmermoretothe internal.
Thisprocedure is inclined todelineatethe reading of theprobesof Forward Power
Output and Reflected Power Out.
Maintaining the pilot to 98 Mhz, carry the Pwr Out up to 1 kW. Bringing back the
value of the bolometer on the TR1, then set the Pwr In on the TR6 to 4.8W, and
finally equalize the mosfet current acting on the bridges of the pallet and on the
bias resistances.
Carry the working frequency to 87.5 MHz, go up to 800 mW. Act on the power
regulation RV2 that is placed on the driver card and obtain 1kW of Pwr Out. Bring
back all the measures on the test tables of the computer and register it.
Then report the measures for the other working frequencies, 98 and 108 MHz,
registers it too.
For all the frequencies, check that it is possible come at least to 1150 W of power.
Always to 98 Mhz. Connect a halved load to the ouput of the module and go up
with the pilot up to read 90 Wtt of reflected power, act on the TR6 up to that the
measure on the Bird doesn't level with the reading on the computer.
Then restored the load, go back to do the Pwr Out reading to 98MHz arriving to 1
kW and register it on the computer.
Withdraw the voltages measures of the bias, of the mosfet, of the pallet and of the
driver, give a serial number and save the data on the computer.
Finally remove the coaxial cable from the withdrawal of the Bird and put it on the
withdrawal that is situated on the module frontal and set the 10 Dbm acting on the
device on the output board.
