R.V.R. Elettronica TLC300 User manual

Manufactured by Italy
TLC300
UserManual

TLC300-UserManual
Version 1.0
© Copyright 2003
R.V.R.ElettronicaSpA
Via del Fonditore 2/2c - 40138 - Bologna (Italia)
Telefono: [phone]
Fax: [phone]
Email: [e-mail]
Web: www.rvr.it
Allrightsreserved
PrintedandboundinItaly.Nopartofthismanualmaybereproduced,
memorized or transmitted in any form or by any means, electronic or
mechanic, including photocopying, recording or by any information
storageandretrievalsystem,withoutwrittenpermissionofthecopyright
owner.
File name: TLC300_EN.p65
Version: 1.0
Date: 07/04/2003
Revision History
1.0 07/04//2003 New version J. Berti
Version Date Reason Editor

TLC300
iUserManual Rev. 1.0- 07/04/03
Table of content
1. Preliminary Instructions 1
2. Warranty 3
3. First Aid 5
3.1 Treatment of electrical shocks 5
3.2 Treatment of electrical Burns 6
4. General Information 7
4.1 Configuration 8
5. Quick reference 11
5.1 Quick reference of TLC system 11
6. System Status Enquiries 15
6.1 Local enquiries 15
6.2 Remote enquiries with remote control software 15
6.3 Remote enquiries with GSM modem + SMS 15
7. External Features 17
7.1 TLC300 description 17
7.2 Change over card 19
7.3 Additional Standard Telemetry Card 23
7.4 Description of service connectors PIN 25
8. Identification and Access to modules 27
8.1 CPU card 27
8.2 Panel card 27
8.3 Telemetry card 28
8.4 Relay control card 29
8.5 Power supply 29
9. Card settings 31
9.1 Setting of the card internal address 31
9.2 Setting of the Dip-Switches 32
10. Test Board Description 37
10.1 The board 37
10.2 The meant of the clips 37
10.3 Digital/Analog Input 38
10.4 Rly Output 39
10.5 Connection to TLC 40
10.6 How to make the tests 40

TLC300
ii UserManualRev.1.0 -07/04/03
This page was intentionally left blank

TLC300
1 / 42UserManual Rev.1.0 - 07/04/03
1. Preliminary Instructions
Thismanualiswrittenasageneralguideforthose having previous knowledge and
experience with this kind of equipment, well conscious of the risks connected with
theoperationofelectricalequipment.
Itisnotintendedtocontainacompletestatement of all safety rules which shouldbe
observedbypersonnelinusingthisorotherelectronicequipment.
Theinstallation,useand maintenance of this piece of equipment involverisksboth
forthepersonnel performingthemandforthe deviceitself,thatshallbe usedonlyby
trainedpersonnel.
R.V.R. Elettronica SpAdoesn’tassumeresponsibilityfor injuryordamageresulting
from improper procedures or practices by untrained/unqualified personnel in the
handlingofthis unit.
Pleaseobservealllocalcodes and fire protectionstandardsintheoperationsofthis
unit.
WARNING: alwaysdisconnectpower before opening covers orremovingany part
ofthisunit.
Useappropriategroundingprocedurestoshortoutcapacitorsandhighvoltagepoints
beforeservicing.
WARNING: thisdevicecanirradiate radio frequency waves, andifit’snot installed
following the instructions contained in the manual and local regulations it could
generateinterferencesinradiocommunications.
This is a "CLASS A" equipment. In a residential place this equipment can cause
hash.Inthiscasecanberequestedtousertotakethenecessarymeasures.
R.V.R. Elettronica SpA reservesthe right to modify the design and/orthetechnical
specificationsoftheproductandthismanualwithoutnotice.

TLC300
2 / 42 UserManualRev.1.0 -07/04/03
This page was intentionally left blank

TLC300
3 / 42UserManual Rev.1.0 - 07/04/03
2. Warranty
AnyproductofR.V.R. Elettronica iscoveredbya24(twenty-four)monthwarranty.
Forcomponentsliketubesforpower amplifiers,theoriginalmanufacturer’s warranty
applies.
R.V.R. ElettronicaSpAextendsto theoriginalend-userpurchaserallmanufacturers
warranties which are transferrable and all claims are to be made directly to R.V.R.
perindicated procedures.
Warrantyshallnotinclude:
1 damagestakenplaceduringtheshipmentofthemachinetotheR.V.R.foreventual
repairs;
2 Anyunauthorizedrepair/modification;
3 Incidental/consequentialdamagesasaresultofany defect
4 Nominalnon-incidentaldefects
5 Re-shipmentcostsorinsuranceofthe unit or replacement units/parts
Anydamagetothegoodsmust be reported to the carrier in writing on the shipment
receipt.
Anydiscrepancyor damage discoveredsubsequenttodelivery,shallbereportedto
R.V.R. Elettronicawithin 5(five) daysfromdeliverydate.
Toclaim yourrightsunderthis warranty,yousholdfollow this procedure:
1 Contact the dealer or distributor where you purchased the unit. Describe the
problemand,so that a possible easysolutioncanbe detected.
Dealers and Distributors are supplied with all the information about problems
that may occur and usually they can repair the unit quicker than what the
manufacturercoulddo.Very ofteninstallingerrorsarediscovered by dealers.
2 Ifyourdealercannothelpyou,contact R.V.R.Elettronicaandexplaintheproblem.
Ifitisdecidedtoreturntheunittothefactory, R.V.R. Elettronica will mail you
aregularauthorizationwithallthe necessaryinstructionstosend backthegoods.
3 Whenyoureceivetheauthorization,you can return the unit. Pack it carefully for
theshipment,preferablyusingtheoriginalpackingandsealthepackageperfectly.
Thecustomeralwaysassumestherisks of loss (i.e., R.V.R. is never responsible
fordamageorloss),until the packagereachesR.V.R. premises. Forthisreason,
wesuggestyoutoinsurethegoodsforthewholevalue.Shipmentmustbeeffected
C.I.F. (PREPAID) to the address specified by R.V.R.’s service manager on the
authorization
DO NOT RETURN UNITS WITHOUTOURAUTHORIZATIONAS THEY WILLBE
REFUSED

TLC300
4 / 42 UserManualRev.1.0 -07/04/03
4 Besuretoencloseawrittentechnicalreportwherementionalltheproblemsfound
andacopyofyouroriginalinvoiceestablishingthe startingdateofthewarranty.
Replacement and warranty parts may be ordered from the following address. Be
sure to include the equipment model and serial number as well as part description
andpartnumber.
R.V.R.ElettronicaSpA
Via del Fonditore, 2/2c
40138 BOLOGNA
ITALY
Tel. [phone]

TLC300
5 / 42UserManual Rev.1.0 - 07/04/03
3. First Aid
Thepersonnelemployedintheinstallation,useandmaintenanceofthedevice,shall
befamiliarwith theory and practice of firstaid..
3.1 Treatment of electrical shocks
3.1.1 If the victim is not responsive
Follow theA-B-C's of basic life support
• Placevictimflaton his backon a hard surface.
• Openairway:liftupneck,pushforeheadback(Fig.3-1).
• clearoutmouthifnecessaryandobserveforbreathing
• if not breathing, begin artificial breathing (Figure 3-2): tilt head, pinch nostrils,
makeairtightseal,fourquickfullbreaths.Remembermouthtomouthresuscitation
must be commenced as soon as possible
Figure 3-1 Figure 3-2
• Check carotid pulse (Fig 3-3); if pulse is absent, begin artificial circulation
(Fig.3-4)depressing sternum (Fig. 3-5)
Figure 3-3 Figure 3-4 Figure 3-5
• Incaseofonlyonerescuer,15compressionsalternatedtotwobreaths.
• Iftherearetworescuers,therythmshallbeofonebratheach5compressions.
• Do not interrupt the rythm of compressions when the second person is giving
breath.
• Call for medical assistance as soon as possible

TLC300
6 / 42 UserManualRev.1.0 -07/04/03
3.1.2 If victim is responsive
•Keepthemwarm
•Keep them as quiet as possible
•Loosentheirclothing (arecliningpositionisrecommended)
•Call for medical help as soon as possible
3.2 Treatment of electrical Burns
3.2.1 Extensive burned and broken skin
•Cover area with cleansheetor cloth
•Donotbreak blisters, remove tissue, remove adheredparticlesof clothing,or
applyanysalve orointment.
•Treat victim for shock as required.
•Arrangetransportationto a hospital as quickly as possible.
•Ifarmsorlegs are affected keep them elevated
Ifmedicalhelp willnotbeavailable withinanhourand thevictimisconscious andnot
vomiting,givehima weaksolutionofsaltandsoda: 1 levelteaspoonfulofsaltand1/
2levelteaspoonfulofbakingsodatoeachquartofwater(neitherhotorcold).Allow
victim to sip slowly about 4 ounces (half a glass) over a period of 15 minutes.
Discontinuefluidifvomitingoccurs
DONOTgivealcohol
3.2.2 Less severe burns
• Applycool(noticecold) compresses using the cleansed available cloth article.
•Do not break blisters, remove tissue, remove adhered particles of clothing, or
applysalveorointment.
•Applycleandrydressingifnecessary.
•Treat victim for shock as required.
•Arrangetransportationto a hospital as quickly aspossible
•Ifarmsorlegs are affected keep them elevated.

TLC300
7 / 42UserManual Rev.1.0 - 07/04/03
4. General Information
The devices of which the SCM-TLC system consists are all made in 19" 2U rack
containers,withtheexceptionofthe TLC300, which is 19" 1U size.
Entirelyassembledwith modulesfittedonthebaseofthedeviceand connectedwith
snap-infittingconnectors,theyareeasilyremoved,substitutedand added.
Onthefront panelisaclear graphicaluserinterfacewhich allowsyoutoread andset
theoperatingparameters; the entire system can becontrolledusinga simple knob
(encoder).
On the front panel there is also a set of LEDs, again depending on the preset
configuration,whichshowsystemstatus at a glance.
Ontherearpanelareall oftheconnectorstobeusedfor connectingthedevicetothe
variousstationcomponents.
TheSCM-TLCautomaticchangeoverandtelemetrysystemandrelativemanagement
softwareweredesignedto solveallofthoseproblemsarising from themanagement
ofradiostationslocatedinareasthatarenoteasilyreached or which would require
asignificantamountoftime for the operator to reach.
Thesystemhas the followingmainfunctions:
•managementof several radio stationsby remote connection witha data-phone
modem;
•telemetrizationofall operatingparametersofthedevices presentineachstation;
•storageinthememoryofevents which caused faults;
•automaticchangeover in "1+1" or "N+1" radio transmissionsystems.
Thissystemallows remotemanagementofthe radiostation,allowingthe operatorto
interveneimmediatelyintheevent of afault.
The great flexibility of the SCM-TLC system allows an increase in the number of
devices controlled or modification of the station layout at any time, without
necessitating radical changes in the management system, but simply adding
expansioncardswhichallowanincreaseinthenumberofoperatingparametersthat
canbemanaged.
The SCM-TLC system was designed to operate at its best with all R.V.R. devices,
butcanalsofunctionwithdevicesnot made by R.V.R., provided that they make the
mainoperatingparametersavailableexternallybymeansofanalogsignalswithvalues
between 0 and +5V.
Themanagementsoftwarehasauserfriendly interface and can be managedusing
anypersonalcomputer withtheWINDOWS™environment.

TLC300
8 / 42 UserManualRev.1.0 -07/04/03
4.1 Configuration
TheSCM-TLC system has twomain types of operation,within which there maybe
variousversions,dependingonthenumberofdataacquisitioncardsfitted: automatic
changeover(1+1orN+1) and telemetry, or justtelemetry.
4.1.1 Automatic change over and telemetry
Two types of devices control this type of operation:
•SCM1+1-LCD:automaticchangeoverbetweenthemaintransmitterandastand-
bytransmitter;supportsupto3additionaltelemetrycardsforatotalof30balanced
analoginputs,58digital/analoginputsand24relayoutputs.
•SCM4+1-LCD:automatic change over among several maintransmitters(upto
4)andastand-bytransmitter,automaticallyconfiguredtosubstitutethetransmitter
affected by the fault (the stand-by must have an external control for setting the
operatingfrequency);supportsup to2additionaltelemetrycards,for atotalof27
balancedanalog inputs,52unbalanceddigital/analoginputsand16relayoutputs.
4.1.2 Telemetry
Two devices are available for station telemetry, depending on complexity and the
numberofparametersto be acquired:
•TLC300:includes2telemetrycards,fora total of 16 balanced analog inputs, 32
digital/analoginputsand16relayoutputs.
•TLC2000:supportsup to 6 additional telemetry cards, foratotalof48balanced
analoginputs,96unbalanceddigital/analoginputsand 48 relay outputs.
ThetablebelowsummarizesallpossibleSCM-TLCsystemconfigurations.

TLC300
9 / 42UserManual Rev.1.0 - 07/04/03
Device Type Version bal. IN dig./an. IN OUT rly
SCM1-LCD SCM 1+1 & TLM T0 6 10 0
SCM1-LCD SCM 1+1 & TLM T1 14 26 8
SCM1-LCD SCM 1+1 & TLM T2 22 42 16
SCM1-LCD SCM 1+1 & TLM T3 30 58 24
SCM4/1-LCD SCM N+1 & TLM T0 11 20 0
SCM4/1-LCD SCM N+1 & TLM T1 19 36 8
SCM4/1-LCD SCM N+1 & TLM T2 27 52 16
TLC300 TLM T1 8 16 8
TLC300 TLM T2 16 32 16
TLC2000 TLM T0 (*) 0 0 0
TLC2000 TLM T1 8 16 8
TLC2000 TLM T2 16 32 16
TLC2000 TLM T3 24 48 24
TLC2000 TLM T4 32 64 32
TLC2000 TLM T5 40 80 40
TLC2000 TLM T6 48 96 48
(*)Externalcommunications managementonly.
The version's name depends on the number of additional telemetry cards and is
indicatedby the number after the "T"(e.g.:T0 indicates that there are notelemetry
cards,T1indicates that one additional telemetry cardisfittedand so on).

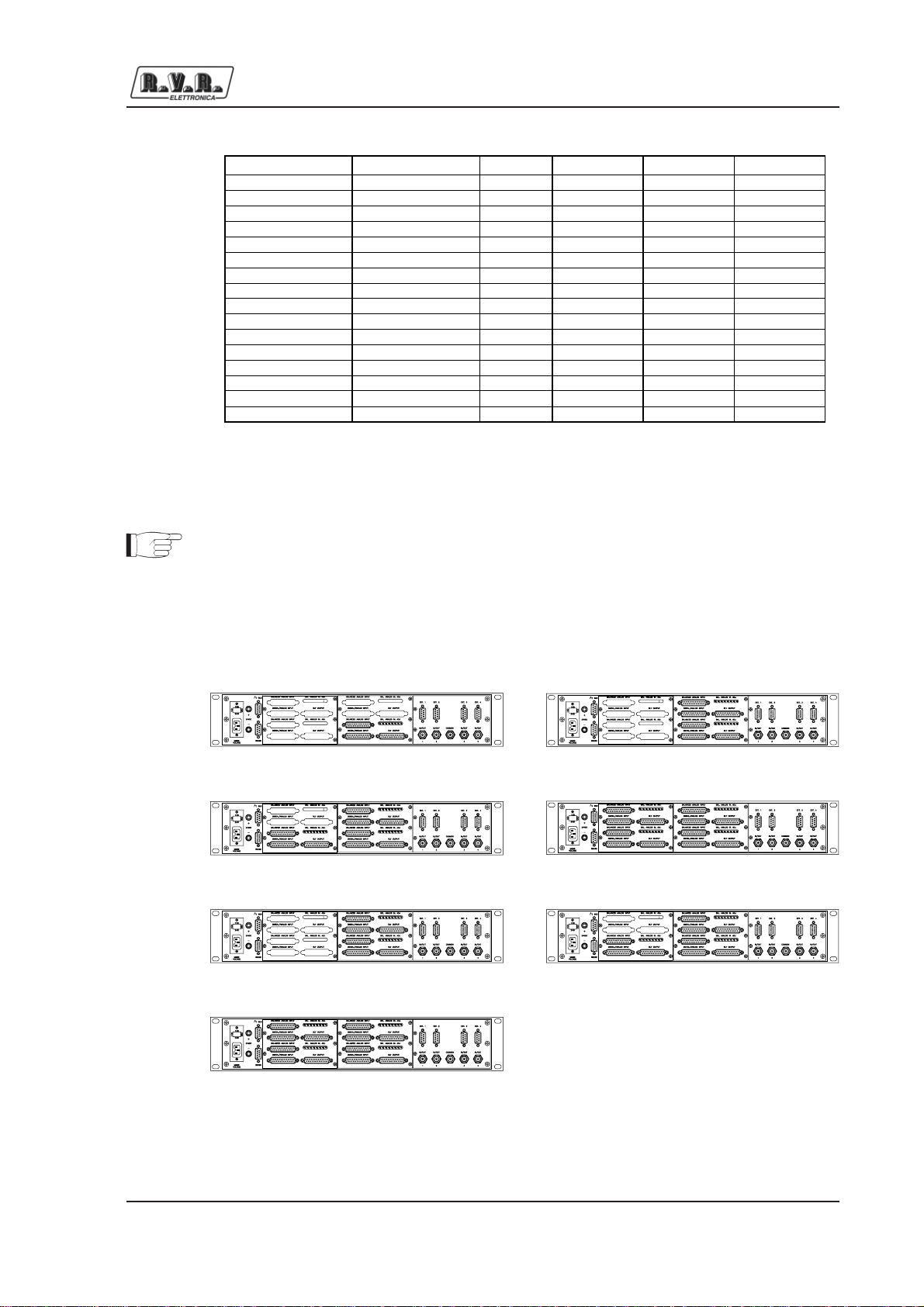

SCM1+1 \T0 SCM1+1 \T1
SCM1+1 \T2 SCM1+1 \T3
SCM4+1 \T0 SCM4+1 \T1
SCM4+1 \T2

TLC300
10 / 42 UserManualRev.1.0 -07/04/03
TLC2000\T0 TLC2000\T1
TLC2000\T2 TLC2000\T3
TLC2000\T4 TLC2000\T5
TLC2000\T6
TLC300\T0 TLC300\T1
TLC300\T2

TLC300
11 / 42UserManual Rev.1.0 - 07/04/03
5. Quick reference
Thepurposeofthischapter is to summarize thepointsthatshouldbeadheredtofor
using the machines. Should any point not be fully comprehensible, such as how to
operatethemachinethe firsttime,thedescriptionofthe operatingsystemshouldbe
readverycarefully.
5.1 Quick reference of TLC system

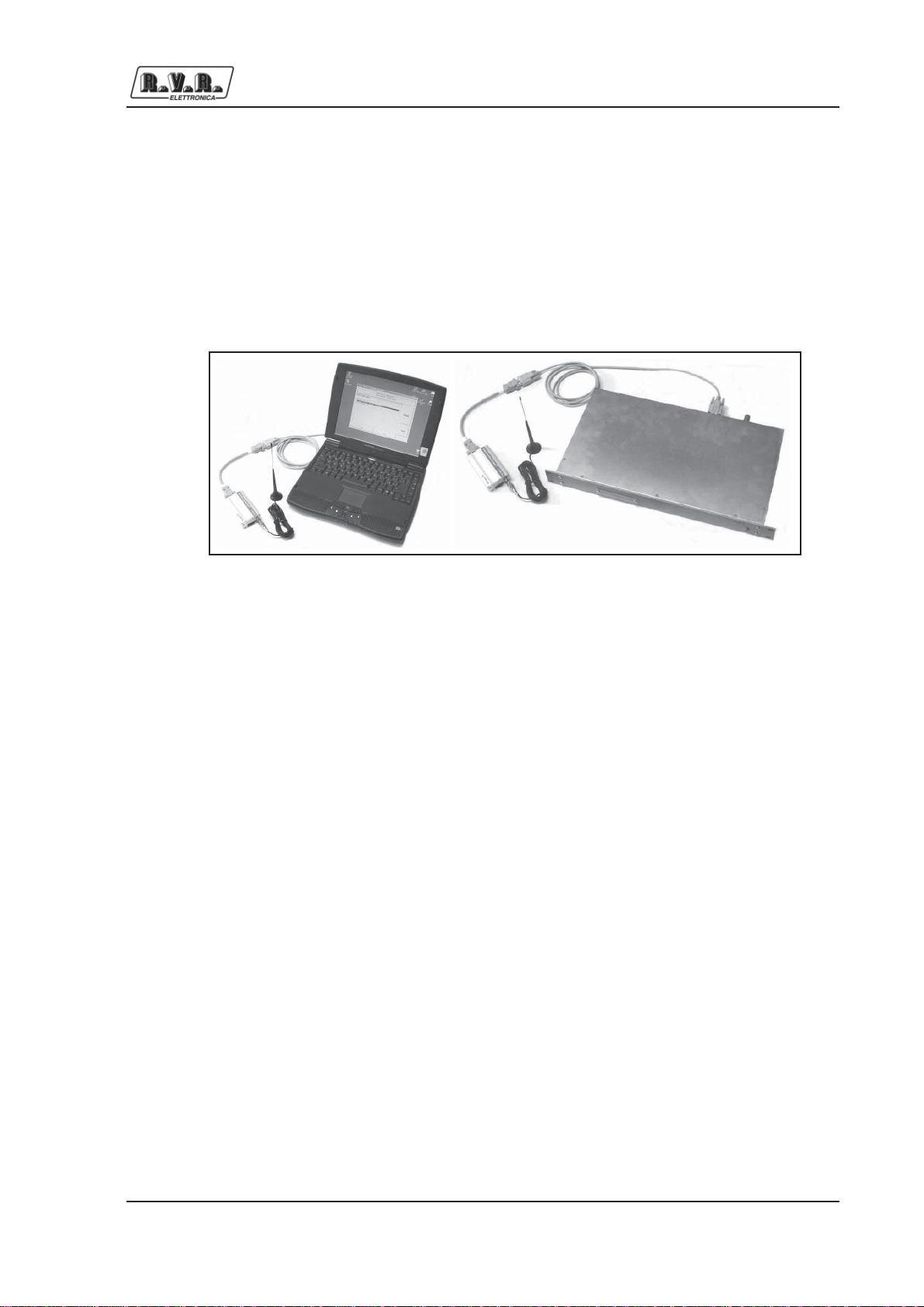

5.1.1 Preliminary settings
Beforeusingtheequipmentwithamodemitisnecessarytoexecutesomeoperations:
• SettheDIP-SWITCH(seethetable);
• Modem type absent DIP 1 and 2 OFF;
• 9600bps serial speed DIP3 OFF, DIP 4 ON;
• Address 1 DIP 5 ON.
• Serialconnectionthrough Collegamentoserialetramiteprogramma“TELECON”
esalvataggiodelleimpostazionidi configurazione all’interno del TLC.

TLC300
12 / 42 UserManualRev.1.0 -07/04/03
Description 123456781234567812345678
None
PSTN
X
PAGER
X
GSM
X
X
1200
2400
X
9600
X
19200
X
X
Address XXXXXX
Iic board n°
X
X
X
X
X
X
Generic
Pj
X
Vj
X
0
+1
X
+2
X
+3 XX
+4
X
+5
X
X
+6
X
X
+7
X
X
X
D.all.stand
X
D.all.gen
X
Vis.allarm.rel
X
5.1.2 Alarm condition
Incaseofan alarm, the TLC limits to the remoteandlocalsignallingofthedamage
found.
5.1.2.1 Alarmtype0
Thistypeofalarmhappenson the climb forehead of thevoltagepresentattheinput
correspondentonthe telemetrycard,comestherefore generatedanalarmmessage
thatcomesmemorizedlocallyand comes subsequently sended,throughamodem,
tothenumbersand in the modalities indicated from the carried outprogramming.
5.1.2.2 Alarmtype1
Analogousthistypeofalarmhappensonthereductionforeheadofthevoltagepresent
attheinputcorrespondentonthetelemetrycard,comesthereforegeneratedanalarm
messagethatcomesmemorizedlocallyandcomessubsequentlysended,througha
modem, to the numbers and in the modalities indicated from the carried out
programming.

TLC300
13 / 42UserManual Rev.1.0 - 07/04/03
5.1.2.3 Audiosignalmissing (PTX-LCD only)
Theaudiosignalpresencecontrolis carried out only iftheexciterofthetransmitters
is a PTX-LCD series exciter comes, therefore, generated an alarm message that
comesmemorizzatolocallyand comessubsequentlysendedthroughmodem tothe
numbersandinthemodalities indicated from the carried out programming.
5.1.2.4 I2Cbusalarms
Thecontrolonthepresenceofalarmscomesmadeonlyin the case is present LCD
equipments comes therefore generated a message alarm that comes memorized
locallyandcomessubsequentlysendedthroughamodemtothe numbersandinthe
modalitiesindicatedfrom the carried out programming.
5.1.2.5 Defaultcodes
Thecodesofalarm of default are reassumed in the table.
CODE Indication Meant
000 Forward Power Forward power (analogic read)
001 Reflected Power Reflected power (analogic read)
≥002 ≤011 General alarms adjustable from user
012 Reserved Reserved
013 No Audio Absence of audio signal
014 Mod Fault I2C module damage
015 Restart System restart
5.1.3 Alarms signalling
TheTLCmarksthemalfunctioningsituationsinlocallyandinremote,sendingaseries
of messages with modalities that depend on the modalities indicated in the carried
outprogramming.
5.1.3.1 Localsignalling
• Ifsetup,it excites the relay 8 of theAdditionalcard.
5.1.3.2 Remotesignallingwithtelephonemodem
• The TLC calls in sequence all the telephone numbers sets up to you and
communicates the code and alarm description (from the other part must be
connected a PC with the TELECON software in stand-by or a communication
programthatattended messagesfromthe modem).
• TheTLCrepeatsthe seriesofcallsforothersmany timesandforallthenumbers
indicatestoyouinthe carried out programming.

TLC300
14 / 42 UserManualRev.1.0 -07/04/03
5.1.3.3 RemotesignallingwithmodemGSM
• TheTLCcallsinsequence all the telephonenumbersmemorizedinthememory
andcommunicatesthecode and alarm description (from the otherpartmustbe
connected a PC with the TELECON software of telecontrollo in stand-by or a
programofattendedcommunicationin of messages from the modem).
• TheTLCsendes the same message inSMSformatto the numbers memorized
to you through the Serivce Center of GSM manager and repeats the series of
callsforothersmanytimesandforallthenumbersindicatesfromyouinthecarried
outprogramming.

TLC300
15 / 42UserManual Rev.1.0 - 07/04/03
6. System Status Enquiries
6.1 Local enquiries
TheSCMandTLC2000 devicesindicatetheirstatuslocally andconciselybymeans
oftheindicator lights on the front panel. Moredetailedinformationcanbe obtained
fromthesettingand configuration menus.
6.2 Remote enquiries with remote control software
APCwiththeTelecontelemetryandremotecontrolsoftwarecanbeusedto obtaina
verydetailedviewof all system operating parameters and of all thesettingsbothof
theequipmentandthedevicesconnectedtosaidequipment.
6.3 Remote enquiries with GSM modem + SMS
AnyGSMmobiletelephonecanbeusedtoquerythedeviceswiththissystem.The
devicewillrespondasoutlined in the tables in the sections below.
BeforequeryingthesystembymeansofSMSmessages,you mustbeconnectedby
meansofthe"TELECON"programandsetthenumberoftheselectedphoneService
Centeraswellasthetelephonenumbersthat can send this type ofcommandtothe
devices.
6.3.1 List of SMS messages that can be sent to TLC devices
Sent: Answer:
INFO
TLC ID: 000 Station Name
FWD 0%
RFL 0%
TX ON / TX OFF
Audio absent / present
Alarm Standard Disable / Alarm General Disable / All Alarm Disable / All Alarm Enable
Alarm Present / Alarm Not Present
ALARM TLC ID: 000 Station Name Lista Allarmi in memoria
TXONn TLC ID: 000 Station Name TX is ON
TXOFFn TLC ID: 000 Station Name TX is OFF
OUTONn TLC ID: 000 Station Name OUT is ON / Out Not Exist
OUTOFFn TLC ID: 000 Station Name OUT is OFF / Out Not Exist
OUTIMPn TLC ID: 000 station Name Impulse OK / Out Not Exist
RESETMOD
RESET TLC ID: 000 Station Name ALL RESET

TLC300
16 / 42 UserManualRev.1.0 -07/04/03
This page was intentionally left blank
