Racelogic DSP05-M User manual

Quick Start uide – OLED DSP05-M
Registration
Please register your OLED Display so that Racelogic
can continue to provide you with notifications about the
latest software releases and firmware upgrades for your
Racelogic product, and offer technical support.
Register your device here.
What is in the box?
When you purchase a OLED Display DSP05-M, you will find the following items when you open the box:
Product
Code
Quantity Description
VBDSP05-M1 OLED Display with Mini Din connector
RLACS2871 VBOX Lightweight Suction Mount
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
1

Features
• View parameters, such as Live Speed, Max Speed,
Lap Times and Predictive Lap Time
• Internal accelerometer flips the display according to
the mounting direction
• Invert screen colours or change font options for
varying operation conditions
• Shows logging and capacity status of connected
Video VBOX Lite
• Easy operation with the 3-button keypad • Recognises data from standard VBOX CAN and
serial output
• Low power consumption • Splash proof plastic and aluminium case
• Mini Din connector for connection to Video VBOX
Lite
Memory Usage
If the SD card you use in the connected Video VBOX Lite has less than 10 MB of space available you will see a warning symbol flashing
amount of memory available.
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
2

Square Button Functions
Depending on which mode is currently active on the
screen, the function of the square button will change.
The splash screen shown when scrolling through the
menu describes the function of the square button in
each mode.
You can also find the complete list below:
Mode Function
Speed Start and stop logging
Max Speed Reset max speed value
Speed Bar Set centre speed and speed display range
Predictive Lap Timing Single press fixes the current reference lap according to
your settings in Fixed Lap Mode
Predictive Lap Timing Pressing for >4 s clears the stored reference lap and all
lap timing data
Lap Timing Set a new start/finish line
Lap Count No action
Lateral G Reset max g reached
Lateral G Bar Set min g and max g (targets)
Longitudinal G Reset max g reached
Longitudinal G Bar Set min g and max g (targets)
Menu Access the Menu
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
3

No Media
If you do not have an SD card inserted in your VBOX data logger, the OLED Display will show a "No Media"
message while the vehicle is moving at speeds of 5 mph or less. This makes it easier for you to make sure that you
have an SD card inserted before you start your logging.

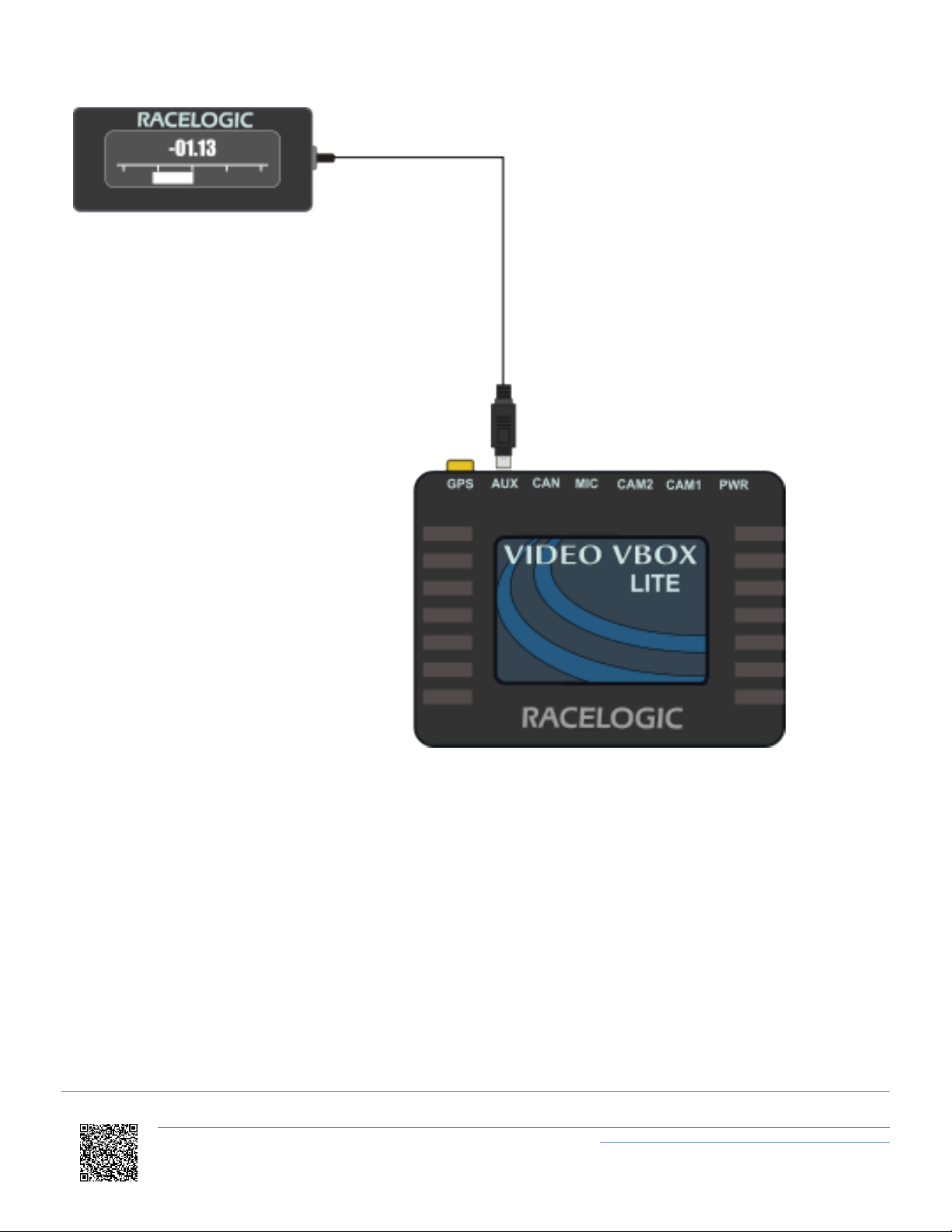

Installing your VBOX OLED Display
Video VBOX Lite
To connect to a Video VBOX Lite, connect the cable into the ‘AUX’ port.
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
4

Display Modes overview
The DSP05 OLED Display has different display modes that you can access by using the ▲▼ buttons on the unit.
Even if you choose not to display it, the data displayed on each screen is always calculated by the connected Video
VBOX Lite at all times (with the exception of Delta-T which is calculated by the DSP05 OLED Display). Click on the
name of each mode to find relevant setup information.
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
5

Speed Max. Speed
Lap Timing Predictive Lap Timing
Lap Count Longitudinal G
Longitudinal G Bar Lateral G
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
6

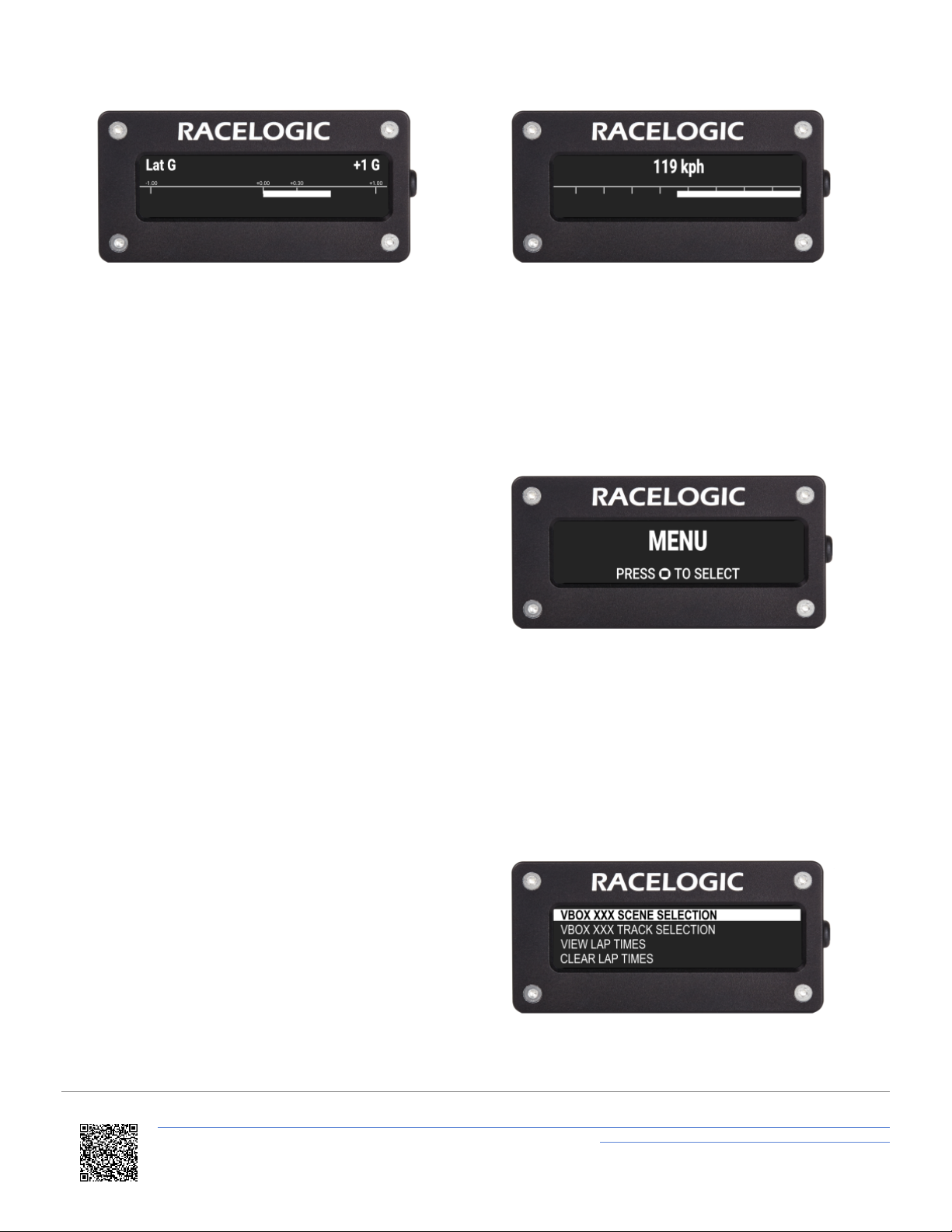

Lateral G Bar Speed Bar
Menu Options
You can access the DSP05 OLED Display menu by
pressing the square button when the ‘Menu’ screen is
displayed. You can navigate the menu with the ▲▼
buttons.
Scene Selection
Specified
You can load up to 8 user-defined scenes by placing
them in the root folder of an SD card and inserting it into
the connected Video VBOX Lite. All the required
scenes must be loaded at the same time.Every time
you load scenes to the Video VBOX Lite, they will
overwrite those previously saved on the unit. You can
select the scene on the DPS05 OLED Display. If there
are scene files on the Video VBOX Lite, a screen will
prompt you to select a scene when you power up the
DSP05 OLED Display.
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
7

If you press the ▼ button when you see this prompt, the
DSP05 OLED Display will show you a list of available
scenes.

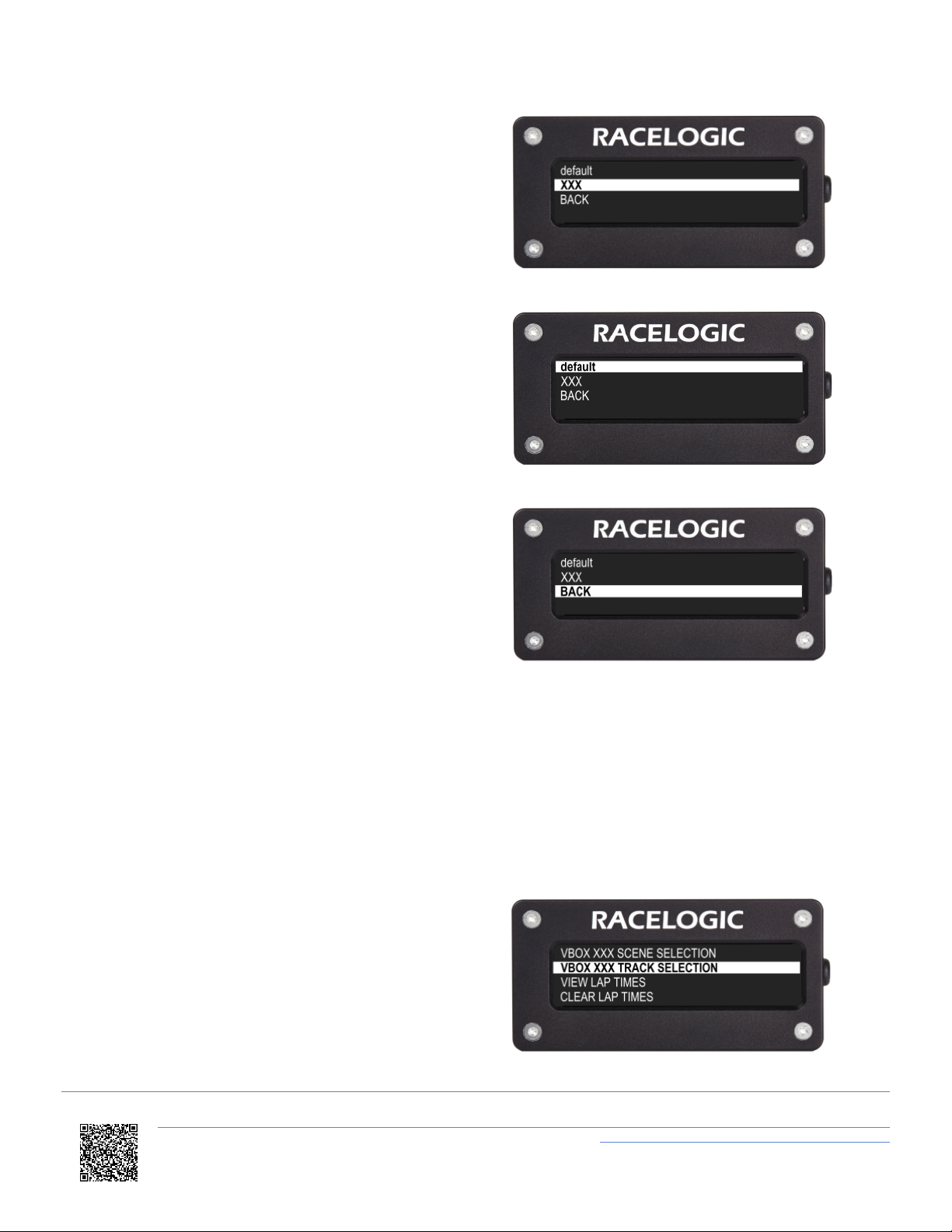

Once the DSP05 OLED Display is powered and in use,
you can access the scene selection through the main
menu.
Default
Each Video VBOX Lite has a default scene included
within the firmware. Press the square button when this
option is highlighted to use this scene.
Back
Press the square button with this line highlighted to exit
the Scene Selection menu and go back to the main
menu.

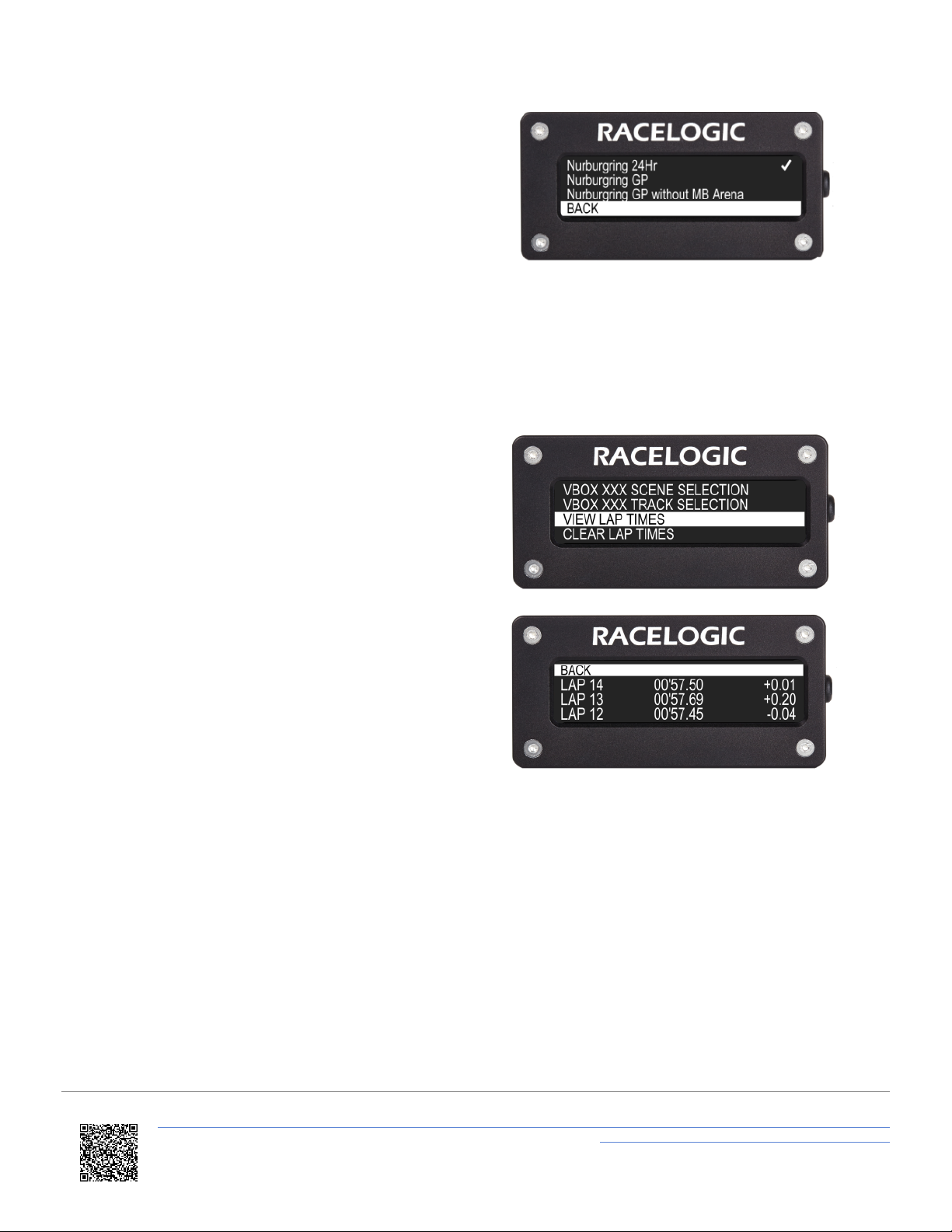

Track Selection
When the Video VBOX Lite has acquired satellites, it
will check the NSS location against Racelogic’s track
map database and load the available layouts.
Where a track has multiple layouts, you must use this
menu option to select the layout you are driving, as this
allows the DSP05 OLED Display to load the correct
start/finish line(s).
If start/finish lines are not available for your location, you
can set them manually.
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
8

Back
Press the square button with this line highlighted to exit
the Track Selection menu and go back to the main
menu.
View Lap Times
The DSP05 OLED Display will store all the lap times
from your current session (maximum of 99 lap times).
The lap times will be cleared when you set a new start
line or when you reset the lap timing data.
Back
Press the square button with this line highlighted to exit
the Lap Times and go back to the main menu.
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
9

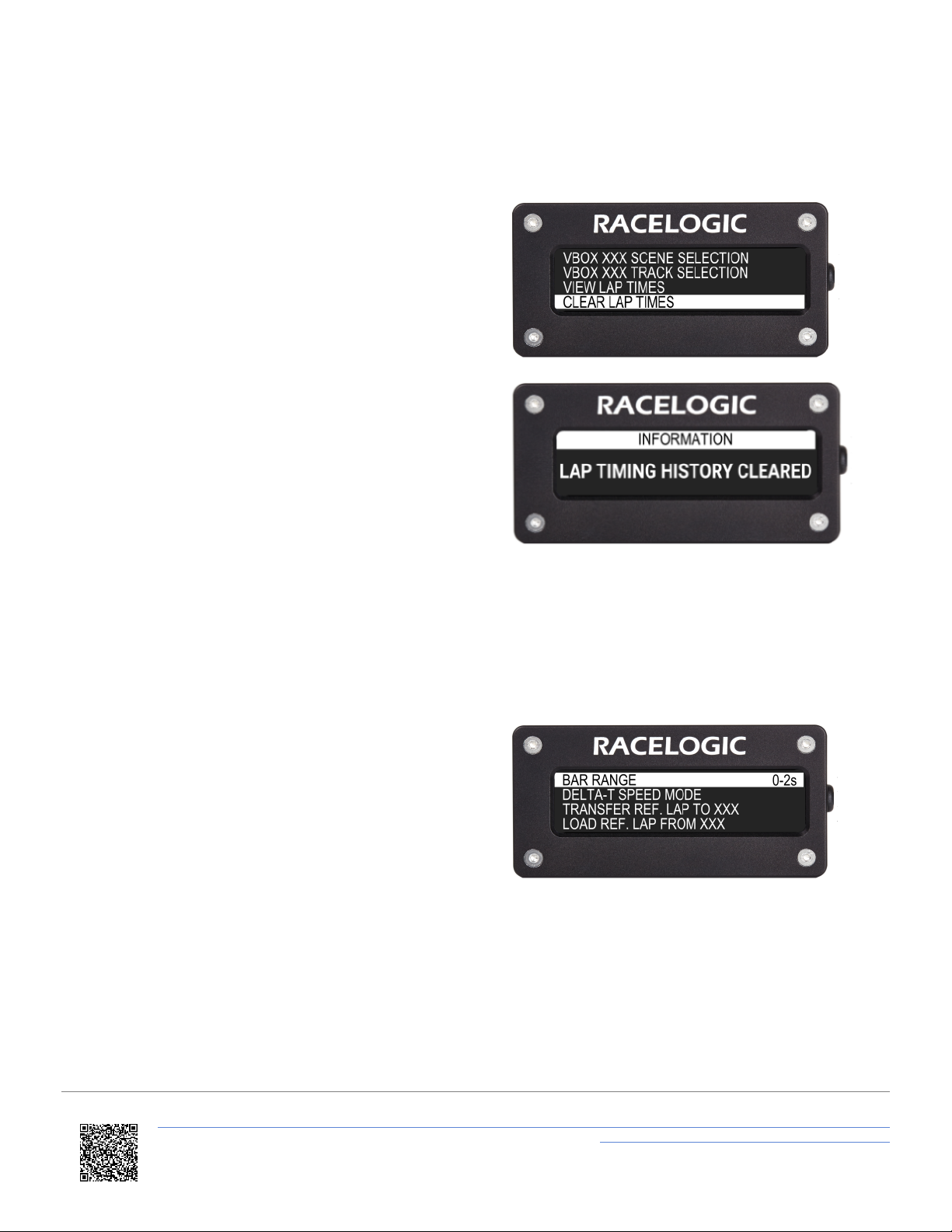

Clear Lap Times
Selecting this option will wipe all stored lap times from
the unit’s memory. It will automatically take you back to
the main menu after clearing the history.
Predictive Lap Timing Settings
Bar Range
This setting alters the amount of +/- time shown on the
bar graph during lap prediction. You can choose either
2, 5, 10 or 30 seconds.
Press the square button when the bar range is
highlighted to scroll through different time options.
Delta-T Speed Mode
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
10

When enabled, this mode will change the Predictive Lap
Timing display to show your current speed as well as
Delta-T information, when your speed drops below a
specified threshold for a set amount of time.
This function is optimised for use with both 'Virtual
Safety Car' conditions and Pit Lane speed limits.
The Delta-T Speed Mode is disabled by default. The
default settings are:
Speed: 65 km/h
Time Delay: 1.5 seconds
The display will return to the Predictive Lap Timing mode
when your speed increases to 5 km/h over the
configured Delta-T Speed Mode value.
For example, if you have set your DSP05 OLED Display
to Predictive Lap Timing mode and you have enabled
Delta-T Speed Mode;
• When your speed drops below 65 km/h for a
minimum of 1.5 seconds, the display will change to
show your current speed alongside your Delta-T.
• When your speed increases to 70 km/h, the display
will revert to Predictive Lap Timing Mode.
Delta-T Speed Mode
Press the square button when this line is highlighted to
enable the mode. A tick will appear when enabled.
Speed
Press the square button to change the speed. You will
see two arrows (up and down) appear next to the value.
Use the two arrow buttons on the device to increase/
decrease the speed value. Press the square button
again to confirm your selected value.
Time Delay
Press the square button to toggle between the available
time values. Each time you press the button the value
will increase in increments of 0.5 s, up to 5.0 s, before it
cycles back to 0.0 s. Press one of the arrow buttons to
move away from the setting and save the displayed
time.
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
11

Back
Press the square button with this line highlighted to exit
the Delta T Speed Mode settings and go back to the
Predictive Lap Timing Settings.
Transfer Ref. lap to...
This feature lets you save a reference lap for future
use. Insert an SD card into the connected Video
VBOX Lite and use the following menu options.
Note: The vehicle must be stationary to make this
transfer.
Load Ref. Lap from...
To load a reference lap file stored from a previous
session, put the desired file onto an SD card and load
the card into the Video VBOX Lite. The file must be
named OLED.REF and placed in the root directory of
the SD card. Select the following menu options.
Note: The vehicle must be stationary to make this
transfer.
Minimum Lap Time
This setting allows you to set a minimum time for laps,
making shorter laps invalid. Invalid laps will not be
counted in the lap count, appear in the lap times or used
as a reference lap.
Press the square button to change the minimum lap
time. You will see two arrows (up and down) appear next
to the number. Use the two arrow buttons on the device
to increase/decrease the minimum time. Press the
square button again to confirm your selected value.
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
12

Fixed Lap Mode
Press the square button to toggle between the available
settings:
Fix Current and Fix Stored.
Note: When you have fixed a reference lap, you will see
a message confirming your selection on the screen
and a Padlock icon will appear. If you fix a stored lap the
icon will appear instantly, if you fix the current lap, the
icon will appear when the lap has been completed.
Fixed Stored
This option sets the reference lap that is currently stored
in the memory as the fixed reference. This is the default
setting.
Fix Current
This option sets the current driven lap as the fixed
reference once the lap has been completed.
Note - if you choose to fix the current lap, this should
override any Minimum Lap Time setting as you
are making the decision to set the current and full lap as
the reference.
Back
Press the square button with this line highlighted to exit
the Predictive Lap Timing Settings and go back to the
main menu.
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
13

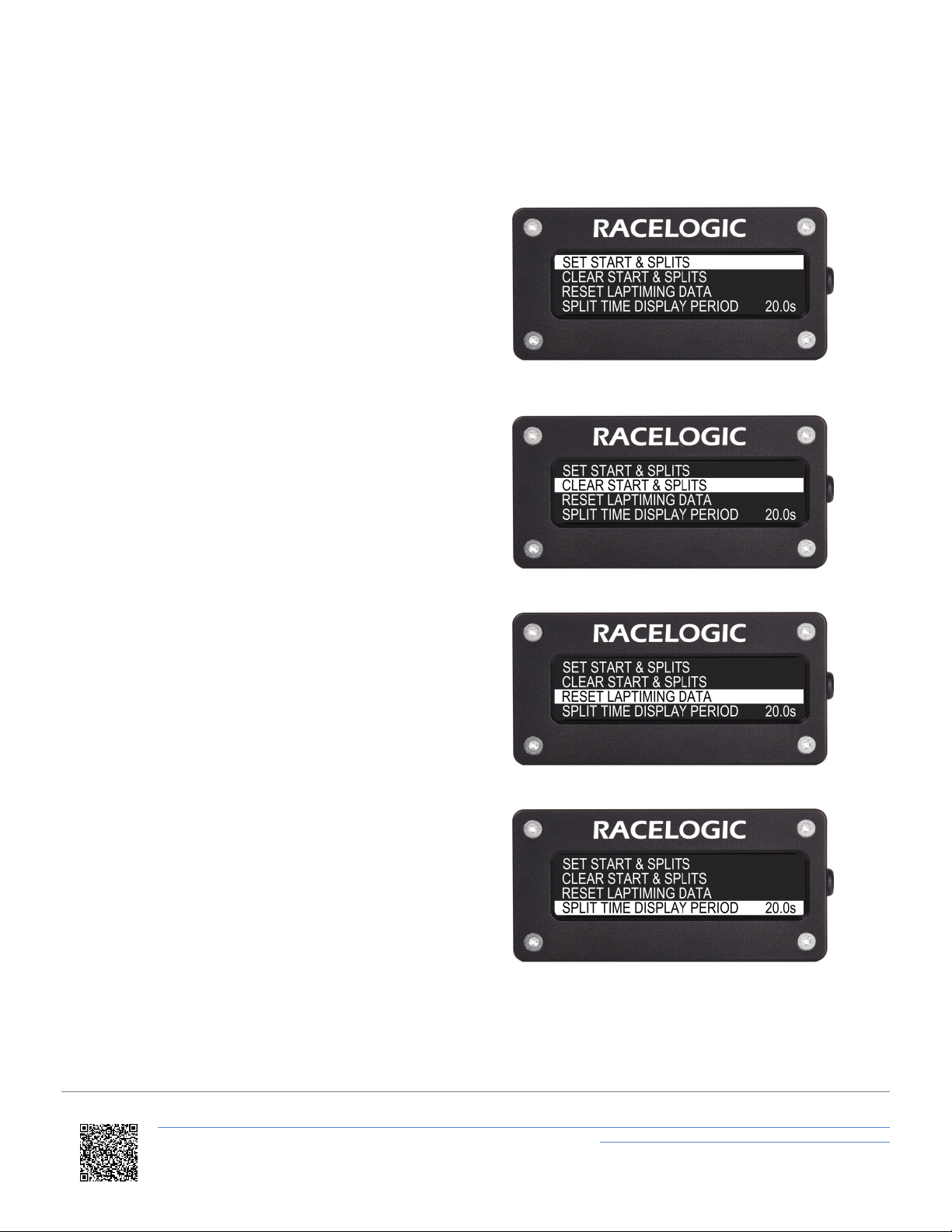

Lap Timing Menu
Set Start & Splits
Pressing the square button sets a new start/finish point.
After this, the DSP05 OLED Display will read “Set split
1”. Press the square button to set the split or ▼ to skip
through split points, Finish line and back. If you set a
new start/finish or split line, the lap count, best lap and
all the best split time values will be reset automatically.
Clear Start & Splits
Press the square button to clear any start/finish and split
point information from the DSP05 OLED Display's
memory.
Reset Laptiming Data
With this option highlighted, press the square button to
reset the stored reference lap, lap count and lap times.
Note: This option fully resets the predictive lap timing
mode.
Split Time Display Period
This function allows you to set how long the split time is
shown on the DSP05 OLED display when a split line or
the start/finish line is crossed. There is a choice of 2s,
5s, 10s, 15s or 20s. Press the square button to cycle
between these options.
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
14

Split to Split Time
When this option is selected then the calculated split
times will be split to split and not accumulative from the
start of the lap.
Rolling Lap Time
Selecting this function will show a continuously counting
lap time which briefly freezes as the start/finish line is
crossed.
One Shot Mode
When one shot mode is enabled, timing will start when
movement is detected, after being stationary for more
than 10 seconds. This will automatically reset when the
user comes to a stop. After 2 seconds of being
stationary, the screen counts down from 5 then shows
ARMED – Start when ready.
Gate Width
1-100 m
Back
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
15

Display Menu
Modes
The DSP05 OLED Display has two Display Menu Modes
for the Features; Basic Mode and Advanced Mode. This
allows you to keep the full functionality of the DSP05
OLED Display or to reduce the amounts of Display
modes to the Basic features. The tables below list the
Display Modes available in each Display Menu Mode.
Press the square button to toggle between the options:
Basic Modes
Basic Features
Speed
Lap Timing
Predictive Lap Timing
Menu
Advanced Modes
Advanced Features (Default)
Speed
Lap Timing
Predictive Lap Timing
Menu
Max Speed
Speed Bar
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
16

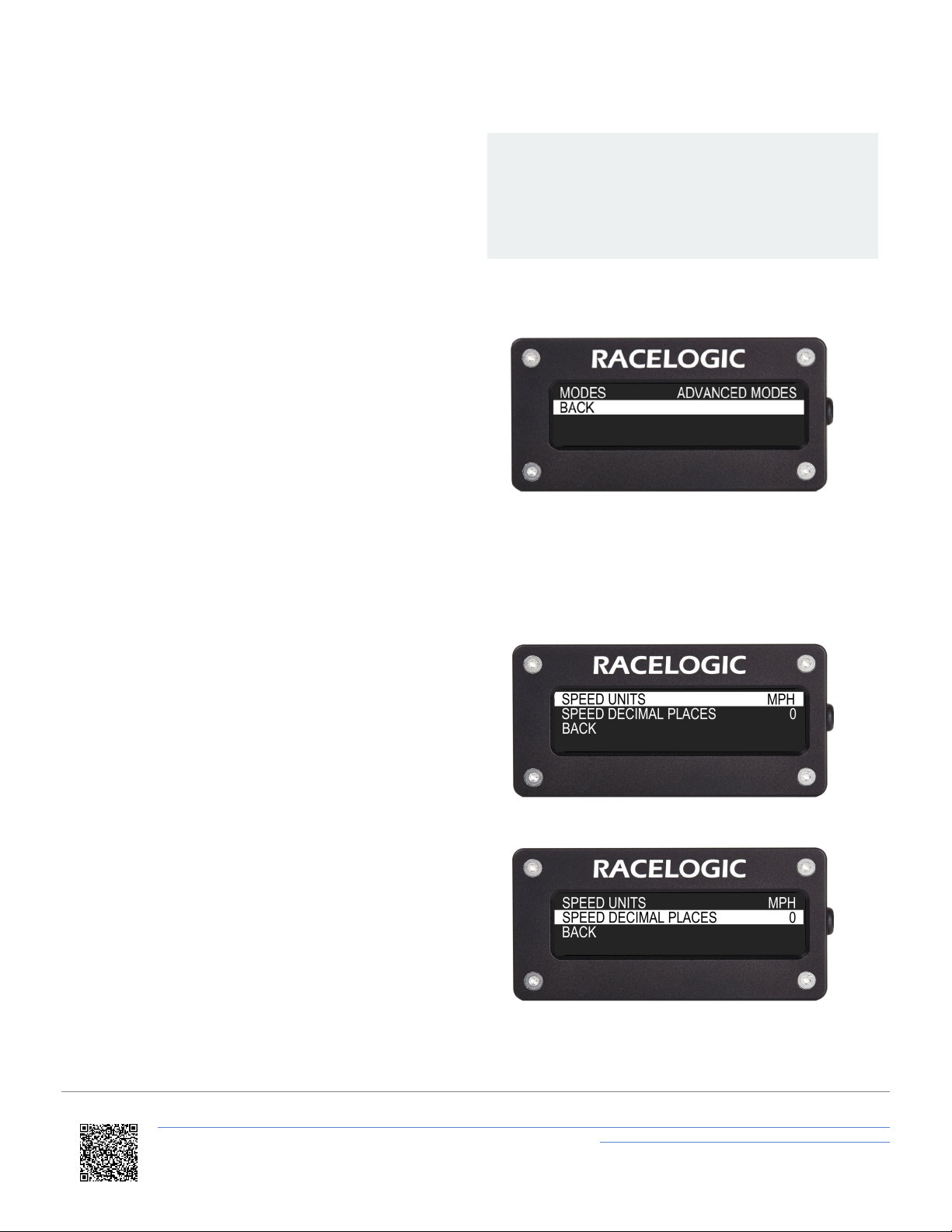

Advanced Features (Default)
Lateral
Longitudinal
Lap Count
Back
Press the square button with this line highlighted to exit
the Modes settings and go back to the Display Menu.
Speed Settings
Speed Units
If the square button is pressed the DSP05 OLED Display
allows the user the ability to select the units of the
displayed speed. Highlight the desired measurement
type and press square to select. mph, km/h, kts
Speed Decimal Places
Pressing the square button will cycle through 0, 1, and 2
decimal places.
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
17

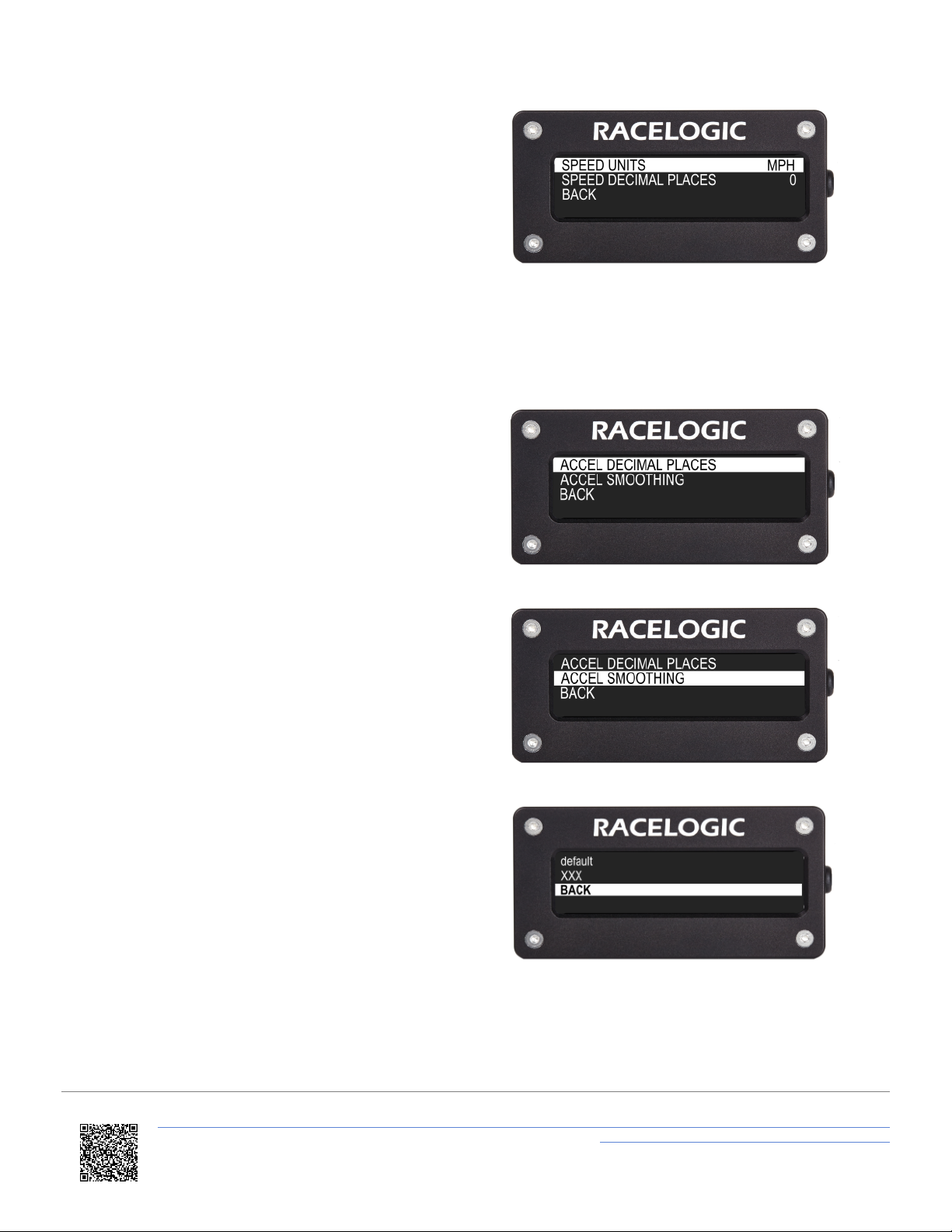

Back
Accel Settings
Accel Decimal Places
Press the square button to toggle through 0, 1, and 2
decimal places.
Accel Smoothing
Press the square button to toggle through five smoothing
settings.
Back
Press the square button with this line highlighted to exit
the Accel Settings and go back to the Display Menu.
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
18

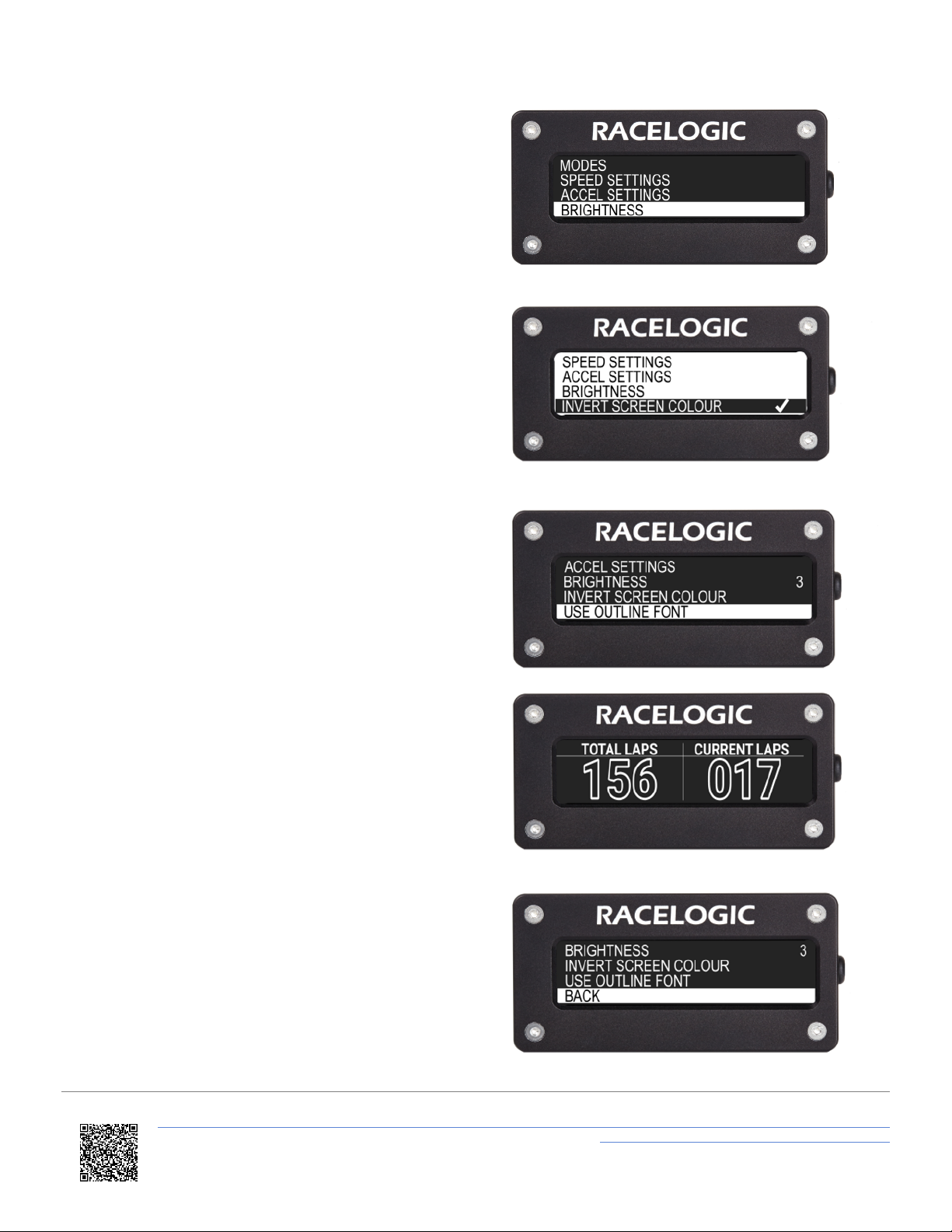

Brightness
Press the square button to toggle through five brightness
settings. 1 is the darkest setting and 5 is the brightest
setting. The display will change its brightness as you
toggle through each setting to make it easier to find the
correct level for you.
Invert Screen Colour
Press the square button when an option is highlighted to
toggle it on or off. When you select an option, a tick will
appear next to it and the display applies the setting
accordingly. See the images below for examples of the
four different colour and font combinations.
Use Outline Font
Press the square button when an option is highlighted to
toggle it on or off. When you select an option, a tick will
appear next to it and the display applies the setting
accordingly. See the images above for examples of the
four different colour and font combinations.
Back
Press the square button with this line highlighted to exit
the Display Menu and go back to the Main Menu.
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
19

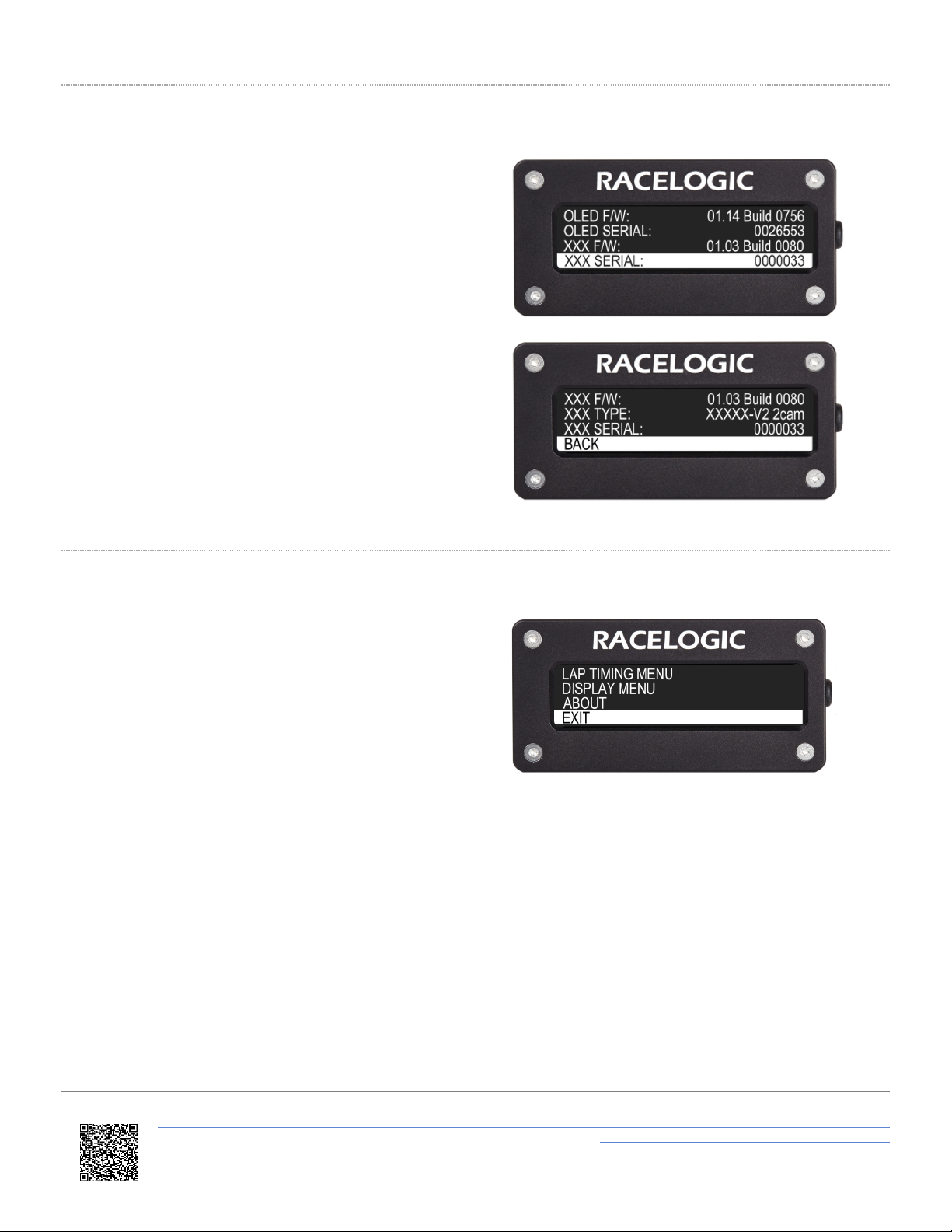

About
In this section, you can find the Installed firmware
version and the serial number for both the DSP05 OLED
Display and the connected VBOX data logger. You can
also find the unit type for the connected VBOX data
logger.
The firmware version of the OLED Display will also be
visible on the screen while it boots up.
Back
Press the square button with this line highlighted to go
back to the Main Menu.
Exit
Press the square button with this line highlighted to exit
the Menu and go back to the Display Modes.
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/VBOX_OLED_Display_DSP05-M/
Quick_Start_ uide_%E2%80%93_OLED_DSP05-M
20
