Racelogic RLACS112F User manual

Li-ion Battery Pack User Manual
•01 - Li-ion Battery Pack Introduction
•02 - Li-ion Battery Pack Charging
•03 - Li-ion Battery Pack Short Circuit Protection
•04 - Li-ion Battery Pack Disposal
•05 - Li-ion Battery Pack Technical Specification
•06 - Li-ion Battery Pack Declaration of Conformity
1

01 - Li-ion Battery Pack Introduction

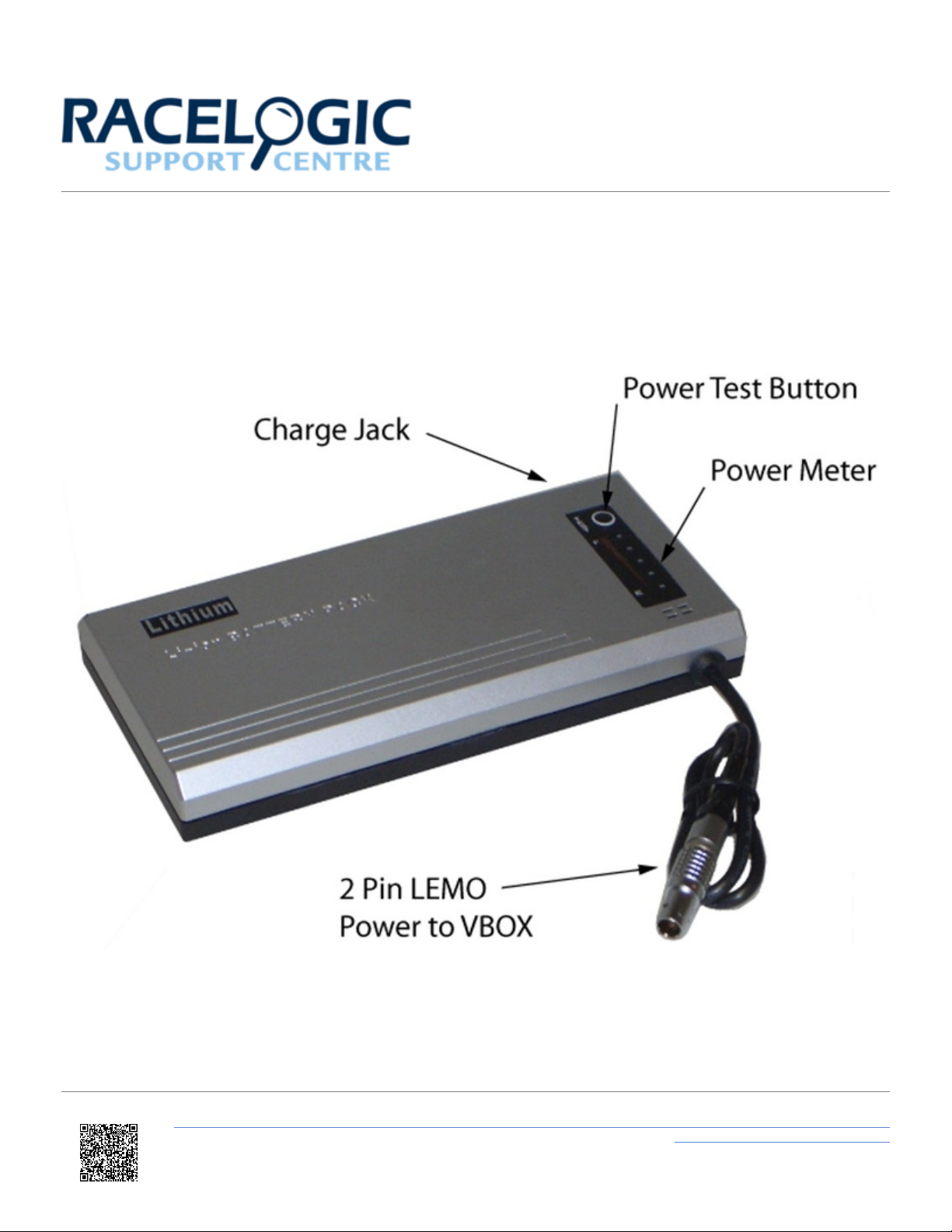

A 12 V, 5 Ahr Universal rechargeable Li-ion battery pack for use with Racelogic VBOX products.
A battery pack is especially useful if you cannot access the auxiliary power supply of your car or motorcycle, or if you
want to avoid accidental data loss which can happen when the unit is power cycled before the data has been
transmitted. When using a battery pack with IMU integration, for example, the IMU calibration does not have to be re-run
https://en.racelogic.support//Product_Info/Modules_and_Accessories/Lithium-ion_Battery_Pack/Li-ion_Battery_Pack_User_Guide/
01_-_Li-ion_Battery_Pack_Introduction
2

if the ignition is being temporarily turned off between tests. The battery packs come with different connectors and
charging plugs (AU/EU/US/UK)
Warning
The following safety warnings must be observed at all times:
• To avoid risk of fire, explosion or shock hazard, do not expose the unit to rain or moisture.
• Do not disassemble the battery pack. Doing so could damage the internal battery risking fire or explosion.
Key features
• Effective power supply/backup
• Helps to avoid data loss
• Five level LED indicator
• Quick charge (3 – 3.5 hrs max.)
• Includes battery charger
• Minimum of 5 hours of use from a full charge (dependent on the power draw of the VBOX unit in use)
Versions
Product Code Description Compatability
RLACS112F
Universal rechargeable Li-ion
battery and charger with 2 way
Fischer Plug
For use with VBOX Micro and
Performance Box Sport
RLACS112H
Universal rechargeable Li-ion
battery and charger with Hirose
Plug
For use with Video VBOX
Waterproof
RLACS112L
Universal rechargeable Li-ion
battery and charger with 2 way
Lemo Plug
For use with all VBOX units and
Video VBOX Pro
RLACS112M
Universal rechargeable Li-ion
battery and charger with Locking 2.1
mm Plug
For use with Video VBOX Lite
https://en.racelogic.support//Product_Info/Modules_and_Accessories/Lithium-ion_Battery_Pack/Li-ion_Battery_Pack_User_Guide/
01_-_Li-ion_Battery_Pack_Introduction
3

02 - Li-ion Battery Pack Charging
Use the supplied AC charger only. Failure to use supplied charger could lead to risk of explosion or fire. Never
leave battery charging unattended.
Before the battery pack is used for the first time, it is important to charge fully for 3 hours:
1. Connect the AC charger to mains wall outlet.
2. Connect the DC out plug of the AC charger to charge jack on the battery pack.
3. Set the ON/OFF switch (underneath battery pack) to the 'ON' position.

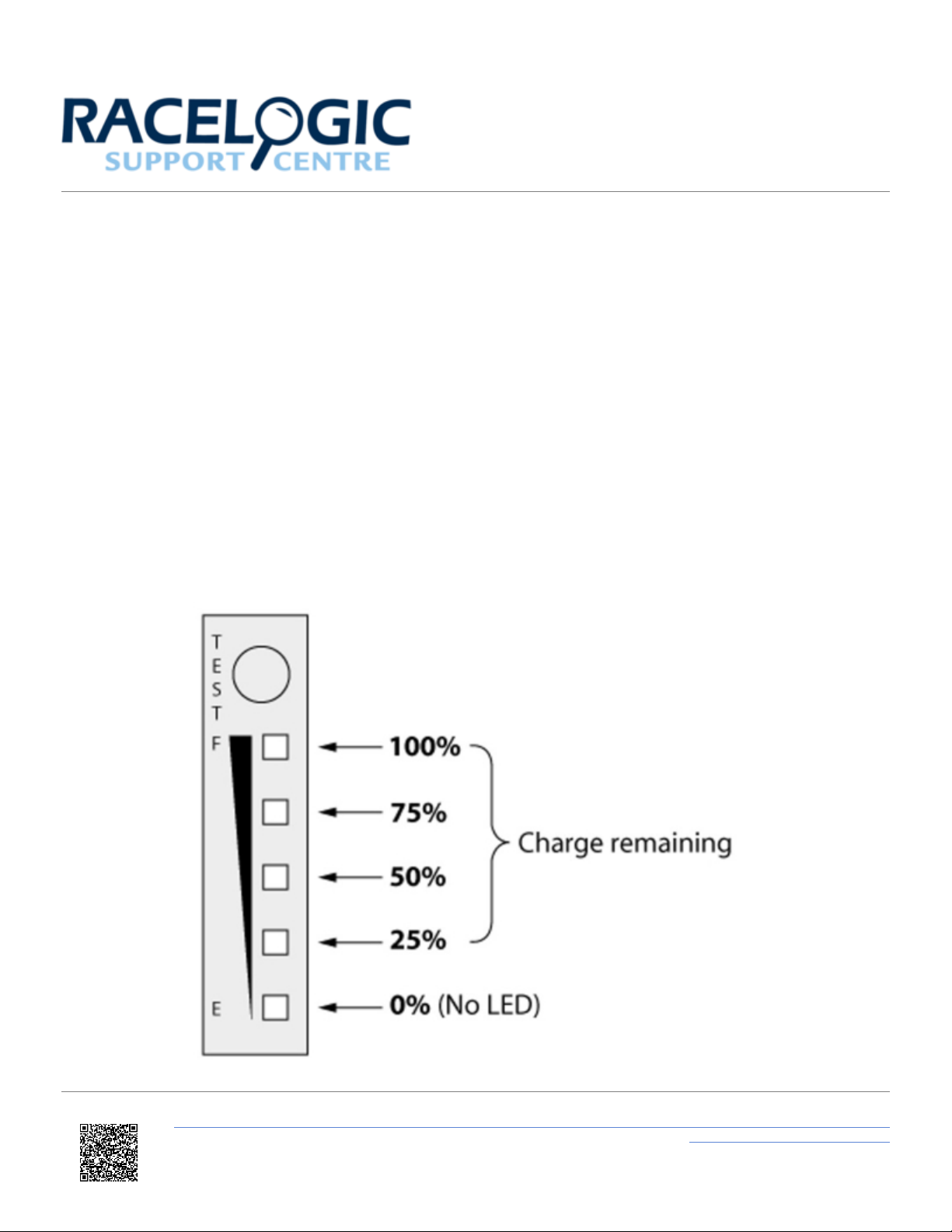

Pressing the 'Test' button should cause the battery charge status to be displayed on the LED
gauge. If no LEDs are illuminated, the battery requires charging using the supplied AC adapter.
https://en.racelogic.support//Product_Info/Modules_and_Accessories/Lithium-ion_Battery_Pack/Li-ion_Battery_Pack_User_Guide/
02_-_Li-ion_Battery_Pack_Charging
4

AC Charger LED behaviour
Off No power
Red Battery charging
Green Battery full charge
https://en.racelogic.support//Product_Info/Modules_and_Accessories/Lithium-ion_Battery_Pack/Li-ion_Battery_Pack_User_Guide/
02_-_Li-ion_Battery_Pack_Charging
5

03 - Li-ion Battery Pack Short Circuit Protection
The battery pack features protection against direct short circuit. If the short circuit protection is
activated, the battery output will be switched off.
To re-instate battery output, set the ON/OFF switch to 'OFF' and then back to 'ON'.
https://en.racelogic.support//Product_Info/Modules_and_Accessories/Lithium-ion_Battery_Pack/Li-ion_Battery_Pack_User_Guide/
03_-_Li-ion_Battery_Pack_Short_Circuit_Protection
6

04 - Li-ion Battery Pack Disposal
The battery pack contains Lithium-ion cells. Please ensure that it is disposed of at an approved
recycling centre.
https://en.racelogic.support//Product_Info/Modules_and_Accessories/Lithium-ion_Battery_Pack/Li-ion_Battery_Pack_User_Guide/
04_-_Li-ion_Battery_Pack_Disposal
7

05 - Li-ion Battery Pack Technical Specification
Cell Lithium-ion cell
Battery capacity 60 Wh
Battery output voltage DC 9 V/12 V
Battery output current 2 A
Charge time 3 hours (3.5 hours maximum charge)
Cycle life More than 500 times
Charge temperature 0 – 40°C
Discharge temperature -20 to +60°C (recommended -10 to +50°C)
Storage temperature -10 to +40°C (recommended -5 to +35°C)
Battery size 157 mm x 76.4 mm x 22 mm
Battery weight 420 g
Battery gauge Five level LED indicator
Battery protection Over-charge/ over-discharge/ excess current/ short
circuit
https://en.racelogic.support//Product_Info/Modules_and_Accessories/Lithium-ion_Battery_Pack/Li-ion_Battery_Pack_User_Guide/
05_-_Li-ion_Battery_Pack_Technical_Specification
8

06 - Li-ion Battery Pack Declaration of Conformity
This class B digital device complies with part 15 of the FCC rule, EMC standard regulations EN
55022 Class B and Canadian ICES-003.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
https://en.racelogic.support//Product_Info/Modules_and_Accessories/Lithium-ion_Battery_Pack/Li-ion_Battery_Pack_User_Guide/
06_-_Li-ion_Battery_Pack_Declaration_of_Conformity
9
