About This Getting Started Guide
The RB-2X Bantam Plus Portable Test System is designed as a stand-alone meter
test system. The product functionality can be extended through use of optional test
adapters (see section 1.1) to accommodate different meter and CT test applications.
Use this getting started guide for the RB-2X Bantam Plus Portable Test System to
perform the tasks shown below. Additional guidance and documentation can be
obtained by reviewing the Bantam Plus Operations Manual.
Test Meter Accuracy
Perform a Standards Compare.
Edit Meter Test Forms and Assign Operator Profiles
Read results
Transfer Meter Measurement data to an external controller.
1 Product Introduction and Specifications
This chapter provides an introduction to the RB-2X Bantam Plus Portable Test
System and contains the following sections:
1.1 Product Overview
1.2 Optional Accessories
1.3 Product Features
1.4 Safety Information
1.5 Specifications
1.1 Product Overview
The Radian Research, Inc. Bantam Plus Portable Test System is designed for fast
and accurate testing of electricity meters. The Bantam Plus combines advanced
capabilities of an automated meter socket, the accuracy of a Radian reference
standard as well as the embedded Winboard automated test software to provide a
lightweight, easy-to-use test system.

Bantam Plus Getting Started Guide v6 7
Radian Research, Inc.
The RB-2X Bantam Plus Portable Test System consists of the main components
shown below in Figure 1.
Figure 1 RB-2X Bantam Plus Portable Test System
Automated Meter Test Socket
‘Sensor Pro’ Infrared and
Visible Light optical sensor
Interface panel to access
external sensors, computer
peripherals & options.
Touch Screen color display
display.
Automated Meter Test Socket
Sound control keyboard
Status Indicators
display.
Automated Meter Test Socket

Bantam Plus Getting Started Guide v6 8
Radian Research, Inc.
1.2 Optional Accessories
Optional accessories and routine maintenance kits are available for the Bantam Plus
these include the following:
RB-MSA
Meter Socket Safety Power Adapter
Simply pull the meter and insert the safety
adapter into the exposed meter socket.
Adapter faceplate voltage banana sockets
provide easy access to service voltage.
RB-MTA
Meter Test Adapter An assembly that
plugs into the Bantam Plus meter socket
and delivers voltage and current (20 Amps
max) to the meter test socket.(see section
4.2.2)
RB-FPC
RB-2x Field Power Cable An eight foot
length of three core cable terminated with
alligator clips and banana plugs to
connect to meter socket service volts.
RB-IRDS
IR /Visible LED/Laser Disk Sensor, Band
Mount The most versatile three in one
meter pulse sensor assembly enables
meters to be tested in the socket.
RB-OPTOCOM
OPTOCOM Optics Kit –Port 1 Used for
meters that requires communication via
Optocom interface.

Bantam Plus Getting Started Guide v6 9
Radian Research, Inc.

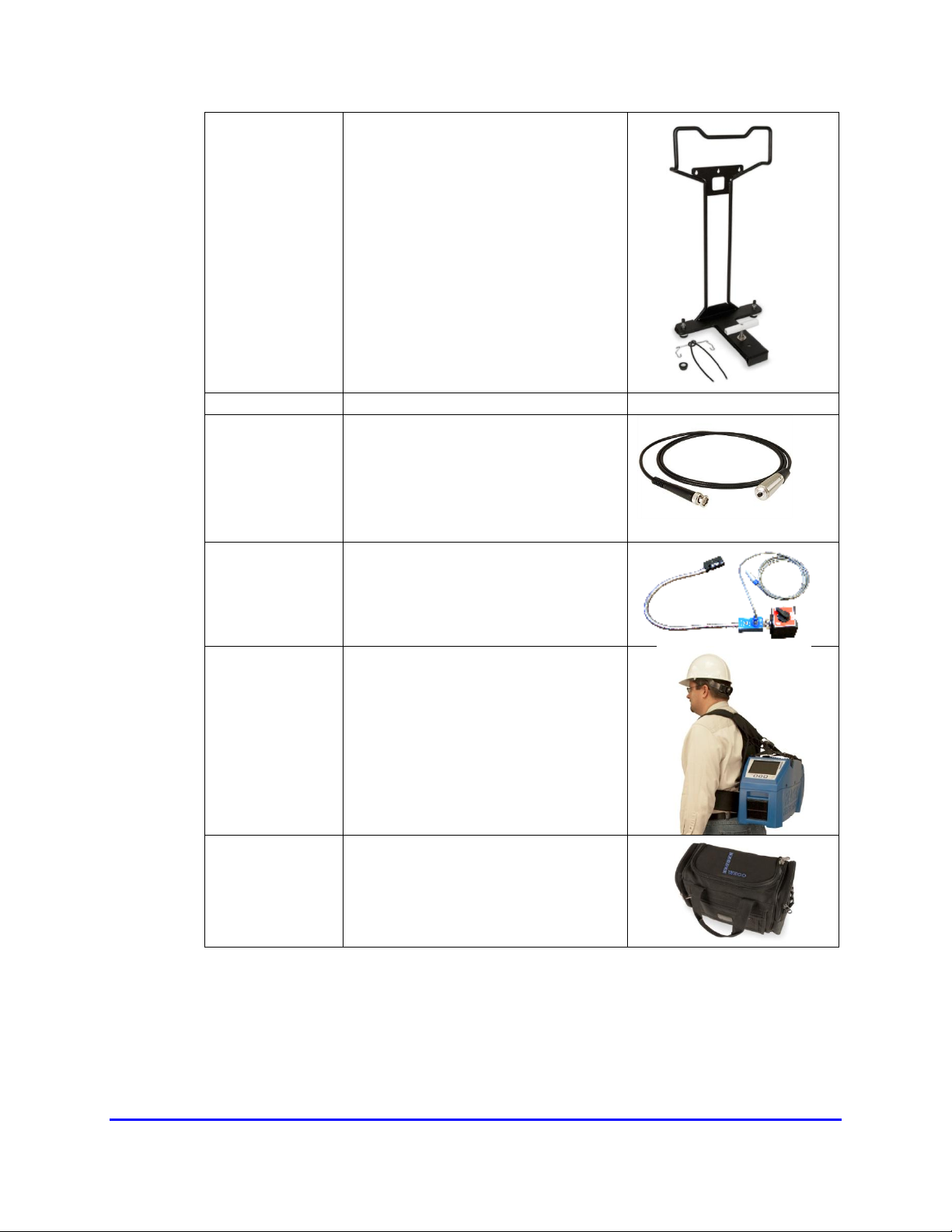

RB-MOUNT
Frame mount for Mechanical meter
orientation and wall mount capability.
RB-MECH
90 Degree Adapter for mechanical meters
RM-1S
The RM-1S Remote Reset Switch is a
normally closed push button switch. The
push-button has a tactile feel to provide
instantaneous feedback of switch
actuation.
RB-MAG
Magnetic Mount Optics Kit
RB-BPH
Back Pack carry harness
RB-BAG
Nylon Accessories Bag 12(l) x 8(h) x 5(w)
inch.

Bantam Plus Getting Started Guide v6 10
Radian Research, Inc.
RB-KYZIO

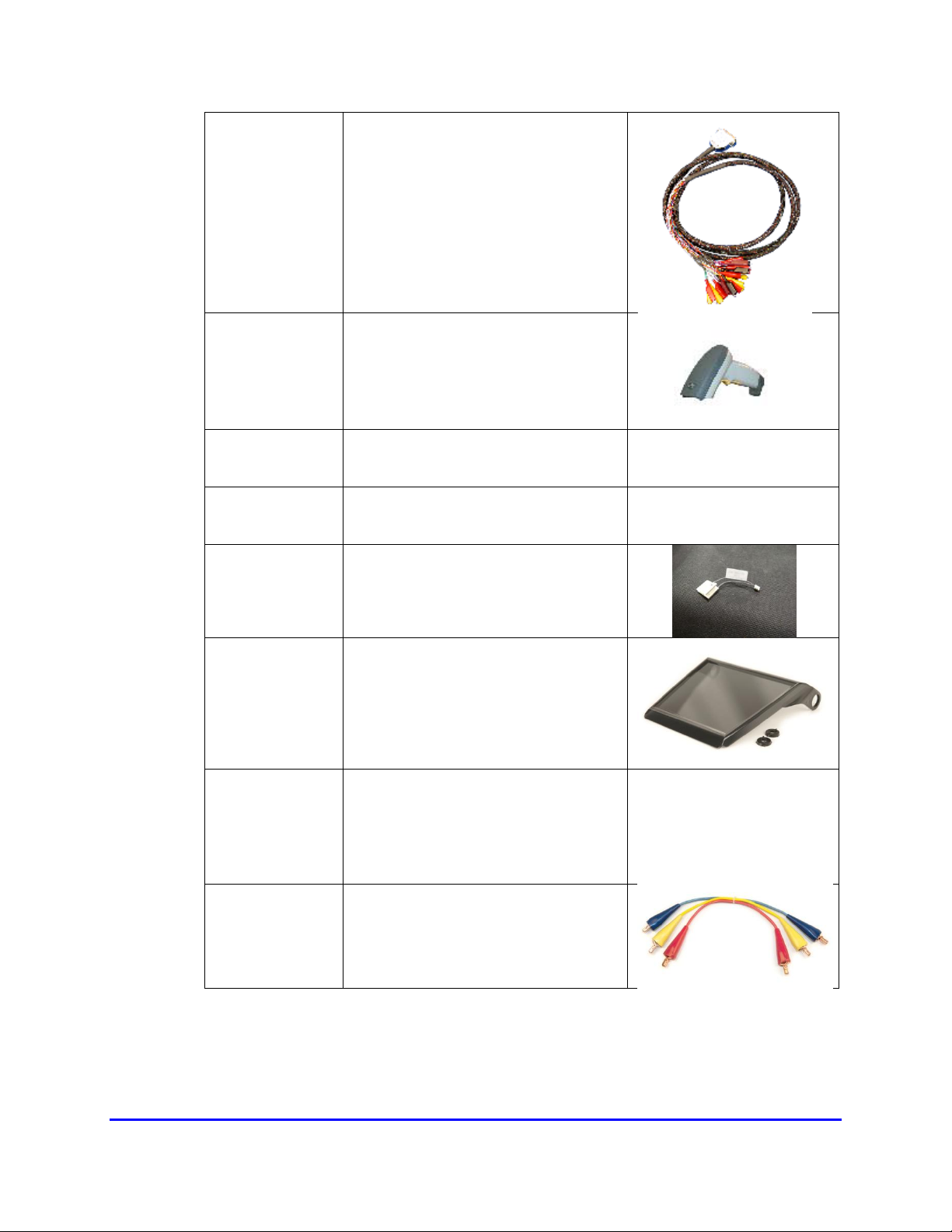

Advance I/O KYZ Breakout Cable
Connects to Bantam Plus KYZ port.
RB-BARCODE
Serial Barcode Scanner Collect Meter
Faceplate information and run meter tests
automatically from a barcode scanner.
RB-SCI
RB-2x to RS Calibration System Interface
Kit Used for interface to a Radian Syntron
System for calibration purposes.
RB-SCA
RB-2x to RD-2x Standards Compare
Adapter Used to interface with an
external RD for calibration purposes.
RB-SMK
RB-2x Socket Maintenance Kit Contains
pack of six field replacement socket
assemblies and one Torx drive.
RB-SCRN
RB-2x Replacement Screen Shield
Damaged or badly scratched screen
protectors are field replaceable.
RB-TSBR1
(Supplied with RB-
TSJ)
Test Switch Interface Adapter with
Burden and Ratio Testing An adapter that
plugs into the Bantam meter socket.
Provides access to clamp probes and
direct secondary current for CT
measurement.
RB-TSJ
Test Switch Current Jumper Kit (Supplied
with RB-TSBR1)

Bantam Plus Getting Started Guide v6 11
Radian Research, Inc.
1.3 Product Features
1.3.1 RB-2x Portable Test System
The RB-2x Bantam Plus Portable Test System offers the following features:
Integrated automated meter test socket.
Integrated pulse sensor.
3 Phase Test Current Output: 0.2 to 50 Amps.
Phase control: 0–359.95in 0.05steps.
Synthesized Voltage Output: 69 V to 480 V.
Integrated PC controller running Winboard software.
Supported Meter Forms - 1S, 2S, 3S, 4S, 5S, 6S, 8S, 9S, 10S, 12S, 13S, 14S,
15S, 16S, 25S, 26S, 29S, 35S, 36S, 45S, 46S, 56S, 66S, 96S
Optional CT, Burden testing.
Lightweight.
1.3.2 RB-2X Embedded Winboard Software
The RB-2X Winboard Automated software is used to run tests, assign sensors, set
meter form test sequences and view and store test results. The RB-2X Winboard
Automated Software offers the following features:
Touch Screen interface
USB and Ethernet Interface
Create/Edit test sequences for meter forms
Align Optics
Standards Compare test routines
Storage capacity is limited by the installed 120GByte solid state hard drive.
Create/Edit test reports
Maintain customer records

Bantam Plus Getting Started Guide v6 12
Radian Research, Inc.
1.4 Safety Information
Review the information in this section to avoid injury and prevent equipment
damage. The Bantam Plus was designed with safety in mind. The RB-2X socket will
not energize unless a meter is first installed. An Interlock switch will disable the
sources should a meter inadvertently be removed from the socket.
1.4.1 General Safety Summary
The operation of this equipment requires training and experience in electric
meter testing. The information in this getting started guide is designed to
supplement existing knowledge and experience already attained and practiced
by journeyman-level meter test technicians. Meter Technicians classified as
beginners should not attempt to operate this equipment without first gaining
the basic knowledge of meter testing and the application of meter testing
equipment from a certified training course.
Operation of this equipment involves high voltage. Always wear the
appropriate personal protective equipment and follow all safety precautions
specified for high voltage activities.
Follow proper grounding techniques when using this equipment.
Follow all safety guidelines contained in this getting started guide.
Do not use this equipment for any purpose other than for which it was
designed.
Do not operate the equipment outside of the environmental conditions
specified in this getting started guide.
Do not operate this equipment with covers or panels removed.
Keep equipment surfaces clean and dry.
Handle the RB-2X Bantam Plus Portable Test System with care; it is a
precision instrument.
Inspect the equipment before each use. Do not use the equipment if damage is
observed.
Use only cables provided by Radian Research, Inc.
WARNING
!
CAUTION
!

Bantam Plus Getting Started Guide v6 13
Radian Research, Inc.
1.4.2 Symbols Found on the Equipment
The following safety symbols appear on the RB-2X Bantam Plus Portable Test
System:
Danger of electrical shock.
Warning: Refer to Getting
Started Guide or Operations
Manual
1.4.3 Conventions Used in this Getting Started Guide
The following conventions are used in this getting started guide to highlight
important information:
Indicates an imminently hazardous situation that
can result in death or a serious injury.
Indicates a potentially hazardous situation that
can result in an injury or equipment damage.
Indicates important information you should review
before proceeding.
WARNING
!
CAUTION
!
NOTE


Bantam Plus Getting Started Guide v6 14
Radian Research, Inc.
1.5 Specifications
1.5.1 RB-2X Bantam Plus
Operational
Supply voltage
90 to 300VAC, 60 Hz
Test current
0.2 A to 50 A (limited to 20 Amp when using optional RB-
MTA test adapter)
Phase
0–359.95
Accuracy
RB-20: 0.04%, RB-21: 0.02%
Physical
Size
Height: 14.4 in (370 mm)
Width: 10.2 in (260 mm)
Length: 20.4 in (520 mm)
Weight
31.5 lbs (14.29 kg)
Warranty
2-year warranty against defects in material or workmanship;
care plans are available to extend warranty
Electrical
Protection
Line power: 5 A Breaker
Reference standard: Contains internal fuses, not accessible to
operator.
Environmental
Temperature range
−10º to 50º C (-4º to 122º F)
Relative humidity
5–95%
Shock and vibration
Any which is nondestructive
Water resistance
Not airtight or watertight
Supplied Cable
Length
10 ft RB-SPC Shop Power Cable & RB-FPC Field Power
Cable terminated with alligator clips
Cable type
Three core power cable with ground

Bantam Plus Getting Started Guide v6 15
Radian Research, Inc.
1.5.2 RB-2X I/O Connection
The I/O connection panel contains three different connectors, each suited to a
particular type of optics for external meter test.
Pulse Port 2 is assigned to the onboard sensor.
Inserting an external sensor will bypass the
onboard sensor.
The onboard sensor „Port 1‟ is default unless the
test sequence is changed to reflect Optics Port 2 or
Port 3.
Port 1
Is reserved for an Optocom* Optics (Model RB-
Optocom) cable. Optocom Optics allows the operator to
not only detect pulses from solid state meters, but also
allows the operator to program the meter without
changing the optical head. *Optocom is a registered trade mark of
Optocom Corporation.
Port 2
A LEMO® connector reserved for optical accessories
including suction-cup based reflect and solid state
optics.
Port 3
A BNC connector reserved for an optional click-switch
adapter RB-CLICK or an optics sensor with BNC
termination. The BNC connector is also used when
conducting a standards compare test.
AUX
The AUX port is designed for connection to optional socket
adapters including the RB-TSBR1 CT Ratio & Burden
adapter.
Advanced I/O
This connector is assigned for testing meters with KYZ
(Model RB-KYZ10). The Advanced I/O connector provides
many capabilities for the testing of solid state meter. It can
NOTE


Bantam Plus Getting Started Guide v6 16
Radian Research, Inc.
accommodate up to six Form A contact inputs or four Form C
and two Form A contact inputs. For outputs, it has one
programmable output allowing 0.01 to 40 seconds between
contact transitions and a quantity of pulses (1 to 4094) to
output. In addition two outputs can be software set high or
low. There is also an unregulated 12VDC output. The

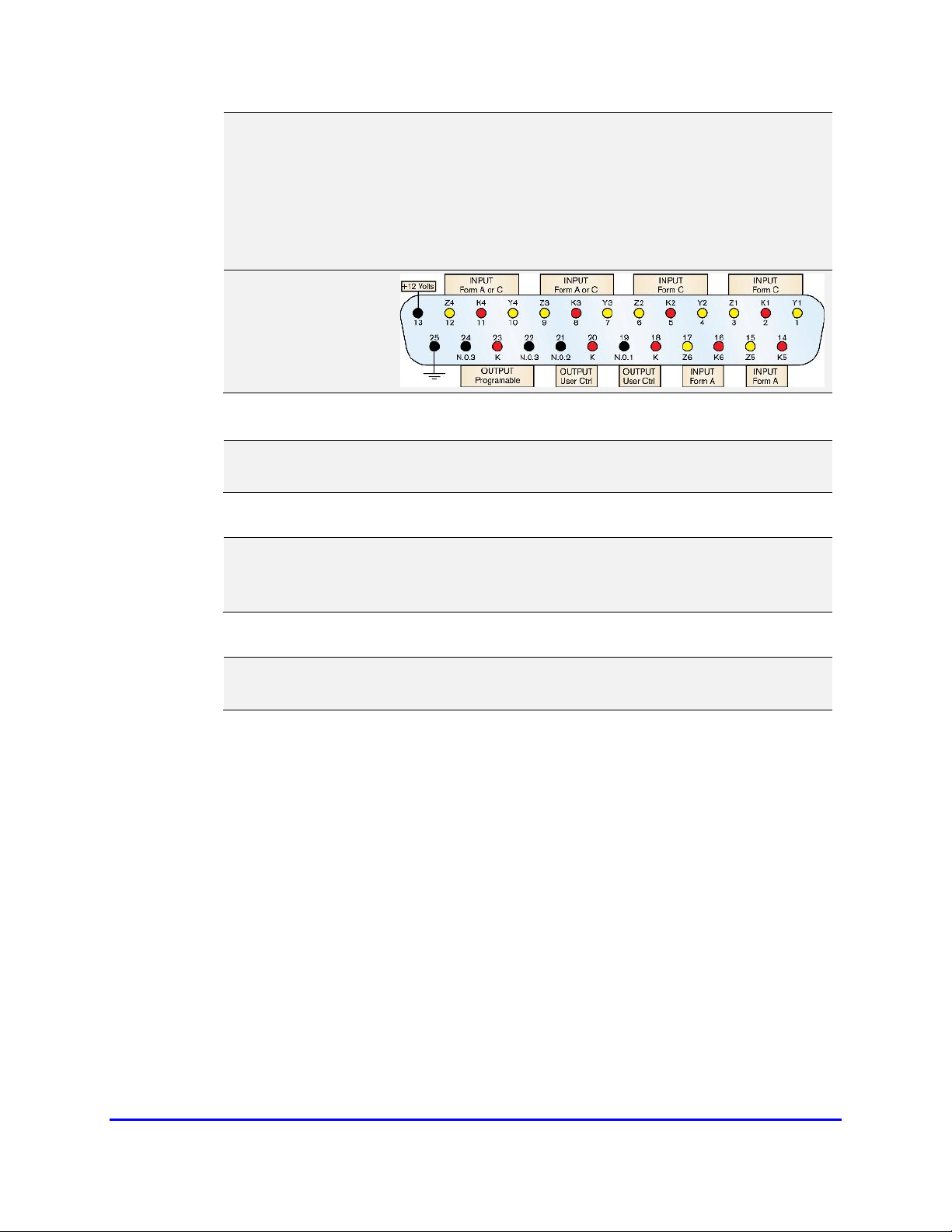

following illustration depicts the connection diagram of the
advanced I/O connector.
IOIOIO
A serial port used for external peripherals and options
including bar code readers.
USB
Two USB connectors are available for use with peripherals
including memory drives, remote keyboard or mouse,
wireless adapters, etc.
Ethernet
10/100 Ethernet connection that can be used to connect the
Bantam Plus to a local area network.

Bantam Plus Getting Started Guide v6 17
Radian Research, Inc.
2 Operation Preparation
This chapter provides information on preparing to use your RB-2X Bantam Plus
Portable Test System and contains the following sections:
2.1 Getting Started
2.2 Operational Considerations
2.1 Getting Started
2.1.1 Thank you for your purchase
Thank you for purchasing this quality Radian Research, Inc. product. Radian
reference standards are recognized throughout the world for their unparalleled
accuracy, precision, and stability. We have taken every effort to ensure that your
RB-2X Bantam Plus Portable Test System reaches you in perfect condition.
Your satisfaction is very important to us, and your continued loyalty is greatly
appreciated. If for any reason your Radian product does not meet your expectations
of exceptional performance, please contact your sales representative or Radian
Research, Inc.
Radian Research, Inc.
3852 Fortune Drive
Lafayette, IN 47905 USA
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.radianresearch.com

Bantam Plus Getting Started Guide v6 18
Radian Research, Inc.
2.1.2 Preparing Equipment for Use
Follow these steps to prepare your RB-2X Bantam Plus Portable Test System for
use.
1. Unpack and inspect:
Carefully remove the equipment from the packaging, and check for any signs
of damage.
If you observe any damage to the equipment,
immediately notify the carrier and your sales
representative.
2. Verify the contents:
The following items are included in your shipment:
oRB-2X Bantam Plus
oRB-SPC-10 Shop Power cord and RB-FPC-10 Field Power cable
terminated with alligator clips.
oCarry Handle with Folding Cover
oWATT-Net PC Software (Base) CD and Getting Started Guide ( see
Figure 2)
oCalibration report(s)
oBantam Plus Getting Started Guide
oOptional accessories (maybe packaged separately)
(see Section 1.2 )
NOTE


Bantam Plus Getting Started Guide v6 19
Radian Research, Inc.
3. Information about your equipment software:
Your new Bantam Plus is shipped with Winboard software installed. In
addition, the Bantam Plus will arrive with a WATT-Net PC Software
(Base) CD when installed on an external PC can be used for import/export
data management. This base software is supplied with generically define
fields. If you wish to customize the fields or are already using WATT-Net
within your organization you may purchase optional customization
packages. For more information on customization contact your Radian
representative or Radian directly at 765-449-5500.
If you intend to purchase optional software
database customization this should be done
before you begin to export data from your
Bantam Plus. Integrating export data collected post
optional database customization may result in lost
data. (see section 5.1.5 )
NOTE

Figure 2 WATT-Net and Winboard Software Data Transfer

Bantam Plus Getting Started Guide v6 20
Radian Research, Inc.
4. Register your equipment (see Section 2.1.3, Registering Your Equipment) to:
Activate the equipment warranty.
Receive firmware and software updates as well as product application notes
from Radian Research, Inc.
You must register your equipment at
www.radianresearch.com/reg to activate the two-
year equipment warranty. If you do not activate
the warranty, the warranty period is limited to
one year.
NOTE

