Radic8 VK MEDI User manual

USER GUIDE AND INSTRUCTIONS
AIR STERILISER
VK MEDI

3
Dear Customer
Thank you for purchasing the VK Medi Air Steriliser, this is “clean
air technology” at its best. This product is packed with power and
technology to provide fast and ecient clean air. We hope that
you enjoy using your new unit!
• Use the unit only for its intended use.
• To protect against a risk of electric shock, do not immerse
any part of the system in water or in any other liquids.
• This appliance is NOT a toy.
• This appliance is NOT to be used by children or persons
with reduced physical, sensory or mental capabilities.
• Children should be supervised at all times.
• Never look directly at a burning ultra-violet light, as this
may permanently damage your eyes.
• To reduce the risk of an electric shock or damage to the
unit, switch the off and unplug before cleaning or per-
forming any maintenance to the unit.
• Heed all warnings
READ ALL INSTRUCTIONS BEFORE USING YOUR UNIT
When using your VK Medi, basic safety precautions
should be observed, including the following:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY
WARNING

4
IMPORTANTSAFETYINSTRUCTIONS...................................................................3
SYMBOLS USED IN THIS MANUAL ...................................................................... 4
INSTALLATION SAFETY ..................................................................................... 5
KEY PARTS AND COMPONENTS .......................................................................... 7
THE UNIT .............................................................................................. 7
DISPLAY MONITORING .......................................................................... 8
REMOTE CONTROL ............................................................................... 9
CLEANING AND MAINTENANCE ........................................................................10
CLEANING THE PRE- FILTER .............................................................. 10
REPLACING THE HEPA FILTER ............................................................ 10
REPLACING THE REACTOR CHAMBER .................................................. 11
ERROR MESSAGES ........................................................................................... 12
TROUBLESHOOTING ........................................................................................ 13
CUSTOMER SERVICES...................................................................................... 14
SPECIFICATIONS .............................................................................................. 14
Warning – Indicates important safety instructions that must be
followed to avoid injury.
SUMMARY
EN USER GUIDE AND INSTRUCTIONS
Caution – Indicates important information to your attention to
avoid the risk of injury or damage to the unit
Prohibited – Indicates forbidden action

5

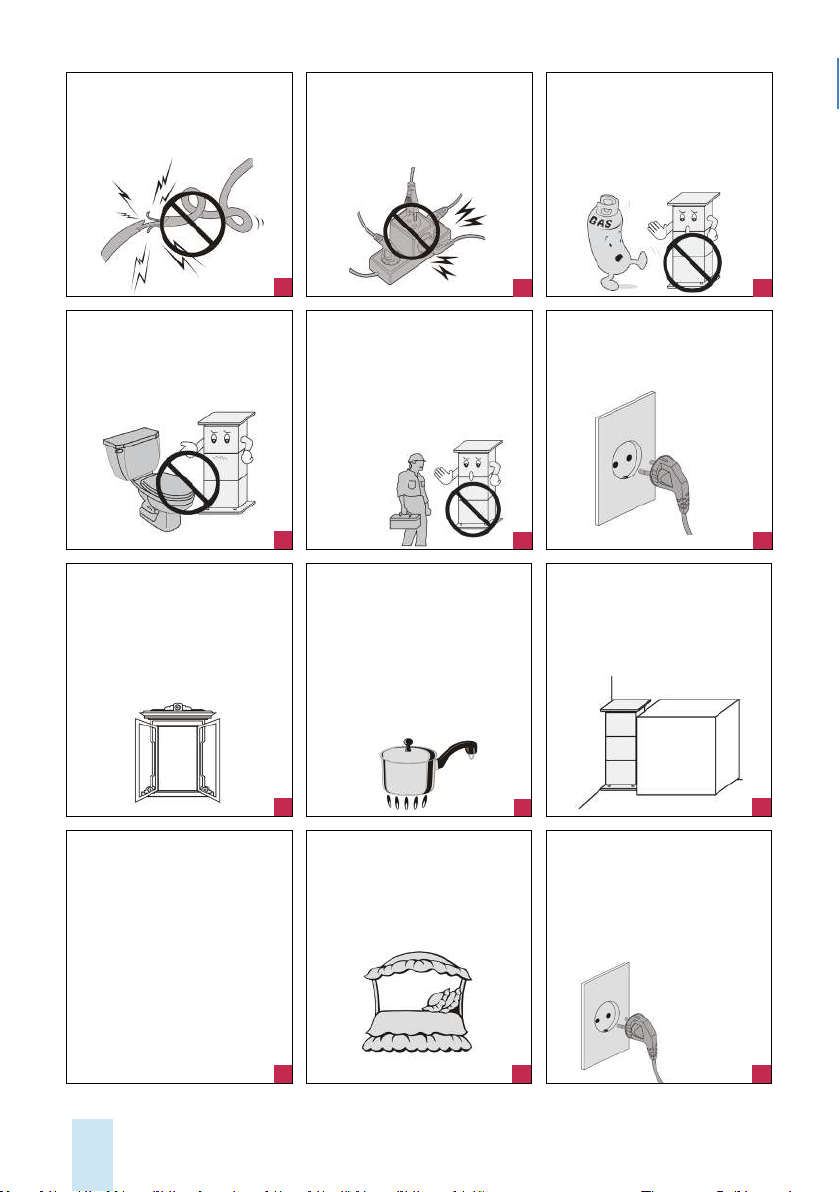

INSTALLATION SAFETY
Should the unit emit smoke,
unusual odors or make any
strange noises, immediately
switch off the unit unplug it.
Contact your distributor.
Make sure the power cord is
plugged rmly into the outlet.
If the power is not plugged in
correctly, this may cause a re.
Do not spray inammable
materials near the unit, as this
is a re hazard.
Do not touch the plug with
wet hands, as this may cause
serious injuries.
Do not sit, stand or place heavy
objects on the unit, as this may
result in injury and/or damage
to the unit
Do not block the air inlet of
the unit, as this will reduce the
airow and result in poor per-
formance and damage the unit.
Do not move the product while
it is switched on. as this may
cause a re and/or an electric
shock.
No form of water or liquid
should enter the unit. Should
this occur, immediately switch
off the unit and unplug it.
Contact your distributor.
Do not place any heavy
objects on the power cord as
this may cause a re and/or
an electric shock.
1
4
7 8 9
2
5
3
6

6
Switch the unit OFF, when
cleaning a room.
After cleaning, it is important
to ventilate the room properly
before switching the unit back
ON.
Daily room ventilation for at
least 30 minutes.
The unit is designed to purify
and sterilize your indoor air and
will do this effectively when
used correctly. Good indoor
air quality also requires room
ventilation. We recommend
opening windows and doors, or
operating the air conditioning,
for a least 30 minutes a day.
Switch the unit OFF, while
cooking.
Oils released while cooking may
reduce the life span of the ster-
ilizer. After cooking, the room
must be ventilated to remove
oils. You may now switch the
unit ON to remove any smells.
Position the unit at least 3
meters away from the bed,
to avoid excessive cooling
caused from sleeping in direct
airow.
Airow must NOT be
restricted or obstructed,
by large items such as fur-
niture, electronic items or
curtains.
Use a dedicated power outlet.
Lightning or static electricity
could affect the circuit and
may cause a re or damage
the unit. To avoid this, plug the
unit into a dedicated, grounded
outlet.
Do not alter or modify the plug
or cord of this unit as it could
cause a re or an electric
shock.
To protect against a risk of
electric shock, do not immerse
any part of the system in water
or in any other liquids.
Do not attempt to repair or
replace any part of this equip-
ment unless it is specically
recommended in this manual.
All other services should be re-
ferred to a qualied technician.
Plug the unit into a 220V AC
outlet only, if unsupervised, it
may cause an electric shock.
Use the proper power cable
and outlet, do not over-load
the outlets with several cords
simultaneously.
Keep the product away from
inammable gases, liquids, or
other combustible substances,
as this could cause an explo-
sion.
220V
10
13
16
19
11
14
17
20
12
15
18
21

7

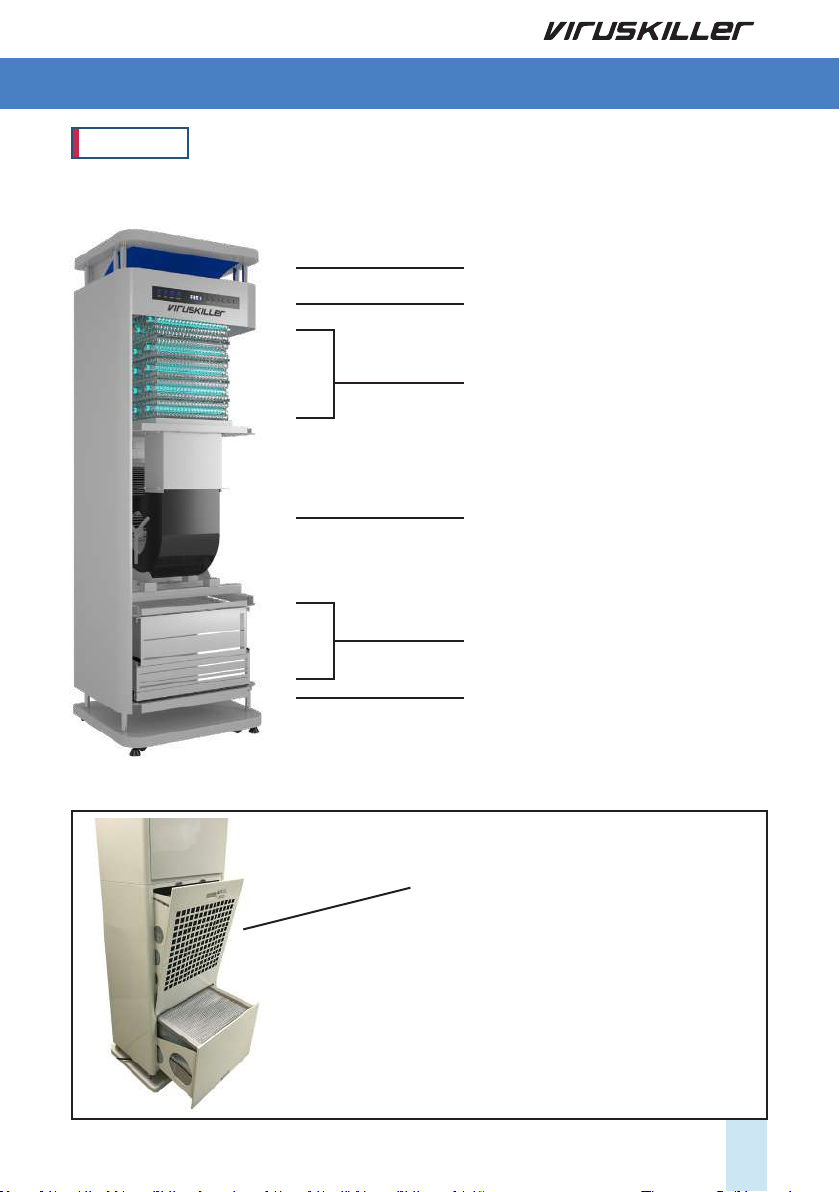

KEY PARTS AND COMPONENTS
Four Way Air Outlet
Display and monitoring
Reactor Cell
Sirocco Fan
Carbon Filter
HEPA Filter
Pre Filter
Four Way Air Inlet
THE UNIT
The VK Medi has an extra “back lter tray”,
which allows it to integrated into a positive
pressure system.

8
Remote control
sensor
Reactor Replacement
Alarm
Filter Replacement
Alarm
VOC’s Static Display
Dust Static Display (LED)
Display
Power button ON/OFF
Fan speed UP
Fan speed DOWN
LED ON/OFF
TIMER
UVC ON/OFF
Name Function
Display and
Monitoring
Changes the information displayed on the LED in the following order: UV
Lamp Time, Current Temp, Fan Speed.
Remote Control
Sensor
Point your remote control at the sensor in order to use your remote oper-
ate the unit.
Reactor Replacement
Alarm
When this LED turns from blue to red, it is time to replace the reactor cell.
Filter Replacement
Alarm
When this LED turns from blue to red, it is time to replace the lters.
VOC’s Static Display Color indicates air quality: blue – good, yellow – normal , red – poor
Dust Static Display Color indicates air quality: blue – good, yellow – normal , red – poor
Timer Sets a working time for the unit. The unit will stop after the specied time
has passed.
LED ON/OFF Hold the “lamp” button down for a few seconds in order to switch the LED
lights ON/OFF.
UVC ON/OFF Turns the UVC lamps ON or OFF. (Keep this on for air sterilization, keep it
off for simple air purication through the mechanical lters)
Fan Speed Press the “Up” button to increase the fan speed. Press the “down” button
to decrease the speed. Fan speeds: FAN 1 (Quiet), FAN 2 (Normal), FAN 3
(High Speed).
Power button
ON/OFF
To switch the unit ON/Off. You will hear a beep sound.
DISPLAY AND MONITORING

9
1) Power On/Off 5) LED Lamp On/Off
3) Mode
4) Timer
2) Fan Speed
No Name Function
1) Power ON/OFF To switch the unit ON/Off. You will hear a beep sound.
2) Fan Speed Increase the fan speed. Fan speeds: FAN 1 (Quiet), FAN 2 (Normal),
FAN 3 (High Speed). Decrease fan speed.
3) Mode Changes the information displayed on the LED in the following order:
UV Lamp Time, Current Temp, Fan Speed
4) Timer Sets a working time for the unit. The unit will stop after the specied
time has passed.
5) LED Lamp ON/OFF Used to switch the blue LED Lamp ON/OFF on the unit.
REMOTE CONTROL

10

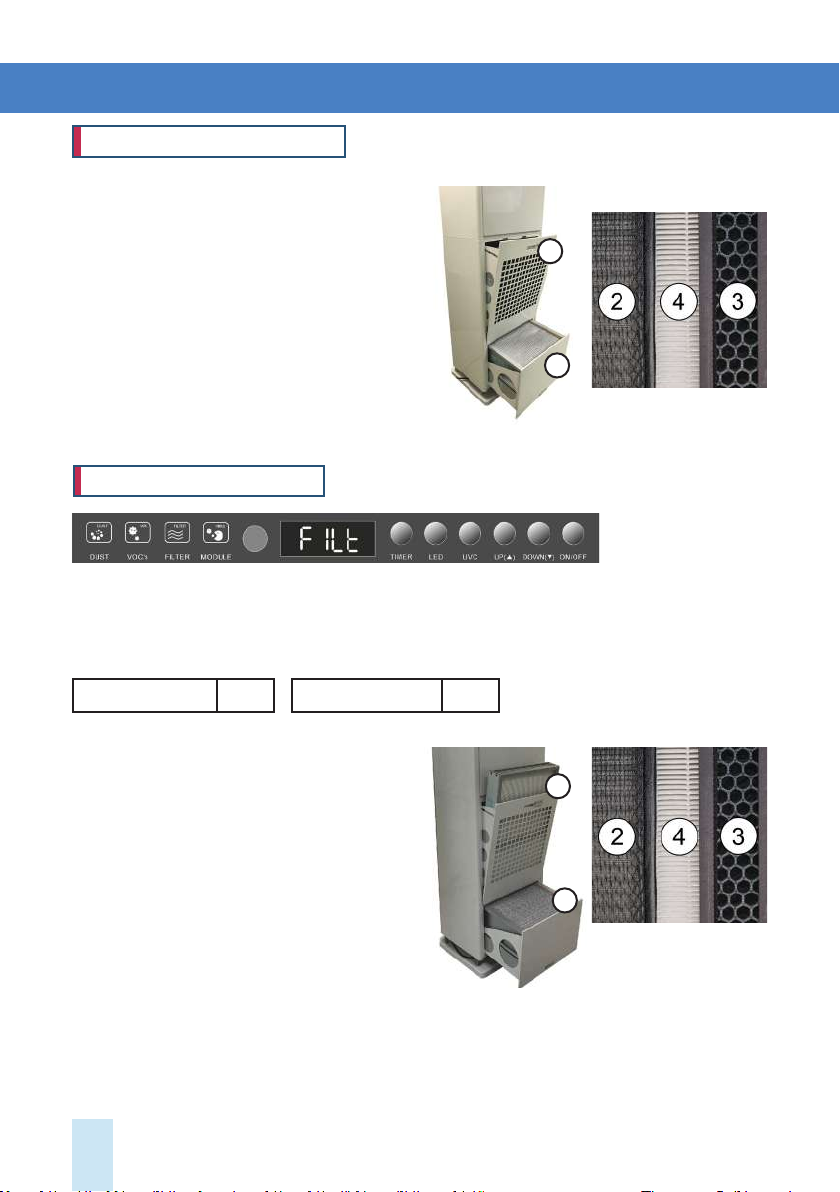

CLEANING THE PRE-FILTER
Replacing the HEPA lter
The plastic pre-lter is reusable. To clean it,
follow this procedure:
1. Pull out the bottom lter case ①
2. Remove pre-lter ② from lter case ①and
separate from carbon lter ③ and HEPA lter ④.
3. Clean the pre-lter with a vacuum cleaner.
4. Place the lter back into the lter case.
5. Repeat the process for the top lter case ⑤
1. Pull out the bottom lter case ①
2. Separate the carbon lter ③ and HEPA lter
④ from the pre lter ②
3. Replace them with new lters.
4. Place them back into the lter case.
5. Repeat the process for the top lter case ⑤
6. Press the UP button on the Display for at least
5 seconds, to reset the Filter timer to zero.
CLEANING AND MAINTENANCE
HEPA lters (hrs) 6000 Carbon lters (hrs) 6000
When the Filter LED light changes to RED, it is time to replace the HEPA and Carbon lters. The
HEPA and Carbon lters are not reusable and should be replaced. Please contact your distributor to
purchase replacement HEPA and Carbon lters. Depending on the levels of pollution, the lifetime of
the HEPA lter may be longer or shorter than the recommended use times below:
5
1
5
1

11

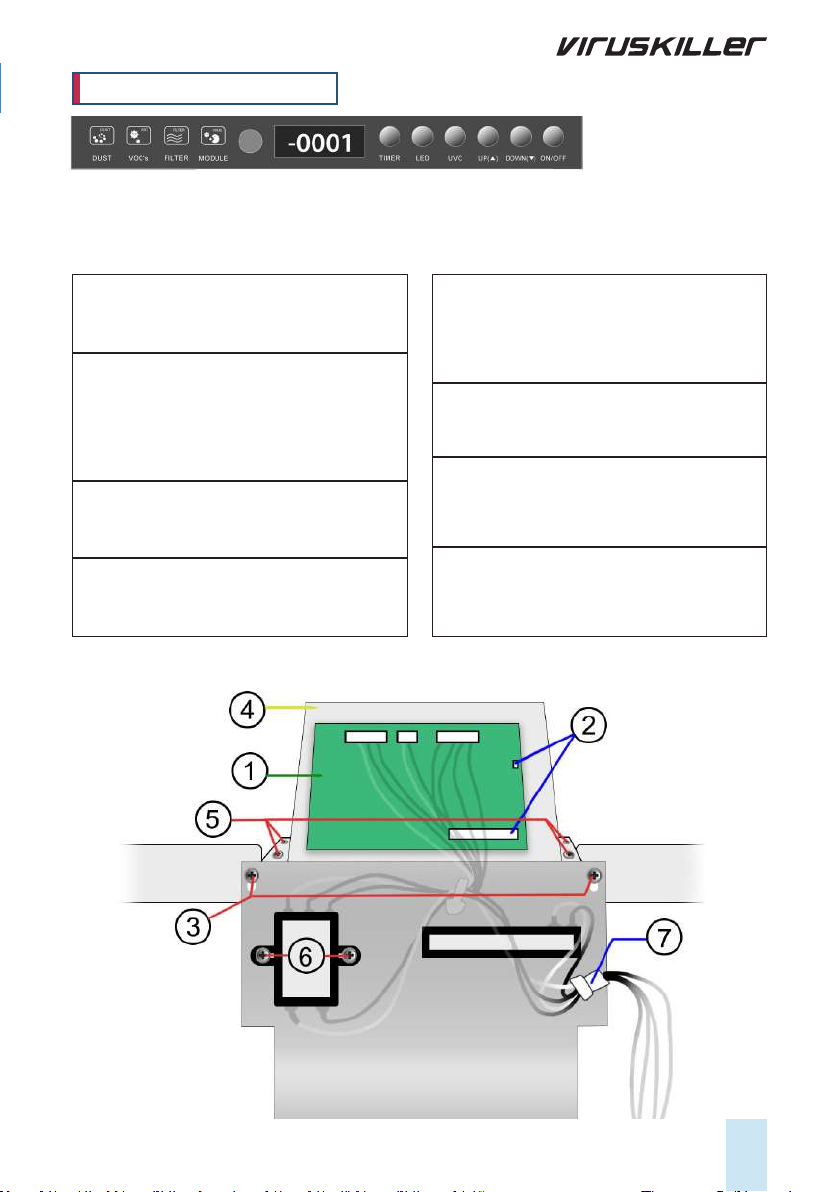

Replacing the Reactor Cell
In order for the VK Medi to remain functional, the reactor chamber must be replaced every 8000
hours. Your unit will indicate that a change is required by displaying a “-0001” code on the LED
Display .
1. From the top PCB board ①, disconnect the 2
cables connecting the reactor cell to the back
of the unit ②.
2. On the side, you will see 2 long cables con-
necting the reactor cell to the bottom right
of the unit. One cable Is red and yellow, while
the other one Is black and white. Disconnect
these cables and bring them the front of the
unit.
3. Remove the 2 screws on the ③top and 3
screws on the bottom, which attach the reac-
tor cell to the unit.
4. You can now remove the old reactor cell,
making sure no wires are still connected to
the main unit
5. You must now separate the top white part
④, holding the PCB board, from the old reac-
tor cell and move It to the new reactor cell.
First, unscrew the top 4 screws ⑤, that attach
the white, metal box to the old reactor cell.
6. Unscrew the 2 screws holding the com-
ponent marked with ⑥, and disconnect the
wires ⑦.
7. Now carefully lift the top part, holding the
PCB, and mount it on the new reactor cell in
reverse order. Then place the new reactor cell
inside the unit and assemble in reverse order.
8. Now switch your VK Medi back on, press and
hold the down button for 14 seconds, to reset
the warning timer. Your VK Medi is ready for
the next 8000 hours.

12

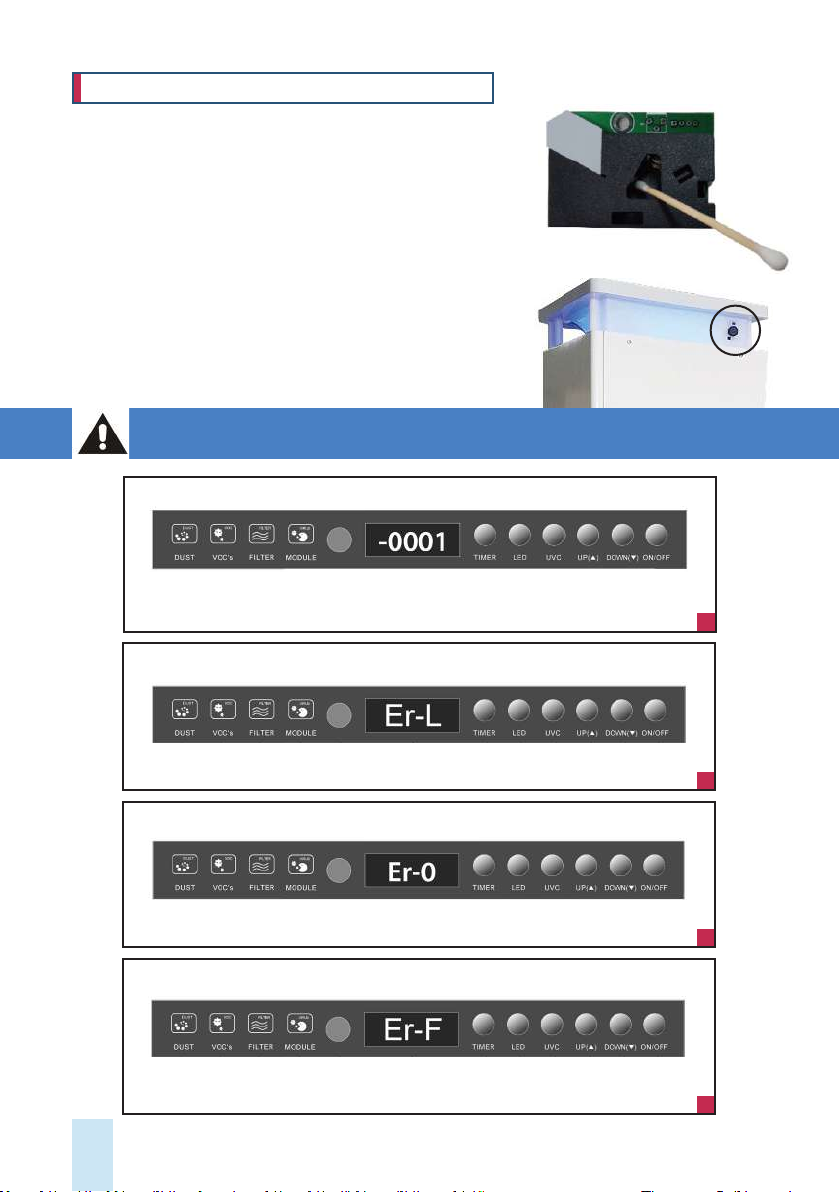

ERROR MESSAGES
Reactor Cell change
UV Lamp malfunction
Circuit overheat error
Fan error
The lifespan of the Reactor Cell is 8000 hours of use. When this time has passed,
the timer on the unit will display with a minus (-). When you see this warning
message, it is time to replace the Reactor Cell.
This is an error message that refers to a malfunction of the UV lamps. Turn the
unit off and contact customer service.
This is an error message that refers to a malfunction of the UV lamps. Turn the
unit off and contact customer service.
This error indicates that the fan is not working properly. Turn the unit off and
contact customer service.
Cleaning the Air Quality Sensor (IAQ Sensor)
Cleaning the Indoor Air Quality (IAQ) Sensor
The IAQ sensor is a very delicate instrument that uses light
scattering to detect pollution. It therefore needs a clean lens to
work effectively. Regular maintenance (every 6 months)
should be carried out to keep the lens clean.
Important - Only use pure water and allow to dry completely
before replacing. To avoid damage to the plastic lens do not
use chemicals such as benzene or alcohol etc.
Procedure to maintain and clean the IAQ Sensor:
Locate the IAQ sensor on the side of the unit
Clean lens with a clean cotton swab dampened with
pure water as shown in the image on the right.
Allow lens to dry completely.
1
2
3
4

13
TROUBLESHOOTING
Before you call for service, review this list. It may save you time and expense. This list includes co-
mmon occurrences that are not the result of defect in workmanship or materials.
Problem Possible cause Solution
The product
will not turn on
The plug is not properly insert-
ed in the grounded outlet.
Plug the device into a working grounded
outlet.
The remote control is out of
battery power
Replace the batteries according to the
polarity.
The voltage of the AC outlet is
too low
Make sure you plug the unit into its dedi-
cated, grounded 220 AC outlet.
Weak airow and
noise from the
product.
The pre-lter has accumulated
too much dust.
Clean the pre-lter to avoid this problem
Also change the HEPA lter when due.
The timer preset
does not work.
The timer function has not been
activated.
Set the timer, according to the instruc-
tions in this manual.
The air purifying
function does not
work properly.
The indoor air is heavily
contaminated
The room requires ventilation.
The pre lter is blocked Clean the pre lter.
The HEPA lter is blocked Replace the HEPA lter.
The room is too large for the
unit
Select the right Viruskiller according to
the room size.
The airow is restricted Make sure there is enough clearance
around the product and that the air inlet
and outlet of the unit are unobstructed.
Strange smell is
emitted from the
device.
New product odour The antimicrobial coating of the reactor
cell might release a small amount of
harmless odor. It should disappear in
one to two weeks.
Moist lters When cleaning the pre-lter with water,
make sure it is completely dry before
reinstalling.
The product has been used in
environments with a high con-
centration of food odours.
Food odors are oily and can penetrate
into the lter or the sterilizing module.
Use proper ventilation.
The product has been used
in environments with a high
concentration of smoke.
In areas emitting too much smoke, the
performance of the sterilizing module
may be affected. Use proper ventilation.

14
In this manual, you will nd a card containing details of your limited warranty. Please contact your
distributor if you encounter issues with your unit or to procure replacement lters or reactor cham-
ber when these reach their end of life.
Damage or malfunction caused by negligence, abuse, unauthorized repairs or use not in accordance
with the User Guide will not be covered. All warranties are rendered void and the cost of repair will be
payable by the user in the case of damages caused by:
- putting in foreign objects (such as water, liquids, fragrance oils, toys etc.) in or out of the unit;
- transportation or handling;
- use of products such as benzene or thinners;
- incorrect power supply or output voltage;
- breakdown or loss of part caused by unauthorized disassembling or modications;
- repair or replacement undertaken by unauthorized persons
- non-adherence to the instructions provided in this user guide, and as given by the local customer
service center;
- careless or improper use; and
- caused by operating the product in a corrosive or moist environment.
CUSTOMER SERVICES
The company reserves the right to make changes to the design and specications of the product
without prior notice.

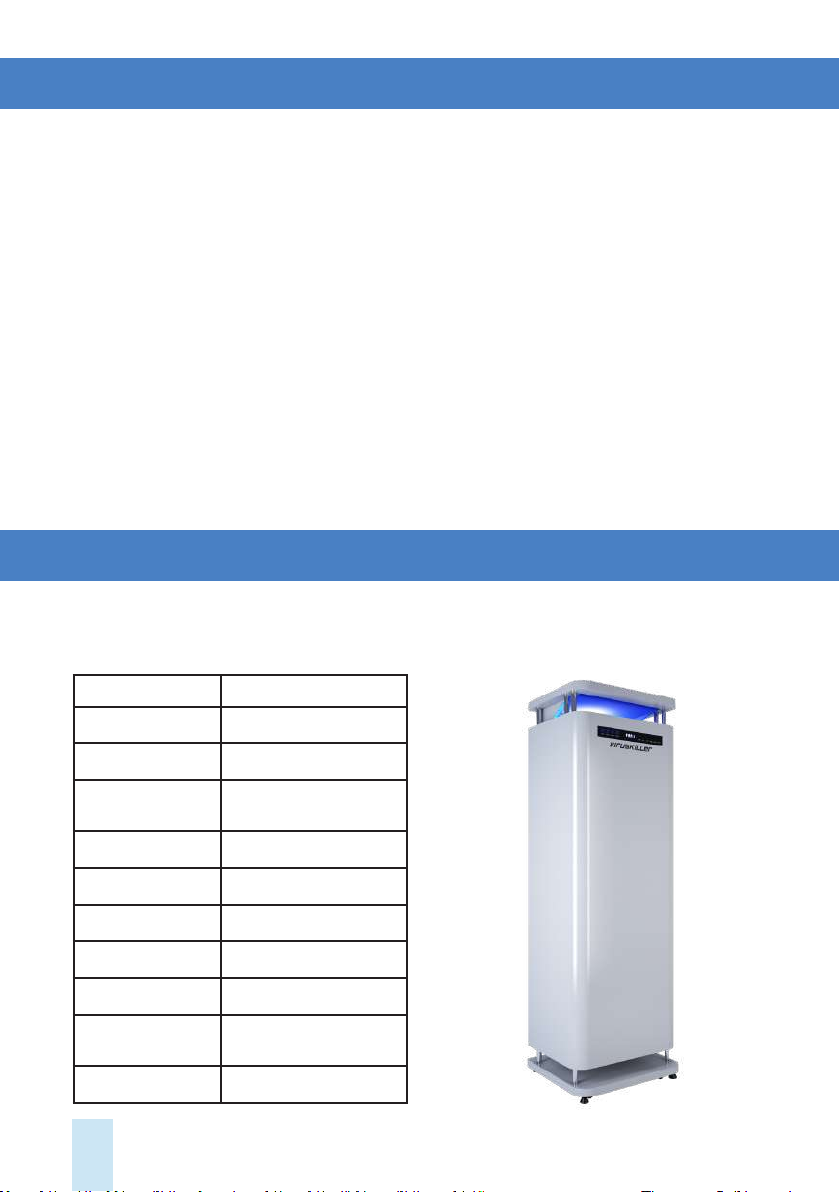

Description Air Sterilizer
Brand VIRUSKILLER
Model No VK Medi
Max. Elec.
Consumption 280 watt
Net Weight 58 Kg
Dimensions (mm) H1590 x D400 x L510
Noise (dB) 41 – 50
Airow (CFM) 300 - 635
UVC Lamps 8 Double length
TiO2Hexagon
Filters ~70 Extra large
Power cord length 1.2 m
SPECIFICATIONS

16
Sales & Design: First Floor, Columbia Mill, Bedford Street, Bolton, BL1 4BA
Tel : [phone],
E-mail: inf[email protected],
Manufacturer: INBair Korea LTD
3~4F, 72, Jomaru-ro 411 Beon-gil, Bucheon-si, Gyeonggi-do, South Korea
E-mail: [e-mail], www.inbair.com
Made in Korea | Designed in England
World Leading Air Sterilization Equipment
