RAFFEL SYSTEMS BP512 User manual

ONE YEAR LIMITED WARRANTY
Raffel Systems warrants its products against all defects in
materials and workmanship for a period of one year from
the date of purchase, subject to the following terms and
conditions:
This warranty applies only for normal use of the product,
and shall not be effective for products or parts which do
not function properly due to misuse, alteration,
installation, accident, negligence, misapplication,
modification, improper maintenance or commercial use,
or if any product or part has been serviced or repaired by
other than Raffel Systems. This warranty extends only to
consumers and does not extend to Retailers.
This warranty is effective only if the product is operated in
the country in which the product was purchased. A
product that requires modifications or adoption to
enable it to operate in any other country than the
country for which it was designed, manufactured,
approved and/or authorized, or repair of products
damaged by these modifications is not covered under
this warranty.
Liability of Raffel Systems, shall be limited to repair or
replacement of any defective product or part, which
option shall be the sole decision of Raffel Systems. This
warranty is effective only on behalf of the original owner
of the product and is not transferable. This warranty is
effective only if the user manual instructions have been
followed.
THE WARRANTY PROVIDED HEREIN SHALL BE THE
SOLE AND EXCLUSIVE WARRANTY. THERE SHALL BE NO
OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS OR ANY OTHER OBLIGATION ON THE PART OF
RAFFEL SYSTEMS WITH RESPECT TO PRODUCTS
COVERED BY THIS WARRANTY. RAFFEL SYSTEMS SHALL
HAVE NO LIABILITY FOR ANY INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES. IN NO EVENT
SHALL THIS WARRANTY REQUIRE MORE THAN THE
REPAIR OR REPLACEMENT OF ANY PART OR PARTS
WHICH ARE FOUND TO BE DEFECTIVE WITHIN THE
EFFECTIVE PERIOD OF THE WARRANTY. NO REFUNDS
WILL BE GIVEN. IF REPLACEMENT PARTS FOR
DEFECTIVE MATERIALS ARE NOT AVAILABLE, RAFFEL
SYSTEMS RESERVES THE RIGHT TO MAKE PRODUCT
SUBSTITUTIONS IN LIEU OF REPAIR OR REPLACEMENT.
To obtain warranty service on this product, mail the
product and your dated sales receipt (as proof of
purchase), postpaid, to the following address:
Raffel Systems Consumer Relations
N112W14600 Mequon Road
Germantown WI 53022
No COD’s will be accepted.
IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce risk of injury to persons:

READ INSTRUCTIONS BEFORE OPERATING.
INJURY MAY RESULT FROM IMPROPER USE.
NEVER REMOVE COVERS.

• This appliance should never be left unattended when in
operation.
• Unplug appliance from outlet before relocating or
troubleshooting.
• Do not connect an extension cord to this unit.
• Close supervision is necessary when this appliance is used by,
on, or near children, invalids, or disabled persons.
• Use this appliance only for its intended use as described in
the operating instructions.
• Do not use attachments not recommended by the
manufacturer.
• Keep all cords away from heated surfaces and pinch points.
• Do not use outdoors. INDOOR USE ONLY.
• Do not use on an infant or on a sleeping or unconscious
person.
• Do not use on sensitive skin. Prolonged exposure may have
an adverse affect on sensitive skin – Always check the skin in
contact with the heated area of the appliance.
• Never operate this appliance if it has a damaged cord or plug,
if it is not working properly, if it has been dropped or
damaged, or dropped into water. Contact a service center for
examination and/or repair.
• To disconnect, turn all controls to the off position, then
remove plug from outlet.
• Raffel Battery Packs must be CHARGED TO FULL at least
EVERY 6 MONTHS and BEFORE STORAGE. Failure to charge
the battery pack at least every 6 months is considered
NEGLECT. Any battery pack that is found to be
malfunctioning due to neglect will have its WARRANTY
VOIDED.
DANGER – TO REDUCE RISK OF ELECTRIC SHOCK:
• Do not reach for an appliance that has fallen into water.
Unplug immediately.
• Never use pins or other metallic fasteners with this appliance.
• Discard the appliance if the covering shows any sign of
deterioration, such as checking, blistering, or cracking.
• Keep dry. Do not operate in a wet or moist environment.
OTHER WARNINGS:
• Keep away from flammable material and heat sources.
• For indoor use only.
• Dry location only.
• Do not short circuit the battery, over charge or over
discharge.
• Do not allow the battery pack to become crushed.
• Do not drop the battery into water.
• Do not reverse the polarity.
• Do not disassemble or repair the battery.
• Do not install near metallic parts that could cause a short
circuit.
• Do not deform the battery housing.
• Do not touch a leaky battery.
DISPOSING NOTES
Do not dispose of electrical appliance as unsorted municipal
waste, use proper collection facilities. Contact your local
government for information regarding the collection system
available
BALANCED
CHARGING
5000mAh Battery
Extension Cord
Power Supply
Includes everything you
need for 1-2 motion seats:

TROUBLESHOOTING GUIDE
Problem:
No Power Output
from Battery Pack
Problem:
LED Indicator Light
Does Not Light Up
When Plugged into
the Wall Outlet
1) Confirm the battery pack
is awake and the connections
between the battery and
furniture are secure.
2) Check the status
of the battery pack by
pressing the Test Button
on side of the unit.
3) If no LED is on, plug the battery pack into an
outlet to recharge. Wait 30 seconds for the RED
LED to illuminate, indicating that it is charging.
1) Confirm AC Power
Supply Cord is properly
connected to the battery
pack and the wall outlet.
2) Confirm the outlet
used for charging is
working properly.
3) Next Steps: If the battery pack does not
hold a charge as indicated, contact customer
service at 888-987-1011 or
[email protected]om.
CHARGING THE BATTERY
1) Check the status of
the battery by pressing
the Test Button.
If the LED does not
light up, the battery is
in sleep mode and will
wake up automatically
once charging.
2) If the Test LED
Indicator is red
or amber, connect
the AC Power
Supply Cord to
the battery pack.
3) Plug the AC Power
Supply into a wall outlet.
4) Charge until the Charge
LED is green. Allow up to
7 hours for a full charge.
5) Once fully charged, unplug
the battery from the wall outlet.
Note: Operating furniture
while charging may require
a longer charging time.
Do not allow the battery to
completely drain as this may
reduce the life of the battery.
Problem:
Battery Does Not
Hold A Charge
2) Note: The number of recline
cycles the battery can execute
depends on the size of the
occupant and the number of
accessories connected to the
system such as USB chargers.
1) Charge the battery
Allow up to 7 hours to fully
charge the battery pack.
It may be beneficial to
disconnect the battery
pack from the furniture
during charging.
3) Additional notes:
A fully charged battery pack provides >200
cycles, depending on furniture use and
configuration. The battery pack will
discharge when idle, but not completely
drain the battery.
2 CONNECT THE CORDS

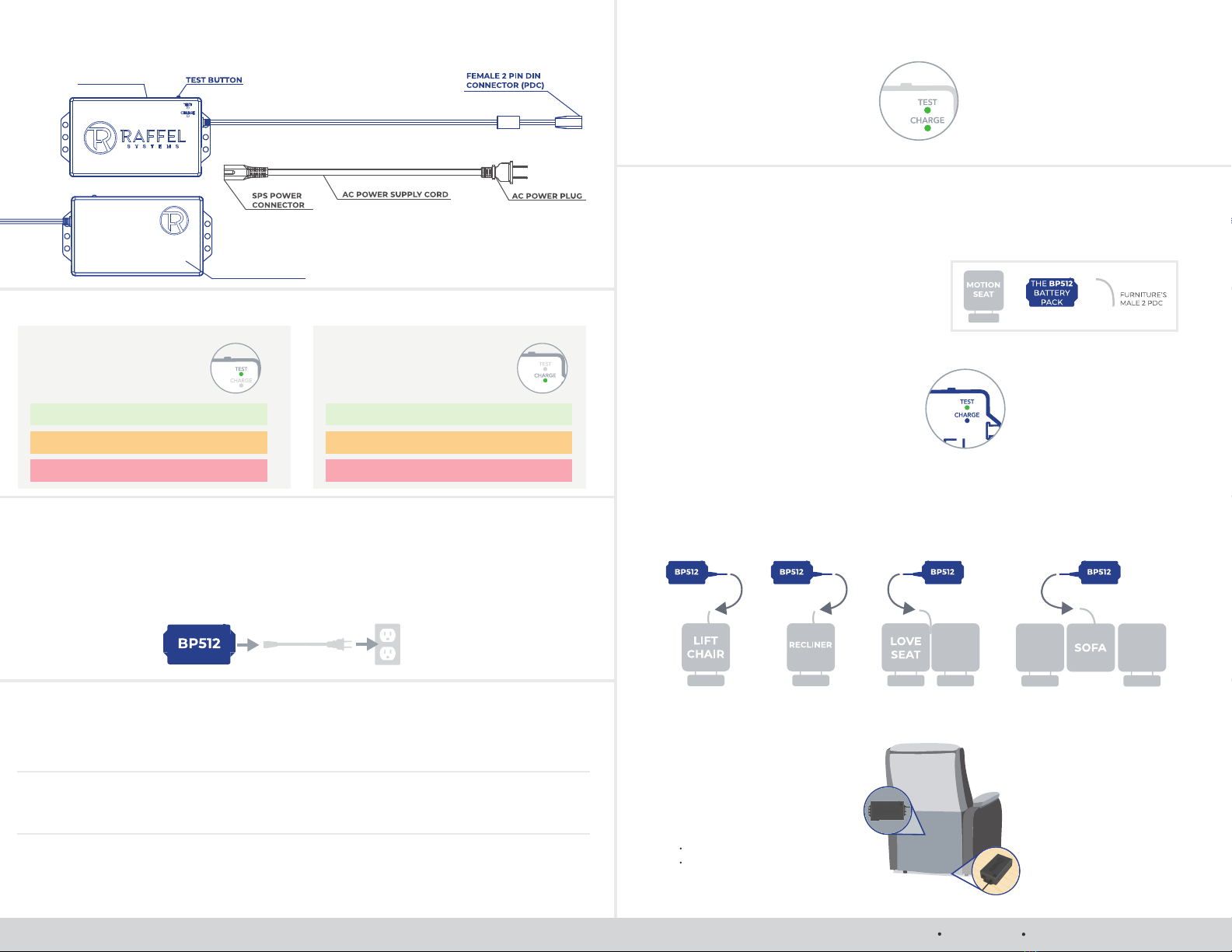

BP512 OVERVIEW*
HOW TO INSTALL THE BATTERY PACK
These steps will work for recliners, lift chairs,
love seats, sofas, and other 1-2 motion seats.
Connect the furniture’s male 2 PDC
to the battery’s female 2 PDC.
3 BATTERY PLACEMENT
1 CHARGE THE BATTERY PACK
COMPATIBLE CONFIGURATIONS
Always fully charge the battery
pack before installation. See
“Charging the Battery” for details.
Global Presence, Local Support [e-mail] 888-987-1011 raffel.com
LED INDICATORS
SLEEP MODE
To initiate sleep mode, push and hold
the Test Button for five seconds until
the Test and Charge LEDs flash green.
Note: While in sleep mode, the LEDs
will not illuminate when the Test
Button is pushed.
To exit sleep mode, press and hold
the Test Button for five seconds until
the Test and Charge LEDs turn green.
Note: The battery is shipped in sleep
mode and will wake up while charging.
Be sure to place or mount
the battery away from the
furniture’s actuators.
Examples of where to place
the battery (pictured right):
Inside the furniture
On the floor
TEST LED:
Check the charge level of the
battery pack by pressing the
Test Button. The Test LED will
illuminate for 2 seconds.
Amber LED: The battery pack is operational,
but will need to be charged soon.
Red LED: The battery pack needs to charge
in order to properly operate the furniture.
Green LED: The battery pack is fully charged
and can properly operate the furniture.
CHARGE LED:
The Charge LED indicates the
status of the battery pack. It will
continuously illuminate while
the battery pack is charging.
Amber LED: The battery pack is operational,
but needs to continue charging.
Red LED: The battery pack needs to continue
charging in order to properly operate the furniture.
Green LED: The battery pack is fully charged
and can properly operate the furniture.
DATE CODE YYMM
2112 **Furniture from La-Z-Boy may need
an additional adapter cord.
*These instructions apply to battery
packs with a date code on or after 21-12.
Note: Drawings are not to scale
KEY
BATTERY PACK
