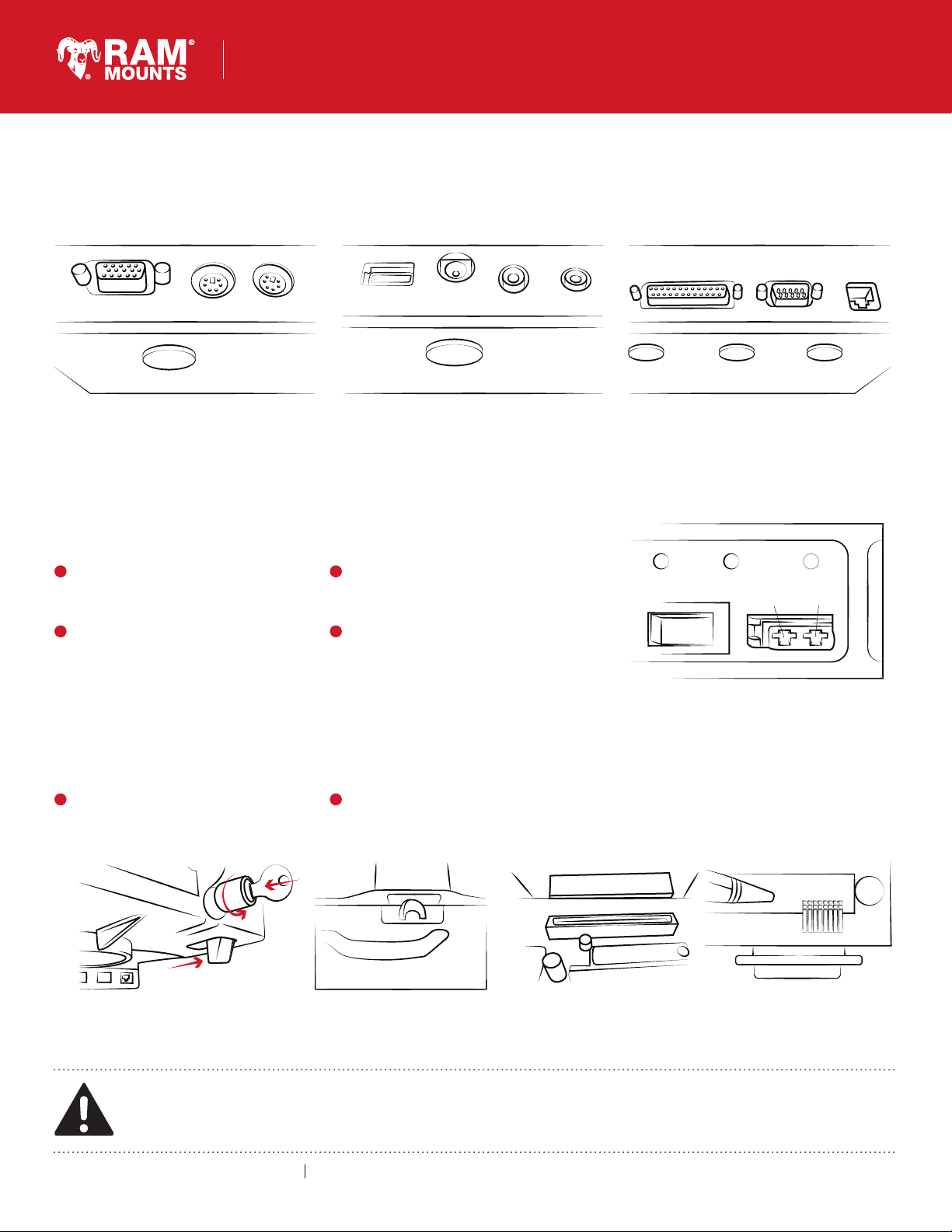

Ram Mounts Tough-Dock User manual

Specifications
Power Cable RF JackPower Jack
Operation
LEDs & Power Switch
rammount.com
1.800.497.7479
[email protected]
RAM®Tough-Dock™
for Panasonic Toughbook CF-28, 29, 30 & 31
Black wire: Ground
White wire: 12-28vdc
Co-axial
RMR-INS-234-PAN1
This document, including images, may not be reproduced partly or fully without the expressed written consent of National Pr
oducts, Inc.T
o see more mounting options, visit rammount.com
Safety Precaution
Do not install this product near or over an airbag deployment area or in a location that obstructs the driver’s vision or interferes with vehicle
operation. National Products, Inc does not assume responsibility or liability for any such personal injury, death or property damage.
1Place Toughbook on RAM® Tough-Dock™ front edge first.
Then use brass locating pins to align back edge.
2Pull latch forward until lock engages.
Turn lock clockwise to lock; counter-clockwise to release.
Power IN:
Indicates 12-28vdc is supplied to Toughbook. (RAM® Tough-Dock™draws 3 amps from a
13.8V source to power RAM® Tough-Dock™and Toughbook)
Power OUT:
Indicates 15.6vdc is available for Toughbook.
Docked:
Indicates Toughbook is docked with
RAM® Tough-Dock™ when Toughbook is powered on.
Switched ON:
Power is supplied to Toughbook and Port Replicator from external source.
Switched OFF:
If Toughbook is ON and docked, RAM® Tough-Book™will supply power to Port Replicator.
POWER
IN
POWER
OUT
DOCKED
ON
Ground
+12-28V

Troubleshooting
Problem
Latch Docking Area Internal view of ribbon connector
and Port Replicator 1
Port Replicator Left Port Replicator Front Port Replicator Right
Solution
Problem
Solution
rammount.com
1.800.497.7479
[email protected]
RAM®Tough-Dock™
for Panasonic Toughbook CF-28, 29, 30 & 31
RMR-INS-234-PAN1
This document, including images, may not be reproduced partly or fully without the expressed written consent of National Pr
oducts, Inc.T
o see more mounting options, visit rammount.com
Safety Precaution
Do not install this product near or over an airbag deployment area or in a location that obstructs the driver’s vision or interferes with vehicle
operation. National Products, Inc does not assume responsibility or liability for any such personal injury, death or property damage.
1Switch power switch to ON position.
Power In/Out LED's will not light and/or Toughbook not charge.
Video: VGA out D-sub 15 pin
Mouse: Mini-DIN 6 pin
Keyboard: Mini-DIN 6 pin
USB: External USB 2.0
DC Jack: Non functional
Mic: Mono phone jack
Speaker: Speaker/Headphone Stereo phono jack
Printer: Parallel port D-Sub 25pin
Serial: Serial port D-sub 9pin
Network: RJ45 connection
2Make sure fuse is intact and properly seated.
3Make sure power cable is firmly attached
to power jack and external 12-28vdc.
4Remove fuse, and with voltmeter check
voltage across fuse terminals. If polarity is
reversed check all connections; reverse
power cable if necessary.
1Make sure latch is fully engaged.
Toughbook will not dock with RAM® Tough-Dock™.
2Remove Toughbook from RAM® Tough-Dock™ and make sure ribbon cable is fully seated; if loose
align ribbon cable and press firmly(see A). Use a blunt object to avoid damaging the ribbon cable.
POWER
IN
POWER
OUT
Ground +12-28V
ON
DOCKED
A
