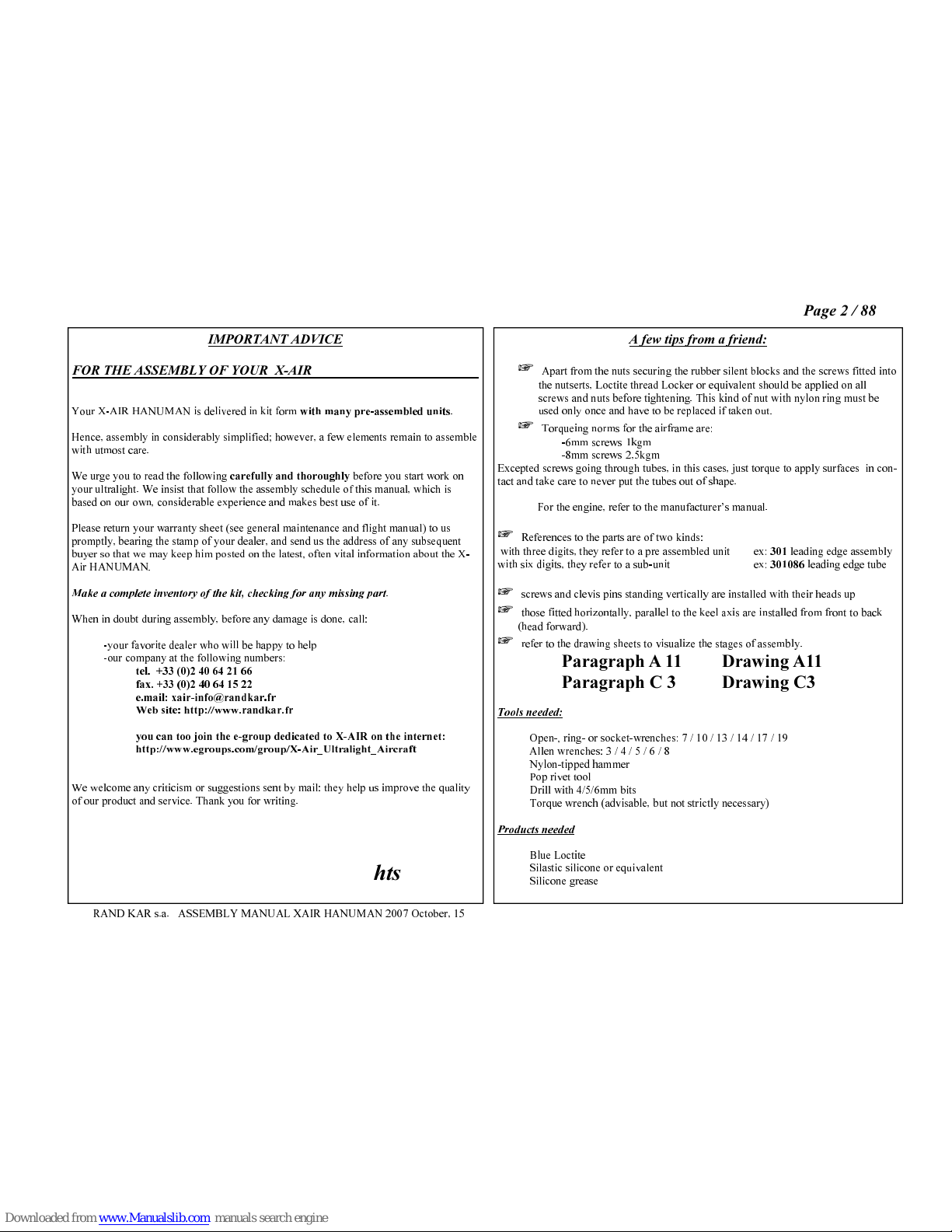

IMPORTANT ADVICE
FOR THE ASSEMBLY OF YOUR X-AIR HANUMAN ULTRALIGHT.
Your X-AIR HANUMAN is delivered in kit form
with many pre-assembled units
.
Hence, assembly in considerably simplified; however, a few elements remain to assemble
with utmost care.
We urge you to read the following
carefully and thoroughly
before you start work on
your ultralight. We insist that follow the assembly schedule of this manual, which is
based on our own, considerable experience and makes best use of it.
Please return your warranty sheet (see general maintenance and flight manual) to us
promptly, bearing the stamp of your dealer, and send us the address of any subsequent
buyer so that we may keep him posted on the latest, often vital information about the X-
Air HANUMAN.
Make a complete inventory of the kit, checking for any missing part
.
When in doubt during assembly, before any damage is done, call:
-your favorite dealer who will be happy to help
-our company at the following numbers:
tel. +33 (0)2 40 64 2 66
fax. +33 (0)2 40 64 5 22
e.mail: xair-info@randkar.fr
Web site: http://www.randkar.fr
you can too join the e-group dedicated to X-AIR on the internet:
http://www.egroups.com/group/X-Air_Ultralight_Aircraft
We welcome any criticism or suggestions sent by mail: they help us improve the quality
of our product and service. Thank you for writing.
We wish you a pleasant, easy assembly,
and many enjoyable flights
A few tips fr m a friend:
Apart from the nuts securing the rubber silent blocks and the screws fitted into
the nutserts, Loctite thread Locker or equivalent should be applied on all
screws and nuts before tightening. This kind of nut with nylon ring must be
used only once and have to be replaced if taken out.
Torqueing norms for the airframe are:
-6mm screws 1kgm
-8mm screws 2, kgm
Excepted screws going through tubes, in this cases, just torque to apply surfaces in con-
tact and take care to never put the tubes out of shape.
For the engine, refer to the manufacturer’s manual.
References to the parts are of two kinds:
with three digits, they refer to a pre assembled unit ex:
30
leading edge assembly
with six digits, they refer to a sub-unit ex:
30 086
leading edge tube
screws and clevis pins standing vertically are installed with their heads up
those fitted horizontally, parallel to the keel axis are installed from front to back
(head forward).
refer to the drawing sheets to visualize the stages of assembly.

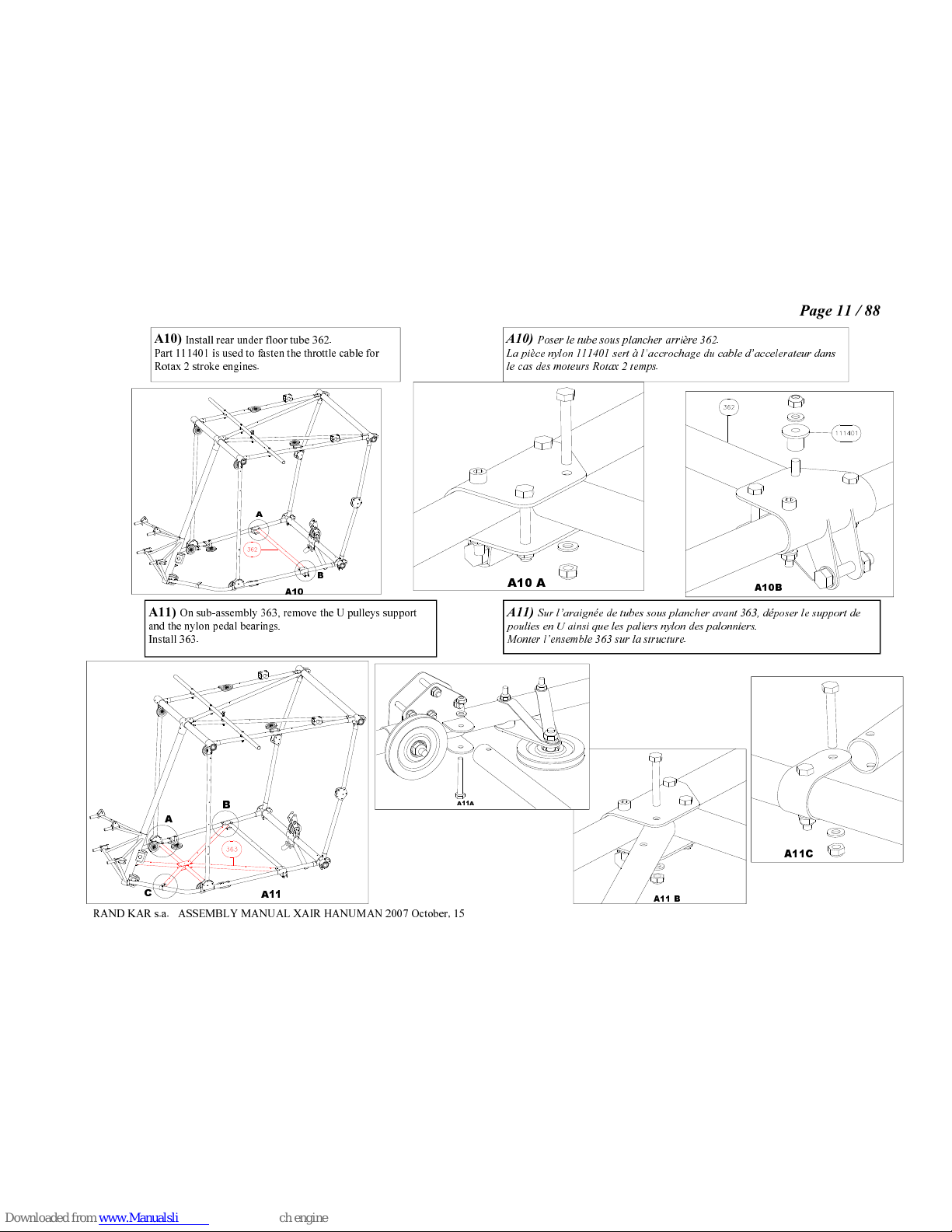

Paragraph A 11 Drawing A11
Paragraph C 3 Drawing C3
Tools needed:
Open-, ring- or socket-wrenches: 7 / 10 / 13 / 14 / 17 / 19
Allen wrenches: 3 / 4 / / 6 / 8
Nylon-tipped hammer
Pop rivet tool
Drill with 4/ /6mm bits
Torque wrench (advisable, but not strictly necessary)
Products needed
Blue Loctite
Silastic silicone or equivalent
Silicone grease
