Drop-In Wrapped Coldwall Cold Pan models 9900SCA/SCN
model 9986SCA shown
Specifications:
Condensing unit mounted on a swivel platform that allows for
90 degrees of rotation of intake/exhaust louver, giving customer
the option of mounting our louver on any of the counters four
sides. Model 9918SCA is not available with rotating compressor
housing.
UNIT EXTERIOR: Top and coved corner interior to be constructed
of 18 gauge stainless steel. Exterior body to be corrosion resistant
steel.Condensing unit mounted on corrosion resistant framework,
suspendedbelowunitbody.(1)stainlesssteellouverpanelprovided
for field installation in counter.
UNIT INTERIOR: Interior fitted with 1" drain at one end. Drain
nipple supplied with gate valve. Insulated with CFC free, foamed
in place polyurethane. Recessed, stainless steel ledge provided
for supporting pans, adaptor bars included on SCA units.
REFRIGERATION: CFC free, R-404a refrigeration system to be
wrapped refrigeration construction with thermostatic control for
operatoradjustability.Entiresystemmountedoncorrosionresistant
framework, suspended below unit body. 8' cordset (NEMA 5-15P)
supplied for 115V operation.
Standard Features:
• Swivel base condensing unit allows for unlimited
location of the single air intake/exhaust louver (model 9918SCA
is not available with rotating compressor housing.
• New Randell exclusive easy mount system
• Self-contained, wrapped refrigeration system with thermostatic
control, system utilizes “CFC free”, R-404a refrigerant
• Meets 1998 NSF Std. #7 - holds 41°F product temperatures
• All stainless steel top and coved corner interior
• Drain and gate valve provided
• Foamed in place, “CFC free” urethane insulation
• One dual air movement louver provided
• 9' corset for 120V plug-in operation
Description:
Self-contained, wrapped coldwall drop-in refrigerated cold display
pan with one piece stainless steel interior and top. Drain, and gate
valve provided. R-404a refrigerant, “CFC free”. Wrapped refrig-
eration construction with condensing unit, expansion valve, and
thermostatic control. Cordset for 115V operation.
Meets NSF Std. #7 for holding 41˚F. product temperatures.
model 9918SCA 9928SCA 9943SCA 9957SCA 9972SCA 9986SCA
9946SCN 9966SCN 9987SCN
model 9966SCN shown
• Self-contained,refrigerated unit for cold display without ice
• Custom sizes available
• Easy installation with sliding hood, louver and hold
down brackets
Options & Accessories:
Adaptor bars
Remote on/off switch

Randell, Unified Brands 888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.

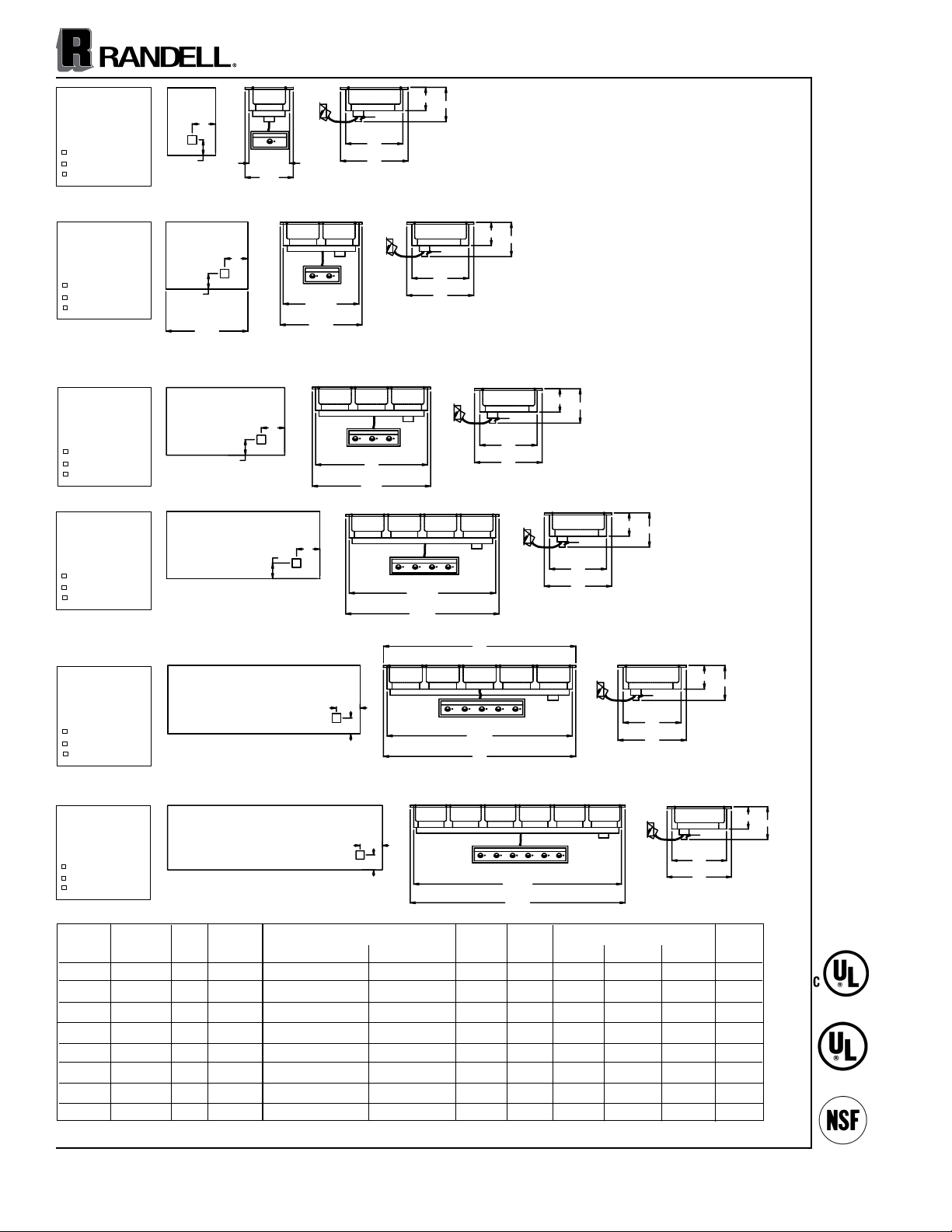

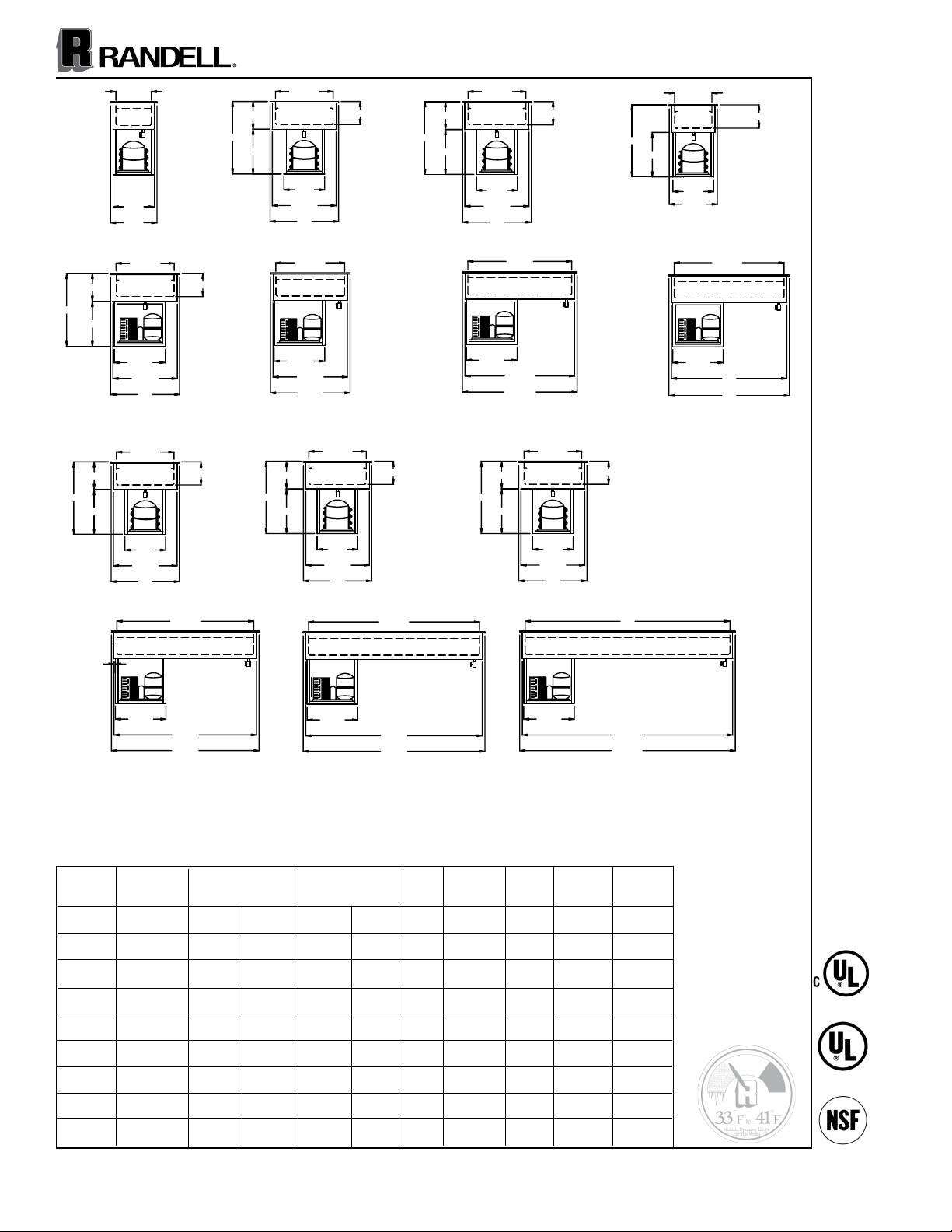

Models 9900SCA/SCN
12"x20" Pan O/A Dimension Cut Out Size
Model Capacity Length Width Length Width H.P. Volts Amps NEMA Ship Wt.
9918SCA 1 17 1/2" 26" 16" 24 3/4" 1/4 115/60/1 5 5-15P 110
9928SCA 2 30 1/4" 26" 28 3/4" 24 3/4" 1/4 115/60/1 5 5-15P 140
9943SCA 3 43 3/8" 26" 41 7/8" 24 3/4" 1/4 115/60/1 5 5-15P 175
9957SCA 4 56 1/4" 26" 54 3/4" 24 3/4" 1/4 115/60/1 5 5-15P 210
9972SCA 5 69 1/4" 26" 67 3/4" 24 3/4" 1/4 115/60/1 5 5-15P 245
9986SCA 6 82 1/8" 26" 80 5/8" 24 3/4" 1/4 115/60/1 5 5-15P 280
9946SCN 2 46" 18 5/16" 44 1/2" 17" 1/4 115/60/1 5 5-15P 140
9966SCN 3 66 3/4" 18 5/16" 65 7/16" 17" 1/4 115/60/1 5 5-15P 175
9987SCN 4 87 1/2" 18 5/16" 86 3/16" 17" 1/4 115/60/1 5 5-15P 210
16" X 24.75"
CUTOUT DIMENSION
MODEL #9918SCA
15.5"
17.5"
13.375"
19.25"
26"
24.25"
27.5"
17"
10.5" 8.75"
21.875"
MODEL #9928SCA
CUTOUT DIMENSION
28.75" X 24.75"
MODEL #9943SCA
CUTOUT DIMENSION
41.875" X 24.75"
27.5"
41.375"
43.375"
19.25"
39.25"
15.5"
24.25"
26"
8.75"
17"
21.875"
10.5"
14.205"
41.875"
44"
46"
18.33"
15.5"
MODEL #9946SCN
CUTOUT DIMENSION
44.5" X 17"
27.5"
19.25"
8.875"
17"
30.25"
26.125"
28.25"
19.25"
15.5"
26"
24.25"
17"
27.5"
21.875"
10.5" 8.75"
0.5"
CUTOUT DIMENSION
54.75" X 24.75"
MODEL #9957SCA
17"
27.5"
21.875"
24.25"
26"
56.25"
54.25"
19.25"
52.125"
10.5"
15.5"
8.75"
CUTOUT DIMENSION
67.75" X 24.75"
MODEL #9972SCA
15.5"
24.25"
26"
21.875"
67.25"
69.25"
19.25"
65.125"
17"
27.5"
10.5" 8.75"
CUTOUT DIMENSION
80.625" X 24.75"
MODEL #9986SCA
10.5"
26"
27.5"
17"
80.125"
82.125"
19.25"
78"
15.5"
24.25"
8.75"
21.875"
Designed to hold 33˚F - 41˚F food in
4" deep pans as required to meet
NSF Std. 7.

1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
MODEL #9718IC
1" HIGH PERFORATED
S/S BOTTOM
CUTOUT DIMENSION
14.875" X 22.75"
MODEL #9757IC
CUTOUT DIMENSION
53" X 22.75" 1" HIGH PERFORATED
S/S BOTTOM
MODEL #9743IC
1" HIGH PERFORATED
S/S BOTTOM
MODEL #9728IC
CUTOUT DIMENSION
27.875" X 22.75"
1" HIGH PERFORATED
S/S BOTTOM
1" HIGH PERFORATED
S/S BOTTOM
CUTOUT DIMENSION
40.5" X 22.75"
MODEL #9772IC
1" HIGH PERFORATED
S/S BOTTOM
MODEL #9786IC
CUTOUT DIMENSION
68" X 22.75"
CUTOUT DIMENSION
82" X 22.75"
15.4"
14.375"
12"
7.75"
26"
6"
22.25"
19.875"
43.75"
40"
37.75"
31.125"
25"
27.375"
26"
6"
19.875"
22.25"
7.75" 6"
26"
19.875"
22.25"
7.75"
56.25"
50.25"
52.5"
26"
19.875"
22.25"
7.75" 6"
71.25"
67.5"
65.25"
7.75"
81.5"
85.25"
79.25"
26"
19.875"
6"
22.25"
7.75"
26"
19.875"
6"
22.25"

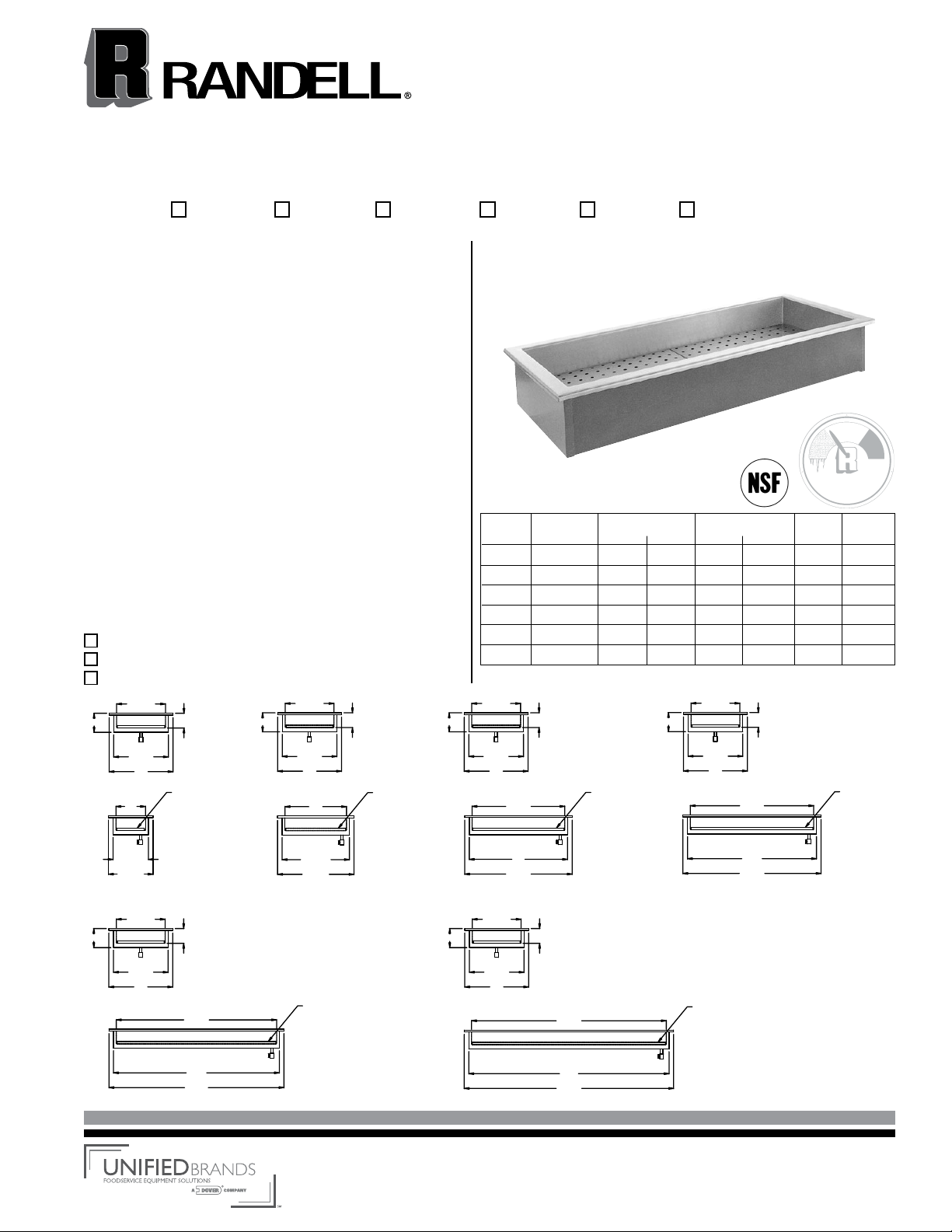

model 9718IC 9728IC 9743IC 9757IC 9772IC 97861C
Drop-In Cold Pan models 9700IC
model 9757IC shown
Specifications:
UNIT EXTERIOR: Top and coved corner interior to be constructed
of 18 gauge stainless steel. Exterior body to be corrosion
resistant steel. 1" high perforated stainless steel bottom strainer
plates provided. Studs fitted to each corner for drawing unit
down tight against countertop.
UNIT INTERIOR: Interior fitted with 1" drain at one end. Drain
nipple supplied with gate valve. Insulated with CFC free, foamed
in place polyurethane.
Standard Features:
• All stainless steel top and interior
• 1" drain and gate valve provided
• Stainless, perforated bottom strainer plates provided
• Foamed in place, “CFC free” urethane insulation for
ice-cooled display
• Custom sizes available
Description:
Drop-in ice-cooled display pan with one piece stainless steel
interior and top. 1" drain, gate valve, and perforated strainer
plates provided.
Designed for use with ice.
12"x20" Pan O/A Dimension Cut Out Size Overall
Model Capacity Length Width Length Width Height* Ship Wt.
9718IC 1 15.4" 26" 14 7/8" 22 5/8" 7.75" 30
9728IC 2 31.125" 26" 28 1/4" 22 5/8" 7.75" 85
9743IC 3 43.75" 26" 41" 22 5/8" 7.75" 110
9757IC 4 56.25" 26" 55" 22 5/8" 7.75" 125
9772IC 5 71.25" 26" 70" 22 5/8" 7.75" 145
9786IC 6 85.25" 26" 84" 22 5/8" 7.75" 165
*for gate valve, add an additional 1.75"
Options & Accessories:
Adaptor bars
Remote on/off switch
Extended thermostatic lead
Randell Drop-In, Page 2
Revised 12/04

blank page

1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.

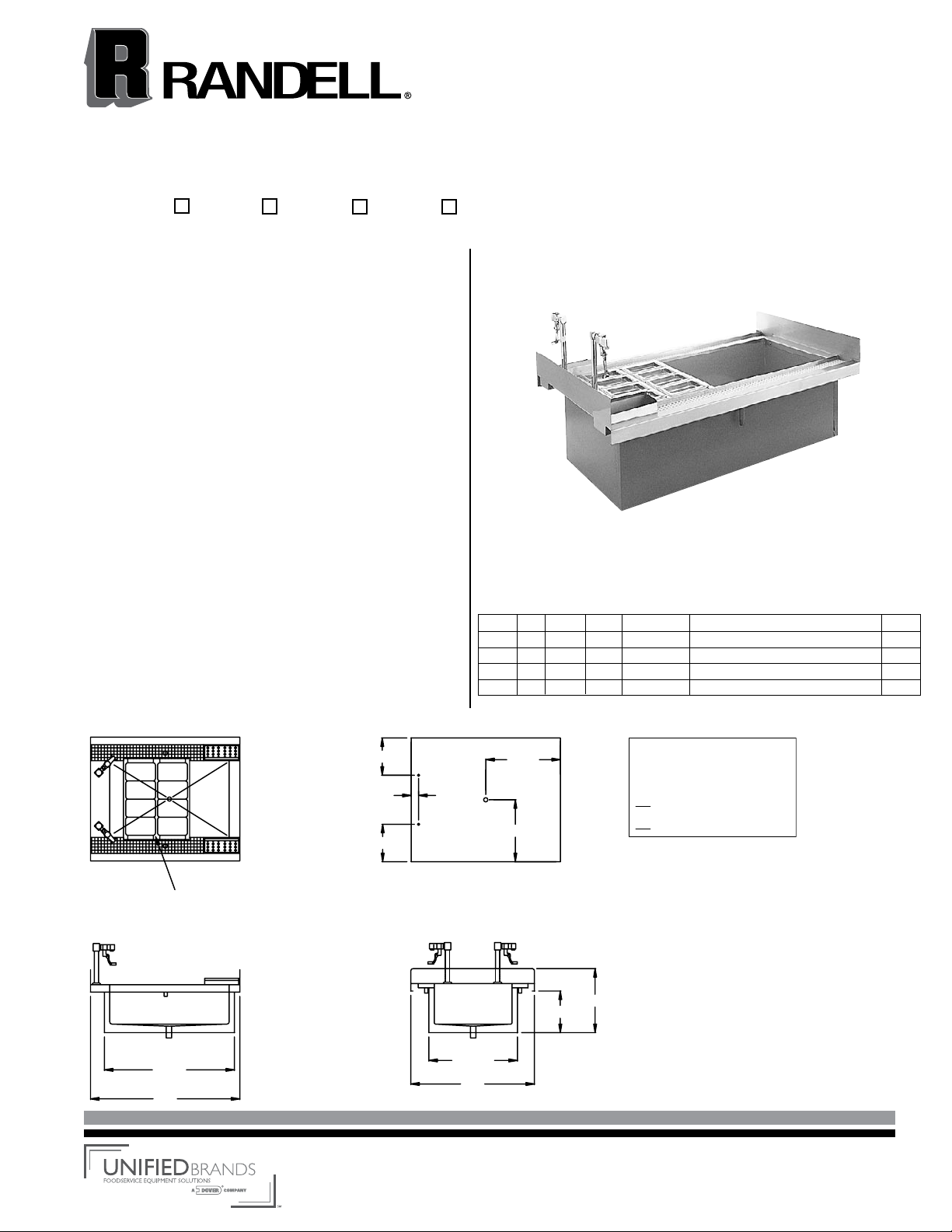

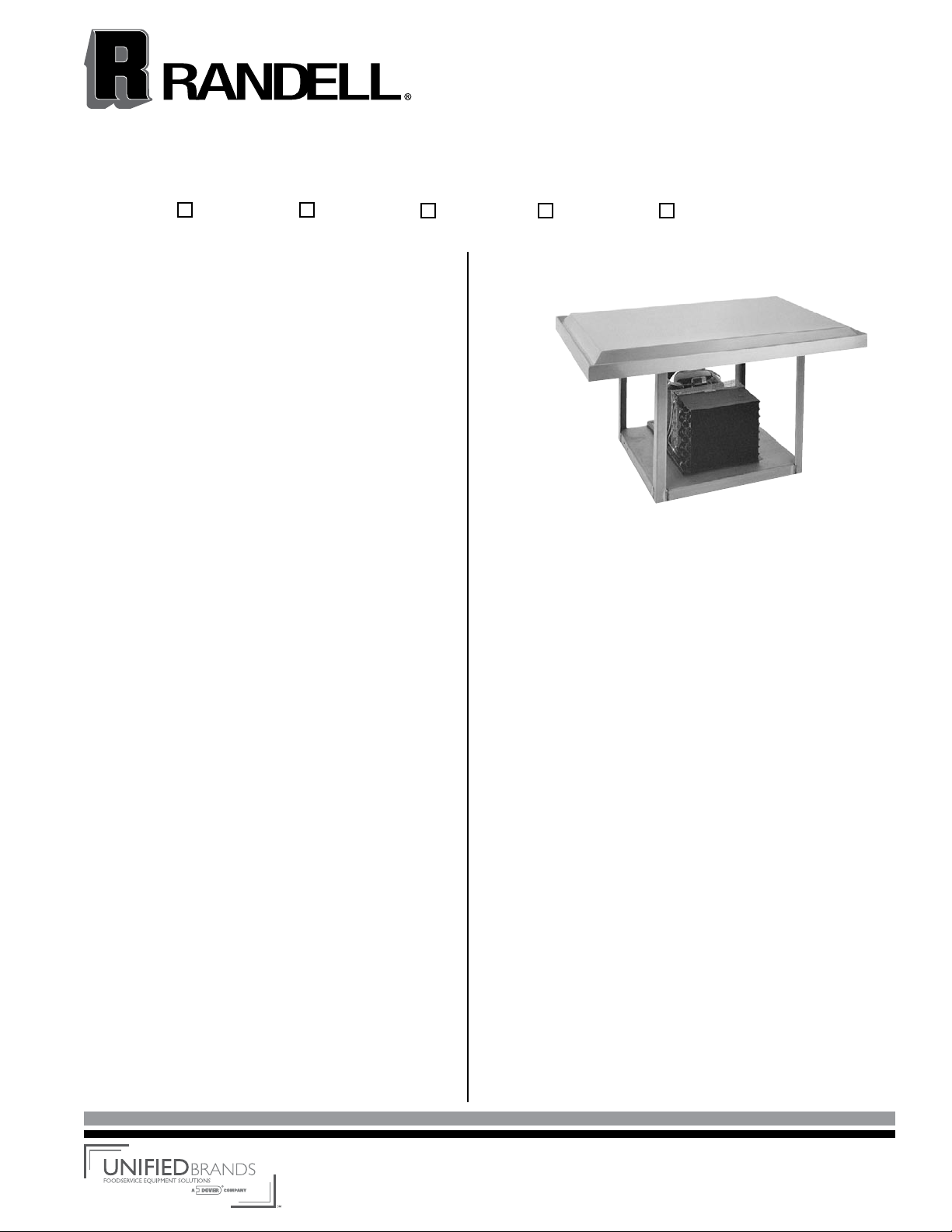

Drop-In Frost Top models 9800SCA
model 9828SCA 9843SCA 9857SCA 9872SCA 9886SCA
model 9843SCA shown
Standard Features:
• Self-contained refrigeration system with thermostatic
control, system utilizes “CFC free”, R-404a refrigerant
• All stainless steel top—one piece
• Foamed in place, “CFC free” urethane insulation
• Perimeter troughs, drain provided
• Stainless steel louver provided
• 9' corset for 115V plug-in operation
• .625" diameter drain welded in trough
• Custom sizes available
Description:
Drop-in self-contained, mechanically cooled, frost top unit
with one piece stainless steel top, perimeter troughs and drain
opening. R-404a refrigerant, “CFC free”. Wrapped refrigeration
construction with condensing unit, expansion valve, and
thermostatic control. Cordset for 115V operation.
Specifications:
UNIT EXTERIOR: Top to be 1 piece 18-gauge stainless steel with
a 2" overhang on all sides, perimeter trough, and drain opening.
Unit top is elevated above counter surface. Condensing unit
mounted on corrosion resistant framework, suspended below
unit body. Studs fitted to each corner for drawing unit down tight
against countertop. Stainless steel louver panel provided for field
installation in counter.
UNIT INTERIOR: Unit interior wrapped with refrigerating lines.
Refrigeration lines insulated with CFC free, foamed in place
polyurethane.
REFRIGERATION: CFC free, R-404a refrigeration system to be
wrapped refrigeration construction. Condensing unit, expansion
valve, and thermostatic control for operator adjustability mounted
on corrosion resistant framework, suspended below unit body. 8'
cordset (NEMA 5-15P) supplied for 115V.
Randell Drop-In, Page 3
Revised 09/04

Randell, Unified Brands 888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.

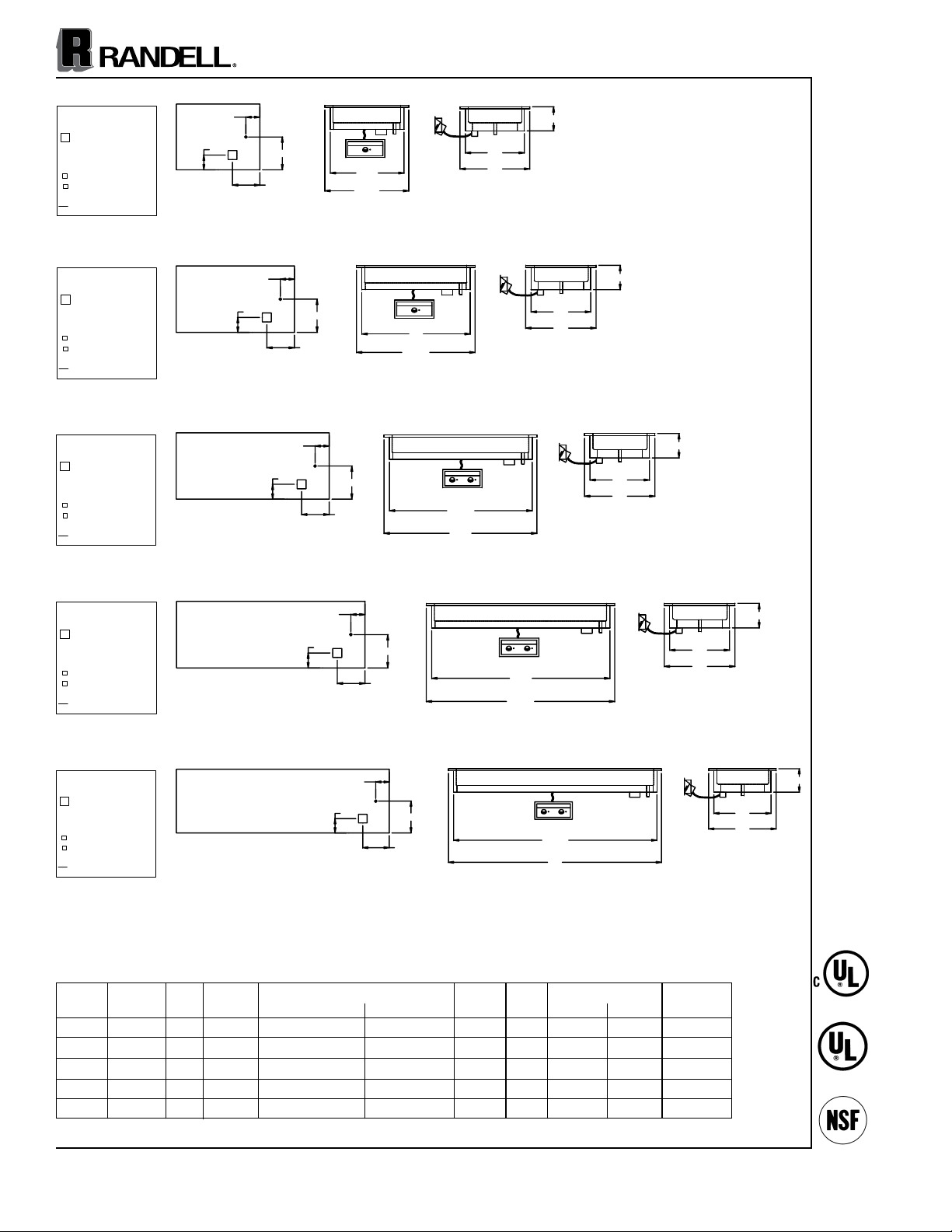

Models 9800SCA
O/A Dimension Cut Out Size
Model Length Width Length Width H.P. Volts Amps NEMA Ship Wt.
9828SCA 30" 26" 26 1/2" 22 1/2" 1/4 115/60/1 5 5-15P 140
9843SCA 43" 26" 39 1/2" 22 1/2" 1/4 115/60/1 5 5-15P 175
9857SCA 56 3/4" 26" 53 1/4" 22 1/2" 1/4 115/60/1 5 5-15P 210
9872SCA 71 3/4" 26" 68.25" 22 1/2" 1/4 115/60/1 5 5-15P 245
9886SCA 85 3/4" 26" 82.25" 22 1/2" 1/4 115/60/1 5 5-15P 280
MODEL #9828SC
CUTOUT DIMENSION
26.5" X 22.5"
MODEL #9872SC
CUTOUT DIMENSION
68.25" X 22.5"
MODEL #9843SC
CUTOUT DIMENSION
39.5" X 22.5"
MODEL #9857SC
CUTOUT DIMENSION
53.25" X 22.5"
MODEL #9886SC
CUTOUT DIMENSION
82.25" X 22.5"
21"
30"
16.125"
26"
17.125"
2" 2.75"
2.75"
71.75"
26"
21"
16.125"
17.125"
2"
43"
16.125"
26"
17.125"
2" 2.75"
21"
56.75"
26"
2.75"
21"
16.125"
17.125"
2"
26"
85.75"
2.75"
21"
16.125"
17.125"
2"
R404A REFRIGERANT
8' LONG CORD SET
(NEMA 5-15P)
JUNCTION BOX:
115V/60Hz/1Ph/5 AMPS
LEGEND FOR
MODEL # 9828SCA
1/4 HP COMPRESSOR
HP
DRAIN
JUNCTION BOX:
115V/60Hz/1Ph/5A
8' LONG CORD SET
(NEMA 5-15P)
MODEL # 9872SCA
LEGEND FOR
HP
1/4 HP COMPRESSOR
DRAIN
JUNCTION BOX:
8' LONG CORD SET
115V/60Hz/1Ph/5A
(NEMA 5-15P)
1/4 HP COMPRESSOR
LEGEND FOR
MODEL # 9843SCA
HP
DRAIN
JUNCTION BOX:
115V/60Hz/1Ph/5A
(NEMA 5-15P)
8' LONG CORD SET
1/4 HP COMPRESSOR
LEGEND FOR
MODEL # 9857SCA
HP
DRAIN
R404A REFRIGERANT
115V/60Hz/1Ph/5 AMPS
8' LONG CORD SET
(NEMA 5-15P)
JUNCTION BOX:
1/4 HP COMPRESSOR
MODEL # 9886SCA
LEGEND FOR
HP
DRAIN
Designed to maintain
frosty cold appearance.

1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.

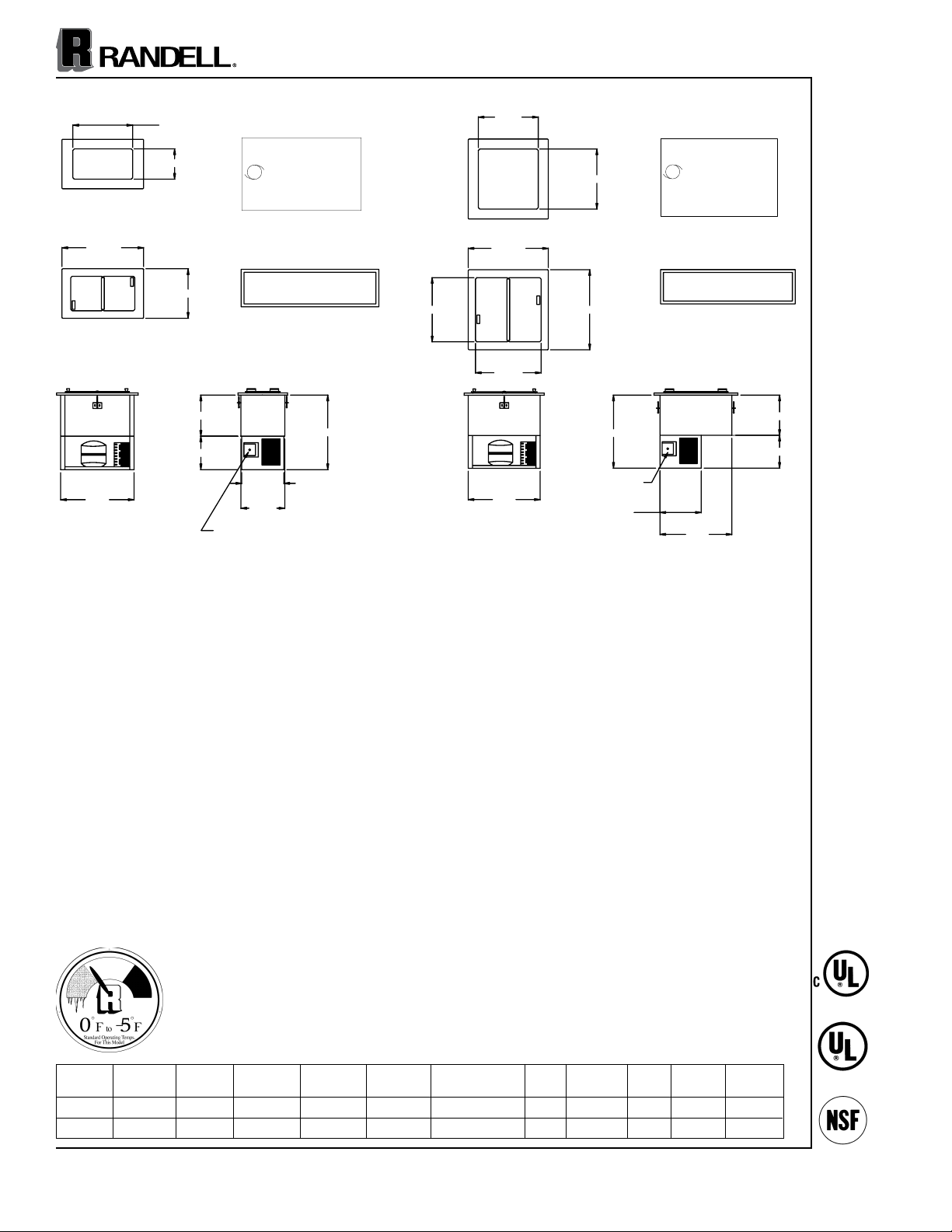

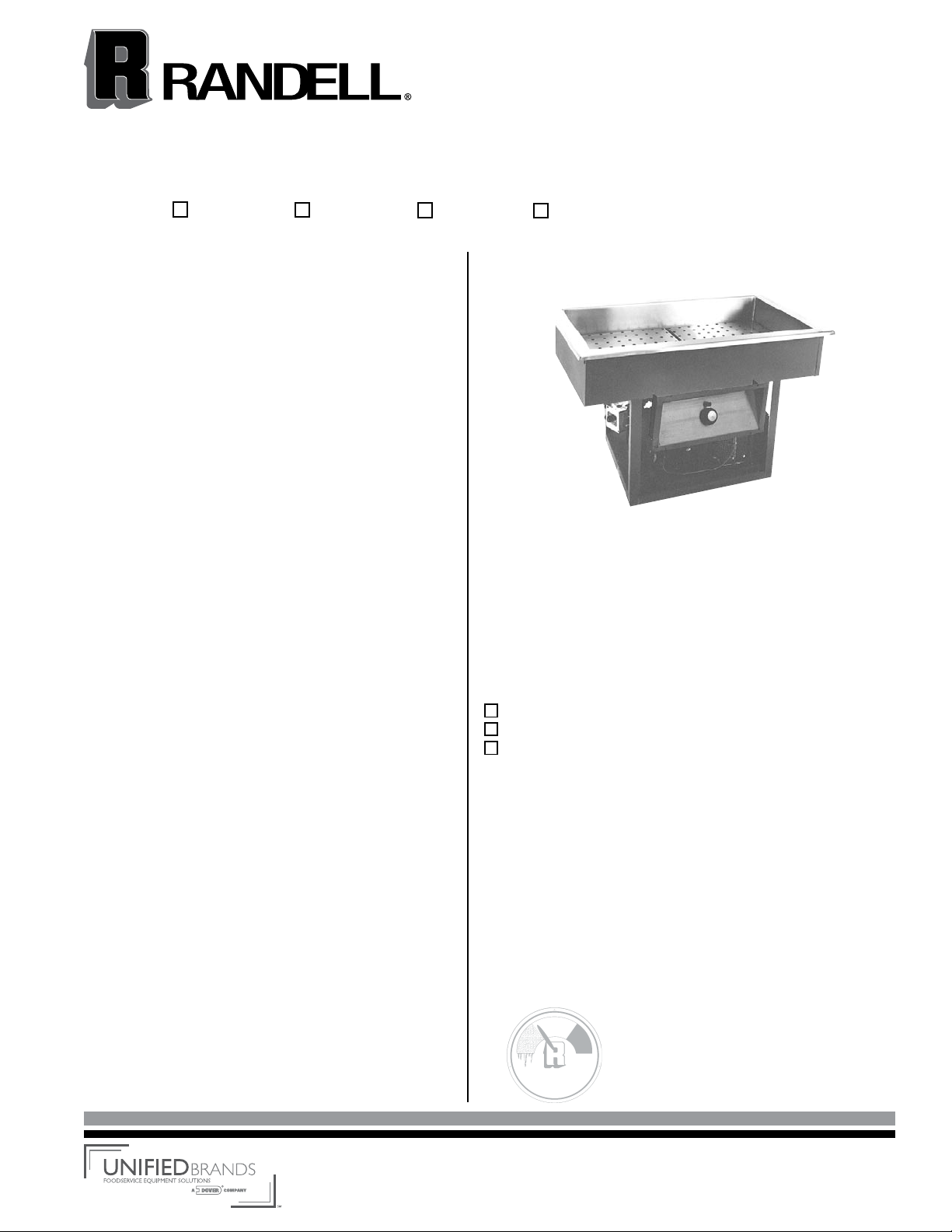

Drop-In Freezer/Plate Chiller models 9550A
model 9550A 9552A
model 9552A front/back airflow shown
Standard Features:
• Self-contained refrigeration system with thermostatic
control, system utilizes “CFC free”, R-404a refrigerant
• Choice of front or side airflow
• Coved cornered interior
• Stainless steel top with insulated hinged covers that can
be rotated, allowing a front-back opening or a left-right
opening, regardless of how you install the unit for
airflow. Optional clear plexi covers available on request.
• Self-contained freezer suitable for ice cream, frozen
foods, plate and mug chilling
• 8' cordset provided
• Hold down clips on two sides, with additional
mounting holes
Description:
Drop-in self-contained freezer with stainless steel top, raised
rim opening, and insulated lids. Units can be installed in two
airflow directions to provide proper cooling, dependent
of application. R-404a refrigerant, “CFC free”. Wrapped
refrigeration construction with condensing unit, and thermostatic
control. Cordset for 115V operation.
All Drop-In cold pans include our easy to use hold down brackets.
The Randell designers have redesigned the brackets, making it
easy to install the cold pan to any counter top.
Specifications:
UNIT EXTERIOR:Top to be one piece 18 gauge stainless steel. Top
to have opening with raised rim, fitted with removable, hinged,
insulated lid. Body exterior to be corrosion resistant steel. Con-
densing unit mounted on corrosion resistant framework, placed
below unit body.New hold down clips.Stainless steel louver panel
provided for field installation in counter.
UNIT INTERIOR: Interior to be stainless steel, with coved corner
construction for easy cleaning. Insulation to be CFC free, foamed
in place polyurethane. Unit interior sides wrapped with refrigerat-
ing lines.
REFRIGERATION: CFC free, R-404a refrigeration system to be
wrapped refrigeration construction. Condensing unit, and ther-
mostatic control for operator adjustability mounted just inside
corrosion resistant framework, placed below unit body. 8' cordset
(NEMA 5-15P) supplied for 115V operation.
This equipment is intended for use in rooms having an ambient
temperature of 86 ˚F (30˚C) or less.
model 9550A left/right airflow shown
model 9552A left/right airflow shown
Randell Drop-In, Page 4
Revised 08/05

Randell, Unified Brands 888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
Models 9550A
No. of Storage Gallon Counter
Model L D Openings Cu. Ft. Capacity Cutout Dim. H.P. Volt Amp. NEMA Ship Wt.
9550A 28 3/8" 17 3/16" 1 1.8 6 26" x 15.75" 1/3 115/60/1 6.3 5-15P 125
9552A 28 3/8" 28 3/8" 1 3.36 11.2 26" x 26" 1/3 115/60/1 6.3 5-15P 165
115V/60Hz/1Ph/6.3A
8' LONG CORD SET
(NEMA 5-15P)
MODEL # 9552A
HP
LEGEND FOR
1/4 HP COMPRESSOR
R404A REFRIGERANT
JUNCTION BOX:
1/3 HP COMPRESSOR
115V/60Hz/1Ph/5.8A
LEGEND FOR
(NEMA 5-15P)
9' LONG CORD SET
JUNCTION BOX:
MODEL # 9550A
HP
MODEL# 9552A
CUTOUT DIMENSIONS:
26" X 26"
25.5"
14.625"
25.5"
25.875"
CONTROL
TEMPERATURE
11.625"
14.25"
21.25"
23.25"
22.75"
28.375"
28.375"
21.25"
MODEL# 9550A
CUTOUT DIMENSIONS:
26" X 15.75"
20.75"
28.375"
25.5"
15.25"
14.625"
TEMPERATURE CONTROL
17.188"
14.25"
11.625"
10.5"
25.875"

1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.

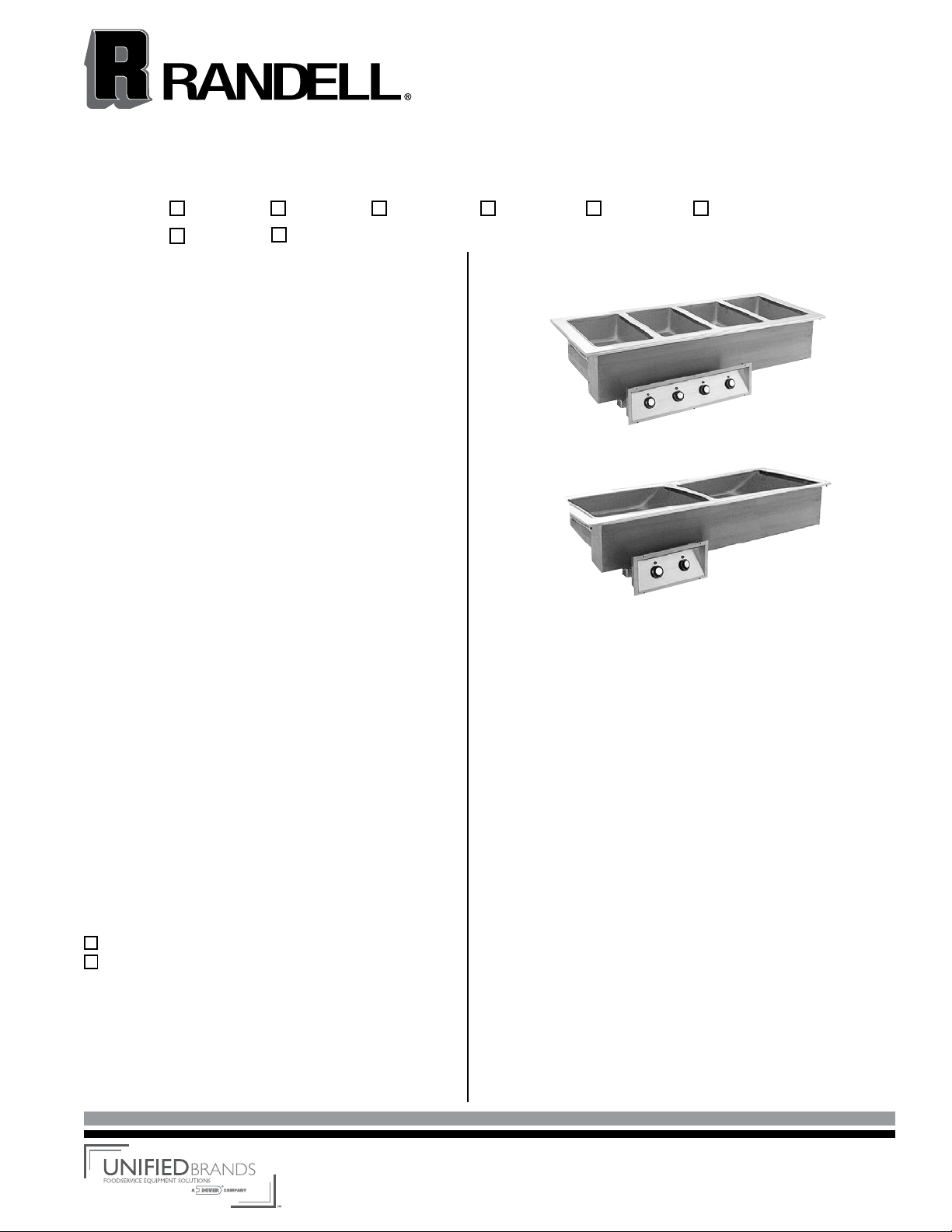

Drop-In Hot Food Well models 9560 & 9560N
Description:
Stainless steel drop-in, electrically heated hot food well unit
with individually and thermostatically controlled wells. Separate
control panel for field installation, prewired.
model 9560-4 shown
model 9560-1 9560-2 9560-3 9560-4 9560-4 9560-6
9560-2N 9560-3N
Standard Features:
• Individually controlled wells for maximum
operator control
• True thermostatic control for precise food temperatures
• Drains available as option for wet operation
• Approved for installation in either stainless or laminate
counter work
• Units listed under N.S.F. standard 4
• UL approved
Specifications:
UNIT TOP: Top to be one piece 18 gauge stainless steel. Top
openings to be die-stamped with raised perimeter rims.
FOOD WELLS: Units fitted with compliment of 12" x 20" x 6 1/2"
deep, electrically heated, sealed food wells, individually and
thermostatically controlled. Unit prewired to controls, mounted
on separate stainless steel panel. Note: If optional drains &
manifold are ordered, common gate is provided installed.
UNIT BODY: Fully insulated exterior body of corrosion resistant
steel.
CONTROLS: Controls prewired to junction box mounted on
separate stainless steel panel for field installation in counter
front. Connections to heating elements to be located outside of
heated zone to avoid wiring deterioration. 208/240V operation.
(120V available on request).
model 9560-2N shown
Options & Accessories:
Adaptor bars
Extended thermostatic lead
Randell Drop-In, Page 5
Revised 07/05

Randell, Unified Brands 888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
12" x 20" Cut Out Size No. of Amps / 60 / 1 PH
Model L D Pan Cap. Unit Control Panel Elements Watts 120V 208V 240V Ship Wt.
9560-1 18 1/2" 26" 1 16 1/8" x 22 1/2" 14 1/4" x 5 3/4" 1 1100 9.2 5.3 4.6 60
9560-2 31 7/8" 26" 2 29 7/8" x 22 1/2" 14 1/4" x 5 3/4" 2 2200 18.4 10.6 9.2 85
9560-3 45 9/16" 26" 3 43 1/2" x 22 1/2" 20" x 5 3/4" 3 3300 27.6 15.9 13.8 103
9560-4 59 5/16" 26" 4 57 1/8"x 22 1/2" 26" x 5 3/4" 4 4400 36.8 21.2 18.4 170
9560-5 73" 1/16" 26" 5 70 3/4" x 22 1/2" 32" x 5 3/4" 5 5500 46 27.5 23 230
9560-6 86 11/16" 26" 6 84 3/8 x 22 1/2" 38" x 5 3/4" 6 6600 55.2 31.7 27.6 290
9560-2N 47.625" 18.5" 2 45.264" x 16.125" 14.25" x 5.75" 2 2200 18.4 10.6 9.2 108
9560-3N 69.142" 18.5" 3 66.327" x 16.125" 20" x 5.75" 3 3300 27.6 15.9 13.8 175
Power supply requires hard wiring to “J” box.
Models 9560 & 9560N
MODEL # 9560-6
120V/60Hz/1Ph/55.2Amps
(6) ELEMENT, 6600 WATTS
208V/60Hz/1Ph/31.7Amps
240V/60Hz/1Ph/27.6Amps
CHOOSE ONE:
LEGEND FOR
LEGEND FOR
208V/60Hz/1Ph/26.5Amps
240V/60Hz/1Ph/23.0Amps
120V/60Hz/1Ph/46.0Amps
(5) ELEMENT, 5500 WATTS
MODEL # 9560-5
CHOOSE ONE:
240V/60Hz/1Ph/18.4Amps
MODEL # 9560-4
120V/60Hz/1Ph/36.8Amps
(4) ELEMENTS, 4400 WATTS
208V/60Hz/1Ph/21.2Amps
LEGEND FOR
CHOOSE ONE:
LEGEND FOR
CHOOSE ONE:
240V/60Hz/1Ph/13.8Amps
120V/60Hz/1Ph/27.6Amps
(3) ELEMENTS, 3300 WATTS
208V/60Hz/1Ph/15.9Amps
MODEL # 9560-3
208V/60Hz/1Ph/10.6Amps
240V/60Hz/1Ph/9.2Amps
120V/60Hz/1Ph/18.4Amps
(2) ELEMENTS, 2200 WATTS
MODEL # 9560-2
LEGEND FOR
CHOOSE ONE:
MODEL # 9560-1
LEGEND FOR
240V/60Hz/1Ph/4.6Amps
120V/60Hz/1Ph/9.2Amps
(1) ELEMENT, 1100 WATTS
208V/60Hz/1Ph/5.3Amps
CHOOSE ONE:
J
CONTROL PNL.-38" X 5.75"
UNIT-84.375" X 22.5"
J-BOX
CUTOUT DIMENSIONS: 83.875"
86.75"
9" 13.25"
22"
26"
9"
6"
J
73"
CONTROL PNL.-32" X 5.75"
UNIT-70.75" X 22.5"
J-BOX
CUTOUT DIMENSIONS:
73"
9" 13.25"
70.25"
22"
26"
9"
6"
J
CONTROL PNL.-26" X 5.75"
UNIT 57.125" X 22.5"
CUTOUT DIMENSIONS:
J-BOX
26"
22"
56.625"
59.25"
9"
6"
9" 13.25"
J
CONTROL PNL.-20" X 5.75"
UNIT 43.5" X 22.5"
J-BOX
CUTOUT DIMENSIONS:
45.5"
43"
9"
6"
9" 13.25"
26"
22"
J
31.75"
CONTROL PNL.-14.25" X 5.75"
UNIT-29.875" X 22.5"
CUTOUT DIMENSIONS:
J-BOX
31.75"
29.375"
9"
6" 26"
22"
9" 13.25"
J
CONTROL PNL.-14.25" X 5.75"
UNIT-16.125" X 22.5"
J-BOX
CUTOUT DIMENSIONS: 18.5"
13.25"
9"
15.625"
22"
26"
9"
6"

1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
Drop-In Hot Food Well models 9570
model 9570-2 9570-3 9570-4 9570-5 9570-6
model 9570-2 shown
Standard Features:
• Open tank Baine Marie style for wet operation
• True thermostatic control for precise food temperatures
• Drain and gate valve
• Approved for installation in either stainless or laminate
counter work
Description:
Stainless steel, drop-in, electrically heated hot food well unit
with open water bath tank, thermostatically controlled. Separate
control panel for field installation, prewired.
Specifications:
UNIT TOP: Top and water bath tank to be one piece, 16 gauge
stainless steel.
UNIT BODY: Unit fitted with electric heating element(s) mounted
beneath tank, insulated and shielded. Unit prewired to controls,
mounted on separate stainless steel panel. 1" stainless steel
drain nipple and gate valve provided. Fully insulated exterior
body of corrosion resistant steel.
CONTROLS: Controls prewired to junction box mounted on
separate stainless steel panel for field installation in counter
front. Connections to heating elements to be located outside of
heated zone to avoid wiring deterioration. 208/240V operation.
Options & Accessories:
Adaptor bars
Extended thermostatic lead
Randell Drop-In, Page 6
Revised 06/06

Randell, Unified Brands 888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
Power supply requires hard wiring to “J” box.
Models 9570
CHOOSE ONE:
JUNCTION BOX.
1" FPT AT 24" AFF
D 1" DIA DRAIN LINE CONNECTION
HARDWIRE CONNECTION
208V/60Hz/1Ph/28.8Amps
240V/60Hz/1Ph/25.0Amps
(2) ELEMENT, 6000 WATTS
MODEL # 9570-6
LEGEND FOR
J
LEGEND FOR
MODEL # 9570-5
HARDWIRE CONNECTION
D 1" DIA DRAIN LINE CONNECTION
208V/60Hz/1Ph/28.8Amps
240V/60Hz/1Ph/25.0Amps
(2) ELEMENT, 6000 WATTS
1" FPT AT 24" AFF
JUNCTION BOX.
J
CHOOSE ONE:
J
HARDWIRE CONNECTION
JUNCTION BOX.
CHOOSE ONE:
(2) ELEMENTS, 6000 WATTS
240V/60Hz/1Ph/25.0Amps
208V/60Hz/1Ph/28.8Amps
MODEL # 9570-4
LEGEND FOR
1" FPT AT 24" AFF
D 1" DIA DRAIN LINE CONNECTION
D 1" DIA DRAIN LINE CONNECTION
208V/60Hz/1Ph/14.4Amps
240V/60Hz/1Ph/12.5Amps
MODEL # 9570-3
J
CHOOSE ONE:
1" FPT AT 24" AFF
LEGEND FOR
JUNCTION BOX.
HARDWIRE CONNECTION
(1) ELEMENT, 3000 WATTS(1) ELEMENT, 3000 WATTS
JUNCTION BOX.
CHOOSE ONE:
1" FPT AT 24" AFF
HARDWIRE CONNECTION
(1) ELEMENT, 3000 WATTS
MODEL # 9570-2
LEGEND FOR
240V/60Hz/1Ph/12.5Amps
208V/60Hz/1Ph/14.4Amps
D 1" DIA DRAIN LINE CONNECTION
J
D
J
CUTOUT DIMENSIONS:
14.25" X 6"
78.75" X 22.5"
UNIT-
CONTROL PNL.-
78.25"
82"
26"
9"
22"
10.188"
12.25"
5.5"
5.188"
D
J
CONTROL PNL.-
UNIT-
14.25" X 6"
66" X 22.5"
CUTOUT DIMENSIONS:
65.5"
69.25"
26"
9"
22"
10.188"
12.25"
5.5"
5.188"
D
J
CUTOUT DIMENSIONS:
53.25" x 22.5"
14.25" X 6"
CONTROL PNL.-
UNIT-
56.5"
52.75"
26"
9"
22"
10.188"
12.25"
5.5"
5.188"
J
D
40.5" X 22.5"
14.25" X 6"
UNIT-
CUTOUT DIMENSIONS:
CONTROL PNL.-
40"
43.75"
26"
9"
22"
10.188"
5.5" 12.25"
5.188"
J
D
UNIT-
CUTOUT DIMENSIONS:
CONTROL PNL.- 14.25" X 6"
28.25" x 22.5"
31.25"
27.5"
5.188"
22"
26"
9"
12.25"
5.5"
10.188"
12"x20" Cut Out Size No. of Amps / 60 / 1 PH
Model L D Pan Cap. Unit Control Panel Elements Watts 208V 240V Ship Wt.
9570-2 31 1/8" 26" 2 28 1/4" x 22 1/2" 14" x 6" 1 3000 14.4 12.5 110
9570-3 43 5/8" 26" 3 40 1/2" x 22 1/2" 14" x 6" 1 3000 14.4 12.5 135
9570-4 56 1/2" 26" 4 53 1/4" x 22 1/2" 14" x 6" 2 6000 28.8 25 160
9570-5 69 1/4" 26" 5 66" x 22 1/2" 14" x 6" 2 6000 28.8 25 185
9570-6 82" 26" 6 78 3/4" x 22 1/2" 14" x 6" 2 6000 28.8 25 210

1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
Drop-In Hot/Cold Combination Food Well models 9580
model 9580-2A 9580-3A 9580-4A 9580-5A
model 9580-3A shown
Standard Features:
• The same unit can now be used for hot or cold
food applications
Standard Features: COLD USE
• All stainless steel top
• Drain & gate valve standard (Note: gate valve shipped
loose for field installation by others)
• Stainless, perforated bottom strainer plates provided
• Wrapped, coldwall construction refrigeration
• Stainless steel louver panel provided
• R-404a refrigerant, “CFC free”
Description:
Drop-in self-contained, cold pan / heated food well unit. With
the flip of a switch, this unit is converted from a hot breakfast
buffet to a cold salad bar for lunch, or any other use. One piece
stainless steel top and coved corner interior. Controls, cordset
& louver panel provided. True thermostatic control for hot
operation. R-404a refrigeration system is “CFC free”.
Specifications:
UNIT TOP: Top and water bath tank to be one piece, 16 gauge
stainless steel.
UNIT BODY: Fully insulated, exterior body to be corrosion
resistant steel. Unit sidewalls feature wrapped refrigeration lines
with foamed in place polyurethane insulation, unit bottom fitted
with heating elements, fiberglass insulation and shield. Interior
fitted with 1" drain at one end. Drain nipple supplied with gate
valve. 1" high perforated stainless steel bottom strainer plate(s)
provided for cold pan use. Condensing unit mounted on corrosion
resistant framework, suspended below unit body.
CONTROLS: Controls prewired to junction box mounted on
separate stainless steel panel for field installation in counter
front. Connections to heating elements to be located outside of
heated zone to avoid wiring deterioration. Hard wire connection
required for hot food well operation.
Standard Features: HOT USE
• All stainless steel top
• Open tank Baine Marie style for wet operation
• True thermostatic control for precise food temperatures
• Drain and gate valve
For use with ice. Provided with cooling system
to reduce ice usage.
Options & Accessories:
Adaptor bars
Remote on/off switch
Extended thermostatic lead
Randell Drop-In, Page 7
Revised 06/06

Randell, Unified Brands 888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
Models 9580A
12"x20" Cut Out Size No. of Amps / 60 / 1 PH
Model L D Pan Cap. Unit Control Panel Elements Watts H.P. 120V (Refrig.) 208V (Heated) 240V (Heated) Ship Wt.
9580-2A 31 1/8" 26" 2 27 3/4" x 22 1/2" 14” x 6” 1 1100 1/4 5.3 5.3 4.5 110
9580-3A 43 5/8" 26" 3 40 1/4" x 22 1/2" 14” x 6” 2 2200 1/4 5.3 10.6 9.2 135
9580-4A 56 1/2" 26" 4 53" x 22 1/2" 14” x 6” 3 3300 1/4 5.3 15.9 13.8 160
9580-5A 69 1/4" 26" 5 65 3/4" x 22 1/2" 14” x 6” 4 4400 1/4 5.3 21.2 18.3 185
Requires 120 / 240V or 120/208V (4 wire) power supply hard wiring to “J” box. 120V refrigeration system - 208/240V heating system.
REQUIRES HARDWIRE CONNECTION
D
LEGEND FOR
1" DIA DRAIN LINE CONNECTION
120/208V-60Hz-1Ph 21.2Amps
120/240V-60Hz-1Ph 18.3Amps
MODEL # 9580-5A
(4) ELEMENT, 4400 WATTS
1/4hp COMPRESSOR
1" FPT AT 24" AFF
REQUIRES HARDWIRE CONNECTION
D
MODEL # 9580-4A
LEGEND FOR
120/240V-60Hz-1Ph 13.3Amps
120/208V-60Hz-1Ph 15.9Amps
1" DIA DRAIN LINE CONNECTION
1" FPT AT 24" AFF
1/4hp COMPRESSOR
(3) ELEMENTS, 3300 WATTS
120/208V-60Hz-1Ph 10.6Amps
120/240V-60Hz-1Ph 9.2Amps
1" DIA DRAIN LINE CONNECTION
1" FPT AT 24" AFF
1/4hp COMPRESSOR
(2) ELEMENTS, 2200 WATTS
REQUIRES HARDWIRE CONNECTION
D
MODEL # 9580-3A
LEGEND FOR
(1) ELEMENT, 1100 WATTS
REQUIRES HARDWIRE CONNECTION
1/4hp COMPRESSOR
120/208V-60Hz-1Ph 5.3Amps
120/240V-60Hz-1Ph 4.5Amps
1" DIA DRAIN LINE CONNECTION
1" FPT AT 24" AFF
MODEL # 9580-2A
D
LEGEND FOR
6"
6"
6"
1" HIGH PERFORATED
S/S BOTTOM
MODEL #9580-5A
CUTOUT DIMENSION
65.75" X 22.5"
69.25"
63.25"
20"
9"
18.25"
22"
26"
27.25"
65.25"
HP
J
D
1" HIGH PERFORATED
S/S BOTTOM
MODEL #9580-4A
CUTOUT DIMENSION
53" X 22.5"
56.5"
50.5"
20"
9"
18.25"
22"
26"
27.25"
52.5"
1" HIGH PERFORATED
S/S BOTTOM
MODEL #9580-3A
CUTOUT DIMENSION
40.25" X 22.5"
39.75"
37.75"
43.75"
20"
9"
18.25"
22"
26"
27.25"
1" HIGH PERFORATED
S/S BOTTOM
MODEL #9580-2A
CUTOUT DIMENSION
27.75" X 22.5"
25.25"
27.25"
31.25"
20"
22"
26"
18.25"
9"
6"
REQUIRES HARDWIRE CONNECTION
D
LEGEND FOR
1" DIA DRAIN LINE CONNECTION
120/208V-60Hz-1Ph 21.2Amps
120/240V-60Hz-1Ph 18.3Amps
MODEL # 9580-5A
(4) ELEMENT, 4400 WATTS
1/4hp COMPRESSOR
1" FPT AT 24" AFF
REQUIRES HARDWIRE CONNECTION
D
MODEL # 9580-4A
LEGEND FOR
120/240V-60Hz-1Ph 13.3Amps
120/208V-60Hz-1Ph 15.9Amps
1" DIA DRAIN LINE CONNECTION
1" FPT AT 24" AFF
1/4hp COMPRESSOR
(3) ELEMENTS, 3300 WATTS
120/208V-60Hz-1Ph 10.6Amps
120/240V-60Hz-1Ph 9.2Amps
1" DIA DRAIN LINE CONNECTION
1" FPT AT 24" AFF
1/4hp COMPRESSOR
(2) ELEMENTS, 2200 WATTS
REQUIRES HARDWIRE CONNECTION
D
MODEL # 9580-3A
LEGEND FOR
(1) ELEMENT, 1100 WATTS
REQUIRES HARDWIRE CONNECTION
1/4hp COMPRESSOR
120/208V-60Hz-1Ph 5.3Amps
120/240V-60Hz-1Ph 4.5Amps
1" DIA DRAIN LINE CONNECTION
1" FPT AT 24" AFF
MODEL # 9580-2A
D
LEGEND FOR
6"
6"
6"
1" HIGH PERFORATED
S/S BOTTOM
MODEL #9580-5A
CUTOUT DIMENSION
65.75" X 22.5"
69.25"
63.25"
20"
9"
18.25"
22"
26"
27.25"
65.25"
HP
J
D
1" HIGH PERFORATED
S/S BOTTOM
MODEL #9580-4A
CUTOUT DIMENSION
53" X 22.5"
56.5"
50.5"
20"
9"
18.25"
22"
26"
27.25"
52.5"
1" HIGH PERFORATED
S/S BOTTOM
MODEL #9580-3A
CUTOUT DIMENSION
40.25" X 22.5"
39.75"
37.75"
43.75"
20"
9"
18.25"
22"
26"
27.25"
1" HIGH PERFORATED
S/S BOTTOM
MODEL #9580-2A
CUTOUT DIMENSION
27.75" X 22.5"
25.25"
27.25"
31.25"
20"
22"
26"
18.25"
9"
6"
REQUIRES HARDWIRE CONNECTION
D
LEGEND FOR
1" DIA DRAIN LINE CONNECTION
120/208V-60Hz-1Ph 21.2Amps
120/240V-60Hz-1Ph 18.3Amps
MODEL # 9580-5A
(4) ELEMENT, 4400 WATTS
1/4hp COMPRESSOR
1" FPT AT 24" AFF
REQUIRES HARDWIRE CONNECTION
D
MODEL # 9580-4A
LEGEND FOR
120/240V-60Hz-1Ph 13.3Amps
120/208V-60Hz-1Ph 15.9Amps
1" DIA DRAIN LINE CONNECTION
1" FPT AT 24" AFF
1/4hp COMPRESSOR
(3) ELEMENTS, 3300 WATTS
120/208V-60Hz-1Ph 10.6Amps
120/240V-60Hz-1Ph 9.2Amps
1" DIA DRAIN LINE CONNECTION
1" FPT AT 24" AFF
1/4hp COMPRESSOR
(2) ELEMENTS, 2200 WATTS
REQUIRES HARDWIRE CONNECTION
D
MODEL # 9580-3A
LEGEND FOR
(1) ELEMENT, 1100 WATTS
REQUIRES HARDWIRE CONNECTION
1/4hp COMPRESSOR
120/208V-60Hz-1Ph 5.3Amps
120/240V-60Hz-1Ph 4.5Amps
1" DIA DRAIN LINE CONNECTION
1" FPT AT 24" AFF
MODEL # 9580-2A
D
LEGEND FOR
6"
6"
6"
1" HIGH PERFORATED
S/S BOTTOM
MODEL #9580-5A
CUTOUT DIMENSION
65.75" X 22.5"
69.25"
63.25"
20"
9"
18.25"
22"
26"
27.25"
65.25"
HP
J
D
1" HIGH PERFORATED
S/S BOTTOM
MODEL #9580-4A
CUTOUT DIMENSION
53" X 22.5"
56.5"
50.5"
20"
9"
18.25"
22"
26"
27.25"
52.5"
1" HIGH PERFORATED
S/S BOTTOM
MODEL #9580-3A
CUTOUT DIMENSION
40.25" X 22.5"
39.75"
37.75"
43.75"
20"
9"
18.25"
22"
26"
27.25"
1" HIGH PERFORATED
S/S BOTTOM
MODEL #9580-2A
CUTOUT DIMENSION
27.75" X 22.5"
25.25"
27.25"
31.25"
20"
22"
26"
18.25"
9"
6"

1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
D 1" DIA ICE CHEST DRAIN
MODEL # 9540
GFW 1/2 " GLASS FILLER WATER LINE
LEGEND FOR
GFW
GFW
D
CONDIMENT PAN HOLDING ASSEMBLY
SUPPLIED W/(8) 1/9 SIZE PANS,
EACH PAN 2 1/2 " DEEP
14.5"
30.5"
35"
8.75"
9.75"
15"
29"
20.75"
1.75"
8.75" 17.5"

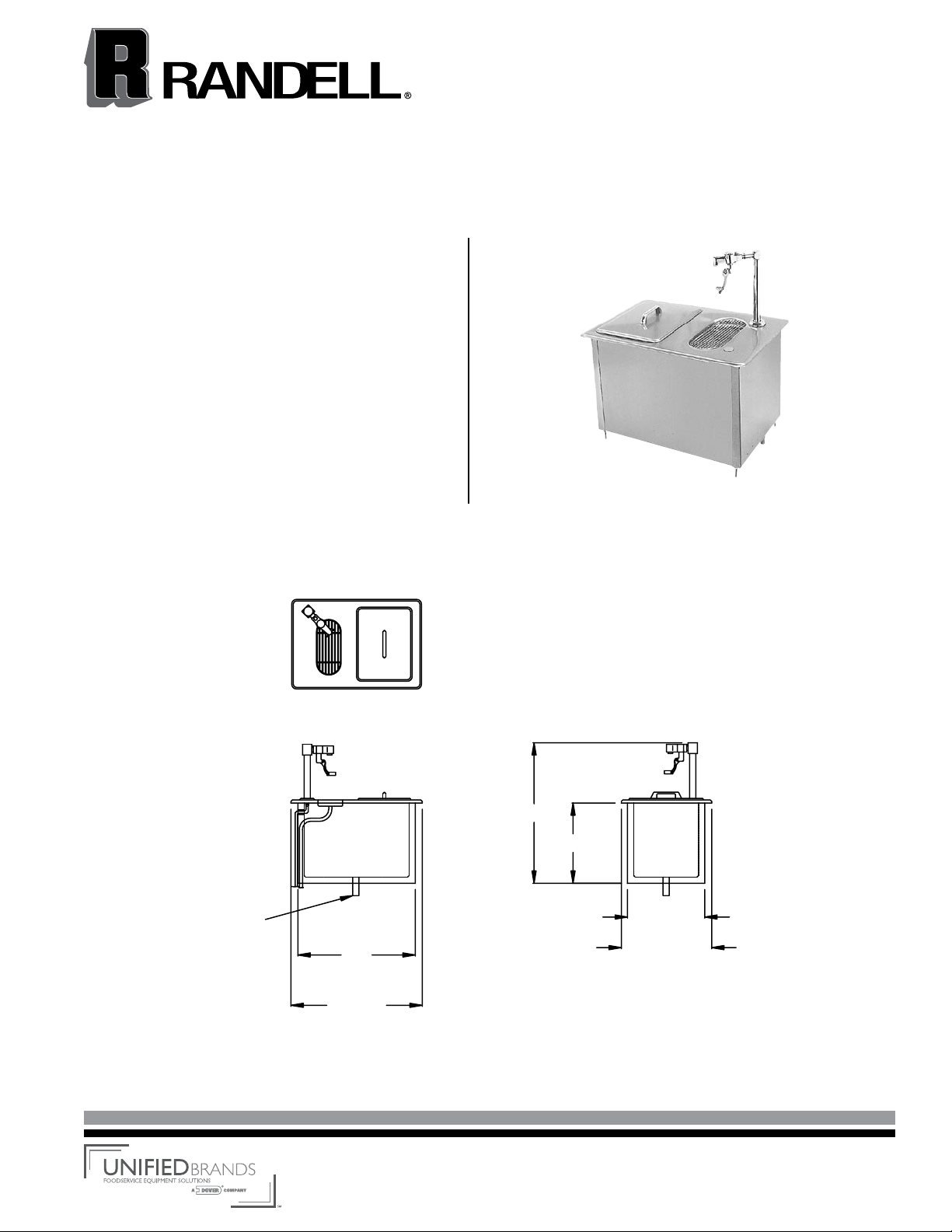

Drop-In Cocktail Station models 9540
model 9540 9541 9542 9543
model 9542 shown
Standard Features:
• Large ice chest with divider for ice service at one end,
cold bottle storage at other
• Condiment pans support frame to conveniently hold drink garnishes
• Full length drain troughs and waste containers
• Two glass fillers for water service
• Installed underbar at service area—allows drink make up
from both sides
Description:
Underbar cocktail station with insulated ice chest, glass fillers,
condiment pans, and full length drain troughs.
Specifications:
Underbar cocktail prep stations with stainless steel ice bin. Ice
Bin to have foamed in place insulation and 1" drain in center.
Movable ice bin partition supplied. Two glass fillers supplied. (2)
full length waste troughs with removable egg crate grill and (2)
stainless steel perforated waste containers. Each trough to have
3/4" drain nipple installed. Condiment pan holding assembly and
(8) 1/9 size pans 2 1/2" deep supplied. Unit with stainless steel
top. Top turned up to form a 3 1/2" riser at each end. Exterior unit
body to be corrosion resistant steel.
Model L D H Condiment Pans Counter Cut out Dim. Ship Wt.
9540 35" 29 1/2" 9 1/2" (8) 1/9 size 31" x 26"(min.) - 28"(max) x 11 1/2" (min.) deep 140
9541 47" 29 1/2" 9 1/2" (8) 1/9 size 43" x 26"(min.) - 28"(max) x 11 1/2" (min.) deep 162
9542 59" 29 1/2" 9 1/2" (8) 1/9 size 55" x 26"(min.) - 28"(max) x 11 1/2" (min.) deep 184
9543 71" 29 1/2" 9 1/2" (8) 1/9 size 67" x 26"(min.) - 28"(max) x 11 1/2" (min.) deep 190
Height above countertop
Randell Drop-In, Page 8
Revised 09/04

1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
Model 9500
Drop-In Water & Ice Station model 9500
Description:
23"x 17 7/8" water and ice station with stainless steel top and
interior. Equipped with glass filler, drain trough, 1" ice bin drain
and with 60 Ib. ice capacity. Removable stainless steel cover
provided.
Specifications:
23" x 17 7/8" Top to be one piece of die-stamped 20 gauge stain-
less steel. Equipped with glass filler and stamped water trough
with wire grate. Ice bin liner is stainless steel, coved cornered
and equipped with 1" drain, with foamed in place polyurethane
insulation,and 60 Ib.ice capacity. Outer body is corrosion resistant
steel. Removable stainless steel cover provided.
4"
15.5"
11
1" DIA. DRAIN
CUTOUT DIMENSIONS:
21.5" x 16.375"
20.25"
23"
16"
17.875"
10.625"
22.75"
2" 13"
Randell Drop-In, Page 9
Revised 09/04

1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
Drop-In Water & Ice Station model 9510
Description:
21"x 14 5/8" water and ice station with stainless steel top and
interior. Equipped with glass filler, drain trough, 1" ice bin drain
and with 40 Ib. ice capacity. Removable stainless steel cover
provided.
Specifications:
21" x 14 5/8" Top to be one piece of die-stamped 20 gauge stain-
less steel. Equipped with glass filler and stamped water trough
with wire grate. Ice bin liner is stainless steel, coved cornered
and equipped with 1" drain, with foamed in place polyurethane
insulation,and40Ib.ice capacity.Outer body is corrosion resistant
steel. Removable stainless steel cover provided.
1" DIA. DRAIN
19.75" X 13.125"
CUTOUT DIMENSIONS:
21.25"
19"
13"
22.75"
12.5"
14.625"
Randell Drop-In, Page 10
Revised 09/04

1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
Drop-In Water & Ice Station model 9505
Description:
23 3/4"x 20" water and ice station with stainless steel top and
interior. Equipped with glass filler, drain trough, 1" ice bin drain and
with 44 Ib. ice capacity. Removable stainless steel cover provided.
Specifications:
23 3/4" x 20" Top to be one piece of die-stamped 20 gauge
stainless steel. Equipped with glass filler and stamped water
trough with wire grate. Ice bin liner is stainless steel, coved
cornered and equipped with 1" drain, with foamed in place
polyurethane insulation, and 44 Ib. ice capacity. Water supply
and drain lines to be located outside of ice bin. Outer body
is corrosion resistant steel. Removable stainless steel cover
provided.
22.375" x 18.875"
CUTOUT DIMENSIONS:
14.25"
23.75"
20"
13.625"
23.375"
18.125"
Randell Drop-In, Page 11
Revised 09/04

1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
Drop-In Water & Ice Station model 9515
Description:
21 7/8"x 15 1/2" water and ice station with stainless steel top
and interior. Equipped with glass filler, drain trough, 1" ice bin
drain and with 43 Ib. ice capacity. Removable stainless steel
cover provided.
Specifications:
21 7/8" x 15 1/2" Top to be one piece of die-stamped 20 gauge
stainless steel. Equipped with glass filler and stamped water
trough with wire grate. Ice bin liner is stainless steel, coved
cornered and equipped with 1" drain, with foamed in place
polyurethane insulation, and 43 Ib. ice capacity. Water supply
and drain lines to be located outside of ice bin. Outer body is
corrosion resistant steel.
20.5" x 14"
CUTOUT DIMENSIONS:
21.875"
15.5"
15.125"
17.625"
27.375"
13"
Randell Drop-In, Page 12
Revised 09/04

1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.

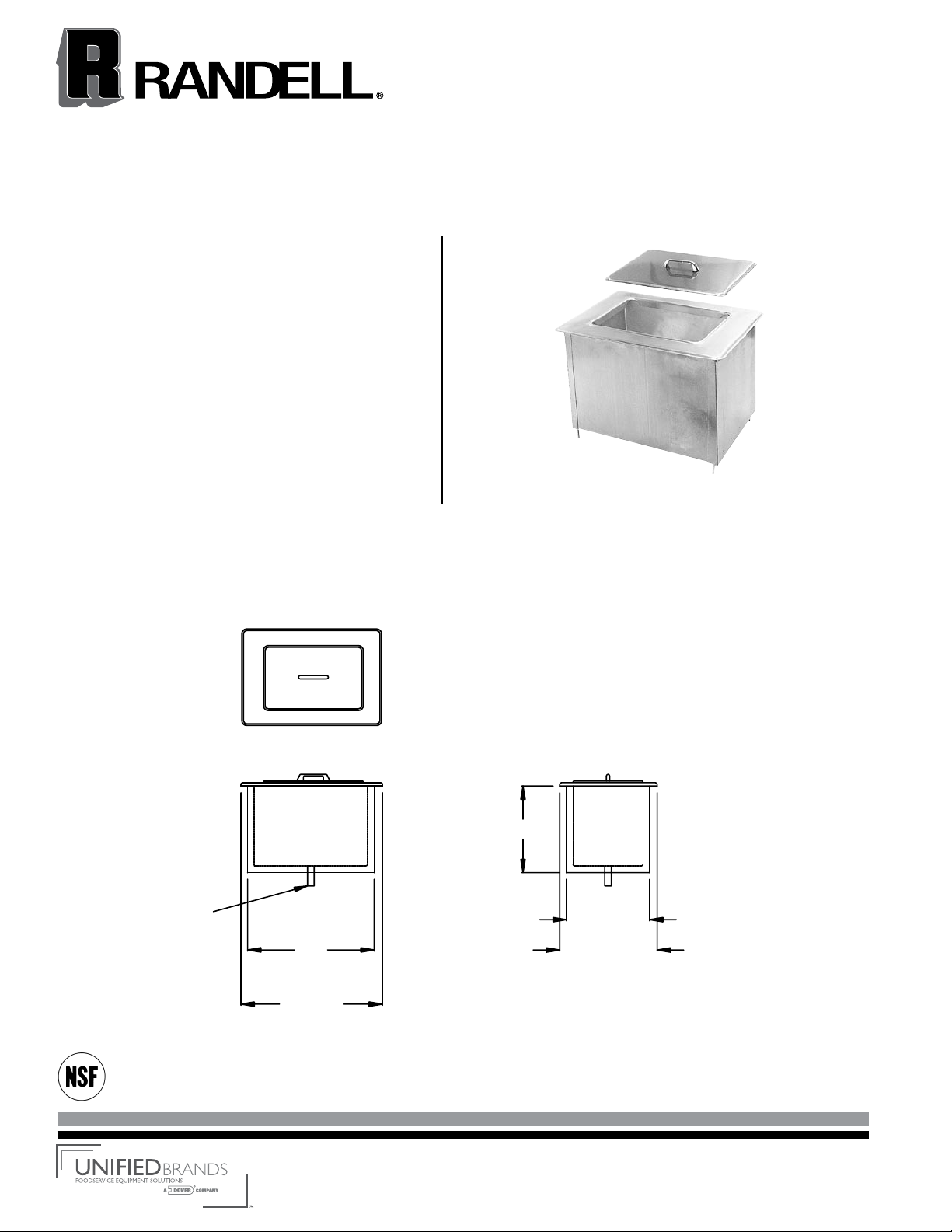

Drop-In Ice Station model 9510IC
Description:
21" x 14 1/2" ice station with stainless steel top and interior.
Equipped with 1" ice bin drain and with 40 Ib. ice capacity.
Removable stainless steel cover provided.
Specifications:
21" x 14 1/2" Top to be one piece of die-stamped 20 gauge
stainless steel with. Ice bin liner is stainless steel, coved
cornered and equipped with 1" drain. Foamed in place
polyurethane insulation, and 40 Ib. ice capacity. Outer body
is corrosion resistant steel. Removable stainless steel cover
provided.
1" DIA. DRAIN
19.75" X 13.125"
CUTOUT DIMENSIONS:
21.25"
19"
12.5"
14.625"
13"
Randell Drop-In, Page 13
Revised 09/04
