Drop-In Frost Top models 9800SCA
model 9828SCA 9843SCA 9857SCA 9872SCA 9886SCA
model 9843SCA shown
Standard Features:
• Self-contained refrigeration system with thermostatic
control, system utilizes “CFC free”, R-404a refrigerant
• All stainless steel top—one piece
• Foamed in place, “CFC free” urethane insulation
• Perimeter troughs, drain provided
• Stainless steel louver provided
• 9' corset for 115V plug-in operation
• .625" diameter drain welded in trough
• Custom sizes available
Description:
Drop-in self-contained, mechanically cooled, frost top unit
with one piece stainless steel top, perimeter troughs and drain
opening. R-404a refrigerant, “CFC free”. Wrapped refrigeration
construction with condensing unit, expansion valve, and
thermostatic control. Cordset for 115V operation.
Specifications:
UNIT EXTERIOR: Top to be 1 piece 18-gauge stainless steel with
a 2" overhang on all sides, perimeter trough, and drain opening.
Unit top is elevated above counter surface. Condensing unit
mounted on corrosion resistant framework, suspended below
unit body. Studs fitted to each corner for drawing unit down tight
against countertop. Stainless steel louver panel provided for field
installation in counter.
UNIT INTERIOR: Unit interior wrapped with refrigerating lines.
Refrigeration lines insulated with CFC free, foamed in place
polyurethane.
REFRIGERATION: CFC free, R-404a refrigeration system to be
wrapped refrigeration construction. Condensing unit, expansion
valve, and thermostatic control for operator adjustability mounted
on corrosion resistant framework, suspended below unit body. 8'
cordset (NEMA 5-15P) supplied for 115V.
Randell Drop-In, Page 3
Revised 09/04

Randell, Unified Brands 888-994-7636, unifiedbrands.net
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.

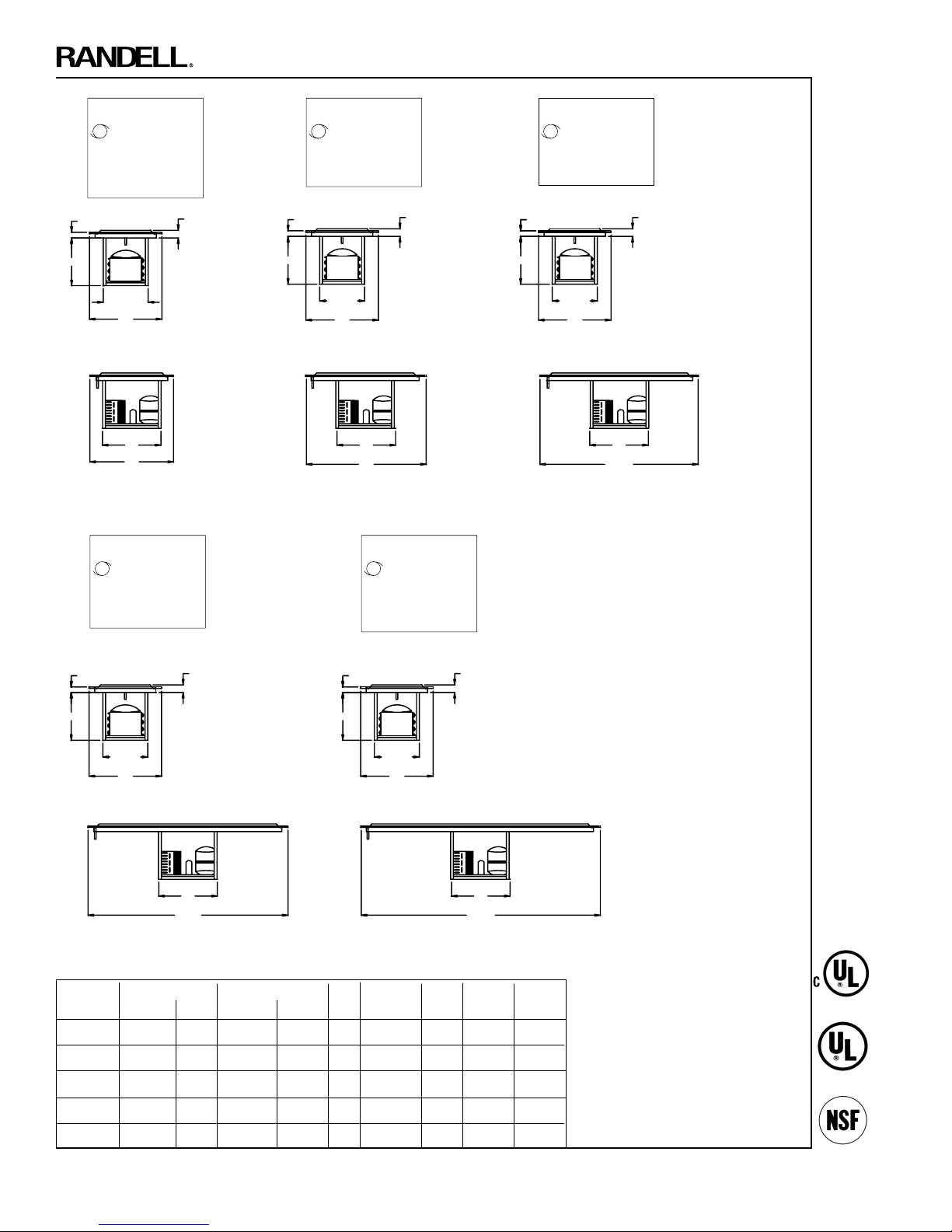

Models 9800SCA
O/A Dimension Cut Out Size
Model Length Width Length Width H.P. Volts Amps NEMA Ship Wt.
9828SCA 30" 26" 26 1/2" 22 1/2" 1/4 115/60/1 5 5-15P 140
9843SCA 43" 26" 39 1/2" 22 1/2" 1/4 115/60/1 5 5-15P 175
9857SCA 56 3/4" 26" 53 1/4" 22 1/2" 1/4 115/60/1 5 5-15P 210
9872SCA 71 3/4" 26" 68.25" 22 1/2" 1/4 115/60/1 5 5-15P 245
9886SCA 85 3/4" 26" 82.25" 22 1/2" 1/4 115/60/1 5 5-15P 280
MODEL #9828SC
CUTOUT DIMENSION
26.5" X 22.5"
MODEL #9872SC
CUTOUT DIMENSION
68.25" X 22.5"
MODEL #9843SC
CUTOUT DIMENSION
39.5" X 22.5"
MODEL #9857SC
CUTOUT DIMENSION
53.25" X 22.5"
MODEL #9886SC
CUTOUT DIMENSION
82.25" X 22.5"
21"
30"
16.125"
26"
17.125"
2" 2.75"
2.75"
71.75"
26"
21"
16.125"
17.125"
2"
43"
16.125"
26"
17.125"
2" 2.75"
21"
56.75"
26"
2.75"
21"
16.125"
17.125"
2"
26"
85.75"
2.75"
21"
16.125"
17.125"
2"
R404A REFRIGERANT
8' LONG CORD SET
(NEMA 5-15P)
JUNCTION BOX:
115V/60Hz/1Ph/5 AMPS
LEGEND FOR
MODEL # 9828SCA
1/4 HP COMPRESSOR
HP
DRAIN
JUNCTION BOX:
115V/60Hz/1Ph/5A
8' LONG CORD SET
(NEMA 5-15P)
MODEL # 9872SCA
LEGEND FOR
HP
1/4 HP COMPRESSOR
DRAIN
JUNCTION BOX:
8' LONG CORD SET
115V/60Hz/1Ph/5A
(NEMA 5-15P)
1/4 HP COMPRESSOR
LEGEND FOR
MODEL # 9843SCA
HP
DRAIN
JUNCTION BOX:
115V/60Hz/1Ph/5A
(NEMA 5-15P)
8' LONG CORD SET
1/4 HP COMPRESSOR
LEGEND FOR
MODEL # 9857SCA
HP
DRAIN
R404A REFRIGERANT
115V/60Hz/1Ph/5 AMPS
8' LONG CORD SET
(NEMA 5-15P)
JUNCTION BOX:
1/4 HP COMPRESSOR
MODEL # 9886SCA
LEGEND FOR
HP
DRAIN
Designed to maintain
frosty cold appearance.
