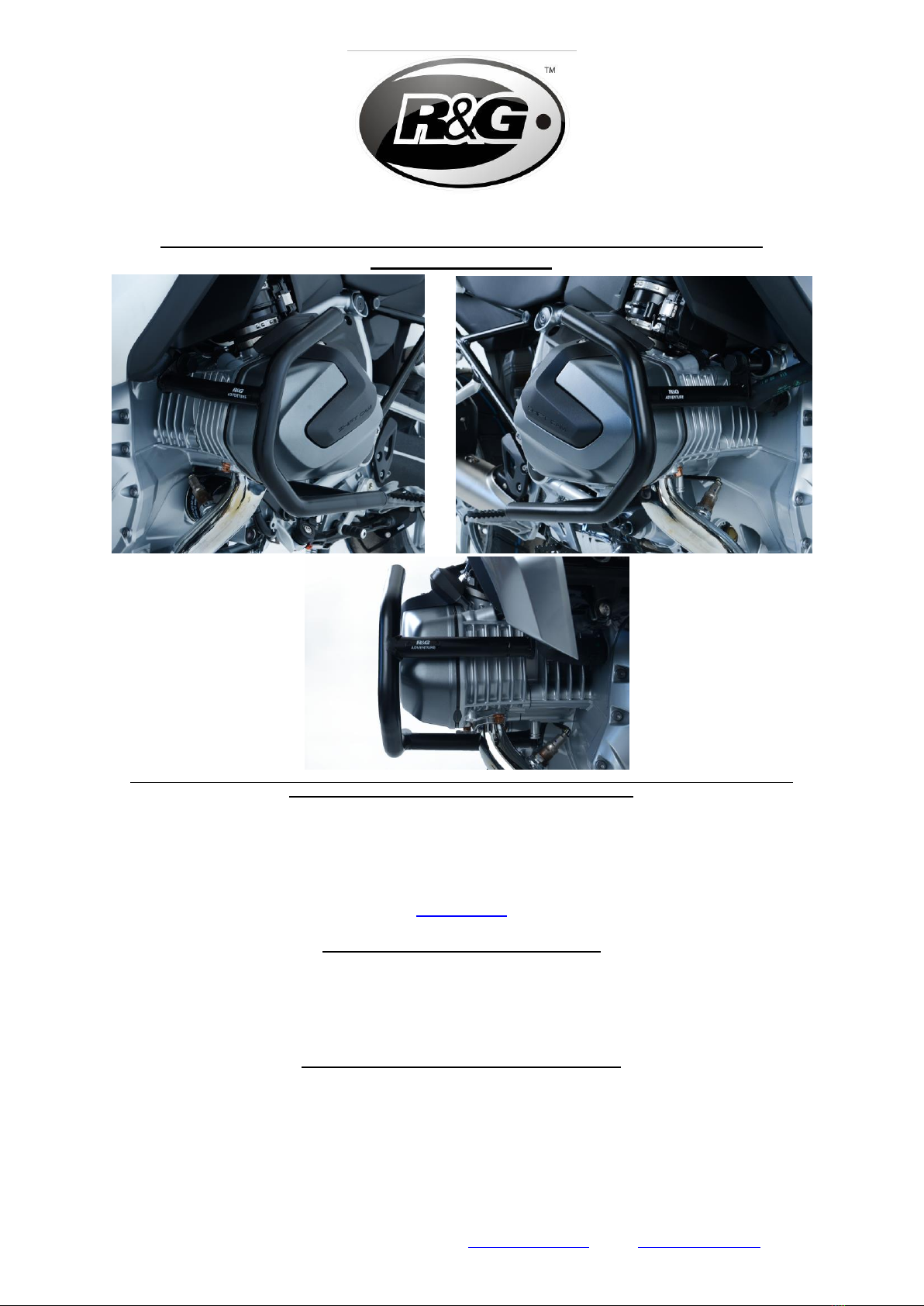

www.rg-racing.com Email: [email protected] •Locate the two lower mounting bolts through the frame member and into the threaded holes as original
(do not fully tighten at this stage).

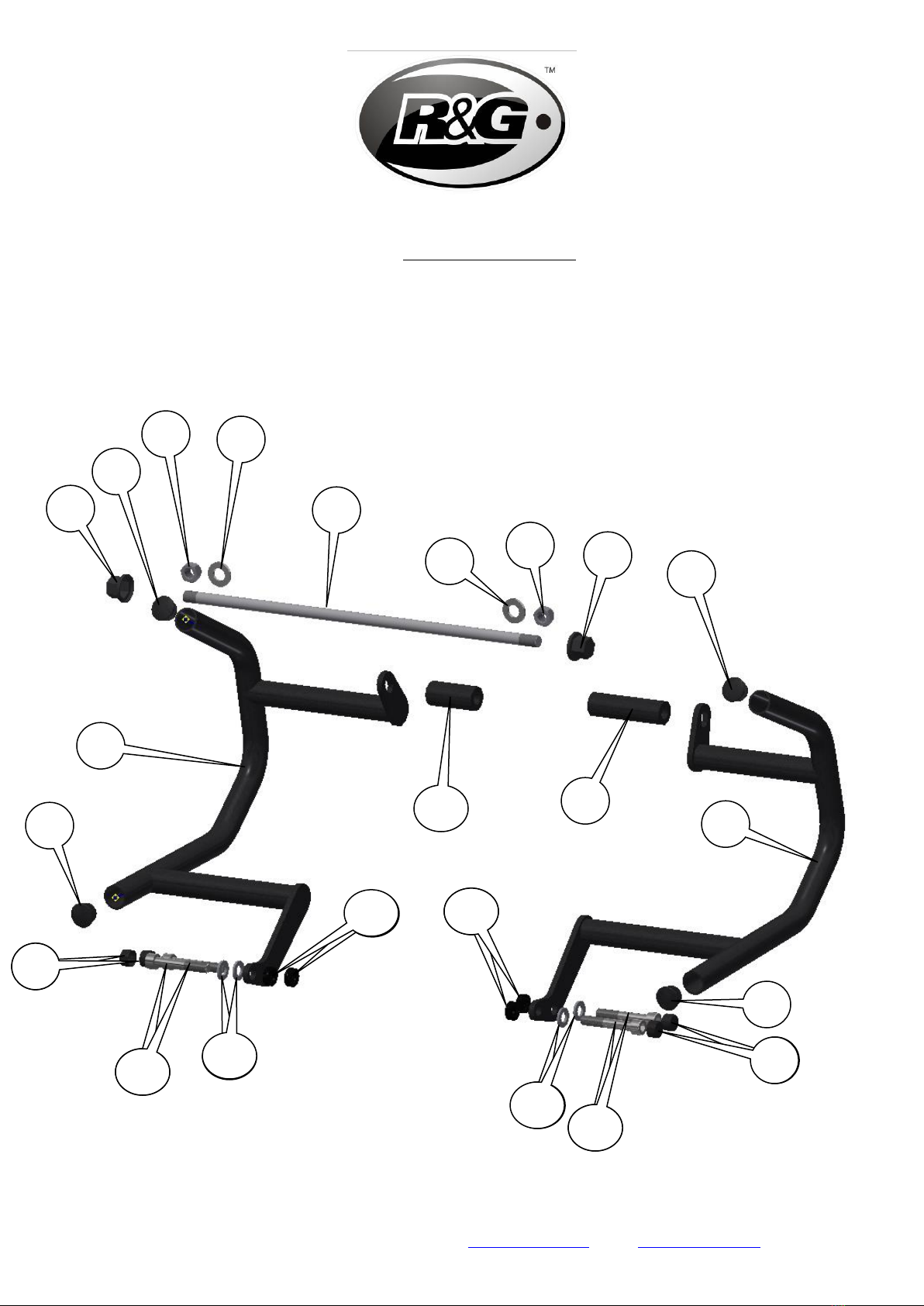

•Place one of the M12 washers (item 5) and one of the M12 nyloc nuts (item 4) onto the engine bar and
fully engage the nut but do not tighten at this stage.
•Locate the two lower mounting bolts through the frame member and into the threaded holes as original
(do not fully tighten at this stage) as shown in picture 9.
Off side (right side as you sit on bike)
•Place the longer larger spacer (item 7=83mm long) onto the exposed end of the engine bar on the right-
hand side as shown in picture 10.
•Remove the two bolts arrowed in picture 11.
•Place two of the M10 washers (item 11) onto two of the M10 cap head bolts (item 10) as shown in
picture 13, then place these bolts through the lower mounting bracket of the right-hand side adventure
bar (item 8) as shown in picture 13.
•Place two of the smallest spacers (item 12) onto the exposed end of the bolts as shown in picture 13.
•Carefully offer this assembly into position so the upper mounting bracket locates onto the engine bar as
shown in picture 12.
•Locate the two lower mounting bolts through the frame member and into the threaded holes as original
(do not fully tighten at this stage).
•Place one of the M12 washers (item 5) and one of the M12 nyloc nuts (item 4) onto the engine bar and
fully engage the nut but do not tighten at this stage.
•Tighten the two M12 nuts leaving equal amounts protruding through the nyloc nuts.
•Tighten the four M10 cap head bolts.
•Fit the two larger nut covers (item 2) over the two upper M12 nuts.
•Fit the four M10 bolts caps (item 9) over the lower bolts.
•Fit the four tube inserts (item 3) into the open ends of both adventure bars.
•Remove the jack and block of wood.
•Refit the belly pan as original.
ISSUE 1 13/11/2018 (NSY)
