R&G RAD0234 User manual

Page 1of 12 RAD0234
R&G
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
1

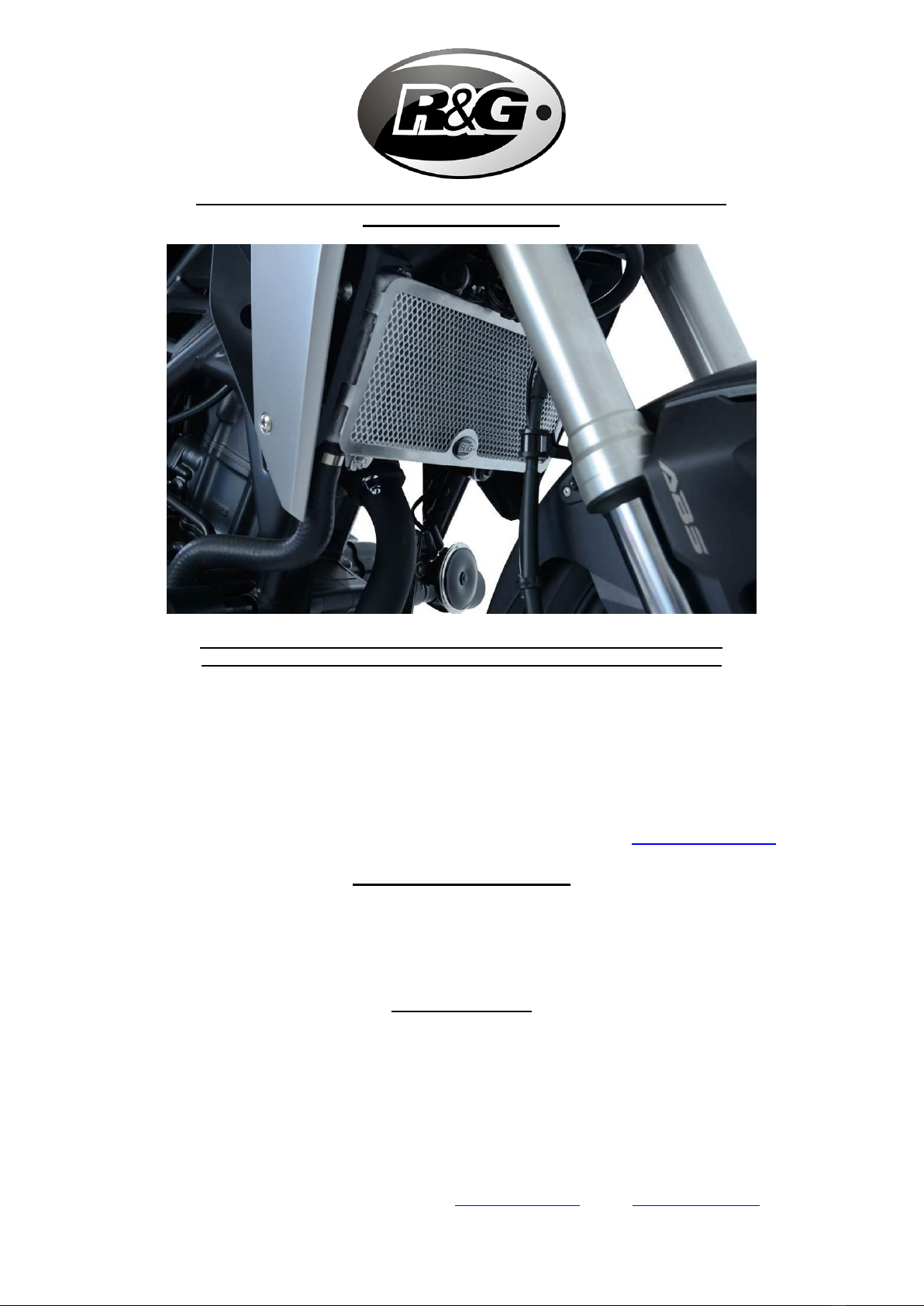

FITTING INSTRUCTIONS FOR RAD0234 RADIATOR GUARD
HONDA CB300R 2018 –
THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
Please note that the way the kit is packed does not necessarily represent the way of mounting to
the bike
Please note that in cases where kits are packed with rubber washers holding the components onto
the bolt –the rubber washers should be thrown away!
THE PARTS SHOWN MAY BE REPRESENTATIVE ONLY (FOR CLARITY OF INSTRUCTIONS ONLY
Digital copies of these instructions are available to download from www.rg-racing.com
GENERAL TORQUE SETTINGS
M4 BOLT = 8Nm
M5 BOLT = 12Nm
M6 BOLT = 15Nm
M8 BOLT = 20Nm
M10 BOLT = 40Nm
TOOLS REQUIRED
•5mm Allen key

Page 2of 12 RAD0234
R&G
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
2
THIS KIT CONTAINS
•1 x Radiator Guard (RAD0234)
•2 x 100mm Lengths of self-adhesive Foam

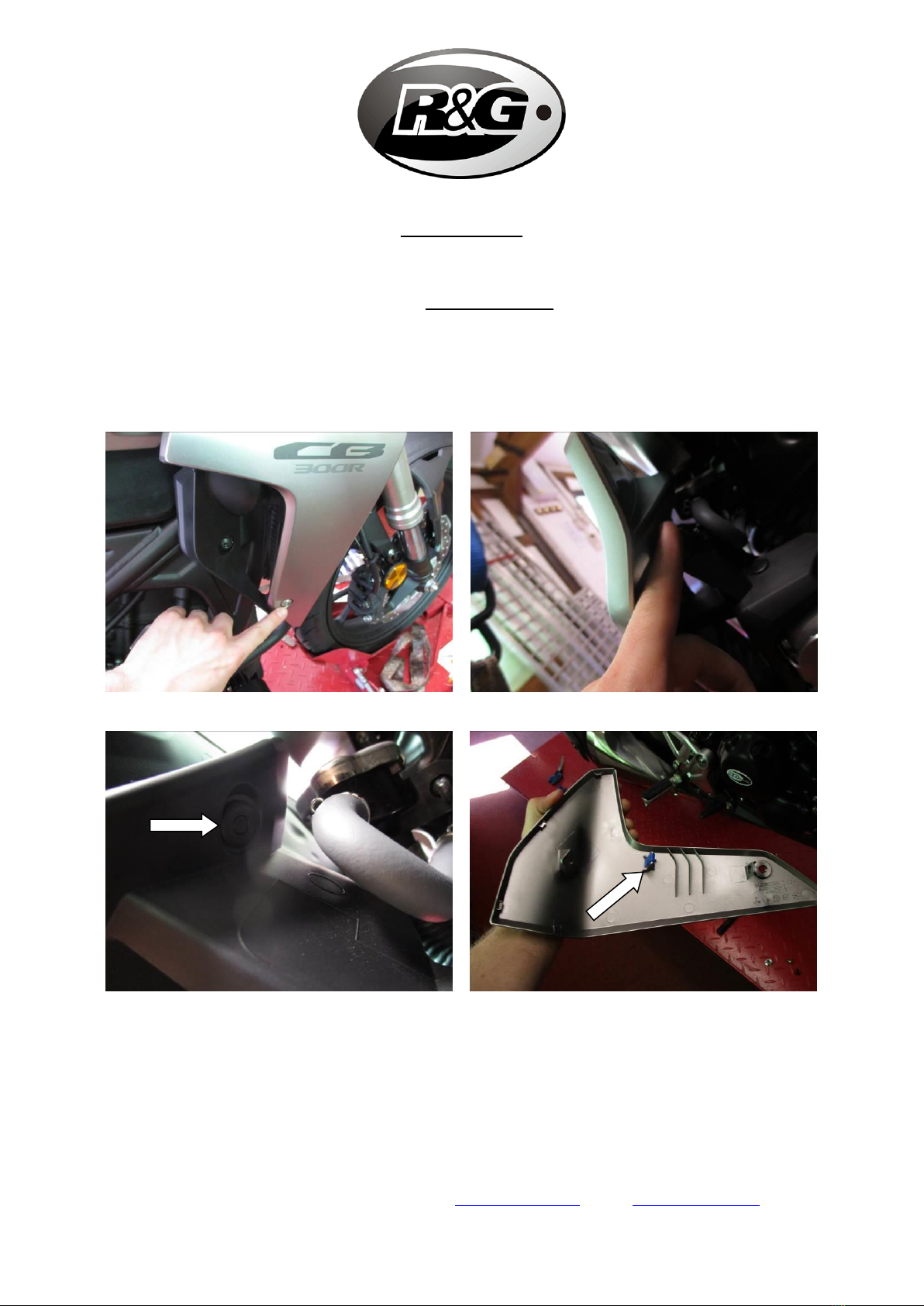

Picture 1
Picture 2
Picture 3
Picture 4

Page 3of 12 RAD0234
R&G
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
3

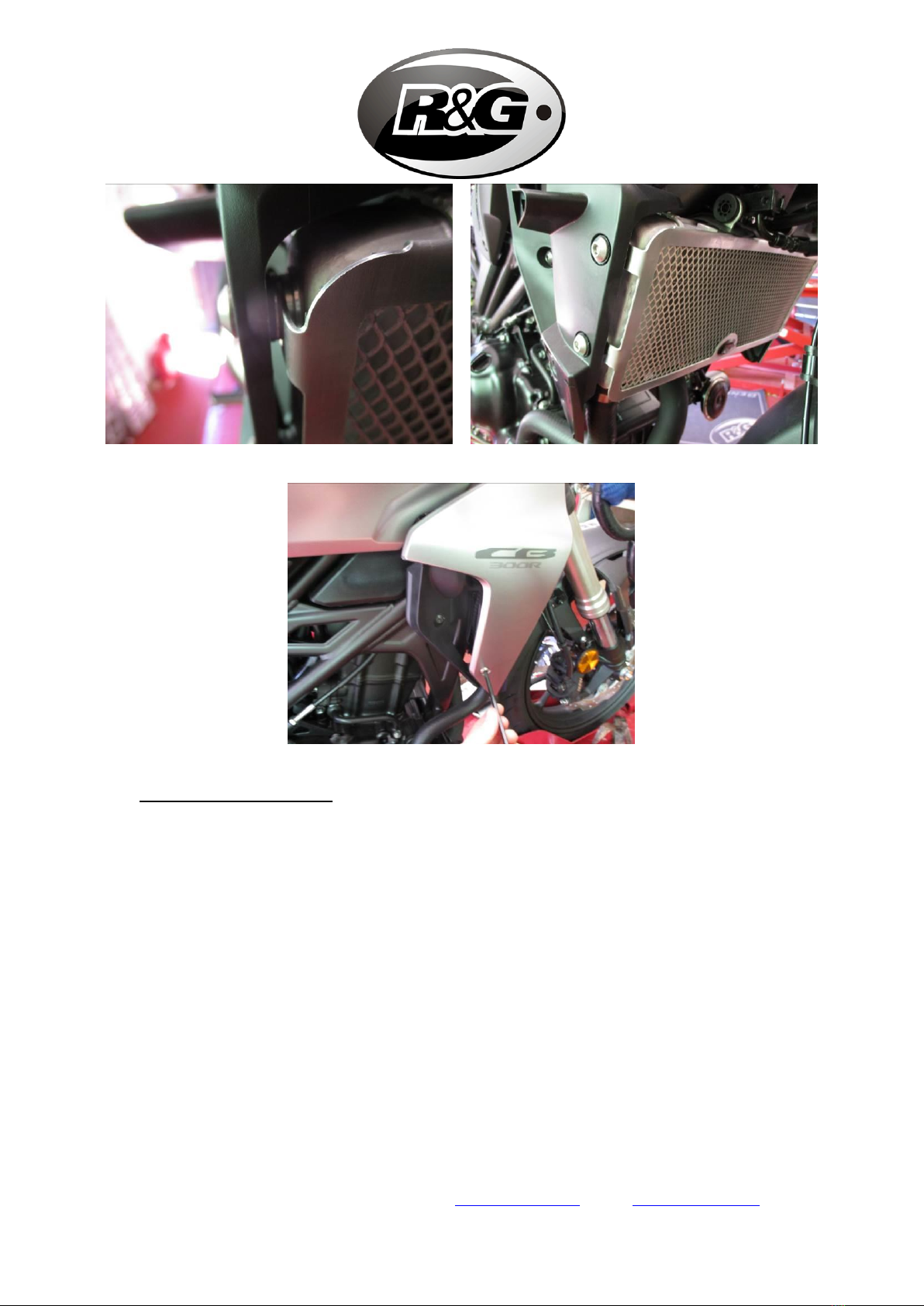

Picture 5
Picture 6
Picture 7
Picture 8
Picture 9

Page 4of 12 RAD0234
R&G
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
4
FITTING INSTRUCTIONS
•To fit the radiator guard to the bike, cut the foam strip provided into 10mm wide pieces and
stick them to the back of the radiator guard frame, so that they sit between the radiator guard
and the radiator (please space these evenly all around the radiator guard frame as they prevent
the guard coming into contact with the radiator).
•Remove the allen bolt on the RHS of the bike, highlighted in Picture 1.
•Locate and remove the plastic push rivet on the rear of the panel, shown in Pictures 2 and 3,
by pushing in the centre of the rivet to release it.
•Carefully remove the plastic fairing panel, by gently pulling it to release the fastener shown in
Picture 4.
•Repeat the previous steps on the other side of the bike.
•With the radiator exposed, loosen the two bolts shown in Picture 5, to allow 3mm clearance
between the radiator and the fairing, shown in Picture 6.
•Repeat the previous step on the other side of the bike.
•Offer the radiator guard into position, ensuring the four mounting tabs sit over the bolts, and
secure the radiator in place by tightening the four bolts back up to the correct torque.
•Refit both fairing panels.
ISSUE 1 14/09/2018 (LF)
CONSUMER NOTICE
The catalogue description and any exhibition of samples are only broad indications of the Products and R&G may make design
changes which do not diminish their performance or visual appeal and supplying them in such state shall conform to the order.
The Buyer acknowledges no representation or warranty (other than as to title) has been given or will apply to the Products other
than those in R&G’s order or confirmation and the Buyer confirms it has chosen the Products as being of merchantable quality
and suitable for its particular purposes. Where R&G fits the Products or undertakes other services it shall exercise reasonable
skill and care and rectify any fault free of charge unless the workmanship has been disturbed. The Buyer is responsible for
ensuring that the warranty on the motorcycle is not affected by the fitting of the Products. On return of any defective Products
R&G shall at its option either supply a replacement or refund the purchase money but shall not be liable if the Products have
been modified or used or maintained otherwise than in accordance with R&G’s or manufacturer’s instructions and good
engineering practice or if the defect arises from accident or neglect. Other than identified above and subject to R&G not limiting
its liability for causing death and personal injury, it shall not be liable for indirect or consequential loss and otherwise its liability
shall be limited to the amounts paid by the Buyer for the Products or the fitting or service concerned. These terms do not affect
the Buyer’s statutory rights.
R&G RACING RETURNS POLICY (NON-FAULTY GOODS)
Returns must be pre-authorised (if not pre-authorised the return will be rejected). Goods may only be returned direct to us if they
were purchased direct from us (customer must prove if necessary). Otherwise to be returned to original vendor. Goods must be
in re-sellable condition, in the opinion of R&G Racing. All returns are subject to a 25% restocking and handling fee (25% of the
gross value exc. P&P –at the prevailing price at time of purchase). The customer must pay any and all carriage charges. No
returns of discontinued products, unless within 14 days of purchase. This policy does not affect your statutory rights and does not
refer to faulty goods.

Page 5of 12 RAD0234
R&G
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
5
NOTICE DE MONTAGE POUR RAD0234
GRILLE DE PROTECTION RADIATEUR
HONDA CB300R 2018 –
Le kit contient les articles exposés ci-dessous, vérifier que toutes les pièces soient présentes avant
de procéder au montage.
La façon dont le kit est emballé ne correspond pas forcément à la façon de monter les pièces sur
la moto.
Notez que si les kits sont emballés avec des rondelles en caoutchouc servant à tenir les
composants, ces rondelles doivent être jetées
LES PARTIES PRESENTÉES PEUVENT ETRE UNIQUEMENT REPRESENTATIVES
(POUR LA CLARTE DES INSTRUCTIONS UNIQUEMENT)
Notice disponible au téléchargement sur www.rg-racing.com
VALEURS DE SERRAGE RECOMMANDEES
M4 BOULON = 8Nm
M5 BOULON = 12Nm
M6 BOULON = 15Nm
M8 BOULON = 20Nm
M10 BOULON = 40Nm

Page 6of 12 RAD0234
R&G
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
6
OUTILS REQUIS
•Clé Allen 5mm
Le kit doit contenir
•1x Grille de protection radiateur (RAD0234)
•2 x 100mm Longueurs de mousse autocollante
Photo 1
Photo 2
Photo 3
Photo 4

Page 7of 12 RAD0234
R&G
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
7
Photo 5
Photo 6
Photo 7
Photo 8
Photo 9

Page 8of 12 RAD0234
R&G
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
8
NOTICE DE MONTAGE
•Pour monter la grille de protection sur la moto, couper la mousse autocollante fournie en
bandeaux de 10mm puis collez les au bas du cadre de protection radiateur, de façon à ce qu’ils
se placent entre la grille de protection radiateur et le radiateur (svp, espacez-les de façon égale
autour du cadre de protection radiateur car ils empêcheront la protection de toucher le
radiateur).
•Enlever le boulon du côté droit de la moto, voir Photo 1.
•Enlever le rivet à l’arrière du panneau, voir photos 2 et 3, en poussant au milieu du rivet pour
le libérer.
•Enlever le panneau de carénage, en le tirant doucement pour le libérer, voir photo 4.
•Répéter les étapes précédentes de l’autre côté de la moto.
•Une fois le radiateur exposé, desserrer les 2 boulons indiqués sur la photo 5, pour créer un
espace de 3mm entre le radiateur et le carénage, voir photo 6.
•Répéter l’étape précédente de l’autre côté de la moto.
•Monter la grille en position, en veillant à ce que les 4 onglets de fixation se placent sur les
boulons, puis fixer le radiateur en place en serrant les 4 boulons selon les valeurs de serrage
recommandées.
•Remonter les 2 carénages.
ISSUE 1 14/09/2018 (LF)
CONSUMER NOTICE
The catalogue description and any exhibition of samples are only broad indications of the Products and R&G may make design
changes which do not diminish their performance or visual appeal and supplying them in such state shall conform to the order.
The Buyer acknowledges no representation or warranty (other than as to title) has been given or will apply to the Products other
than those in R&G’s order or confirmation and the Buyer confirms it has chosen the Products as being of merchantable quality
and suitable for its particular purposes. Where R&G fits the Products or undertakes other services it shall exercise reasonable
skill and care and rectify any fault free of charge unless the workmanship has been disturbed. The Buyer is responsible for
ensuring that the warranty on the motorcycle is not affected by the fitting of the Products. On return of any defective Products
R&G shall at its option either supply a replacement or refund the purchase money but shall not be liable if the Products have
been modified or used or maintained otherwise than in accordance with R&G’s or manufacturer’s instructions and good
engineering practice or if the defect arises from accident or neglect. Other than identified above and subject to R&G not limiting
its liability for causing death and personal injury, it shall not be liable for indirect or consequential loss and otherwise its liability
shall be limited to the amounts paid by the Buyer for the Products or the fitting or service concerned. These terms do not affect
the Buyer’s statutory rights.
R&G RACING RETURNS POLICY (NON-FAULTY GOODS)
Returns must be pre-authorised (if not pre-authorised the return will be rejected). Goods may only be returned direct to us if they
were purchased direct from us (customer must prove if necessary). Otherwise to be returned to original vendor. Goods must be
in re-sellable condition, in the opinion of R&G Racing. All returns are subject to a 25% restocking and handling fee (25% of the
gross value exc. P&P –at the prevailing price at time of purchase). The customer must pay any and all carriage charges. No
returns of discontinued products, unless within 14 days of purchase. This policy does not affect your statutory rights and does not
refer to faulty goods.

Page 9of 12 RAD0234
R&G
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
9
MONTAGEANLEITUNG FÜR RAD0234 KÜHLERSCHUTZ
HONDA CB300R 2018 –
ALLE KIT-TEILE SIND UNTEN ABGEBILDET UND GEKENNZEICHNET. BEVOR SIE MIT DER
MONTAGE BEGINNEN, ÜBERPRÜFEN SIE, DASS ALLE TEILE VORHANDEN SIND.
Hinweis: Die Verpackung der Teile stellt nicht die Reihenfolge der Montage dar.
Hinweis für Kits mit Plastikunterlegscheiben an den Schrauben –Diese Plastikunterlegscheiben werden nicht für
den Einbau benötigt!
DIE UNTEN ABGEBILDETEN TEILE DIENEN LEDIGLICH ZUR ERKLÄRUNG
Eine digitale Version dieser Montageanleitung kann auf folgender Seite heruntergeladen werden:
www.rg-racing.com
ANZUGSDREHMOMENT
M4 SCHRAUBE = 8Nm
M5 SCHRAUBE = 12Nm
M6 SCHRAUBE = 15Nm
M8 SCHRAUBE = 20Nm
M10 SCHRAUBE = 40Nm
SIE BENÖTIGEN FOLGENDES WERKZEUG:
•5mm Inbusschlüssel
DIESER KIT BEINHALTET:
•1x Kühlerschutz (RAD0234)
•2x 100mm selbstklebende Schaumstoffstreifen

Page 10 of 12 RAD0234
R&G
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
10
Abbildung 1
Abbildung 2
Abbildung 3
Abbildung 4
Abbildung 5
Abbildung 6

Page 11 of 12 RAD0234
R&G
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
11
Abbildung 7
Abbildung 8
Abbildung 9
MONTAGEANLEITUNG
•Um den Kühlerschutz am Motorrad zu montieren, schneiden Sie zuerst die mitgelieferten
Schaumstoffstreifen in 10 mm breite Streifen und kleben Sie diese auf der Rückseite des
Kühlerschutzrahmens, so dass sie zwischen dem Kühlerschutz und dem Kühler angebracht
sind (bitte diese gleichmäßig um den Kühlerschutzrahmen platzieren, sodass der Kühlerschutz
den Kühler nicht berührt).
•Entfernen Sie die Inbusschraube an der rechten Seite des Motorrades –siehe Abbildung 1.
•Entfernen Sie die Plastikniete hinten am Verkleidungsteil (siehe Abbildungen 2 und 3) –die
Plastikniete mittig drücken, um sie zu lösen.
•Vorsichtig das Verkleidungsteil entfernen, indem Sie sie vorsichtig ziehen, um die Halterung
zu lösen –siehe Abbildung 4.
•Diese Schritte an der anderen Seite des Motorrades wiederholen.
•Lösen Sie dann die zwei Schrauben, die in Abbildung 5 abgebildet sind, um ca. 3mm Abstand
zwischen dem Kühler und der Verkleidung zu bekommen –siehe Abbildung 6.
•Diesen Schritt an der anderen Seite des Motorrades wiederholen.
•Den R&G Kühlerschutz in Position bringen –bitte darauf achten, dass die 4 Montagelaschen
über den Schrauben positioniert sind und den Kühlerschutz mit den vier Schrauben befestigen.
•Montieren Sie beide Verkleidungen wieder.

Page 12 of 12 RAD0234
R&G
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
12
AUSGABE 1 14/09/2018 (LF)
CONSUMER NOTICE
The catalogue description and any exhibition of samples are only broad indications of the Products and R&G may make design changes which do not diminish their
performance or visual appeal and supplying them in such state shall conform to the order. The Buyer acknowledges no representation or warranty (other than as to title) has
been given or will apply to the Products other than those in R&G’s order or confirmation and the Buyer confirms it has chosen the Products as being of merchantable
quality and suitable for its particular purposes. Where R&G fits the Products or undertakes other services it shall exercise reasonable skill and care and rectify any fault free
of charge unless the workmanship has been disturbed. The Buyer is responsible for ensuring that the warranty on the motorcycle is not affected by the fitting of the
Products. On return of any defective Products R&G shall at its option either supply a replacement or refund the purchase money but shall not be liable if the Products have
been modified or used or maintained otherwise than in accordance with R&G’s or manufacturer’s instructions and good engineering practice or if the defect arises from
accident or neglect. Other than identified above and subject to R&G not limiting its liability for causing death and personal injury, it shall not be liable for indirect or
consequential loss and otherwise its liability shall be limited to the amounts paid by the Buyer for the Products or the fitting or service concerned. These terms do not affect
the Buyer’s statutory rights. R&G RACING RETURNS POLICY (NON-FAULTY GOODS)
Returns must be pre-authorised (if not pre-authorised the return will be rejected). Goods may only be returned direct to us if they were purchased direct from us (customer
must prove if necessary). Otherwise to be returned to original vendor. Goods must be in re-sellable condition, in the opinion of R&G Racing. All returns are subject to a
25% restocking and handling fee (25% of the gross value exc. P&P –at the prevailing price at time of purchase). The customer must pay any and all carriage charges. No
returns of discontinued products, unless within 14 days of purchase. This policy does not affect your statutory rights and does not refer to faulty goods.
