Rane ONE User manual

Confidential Rane Service Manual
Rane
ONE
[NK49]
Service Manual
v1.0
The information in this document contains privileged and confidential information. It is intended only for the use of
those authorized by Rane. If you are not the authorized, intended recipient, you are hereby notified that any review,
dissemination, distribution or duplication of this document is strictly prohibited. If you are not authorized, please
contact Rane and destroy all copies of this document. You may contact Rane at [e-mail].
© Copyright Rane
ATTENTION!
This document contains sensitive proprietary information.
All recipients must have a current non-disclosure agreement on file
with Rane.
Do not make illegal copies of this document.

Confidential Rane Service Manual
Preface
This document is intended to assist the service technician in the operation, maintenance and repair of the Rane
device. Together with the User Reference Manual, this document provides a complete description of the
functionality and serviceability of the Device. Any comments or suggestions you may have pertaining to the
document are welcome and encouraged.
Read This!
In addition to any purchase price that Rane may charge as consideration for Rane selling or otherwise transferring
this service manual (“Manual”) to you, if you are not a service and repair facility (“Service Center”) authorized by
Rane in writing to be an authorized Service Center, Rane sells or transfers the Manual to you on the following terms
and conditions:
Only Service Centers authorized by Rane in writing are authorized to perform service and repairs covered by an
Rane warranty (if any), and transfer of the Manual to you does not authorize you to be an authorized Service Center.
Therefore, if you perform, or if the Manual is used to perform, any service or repairs on any Rane product or part
thereof, any and all warranties of Rane as to that product and any service contract with Rane for that product
shall be voided and shall no longer apply for such product, even if your services or repairs were done in
accordance with the Manual.
All service or repairs done by you or with reference to the Manual shall be solely your responsibility, and Rane shall
have no liability for any such repairs or service work. All such service or repairs are performed at the sole risk of
the person performing the service or repairs. You agree that all such work will be performed in a competent,
professional and safe manner at all times and to indemnify and fully hold Rane and its successors and assigns
harmless in the event of any failure to so perform.
Your purchase of the Manual shall be for your own ultimate use and shall not be for purposes of resale or other
transfer.
As the owner of the copyright to the Manual, Rane does not give you the right to copy the Manual, and you agree
not to copy the Manual without the written authorization of Rane. Rane has no obligation to provide to you any
correction of, or supplement to, the Manual, or any new or superseding version thereof.
Rane shall have the right to refuse to sell or otherwise transfer repair parts or materials to you in its sole discretion.
You shall not use, sell or otherwise transfer spare or replacement parts supplied by Rane to you (i) to repair or be
used in products manufactured for or by third parties or (ii) to any third parties for any purpose.
You shall not make any warranties or guarantees with respect to the products of Rane or the use thereof on behalf
of Rane or in your own name.
The foregoing describes the entire understanding related to sale or transfer of the Manual to you, and no other
terms shall apply unless in a writing signed by an authorized representative of Rane.
All Trademarks are property of their respective companies.

Confidential Rane Service Manual
Warnings
TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE THIS PRODUCT TO WATER OR
MOISTURE.
The arrowhead symbol on a lightning flash inside a triangle is intended to alert the user to
the presence of uninsulated “dangerous voltage” within the enclosed product which may
be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point inside a triangle is intended to alert the user to the presence of
important operating, maintenance and servicing instructions in the literature which
accompanies the product.
REPAIR BY ANY PERSON OR ENTITY OTHER THAN AN AUTHORIZED RANE SERVICE CENTER WILL
VOID THE RANE WARRANTY.
PROVISION OF THIS MANUAL DOES NOT AUTHORIZE THE RECIPIENT TO COMPETE WITH ANY RANE
DISTRIBUTOR OR AUTHORIZED REPAIR SERVICE CENTER IN THE PROVISION OF REPAIR SERVICES
OR TO BE OR MAKE REPAIRS AS AN AUTHORIZED SERVICE CENTER.
ALL REPAIRS DONE BY ANY ENTITY OTHER THAN AN AUTHORIZED RANE SERVICE CENTER SHALL
BE SOLELY THE RESPONSIBILITY OF THAT ENTITY, AND RANE SHALL HAVE NO LIABILITY TO THAT
ENTITY OR TO ANY OTHER PARTY FOR ANY REPAIRS BY THAT ENTITY.
Regarding the Power Supply Fuse
Caution: The product under service may employ the use of a replaceable fuse. Danger of
fire or electrocution if fuse is incorrectly replaced. Replace with only the same type or
equivalent type recommended by the equipment manufacturer.
Regarding the Internal Battery
Caution: The product under service may employ the use of a internal battery. Danger of
explosion if battery is incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used batteries according to the
manufacturer’s instruction.

Confidential Rane Service Manual
Safety Instructions
Carefully read the applicable items of the operating instructions and these safety suggestions before using this
product. Use extra care to follow the warnings written on the product itself and in the operating instructions. Keep
the operating instructions and safety suggestions for reference in the future.
1. Power Source. The product should only be connected to a power supply which is described either in the
operating instructions or in markings on the product.
2. Power Cord Protection. AC power supply cords should be placed such that no one is likely to step on the
cords and such that nothing will be placed on or against them.
3. Periods of Non-use. If the product is not used for any significant period of time, the product’s AC power supply
cord should be unplugged from the AC outlet.
4. Foreign Objects and Liquids. Take care not to allow liquids to spill or objects to fall into any openings of the
product.
5. Water or Moisture. The product should not be used near any water or in moisture.
6. Heat. Do not place the product near heat sources such as stoves, heat registers, radiators or other heat
producing equipment.
7. Ventilation. When installing the product, make sure that the product has adequate ventilation. Improperly
ventilating the product may cause overheating, which may damage the product.
8. Mounting. The product should only be used with a rack which the manufacturer recommends. The
combination of the product and rack should be moved carefully. Quick movements, excessive force or uneven
surfaces may overturn the combination which may damage the product and rack combination.
9. Cleaning. The product should only be cleaned as the manufacturer recommends.
10. Service. The user should only attempt the limited service or upkeep specifically described in the operating
instructions for the user. For any other service required, the product should be taken to an authorized service
center as described in the operating instructions.
11. Damage to the Product. Qualified service personnel should service the unit in certain situations including
without limitation when:
a. Liquid has spilled or objects have fallen into the product,
b. The product is exposed to water or excessive moisture,
c. The AC power supply plug or cord is damaged,
d. The product shows an inappropriate change in performance or does not operate normally, or
e. The enclosure of the product has been damaged.

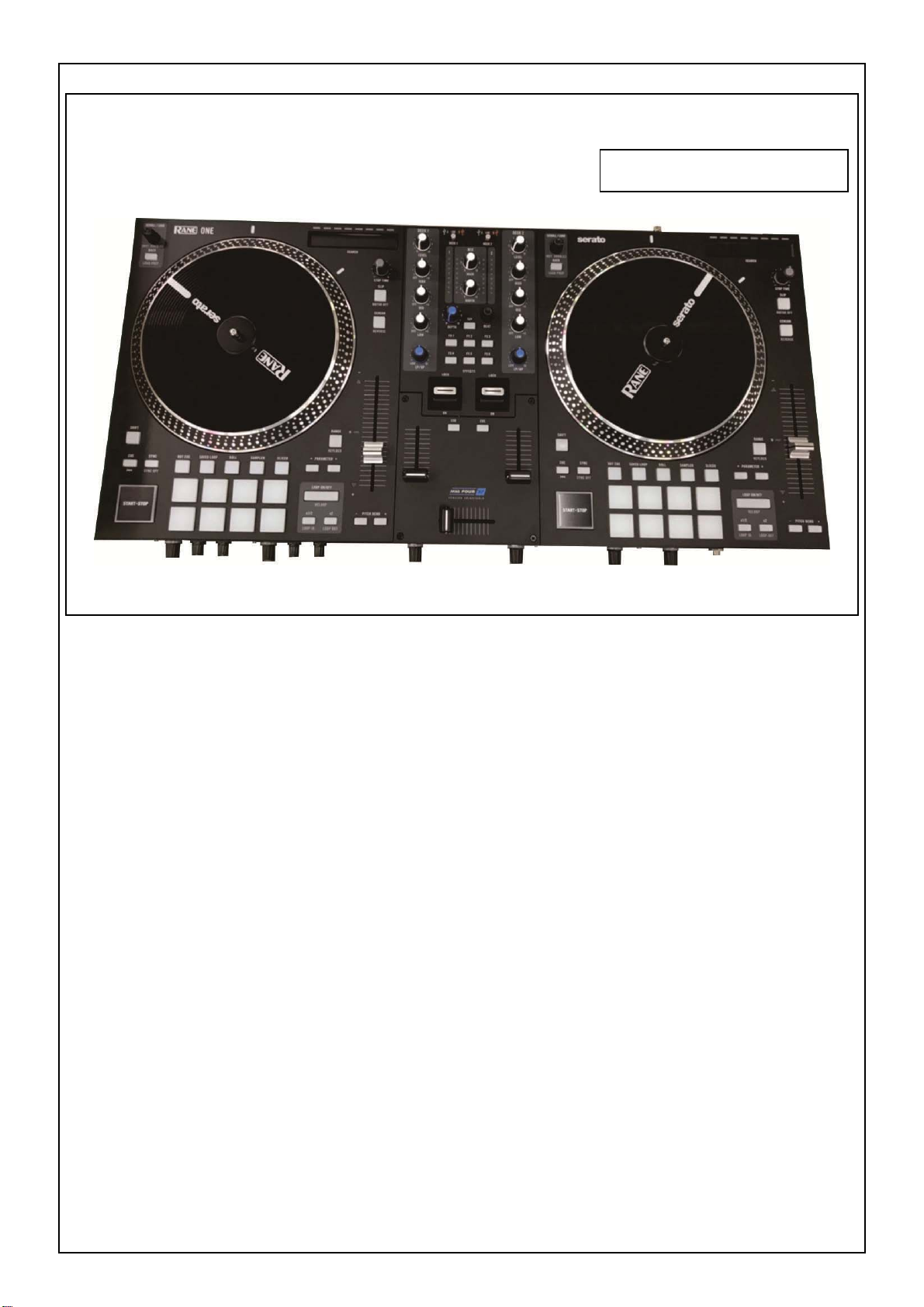

SPECIFICATION
FUNCTION
1. Line/PC - (3-way toggle switch) [MIDI] Channels:
This selects playback audio to mix with. Audio in is always routed over USB directly to the computer
from the input When in
“PC 1” the audio will be routed from the software to the channel. This is for USB A host.
“Line” routes rear inputs to channels 1 & 2 of the mixer.
“PC 2” the audio will be routed from the software to the channel. This is for USB B host.
2. Gain – (270-degree Pot) [MIDI]:
This pot controls the gain for its associated channel on the mixer.
3. Treble – (270-degree Pot w/ Center Detent) [MIDI]:
This knob controls the high-end treble output of its associated channel on the mixer.
Full left is – infinity kill and right is +6db gain .
4. Mid – (270-degree Pot w/ Center Detent) [MIDI] :
This knob controls the Mid-range frequency of its associated channel on the mixer.
Full left is – infinity kill and right is +6db gain.
5. Bass – (270-degree Pot w/ Center Detent) [MIDI] :
This knob controls the low end bass frequencies of its associated channel on the mixer.
Full left is – infinity kill and right is +6db gain .
6. Filter (270-degree w/Center Detent) [MIDI] :
This center Detented knob acts as a low pass filter from center sweeping left and a high pass filter from center
sweeping right. A pre-determined amount of resonance will be applied. The filter will always be active but only
audible once it has been moved past its 12 o’clock positioning. This is spec’d as a hardware filter.
7. Channel Fader (45mm Slide Fader) [MIDI]:
This is the volume controller for the channel. Channel faders are not user replaceable.
8. Cross Fader [MIDI]:
This fader is for transitioning from Left assigned (A) Cross fader Deck Position to Right assigned (B) Cross
fader Position.
This is a user-removable cross fader so the mechanical design must be screwless around the fader but
still allow replacement.
The crossfader will also support standard faders as drop-in replacments. Innofader or Numark CP Pro.
SERVICE MANUAL
MODEL:ONE

9. Master Volume - (270-degree Rotary Pot) [analog]:
Controls the gain of the master outputs.
10. Booth Volume - (270-degree Rotary Pot) [analog]:
Controls the gain of the booth outputs.
11. Channel PFL/Cue– (Tact switch w/Red LED) [MIDI] – Activates PFL for selected channel.
Radio Style, Press and hold one PFL channel and pressing the other will turn both on.
12. UI Browser – plastic (360-degree Encoder and Push Switch) [MIDI]:
A standard detented encoder with push switch is used to navigate through the software.
The push switch will typically be used for selection and forward navigation through the UI.
The encoder will typically be used for
scrolling through item lists. Holding Shift +: Loads the current song in focus in the Prepare Window in the
software.
13. Back - (Tact switch with Red LED) [MIDI] :
Pressing this button will take the library focus back a step in the software.
Holding Shift +: Adds the current song in focus to the Prepare Window in the software.
LED State: always Dim
14. FX buttons 1-6 (Tact Switch with Red LED) (Qty: 6) [MIDI]:
These radio style buttons are used to select a software effect.
LED State: On Bright/Toggle Active flashing/Off Dim.
15. FX On/Off (3 Tact switch “paddle” spring loaded):
This is used to activate both hardware and software FX. Pushing up on the paddle will latch (lock) the FX in
the
on position. Pushing down on the paddle will turn the FX on momentarily. When the paddle is in the middle
position the FX are in the off state.
16. Tap (Tact switch white LED) [MIDI]:
This button is used to manually tap in the tempo in both software effects banks. Shift+ will reset the BPM
in the effects banks to whatever is embedded in the song.
17. FX Depth (270 rotary pot) [MIDI]: Adjusts the Level/Depth of all FX
18. Parameter Encoder (360 Rotary Encoder with Push):This will control hardware FX parameters.
19. SYNC (Tact Switch w/ blue LED) (plastic) [MIDI]:
This control is used to force the track to align with the other deck’s tempo and phase.
It is up to the software to either hard align or gently nudge it into place, depending on the Smart or
Simple Sync chosen from the settings.
The LED for this control will light when active. Shift + SYNC will deactivate Sync. LED’s On/Off.
20. Strip Search (Touch Strip with 8 Red LEDs) [MIDI] :
This constant force linear pot is used to allow the user to jump to any point within a track by touching
Anywhere along the strip. The LEDs will show time elapsed in relation to current song playing.

DISASSEMBLY PROCEDURES

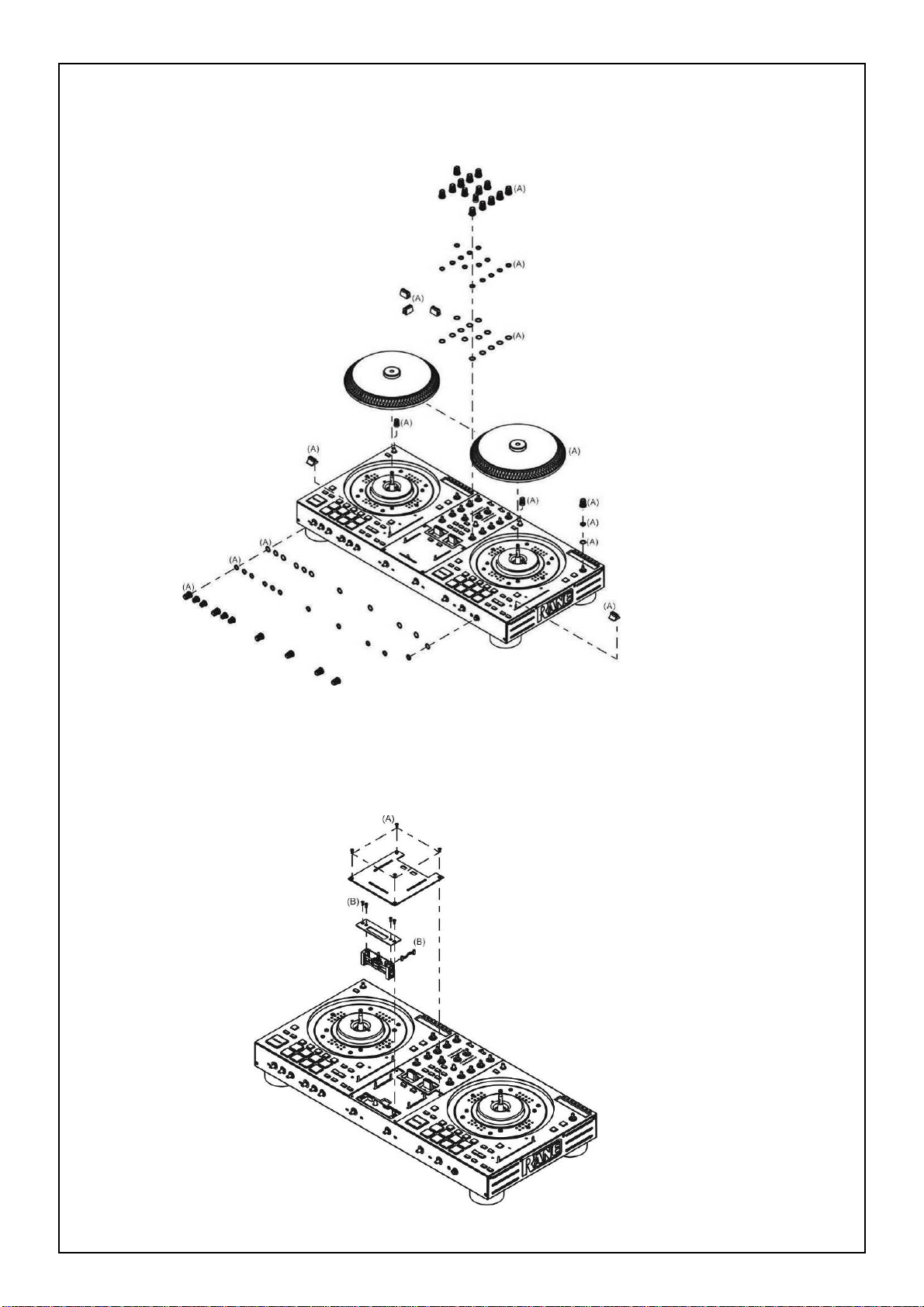

1. REMOVAL OF TOP CABINET. (Fig.1)
(A) REMOVE THE 28 PCS KONB AND 2PCS ALUMI PLATTER AND 5PCS FADER CAP AND 26 PCS
HEXAGON NUT AND 26 PCS WASHER BEFORE REMOVAL OF TOP CABINET.
Fig.1
2.REMOVAL OF THE CROSS FADER . (Fig.2)
(A) REMOVE THE 4 PCS SCREWS BEFORE REMOVAL OF FIXED PLATE.
(B) REMOVE THE 4 PCS SCREWS AND 1PCS CONNECTOR BEFORE REMOVAL OF CROSS FADER .
Fig.2

3.REMOVAL OF THE FRONT PCB ASSEMBLY(SMT/DIP) AND RIHGT FRONT PCB DIP
ASSEMBLY AND BOTTOM CHASSIS. (Fig.3)
(A) REMOVE THE 44 PCS SCREWS BEFORE REMOVAL OF BOTTOM CHASSIS.
(B) REMOVE THE 4 PCS SCREWS AND 2 PCS COPPER AND 3 PCS CONNECTOR BEFORE REMOVAL OF FRONT
PCB(SMT/DIP) AND RIHGT FRONT PCB ASSEMBLY.
Fig.3
4.REMOVAL OF THE MAIN PCB ASSEMBLY(SMT/DIP)AND OPEN FRAME TYPE 28V/5.36A
AND DC FAN. (Fig.4)
(A) REMOVE THE 16 PCS SCREWS AND 9 PCS CONNECTOR AND 4 PCS COPPER BEFORE REMOVAL OF
MAIN PCB ASSEMBLY,(SMT/DIP).
(B) REMOVE THE 4 PCS SCREWS AND 4 PCS FLANGE SCREW NUT BEFORE REMOVAL OF DC FAN.
(C) REMOVE THE 9 PCS SCREWS AND 3 PCS COPPER AND 2 PCS NUT AND 1 PC NAME PLATE BEFORE
REMOVAL OF OPEN FRAME TYPE 28V/5.36A.
Fig.4

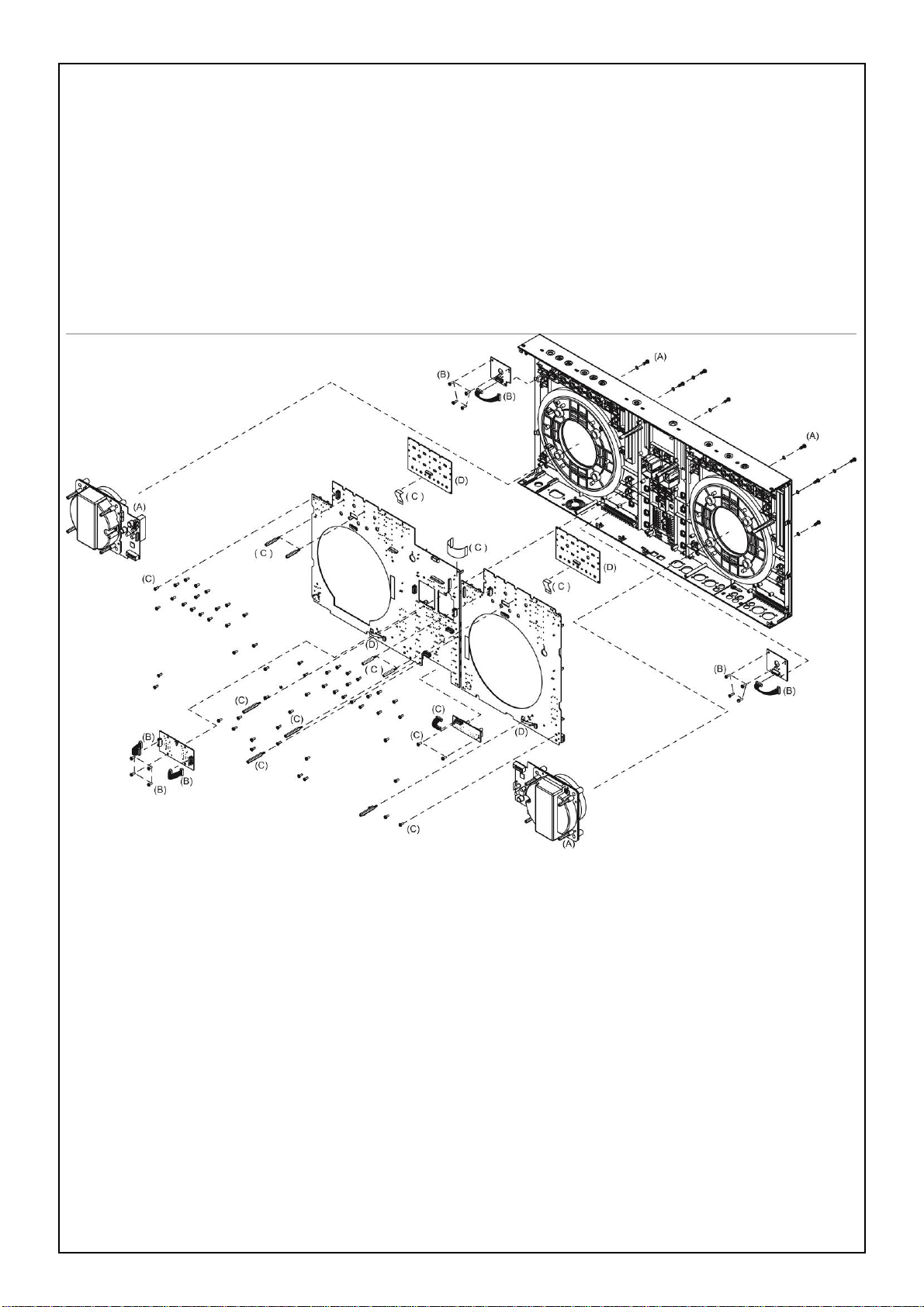

5.REMOVAL OF THE DD MOTOR AND START/STOP PCB DIP ASSEMBLY AND TOGGLE
SWITCH PCB DIP ASSEMBLY AND RIGHT PCB ASSEMBLY(SMT/DIP) AND LEFT PCB
ASSEMBLY(DIP) AND RIHGT FRONT PCB DIP ASSEMBLY AND FSR PCB
ASSEMBLY(SMT). (Fig.5)
(A) REMOVE THE 8 PCS SCREWS AND 6 PCS WASHER AND 2 PCS WASHER EXTERNAL BEFORE
REMOVAL OF DD MOTOR.
(B) REMOVE THE 12 PCS SCREWS AND 4 PCS CONNECTOR BEFORE REMOVAL OF START/STOP PCB
DIP AND TOGGLE SWITCH PCB DIP ASSEMBLY.
(C) REMOVE THE 60 PCS SCREWS AND 4 PCS CONNECTOR AND 8 PCS COPPER BEFORE REMOVAL OF
RIGHT PCB ASSEMBLY(SMT/DIP) AND LEFT PCB ASSEMBLY(DIP) AND RIHGT FRONT PCB DIP
ASSEMBLY.
(D) REMOVE THE 2 PC CONNECTOR BEFORE REMOVAL OF FSR PCB ASSEMBLY(SMT).
Fig.5

LEVEL P/N DESCRIPTION QTY REF
0.1 BAGL-55A CABLE CLIP 55L 1
0.1 CA040218004 USB 2.0 1.8M A/B Black CORE 2
0.1 CB310S129 Separate Wall 1
0.1 CN0100002505 Flat Cable GND Wire Y/G f4.3 1
0.1 CN0220001006 Flat Cable GND Wire Black Long 1
0.1 CN0239600802 Flat Cable Power Wire 2Pin Sin 1
0.1 CN0239601007 Flat Cable Power Wire 2Pin Sin 1
0.1 CN0620000802 Flat Cable 6Pin Pitch 2.0mm Si 5
0.1 CN0620000803 Flat Cable 6Pin Pitch 2.0mm Si 1
0.1 CN0620001504 Flat Cable 6P Pitch 2.0mm Sing 1
0.1 CN0639602502 Flat Cable Power Wire 6Pin Sin 1
0.1 EVA1204404 EVA(50*15*10) 2 99
0.1 FFC0810001001 FFC 8Pin Pitch:1.0mm Length:10 1
0.1 FFC1410001003 FFC 14P Pitch:1.0mm,Length:100 2
0.1 FFC1610001001 Connector 16P 100MM 1
0.1 FFC1610001501 FFC 16Pin Pitch:1.0mm Length:1 1
0.1 FFC1810001001 FFC 18PIN PITCH 1.0MM LENGTH 1 1
0.1 FFC2010001001 FFC 20Pin Pitch:1.0mm Length=1 2
0.1 FFC3010001502 FFC 30Pin Pitch:1.0mm Length:1 1
0.1 JKTU301AABY15 AC Socket 1 97
0.1 K46-1 Wire Tie 2
0.1 LA67YH104 GND INDICATE STICKER 1
0.1 LAC22RAN62 Serial Name Label 1
0.1 LAC51MAR1065 PSE Warning Label (07) 1
0.1 LAC54RAN61 Warning Label (01)(02)(03)(04)(07) 1
0.1 LAC64RAN88 Saety lable(China)0A) 1
0.1 LAC62RAN63 Bar Code Label 2
0.1 LAC62RAN64 CODE 39 Bar Code Label (01) 1
0.1 LAC67MAR681 Label(Circle Limpid) 3
0.1 LAC67YAH261 Label f8mm Green 1
0.1 LAP62MAR342 Label (07) 1
0.1 MT0705517 Copper 2 95
0.1 MT1105521 COPPER 4 70
0.1 MT1105525 BRASS STANDOFF 8 69
0.1 MT112025601 Fixed Plate (Cabinet)Printing 2 31
..2 MT1120256 Fixed Plate (Cabinet) 2
0.1 MT120443101 Fixed Plate(FADER)(Painting) 1 2
0.1 MT1204432 FRAME 11 94
0.1 MT1205503 Copper 4 66
0.1 MT1205504 Copper 4 71
0.1 MT1205507 Copper 3 68
0.1 MT1205508 Copper 1 67
0.1 MT1205509 Copper 2 100
0.1 MT1210601 Paddle 2 42
0.1 MT121060401 POWER BUTTON CAP(Printing) 1 78
0.1 MT123002601 Front Panel(CROSS FADER)(paint 1 77
0.1 MT123032201 Bottom Chassis(painting) 1 81
0.1 NM0704404 Velvet Carpet 1 49
0.1 NM1104449 Velvet Carpet 2 47
0.1 NM1104450 Velvet Carpet 2 46
0.1 NM1106130 Velvet Carpet 2 34
0.1 NM1106138 Velvet Carpet 2 33
0.1 NM1201808 Velvet Carpet 2 25
0.1 NM1204408 Non woven mat above button 6 85
0.1 NM1204409 Non woven 2 87
0.1 WS1200140030 Washer(O20xO14x0.3t) 3
0.1 NP207RAN25 Name Plate(START/STOP) 2 12
0.1 NP212RAN28 Name Plate(LOGO) 2 80
0.1 NP212RAN55 Name Plate 1 72
0.1 NP212RAN84 Name Plate(FADER) 1 5
0.1 NP212RAN88 Name Plate(let) 1 3

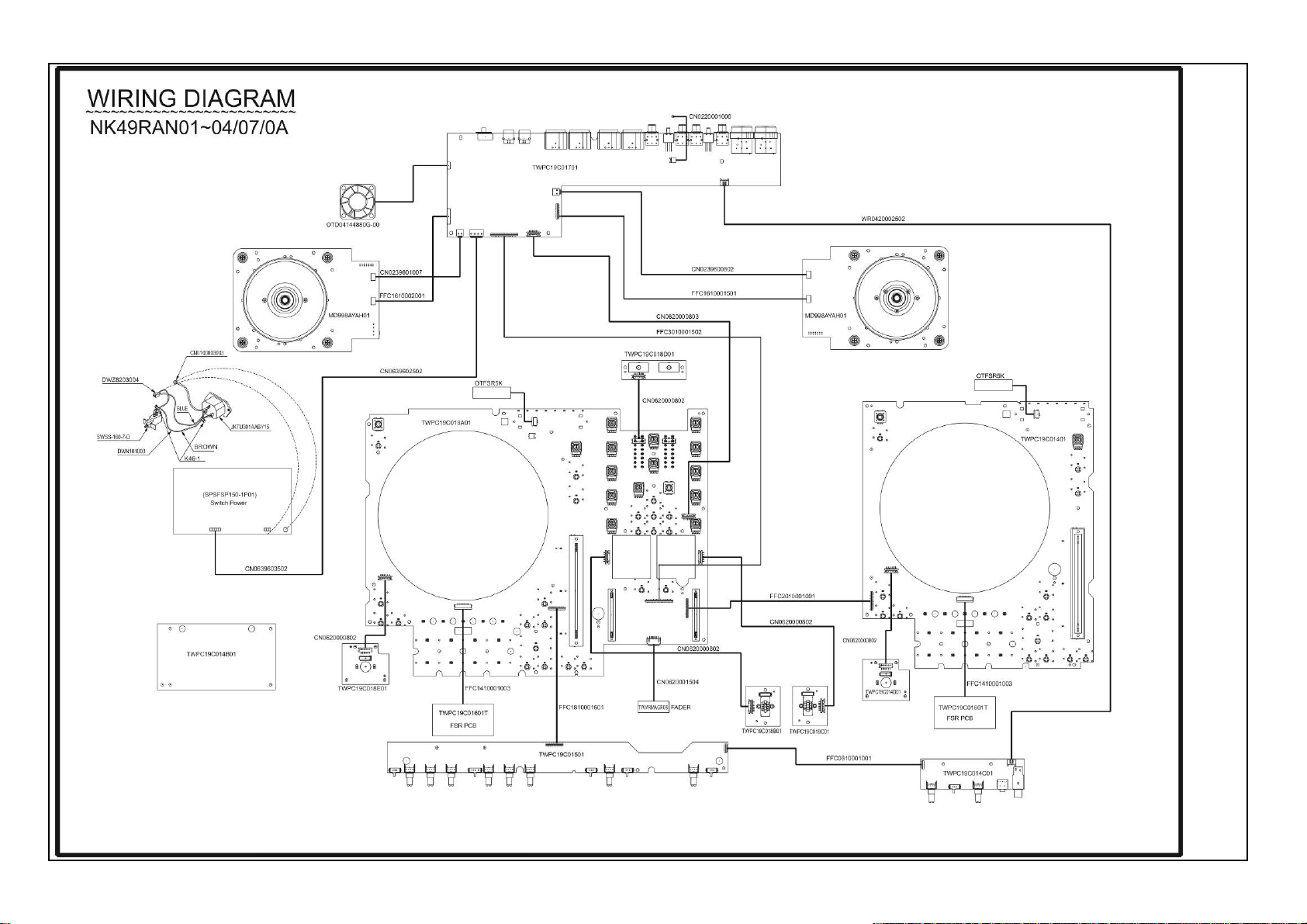

NK49RAN01~04/07/0A BOM

0.1 NP212RAN89 Name Plate(right) 1 14
0.1 NP212RAN90 Name Plate(FX) 1 4
0.1 NP212RAN91 Front Name Plate 1 92
0.1 NP212RAN92 rear Name plate 1 93
0.1 NUT01030IID Nut 4 53
0.1 NUT01090IIN Hexagon Nut 25 96
0.1 NUT0404IIZ FLANGE SCREW NUT 4 65
0.1 NUT05030ICU Nut 1 64
0.1 OTD04144880G-00 DC FAN 40*40*20mm 24V 1 52
0.1 OTFSR5K Force Sensing Resistor 2 29
0.1 PNK49RAN01 Pack Assembly (01)(02)(03)(04)(07)(0A) 1
..2 BA-F100L-L2C Lubricant (F100L-L2C) 1
..2 BC1015025000 Bubble Pad 1
..2 CB513N125 Separate Wall 4
..2 CGJP14313DAM01 Inner Box 2
..2 CGNK49513RAN01 Inner Box 1
..2 CTNK49513RAN01 Carton 1
..2 GERAN16 Download Card 1
..2 GERAN17 DownloadCard 1
..2 LAC67RAN51 LOGO Label 1
..2 LAC67RAN89 Label(LOGO) 1
..2 OPNK49RAN01 Instruction Book (01)(02)(03)(04) 1
..2 OPNK49RAN02 Instruction Book (JP)(07) 1
..2 OPNK49RAN03 Instruction Book (China)(0A) 1
..2 OPRI04RAN09 Seety Manual(1396-E) (01)(02)(03)(04)(0A) 1
..2 PE060930BO Pe Bag 1
..2 PE230370RJP Poly Bag 230*370 1
..2 PLNK4903 Poly Foam(Front) 1
..2 PLNK4904 Poly Foam(Rear) 1
..2 SD890890 Sot Sheet 1
..2 TP0245T Double Sided Tape(#9080) 78
0.1 PT0710631203 VR Knob paint Process 2 26
0.1 PT073060508 Foot(Painting) 4 82
..2 PT0730605 Support Seat 4
0.1 PT1104505 FIXED HODLER 1 84
0.1 PT11106129 Light pipe(rectangle) 2 18
0.1 PT11106151 POWER BUTTON 1 79
0.1 PT11106190 Light pipe(triangle) 4 19
0.1 PT1204423 Fixed Holder(FSR) 2 21
0.1 PT1210612 Paddle Lens 2 43
0.1 PT1210614 Button 8 17
0.1 PT1210631 Light Pipe(FSR) 2 20
0.1 PT1210632 Light Pipe(FX) 4 22
0.1 PT1210634 Button 2 15
0.1 PT1210635 Button 27 16
0.1 PT121063901 Knob (MINI)(Painting) 4 10
0.1 PT1210643 Fader Cap 1 28
0.1 PT1210647 Fader Cap 2 27
0.1 PT121065601 Knob (424C) 8 6
0.1 PT121065603 Knob (285C) 3 9
0.1 PT121065604 Knob (White) 10 8
0.1 PT1210658 Start-stop button 2 11
..2 MT1210602 Shat o sliding button 2
0.1 PT1210660 Sliding button rame 2 88
..2 MT1210603 Bush o sliding button rame 2
0.1 PT1210664 Konb(PP+Mineral iber) 3 7
0.1 PT123020502 Cabinet(Painting) 1 1
..2 PT1230205 Cabinet 1
0.1 PW63200UC01(01)
AC POWER SUPPLY CORD Long 2.0m UL+CSA(01)
1
UP301-104(02) AC POWER SUPPLY CORD Long 1.83m EU(02)
PW53200UK03(03) AC POWER SUPPLY CORD Long 2.0m UK(03)
PW43200SAA01(04) AC POWER SUPPLY CORD Long 2.0m SAA(04)
PW22200JIS02(07) AC POWER SUPPLY CORD Long 2.0m JIS(07)
PW63200CCEE01(0A) AC POWER SUPPLY CORD Long 2m CCEE(0A)

0.1 RU0730609 Rubber Foot 4 83
0.1 RU1210605 Rubber Button(PAD) 2 13
0.1 SC0306RIBI Screw M3X6 PPB 14 58
0.1 SC0306RINI Screw M3X6 PPN 6 59
0.1 SC0308FBBI Screw M3X8 PFB Tapping 12 55
0.1 SC0308FIBI Screw M3X8 PFB 28 61
0.1 SC0308PBBI Screw M3X8 PBB Tapping 30 50
0.1 SC0308PBNI Screw 69 41
0.1 SC0308WBNI Screw M3X8X8 PPWN W/Washer T 12 32
0.1 SC0310FBBI Screw M3X10 PFB TAPPING 2 56
0.1 SC0310RBNI Screw M3X10 PRN Tapping 8 89
0.1 SC0314PMJI Screw M3X14 PPN 1 57
0.1 SC0408PINI Screw M4X8 PPN 1 102
0.1 SC0410RINI Screw M4X10 PPN 8 36
0.1 SC0430PIBI Screw(M4*30) 4 51
0.1 SC3508PBNI Screw 1 103
0.1 SP1204304 Spring o sliding button 2 86
0.1 SPSFSP150-1P01 Open rame type 28V/5.36A 1 60
0.1 TP15100C Fiber taper 100mm*55M (3M8915 0
0.1 TWMT12052020301 Platter Assembly 2 23
..2 MT120520203 Alumi Platter(Printing Process 2
...3 MT120520202 Alumi Platter Process 2
....4 MT120520201 Alumi platter(Painting) 2
.....5 MT1205202 Alumi Platter 2
..2 PE230370RJP Poly Bag 230*370 2
..2 PT3505202 Disc Fixed Plate 4
0.1 TWNP612RAN74
Disc Assembly
（
Acrylic
）（
blac
2 24
..2 CB300WDAM07 8inch Envelope 2
..2 MT11044209 Mounting plate 2
..2 NP612RAN74 8inch Acrylic round Plate(Blac 2
..2 PE230370RJP Poly Bag 230*370 2
..2 SC2605FIBI Screw M2.6X5 PFB 6
..2 TWMT120442501 Module o quick release 2
...3 MT120442501 Quick-releasing adapter(E-depo 2
...3 MT120442601 Quick-releasing latch(E-deposi 2
...3 NP212RAN34 Maylar o quick release 2
...3 SP1204301 Compressing spring or latch 4
0.1 WR0420002502 Shielding Cable 4Pin Single Ro 1
0.1 WS070409IN Washer 4mm 6 35
0.1 WS073307IC Washer Flat 2 63
0.1 WS408604505B Washer External 2 37
0.1 WS663309IC Spring Washer 3# 2 62
0.1 TWSWSS1607D-1 POWER SWITCH Assembly 1 98
..2 DWN101003 Dual Isolation Cable 1Pin 7.92 1
..2 DWZ203004 Dual Isolation Cable 2Pin Leng 1
..2 HST220030BUL Heat-shrinkable Tube f22*L30 1
..2 K46-1 Wire Tie 3
..2 SWSS-160-7-D Switch Power Push Single Row 1
0.1 TWVRMAGF03 RM10F Fader(Cross fader) 1 75
..2 BAAS-006 O Ring 2
..2 GELF100L-L25C LUBRICATING OIL(FADER) 0.04
..2 MAG1204304 Magnet (small)(N42) 1
..2 MAG1204305 Magnet (big)(N42) 1
..2 MT1201810 screw 1
..2 MT1211106 Rail (SUS 303) 1
..2 MT1211108 Rail (SUS 416) 1
..2 PT1204425 Fixed Holder(end block) 2
...3 MT0705517 Copper 2
..2 PT120443301 Fixed Holder(carrier)(Tapping) 1
...3 PT1204433 Fixed Holder(carrier) 1
....4 MT1204411 Fixed Plate 1
..2 SC0308RBNI Screw M3X8 PRN Tapping 4

..2 TWPC19C02701 Fader PCB Assembly 1
...3 TWPC19C02701M Fader PCB DIP Assembly 1 -
....4 TE591271001 Pin Header 180° Pitch:1.27mm 1 (J1)
...3 TWPC19C02701T Fader PCB SMT/AI Assembly 1 -
....4 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 14 C2,3,4,5,6,7,8,9,10,11,14,15,17,18
....4 CS106K1003X5R CCAP SMD 10uF 10% 10V 0603 X5R 4 C1,12,13,16
....4 ICA1324LLHLX-T IC SENSOR HALL EFFECT 4 U1,2,3,4
....4 ICLP3990MF-3.3 LP3990MF-3.3/NOPB SMD 1 U6
....4 ICTPS73601DCQ IC TPS73601DCQ Low-Dropout Reg 1 U7
....4 ICYHFRC327 IC LPC824M201JDH+Program 1 U5
.....5 ICLPC824M201JDH IC Uc lpc824 32bit 32k lash arm 1 -
....4 PC19C0027 Fader PCB 1 -
....4 RS010010F03 RESISTOR 100 1% SMD 0603 1 R6
....4 RS010K10F03 RESISTOR 10K 1% SMD 0603 5 R8,9,10,11,12
....4 RS015K10F03 RESISTOR 15K 1% SMD 0603 1 R13
....4 RS030110F03 RESISTOR 301 1% 1/10W 0603 1 R7
....4 RS100K10F03 RESISTOR 100K 1% SMD 0603 1 R5
....4 RS2K2110F03 RESISTOR 2.21K 1% SMD 0603 4 R1,2,3,4
....4 RS4K9910F03 RESISTOR 4.99K 1% SMD 0603 1 R14
....4 TE6A2000601 Pin Header 90° Pitch 2.0mm Single 1 (J2)
....4 UHHZ0603B102R Bead 1000 ±25% 200mA 0603 3 L1,2,3
0.1 TWPC19C01401 RIGHT PCB Assembly(SMT/DIP) 1 39
..2 TWPC19C01401T RIGHT PCB SMT/AI Assembly 1
...3 PC19C014 RIGHT PCB 1
...3 TWPC19C014A01T RIGHT PCB Assembly(SMT) 1 -
....4 AL0-17-8103 RESISTOR ARRAY 8X10K 4 RN1,2,3,4
....4 CS101J5003NPO CCAP SMD 100pF/50V 5% 0603 NPO 2 C14,19
....4 CS102J5003NPO CCAP SMD 1nF/50V 5% 0603 NPO 1 C20
....4 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 19 C1,2,3,4,5,6,7,8,9,10,11,12,13,15,17,18,23,
25,26
....4 CS220J5003NPO CCAP SMD 22pF/50V 5% 0603 NPO 1 C24
....4 CS226M3505X5R CCAP SMD 22uF/35V 20% 0805 X5R 2 C21,22
....4 CS471J5003NPO CCAP SMD 470pF/50V 5% 0603 NPO 1 C16
....4 FCN1T1000401 FCN Up Touch ZIF SMD 1 J1
....4 FCN1T1001402 FCN DOWN Touch ZIF SMD 1 J3
....4 FCN2T1002002 FCN Dual Touch 180° SMD 1 J2
....4 IC74AHC1G14DBVR IC 74AHC1G14DBVR 1 U1
....4 ICMCP6002I-SN IC OPAMP MCP6002I/SN(S08) 1 U14
....4 ICSN74HC165DR IC SHIFT REGISTER SN74HC165DR 4 U4,7,10,13
....4 ICSN74HC595DR IC SN74HC595DR 8-Bit Shit Reg 9 U2,3,5,6,8,9,11,12,15
....4 LD6703ARQHGRBYW Liquid-emitting Diode Red/Gree 13 LED1,2,3,4,6,7,8,9,10,11,12,13,14
....4 LDC191TBKT-5A Liquid-emitting Diode Blue SMD 3 D2,6,9
....4 LDKPT-1608SECK Liquid-emitting Diode amber SM 3 D12,13,14
....4 LDKPT-1608SURCK Liquid-emitting Diode Red SMD 9 D8,18,19,20,21,22,23,24,25
....4 LDL-S291SWC-ML5 LED White SMD 0603 120° 10 D1,3,4,5,7,10,11,15,16,17
....4 RS000010J03 RESISTOR 0 5% SMD 0603 2 R67,84
....4 RS010010F03 RESISTOR 100 1% SMD 0603 4 R14,56,59,62
....4 RS010K10F03 RESISTOR 10K 1% SMD 0603 3 R68,69,72
....4 RS015010F03 RESISTOR 150 1% SMD 0603 48
R3,4,6,7,9,10,12,13,21,22,24,25,27,28,30,3
1,36,37,39,40,42,43,48,49,51,52,53,54,55,5
8,60,61,64,65,73,74,75,76,77,78,79,80,85,8
6,87,88,89,90
....4 RS030110F03 RESISTOR 301 1% 1/10W 0603 13 R2,5,8,11,20,23,26,29,35,38,41,44,50
....4 RS051110F03 RESISTOR 511 1% SMD 0603 1 R82
....4 RS1K2410F03 RESISTOR 1.24K 1% SMD 0603 1 R71
....4 RS49R910F03 RESISTOR 49.9 1% SMD 0603 13 R1,17,18,19,32,33,34,45,46,47,57,63,66
....4 RS4K7510F03 RESISTOR 4.75K 1% SMD 0603 1 R81
....4 TE6A2000602 Pin Header 180° Pitch 2.0mm S 1 (J4)
....4 UHBLM18BD121SN1 IND BEAD 120 100MHz 200mA 0.40 3 L1,2,3
...3 TWPC19C014C01T RIHGT FRONT PCB SMT ASSEMBLY 1
....4 CS101J5003NPO CCAP SMD 100pF/50V 5% 0603 NPO 2 C103,105
....4 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 1 C100

....4 CS104K5005X7R CCAP SMD 0.1uF/50V 10% 0805 X7R 2 C102,104
....4 DISMBJ9.0CA DIODE P6SMB11CAT3 BRKDWN TVSC 2 D100,101
....4 FCN2T1000801 FCN Dual-Contact Vertical SMD 1 J100
....4 OTM21CC222R1H3 NETWORK EMI Suppression Filters 2200pF 2 FIL100,101
....4 RS010K10F03 RESISTOR 10K 1% SMD 0603 1 R102
...3 TWPC19C014D01T Start/Stop PCB SMT/AI Assembly 1
....4 AL2-54-0138 Moset BSS138 N-CH 3 Q200,201,202
....4 LD6703ARQHGRBYW Liquid-emitting Diode Red/Gree 2 LED200,201
....4 RS010K10F03 RESISTOR 10K 1% SMD 0603 3 R200,201,202
....4 RS015010F03 RESISTOR 150 1% SMD 0603 4 R204,205,207,208
....4 RS030110F03 RESISTOR 301 1% 1/10W 0603 2 R203,206
....4 TE6A2000602 Pin Header 180° Pitch 2.0mm 1 (J200)
..2 TWPC19C014A01 RIGHT PCB Assembly(DIP) 1
...3 MT070446701 IRON PLATE 1 (ENC1)
...3 SWEN11-HSB1AF15 Switch Rotational Encode 20Pul 1 ENC1
...3 SWEVQ11Y05B Switch Tact Stem Heigh:5mm Ope 14 SW15,16,17,18,19,20,21,22,23,24,25,26,27,
28
...3 VRR10301558 Potentiometer Rotary Volume:10K2B 1 R70
...3 VRS10310022 Potentiometer Slide 10KB 100mm 1 R83
..2 TWPC19C014B01 Shielding PCB Assembly 1 73
..2 TWPC19C014C01 RIHGT FRONT PCB DIP ASSEMBLY 1 76
...3 JK6HTJ064-12DMP Phone Jack 6.3f 3Pin 90° DIP 1 J102
...3 JKK3J13B-5 3.5fHeadphone Jack 5pim 90° 1 J103
...3 SWSSSS914500 Switch Slide Single Row 3P 2T 1 S100
...3 TE622000401 Pin Header 90° Pitch:2.00mm 1 (J101)
...3 VRR10301560 Potentiometer Rotary Volume:10K2B 2 R100,101
..2 TWPC19C014D01 Start/Stop PCB DIP Assembly 1 54
...3 SWDF-03S-6P-M-Z Micro switches SWDF-03S-6P-M-Z 1 SW200
0.1 TWPC19C01501 FRONT PCB Assembly(SMT/DIP) 1 74
..2 TWPC19C01501M LEFT FRONT PCB DIP ASSEMBLY 1
...3 SWSSSS914500 Switch Slide Single Row 3P 2T 4 S2,4,5,7
...3 SWSSSS91A601 Switch Slide 1P3T 90° 1 S3
...3 VRR10301560 Potentiometer Rotary Volume:10K2B 4 R3,6,9,11
...3 VRR10301561 Potentiometer Rotary Volume:10K2B 4 R4,5,7,8
..2 TWPC19C01501T FRONT PCB SMT/AI Assembly 1
...3 AL2-73-4051 IC74HC4051 Single 8-Chan 1 U1
...3 CS101J5003NPO CCAP SMD 100pF/50V 5% 0603 NPO 8 C3,4,5,6,7,8,9,25
...3 CS104K5005X7R CCAP SMD 0.1uF/50V 10% 0805 X7R 3 C1,11,12
...3 CS226M3505X5R CCAP SMD 22uF/35V 20% 0805 X5R 2 C13,14
...3 FCN2T1000801 FCN Dual-Contact Vertical SMD 1 J1
...3 FCN2T1001801 FCN Dual Touch 180° SMD 1 J6
...3 PC19C015 FRONT PCB 1 -
...3 RS010K10F03 RESISTOR 10K 1% SMD 0603 6 R12,16,17,18,19,21
0.1 TWPC19C01601T FSR PCB Assembly(SMT) 2 38
..2 FCN2T1001401 FCN Dual Touch Pitch:1.0mm 14P 2 (J1)
..2 PC19C016 FSR PCB 2 -
0.1 TWPC19C01701 MAIN PCB Assembly(SMT/DIP) 1 48
..2 TWPC19C01701M MAIN PCB Assembly(DIP) 1
...3 AL4-05-0028 JACK XLR 3-PIN FEM STEREO-COMB 2 J3,5
...3 FS1028501SEU Round Fuse 372-1100-0001 1.0A/ 1 F3
...3 FS162250VTR5 FUSE T 1.6A 250V TR5 RAD 2 F1,2
...3 JK0KUSBXHTBS1NO B-TYPE USB Jack 90° (Orange) 2 J20,22
...3 JK4KRJ204AE6324 RCA JACK 6P 90° PIN WHITE/RED 4 J1,2,4,9
...3 JKANC3MAH XLR JACK 3Pin 90° Male 4 J6,7,8,21
...3 SWDS-11L-C2 Switch Slide 2P2T 2 S1,2

...3 SWVS6P001 Switch Slide 2P2T 1 S3
...3 TE102251 Block(2P) 2 (J15,17)
...3 TE612000202 Terminal 2P 2.0 180° 2 (J18,33)
...3 TE613960201 Connector 2P 180 2 (J29,30)
...3 TE613960601 Connector 6P 180 1 (J32)
..2 TWPC19C01701T MAIN PCB Assembly(SMT) 1
...3 AL2-54-0138 Moset BSS138 N-CH 3 Q29,30,31
...3 CS068C5002NPO CCAP SMD 6.8PF/50V ±0.25PF 0402 NPO 2 C247,248
...3 CS101J5002NPO CCAP SMD 100pF/50V 5% 0402 NPO 13 C198,199,200,201,202,203,249,250,252,25
3,254,311,314
...3 CS101J5003NPO CCAP SMD 100pF/50V 5% 0603 NPO 4 C80,95,101,116
...3 CS102J5003NPO CCAP SMD 1nF/50V 5% 0603 NPO 2 C162,246
...3 CS104J2506NPO CCAP SMD 0.1UF/25V 5% 1206 NPO 8 C83,85,96,98,105,107,117,122
...3 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 87
C5,6,10,11,12,18,20,23,24,28,35,39,40,42,5
2,53,54,55,58,59,60,61,62,67,68,69,70,71,7
2,82,86,103,104,118,119,120,123,124,125,1
28,129,134,135,136,138,139,142,144,148,1
49,150,151,154,155,156,159,165,167,169,1
70,172,179,180,188,189,196,207,209,210,2
61,264,265,266,269,271,272,274,275,284,2
85,287,290,292,293,294,295,317
...3 CS105K1605X7R CCAP SMD 1uF/16V 10% 0805 X7R 6 C17,57,126,145,158,316
...3 CS105K2503X7R CCAP SMD 1UF/25V ±10% 0603 X7R 2 C257,258
...3 CS105M0602X5R CCAP SMD 1uF/6.3V ±20% 0402 X7R 1 C243
...3 CS106K1005X7R CCAP SMD 10uF/10V 10% 0805 X7R 6 C63,64,65,161,190,191
...3 CS106M1003X5R CCAP SMD 10uF 20% 10V 0603 X5R 4 C78,99,215,260
...3 CS120J5003NPO CCAP SMD 12P 5% 50V 0603 NPO 2 C81,102
...3 CS121J5003NPO CCAP SMD 120pF/50V 5% 0603 NPO 4 C89,91,110,112
...3 CS220J5003NPO CCAP SMD 22pF/50V 5% 0603 NPO 10 C298,299,302,303,304,305,306,307,308,309
...3 CS221J5002NPO CCAP SMD 220PF/50V ±5% 0402 NPO 4 C310,312,313,315
...3 CS221J5003NPO CCAP SMD 220pF/50V 5% 0603 NPO 4 C74,75,76,77
...3 CS222J5003NPO CCAP SMD 2200P 50V 5% 0603 NPO 2 C182,267
...3 CS224K1602X7R CCAP SMD 220NF/16V 10% 0402 X7R 34
C164,195,197,205,206,213,218,219,220,22
1,223,224,225,227,229,231,233,234,236,23
9,241,242,244,245,251,255,256,259,276,27
7,278,279,280,281
...3 CS226K1006X5R CCAP SMD 22uF/10V 10% 1206 X5R 5 C3,4,9,56,130
...3 CS226M0603X5R CCAP SMD 22uF/6.3V 20% 0603 X5R 3 C214,216,237
...3 CS226M3505X5R CCAP SMD 22uF/35V 20% 0805 X5R 7 C168,208,211,212,270,300,301
...3 CS272J5003NPO CCAP SMD 2.7nF/50V 5% 0603 NPO 8 C13,14,29,30,45,46,66,73
...3 CS330J5003NPO CCAP SMD 33pF/50V 5% 0603 NPO 6 C15,16,31,32,47,48
...3 CS331J5005NPO CCAP SMD 330pF/50V 5% 0805 NPO 12 C1,2,7,8,21,22,25,26,33,34,43,44
...3 CS332J5005NPO CCAP SMD 3.3nF/50V 5% 0805 NPO 6 C163,174,177,183,186,193
...3 CS470J5003NPO CCAP SMD 47pF/50V 5% 0603 NPO 16 C27,37,41,50,90,94,111,114,127,132,137,1
41,146,147,152,153
...3 CS471J5003NPO CCAP SMD 470pF/50V 5% 0603 NPO 4 C282,288,289,297
...3 CS475M0602X5R CCAP SMD 4.7uF 20% 6.3V 0402 X5R 9 C217,222,226,228,230,232,235,238,240
...3 CS476M0606X5R CCAP SMD 47u/6.3V 20% 1206 X5R 2 C88,109
...3 CS681J5003NPO CCAP SMD 680pF/50V 5% 0603 NPO 12 C160,166,173,175,176,178,181,184,185,18
7,192,194
...3 CS683J5006NPO CCAP SMD 68nF/50V 5% 1206 NPO 4 C84,97,106,121
...3 CS821J5003NPO CCAP SMD 820pF/50V 5% 0603 NPO 8 C36,38,49,51,131,133,140,143
...3 DIBAT54 Schottky Barrier Rectiies Diode BAT54 4 D29,30,31,32
...3 DIENMMBD4148SE Diode Single MMBD4148SE 100V 200mA 2 D5,12
...3 DIESD5B5.0S Transient Voltage Suppressor Diode ESD5B 4 D6,10,13,18
...3 DIMBRS140T3G Schottky diode MBRS140T3G 40V 3 D28,55,57
...3 DIMMBZ5231B Zener diodes MMBZ5231B 5.1V/ 0.02A 1 D56
...3 DIMURS160 ULTRAFAST RECTIFIERS 1A 2 D35,37
...3 DISDBAT54SSM Diode BAT54S 30V 0.2A 22 D1,2,7,11,14,17,19,22,26,38,39,40,41,42,43
,44,45,46,47,48,49,50
...3 DISDMBRA340T3G
Shottky diode DISDMBRA340T3G SMD 3A 40V
1 D36

...3 DISMBJ9.0CA DIODE P6SMB11CAT3 BRKDWN TVSC 16 D3,4,8,9,15,16,20,21,23,24,25,27,51,52,53,
54
...3 ECS10616BLE ECAP 10UF/16V 4*5.7mm SMD Low 8 C79,93,100,115,283,286,291,296
...3 ECS10716DLE ECAP Low ESR 100uF/16V 6.3*5.5 1 C157
...3 ECS10806FLE ECAP 1000UF/6.3V SMD Low ESR 4 C87,92,108,113
...3 ECS22735GLE
ECAP LOW ESR 220UF/35V 10x10.3mm SMD
1 C273
...3 ECS33716FLE
ECAP 330uF/16V 8*10.2mm SMD LOW ESR
1 C19
...3 ECS47625D ECAP 47u/25v 6.3*5.3mm SMD 1 C204
...3 FCN2T1001601 FCN Dual Touch 180° SMD Pitch 2 J11,12
...3 FCN2T1003003 FCN Dual Touch Pitch=1.0mm 30P 1 J13
...3 IC74LVC1G125GW IC 74LVC1G125GW BUFFER 1 U8
...3 ICADM707ARZ IC ADM707ARZ Microprocessor 1 U27
...3 ICCS4385-CQZ IC CS4385-CQZ 114dB 192KHz 1 U23
...3 ICCS5368 IC CS5368-CQZ 114dB 192KHz 1 U3
...3 ICIS25LP080D-JB IC SERIAL FLASH MEMORY IS25LP0 1 U35
...3 ICLM1117MPX-5.0 IC Regulator LM1117-5V 3 U9,28,37
...3 ICLM3704XCMM308 IC LM3704XCMM-30 10-Pin 1 U42
...3 ICLP3990MF-2.5 IC LP3990MF-1.2/NOPB 1 U36
...3 ICMC33078DR2G IC MC33078DR2G 11 U1,2,4,5,6,7,22,24,26,39,41
...3 ICMXRT1061DVL6B IC MXRT1061DVL6B BGA-196 1 U33
...3 ICNJM2387 IC ADJ LDO NJM2387ADL3 1 U25
...3 ICNJM4580CG IC NJM4580CG 7 U15,16,17,18,19,20,32
...3 ICNJM4580M IC NJM4580M DMP8 5 U10,11,12,13,14
...3 ICRT7272BGSP IC RT7272BGSP 2 U38,40
...3 ICSN74LVC125APW IC SN74LVC125APW 4 U21,29,30,31
...3 ICTLV803SDBZR IC TLV803SDBZR 1 U34
...3 ICUSBLC62SC6 IC USBLC62SC6 2 D33,34
...3 LDKPT-1608SURCK Liquid-emitting Diode Red SMD 2 LED1,2
...3 OTM21CC222R1H3 NETWORK EMI Suppression Filter 6 Z1,2,3,4,5,6
...3 PC19C017 MAIN PCB 1 -
...3 RS000010J03 RESISTOR 0 5% SMD 0603 1 R341
...3 RS000016J02 RESISTOR 0 5% SMD 0402 2 R262,264
...3 RS001K08F05 RESISTOR 1K 1% SMD 0805 12 R39,72,157,166,171,172,174,176,181,186,1
94,204
...3 RS001K10F03 RESISTOR 1K 1% SMD 0603 6 R112,113,144,146,320,321
...3 RS001M10F03 RESISTOR 1M 1% SMD 0603 6 R107,109,140,143,346,348
...3 RS002K08F05 RESISTOR 2K 1% SMD 0805 12 R1,2,11,12,23,24,34,35,49,50,59,60
...3 RS010010F03 RESISTOR 100 1% SMD 0603 25
R93,108,117,118,127,141,149,152,210,213,
216,219,223,224,228,356,357,358,359,360,
361,362,363,364,365
...3 RS010K08F05 RESISTOR 10K 1% SMD 0805 4 R344,345,352,353
...3 RS010K10F03 RESISTOR 10K 1% SMD 0603 10 R77,231,248,249,251,254,268,299,366,371
...3 RS010K16F02 RESISTOR 10K 1% SMD 0402 34
R276,277,280,281,284,285,305,306,307,30
8,309,310,311,312,313,314,315,316,317,32
2,323,324,325,326,327,330,331,332,335,33
6,337,338,339,340
...3 RS015008F05 RESISTOR 150 1% SMD 0805 32
R37,38,70,71,75,76,161,163,164,165,169,1
70,179,180,184,185,191,192,201,202,209,2
12,218,221,227,230,238,240,244,246,253,2
56
...3 RS015K04F06 RESISTOR 15K 1% SMD 1206 4 R97,122,131,155
...3 RS015K10F03 RESISTOR 15K 1% SMD 0603 2 R96,128
...3 RS015K16F02 RESISTOR 15K 1% SMD 0402 2 R328,329
...3 RS020010F03 RESISTOR 200 1% SMD 0603 4 R91,92,124,125
...3 RS020K10F03 RESISTOR 20K 1% SMD 0603 1 R290
...3 RS040208F05 RESISTOR 402 1% SMD 0805 6 R101,104,114,134,137,147
...3 RS060410F03 RESISTOR 604 1% SMD 0603 4 R296,367,368,372
...3 RS063408F05 RESISTOR 634 1% SMD 0805 4 R342,349,350,355
...3 RS100K10F03 RESISTOR 100K 1% SMD 0603 1 R288
...3 RS10K510F03 RESISTOR 10.5K 1% SMD 0603 1 R267
...3 RS11K310F03 RESISTOR 11.3K 1% SMD 0603 1 R78
...3 RS1K1804F06 RESISTOR 1.18K 1% SMD 1206-RoHS 4 R98,123,132,156
...3 RS1K2110F03 RESISTOR 1.21K 1% SMD 0603 4 R110,115,142,148

...3 RS1K2410F03 RESISTOR 1.24K 1% SMD 0603 2 R103,135
...3 RS22R108F05 RESISTOR 22.1 1% SMD 0805 16 R7,8,20,21,29,30,47,48,55,56,68,69,79,80,8
1,82
...3 RS22R116F02 RESISTOR 22.1 1% SMD 0402 7 R258,259,260,261,265,266,318
...3 RS23K710F03 RESISTOR 23.7K 1% SMD 0603 2 R289,294
...3 RS2K2110F03 RESISTOR 2.21K 1% SMD 0603 6 R119,121,151,153,291,297
...3 RS2K2116F02 RESISTOR 2.21K 1% SMD 0402 2 R274,275
...3 RS2K4908F05 RESISTOR 2.49K 1% SMD 0805 42
R33,36,40,73,74,158,159,160,167,177,178,
182,187,189,190,196,198,199,207,208,211,
214,215,217,220,222,225,226,229,234,235,
237,239,241,242,243,245,247,250,252,255,
257
...3 RS2K4910F03 RESISTOR 2.49K 1% 1/10W SMD 0603 4 R94,99,126,130
...3 RS2M2110F03 RESISTOR 2.21M 1% SMD 0603-RoHS 1 R319
...3 RS30K116F02 RESISTOR 30.1K 1% SMD 0402 1 R304
...3 RS33R208F05 RESISTOR 33.2 1% SMD 0805 2 R173,175
...3 RS39K210F03 RESISTOR 39.2K 1% SMD 0603 1 R295
...3 RS39R204F06 RESISTOR 39.2 1% SMD 1206-RoHS 4 R102,116,136,150
...3 RS3K1604F06 RESISTOR 3.16K 1% SMD 1206 1 R236
...3 RS3K3210F03 RESISTOR 3.32K 1% SMD 0603 6 R105,111,139,145,271,298
...3 RS3K7410F03 RESISTOR 3.74K 1% SMD 0603 4 R100,106,133,138
...3 RS45K310F03 RESISTOR 45.3K 1% SMD 0603 2 R270,293
...3 RS47K510F03 RESISTOR 47.5K 1% SMD 0603 4 R95,120,129,154
...3 RS47K516F02 RESISTOR 47.5K 1% SMD 0402 2 R333,334
...3 RS49R916F02 RESISTOR 49.9 1% SMD 0402 14 R19,22,272,273,278,279,282,283,286,287,3
00,301,302,303
...3 RS4K0208F05 RESISTOR 4.02K 1% SMD 0805 24 R3,4,9,10,13,14,15,16,25,26,31,32,41,42,43
,44,51,52,57,58,61,62,64,65
...3 RS4K3210F03 RESISTOR 4.32K 1% SMD 0603 6 R63,162,168,183,188,197
...3 RS4K7510F03 RESISTOR 4.75K 1% SMD 0603 2 R203,205
...3 RS51R104F06 RESISTOR 51.1 1% SMD 1206 4 R193,195,200,206
...3 RS5K1108F05 RESISTOR 5.11K 1% SMD 0805 8 R83,84,85,86,87,88,89,90
...3 RS5K7610F03 RESISTOR 5.76K 1% SMD 0603 1 R292
...3 RS8K0610F03 RESISTOR 8.06K 1% SMD 0603 1 R269
...3 RS90R908F05 RESISTOR 90.9 1% SMD 0805 16 R5,6,17,18,27,28,45,46,53,54,66,67,343,34
7,351,354
...3 TCS336M100B Electrolytic Capacitors 33uF/10V 20% SMD 4 C171,262,263,268
...3 TE591271001 Pin Header 180° Pitch:1.27mm 1 (J14)
...3 TE5A2540601 Pin Header 180° Pitch:2.54mm 1 (J16)
...3 TE6A2000401 Pin Header 180° Pitch 2.0mm 1 (J10)
...3 TE6A2000602 Pin Header 180° Pitch 2.0mm 1 (J31)
...3 TR2SD2704 TRANSISTOR 2SD2704 16 Q3,8,11,16,17,18,19,20,21,22,23,24,25,36,3
7,38
...3 TRBC857BMGT116 Tramsistor BC857BMGT116 8 Q4,5,6,7,12,13,14,15
...3 TRBSS84 Moset BSS84 P-CH SOT-23 2 Q27,28
...3 TRFMMT2222A XSTR 2222A SW NPN 40V 600mA 1 Q39
...3 TRMMBT2907ALT1 Transistor MMBT2907ALT1 PNP 5 Q1,2,9,10,26
...3 UHACM2012900-2P Chock 90 0.4A 2.0X1.2mm 2 L6,8
...3 UHBLM18AG102SN1 BEAD 1000 100MHZ 4 FB1,2,3,4
...3 UHBLM18BD121SN1 IND BEAD 120 100MHz 200mA 5 L2,3,24,25,26
...3 UHDRQ127-470-R Inductor 47uH 2.95A 20% SMD 1 L15
...3 UHH55DN100M03L CHOKE 10uH 1.7A 20% 2220-SMD 2 L12,16
...3 UHHS505040T4R7M Inductor 4.7uH 3.78A Irms2.88A 1 L1
...3 UHHZ0603B102R Bead 1000 ±25% 200mA 0603 2 L4,7
...3 UHPA2745NL Common Inductor 6.75 +/-30% 2 L13,14
...3 UHPID1207-220M Inductor SMD 22UH 1 L9
...3 XTM24000X8 Crystal 24MHz 3.2*2.5*1.0MM SM 1 X2
0.1 TWPC19C01801 LEFT PCB Assembly(SMT/DIP) 1
..2 TWPC19C01801T LEFT PCB SMT/AI Assembly 1 -
...3 PC19C018 LEFT PCB 1 -
...3 TWPC19C018A01T LEFT PCB Assembly(SMT) 1
....4 AL0-17-8103 RES ARRAY 8X10K 8 RN1,2,3,4,5,6,7,8
