Rane SEVENTY User manual

Confidential Rane Service Manual
Rane
Seventy
[RM10]
Service Manual
v1.1 – AKM Parts
2021-12-17
The information in this document contains privileged and confidential information. It is intended only for the use of
those authorized by Rane. If you are not the authorized, intended recipient, you are hereby notified that any review,
dissemination, distribution or duplication of this document is strictly prohibited. If you are not authorized, please
contact Rane and destroy all copies of this document. You may contact Rane at [e-mail].
© Copyright Rane
ATTENTION!
This document contains sensitive proprietary information.
All recipients must have a current non-disclosure agreement on file
with Rane.
Do not make illegal copies of this document.

Confidential Rane Service Manual
Preface
This document is intended to assist the service technician in the operation, maintenance and repair of the Rane
device. Together with the User Reference Manual, this document provides a complete description of the
functionality and serviceability of the Device. Any comments or suggestions you may have pertaining to the
document are welcome and encouraged.
Read This!
In addition to any purchase price that Rane may charge as consideration for Rane selling or otherwise transferring
this service manual (“Manual”) to you, if you are not a service and repair facility (“Service Center”) authorized by
Rane in writing to be an authorized Service Center, Rane sells or transfers the Manual to you on the following terms
and conditions:
Only Service Centers authorized by Rane in writing are authorized to perform service and repairs covered by an
Rane warranty (if any), and transfer of the Manual to you does not authorize you to be an authorized Service Center.
Therefore, if you perform, or if the Manual is used to perform, any service or repairs on any Rane product or part
thereof, any and all warranties of Rane as to that product and any service contract with Rane for that product
shall be voided and shall no longer apply for such product, even if your services or repairs were done in
accordance with the Manual.
All service or repairs done by you or with reference to the Manual shall be solely your responsibility, and Rane shall
have no liability for any such repairs or service work. All such service or repairs are performed at the sole risk of
the person performing the service or repairs. You agree that all such work will be performed in a competent,
professional and safe manner at all times and to indemnify and fully hold Rane and its successors and assigns
harmless in the event of any failure to so perform.
Your purchase of the Manual shall be for your own ultimate use and shall not be for purposes of resale or other
transfer.
As the owner of the copyright to the Manual, Rane does not give you the right to copy the Manual, and you agree
not to copy the Manual without the written authorization of Rane. Rane has no obligation to provide to you any
correction of, or supplement to, the Manual, or any new or superseding version thereof.
Rane shall have the right to refuse to sell or otherwise transfer repair parts or materials to you in its sole discretion.
You shall not use, sell or otherwise transfer spare or replacement parts supplied by Rane to you (i) to repair or be
used in products manufactured for or by third parties or (ii) to any third parties for any purpose.
You shall not make any warranties or guarantees with respect to the products of Rane or the use thereof on behalf
of Rane or in your own name.
The foregoing describes the entire understanding related to sale or transfer of the Manual to you, and no other
terms shall apply unless in a writing signed by an authorized representative of Rane.
All Trademarks are property of their respective companies.

Confidential Rane Service Manual
Warnings
TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE THIS PRODUCT TO WATER OR
MOISTURE.
The arrowhead symbol on a lightning flash inside a triangle is intended to alert the user to
the presence of uninsulated “dangerous voltage” within the enclosed product which may
be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point inside a triangle is intended to alert the user to the presence of
important operating, maintenance and servicing instructions in the literature which
accompanies the product.
REPAIR BY ANY PERSON OR ENTITY OTHER THAN AN AUTHORIZED RANE SERVICE CENTER WILL
VOID THE RANE WARRANTY.
PROVISION OF THIS MANUAL DOES NOT AUTHORIZE THE RECIPIENT TO COMPETE WITH ANY RANE
DISTRIBUTOR OR AUTHORIZED REPAIR SERVICE CENTER IN THE PROVISION OF REPAIR SERVICES
OR TO BE OR MAKE REPAIRS AS AN AUTHORIZED SERVICE CENTER.
ALL REPAIRS DONE BY ANY ENTITY OTHER THAN AN AUTHORIZED RANE SERVICE CENTER SHALL
BE SOLELY THE RESPONSIBILITY OF THAT ENTITY, AND RANE SHALL HAVE NO LIABILITY TO THAT
ENTITY OR TO ANY OTHER PARTY FOR ANY REPAIRS BY THAT ENTITY.
Regarding the Power Supply Fuse
Caution: The product under service may employ the use of a replaceable fuse. Danger of
fire or electrocution if fuse is incorrectly replaced. Replace with only the same type or
equivalent type recommended by the equipment manufacturer.
Regarding the Internal Battery
Caution: The product under service may employ the use of a internal battery. Danger of
explosion if battery is incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used batteries according to the
manufacturer’s instruction.

Confidential Rane Service Manual
Safety Instructions
Carefully read the applicable items of the operating instructions and these safety suggestions before using this
product. Use extra care to follow the warnings written on the product itself and in the operating instructions. Keep
the operating instructions and safety suggestions for reference in the future.
1. Power Source. The product should only be connected to a power supply which is described either in the
operating instructions or in markings on the product.
2. Power Cord Protection. AC power supply cords should be placed such that no one is likely to step on the
cords and such that nothing will be placed on or against them.
3. Periods of Non-use. If the product is not used for any significant period of time, the product’s AC power supply
cord should be unplugged from the AC outlet.
4. Foreign Objects and Liquids. Take care not to allow liquids to spill or objects to fall into any openings of the
product.
5. Water or Moisture. The product should not be used near any water or in moisture.
6. Heat. Do not place the product near heat sources such as stoves, heat registers, radiators or other heat
producing equipment.
7. Ventilation. When installing the product, make sure that the product has adequate ventilation. Improperly
ventilating the product may cause overheating, which may damage the product.
8. Mounting. The product should only be used with a rack which the manufacturer recommends. The
combination of the product and rack should be moved carefully. Quick movements, excessive force or uneven
surfaces may overturn the combination which may damage the product and rack combination.
9. Cleaning. The product should only be cleaned as the manufacturer recommends.
10. Service. The user should only attempt the limited service or upkeep specifically described in the operating
instructions for the user. For any other service required, the product should be taken to an authorized service
center as described in the operating instructions.
11. Damage to the Product. Qualified service personnel should service the unit in certain situations including
without limitation when:
a. Liquid has spilled or objects have fallen into the product,
b. The product is exposed to water or excessive moisture,
c. The AC power supply plug or cord is damaged,
d. The product shows an inappropriate change in performance or does not operate normally, or
e. The enclosure of the product has been damaged.

.................................................................................................................

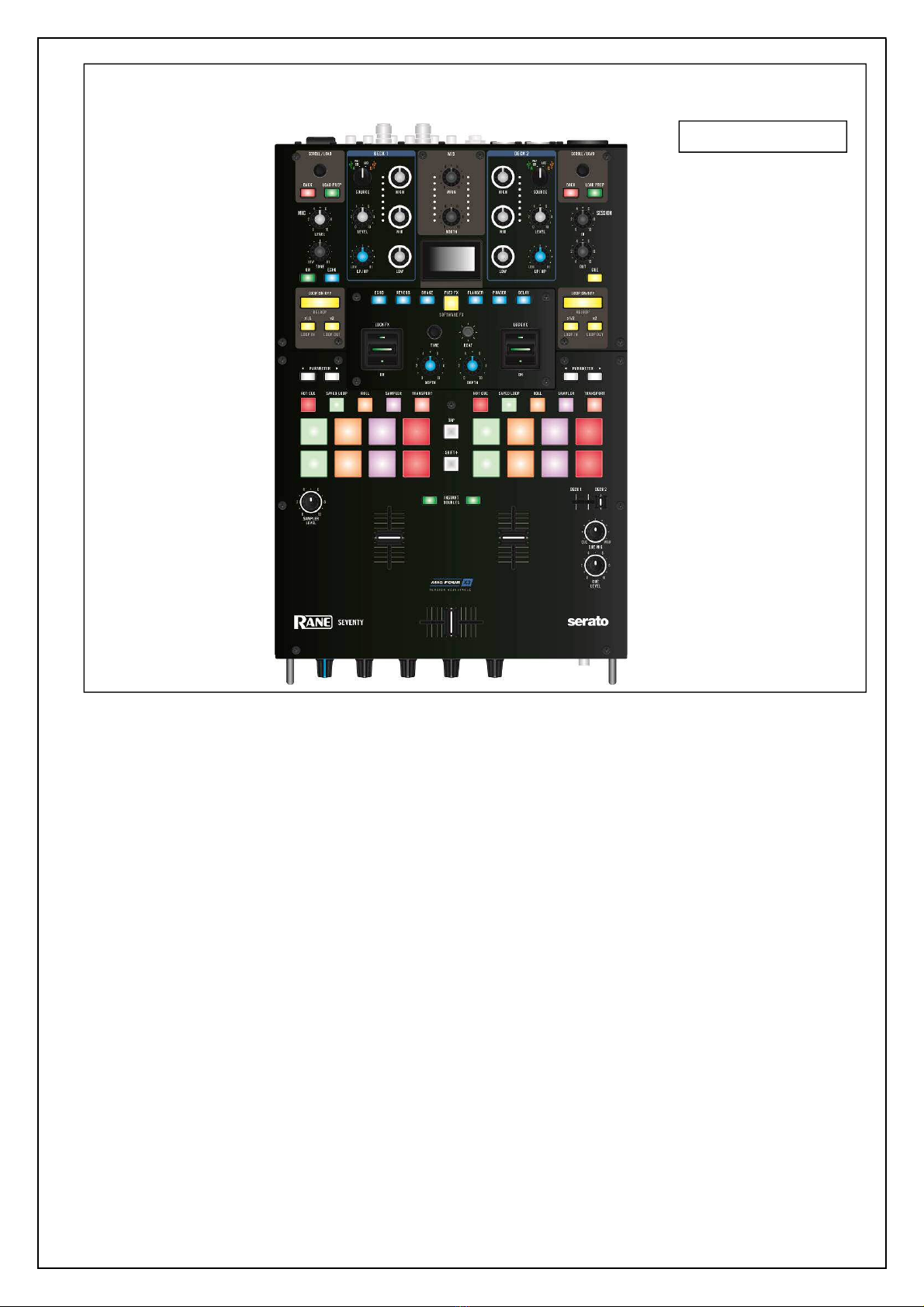

SPECIFICATION
FUNCTION
1.Display (1.54”OLED)----------------------Used to FLEX FX information such as BPM, Time signature, Wet/Dry etc.
2.Source Selector Switch---------------------This controls input source for each deck. USB-A, PH/CD, CD or USB-B. This
control also determines which track information is shown on the screen.
3.Back-------------------------------------------Pressing will bring focus back a level SHIFT + Panel: this cycles through Files,
Browse, Prepare, History LED state: dim-off bright-when pressed.
4.Level/Gain-----------------------------------Adjust the input gain from off to +10dB. Unity gain (no boost or cut) is at 12 o’clock
5.Filter------------------------------------------The FIL TER sweeps from Low-Pass to High-Pass.
6.Cue/PFL--------------------------------------Activates PFL for selected channel.
7.Channel Fader-------------------------------Controls the volume for the specific channel. These faders use magnetic non-contact
mechanisms with no noise and no bleed. Each fader has Reverse, Contour controls
on the front panel. Fader cut-in is set using the Rane Control panel.
8.Crossfader------------------------------------These faders use magnetic non-contact mechanisms with no noise and no bleed.
Reverse and Contour controls on the front panel. Fader cut-in is set using the Rane
Control panel.
9.VU Meter/Channel--------------------------Each Deck channel has a mono meter to assist in setting levels.
10.Master---------------------------------------This control adjusts the volume of the Main XLR outputs.
11.Booth----------------------------------------This control adjusts the volume of the Booth 1/4” TRS outputs.
12.Session Out---------------------------------This control adjusts the volume of the Session RCA outputs.
13.Parameter Encoder-------------------------This will control hardware FX parameters.
14.Parameter Joystick ------------------------Used to adjust various FX parameters.
15.Pad Mode Selection-----------------------Controls pad mode functions. Five primary, Five secondary, User Pad Modes will be
offered as an option that end-users can enable/disable in the Rane Control panel.
16.Performance Pads-------------------------Velocity sensitive, with adjustable threshold. Used for software control and to trigger
hardware FX. Function of pads is determined by Pad Mode Button.
SERVICE MANUAL
MODEL:SEVENTY

DISASSEMBLY PROCEDURES

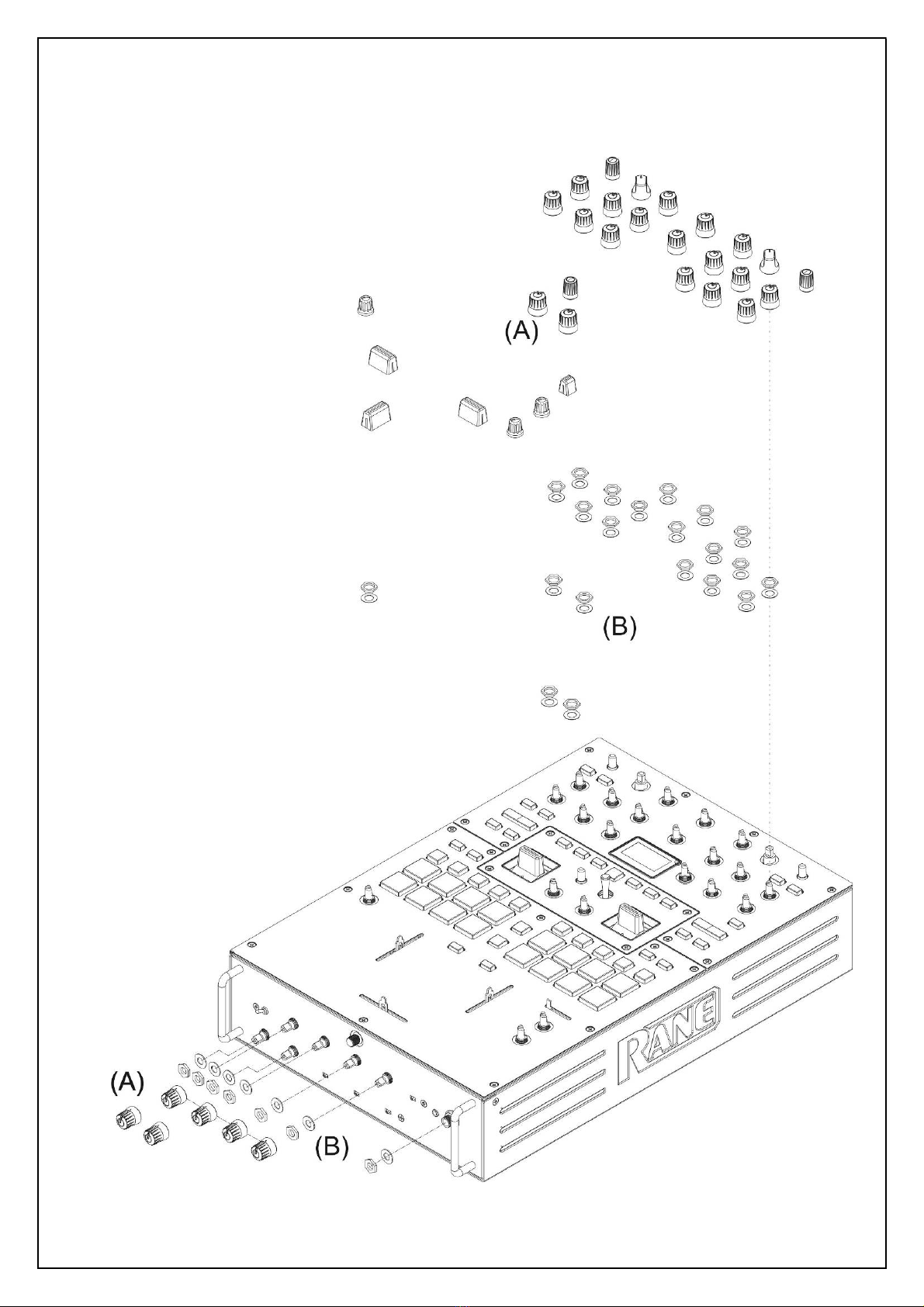

1. REMOVAL OF KNOB AND VR CAP AND WASHERS. (Fig1)
(A) REMOVE THE 32 PCS KNOB AND 4 PCS VR CAP BEFORE REMOVAL OF PANEL.
(B) REMOVE THE 28 PCS NUTS BEFORE REMOVAL OF TOP PANEL.
(Fig.1)

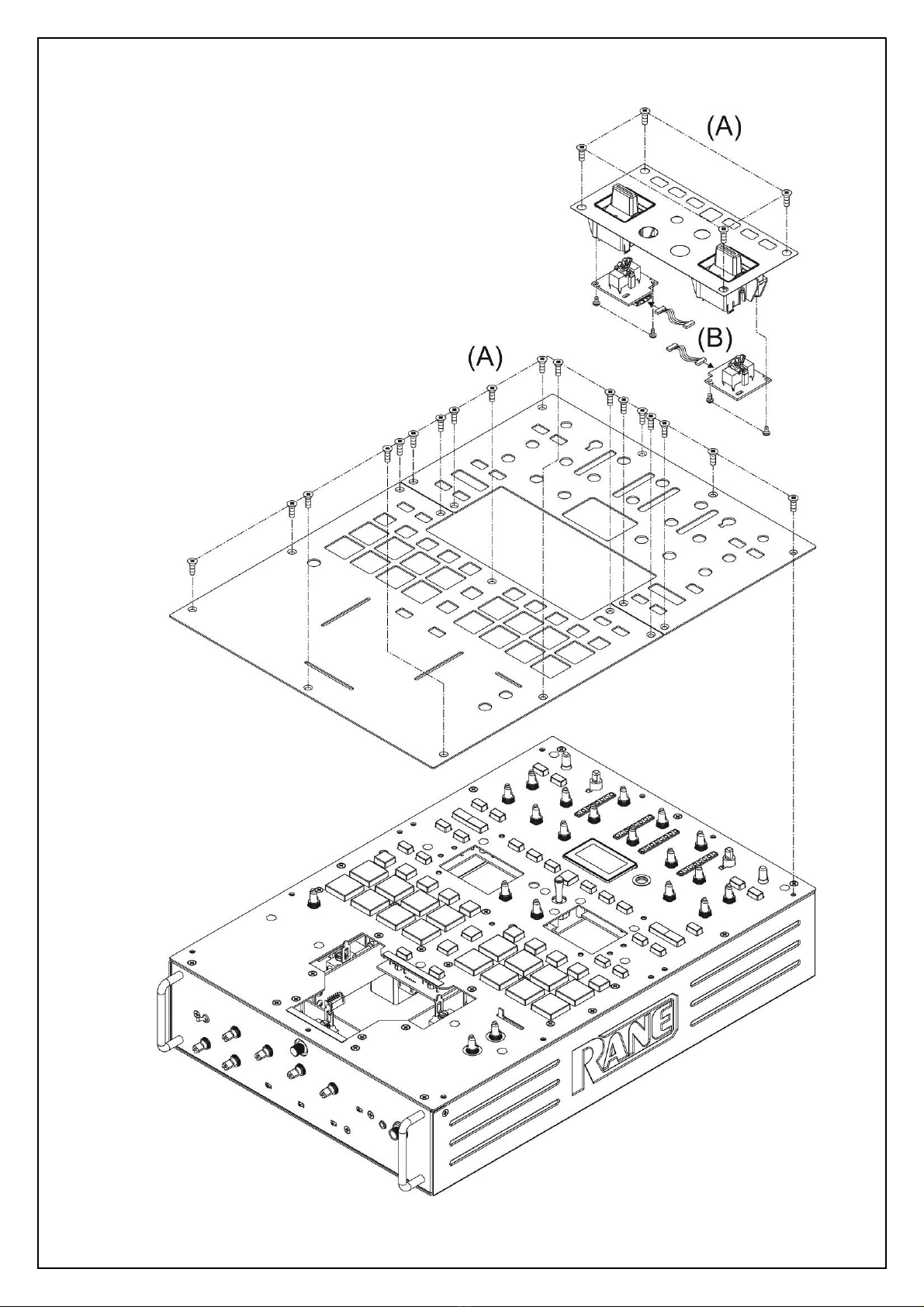

2. REMOVAL OF TOGGLE SW PCB A ASSEMBLY. (Fig.2)
(A) REMOVE THE 22 PCS SCREWS BEFORE REMOVAL OF PANEL.
(B) REMOVE THE 4 PCS SCREWS AND 2 PCS CONNECTORS BEFORE REMOVAL OF TOGGLE SW PCB ASSEMBLY.
(Fig.2)

3. REMOVAL OF FADER PCB AND FADER TENSIONER BODY ASSEMBLY (Fig.3)
(A) REMOVE THE 32 PCS SCREWS AND 4 PCS CONNECTORS BEFORE REMOVAL OF FADER TENSIONER
BODY ASSEMBLY ADB PANEL.
(B) REMOVE THE 12 PCS SCREWS AND 3 PCS CONNECTORS BEFORE REMOVAL OF FADER PCB ASSEMBLY.
(Fig.3)

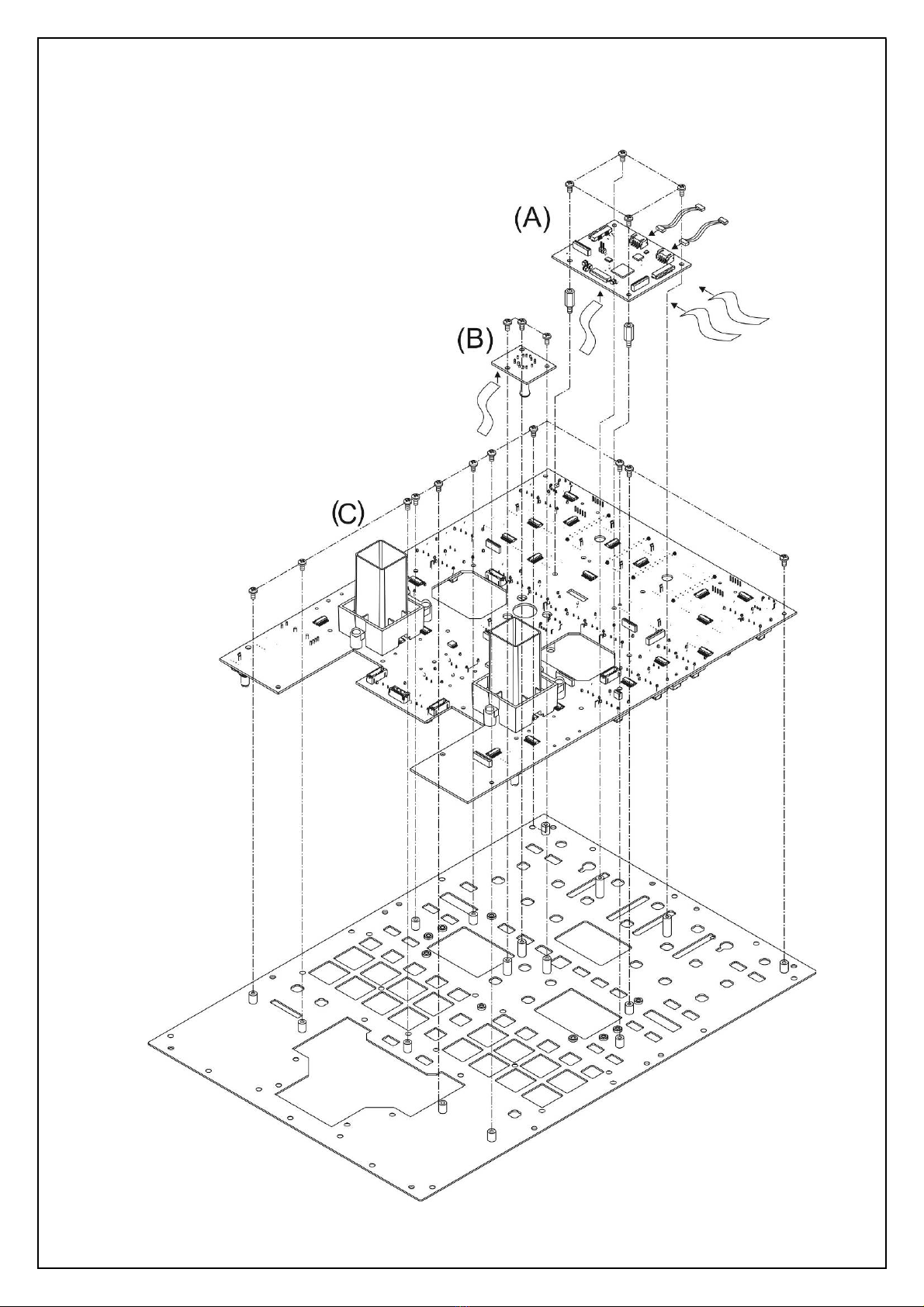

4. REMOVAL OF TOP HOST PCB AND DIGITAL PCB DIP AND CTRL PCB DIP ASSEMBLY. (Fig.4)
(A) REMOVE THE 4 PCS SCREWS AND 5 PCS CONNECTORS AND 2 PCS COPPER PRLLARS BEFORE
REMOVAL OF TOP HOST PCB ASSEMBLY.
(B) REMOVE THE 3 PCS SCREWS AND 1 PC CONNECTOR BEFORE REMOVAL OF DIGITAL PCB DIP
ASSEMBLY.
(C) REMOVE THE 11 PCS SCREWS BEFORE REMOVAL CTRL PCB DIP ASSEMBLY.
(Fig.4)

5. REMOVAL OF FRONT TOP PCB AND FRONT BOTTOM PCB ASSEMBLY. (Fig.5)
(A) REMOVE THE 3 PCS SCREWS AND 1 PC CONNECTOR BEFORE REMOVAL OF FRONT TOP PCB AND
FRONT BOTTOM PCB ASSEMBLY.
(Fig.5)
6. REMOVAL OF DIGITAL PCB ASSEMBLY. (Fig.6)
(A) REMOVE THE 4 PCS SCREWS AND 4 PCS CONNECTORS BEFORE REMOVAL OF DIGITAL PCB ASSEMBLY.
(Fig.6)

7. REMOVAL OF MIC PCB AND MIC SW PCB ASS’Y. (Fig.7)
(A) REMOVE THE 6 PCS SCREWS BEFORE REMOVAL OF BOTTOM PCB ASSEMBLY.
(B) REMOVE THE 2 PCS CONNECTORS BEFORE REMOVAL OF MIC PCB AND MIC SW PCB ASSEMBLY.
(Fig.7)

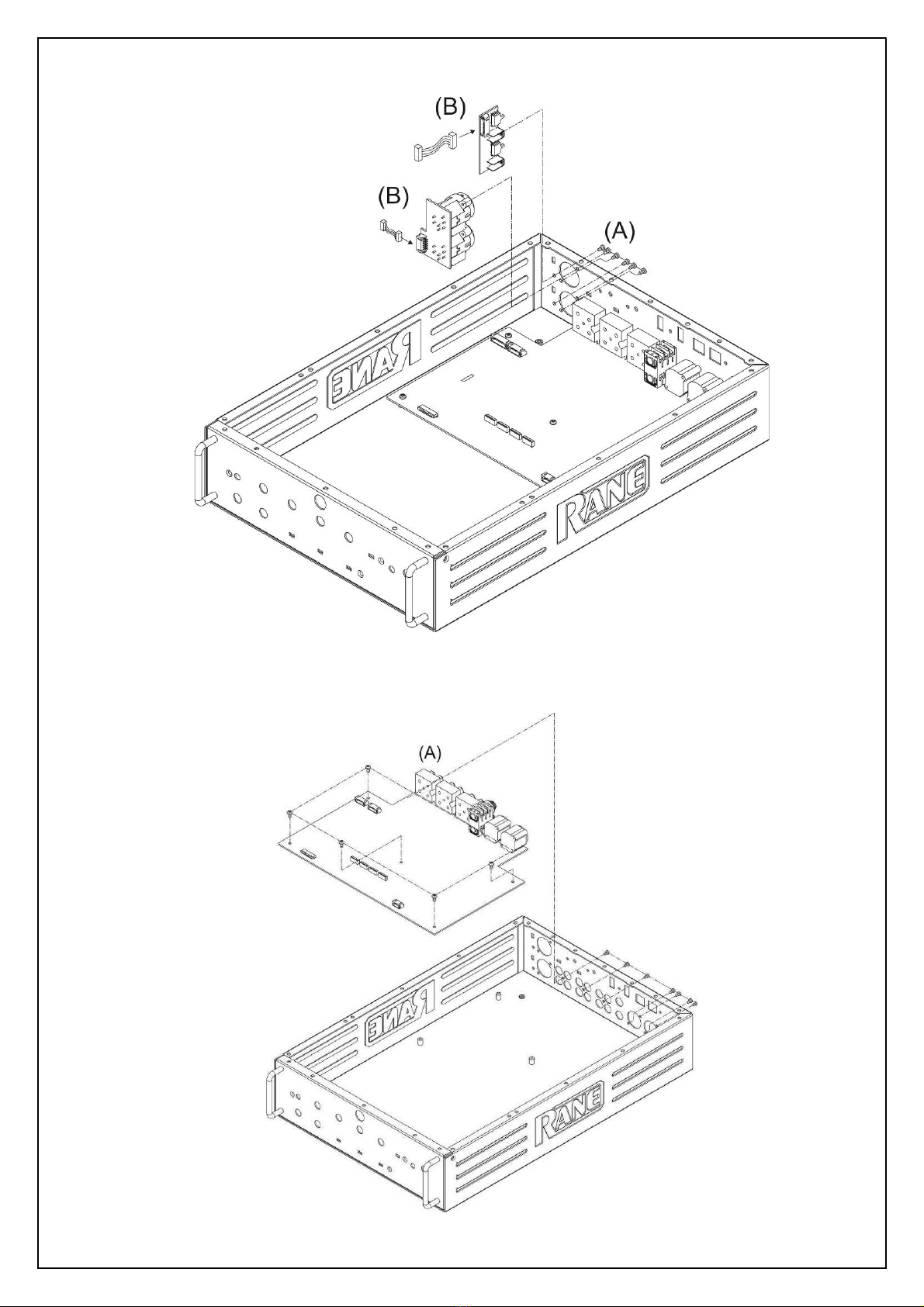

8. REMOVAL OF BOTTOM PCB ASSY. (Fig.8)
(A) REMOVE THE 12 PCS SCREWS AND 2 PCS NUTS BEFORE REMOVAL OF BOTTOM PCB ASSEMBLY.
(Fig.8)

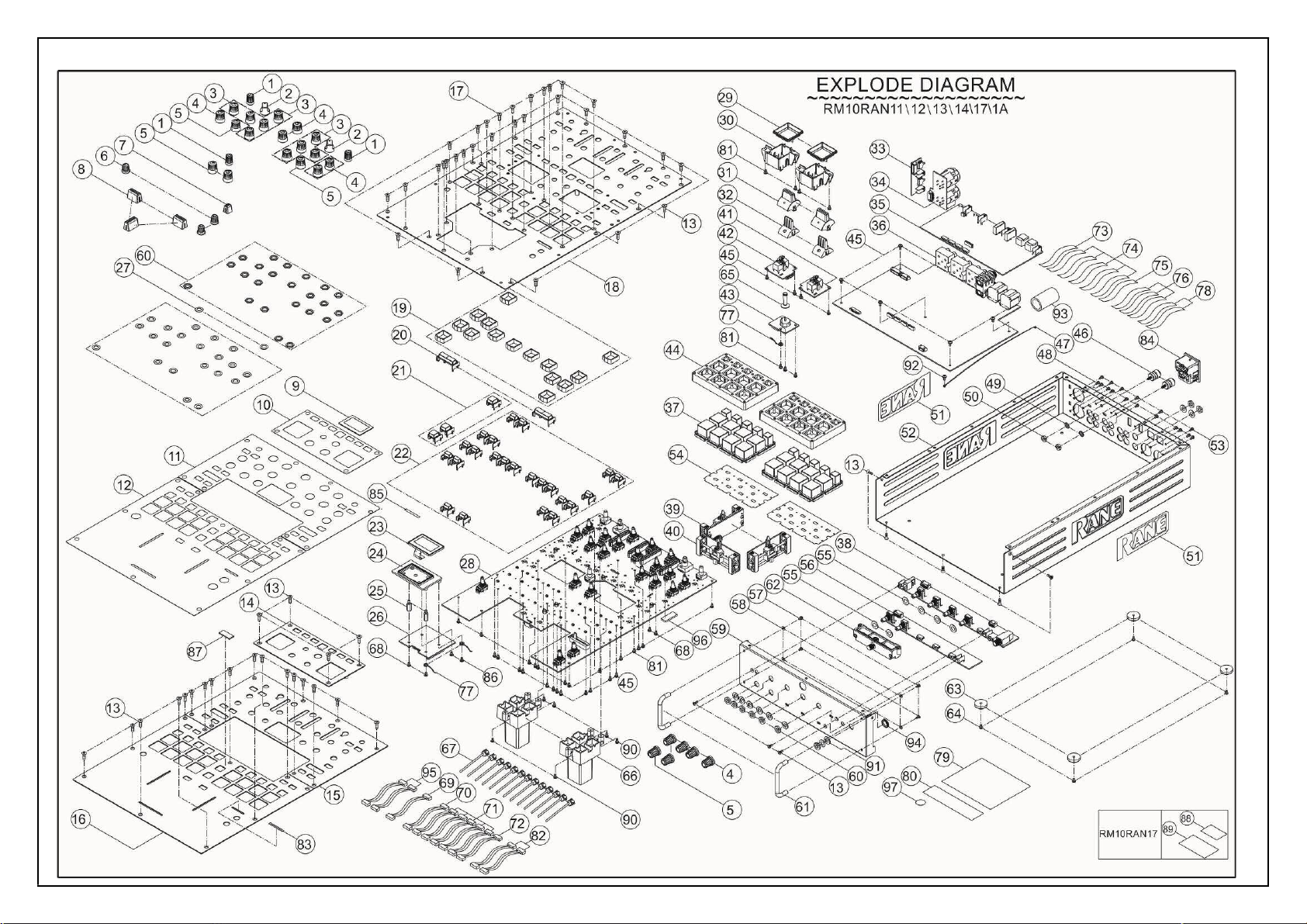

LEVEL
P/N DESCRIPTION QTY REF
0.1 BA2A9308F2 Washer(f9 Black) 2 27
0.1 BACR-0012 Foot 4 63
0.1 BAGL-55A CABLE CLIP 55L 3 77
0.1 BAW-1064 Washer 1 91
0.1 BAW147095015 Washer 6 55
0.1 BW653245SS Washer 3M/M 4 58
0.1 CA040218004 USB 2.0 1.8M A/B Black CORE 2 95
0.1 CN0100002016 Flat Cable GND Wire Y/G f4.3/ 1 47
0.1 CN0420002511 Flat Cable 4Pin Pitch 2.0mm Si 1 69
0.1 CN0620001014 Flat Cable 6Pin Pitch 2.0mm Si 1 70
0.1 CN0620001504 Flat Cable 6P Pitch 2.0mm Sing 5 71
0.1 CN0820001006 Flat Cable 8Pin Pitch 2.0mm Si 1 72
0.1 EVA1104447 EVA 1 96
0.1 EVA15044107 EVA(Speaker Net) 1 87
0.1 FFC0410002501 FFC 4Pin Pitch:1.0mm Length:25 1 73
0.1 FFC1010001011 FFC 10Pin Pitch:1.0mm Length:1 5 74
0.1 FFC1410001502 FFC 14Pin Pitch:1.0mm Length:1 1 75
0.1 FFC1410003002 FFC 14Pin Pitch 1.0mm Length 3 3 76
0.1 FFC2405001501 FFC 24Pin Pitch:1.0mm Length:1 2 78
0.1 GELL-263 Glue 0.01
0.1 JK742R363152150 AC JACK 3P 180° PIN 1 84
0.1 K46-1 Wire Tie 14 67
0.1 LA67YH104 GND INDICATE STICKER 1 97
0.1 LAC22RAN83 Serial Number Label 1 80
0.1 LAC52MAR1086 Warning Label(Sotsheet) 1
0.1 LAC64RAN66 Saety Label(CN)(1A) 1 79
0.1 LAC54RAN91 Warning Label 1 79
0.1 LAC62RAN53 Bar Code Label (CODE 39) 1
0.1 LAC62RAN54 Bar Code Label 2
0.1 LAC67RAN51 LOGO Label 1
0.1 LAC67YAH261 Label f8mm Green 1
0.1 MT11055112 Copper Prllars(4mm) 2 25
0.1 MT1201801 Ground Nut 2 46
0.1 MT1210601 Paddle 2 31
0.1 MT122041701 Front Plate(Painting) 1 59
0.1 MT1220501 Bracket 2 61
0.1 MT123001601 Panel(Painting) 1 18
0.1 MT123001801 Panel(DOWN)(Painting) 1 16
0.1 MT123001901 Panel(Paddle)(Painting) 1 14
0.1 MT123003001 Panel(UP)(Painting) 1 15
0.1 MT123032601 Bottom Housing(Painting) 1 52
0.1 NM1201807 DUST GUARD 1 83
0.1 NP212RAN28 Name Plate(LOGO) 2 51
0.1 NP212RAN41 Display Plate(OLED) 1 9
0.1 NP212RAN63 Name Plate(UP) 1 11
0.1 NP212RAN64 Name Plate(DOWN) 1 12
0.1 NP212RAN65 Name Plate(Paddle) 1 10
0.1 NUT01040IIC nut 2 50
0.1 NUT01090IIN Hexagon Nut 29 60
0.1 OTEO012864AWPP3 OLED 42.04*27.22*1.41 128*64 D 1 23
0.1 OTFSR8KEY-RM07 FSR 8KEY 2 54

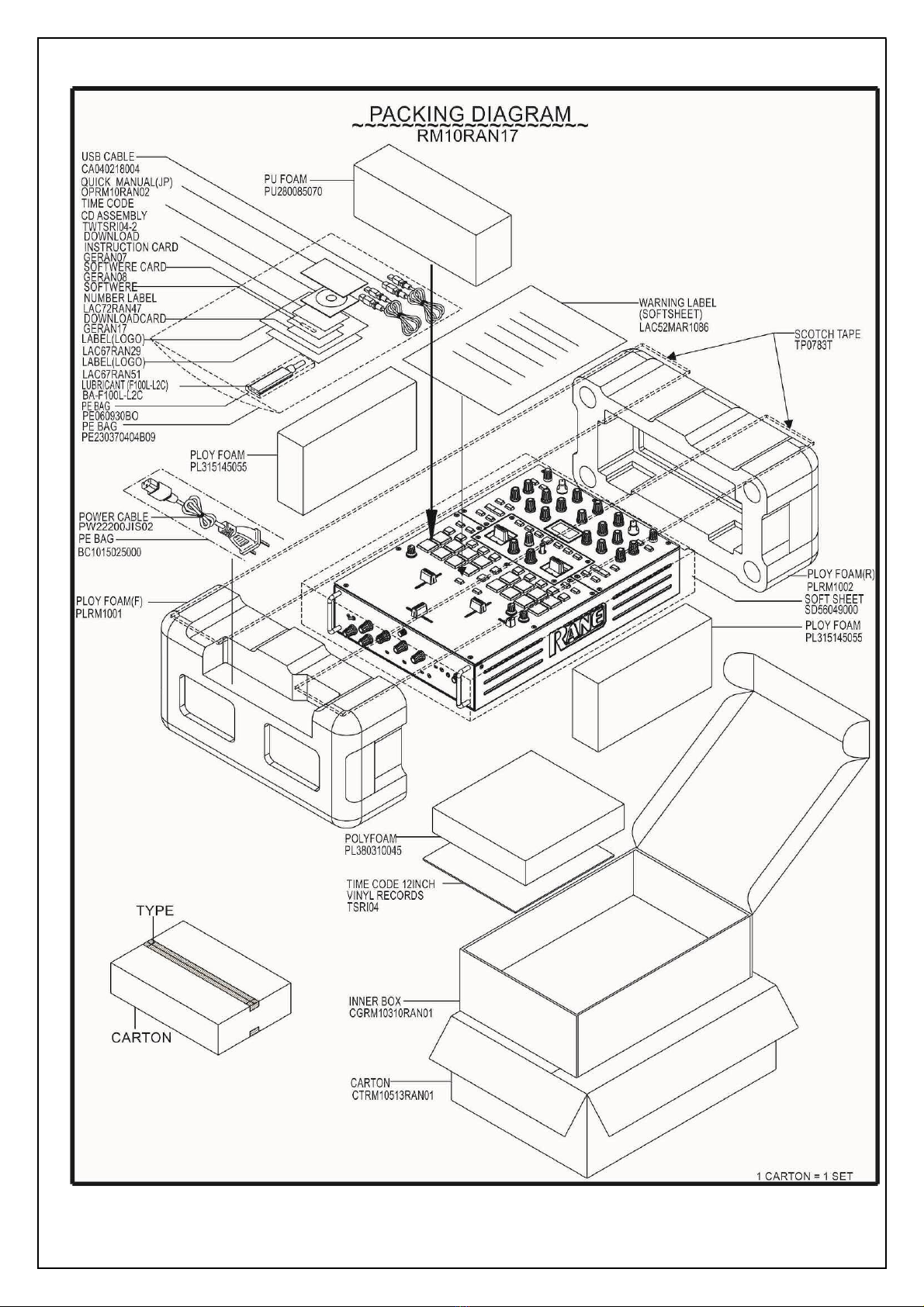

0.1 PRM10RAN11~14 Pack Assembly 1
..2 BA-F100L-L2C Lubricant (F100L-L2C) 1
..2 BC1015025000 Bubble Pad 1
..2 CGRM10310RAN01 Inner Box 1
..2 CTRM10513RAN01 Carton 1
..2 GERAN07 Download Instruction Card 1
..2 GERAN08 Sotwere Card 1
..2 GERAN17 DownloadCard 1
..2 LAC67RAN89 Label(LOGO) 1
RM10RAN11/12/13/14/17/1A BOM(AKM)

..2 LAC72RAN47 Sotwere Number Label 1
..2 OPRI04RAN09 Seety Manual(1396-E) 1
..2 OPRM10RAN04 User Manual(v1.2) 1
..2 PE060930BO Pe Bag 1
..2 PE230370404B09 Pe Bag 1
..2 PL315145055 Poly Foam 2
..2 PL380310045 Polyoam 1
..2 PLRM1001 Poly oam(R) 1
..2 PLRM1002 Poly oam(F) 1
..2 PU280085070 Pu Foam 1
..2 SD56049000 Sot Sheet 1
0.1 PRM10RAN1A Pack Assembly 1
..2 BA-F100L-L2C Lubricant (F100L-L2C) 1
..2 BC1015025000 Bubble Pad 1
..2 CGRM10310RAN01 Inner Box 1
..2 CTRM10513RAN01 Carton 1
..2 GERAN07 Download Instruction Card 1
..2 GERAN08 Sotwere Card 1
..2 GERAN09 Insulation Card(China)
..2 GERAN17 DownloadCard 1
..2 LAC67RAN89 Label(LOGO) 1
..2 LAC72RAN47 Sotwere Number Label 1
..2 OPRI04RAN09 Seety Manual(1396-E) 1
..2 OPRM10RAN03 User Manual(China) 1
..2 PE060930BO Pe Bag 1
..2 PE230370404B09 Pe Bag 1
..2 PL315145055 Poly Foam 2
..2 PL380310045 Polyoam 1
..2 PLRM1001 Poly oam(R) 1
..2 PLRM1002 Poly oam(F) 1
..2 PU280085070 Pu Foam 1
..2 SD56049000 Sot Sheet 1
0.1 PRM10RAN17 Pack Assembly 1
..2 BA-F100L-L2C Lubricant (F100L-L2C) 1
..2 BC1015025000 Bubble Pad 1
..2 CGRM10310RAN01 Inner Box 1
..2 CTRM10513RAN01 Carton 1
..2 GERAN07 Download Instruction Card 1
..2 GERAN08 Sotwere Card 1
..2 GERAN17 DownloadCard 1
..2 LAC67RAN89 Label(LOGO) 1
..2 LAC72RAN47 Sotwere Number Label 1
..2 OPRM10RAN02 User Manual(JP) 1
..2 PE060930BO Pe Bag 1
..2 PE230370404B09 Pe Bag 1
..2 PL315145055 Poly Foam 2
..2 PL380310045 Polyoam 1
..2 PLRM1001 Poly oam(R) 1
..2 PLRM1002 Poly oam(F) 1
..2 PU280085070 Pu Foam 1
..2 SD56049000 Sot Sheet 1
0.1 PT1204402 FIXED(PAD) 2 44
0.1 PT120440701 Paddle Fixed(Printing) 2 29
..2 PT1204407 Paddle Fixed 2
0.1 PT1204412 Paddle FIXED 2 30
0.1 PT1204417 Fixed Holder(OLED) 1 24
0.1 PT1204420 Button Fixed Holder 15 19
0.1 PT1204422 PAD Support Bracket 2 66
0.1 PT121061001 Knob(Painting) 2 2
0.1 PT1210612 Paddle Lens 2 32
0.1 PT1210614 Button 3 21
0.1 PT1210623 Knob(Touch) 3 1
0.1 PT1210634 Button 2 20

0.1 PT121063901 Knob (MINI)(Painting) 3 6
0.1 PT1210640 Joy stick 1 65
0.1 PT121064201 Cap(MINI)(Painting) 1 7
0.1 PT1210643 Fader Cap 3 8
0.1 PT121065601 Knob (424C) 10 4
0.1 PT121065603 Knob (285C) 5 5
0.1 PT121065604 Knob (White) 9 3
0.1 PT1210667 Button(small) 23 22
0.1 PT5104416 Plastic Washer 1 94
0.1 PW63200UC01 AC POWER SUPPLY CORD Long 2.0m(11) 1
UP301-104 AC POWER SUPPLY CORD Long 1.83m(12)
PW53200UK03 AC POWER SUPPLY CORD Long 2.0m(13）
PW43200SAA01 AC POWER SUPPLY CORD Long 2.0m(14）
PW22200JIS02 AC POWER SUPPLY CORD Long 2.0m(17)
PW63200CCEE01 AC POWER SUPPLY CORD Long 2m CCEE(1A)
0.1 RU1210603 PAD (RM07) 2 37
0.1 SC0304RINI Screw M3X4 PPN 4 68
0.1 SC0306FIBI Screw M3X6 PFB 49 13
0.1 SC0306PW08IBI Screw M3*6 PPWB 4 64
0.1 SC0306RIBI Screw M3X6 PPB 6 53
0.1 SC0306RINI Screw M3X6 PPN 27 81
0.1 SC0308FBBI Screw M3X8 PFB Tapping 12 17
0.1 SC0308PBBI Screw M3X8 PBB Tapping 11 48
0.1 SC0308RBNI Screw M3X8 PRN Tapping 2 86
0.1 SC0308RINI Screw M3X8 PPN 4 57
0.1 SC0410RINI Screw M4X10 PPN 1 92
0.1 SC2608RBZI Screw M2.6X8 PPC TAPPING 16 45
0.1 SC2610RBBI Screw O2.6X10 PPC TAPPING (Bla 6 90
0.1 TP020427G Double Sided Tape 1 85
0.1 TSRI04 Time Code 12inch Vinyl Records 1
0.1 UHFH0900B-1 Ferrite Ring Core 1 93
0.1 WRUSB04200015W1 Isolation Cable USB2.0 5Pin Si 2 82
0.1 WS070409IN Washer 4mm 1
0.1 WS1200140030 Washer(O20xO14x0.3t) 1
0.1 WS308304310IN M4 Washer 2 49
0.1 TWPT1204431 FADER Tensioner Body Assembly 1 62
..2 ERE72 2MM E RING 1
..2 MT1201807 Tensioner Screw 1
..2 NM1204405 Foaming ilter 1
..2 PT1204415 Tensioner Cover 1
..2 PT1204431 Tensioner Body 1
...3 MT1205506 Copper (M4) 1
..2 PT1204432 Tensioner Carrier 1
..2 SP1240301 Spring 2
..2 TP020860T Double sided tapes 1
0.1 TWTSRI04-2 Time Code CD Assembly 1
0.1 TWPC17C00302 Front PCB Assembly 1
..2 PC17C003 Front PCB 1
..2 TWPC17C003A01 Front Top PCB Assembly 1 38
...3 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 3 CC01,02,04
...3 FCN1T1001404 FCN Up Touch SMD Pitch=1.0mm 1 J76
...3 JK6HTJ064-12DMP Phone Jack 6.3f 3Pin 90° DIP 1 J79
...3 JKJY-3536L 3.5f phone Jack 5pin 90° 1 J74
...3 MT11044222 Fixed Plate 2 (M1,2)
...3 OTNFE61PT361B1H SMD EMI Suppression Filter NFE 2 Z27,28
...3 RS010K08F05 RESISTOR 10K 1% SMD 0805 2 R474,478
...3 RS4K0208F05 RESISTOR 4.02K 1% SMD 0805 4 R470,471,472,473
...3 SW100SP1T2B4M7Q Switch Toggle Single Row 1P2T 1 S1
...3 SWSSSS914500 Switch Slide Single Row 3P 2T 1 S5
...3 TE6A2000403
Pin Header 90
。
Pitch 2.0mm
1 (J77)
...3 VRR20301522 Potentiometer potary volume:20 4 R3,4,5,6

..2 TWPC17C003B02 Front Bottom PCB Assembly 1 56
...3 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 1 CC03
...3 FCN1T1001404 FCN Up Touch SMD Pitch=1.0mm 1 J75
...3 MT11044222 Fixed Plate 1 (M6)
...3 RS010K08F05 RESISTOR 10K 1% SMD 0805 5 R475,476,477,483,484
...3 RS4K0208F05 RESISTOR 4.02K 1% SMD 0805 2 R468,469
...3 SWSSSS914500 Switch Slide Single Row 3P 2T 3 S2,3,4
...3 VRR20301521 Potentiometer potary volume:20 1 R2
...3 VRR20301522 Potentiometer potary volume:20 1 R1
..2 TWPC17C003C01 MIC PCB Assembly 1 34
...3 JKNCJ6FI-V-0 DJ MI JACK 2 J5,6
...3 OTNFE61PT361B1H SMD EMI Suppression Filter NFE 4 Z6,7,8,9
...3 TE10200602 Pin Header 90° Pitch:2.00mm 1 (TE2)
..2 TWPC17C003D01 MIC SW PCB Assembly 1 33
...3 MT11044128 Fixed Plate 2 (M4,5)
...3 SWSSSS923802 Switch Slide 2P2T 2 S14,15
...3 TE622000801 Terminal 8P 90° 1 (TE1)
0.1 TWPC17C00401 Bottom PCB Assembly 1 36
..2 AA822757X Transistor 2SC3326 NPN 10 Q4,5,6,7,8,9,10,11,12,14
..2 BA7141D Heat Sink 1 U57
..2 CC102M250X1Y2 CAP 1000P/250V 20% DIP X1Y2 2 C228,229
..2 CC222M250X1Y1 CAP 2200P/250V 20% DIP X1Y1 1 C234
..2 CC222M250X1Y2 CCAP 0.0022UF CER DISC 250V 2 C224,225
..2 CN0100001018 Flat Cable -L Wire Tan Length 1 W1
..2 CN0100001019 Flat Cable-N Wire Blue Length 1 W2
..2 CS102J5005NPO CCAP SMD 1nF/50V 5% 0805 NPO 16 C2,4,14,17,24,26,32,35,41,43,53,56,63,65,7
1,74
..2 CS104K5005X7R CCAP SMD 0.1uF/50V 10% 0805 X7R 34
C155,157,170,172,189,191,204,205,209,21
0,216,217,218,219,236,238,241,242,245,24
6,257,258,261,262,270,272,273,274,279,28
0,286,287,293,299
..2 CS104M1036X7R CCAP SMD 0.1uF/10V 20% 0306 X7R 33
C6,8,11,13,20,22,28,30,45,47,50,52,59,61,6
7,69,79,88,90,93,95,98,100,103,105,109,11
2,114,117,122,124,128,130
..2 CS105K2506X7R CCAP SMD 1uF/25V 10% 1206 X7R 8 C19,27,58,66,110,115,123,129
..2 CS105K5006X7R CCAP SMD 1UF/50V 10% 1206 X7R 3 C215,233,240
..2 CS106K1005X5R CCAP SMD 10UF/10V 10% X5R 18 C5,7,10,12,39,44,46,49,51,78,87,89,92,94,9
7,99,102,104
..2 CS106M0603X5R CCAP SMD 10uF/6.3V 20% 0603 X5R 3 C80,81,82
..2 CS107M1010X5R CCAP SMD 100uF/10V 20% 1210 X5R 8 C21,29,60,68,113,118,125,131
..2 CS153G5006NPO CCAP SMD 0.015UF/50V 2% 1206 NPO 12 C15,18,33,36,54,57,72,75,150,167,184,201
..2 CS221J5005NPO CCAP SMD 220pF/50V 5% 0805 NPO 20
C141,142,154,158,165,168,173,174,175,17
6,188,192,199,202,207,208,243,244,247,24
8
..2 CS222J5005NPO CCAP SMD 2.2nF/50V 5% 0805 NPO 19 C146,147,148,153,162,163,164,171,180,18
1,182,187,196,197,198,206,288,291,300
..2 CS225K1210X7R CCAP SMD 2.2uF/100V 10% 1210 X7R 6 C281,282,284,285,296,297
..2 CS332J5006NPO CCAP SMD 3300pF/50V 5% 1206 NPO 8 C84,86,106,108,120,126,134,136
..2 CS470J5003NPO CCAP SMD 47pF/50V 5% 0603 NPO 16 C152,156,186,190,249,250,251,252,259,26
0,263,264,269,271,276,277
..2 CS471J2206NPO CCAP SMD 470PF/200V 5% 1206 NPO 1 C231
..2 CS471J5005NPO CCAP SMD 470pF/50V 5% 0805 NPO 4 C211,214,220,223
..2 CS681J5005NPO CCAP SMD 680pF/50V 5% 0805 NPO 16 C83,85,91,96,101,107,111,116,119,121,127
,132,133,135,137,138
..2 CS821J5005NPO CCAP SMD 820pF/50V 5% 0805 NPO 10 C253,254,255,256,265,266,267,268,275,278
..2 CSF473G1606P Film Chip Capacitor 0.047uF/16 4 C149,166,183,200
