Raritan PX3TS
Quick Setup Guide
The PX3TS transfer switch provides AC power to rack IT equipment from one of two AC power sources, and automatically selects which
source powers the load based on power availability and quality.
This Quick Setup Guide is intended for experienced users. For detailed instructions, refer to the PX3TS series User Guide or online help
from the Raritan website (http://www.raritan.com).
Safety Precautions
WARNING! Read and understand all sections in this guide
before installing or operating this product. Failure to heed any
of the following WARNINGS may result in electric shock, fire,
personal injury and death. Prior to operating this product, the
user should read the online User Guide and specifically the
warnings in that Guide.
WARNING! This product contains two inlet power plugs and a
safety hazard may exist if one plug is disconnected and the
other is connected to an energy source. Before connecting or
disconnecting either inlet plug, make sure both sources of
power to this product are turned off.
WARNING! Connect this product to an AC power source
whose voltage is within the range specified on the product's
nameplate.
WARNING! Connect this product to an AC power source that is
current limited by a suitably rated fuse or circuit breaker in
accordance with national and local electrical codes.
WARNING! Use this product in a dry location.
WARNING! Connect this product to a protective earth ground.
Never use a "ground lift adaptor" between the product's plug
and the wall receptacle.
WARNING! If this product is a model that requires assembly of
its line cord or plug, all such assembly must be performed by a
licensed electrician and the line cord or plugs used must be
suitably rated based on the product's nameplate ratings and
national and local electrical codes.
QS Rule
What's Included
The PX3TS device
Bracket pack and screws
Quick Setup Guide
Warranty card
Two fuses (for models with fuses implemented)
A null-modem cable with DB9 connectors on both ends
(Raritan number: 254-01-0006-00)
QS Rule
Mounting the PX3TS
1. Attach mounting ears and mounting brackets to each side
of the PX3TS with provided screws.

PX3TS Transfer Switch Quick Setup Guide 2
QSG-PX3TS-0A-v2.6-E 255-80-0032-00 RoHS

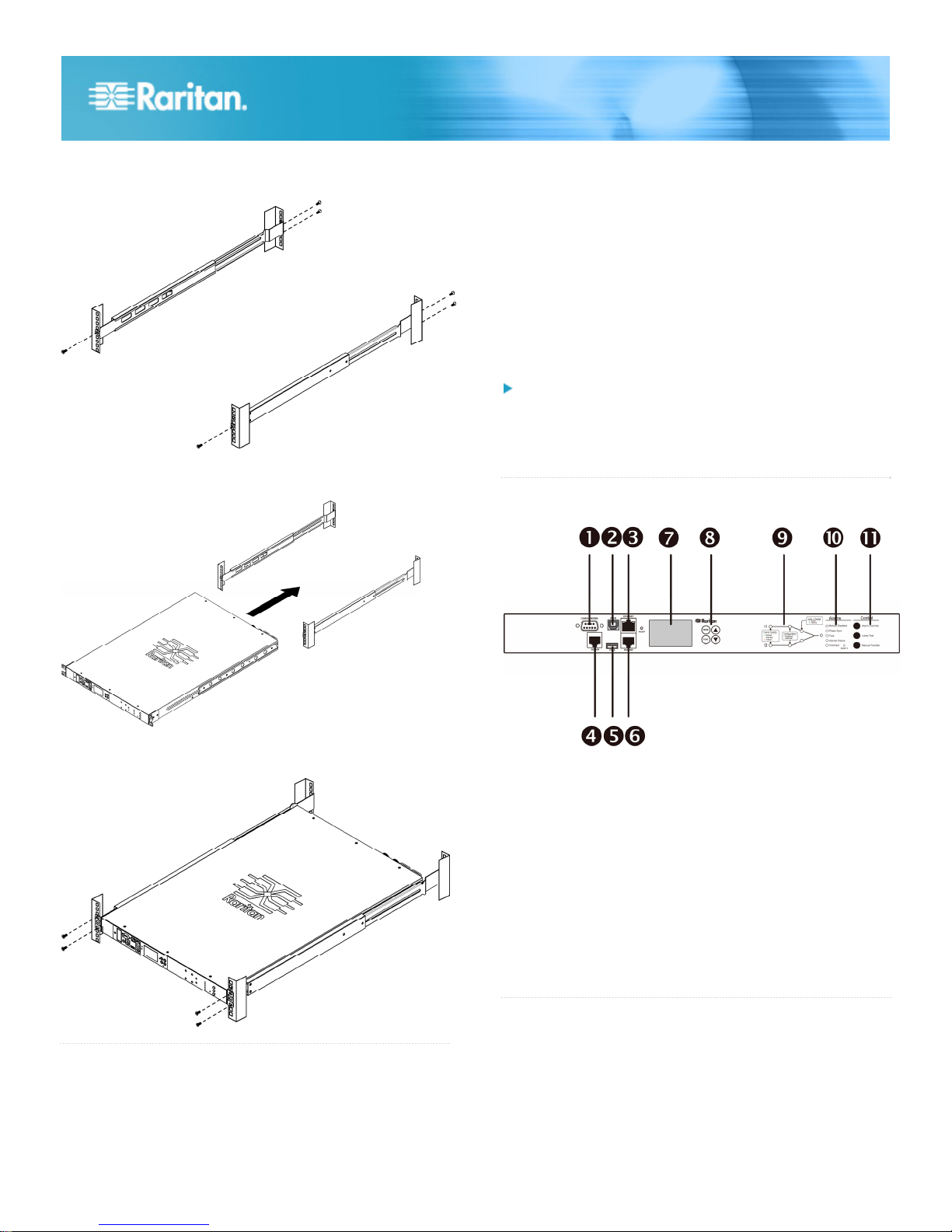

2. Adjust slide-rail assemblies to match your rack posts and
fasten them to the rack using your own fasteners.
3. Line up the mounting brackets with slide-rails and push this
product into rails.
4. Fasten the front mounting ears to the rack using your own
fasteners.
QS Rule
Inlet and Outlet Power Connections
The PX3TS connects to two different, but identically rated,
branch circuits.
The PX3TS will operate when the branch circuit voltages are
out of phase, but works most reliably and fastest when in
phase. The front panel Phase Sync lamp lights if inlets are out
of phase.
Connecting Power and Equipment
Your PX3TS may have fuses or circuit breakers. Verify that all
are firmly seated or set to ON before connecting power.
The PX3TS inlets are labeled INLET 1 (I1) and INLET 2 (I2).
INLET 1 is the factory default preferred inlet.
To make power connections:
1. Connect PX3TS inlets to branch circuits.
2. Connect loads to PX3TS outlets.
3. Apply power to branch circuits.
QS Rule
Front View
1. CONSOLE/MODEM port
2. USB-B port
3. ETHERNET port
4. SENSOR port
5. USB-A port
6. FEATURE port
7. LCD display
8. LCD control buttons
9. Transfer switch status indicators
10. Transfer switch alarm indicators
11. Transfer switch control buttons
QS Rule

PX3TS Transfer Switch Quick Setup Guide 3
QSG-PX3TS-0A-v2.6-E 255-80-0032-00 RoHS
Rear View
This is the rear view of PX3TS-1876R. Your PX3TS may look
slightly different if it is a different model.
1. Inlets
2. Fuses - one per inlet
3. Outlets
4. USB-A port
5. CONSOLE port
QS Rule
Testing Indicator Lamps
Press the Lamp Test control button and visually verify that all
transfer switch indicator lamps turn on.
QS Rule
Power Quality Indicator Lamps
Inlet power quality is shown using a tricolor LED.
Normal (green): Power quality (voltage and frequency) is
good.
Warning (orange): Power quality is not optimal but
acceptable.
Critical (red): Power is not available or power quality is not
acceptable.
Note: See Power Quality Setup (on page 5) for how to
configure voltage and frequency settings.
QS Rule
Inlet Configuration Indicator Lamps
The preferred inlet powers the outlets unless its power quality
goes critical.
A green LED indicates which inlet is preferred. The default is
Inlet 1. The Manual Transfer button may change the preferred
inlet. See Control Push Buttons (on page 4).
QS Rule
Active Inlet Indicator Lamps
A green LED indicates which inlet is powering the outlets. Only
one LED is on at a time. The Manual Transfer button transfers
power to the other inlet.
QS Rule
Operating Modes
Normal: The preferred inlet is active.
Standby: The alternate inlet is active.

PX3TS Transfer Switch Quick Setup Guide 4
QSG-PX3TS-0A-v2.6-E 255-80-0032-00 RoHS
Off: Neither inlet is active because of an alarm or internal failure
or because both inlets go critical. See Manual Transfers (on
page 4) for restoring power.
QS Rule
Automatic Transfers
An automatic transfer to the alternate inlet occurs when the
preferred inlet's power quality goes critical.
An automatic retransfer back to the preferred inlet occurs when
the preferred inlet's power quality returns to normal.
Note: See Transfer Options Setup (on page 5) for retransfer
settings.
QS Rule
Manual Transfers
The Manual Transfer button changes the active inlet and also
sets the newly-activated inlet to be the preferred inlet.
The Manual Transfer button is disabled when an alarm lamp is
active. Use this procedure to override the alarm and force a
manual transfer.
1. Correct the problem in load that caused the alarm.
2. While holding down the Alarm Override button, press
Manual Transfer.
Note: This procedure does not apply when the Manual
Disabled or Fuse alarm lamp is turned on.
QS Rule
Alarm Indicator Lamps
Lamp Meaning
Manual
Disabled
The front panel Manual Transfer button is
disabled.
Phase Sync Inlets are out of phase.
Fuse Blown fuse. Replacement is Bussmann
FWC-32A10F or equivalent.
Internal Failure Internal hardware failure.
Contact Raritan technical support. The web
interface contains additional indicators for
specific internal failures.
Lamp Meaning
Overload Power to load is turned off due to a short
circuit.
QS Rule
Control Push Buttons
Button Action taken when pressed
Alarm Override Forces a manual transfer during an alarm
condition.
Lamp Test Turns on all transfer switch indicator
lamps. Power Quality LEDs turn orange.
Manual Transfer Transfers power to the other inlet.
Newly-activated inlet becomes the
preferred inlet.
QS Rule
PX3TS Configuration
STEP 1: Connect the PX3TS to Your Network
1. Connect a standard Category 5e/6 UTP cable to the
ETHERNET port on the PX3TS.
2. Connect the other end of the cable to your LAN.
Note: You can also use a wireless network. See Wireless
Configuration (on page 8).
Step 2: Display the DHCP-Assigned IPv4 Address
1. Press the MODE button until device settings are displayed,
indicated by a 'd' in at the top left of the display.
2. The LCD display cycles between the four octets of the IPv4
address, indicated by "i4" at the upper right corner of the
display.

PX3TS Transfer Switch Quick Setup Guide 5
QSG-PX3TS-0A-v2.6-E 255-80-0032-00 RoHS
For example, 192.168.84.4 cycles in this sequence:
192, 168, 84, 4
Note: If your network only supports IPv6 or static IPv4
addresses, the IP address must be configured using a serial or
USB port. See Addendum (on page 6) for instructions.

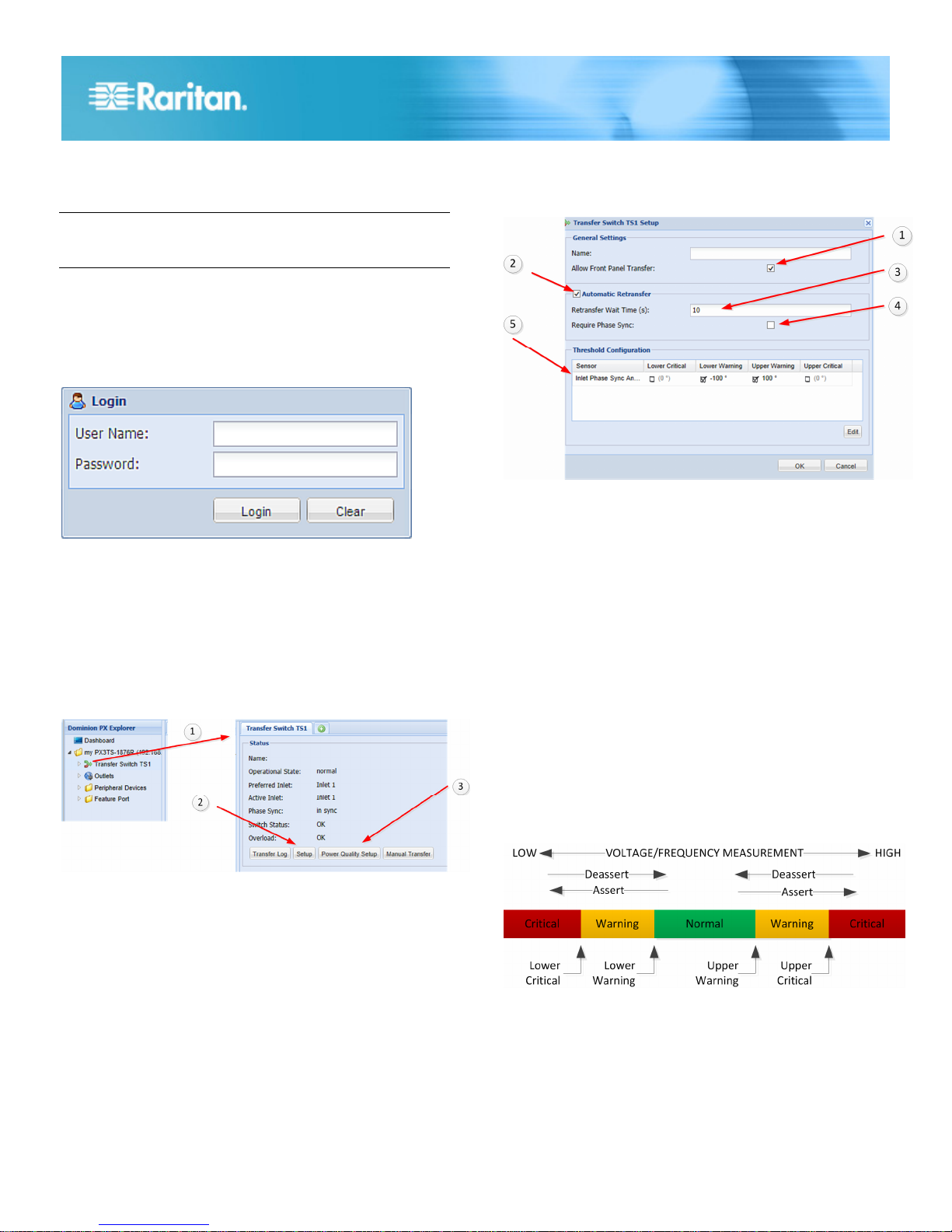

Step 3: Log in to the PX3TS Web Interface
1. Open a browser and type the IP address of the PX3TS
device.
2. The default credentials are: user admin, password raritan.
3. Click Login. The PX3TS home page displays.
4. Change the password if prompted.
Step 4: PX3TS Web Configuration Overview
1. From the Dominion PX Explorer pane, click the Transfer
Switch icon.
2. Click Setup to configure the transfer options.
3. Click Power Quality Setup to configure power quality.
Transfer Options Setup
1. Enable/disable the front panel Manual Transfer button.
2. Enable/disable automatic retransfer. Retransfer is the
transfer back to normal operation when preferred inlet
power is restored.
3. Enter the time (seconds) preferred inlet power must be in
the normal state before retransfer occurs.
4. Enable/disable retransfer when inlets are out of phase.
5. (Optional) Thresholds for inlet phase angle difference
reporting. Values do not affect phase sync detection or
transfers.
Power Quality Setup
Inlet power quality state (normal/warning/critical) is derived
from the inlet's voltage and frequency quality - whichever is
lower. If voltage or frequency is critical, power quality is critical.
If either is warning, quality is warning. When both are normal,
power quality is normal.
PX3TS transfers to standby operation when preferred inlet
power quality goes critical and retransfers to normal operation
when power quality returns to normal. The warning state does
not cause transfers and is intended as an early warning
indication of a possible problem.
When quality goes from better to worse, the state change is
said to assert. You configure how long the quality must remain
in the worse state before the state change actually occurs.
When quality goes from worse to better, the state change is
said to deassert. You configure the hysteresis - how much the
quality must be better than the threshold - before the state
change occurs.

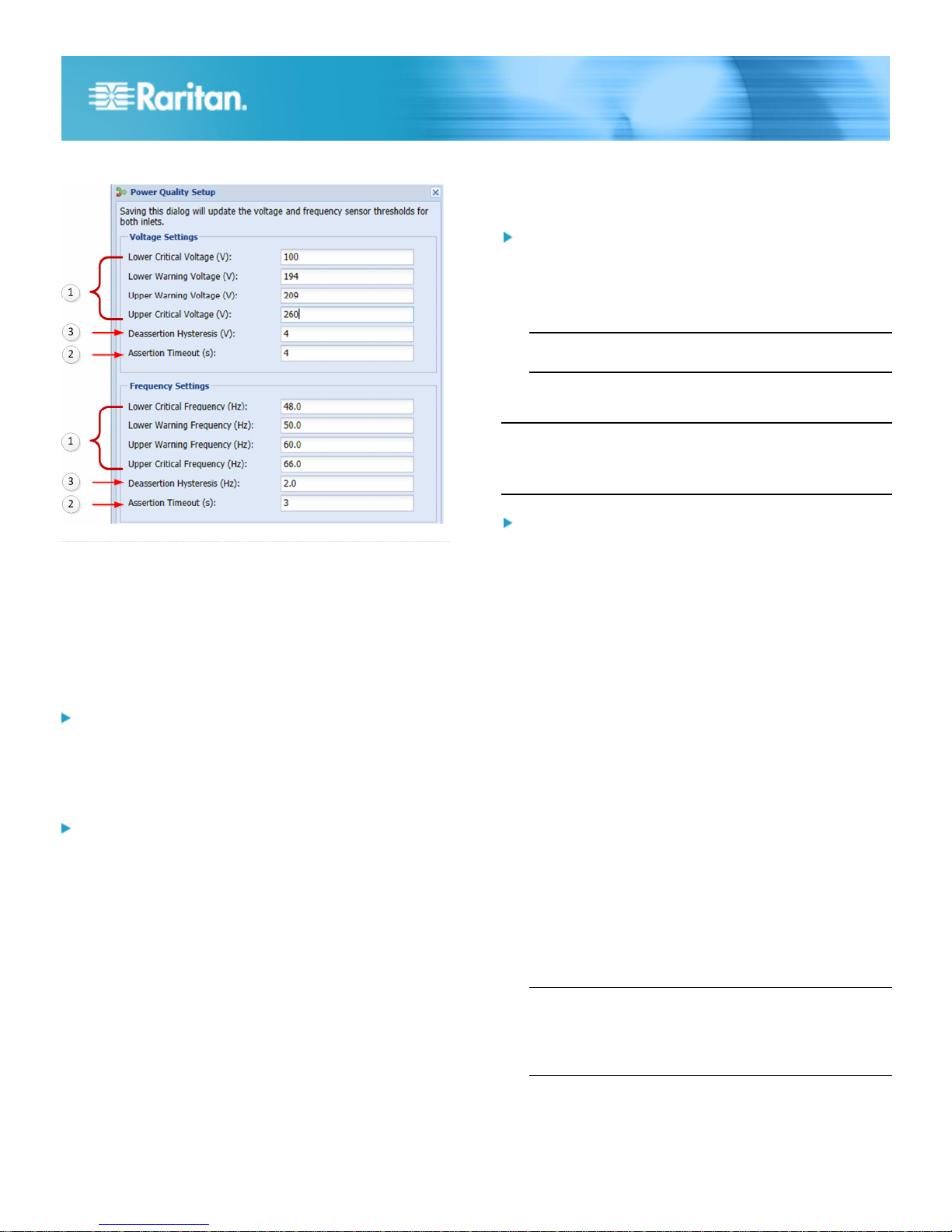

Voltage and frequency configuration is identical.
1. Enter upper and lower thresholds for warning and critical.
2. Enter assertion times (seconds).

PX3TS Transfer Switch Quick Setup Guide 6
QSG-PX3TS-0A-v2.6-E 255-80-0032-00 RoHS
3. Enter deassertion hysteresis values.
QS Rule
Addendum
Network Configuration via an RS-232 or USB Port
Step 1: Connect the PX3TS to a Computer
Connect the PX3TS to a computer via an RS-232 or USB
cable.
RS-232 connection:
1. Connect one end of the null-modem cable to the RS-232
port labeled CONSOLE/MODEM on the PX3TS.
2. Connect the other end to your computer's RS-232 port
(COM).
USB connection:
1. A USB-to-serial driver is required in Windows®. Install this
driver before connecting the USB cable. See Installing the
USB-to-Serial Driver (Optional) (on page 6).
2. Connect one end of a USB cable to the USB-B port on the
PX3TS.
3. Connect the other end to your computer's USB-A port.
Installing the USB-to-Serial Driver (Optional)
The PX3TS can emulate a USB-to-serial converter over a USB
connection. A USB-to-serial driver named "Dominion PX2
Serial Console" is required for Microsoft®Windows®operating
systems. Download the USB Serial Setup 2.0 driver file, which
contains dominion-serial.inf, dominion-serial.cat and
dominion-serial-setup.exe files, from the PX2 section on the
Raritan website (http://www.raritan.com).
There are two ways to install this driver: automatic and manual
installation. Automatic driver installation is highly
recommended.
Automatic driver installation in Windows®:
1. Make sure the PX3TS is NOT connected to the computer
via a USB cable.
2. Run dominion-serial-setup-2.0.exe and follow online
instructions to install the driver.
Note: If any Windows security warning appears, accept it
to continue the installation.
3. Connect the PX3TS to the computer via a USB cable. The
driver is automatically installed.
Note: Manually install the driver only if the automatic
installation fails. See the section titled "Installing the
USB-to-Serial Driver (Optional)" in the online User Guide for
manual installation procedure.
In Linux:
No additional drivers are required, but you must provide the
name of the tty device, which can be found in the output of the
"dmesg" after connecting the PX3TS to the computer. Usually
the tty device is "/dev/ttyACM#" or "/dev/ttyUSB#," where # is
an integer number.
For example, if you are using the kermit terminal program, and
the tty device is "/dev/ttyACM0," perform the following
commands:
> set line /dev/ttyACM0
> connect
STEP 2: Configure the PX3TS
1. On the computer connected to the PX3TS, open a
communications program such as HyperTerminal or
PuTTY.
2. Select the appropriate COM port, and set the following port
settings:
Bits per second = 115200 (115.2Kbps)
Data bits = 8
Stop bits = 1
Parity = None
Flow control = None
Tip: For a USB connection, you can determine the COM
port by choosing Control Panel > System > Hardware >
Device Manager, and locating the "XXX Serial Console"
under the Ports group, where XXX represents this
product's name.
3. In the communications program, press Enter to send a
carriage return to the PX3TS.

PX3TS Transfer Switch Quick Setup Guide 7
QSG-PX3TS-0A-v2.6-E 255-80-0032-00 RoHS
4. The PX3TS prompts you to log in. Both user name and
password are case sensitive.
a. At the Username prompt, type admin and press Enter.
b. At the Password prompt, type raritan and press
Enter.
5. If you are prompted to change the password, follow
onscreen instructions to type your new password.
6. The # prompt appears.
7. Type config and press Enter.
8. To configure network settings, type appropriate commands,
and press Enter. All commands are case sensitive.
a. To set the networking mode, type this command:
network mode <mode>
where <mode> is wired (default) or wireless.
b. For the wired network mode, you may configure the
LAN interface settings. In most scenarios, the default
setting (auto) works well and should not be changed
unless required.
To set Use this command
LAN interface
speed
network interface
LANInterfaceSpeed <option>
<option> = auto, 10Mbps, or 100Mbps.
LAN interface
duplex mode
network interface
LANInterfaceDuplexMode <mode>
<mode> = half, full or auto.
Tip: You can combine multiple commands to configure
multiple parameters at a time. For example,
network interface LANInterfaceSpeed <option>
LANInterfaceDuplexMode <mode>
c. For the wireless network mode, you must configure the
Service Set Identifier (SSID) parameter.
To set Use this command
SSID network wireless SSID <ssid>
<ssid> = SSID string
If necessary, configure more wireless parameters
shown in the following table.
To set Use this command
BSSID network wireless BSSID <bssid>
<bssid> = AP MAC address or none
To set Use this command
Authentication
method
network wireless authMethod
<method>
<method> = psk or eap
PSK network wireless PSK <psk>
<psk> = PSK string
EAP outer
authentication
network wireless
eapOuterAuthentication
<outer_auth>
<outer_auth> = PEAP
EAP inner
authentication
network wireless
eapInnerAuthentication
<inner_auth>
<inner_auth> = MSCHAPv2
EAP identity network wireless eapIdentity
<identity>
<identity> = your user name for EAP
authentication
EAP passord network wireless eapPassword
When prompted to enter the password for
EAP authentication, type the password.
EAP CA
certificate
network wireless eapCACertificate
When prompted to enter the CA certificate,
open the certificate with a text editor, copy
and paste the content into the
communications program.
Note: The content to be copied from the CA certificate
does NOT include the first line containing "BEGIN
CERTIFICATE" and the final line containing "END
CERTIFICATE."
d. To determine which IP protocol (IPv4 or IPv6) is
enabled and which IP address (IPv4 or IPv6) returned
by the DNS server is used, configure the following
parameters.
To set Use this command
IP protocol network ip proto <protocol>
<protocol> = v4Only, v6Only or both
IP address
returned by the
DNS server
n
etwork ip dnsResolverPreference
<resolver>
<resolver> = preferV4 or preferV6

PX3TS Transfer Switch Quick Setup Guide 8
QSG-PX3TS-0A-v2.6-E 255-80-0032-00 RoHS
e. After enabling the IPv4 or IPv6 protocol in the earlier
step, configure the IPv4 or IPv6 network parameters.
To set Use this command
IPv4
configuration
method
network ipv4 ipConfigurationMode
<mode>
<mode> = dhcp (default) or static
IPv6
configuration
method
network ipv6 ipConfigurationMode
<mode>
<mode> = automatic (default) or static
Configure the preferred host name for the IPv4
DHCP or IPv6 automatic configuration.
Note: The <version> variable in all of the following
commands is either ipv4 or ipv6, depending on the type of
the IP protocol you have enabled.
To set Use this command
Preferred host
name (optional)
network <version>
preferredHostName <name>
<name> = preferred host name
Tip: To override the DHCP-assigned DNS servers with
those you specify manually, type this command:
network <version> overrideDNS <option>
where <option> is enable or disable. See the table
below for the commands for manually specifying DNS
servers.
For the static IP configuration, configure these
parameters.
To set Use this command
Static IPv4 or
IPv6 address
network <version> ipAddress <ip
address>
<ip address> = static IP address
IPv4 subnet
mask
network ipv4 subnetMask <netmask>
<netmask> = subnet mask
IPv4 or IPv6
gateway
network <version> gateway <ip
address>
<ip address> = gateway's IP address
To set Use this command
IPv4 or IPv6
primary DNS
server
network <version>
primaryDNSServer <ip address>
<ip address> = IP address of the primary
DNS server
IPv4 or IPv6
secondary DNS
server (optional)
network <version>
secondaryDNSServer <ip address>
<ip address> = IP address of the secondary
DNS server
9. To quit the configuration mode, type either of the following
commands, and press Enter.
Command Description
apply Save all configuration changes and exit.
cancel Abort all configuration changes and exit.
The # prompt appears, indicating that you have quit the
configuration mode.
10. To verify whether all settings are correct, type the following
commands one by one.
Command Description
show network Show network parameters.
show network ip all Show all IP configuration
parameters.
show network
wireless details
Show all wireless parameters.
Tip: You can type "show network wireless" to display
a shortened version of wireless settings.
11. If all are correct, type exit to log out of the PX3TS. If any
are incorrect, repeat Steps 7 to 10 to change network
settings.
QS Rule
Wireless Configuration
USB Wireless LAN Adapters
The following table lists USB wireless LAN adapters that the
PX3TS supports.
Wi-Fi LAN adapter Supported 802.11 protocols
Proxim Orinoco 8494 A/B/G
Zyxel NWD271N B/G
Edimax EW-7722UnD A/B/G/N
Raritan USB WIFI A/B/G/N

PX3TS Transfer Switch Quick Setup Guide 9
QSG-PX3TS-0A-v2.6-E 255-80-0032-00 RoHS
Note: To use the Edimax EW-7722UnD or Raritan USB WIFI
wireless LAN adapter to connect to an 802.11n wireless
network, the handshake timeout setting must be changed to
500 or greater, or the wireless connection will fail.
Built-in Wireless LAN Adapters
If the Raritan product you purchased has been implemented
with the following 802.11 wireless LAN adapter when shipping
out of the factory, no USB wireless LAN adapters are required
to make a wireless connection.
Wi-Fi LAN adapter Supported 802.11 protocols
HD-Wireless B/G
Supported Wireless LAN Configuration
If a wireless connection is preferred, ensure that the wireless
LAN configuration of your PX3TS matches the access point.
The following is the wireless LAN configuration that the PX3TS
supports.
Network type: 802.11 A/B/G/N
Protocol: WPA2 (RSN)
Key management: WPA-PSK, or WPA-EAP with PEAP
and MSCHAPv2 authentication
Encryption: CCMP (AES)
Important: Raritan only supports specific wireless LAN
adapters. Supported 802.11 network protocols vary
according to the wireless LAN adapter being used with the
PX3TS. See USB Wireless LAN Adapters (on page 8).
Making a Wireless Connection
The PX3TS can be connected to a wireless network.
To make a wireless connection:
Do one of the following:
Plug a supported USB wireless LAN adapter into the
USB-A port on your PX3TS.
Connect a USB docking station to the USB-A port on
the PX3TS and plug the supported USB wireless LAN
adapter into the appropriate USB port on the docking
station.
See USB Wireless LAN Adapters (on page 8) for a list of
supported wireless LAN adapters.
QS Rule
Additional Information
For more information about the PX3TS®and the entire Raritan
product line, see Raritan's website (www.raritan.com). For
technical issues, contact Raritan Technical Support. See the
Contact Support page in the Support section on Raritan's
website for technical support contact information worldwide.
Raritan's products use code licensed under the GPL and LGPL. You can request
a copy of the open source code. For details, see the Open Source Software
Statement at
(http://www.raritan.com/about/legal-statements/open-source-software-statement
/) on Raritan's website.
