Razer BLACKSHARK V2 User manual

.
RAZER BLACKSHARK V2
MASTER GUIDE
Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Razer Blackshark V2
o cerca il tuo prodotto tra le migliori offerte di Cuffie e Microfoni

FOR GAMERS . BY GAMERS .™
1
If esports is everything, give it your all with the Razer BlackShark V2.
Introducing a triple threat of amazing audio, superior mic clarity, and
supreme sound isolation. Fitted with titanium-coated drivers, a USB sound
card, softer ear cushions and THX Spatial Audio, your time to turn pro is
now.

FOR GAMERS . BY GAMERS .™
2
CONTENTS
1. WHAT’S INSIDE / WHAT’S NEEDED........................................................................................................3
2. LET’S GET YOU COVERED .......................................................................................................................5
3. TECHNICAL SPECIFICATIONS ..................................................................................................................6
4. CONNECTING THE HEADSET ..................................................................................................................7
5. USING THE RAZER BLACKSHARK V2 .......................................................................................................9
6. CONFIGURING YOUR RAZER USB SOUND CARD..................................................................................12
7. SAFETY AND MAINTENANCE................................................................................................................26
8. LEGALESE..............................................................................................................................................27

FOR GAMERS . BY GAMERS .™
3
1. WHAT’S INSIDE / WHAT’S NEEDED
WHAT’S INSIDE
▪Razer BlackShark V2
A. Adjustable padded headband
B. Ultra-soft memory foam ear
cushions
C. 3.5 mm audio + mic jack
D. Volume control knob
E. Mic mute button
▪Removable RazerTM HyperClear cardioid mic
▪USB sound card
▪Important Product Information Guide

FOR GAMERS . BY GAMERS .™
4
WHAT’S NEEDED
PRODUCT REQUIREMENTS
▪Devices with a free USB port
▪Devices with 3.5 mm audio + mic combined jack*
RAZER SYNAPSE REQUIREMENTS
▪Windows® 10 64-bit (or higher)
▪Internet connection for software installation
*Compatible with PC / Mac / Switch / PS4 / Xbox One (Xbox One Stereo Adapter may be required,
purchased separately).

FOR GAMERS . BY GAMERS .™
5
2. LET’S GET YOU COVERED
You’ve got a great device in your hands, complete with a 2-year limited warranty coverage. Now
maximize its potential and score exclusive Razer benefits by registering at razerid.razer.com
Got a question? Ask the Razer Support Team at support.razer.com
Your product’s serial
number can be found here.

FOR GAMERS . BY GAMERS .™
6
3. TECHNICAL SPECIFICATIONS
HEADPHONES
▪Frequency response: 12 Hz - 28 KHz
▪Impedance: 32 Ω @ 1 KHz
▪Sensitivity (@1kHz): 100 dB SPL / mW,1KHz
▪Drivers: Customized Dynamic 50 mm Driver
▪Inner ear cup diameter: 65 mm x 40 mm / 2.56 in x 1.57 in
▪Connection type: 3.5 mm with USB sound card
▪Cable length: 1.8 m / 5.91 ft
▪Approx. weight: 262 g / 0.6 lbs
▪Oval ear cushions: Breathable memory foam cushions
MICROPHONE
▪Frequency response: 100Hz - 10KHz
▪Signal-to-noise ratio: 60 dB
▪Sensitivity (@1kHz) -42 dB V/Pa,1KHz
▪Pick-up pattern: Unidirectional
▪Mute Function: Click-to-mute

FOR GAMERS . BY GAMERS .™
7
4. CONNECTING THE HEADSET
TO YOUR PC VIA USB PORT
1. Plug your headset to the USB Sound Card, and then to your PC.
2. On your PC, right-click on the sound icon on the system tray, and then select Open Sound
settings.

FOR GAMERS . BY GAMERS .™
8
3. On the Sounds window, set Razer USB Sound Card as the default Output and Input device.
TO OTHER DEVICES VIA USB PORT
Plug your Razer BlackShark V2 to the Razer USB Sound Card*, and then to your device. Make sure the
Razer USB Sound Card is set as the default input and output device.
*Compatible with PC / Mac / Switch / PS4.
TO DEVICES VIA 3.5MM COMBO PORT
If your device has a 3.5mm audio + mic combined port, simply plug the 3.5mm audio + mic connector
from your headset to your device’s audio port.

FOR GAMERS . BY GAMERS .™
9
5. USING THE RAZER BLACKSHARK V2
USING THE MICROPHONE
Plug the Razer™HyperClear Cardioid Mic to the headphone, then bend until it is parallel to your
mouth. Make sure the mic diaphragm is in front and the air vent is facing away from your mouth.
MUTING / UNMUTING THE MICROPHONE
Press the mic mute button to mute or unmute the microphone.
Mic diaphragm
Air vent

FOR GAMERS . BY GAMERS .™
10
ADJUSTING THE VOLUME
Rotate the volume control knob as shown below to increase or decrease the volume.
EXTENDING YOUR HEADSET’S LIFESPAN
We recommend stretching the headset gently apart before placing them over your head to minimize
headband stress. However, please avoid overstretching the headset beyond its technical limits.
Increase
volume
Decrease
volume

FOR GAMERS . BY GAMERS .™
11
ACTIVATE THX SPATIAL AUDIO
Unleash the full potential of your Razer BlackShark V2 by enabling 360° positional audio for a natural
and lifelike experience through Razer Synapse.

FOR GAMERS . BY GAMERS .™
12
6. CONFIGURING YOUR RAZER USB SOUND CARD
Internet connection is required for installation, updates and cloud -based features.
Registering for a Razer ID account is recommended, but optional. All listed features are
subject to change based on the current software version, connected device(s), and
supported apps and software.
SYNAPSE TAB
The Synapse tab is your default tab when you first launch Razer Synapse. This tab allows you to
navigate the Dashboard subtab.
Dashboard
The Dashboard subtab is an overview of your Razer Synapse where you can access all your Razer
devices, modules, and online services.

FOR GAMERS . BY GAMERS .™
13
Modules
The Modules subtab displays all installed and available modules for installation.

FOR GAMERS . BY GAMERS .™
14
Global Shortcuts
Bind operations or Razer Synapse functions to custom key-combinations from any Razer Synapse-
enabled device inputs which apply across all device profiles. Learn more about Profiles
Only Razer Synapse-enabled device inputs will b e recognized.

FOR GAMERS . BY GAMERS .™
15
AUDIO TAB
Make sure to select THX Spatial Audio as your default playback or output device from the Sound
icon on the system tray.
The Audio tab is the main tab for your Razer USB Sound Card. From here, you can customize your
device’s settings to unleash its full potential. Changes made under this tab are automatically saved to
your system and cloud storage.
SOUND
The Sound subtab is for adjusting the overall system volume or individual volume of all active
applications, changing the default fallback device, and accessing Windows Sound properties.
Profile
Profile is a data storage for keeping all your Razer peripheral’s settings. By default, the profile name is
based on your system’s name. To add, rename, duplicate, or delete a profile, simply press the
Miscellaneous button ( ).

FOR GAMERS . BY GAMERS .™
16
Volume
Adjust the audio volume of the device. You may also access the Windows volume mixer of the current
playback device where you can proportionally adjust the overall volume of the system or individually
adjust the volume of each active application.
Sound Properties
Set a default output device that the THX Spatial Audio will use when the Razer USB Sound Card is not
connected. You may also click on the Windows Sound Properties link to manage the sound settings of
your system such as modifying the playback and recording device settings, sound scheme and default
communications activity.

FOR GAMERS . BY GAMERS .™
17

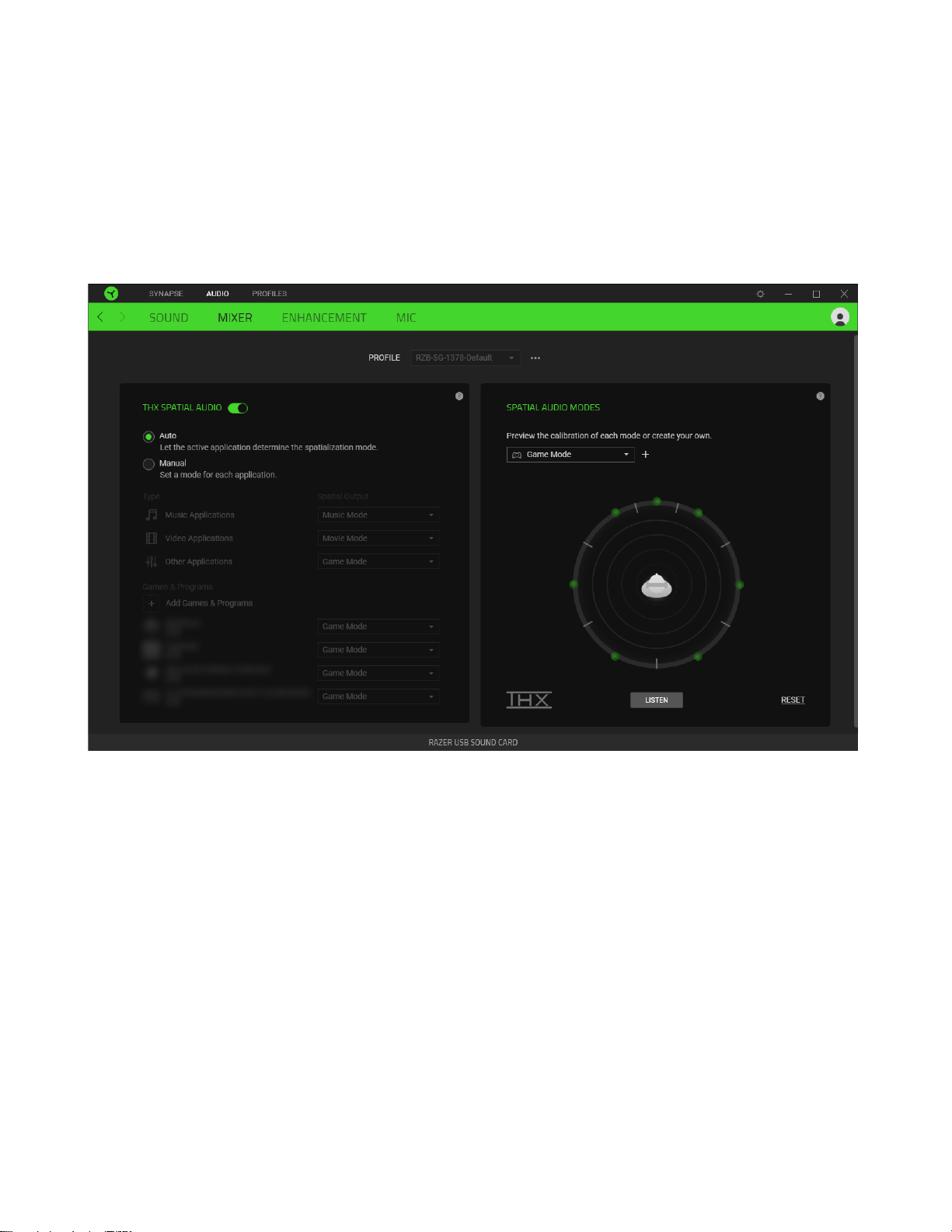

MIXER
The Mixer subtab allows you to enable or disable the THX Spatial Audio and its settings, as well as
calibrate the audio positioning of all virtual speakers of the active spatial audio mode.
THX Spatial Audio
THX Spatial Audio technology is an advanced positional audio solution that delivers a heightened,
immersive experience as you game.
Toggle this setting to enable or disable THX Spatial Audio and its settings. By default, this is set to
Auto where all applications will use the recommended output setting. Using Manual will allow you to
assign preferred spatial audio modes to specific application types and/or applications.
Spatial Audio Modes
Preview the calibration of each available spatial audio mode preset using the Listen button. Changing
the position of any virtual speaker (in any preset mode) will automatically create a Custom Mode.
Alternatively, you may also click on the Add button ( + ) to create a new Custom Mode.

FOR GAMERS . BY GAMERS .™
18
On any Custom Mode, click on the miscellaneous button ( ) to rename, duplicate, or delete the
selected custom mode. To revert the current mode to its original settings, click on the Reset button.

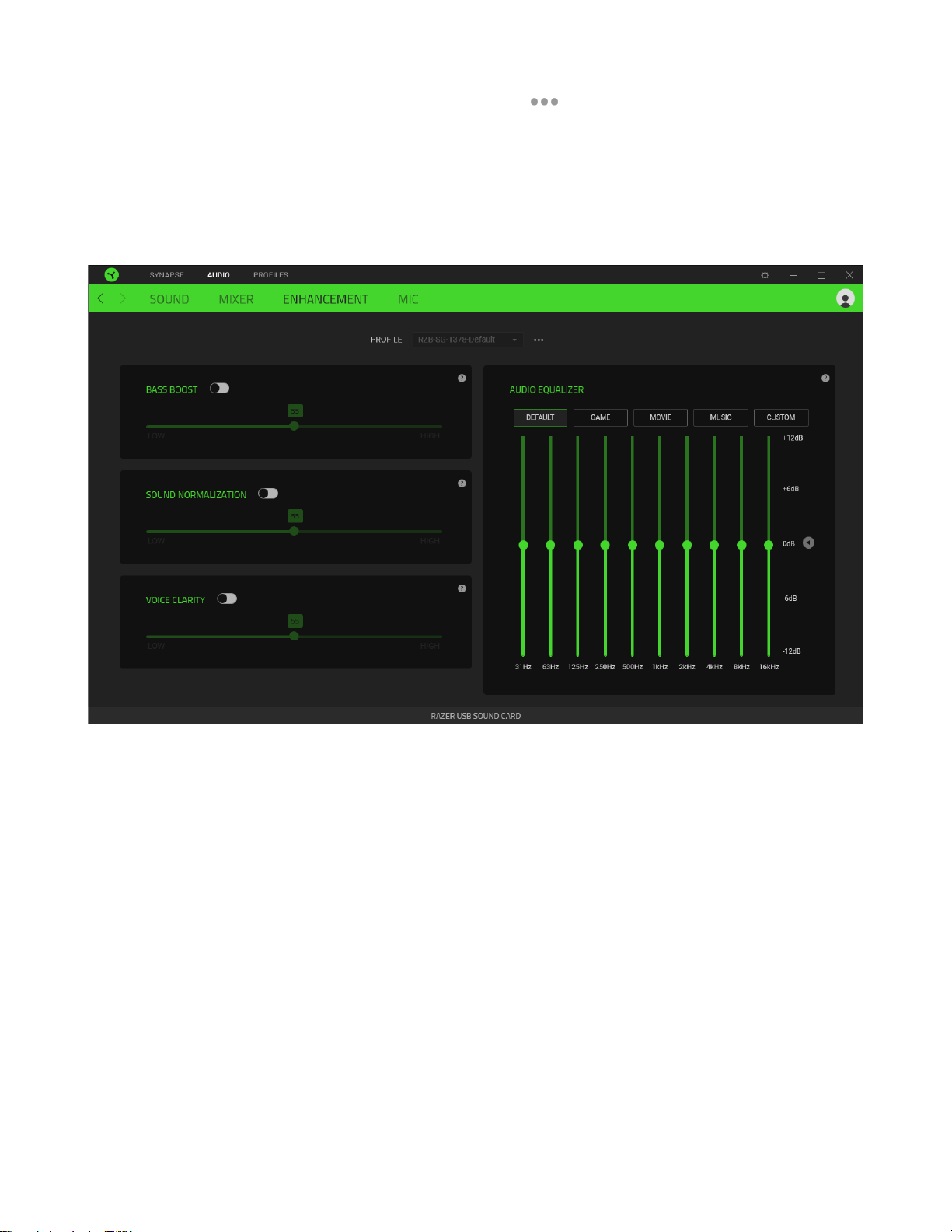

ENHANCEMENT
The Enhancement subtab is for customizing the incoming audio settings and frequency response of
your audio system.
Bass Boost
Enhances the low frequency response to improve the bass output of your headset.
Sound Normalization
Reduces the loudest audio received to avoid sudden and unpleasant increase in volume from effects
such as shouting or explosions.
Voice Clarity
Improves the quality of incoming voice conversations by filtering the sound to improve clarity and
adjusts the volume.

FOR GAMERS . BY GAMERS .™
19
Audio Equalizer
Select any of the available equalizer presets created for the best audio experience designed for
balance, gaming immersion, movie viewing, or enjoying your favorite music. Manually adjusting any
equalizer preset will automatically set it to Custom.
MIC
The Mic subtab enables you to change the settings for all outgoing mic audio.
Microphone
Control the mic volume and amount of mic input for a clearer mic audio.
Mic Volume
Adjust the microphone input or mute the mic.
